DAEWOO ELECTRONICS AVS1547 User manual

1
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
Bluetooth Karaoke Machine
User Manual
Kids Karaoke Machine with Effects
AVS1547
User Manual
*Please refer to the warranty section for terms of your extended guarantee.
*

2
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
6 Explanation of Symbols
7 Description of Parts
8 Description of Parts –Right Hand Side Connections
8 Description of Parts –Accessories Included
8 Before the First time You use Your Kids Karaoke Machine
9 Charging Your Karaoke Machine
9 Downloading and About Karaoke Tracks
9 Using Your Karaoke Machine
9 Voice Effects Button
10 Sound Effects Button
10 Crowd Cheering Effects Button
10 Airhorn Effects Button
10 Laser Gun Effects Button
10 Record Function
10 Using the Line In Jack
10 Light Mode Button
11 Care and Maintenance of Your Karaoke Machine
11 Troubleshooting
12 Technical Specification
12 Sunfly Karaoke

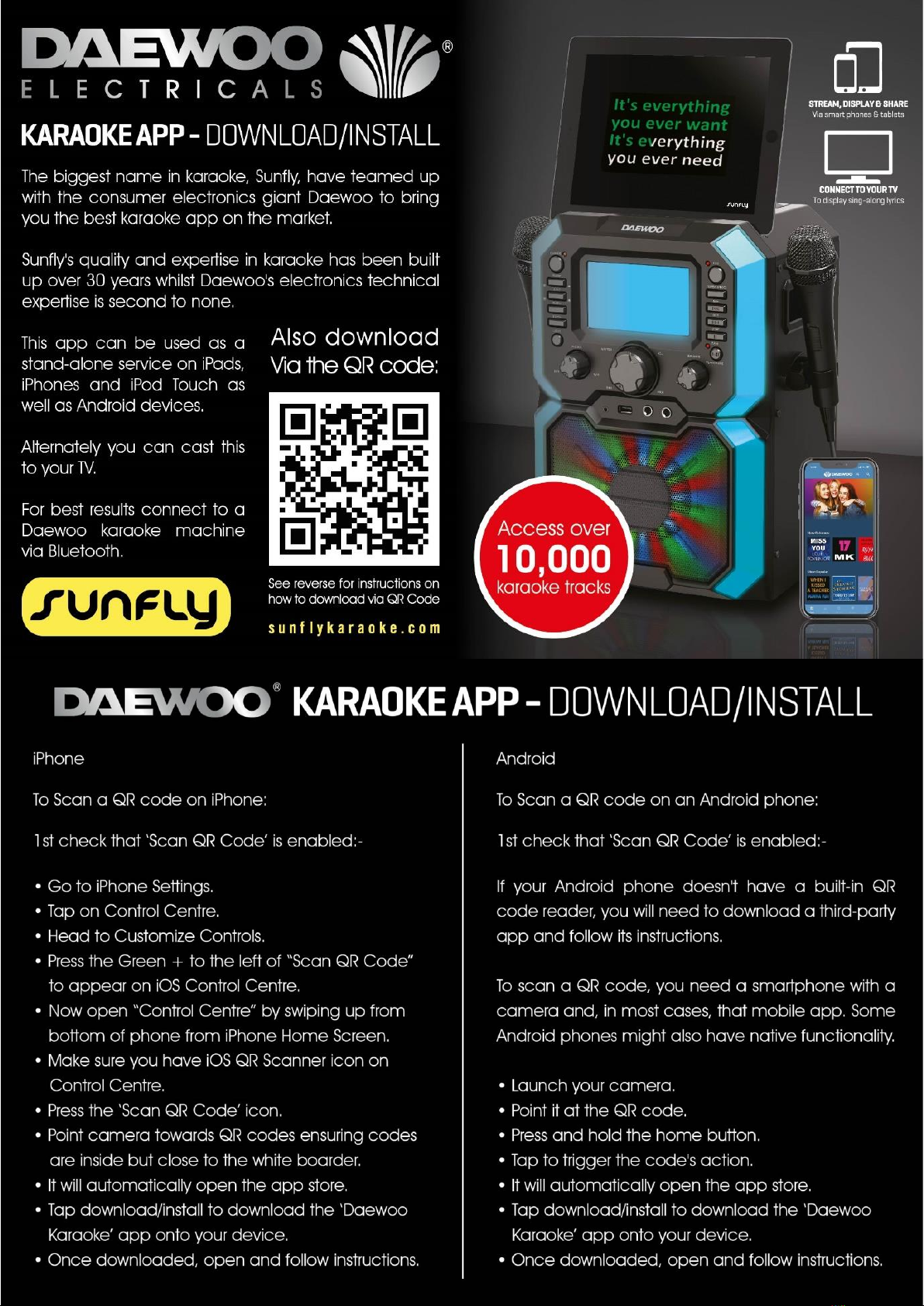

13 Karaoke App –Download/Install
14 Customer Support
15 Recycling Information
Back Page Warranty Information

3
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety
instructions. Failure to do so may result in personal injury or
damage to the product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
Whilst using electrical appliances, basic safety precautions should
always be followed:
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
•Read and familiarise yourself with all operating
instructions before using this Karaoke Machine.
•Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
•Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
•Always use this appliance on a solid, level, non-flammable
surface.
•Ensure that there is clearance of at least 100mm (4
Inches) minimum around the Karaoke machine for
sufficient ventilation.
•Ensure that the ventilation openings are not covered with
items, such as newspapers, table-cloths, curtains, etc.
•No naked flame sources, such as lighted candles, should
be placed on the Karaoke Machine.
•DO NOT position the Karaoke Machine close to sources of
heat such as radiators, heaters, other electronic
equipment, etc.
•The Karaoke Machine shall not be exposed to dripping or

4
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
•DO NOT immerse this appliance or its supply in water or
any other liquids.
•DO NOT leave the appliance unattended during use.
•DO NOT leave the appliance unattended whilst connected
to the mains supply.
•Always remove the mains supply from the mains socket
when the Karaoke Machine is not in use, the mains supply
must be accessible at all times.
•Close supervision is required when using this appliance
near children.
•Never leave this appliance within reach of children.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
•Children of less than 3 years should be kept away unless
continuously supervised.
•DO NOT use this appliance outdoors.
•It is imperative to unplug the power supply after the
appliance has been used, before it is cleaned and whilst
being repaired.
•Unplug after each use. Grasp the supply, not the cord.
•Repairs to electrical appliances should only be performed
by qualified personnel. Improper repairs may place the
user at serious risk.
•DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
•Regular, periodic checks should be carried out on the

5
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
mains supply to ensure no damage is evident. Should
there be any signs of damage the product should not be
used.
•If the power cable is damaged, it should only be replaced
by the manufacturer or a suitable qualified after-sales-
service in order to avoid a hazard
•DO NOT allow the power cable to hang over sharp edges
or come in contact with hot surfaces.
•DO NOT run the power cable under carpets, rugs, etc.
•This product is intended for household use only and
should not be used for industrial purposes.
•DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
•DO NOT use this product for anything other than its
intended use.
•DO NOT push objects into any openings as damage to the
product and/or electric shock may occur.

6
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
Explanation of Symbols
The following symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
This symbol provides useful additional information on the use of
this product.
This symbol identifies voltage and the current rating for direct
current.
This symbol means batteries and rechargeable batteries may not
be disposed of with household waste!
As the end user you are required by law to bring all batteries and
rechargeable batteries to a collection point run by the Local
Authority or to a retailer or visit www.recycle-more.co.uk, so
that they can be disposed of in an environmentally friendly
manner.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.

7
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
Description of Parts –Front Panel
6
1
7
8
9
10
11
12
13
14
15
2
3
4
5
16
1. Carrying Handle
2. MASTER VOLUME Control
3. CROWD CHEERING Effect Button
4. RECORD Button
5. RECORD Indicator
6. Bluetooth Indicator
7. Bluetooth Button
8. LASER GUN Effect Button
9. AIRHORN Effect Button
10. Internal Speaker
11. VOICE Effects Button
12. SOUND Effects Button
13. On/Off Button
14. Power on Indicator
15. LIGHTS Mode Button
16. PLAYBACK Button

8
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
Description of Parts –Right Hand Side Connections
Description of Parts –Accessories Included
Before the first time you use your Kids Karaoke Machine
Remove all packing materials and discard responsibly.
Ensure that all parts are present –See Description of Parts above.
22. Microphone (x2) with on/off Switch
23. USB Charging Cable
24. Micro USB Plug
25. Large USB Plug
17
18
19
20
17. Line-in Jack
18. Microphone 1 Input Jack
19. Microphone 2 Input Jack
20. Micro USB Charging Port
21. Charging Indicator
22
23
24
25
21

9
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
Charging Your Karaoke Machine
Before using your Kids Karaoke Machine, please ensure that it is fully charged as
follows:
a. Insert the Micro USB Plug (24) of the USB Charging Cable (23) into the Micro
USB Charging Port (20) on the right-hand side of the unit.
b.Insert the Large USB Plug (25) on the other end of the USB Charging Cable (23)
into a suitable USB charger rated at 1 Amp or higher (most USB supplies are
rated at 1Amp or more).
c. The Charging Indicator (21) will illuminate red to show the unit is charging.
d.The Charging Indicator (21) will go out to show that the unit is fully charged and
the USB Charging Cable (23) can be removed.
Downloading and About Karaoke Tracks
Your Karaoke machine can play standard audio only tracks in MP3 format or
MP3+G Karaoke tracks which will display the words on your phone, tablet, etc. as
well as play an audio backing track.
Download Karaoke tracks to your Mobile Phone, Tablet or other device using the
Daewoo App shown below or go to the Sunfly Website www.sunflykaraoke.com
Using Your Karaoke Machine
1.Press the On/Off button (13) to power up your Karaoke Machine.
1.Enable the Bluetooth mode on your Phone, Tablet or other Bluetooth enabled
device and set it to search.
2.Select ‘AVS1547’ from the search results found by your device. Once the device
has paired with the Karaoke Machine a chime will be heard and the Bluetooth
Indicator (6) will light continuously.
3.Connect the Microphone(s) (22) to the Microphone Input Jacks 1 (18) and (19)
and slide the ON/OFF switch on the Microphone to the ON position.
4.Press play on your Phone, Tablet or other Bluetooth enabled device which has
the Karaoke tracks downloaded on to start the track playing.
5.Adjust the volume to the desired level using the MASTER VOLUME control (2).
VOICE Effects Button (11)
Press the VOICE Effects button (11) to change the singers voice to one of the six
following effects:
a. Echo
b. Squeaky
c. Deep
d. Chipmunk
e. Robotic
f. Gramophone
The VOICE Effects button (11) will affect both microphones.

10
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
SOUND Effects Button (12)
Press the SOUND Effects button (12) to select different instrumental melodies
that can be played in between singers for that professional touch.
CROWD CHEERING Effect Button (3)
Press the Crowd Cheering Effect button (3) for a cheering and clapping audience
effect.
AIRHORN Effect Button (9)
Press the AIRHORN Effect button (9) for an Airhorn sound effect.
LASERGUN Effect Button (8)
Press the LASERGUN Effect button (8) for a Lasergun sound effect.
Record Function REC
The Record function allows your Karaoke machine to record your singing
performances.
1.Ensure the machine is fully charged as described above.
2.Press the RECORD button (4), the RECORD Indicator (5) will illuminate to show
that the machine is now recording.
3.Press the RECORD button (4) again to stop and exit recording mode and the
RECORD Indicator (5) will go out.
4.To playback recordings, press the PLAYBACK button (16) the RECORD Indicator
(5) will flash and the machine will playback the last recording. Press the
PLAYBACK button (16) to stop playback.
5.Adjust the volume to the desired level using the MASTER VOLUME control (2).
The recording time is up to one minute, also when a new recording is made
the previous recording will be recorded over.
Using the Line-in Jack (17)
The Line-in Jack allows a direct wired connection of an external audio signal source.
1.Press the On/Off button (13) to power up your Karaoke Machine.
2.Insert a 3.5mm Jack audio cable (not supplied) into the Line-in Jack (17)
3.Adjust the connected device controls in the usual manner to playback through
the machine.
LIGHTS Mode Button (15)
Press the LIGHTS Mode button (15) to select one of the three light modes on the
front of the unit as follows:
•Lights Mode 1: The lights will move to the music being played –sound to light
mode.
•Lights Mode 2: The lights will chase up and down with random colours.
•Lights Mode 3: The lighting effect will be turned off.

11
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
Care and Maintenance of your Karaoke Machine
•Always ensure the Karaoke Machine is disconnected from the USB supply
before cleaning.
•Clean outside of the Karaoke Machine with a clean, soft dry cloth. Never clean
with harsh or abrasive cleaners.
•Do not clean with furniture wax or polish sprays.
•Do not submerge the Karaoke Machine or Microphones in water or any other
liquids.
Troubleshooting
Problem
Possible Solution
No Power
•Press the On/Off button to turn the unit on.
•Check that the USB plug is correctly inserted to
the USB port.
•Connect the unit to another USB charging
supply.
•The internal batteries need recharging.
No Sound –General
•VOLUME control is set to minimum; raise the
volume control.
•If using an external device, raise the volume
control.
No Sound from the
Microphone
•Make sure microphone is correctly inserted to
the MIC jack socket.
•Make sure microphone is switched on.
•VOLUME control is set to minimum; raise the
volume control.
The Bluetooth device
cannot be paired or
connected with the unit
•You have not enabled Bluetooth mode of your
device; enable Bluetooth mode or refer to the
Bluetooth devices user manual.
•The Bluetooth device is not paired with the
machine –see Using Your Karaoke Machine
above.
The Music is not available
on the unit after
successfully connecting the
Bluetooth
•Ensure your Bluetooth device can support the
A2DP Bluetooth profile.
•The volume on the external Bluetooth device is
set low or muted; raise volume/unmute as
necessary.

12
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
Technical Specification
Sunfly Karaoke
Model Number
AVS1547
USB Supply
DC 5V 1A
Battery
1200mAh 3.7V Lithium
Loudspeaker
1x 3” (Max Volume 80db)
Weight
0.5kg approx..
Dimensions
192mm(W) x 83mm(D) x 199mm(H)
approx.
Audio Output Power
3.0W RMS
Operation Temperature
0°C to + 35°C
Playing Time
Up to 3 hours
Charging Time
4 hours
Charging Interface
Micro USB
Bluetooth Range
≥ 10 metres
Bluetooth Frequency
2402-2480MHz
Bluetooth Transmission Power
≦-3.325dBm
Microphone Inputs
2x 3.5mm Jack Sockets
Master Volume turn to left
MAX 80db (meets EN71-1)
Master Volume turn to right
Exceeds 80db
Playback Standard
AUX & Bluetooth
Auxiliary Line Input
3.5mm Jack Socket
This product conforms to Radio Equipment Directive 2014/53/EU
Sunfly Karaoke is the premier Karaoke label in the UK and Europe.
It has been established since 1991, with a back catalogue of more than 20,000 Karaoke
songs in a huge range of genres and languages for any occasion.
Visit www.sunflykaraoke.com to find a wide range of collections and individual tracks
to download, stream, or have sent direct to your door on your own personalised
karaoke disc. You can also purchase CDG and DVD discs along with a range of
microphones and mixers.

13
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual

14
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual

15
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling
facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling
facilities.
Dispose of non-recyclable plastics in the appropriate plastics
collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste. Please ensure it is taken to a
suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk enter
your postcode to find out your nearest recycling site
This symbol means batteries and rechargeable batteries may not
be disposed of with household waste!
As the end user you are required by law to bring all batteries and
rechargeable batteries to a collection point run by the Local
Authority or to a retailer or visit www.recycle-more.co.uk, so that
they can be disposed of in an environmentally friendly manner.

16
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Kids Karaoke Machine with Effects
Model No. AVS1547
User Manual
WARRANTY
Thank you for purchasing your Daewoo Audio product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo audio product is guaranteed for 1 year from the date of original purchase, with
proof of purchase or receipt. If any defect should occur due to faulty workmanship or material,
your faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
• The product must becorrectly installed and operated in accordance with the requirements
contained in the instruction manual.
• The product must beused solely for domestic purposes.
• It does not cover general wear and tear, damage, misuse or any consumable parts.
• The guarantee will berendered invalid if the product is re-sold or has been damaged through
inexpert repair.
• The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and covers
the main body and housing). If you do not register your product within 28 days of the original
purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28 days
of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo Electricals is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
