Daewoo DV6T822MX-ST1 User manual

DVD-VIDEO PLAYER
OwnerÕs Manual
M
ODEL : DV6T822MX-ST1
◆In the initial settings, exclusive channel for DVD/Video is set to CH 3.
Set the TV channel to CH3 before using it.
◆Region code of DVD/Video player for home is 4 or ALL. In inserting a
disc with other region code, it does not operate. Please only use a disc
with region code 4 or ALL.
◆is a ‘Prohibition’ mark. If this mark is displayed in operating the
product, please wait for a while, then use it. If " Prohibition" mark
continues to be displayed in pressing a button after that, it means
the button does not function in the currently played disc.
◆Press a product button on the remote control then use the product.
• DVD operation : [DVD] button
• Video operation : [VCR] button

Product Information
1

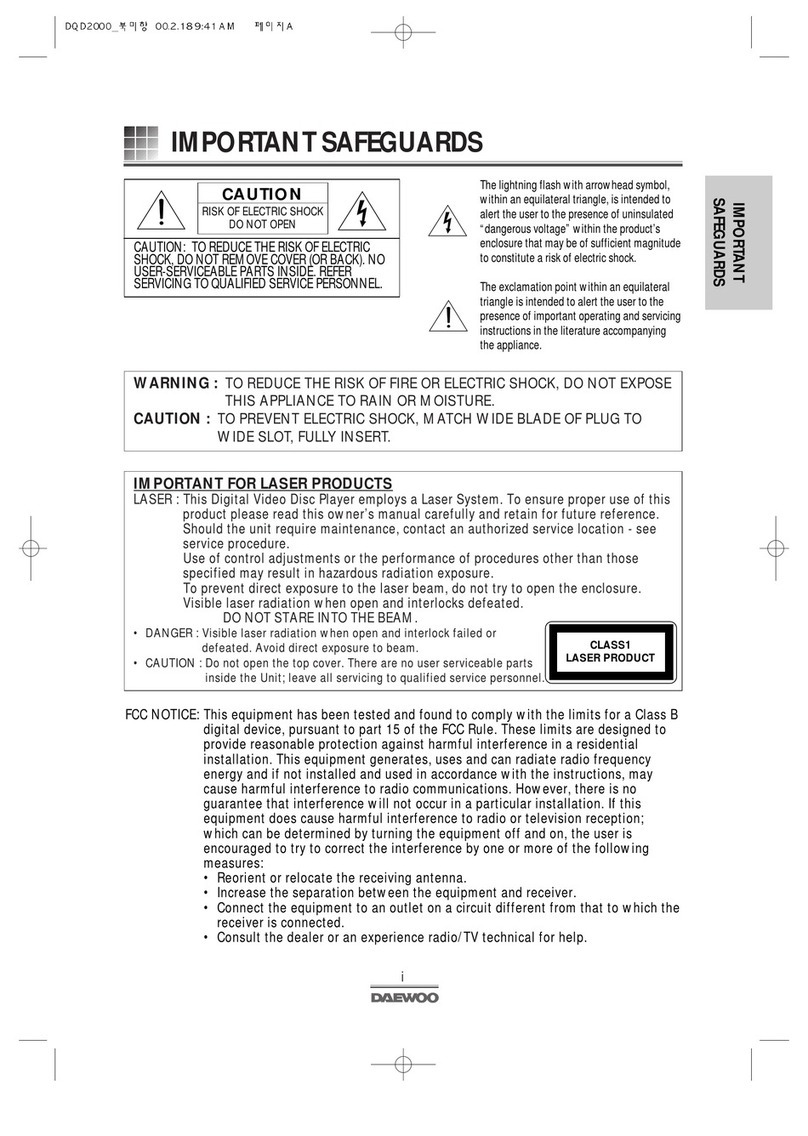

Important Safeguards
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
servicing instructions in the literature
accompanying the appliance.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
IMPORTANT FOR LASER PRODUCTS
• LASER : This Digital Video Disc Player employs a Laser System. To ensure proper use of this product please
read this owner’s manual carefully and retain for future reference. Should the unit require
maintenance, contact an authorized service location - see service procedure.
Use of control adjustments or the performance of procedures other than those specified may result
in hazardous radiation exposure.
To prevent direct exposure to the laser beam, do not try to open the enclosure. Visible laser
radiation when open and interlocks defeated.
DO NOT STARE INTO THE BEAM.
• DANGER : Visible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
• CAUTION : Do not open the top cover. There are no user serviceable parts
inside the Unit; leave all servicing to qualified service personnel.
CLASS 1
LASER PRODUCT
FCC NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rule. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception; which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experience radio/TV technical for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
CAUTION: Any changes or modification in construction of this device which are not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.

Product Information
32
This set has been designed and manufactured to
assure personal safety. Improper use can result in
electric shock or fire hazard. The safeguards
incorporated in this unit will protect you if you
observe the following procedures for installation, use
and servicing. This unit is fully transistorized and
does not contain any parts that can be repaired by
the user.
1 Read Instructions
All the safety and operating instructions should be
read before the unit is operated.
2 Retain Instructions
The safety and operating instructions should be
retained for future reference.
3 Heed Warnings
All warnings on the unit and in the operating
instructions should be adhered to.
4 FOLLOW INSTRUCTIONS
All operating and use instructions should be
followed.
5 Cleaning
Unplug this unit from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6 Attachments
Do not use attachments unless recommended by
the unit’s manufacturer as they may cause
hazards.
7 Water and Moisture
Do not use this unit near water- for example, near
a bath tub, wash bowl, kitchen sink or laundry
tub, in a wet basement, or near a swimming pool
and the like. Caution : Maintain electrical safety.
Powerline operated equipment or accessories
connected to this unit should bear the UL listing
mark or CSA certification mark on the accessory
itself and should not be modified so as to defeat
the safety features. This will help avoid any
potential hazard from electrical shock or fire. If in
doubt, contact qualified service personnel.
8 Accessories
Do not place this unit on an unstable cart, stand,
tripod, bracket, or table. The unit may fall, causing
serious injury to a child or adult as well as serious
damage to the unit. Use this unit only with a cart,
stand , tripod,
bracket, or table
recommended by the
manufacturer.
8A A unit and cart
combination should be
moved with care.
Quick stops, excessive
force, and uneven
surfaces may cause the unit and cart combination
to overturn.
9 Ventilation
Slots and openings in the case are provided for
ventilation to ensure reliable operation of the unit
and to protect it from overheating. These openings
must not be blocked or covered. These openings
must not be blocked by placing the unit on a bed,
sofa, rug, or other similar surface. This unit should
never be placed near or over a radiator or heat
radiator. This unit should not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
10 Power Sources
This unit should be operated only from the type of
power source indicated on the marking label. If
you are not sure of the type of power supply to
your home, consult your dealer or local power
company. For units intended to operate from
battery power, or other sources, refer to the
operating instructions.
11 grounding or Polarization
This unit is equipped with a polarized alternating -
current line plug (a plug having one blade wider
than the other). This plug will fit into the power
outlet only one way. This is a safety feature. If you
are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug still fails to fit,
contact your electrician to replace your obsolete
outlet.To prevent electric shock, do not use this
polarized plug with an extension cord, receptacle,
or other outlet unless the blades can be fully
inserted without blade exposure. If you need an
extension cord, use a polarized cord.
12 Power-Cord Protection
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at plugs, convenience
receptacles, and the point where they exit from the
unit.
Note to CATV system installer
This reminder is provided to call the CATV system
installer’s attention to Section 820-40 of the NEC
which provides guidelines for proper grounding
and, in particular, specifies that the cable ground
shall be connected to the grounding system of the
building, as close to the point of cable entry as
practical.
13 Outdoor Antenna Grounding
If an outside antenna or cable system is
connected to the product, be sure the antenna or
cable system is grounded so as to provide some
protection against voltage surges and built-up
static charges. Section 810 of the National
PORTABLE CART WARNING
(symbol provided by RETAC)
Electrical Code, ANSI/NFPA No. 70-1984 (Section
54 of Canadian Electrical Code, Part 1) provides
information with respect to proper grounding of
the mast and supporting structure, grounding of
the lead-in wire to an antenna-discharge unit,
connection to grounding electrodes, and
requirements for the grounding electrode. See
example as shown.
14 Power Lines
An outside antenna system should not be located
in the vicinity of overhead power lines, other
electric light or power circuits, or where it can fall
into such power lines or circuits. When installing
an outside antenna system, extreme care should
be taken to keep from touching or approaching
such power lines or circuits as contact with them
might be fatal. Installing an outdoor antenna can
be hazardous and should be left to a professional
antenna installer.
15 Lightning
For added protection for this unit during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable
system. This will prevent damage to the unit due
to lightning and power line surges.
16 DISC TRAY
Keep your fingers well clear of the disc as it is
closing. It may cause serious personal injury.
17 Overloading
Do not overload wall outlets of extension cords as
this can result in a risk of fire or electric shock.
18 Object and Liquid Entry
Never push objects of any kind into this unit
through openings as they may touch dangerous
voltage points or “short-out” parts that could
result in a fire or electric shock. Never spill liquid
of any kind on the unit.
19 BURDEN
Do not place a heavy object on or step on the
product. The object may fall, causing serious
personal injury and serious damage to the product.
20 DISC
Do not use a cracked, deformed or repaired disc.
These discs are easily broken and may cause
serious personal injury and product malfunction.
21 Servicing
Do not attempt to service this unit yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
22 Damage Requiring Service
Unplug this unit from the wall outlet and refer
servicing to qualified service personnel under the
following conditions.
A. When the power-supply cord or plug is damaged.
B. If liquid has been spilled, or objects have fallen
into the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions. Improper adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore the unit to its normal
operation.
E. If the unit has been dropped or the cabinet has
been damaged.
F. When the unit exhibits a distinct change in
performance-this indicates a need for service.
23 Replacement Parts
When replacement parts are required, have the
service technician verify that the replacements he
uses have the same safety characteristics as the
original parts. Use of replacements specified by the
unit manufacturer can prevent fire, electric shock,
or other hazards.
24 Safety Check
Upon completion of any service or repairs to this
unit, ask the service technician to perform safety
checks recommended by the manufacturer to
determine that the unit is in safe operating
condition.
25 Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
26 Heat
The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD
IN WIRE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
EXAMPLE OF ANTENNA
GROUNDING
NEC - NATIONAL ELECTRICAL CODE
Important SafeguardsImportant Safeguards

4
Product Information
5
Advantages of This Product Are .....
• DVD, VCD, CD, CD-R(MP3), CD-RW, VHS
playback function
• DVD one-touch record function
• Watching DVD for recording broadcast
• Integrated remote control (VCR, DVD)
• Ultra power savings : less than 3W for
stand-by mode
• VISS function
• Multiplex sound playback/record
• High Sound Quality of 6 head Hi-Fi
• One Touch timer Recording (OTR)
• MP3 file playback function (CD-R disc
having records of MP3 files)
• GUI (Graphical User Interface) OSD (On
Screen Display)
By using the [DISPLAY] button on the remote
control, information on the DVD/VCD/CD player and
disc, can be displayed on the TV screen.
• Screensaver function (DVD)
• 3D sound (3D sound effect using 2
speakers)
• High bit / high sampling with 27MHz /
10bit video encoder
This unit has 27MHz / 10bit capability, that enables
the faithful reproduction of fine images.
• High bit / high sampling with 96KHz /
24bit audio D/A converter
With this 96KHz / 24bit linear Pulse Code Modulated
signals, which constitute the highest specifications
in the DVD standards, you can enjoy faithfully
reproduced sound in all of its various modes. To
support 96KHz sampling / 24bit sound, the shaping
noise of this multi-level digital sigma type of D/A
converter is kept flat up to 44KHz, thus preventing
the important audio signals from being affected.
• Coaxial, Optical digital output (PCM, Dolby
Digital, dts)
You can enjoy high-level digital audio by
connecting with amp embedded with Dolby Digital /
dts decoder.
• Built-in Dolby Digital decoder (DVD)
• Analog audio 2-channels output for
DOWNMIX (x1)
• Composite video out (x1)
• Slow Forward / Reverse (DVD) playback
• Fast Forward / Reverse playback
• Search of title, chapter, and time in DVD disc,
and search of track and time in VCD and CD
• Various TV aspect (DVD)
4:3 for Pan and Scan, 4:3 for Letter Box, and 16:9
for Wide
• Repeat playback (title and chapter for DVD,
track and disc for VCD/CD)
• Repeat a defined period from A to B (DVD)
• Selective Play (DVD/VCD/CD)
You can select and play the desired title / chapter
of DVD and track of Video CD/CD in STOP mode.
• Various languages OSD (On Screen Display)
function (DVD)
You can select and display OSD among various
languages. (English, French, Spanish)
• Parental Lock function (DVD)
This function can prevent playback of software that
may be unsuitable for children.
• Multi Audio function (DVD)
The audio soundtrack can be heard in up to 8
languages. In the case of SVCD or CVD, it depends
on the disc. (The number of audio languages
depends on the software.)
• Multi Subtitle function (DVD)
The subtitle can be seen in up to 32 languages. In
the case of SVCD or CVD, it depends on the disc.
(The number of subtitle languages depends on the
software.)
• Multi Angle function (DVD)
This function allows you to choose the viewing
angle of scenes which were shot from a number of
different angles. (The number of angles depends on
the software.)
• Screen zoom function (DVD/VCD)
Read Carefully before Using
Cautions in use of DVD-Video player are described below.
Please read carefully before using a DVD-Video player.
Installation place and handling
• When you place this player near other devices,
they may affect poorly together.
• When you place DVD-Video player and TV in the
upper and lower sides, it may cause flickering of
pictures or failure (tape is not ejected).
• When you place this player near strong magnetic
materials, it may affect image or voice poorly or
damage recording.
• Do not spill volatile liquids like insect spray over
the player. Do not leave rubber or plastic products
in contact with the player for a long time. They
will cause deterioration or paint peel-off.
Not in use
• When the unit is not in use, be sure to remove the
disc or tape and turn off the power.
• If you do not use the unit for a long period,
remove batteries in remote control to prevent
leakage.
• In case you don’t use the unit for a long time, the
unit may not function properly in the future. Turn
on and use the player occasionally.
Moving
• Repack the unit as it was originally packed at the
factory. Alternatively, pack this product with towel
not to be damaged.
• Eject any videotape.
Cleaning
• Dust off dirt in cabinet or control panel part
smoothly with a soft cloth.
• For heavy dirt, soak the cloth in a weak detergent
solution, wring it well and wipe. Use a dry cloth
to wipe it out.
• Follow instructions in using chemical cleaners.
• Do not use any type of solvent such as gasoline or
benzene, as they may cause deterioration or paint
peel-off.
Checking
• Video is a high precision device. To obtain a clear
screen, we recommend regular inspection and
maintenance every 1,000 hours of use by technical
engineers.
• For checking, contact your dealer or your nearest
service center.
Checking and Replacement of Antenna
• Antenna is subject to change in its direction or
damage by wind and rain. For clean screen,
contact and consult your nearest service center
about checking and replacement.
In recording important screen
• Be sure to record the screen and check whether
recording is performed properly. We beg you to
understand compensation of recording if recording
is not performed by badness of used tape or video.
Copyright
• Do not use your recordings without permission of
a copyrighter except personal usage.
Tape and Disc Handling
• Do not use any tape and disc below. Damage of
video head or cut/coiling of tape may cause
failure.
- Tape with mold
- Tape or disc stained with juice or attachments
- Tape having breakage connection
- Disassembled tape
- Disc with severe scratch
• Moisture condensation may occur in tape. Moisture
condensation damages the tape. Please use the
tape after the moisture condensation is
disappeared.
• After use, store tape vertically in a case to prevent
loose.
• Do not store the following places.
- High temperature and humidity
- Subject generation of mold
- Subject to direct sunlight
- Much dirt or dust
- Near strong magnetic materials such as speaker
◆Instructions in using remote control
• Operate remote control within 7m from the unit.
• Do not press 2(two) buttons at the same time.
• Do not light up sending part of remote control.
• Do not keep in the place with much dust and
humidity.

Product Information
7
Identification of Controls
Front panel
!@ #$
%
& * )1 23^ ( 456
! Power (STANDBY/ON) button
Use to power the device on/off if AC power supply is
connected.
@ Place to insert videotape
# Eject button
$ Disc tray
% Open/Close Tray button
^ Video input jack
& Audio input jack
* Copy button
Use to copy contents of disc into a videotape.
( Record button
) Channel Up/Down button
1 Operation Display Window
Display operation of device. For more information, see
“Operation Display Window” in the next page.
2 Select button
Use to change DVD mode to VCR mode, and vice versa.
3 Stop button
Use to stop playing.
4 Rewind button
Use to rewind currently being played videotape or disc;
or to playback back rapidly.
5 Playback/PAUSE button
Playback videotape or disc.
Press this button to pause a screen.
6 Fast Forward button
Use to wind currently being played videotape or disc; or
to playback rapidly.
6
Contents
Important Safeguards .................................... 1
Advantages of This Product Are .... ................. 4
Read Carefully before Using ............................ 5
Contents ...................................................... 6
Identification of Controls ............................... 7
Remote Control ............................................. 9
Connecting with TV....................................... 10
Connecting with Cable Box ...........................11
Connecting with Other Video Equipment ......... 12
Connecting with an Analog Audio .................. 13
Connecting with a dolby digital decoder or DTS
decoder....................................................... 14
Output Select .............................................. 15
Clock Set ................................................... 15
DVD Playback .............................................. 16
VCR Playback .............................................. 17
VCR Operation
Memorizing TV Channels .............................. 18
Recording ................................................... 20
Timer Recordings ....................................... 22
Watching and Recording Cable TV .................. 25
Using advanced features ............................... 26
Hi-Fi Stereo Playback ................................... 30
Basic Operation
Installation
Playing a desired scene ................................. 31
Confirming the current PLAY mode on screen .. 35
AUDIO language, SUBTITLE language
and 3D AUDIO.............................................. 36
ZOOM, Multi Angle and Digest play ................. 37
About MP3 discs .......................................... 38
Displaying menus in a disc. ........................... 39
LANGUAGE Setup .......................................... 30
VIDEO Setup................................................. 40
AUDIO Setup............................................... 40
Others Setup ............................................... 41
About DVD................................................... 42
Basic information about VCR and Videotape.... 44
Before doubting about troubles (DVD) ............ 45
Before doubting about troubles (VCR) ............. 46
Specifications ............................................. 48
Setup
DVD Operation
The others
Product Information
Operation Display Window
Time, Counter and Current Operation
Tray is opened
Tray is closed
Disc is loaded
There is no disc in tray
Disc has some error
Menu screen is displayed
Setup menu is displayed
Power is ON
Power is OFF
3D Sound Indicator
DVD Disc Operation
VCR Operation
REC and TIMER REC display
Recording , TIMER Recording ,
To be Timer-recorded,
To be Timer-recorded state ERROR (No
Tape or Tape without tab)
Copying
Use to copy contents of disc into videotape.
AM
dts Disc Indicator
Track
Chapter This is displayed in DVD disc.

9
Product Information
Rear Panel
8
R
ANT.IN
RF OUT
L
OUT IN
AUDIO
VIDEO
R
COAXIAL
S-VIDEO OUT
L
Y
Pr
Pb
DIGITAL AUDIO OUT
COMPONENT OUTAUDIO OUT
OPTICAL
!
(@
^ *&$# %
! Power Cord
It is a jack for supplying power to the unit.
Connect to outlet in a wall.
@ Digital Output (OPTICAL, COAXIAL) Jack
To enjoy sound quality of theater level in home,
connect one of these jacks with amp or unit
embedded with digital audio decoder.
# AUDIO Out Jack
$ COMPONENT Out Jack
To obtain better screen quality, connect the unit
to TV or monitor with COMPONENT(480i) input.
% S-Video Output Jack
^ A/V Output Jack
& A/V Input Jack
* Connection to Antenna Cable
( Connection to TV
Identification of Controls Remote Control
6
@
#
!
$
%
^
&
*
(
)
1
2
3
4
5
7
8
9
0
“
‘
+
=
Q
q
W
w
E
e
R
r
![DVD] MENU button
@POWER button
#[DVD] TITLE /PBC button
$[DVD] OPEN/CLOSE button, [VCR] EJECT button
%[DVD, VCR] MOVE/SELECT in OSD, [VCR] Channel
Up/Down button
^SETUP button
&[DVD] REPEAT Playback button
*[DVD] REPEAT a defined period from A to B
button
([DVD] PREVIOUS button (move into a previous
chapter or track)
)Reverse SEARCH in Play mode, Reverse SLOW in
Still mode
1[DVD] PROGRAM button
2[DVD, VCR] CLOCK/COUNTER button
3[DVD, VCR] TV/VCR button
4[VCR] Record button
5[DVD, VCR] NUMBER button , [VCR] TRACKING -/+
button
6VCR SELECT button
7DVD SELECT button
8[DVD, VCR] OSD DISPLAY button
9OUTPUT Selection button
0ENTER button
“CLEAR/3D button
‘[DVD, VCR] AUDIO LANGUAGE Select, [VCR] AUDIO
Select button
+[DVD] SUBTITLE Select button
=[DVD] NEXT button (Move into a next chapter or
track) , [VCR] Frame Advance button in pause
mode
QPLAY/PAUSE button
qForward SEARCH in Play mode, SLOW in Still
mode
WSTOP button
w[DVD] Chapter/Title/Time SEARCH button
E[DVD] ZOOM button
e[DVD] ANGLE, [VCD] DIGEST, [VCR] Record SPEED
button
RTV output system select (NTSC, PAL-M, Auto)
button
Press the power [ ] button of the remote control
for about 8 seconds. No buttons of front panel and
remote control can be operated now and Lock
indicator (“ ”) will be displayed on window
display. To release child lock, press the power [ ]
button of the remote control for about 8 seconds.
Child Lock!!!
Accessories
Remote Control 2 Batteries RF cable
Connecting cable to
Audio/Video jack
Owner’s Manual/
Warranty
• To purchase accessories or not supplied parts additionally, contact your nearest dealer or service center. But,
owner’s manual and warranty are not sold additionally.

11
Installation
10
Various methods in connecting with TV
AUDIO
VIDEO
S-VIDEO
ANT INPUT
S-VIDEO INPUT
A/V INPUTCOMPONENT INPUT
CAUTION
CAUTION:TOREDUCETHE RISK OF ELECTRIC SHOCK.
DONOTREMOVECOVER (OR BACK).
NOUSERSERVICEABLEPARTS INSIDE.
REFERSERVICINGTOQUALIFIED SERVICE PRESONNEL.
RISKOFELECTRICSHOCK
DONOTOPEN
2018 16 14 12 10 8 6 43
2119 17 15 13 11 9 7 5 3 1
R
ANT.IN
RF OUT
L
OUT IN
AUDIO
VIDEO
R
COAXIAL
S-VIDEO OUT
L
Y
Pr
Pb
DIGITALAUDIO OUT
COMPONENT OUTAUDIO OUT
OPTICAL
Method
Method 1 1
Remove circular cable (RF cable) (surplus cable) plugged in “ANT.IN” Jack in rear panel of TV. Connect the
cable to “ANT.IN” jack in rear panel of DVD-Video. Connect TV to DVD-Video. Connect “RF OUT” jack in DVD-
Video with “ANT.IN” jack in TV with RF cable.
Method
Method 2 2 : Connecting to a TV that has a audio/video in jacks
Connect VIDEO OUT jack in DVD-Video to VIDEO IN jack in TV, and AUDIO OUT jack in DVD-Video to AUDIO
IN jack in TV with connecting cable of Audio/Video jack. Select VCR mode by pressing TV/INPUT button in TV,
you can view more clear screen and sound than connection with RF cable only.
Method
Method 3 3 : Connecting to a TV that has a component video in jacks
Use a component video cable (commercially available) in place of the yellow video cable to enjoy higher quality
pictures. The component video connection only supplies video (picture) in the DVD mode of the DVD-Video.
Therefore, in order to use the VCR features or view TV channels at the DVD-Video, you still need to either
connect the RF coaxial cable between the ANT-OUT jack of the DVD-Video and the TV’s Antenna In jack, or
connect the video cable.
Method
Method 4 4 : Connecting to a TV that has a S-Video in jacks
Use a S-Video cable (not supplied) to enjoy higher quality pictures. Only in DVD mode, S-Video output is
available.
■In the initial SET, exclusive channel for video is set to CH 3. To change this setting, set again in “CHANNEL
SET” screen in VCR operation.
■In connecting RF cable to TV, set TV channel to CH3.
Connecting with TV Connecting with Cable Box
How to connect
INPUT 1
IN
OUT ANT IN
INPUT 2
R
ANT.IN
RF OUT
L
OUT IN
AUDIO
VIDEO
OUT
OUT
IN
If your cable system only
requires you to use a converter
box for some channels
(i.e., pay-TV channels), follow
these steps: Find the primary
incoming RF cable. Plug this
cable into a splitter (available
at your local electronics store.)
■You should install a distributor additionally.
How to watch general broadcasting with recording CATV
1
1Set Channel Select switch of Converter Box to CH 3 or 4 as same as video exclusive channel. Press [SET]
button in [VCR] operation to set video exclusive channel in “CHANNEL SET” screen.
2
2Press channel button of Converter Box to select channel to be recorded. In this case, if you want to watch
CATV to be recorded, press [TV/INPUT] button of TV to select “Out (VCR)”.
3
3Press [REC] button in DVD-Video.
4
4To watch general broadcasting, press channel button in TV to select the desired channel.
Connect one RF cable between one OUT terminal on the splitter and the IN terminal on the converter box.
Connect another RF cable between the other OUT terminal on the splitter and the A-IN terminal on an A/B
switch (available at your local electronics store.) Connect a third RF cable between the OUT terminal on the
converter box and the B-IN terminal on the A/B switch.
Connect a RF cable between the OUT terminal on the A/B switch and the ANT. IN on your DVD-VIDEO.
When the A/B switch is in the B position, use the converter box to change channels ; when the A/B switch is in
the A position, use the DVD-VIDEO to change channels.
•VHF: 2 ~13 channels of TV , UHF: 14~69 channels of TV, CATV: Broadcasting is transmitted with cable from
broadcasting station by contract with the station and consumers. It does not need any antenna.
• In/Out jack in Audio/Video terminal: - In: A jack used to receive signal required in this unit from other units. -
Out: A jack used to send signal of this unit to other units.
• Connect with Audio/Video terminal, you can enjoy more clear video and audio. (Use OUTPUT button in this remote
control to select video mode.)
• If screen is broken in connecting COMPONENT Out to Pr, Pb, Y of TV COMPONENT In jack , connect to Cr, Cb, Y.
• For some types of TV, you should press [TV/INPUT] button in TV remote control and convert from Out 1( VCR 1) or
Out 2(VCR 2) mode to Broadcasting Channel mode to change TV channel.
• Change channel selection of CATV receiver in recording, contents of recording is changed.
<Outside Antenna or Wall Antenna Outlet>
<Rear Panel of DVD-VIDEO>
<Rear Panel of TV>
Method 1
Method 2
<Rear Panel of DVD-VIDEO><Converter Box> <Rear Panel of TV>
RF Cable AUDIO/VIDEO Cable
RF Cable
RF Cable
<A/B Switch>
<Splitter (Not supported)>
<Cable Antenna>
RF Cable
Method 3
Method 4

13
Installation
12
Connecting with Other Video Equipment
How to Connect
AUDIO
VIDEO
ANT INPUT
A/V OUTPUT
CAUTION
CAUTION:TOREDUCETHERISKOF ELECTRIC SHOCK.
DONOTREMOVECOVER(ORBACK).
NOUSERSERVICEABLEPARTSINSIDE.
REFERSERVICINGTOQUALIFIEDSERVICEPRESONNEL.
RISKOFELECTRICSHOCK
DONOTOPEN
201816 14 12 10 8 6 4 3
211917 15 1311 9 7 5 3 1
R
ANT.IN
RF OUT
L
OUT IN
AUDIO
VIDEO
R
COAXIAL
S-VIDEO OUT
L
Y
Pr
Pb
DIGITALAUDIO OUT
COMPONENT OUTAUDIO OUT
OPTICAL
How to Copy(Edit) Tape with Other Video Equipment
1
1Connect Audio/Video Out jack in other video equipment to Audio/Video In jack in rear panel (or front
panel) of DVD-Video with connecting cable.
2
2Connect “ANT. IN” jack in TV to “RF.OUT” jack in DVD-Video with RF cable.
3
3To record contents of other video equipment with DVD-Video, insert recording tape attached recording tab
in DVD-Video.
1
1Turn on DVD-Video.
2
2Press [OUTPUT] button of remote control and adjust DVD-Video to display “External Input 1” or “External
Input 2” in TV screen.
3
3Press [PLAY] button in other video equipment.
4
4Press [REC] button in DVD-Video if you want to record contents of other video equipment.
5
5Press [Pause] button in DVD-Video when unnecessary or undesired scene is displayed in recording.
(Caution) Recording is released automatically after 5 minutes since pressing [PAUSE] button.
Press [REC] button if you want to record again.
Playback VCR,
Camcorder,
Satellite
Receiver ...
...
...
RF Cable
AUDIO/VIDEO Cable
■You can connect a wide variety of audio/video equipment to your DVD-Video, including : an additional VCR,
Laser Disc Player, DVD Player, Camcorder, Satellite Receiver, Video Game. Since all of these devices use
essentially the same connections, they will be described together.
How to Connect
Connecting with an Analog Audio
AUDIO
ANT INPUT
AUDIO INPUT
CAUTION
CAUTION:TOREDUCETHERISKOF ELECTRIC SHOCK.
DONOTREMOVECOVER(ORBACK).
NOUSERSERVICEABLEPARTSINSIDE.
REFERSERVICINGTOQUALIFIEDSERVICEPRESONNEL.
RISKOFELECTRICSHOCK
DONOTOPEN
201816 14 12 10 8 6 43
211917 15 13 11 9 7 531
S-VIDEO
S-VIDEO INPUT
R
ANT.IN
RF OUT
L
OUT IN
AUDIO
VIDEO
R
COAXIAL
S-VIDEO OUT
L
Y
Pr
Pb
DIGITALAUDIO OUT
COMPONENT OUTAUDIO OUT
OPTICAL
1
1Connect Audio jack. Connect AUDIO OUT in rear panel of DVD-Video to In jack of stereo sound unit.
2
2For Input Select in stereo unit, Select “External Input” connected with DVD-Video.
3
3Playback DVD disc or Hi-Fi videotape, you can hear sound in speaker of stereo unit.

Press [DVD] button.
If DVD mode is correctly selected, DVD on the operation display window is lighted.
Then, remote control button works as DVD function. Press the [DVD] button, then
the mode of DVD-Video Player becomes to the DVD OPERATION mode.
Basic Operation
15
Clock Set
Press [SETUP] button.
Press [ENTER] button to select CLOCK SET.
If CLOCK SET is completed, press
[SETUP] button.
1
1
2
2
Output Select
To Select VCR
Press [VCR] button.
If VCR mode is correctly selected, VCR on the operation display window is
lighted. Then, remote control button works as VCR function. Press the [VCR]
button, then it becomes to the VCR OPERATION mode.
To Select Watch Modes or External Input
Press [OUTPUT] button.
Whenever you press [OUTPUT] button, DVD, VCR PLAYBACK, BROADCASTING RECEPTION and EXTERNAL INPUT is
selected in order and the DISPLAY of DVD and VCR will be changed accordingly.
To Select DVD
SETUP
CLOCK SET
TIMER RECORDINGS
CHANNEL SET
FUNCTIONS
LANGUAGE SELECT
Move: Select:
End: SETUP
ENTER
CLOCK SET
Move: Select:
End: SETUP
ENTER
Time 11 : 01 AM
Date 05 / 25 / 2002 (Sat)
(mm/dd/yy)
14
Connecting with a dolby digital decoder or DTS decoder
How to Connect
AUDIO
COAXIAL
ANT INPUT
AUDIO INPUT
OPTICAL
DIGITAL AUDIO INPUT
CAUTION
CAUTION:TOREDUCETHERISKOF ELECTRIC SHOCK.
DONOTREMOVECOVER(ORBACK).
NOUSERSERVICEABLEPARTSINSIDE.
REFERSERVICINGTOQUALIFIEDSERVICEPRESONNEL.
RISKOFELECTRICSHOCK
DONOTOPEN
201816 14 12 10 8 6 4 3
211917 15 13 11 97531
VIDEO
VIDEO INPUT
R
ANT.IN
RF OUT
L
OUT IN
AUDIO
VIDEO
R
COAXIAL
S-VIDEO OUT
L
Y
Pr
Pb
DIGITALAUDIO OUT
COMPONENT OUTAUDIO OUT
OPTICAL
1
1If using this DVD-Video to play a DVD disc in 5.1 channel Dolby Digital Surround, or DTS surround formats,
the DVD-Video outputs a Dolby Digital, or DTS data stream from its COAXIAL/OPTICAL DIGITAL AUDIO OUT
jack. By hooking the DVD-Video up to a Dolby Digital or DTS decoder, you can enjoy a more convincing,
realistic ambience with powerful and high-quality surround sound of a professional standard such as can be
heard in movie theaters.
2
2Select either COAXIAL or OPTICAL to connect to an amplifier. Use an audio digital cable (not included) for
the audio connections.
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories.
<Amplifier of Dolby Digital>
■Set TV to CH 4( or 3).
■Press [VCR] button on remote control to change into VCR mode and follow the
procedures below.

17
Basic Operation
16
DVD Playback
Press [ ] button to power on.
Press [DVD] button of remote control to change into DVD mode.
Press [OPEN/CLOSE] button to open the disc tray.
Place a disc firmly on the disc tray, making its label look upward.
Insert the disc and press [OPEN/CLOSE] button to close the tray.
The disc tray is closed and after checking the disc’s condition, Playback or Stop
function starts to operate.
1
1
2
2
3
3
To playback it, press [PLAY/PAUSE] button.
• In the case of DVD,
DVD menus and titles are displayed on TV screen.
• In the case of S-VCD and VCD2.0
the menus are displayed on TV screen and it is converted into PBC
(Playback Back Control) mode.
• In the case of CD, VCD1.1 and MP3,
the disc plays in order of its track numbers.
4
4
To stop it, press [ ] button.
For pause, press [PLAY/PAUSE] button in playback mode.
If you press this button once more, it starts playback again.
5
5
Press [OPEN/CLOSE] button to remove the disc.
6
6
Various Playback Methods
■If you want fast (or reverse) playback, press [ ] or [ ] button in Playback mode. You
can watch fast playing (reverse ) screen.
* This reverse playback can be unavailable for certain DVD. Unavailable for MP3.
■If you want slow (or reverse) playback, press [ ] or [ ] button in Pause mode. You
can watch the desired screen in the slow forward (reverse) playback.
* For the case of Video CD, this reverse slow playback function is unavailable. The mark
will appear.
■If you want still picture, press [PAUSE] button in Playback mode. You can watch the desired
screen in Pause status.
VCR Playback
Press [ ] button to power on.
Press [VCR] button of remote control to change into VCR mode.
Insert the desired tape.
If you want to playback it, press [PLAY/PAUSE] button.
When the operational status is flickering or poor, adjust it with [TRACKING +/-]
button.
1
1
2
2
3
3
To stop it, press [ ] button.
For pause, press [PLAY/PAUSE] button in playback mode.
If you press this button once more, it starts playback again.
4
4
Press [EJECT] button in the front part or [OPEN/CLOSE] button on
remote control to remove the tape.
5
5
Various Playback Methods
■If you want fast forward (or reverse) playback, press [ ] or [ ] button in Playback
mode. You can watch fast playing (rewinding) screen.
■If you want Still picture, press [PLAY/PAUSE] in Playback mode. You can watch the
desired screen in pause status.
■If you want slow-motion playback, press [ ] button in Pause mode. You can watch the
desired screen in the slow forward playback.
* NOTE: VCR doesn’t have Slow Reverse Playback function.
■If you want to watch a series of screens one by one, (FRAME ADVANCE) press
[NEXT ] button in Pause mode. Each time you press this button, the picture
advances one frame.
If the product, which
has a auto-detector,
detects a
contaminated
head(s), it shows the
conditions to notice
the contamination on
screen.
* In case of the notice
on screen, please
rub the heads with
a head-cleaner
followed by “How to
use a head-
cleaner”.
To Adjust Display
This product includes automatic Tracking function and enables users to enjoy clear
picture without an additional operation. Provided that the following problems can be
solved by the manual adjustment, which improves display quality. (During automatic
display adjustment, “Adjusting Display” are displayed on TV screen.)
- If the screen is poor in Playback mode,
- If noises occur in the upper or lower part of screen in slow playback mode,
- If paused picture vibrates up and down.
Use [TRACKING +/-] buttons of remote control to adjust the display suitable for
watching.
If you press no
button in 5 minutes
after you are opened
the tray, the player
closes the tray
automatically to
prevent from damage.

19
VCR Operation
18
To Delete Channels Manually
■After memorizing automatically channels, when the same broadcasting is memorized in more than two
channels, or you want to delete badly displayed channels, follow the procedures below.
■You must set the viewing mode for your VCR, choosing either CABLE (cable system connection) or ANTENNA
(antenna connection).
1
1Press [SETUP] button and select
“CHANNEL SET”. Select “Add/Remove
Channels”.
2
2Select the desired channel and delete it.
ADD/REMOVE CHANNELS
Channel 02
is now REMOVED.
To Memorize Channels Manually
■When the desired broadcasting finished or you want to add unmemorized channels owing to poor signals to
the memory, follow the procedures below.
Press [SETUP] button and select
“CHANNEL SET”.
Select “Add/Remove Channels”.
1
1
Select the desired channel and memorize it.
Press [NUMBER] button of remote control to
select the desired channel to memorize.
When [>] button is pressed, “REMOVED” under
channel number converts into “ADDED”.
2
2
Check the memorized channel.
To check the memorized channel, press [CH+/-] button on remote control.
3
3
ADD/REMOVE CHANNELS
Channel 02
is now ADDED.
Memorizing TV Channels
Memorizing TV Channels
Press [SETUP] button.
Press [ ] button to move into CHANNEL
SET, and then select CHANNEL SET with [ENTER]
button.
Select “AUTO CHANNEL SEARCH”.
Press [ENTER] button in CHANNEL SET window
to select AUTO CHANNEL SEARCH.
Select “Detect Automatically”.
Press [ENTER] button in AUTO CHANNEL SEARCH
window to detect the channel automatically.
Please, check the memorized channels.
To check the memorized channels, press [CH+/-] button on remote control.
1
1
2
2
3
3
To Memorize Automatically Channels
SETUP
CLOCK SET
TIMER RECORDINGS
CHANNEL SET
PREFERENCES
FUNCTIONS
SELECT LANGUAGE
AUTO CHANNEL SEARCH
Now scanning channel 11
CHANNEL SET
Auto Channel Search
Add/Remove Channels
Signal Type: CABLE
CHANNEL SET
Auto Channel Search
Add/Remove Channels
Signal Type: CABLE
Selecting cable or antenna viewing
To set the viewing mode:
Press [ENTER] to toggle the setting between CABLE and
ANTENNA in CHANNEL SET screen.
When the desired viewing mode is displayed, press
[SETUP] twice to exit.
CHANNEL SET
Auto Channel Search
Add/Remove Channels
Signal Type: CABLE
Press [NUMBER] button of remote control to select the desired channel to delete.
When [<] button is pressed, “ADDED” under the channel number converts into
“REMOVED”.
3
3To check the deleted channel, press [CH+/-] button on remote control.
Channel number changes successively from 01 to 125, while only broadcasting
channels are memorized automatically. When memory process is completed, the
lowest number’s one of memorized channels is displayed.

20
To Enjoy Another TV Channel or DVD during recording
1
1If you want to watch another TV channel during recording with video, press
[TV/VCR] button.
It is available of changing into and watching another TV channel.
2
2If you want to playback DVD during recording with video, insert a DVD disc.
Place the desired DVD disc on DVD tray, press [DVD] button to convert OUTPUT into
DVD mode and press [PLAY] button. Then, you can watch DVD.
Recording
Press [ ] button to power on.
• Press [VCR] button of remote control to change into VCR mode.
• Power on TV and select Ch 3, or press [INPUT] button of TV set to select
External Input mode.
Insert a recordable tape.
Insert a tape with recording tab.
With [CH +/-], [NUMBER] and [OUTPUT] buttons, select the
desired broadcasting channel or external input unit to record.
1
1
2
2
3
3
To Record With VCR
Select the desired speed (SP or SLP) with [SPEED] button.
4
4
Press [REC] button.
Then, it starts recording.
5
5
If you want to pause recording, press [PAUSE] button.
After pressing [PAUSE] button, if the pause status continues for five minutes,
the recording is released automatically.
6
6
To exit recording, press [STOP] button.
7
7
21
VCR Operation
This product incorporates copyright protection technology that is protected by method claims of certain U.S
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
To Copy From DVD To Videotape
One Touch timer Recording (OTR)
■When your urgent business happens suddenly in watching TV or you want to record the current TV program
for the desired time, follow the procedures below.
To copy just
with buttons of
remote control, after
playing DVD, press
[VCR] button and
then [REC] button.
Recording
1
1First, follow the steps 1 to 4 in “Recording With VCR”.
2
2Press [REC] button as much as you want. See the “Recording Times Table” below.
Once ............ continuous recording until you press STOP button
Twice ........... recording for 30 mins from current time
3 (times) ....... recording for 1 hour
9 ................. recording for 4 hours
10 ................ returning to the status of Once Press
3
3To stop Recording mode, press [STOP] button more than 5 seconds.
1
1Insert the desired DVD disc.
When it is a DVD disc with copy protect function, you can’t copy it.
Insert a recordable tape.
2
2Press [QUICK COPY] button on the front panel.
DVD plays and VCR starts recording.
* For the case of VCD 2.0, the disc starts recording from the first parts when
[QUICK COPY] button is pressed in playback mode.
3
3To exit copy, press [VCR] button and then [ ] button.
Also it stops automatically when DVD playback is finished or recorded tape is
reached to the end.

23
VCR Operation
22
Set proper “RECORDING SPEED”.
Select one of SP/SLP with [ ] or [ ] button.
For more information on recording speed, see
“Using video cassette” in the page 24.
6
6
Press [SETUP] button to complete the
setting.
“Program # has been saved. For program
recording, insert a cassette....” message is
displayed.
TIMER RECORDINGS indicator, is displayed in
the operation display window.
On the reserved time, TIMER RECORDINGS starts
to operate.
7
7
To Confirm or Cancel TIMER RECORDINGS
Select “Review/Cancel Programs”.
1
1
Confirm reservation-recording details in turn
with [ ] button and then, press [CLEAR]
button on the position of the details to delete.
2
2
PROGRAM1 (ONE TIME)
Channel 104 Cable
Start Date 06 / 04
Start Time 10 : 10 AM
End Time 11 : 10 AM
Tape Speed SP
PROGRAM1 (ONE TIME)
Channel 104 Cable
Start Date 06 / 04
Start Time 10 : 10 AM
End Time 11 : 10 AM
Tape Speed SP
PROGRAM 1 (ONE TIME)
Channel 104 Cable
Start Date 06 / 04
Start Time 10 : 10 AM
End Time 11 : 10 AM
Tape Speed SP
PROGRAM 1 has been saved.
For program recording,
insert a cassette.
TIMER RECORDINGS
Make a New Program
Review/Cancel Programs
Move: Input:
Video: End: SETUPOUTPUT
Move: Input:
Video: End: SETUPOUTPUT
Move: Select:
End: SETUP
ENTER
Cancel: Move:
End: SETUP
CLEAR
If a recordable
tape is not
inserted in Stop mode
under Power ON,
“Waiting for TIMER
RECORDINGS. Insert a
recordable tape”
message is displayed
in the center of
screen, for all
changes or output
conversions incurred
during TIMER
RECORDINGS SET.
Timer Recordings
Timer Recordings
TIMER RECORDINGS
Press [SETUP] button and select “TIMER
RECORDINGS”.
Move into “TIMER RECORDINGS”, select
the desired one with [ENTER] button.
Select “Make a New Program”.
Press [ENTER] button to select “Make a new
Program”.
1
1
2
2
Select “Timer Recording method”.
Move into desired recording type with [ ]
and then, select the desired one with [ENTER]
button.
For Timer Recording method details, see
“Various TIMER REC” in the page 24.
3
3
Select “a broadcasting to record”.
Select the desired broadcasting channel with
[NUMBER] buttons.
**If Converter Box and video are connected to
Video/Audio terminal, set “EXTERNAL INPUT”
on TIMER REC CH by using “OUTPUT” button.
4
4
Set “the date and time to record”.
Select the date, start time and end time to
record with [NUMBER] buttons.
5
5
■Power on TV.
■Make sure that current time is set correctly.
■Insert a recordable tape with recording tab.
■Prior to the setting, press [VCR] button to change to VCR mode.
When moves into “Cable”, select one of “Cable”/”Antenna” with [ ] or
[ ] button.
SETUP
CLOCK SET
TIMER RECORDINGS
CHANNEL SET
PREFERENCES
FUNCTIONS
SELECT LANGUAGE
TIMER RECORDINGS
Make a New Program
Review/Cancel Programs
PROGRAM1 (ONE TIME)
How often do you want
to record program?
One Time
Daily (SUN-SAT)
Weekdays (MON-FRI)
Weekly (Once a Week)
Channel 0 4 Cable
Start Date - - / - -
Start Time - - : - - AM
End Time - - : - - AM
Tape Speed SP
PROGRAM1 (ONE TIME)
Channel 104 Cable
Start Date - - / - -
Start Time - - : - - AM
End Time - - : - - AM
Tape Speed SP
Move: Select:
End: SETUP
ENTER
Move: Select:
End: SETUP
ENTER
Move: Select:
End: SETUP
ENTER
Move: Input:
Video: End: SETUPOUTPUT
Move: Input:
Video: End: SETUPOUTPUT

25
VCR Operation
24
Watching and Recording Cable TV
To Watch and Record Promptly Cable TV
Power on converter and then, set a channel to watch or to record.
Power on DVD-video and then, set the channel of DVD-video to the
converter-connected channel (one of CH03/04/EXTERNAL INPUT).
Power on TV and then, set the video-connected channel (one of
CH03/04/VCR).
Simultaneous Recording and Watching
At this time, CH selected by the converter is displayed on TV screen.
Simultaneously, press [REC] button of DVD-Video to record the CH selected by
the converter, and press [REC] button more than two times to set on One Touch
timer Recording (OTR).
1
1
2
2
TIMER RECORDINGS of Cable TV
Reserve VCR.
According to TIMER REC procedures, select TIMER RECORDINGS SET window and
complete the settings. At this time, the video channel should be input in CH3
(or CH4, EXTERNAL INPUT) of the converter-connected channel. Enter date and
time of the cable program for TIMER RECORDINGS.
Adjust Converter.
Set converter to the cable TV channel to record.
e.g.) To record CH48,
Display CH48 with CONVERTER CHANNEL SELECT button.
If there is TIMER REC function of converter, it is available of reservation.
Complete Reservation.
If you power on converter, video powers on automatically and starts recording
at the reserved time.
**Home watching cable TV is unavailable of simultaneous recording function
(while recording NBC program, watching CNN program). (Owing to
mechanical features of converter, it is unavailable of simultaneous reception
of two channels.)
1
1
2
2
3
3
Using video cassettes
Before you play or record on a video cassette tape, be certain to read this information on the proper care and
use of video cassettes.
Only use video cassettes that bear the VHS mark: .
There are four types of video cassettes: T-60, T-90, T-120, and T-160. The amount you can record on a tape is
dependent upon the tape speed at which you record. The table below lists the recording time(hours:minutes) for
each tape type according to recording speed.
Tape Type SP Mode (Standard Play) SLP Mode (Extended Play)
T-60 1:00 3:00
T-90 1:30 4:30
T-120 2:00 6:00
T-160 2:40 8:00
Protecting video cassettes from accidental erasure
Cassettes have a safety tab to prevent erasure. Break off the safety tab with a screw driver. If
you wish to record on a cassette without a safety tab, cover the hole with cellophane tape.
Inserting video cassettes
Firmly insert the cassette into the cassette compartment with the label up. An inverted cassette cannot be
inserted.
Removing video cassettes
Press [EJECT] on the front panel and the VCR will eject the tape. Pull the cassette out gently.
• Audio-visual material may include works of copyright which must not be recorded without authorization of the
copyright owner.
•If you insert a video cassette without a safety tab into the unit : After setting the timer recording program,
“ ” will blink on the display panel in the power off mode and the unit will automatically eject the cassette. In the
power on mode, the unit will playback automatically.
•If you insert a video cassette with a safety tab into the unit : After setting the timer recording program,the
unit will be stand-by mode in power off mode.
• Do not attempt to pull out the video cassette once the unit begins to load the video cassette.
• Do not insert fingers or any foreign object beyond the door flaps of the cassette compartment; this could lead to
injury or equipment damage.
• Do not attempt to insert a video cassette if the unit in unplugged.
Various TIMER RECORDINGS
One Time : It is available of TIMER RECORDINGS at the desired specified time.
Daily : Once you set TIMER RECORDINGS of the desired program telecasted at the same time day after day,
it is available of daily recordings. It is available of TIMER RECORDINGS from Sunday to Saturday.
Weekday : It is similar to Daily TIMER RECORDINGS, but this TIMER RECORDINGS is available from Monday to
Friday.
Weekly : Once you select one day of the week, it is available of TIMER RECORDINGS in the same day weekly.
Timer Recordings

27
VCR Operation
26
• If two
recordings
overlap, the index
mark for the second
program will be
erased. Therefore,
when you use the
index feature to find
the second program,
the VCR will skip
over it.
• If you record
multiple programs
in one recording
session, the VCR will
only find the index
mark that was
placed on the video
cassette tape when
the recording
session began.
Using advanced features
Using advanced features
Searching a cassette tape for programs (indexing)
■When you record a programs, the VCR places an index mark at the start of the recording. To search for an
index mark:
Press [SETUP] button and select
“FUNCTIONS”.
1
1
Select “Index Search”.
2
2FUNCTIONS
Index Search
Go-To Search
Tape Select
Auto Repeat
Move: Select:
End: SETUP
ENTER
Preferences
Press [SETUP] button and select
“PREFERENCES”.
Select “OSD display”.
OSD display “ON” or “OFF” mode will toggle by
pressing [ ] button.
1
1
2
2
Select “Auto Power off”.
Auto Power Off “YES” or “NO” mode will toggle
by pressing [ ] button.
If the Auto Power off mode is selected during
playback, the VCR will auto-rewind the tape to
the start point and turn off the power at the
end point of the tape. The tape will be ejected.
3
3
Select “Channel Change”.
Channel change “3” or “4” mode will toggle by
pressing [ ] button.
4
4
SETUP
CLOCK SET
TIMER RECORDINGS
CHANNEL SET
PREFERENCES
FUNCTIONS
SELECT LANGUAGE
PREFERENCES
Move: Select:
End: SETUP
ENTER
Move: Select:
End: SETUP
ENTER
OSD display ON
Auto Power off YES
Channel Change CH3
PREFERENCES
Move: Select:
End: SETUP
ENTER
OSD display ON
Auto Power off YES
Channel Change CH3
PREFERENCES
Move: Select:
End: SETUP
ENTER
OSD display ON
Auto Power off YES
Channel Change CH3
INDEX SEARCH
Press REW or FF
to begin searching
or
Enter a specific
index number
01
End: SETUP
If you want to search through a certain number
of index marks, press two number buttons to
enter the number of marks you want to search.
Press CLEAR on the remote to correct an entry.
or
Press REW to search backward or FF to search
forward. The VCR will locate your index mark
and begin playback. If you did not enter a
specific index number, the VCR will locate the
next index mark and begin playback. Press STOP
to stop index searching.
3
3
SETUP
CLOCK SET
TIMER RECORDINGS
CHANNEL SET
PREFERENCES
FUNCTIONS
SELECT LANGUAGE
Move: Select:
End: SETUP
ENTER
Press [SETUP] button and select
“FUNCTIONS”.
Select “Go-To Search”.
1
1
■You can mark a segment of the video cassette with the tape counter that will help you easily locate the
segment later.
FUNCTIONS
Index Search
Go-To Search
Tape Select
Auto Repeat
The tape counter is displayed on the screen.
Input the tape counter you want to go and
press REW or FF, the VCR will search for the
time counter you want.
2
2GO-TO SEARCH
Current tape counter is
2 : 17 : 18
Press REW or FF
to go to - : - - : 00
Some index
marks that may
be missed by the VCR :
• A mark too close to
your location on the
tape.
• The mark at the
beginning of a
recorded segment of
five minutes or less.
• The first index mark
on the tape when
you start at the
beginning of the
tape.
Searching with the tape counter (go- to search)

29
VCR Operation
28
Changing the on-screen menu language
Press [SETUP] button and select
“SELECT LANGUAGE”.
1
1
Select the language among English,
Spanish or Portuguese by pressing
[ENTER] button.
2
2
■You may select the language in which you would like the VCR’s menu to be displayed: English, Spanish, or
Portuguese.
LANGUAGE SELECT
Select a language.
Português
English
Español
Move: Select:
End: SETUP
ENTER
SETUP
CLOCK SET
TIMER RECORDINGS
CHANNEL SET
PREFERENCES
FUNCTIONS
SELECT LANGUAGE
Move: Select:
End: SETUP
ENTER
Using advanced features Using advanced features
1
1Use PLAY, REW,or FF to reach the point on the tape that you would like to mark as
0:00:00.
2
2Press [DISPLAY] button to display the tape counter on the screen.
3
3Press [CLEAR] button to reset the tape counter to 0:00:00.
4
4You can continue to play the tape or perform other functions with the VCR.
Marking a tape for zero search
Press [SETUP] button and select
“FUNCTIONS”.
Select “Tape Select”.
1
1FUNCTIONS
Index Search
Go-To Search
Tape Select
Auto Repeat
The tape remain time will be automatically
appeared in the TAPE SELECT mode.
If the using tape is under T-120, select “T-120”.
If the using tape is T-160, select “T-160”.
The remain time is changed according to the
selected tape speed mode (SP/EP).
2
2TAPE SELECT
Using tape : T-120
T-120
T-160
Remain time - : - -
• The remaining
tape length
shows the
approximate
length of tape left
over.
• If the tape is
running in the
PLAY or RECORD
mode, the hour
and minute(--:--)
will be shown in
the part of TAPE
REMAIN.
Tape Select
Example ) In case of SP mode --> Remain time 0:30
In case of EP mode --> Remain time 1:30
Press [SETUP] button and select
“FUNCTIONS”.
Select “Auto Repeat”.
1
1FUNCTIONS
Index Search
Go-To Search
Tape Select
Auto Repeat
If you select “Auto Repeat ON”, the unit
operates continuous operation like “ PLAY
REW PLAY”.
In order to release “Auto Repeat” function,
press the POWER key or REPEAT key on the
remote control.
2
2AUTO REPEAT
Current Mode :OFF
OFF
ON
Auto Repeat
Display (O.S.D)
1
1Press [DISPLAY] button to display the tape counter, clock and status mode on the
TV screen.
2
2And, by one more pressing [DISPLAY] button before disappearing the OSD from the
screen, only the tape counter will remain on the screen.

30 31
VCR Operation
Hi-Fi Stereo Playback
Playing a tape in Hi-Fi high-quality
• “Hi-Fi” signal lights up in the top of a screen.
• Pressing [AUDIO] button changes menus one by one.
If there are some noises made in recording, please “Linear” to reduce them.
Forced Mono
Recording Stereo or Secondary Audio Programs (SAP)
• In some cases, while receiving a stereo or SAP (Secondary Audio Programs), receiving condition may be
poor, which may cause the stereo or SAP broadcasting to be interfered frequently or its volume to be
uncontrollable. Just pressing [AUDIO] in stereo or SAP forces to fix the condition into mono sound.
• To return it, you have two choices, pressing [AUDIO] button again or picking up the channel again.
Hi-Fi R-L Linear
STEREO MONO SAP
• Programs are broadcast in mono or stereo audio, or with a SAP.
• Pressing [AUDIO] button changes STEREO, MONO, SAP one by one.
• While recording in stereo signal, it is recorded in Hi-Fi.
• SAP is available only in its service areas from stations.
• The following guidelines will help you decide on the best method for recording programs. Choose:
- Stereo reception for normal recording and to record broadcast stereo television.
- Mono reception if the stereo signal is weak and sound is too “noisy.”
- SAP reception to record a second audio program. An example of a SAP is a program that is broadcast in English,
but has a Spanish SAP.
•You can only record stereo and SAPs if the program is a broadcast in stereo or with a SAP. Consult a television
guide for program broadcast information.
Playing a desired scene
To skip scenes in a disc
To move to next chapter (or track), press [ NEXT] button.
The current chapter (or track) moves to the next chapter (or track).
Press [ PREV] button.
The current scene moves to the previous chapter (or track) or first scene of current chapter (or
track).
Directly moving to a desired title (DVD)
Press the [TITLE/PBC] or
[MENU]button.
A list of the titles on the disc is displayed.
For the case of VCD disc, menu screen will appear
only when the disc has PBC function and PBC ON
is activated.
1
1
Press the [ENTER] button or [PLAY]
button after pressing the [ ]
button to select the desired title.
The selected title now starts playing.
2
2
■Some movie discs may contain multiple titles. If the disc has a movie title menu recorded on it, the [TITLE]
button can be used to select the movie title. Details of operation may differ depending on the disc used.
* Selecting a title may not be available on certain DVD discs.
DVD Operation

33
DVD Operation
Repeating a defined period from A to B
■You may repeat a defined period from A to B.
At the point where you want to start
the repeat playback, press [A-B]
button.
The right figure appears and repeat playback start
position (A) is set.
1
1
Rep. A-
At the point where you want to end the
repeat playback, press [A-B] button
again.
The repeat playback end position (B) is set and a
defined period from A to B is playback repeatedly.
2
2
To exit from repeat playback mode,
press [A-B] button.
It enters into Normal Playback mode.
3
3
Rep. A-B
Rep. Off
Playing a desired scene
32
Playing a programmed order
While STOP or Playback, press
[PROGRAM] button.
While the right figure is appearing, please input
desired Title and Chapter number with NUMBER
buttons. Press [ENTER] to go into next program
number.
* In case of VCD and CD, please input TRACK Number.
1
1
After completing setting, press [PLAY] button.
Then, titles and chapters (track) are played in the above-programmed order.
To exit from Program Play mode, press the [SETUP] button in Program menu
screen.
2
2
Program Menu Select : ENTER
Title Chapter Title Chapter
1 - - - - 6 - - - -
2 - - - - 7 - - - -
3 - - - - 8 - - - -
4 - - - - 9 - - - -
5 - - - - 10 - - - -
Previous Next
Play Exit : SETUP
Repeating a defined period
• Rep. Chapter : Current chapter will be repeatedly playback.
• Rep. Title : Current title will be repeatedly playback.
• Rep. One : Current track will be repeatedly playback.
• Rep. Disc : Current disc will be repeatedly playback.
• Rep. Random : Tracks in the disc will be playback in random order.
• Rep. Dir : Current directory in MP3 disc will be repeatedly playback.
• Rep. Off : Repeat playback will be cancelled.
Each time you press [REPEAT] button in playback mode, repeat playback
starts as below.
• DVD : Rep. Chapter --> Rep. Title --> Rep. Off
• VCD : Rep. One --> Rep. Disc --> Rep. Off
• CD : Rep. One --> Rep. Disc --> Rep. Random --> Rep. Off
• MP3 : Rep. One --> Rep. Dir --> Rep. Disc --> Rep. Random --> Rep. Off
A MP3 disc may
not be repeated from
A to B.
Playing a desired scene
Searching DVD with a title number, a chapter number or a time
If you want to search with a title
number, press [SEARCH] button one
time.
It shows total title numbers, chapter numbers and
times. Please enter the new title number to be
searched using the [NUMBER] buttons.
1
1
If you want to search with a time, press
[SEARCH] button three times.
Please enter the new time to be searched using
the [NUMBER] buttons.
3
3
Title - - -
If you want to search with a chapter
number, press [SEARCH] button twice.
Please enter the new chapter number to be
searched using the [NUMBER] buttons.
2
2
02:00:18
1/2
T1/8 C
Chapter - - -
Time - - : - - : - -
02:00:18
1/2
T1/8 C
02:00:18
1/2
T1/8 C
In completing entering, please press [ENTER] button.
PLAY starts from the selected position.

35
DVD Operation
34
Confirming the current PLAY mode on screen
Confirming the current DVD disc mode
Confirming the current VCD, CD disc mode
While in playing, press [DISPLAY]
button.
It shows the disc type, current title, current
chapter and time elapsed.
1
1
Press [DISPLAY] button again.
It shows the DVD disc logo, subtitle selected,
audio selected, dolby digital logo, repeat playback
2
2
While in playing, press [DISPLAY] button.
It shows the disc logo, current track, subtitle selected,
audio selected, repeat playback mode, time elapsed and
equalizer bar.
* In case of CD, display screen appears automatically in playback
mode. But subtitle and equalizer bar indicator will not appear.
To exit from Display mode, press [DISPLAY] button
again.
1
Searching VCD and CD with a track number or time
If you want to search with a time, press
[SEARCH] button one time.
In case of PBC OFF, the screen like the right figure
appears. Please enter the new time to be
searched using the [NUMBER] button.
1
1
In completing entering, please press [ENTER].
PLAY starts from the selected position.
* In case of MP3, press [SEARCH] button one time. When it shows track , please enter the
track number.
---
3
3
Time - - : - -
If you want to search with a track time,
press [SEARCH] button twice.
In case of PBC OFF, the screen like the right figure
appears. It shows current track’s time and the
whole disc’s hours. Please enter the new track
time to be searched using the [NUMBER] button.
* If it is PBC OFF, only the track’s time appears.
2
2
Track Time - - : - -
LR OFF
VCD
00:45
1/2
T
Playing a desired scene
Confirming the current MP3 disc mode
Display screen appears automatically in
Playback mode.
It shows the MP3 File information in disc, the
directory, MP3 File name and directory list.
With [ ] buttons, you can move the
cursor to directory or number of MP3 Music
File. To go to desired directory or to playback
MP3 File, press [ENTER] key.
* The information of MP3 File means the disc type,
current track, Bit rate, repeat playback mode, time
elapsed and equalizer bar.
1
1
At the desired directory position, press
[ENTER] button.
It shows the track list.
2
2
00:45/30:35
1/517 128K
TOFF
DIR_1
DIR_3
DIR_4
DIR_5
DIR_2
00:45/30:35
1/517 128K
TOFF
...
TRACK_3
TRACK_4
TRACK_1
\ - - - - - - - - - - - - - - 1.MP3
\ - - - - -
TRACK_2
mode and current angle.
To exit from Display mode, press [DISPLAY] button again.
PBC
LR OFF
VCD
00:45
1/2
TPBC
* If it is PBC ON, pressing the time number converts PBC to OFF mode automatically.
LR OFF
VCD
00:45
1/2
T
02:00:18
1/2
T1/8 C
PBC

37
DVD Operation
36
ZOOM, Multi Angle and Digest play
Using a zoom function
■The user can enlarge the current screen about 1.3 or 2 times.
Keep pressing [ZOOM] button till the
preferred zoom appears.
Every time the user presses [ZOOM] button, a zoom
magnification changes 1.3 times (X1.3) 2 times (X2)
OFF 1.3 times (X1.3) ... one by one.
A base point to be enlarged is centre and the point can be
changed with the operation of [ ] button.
Different Angle
■If a disc includes multi angle information, the user can watch a screen in multi angles. The function is
limited to a DVD disc supporting multi angle information.
Keep pressing [ANGLE] button till the
preferred angle appears.
Every time the user presses [ANGLE] button, an angle
degrees changes in a consecutive order.
For the case of
VCD, only 2 times
Zoom is available.
1.3
2
Selecting an audio language
AUDIO language, SUBTITLE language and 3D AUDIO
■The user may select an audio language and subtitle language if a disc includes Multi-language.
Keep pressing [AUDIO] button till the user’s
preferred language appears.
If DVD disc includes audio information, every time the
user presses [AUDIO] button, English (ENG), French (FRE),
Spanish (SPA) and others appear one by one.
Selecting a subtitle language
Keep pressing [SUBTITLE] button till the
user’s preferred language appears.
If a DVD disc includes subtitle information, every time the
user presses [SUBTITLE] button, English (ENG), French (FRE),
Spanish (SPA) and others appear one by one.
A certain disc
may not support
audio select or
subtitle select.
Selecting 3D Audio
Please press [3D] button.
If the right figure appears, move the cursor with
[ ] buttons.
The user may select a “Sound fields” among Standard,
Theater, Amphitheater, Live, Concert, Church, Wide, Hall
or Stadium.
Also, select a “Graphics equalizer” among Standard,
Classic, Rock, Jazz, Pop or User.
* When setting graphics equalizer, sound fields changes to
“Standard” automatically.
■Sound Fields and Graphics Equalizer can be set.
+8dB
- 8dB
Sound fields Standard
Graphics equalizer Standard
D
I
ENG 1/3 OFF
ENG/3 1/1
D
I
ENG 1/3 OFF
ENG/3 1/1
D
I
ENG 1/3 OFF
ENG/3 1/2
Only activates
with VCD 1.0 or VCD 2.0
discs.
Digest play
Press the [DIGEST] button in playback or
stop mode.
All the contents of VCD are divided to 9 parts and the
first scene of each parts are shown on the screen.
Press the [ENTER] button after moving to the desired
scene with [ ] button.
The selected scene now starts playing.
