Daewoo SDA1609 User manual

1
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

2
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
6 Additional Safety Information
7 Explanation of Symbols
7 Oven cooking guide
8 Description of Parts
8 Before First Use of Your Oven
9 Description of Controls
10 Using the Oven
11 Using the Hot Plates
12 Cleaning and Maintenance
12 Technical Specification
12 Plug Wiring Information
13 Cooking Timings, Temperatures and Quantity
14 Troubleshooting Guide
15 Recycling Information
15 Customer Support
16 Recipes for You to Try
Back Page Warranty Information

3
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this
manual carefully paying particular attention to the safety
instructions. Failure to do so may result in personal injury
or damage to the product.
Carefully save this instruction manual for future reference.
Ensure the user manual is included when passing the product on
to any third parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
Whilst using electrical appliances, basic safety precautions
should always be followed.
Only use the product as described in this user manual. Any other
use is considered improper and may result in damage to property
or persons.
The manufacturer or vendor cannot be held liable for damages or
injury incurred through improper or incorrect use.
•Read and familiarize yourself with all operating
instructions before using this Oven.
•Before plugging your unit into the mains, visually check
that it is intact and has not suffered any transit damage.
•Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
•DO NOT use this product with a programmer, timer,
separate remote-control system or any other such device.
•DO NOT immerse this appliance in water or any other
liquids.
•Cooking appliances should be positioned in a stable
situation with the handles (if any) positioned to avoid
spillage of liquids.
•DO NOT touch hot surfaces. Accessible surfaces

4
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
are liable to get hot during use. Always use the
handles provided.
•Oven gloves should be used whilst using this appliance.
•Close supervision is required when using this appliance
near children.
•Never leave this appliance within reach of children.
•This appliance shall not be used by children from 0 to 8
years.
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved.
•Children shall not play with the appliance.
•Keep the appliance and its cord out of reach of children
less than 8 years.
•Cleaning and user maintenance shall not be made by
children.
•DO NOT leave the appliance unattended during use.
•DO NOT leave the appliance unattended whilst connected
to the mains supply.
•Always use this appliance on a solid, level, non-flammable
surface.
•DO NOT use this appliance outdoors.
•It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
•Regular, periodic checks should be carried out on the
supply cord to ensure no damage is evident. Should there

5
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
be any signs of damage the appliance should not be used.
•If the supply cord is damaged it is to be replaced by a
qualified person in order to avoid a hazard.
•DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
•DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
•Allow the unit to cool before storage.
•Never place the appliance near to flammable material or
high-pressure containers.
•This appliance is intended for household use only and
should not be used for industrial purposes.
•DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
the supplier.
•DO NOT use this appliance for anything other than its
intended use.
•DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
•Ensure appliance is situated in an open area, do not allow
it to come in contact with cupboards, curtains, wall
coverings, clothing or other flammable materials.
•Unplug after each use. Grasp the plug, not the cord.
•DO NOT cover this appliance.
•Never place this appliance on an electric, gas, or any other
type of hob.
WARNING! Do not attempt to move the Oven whilst it is
hot or contains hot food or liquids. Turn the appliance
off and disconnect from the mains and let it cool

6
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
sufficiently before moving it.
WARNING! Hot steam may be released when opening
and closing the appliance during use. Risk of scalding!
WARNING! Always carry the appliance with both hands.
Always use ovengloves. Burn hazard!
THIS APPLIANCE MUST BE EARTHED
Additional Safety Information
•PLEASE NOTE: Before use, ensure that the Oven is used
in an open, well ventilated area well away from other
appliances and other obstructions.
•Do not use the Oven in front of, near or below
combustible materials such as plastics, curtains or
cupboards, etc.
•Do not place the appliance against a wall or against other
appliances. Leave at least 10cm minimum free space on
the back and sides and 10cm minimum free space above
the appliance.
•Do not place anything on top of the appliance.

7
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the use
of this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This symbol indicates that the surface is gets hot and care must be
taken.
Oven cooking guide
Cooking times may vary depending on the food ingredients and weight, adjust the
time as advised in the recipe or on pack cooking guide.
The oven will cycle on and off during the cooking process to keep the cavity of the
oven at the temperature selected using the thermostat. When using the grill or
tray, the maximum weight of the food should not exceed 3.5kg.
This designates a hazard with moderate risk, which may result
in severe injury if not adhered to.

8
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Description of Parts
Before first use of your Oven
•Remove all packing materials and discard responsibly.
•Ensure all parts are present - see Description of Parts below.
•Check that there is no transit damage to the mains cable or product.
•Make sure the Oven is unplugged and all the Timer Control (6) is set to the “0”
position.
•Place the Oven on a solid, level, non-flammable surface that is strong enough
to support the weight of the oven.
•Wash all the accessories (10-12) in warm soapy then rinse and dry thoroughly.
2
10
11
12
1. Large Hot Plate
2. Small Hot Plate
3. Hot Plate Control
4. Temperature Control
5. Oven Function Control
6. Timer Control
7. Power Indicator
8. Door Handle
9. Viewing Window
10. Grill Rack
11. Backing Tray
12. Baking Tray Handle
3
4
5
6
1
7
8
9

9
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
It is advised to run the appliance at maximum temperature for approximately
15 minutes by rotating the Timer Control (6) to 15 minutes and Temperature
Control (4) fully clockwise, to remove any residual lubricants placed on the
elements to prevent corrosion during transit.

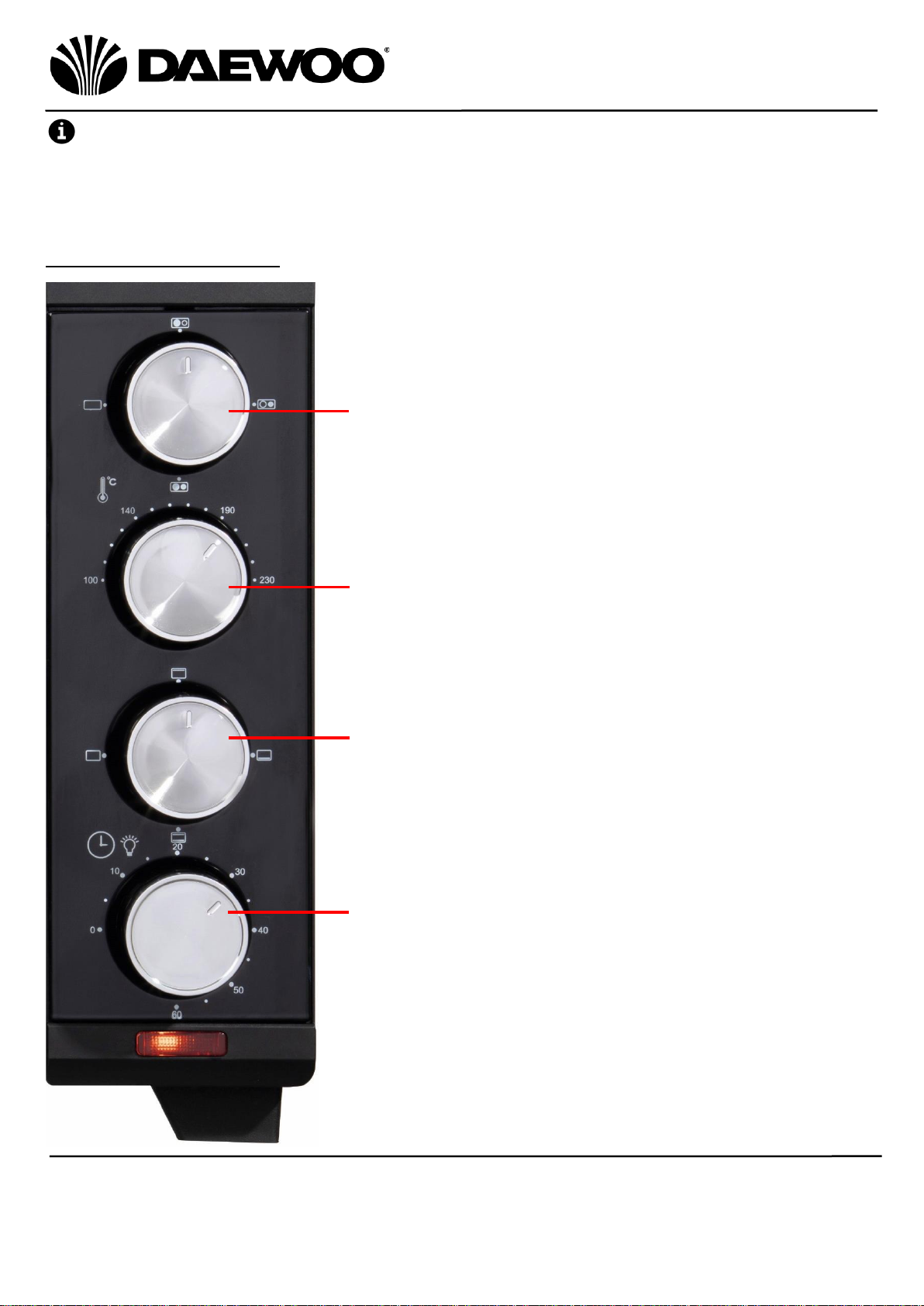

Description of Controls
Rotate the Hot Plate Control (3) to use either the
Small, Large or both Hot Plates.
Rotate the Temperature Control (4) to set the
oven cooking temperature between 100⁰C and
230⁰C.
Rotate the Oven Function Control (5) to select the
upper heating element, the lower heating
element, a combination of both.
Rotate the Timer Control (6) to set the cooking
time up to 60 minutes for both Hot Plates and
Oven. At the end of the cooking time a bell will
sound and the appliance will switch off.

10
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Hot Plate Control (3)
OFF
Large Hot Plate only
Small Hot Plate only
Both Hot Plates
Oven Function Control (5)
OFF
Lower heating element only
Upper heating element only
Both heating elements
Using the Oven
1. Place the Oven on a solid level, heat resistant surface, ensure that the
ventilation outlets are not obstructed.
2. Place the food to be cooked on the Grill Rack or on the Baking Tray.
3. Close the Door.
4. Rotate the Temperature Control (4) to the desired temperature from 100°C to
230°C.
5. Rotate the Oven Function Control (5) to select the upper heating element, the
lower heating element or a combination of both.
6. Rotate the Timer Control (6) to the desired time up to 60 minutes. The Oven
will then power up and the Power Indicator (7) will illuminate.
7. At the end of the cooking time a bell will sound and the appliance will switch
off.

11
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Using the HOT PLATES
Before using the Hot Plate for the first time, rotate the
Hot Plate Control (4) to both Hot Plates for 5 minutes
to condition the protective coating.
You may notice a slight odour and a little smoke
during this initial heating process. This is normal and
will quickly disappear, it is the coating applied to the
heating element to prevent any corrosion during
transit.
This should be the only time the Hot Plates are operated without a cooking
utensil on them.
A pan/cooking utensil 15 - 18cm in diameter is recommended for the Large
Cooking Plate (1) and a pan/cooking utensil up to 15cm is recommended for
Small Cooking Plate (2) to achieve best results. Ensure larger pans do not
protrude beyond the edge of the Cooking Plate.
1. Place the Oven on a solid, level non-flammable surface.
2. Ensure that Timer Control (6) is in the “0” position.
3. Insert the mains plug into the mains socket.
4. Rotate the Hot Plate Control (3) to use either the Small, Large or both Hot
Plates.
5. Rotate the Timer Control (6) to set the cooking time up to 60 minutes. At the
end of the cooking time a bell will sound and the appliance will switch off.
WARNING! The use of Oven gloves is recommended whilst
handling the Grill Rack (10) and Baking Tray (11).

12
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cleaning and maintenance
•Always disconnect the Oven from the mains power supply and
allow to cool before cleaning.
•Clean the outside of the Oven with a soft damp cloth. Never
clean the Oven with harsh or abrasive cleaners.
•Clean the inside of the oven with warm water and a mild detergent, clean
after every use to prevent the build-up of grease and food deposits which may
cause excessive smoking.
•Do not submerge any part of the Oven or its cord in water or any other
liquids.
•Wash baking tray and rack in warm soapy water, rinse then dry thoroughly.
Technical Specification
Rated Voltage
220-240V~ 50/60Hz
Rated Power
2980W
Model Number
SDA1609
Protection Class
I (This Appliance Must Be Earthed)
Oven Capacity
32 Litres
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse need replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). If in doubt, consult a qualified
electrician. Never use a plug with the fuse cover missing.
If you need to remove the plug – DISCONNECT FROM THE MAINS – and then cut
it off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.

13
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cooking Timings, Temperatures and Quantity
Food Product
Min-Max
Amount (g)
Time
(min)
Temperature
(C)
Shake/
Turn
Additional Information
Chips & Potatoes
Thin Frozen
Chips (French
Fries)
200-400
15-20
200
Shake
Thick Frozen
Chips
200-400
20
200
Shake
Home-made
Chips (8x8mm)
200-350
18-25
180
Shake
Add ½ tbsp. of oil
Home-made
Potato Wedges
200-350
18-22
180
Shake
Add ½ tbsp. of oil
Home-made
Potato Cubes
200-400
12-18
180
Shake
Add ½ tbsp. of oil
Rosti
200
15-18
180
Turn
Potato Gratin
500
18-22
180
Meat & Poultry
Steak
100-300
8-14
180
Turn
Pork Chops
100-300
10-14
180
Turn
Hamburger
100-300
7-14
180
Turn
Sausage Roll
100-300
13-15
180
Turn
Chicken
Drumsticks
100-400
18-22
180
Turn
Chicken Breast
100-400
10-15
180
Turn
Frozen Chicken
Nuggets
100-300
6-10
200
Shake
Use oven ready
Snacks
Spring Rolls
100-300
8-10
200
Shake
Use oven ready
Stuffed Vegetables
100-300
10
160
Frozen
Breadcrumbed
Cheese Snacks
100-300
8-10
180
Turn
Use oven ready
Fish
Frozen Fish
Fingers
100-300
6-10
200
Turn
Use oven ready

14
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Troubleshooting Guide
Problem
Possible Cause
Possible Fix
Food is Overcooked/Burnt
Cooking Temperature is set
too high.
Check cooking temperature
and lower the Temperature
accordingly.
Cooking time is too long.
Check cooking time and reduce
the cooking time on the Timer
accordingly.
Food is not evenly cooked
Certain foods require
turning or shaking part way
through cooking
See ‘Instructions for use’ above.
Food is undercooked.
Cooking Temperature is set
too low.
Check cooking temperature
and increase the Temperature
accordingly.
Cooking time is too short.
Check cooking time and
increase the cooking time on
the Timer accordingly.
Unit does not power up
Timer Control (6) has not
been turned.
Turn the Timer Control (6) to
the desired time.
No power to the Oven.
Check that the mains plug is
inserted into the socket and
the socket is switched on (if
applicable).
The door is not pushed fully
home.
Ensure the door is pushed fully
home.
Burning smell from unit
Previous food remains on
cooking accessories.
Ensure all cooking accessories
are cleaned after each use.

15
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk enter your postcode to find out your
nearest recycling site.

16
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Recipes for You to Try……
•Place the potato strips onto the Grill or Baking Tray and insert into the oven and set the timer for 15-20
minutes - depending on the number of fries or until the fries are golden brown.
•Place the chicken wings onto the Grill or Baking Tray, set the time for 15-20 minutes and the temperature
for 200 degrees.
1. Asian Spicy Fries
Potato x4 / 600g
Oi 2 teaspoons
Salt 1 teaspoon
Pepper powder 1 teaspoon
Shallot powder 1 teaspoon
Red chili powder ½ teaspoon
● Peel potatoes and cut into strips;
● Soak potato strips in salt water for at least
20mins, and then dry with kitchen paper.
● Mix shallot, salt and pepper, garlic powder/
garlic oil, red chili powder, stir in the potato
strips.
● Set temperature to 180 degrees and time
to 5 minutes to preheat the oven.
2. Golden Chicken Wings
Chicken wings 500g
Garlic x2
Ginger powder 2 teaspoon
Cumin powder 1 teaspoon
Black pepper powder 1 teaspoon
Sweet chili sauce 100 mg
● Set temperature to 200 degrees and timer
to 5 minutes to preheat the oven.
● Stir garlic, ginger powder, cumin powder,
spicy black pepper and a little salt together,
and then coat the chicken wings.
● Allow the chicken wings to stand for 20
minutes.

17
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
•
•
•
•
•
•
•
•
•
•
•
•
•
•
3. Fried chicken nuggets
Fresh chicken nuggets500g
Eggs x3
Flour 1 cup
Olive oil 1 spoon
White pepper powder1 teaspoon
● Set the temperature to 200 degrees and
the time to 5 minutes to preheat the oven.
● Stir eggs, flour, olive oil, white pepper
and a little salt together, and then coat the
chicken nuggets.
● Allow the nuggets to stand for 20
minutes.
4. Fried squid
Squid (Frozen) 500g
Oil 2 tablespoon
Salt 1 teaspoon
Cumin powder 1 teaspoon
Chicken powder 1 teaspoon
Pepper powder 1 teaspoon
● Set the temperature to 200 degrees and
the timer to 5 minutes to preheat the
oven.
● Stir seasoning together, and then coat
the squid and allow to stand for 20
minutes.
•Place the chicken nuggets onto the Grill or Baking Tray, set the time for 15-20 minutes and the
temperature to 200 degrees.
•Place the squid onto the Grill or Baking Tray, set the temperature for 200 degrees and the time for 12-15
minutes or until golden brown.

18
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
•Apply a thin layer of salad oil to the prawns, place the prawns onto the Grill or Baking Tray, set the
temperature for 200 degrees and the time for 5-8 minutes or until a golden crunchy layer has formed.
5. Spicy Shrimp
Unfrozen prawns x10
Oil 2 tsp
Garlic finely chopped x1
Black pepper 1 tsp
Chili powder 1 tsp
Sweet chili sauce 100mg
● Set the temperature to 200 degrees and
timer to 5 minutes to preheat the oven.
● Rinse the prawns.

19
32L Electric Oven with Hot Plates
Model No. SDA1609
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof
of purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
• The product must becorrectly installed and operated in accordance with the
requirements contained in the instruction manual.
• The product must beused solely for domestic purposes.
• It does not cover general wear and tear, damage, misuse or any consumable parts.
• The guarantee will berendered invalid if the product is re-sold or has been damaged through
inexpert repair.
• The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
