Daewoo DT-4220 NH User manual

http : //svc.dwe.co.kr
Caution
: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to L( arts rice List)in
Service Information Center(http://svc.dwe.co.kr)
DAEWOO ELECTRONICS Corp.
Service Manual
Jun. 2004
42” PLASMA PDP TV
CHASSIS : SP-200P
MODEL : DT-4220NH
S/M NO. : DSP200PEF0

Contents
I. Parts with the exception of MODULE
1. Safety Precautions 2
2. Product Specification 3
2-1. SPECIFICATION 3
2-2. Avai ab e Input Signa 5
2-3. Remote Contro Setup Code 6

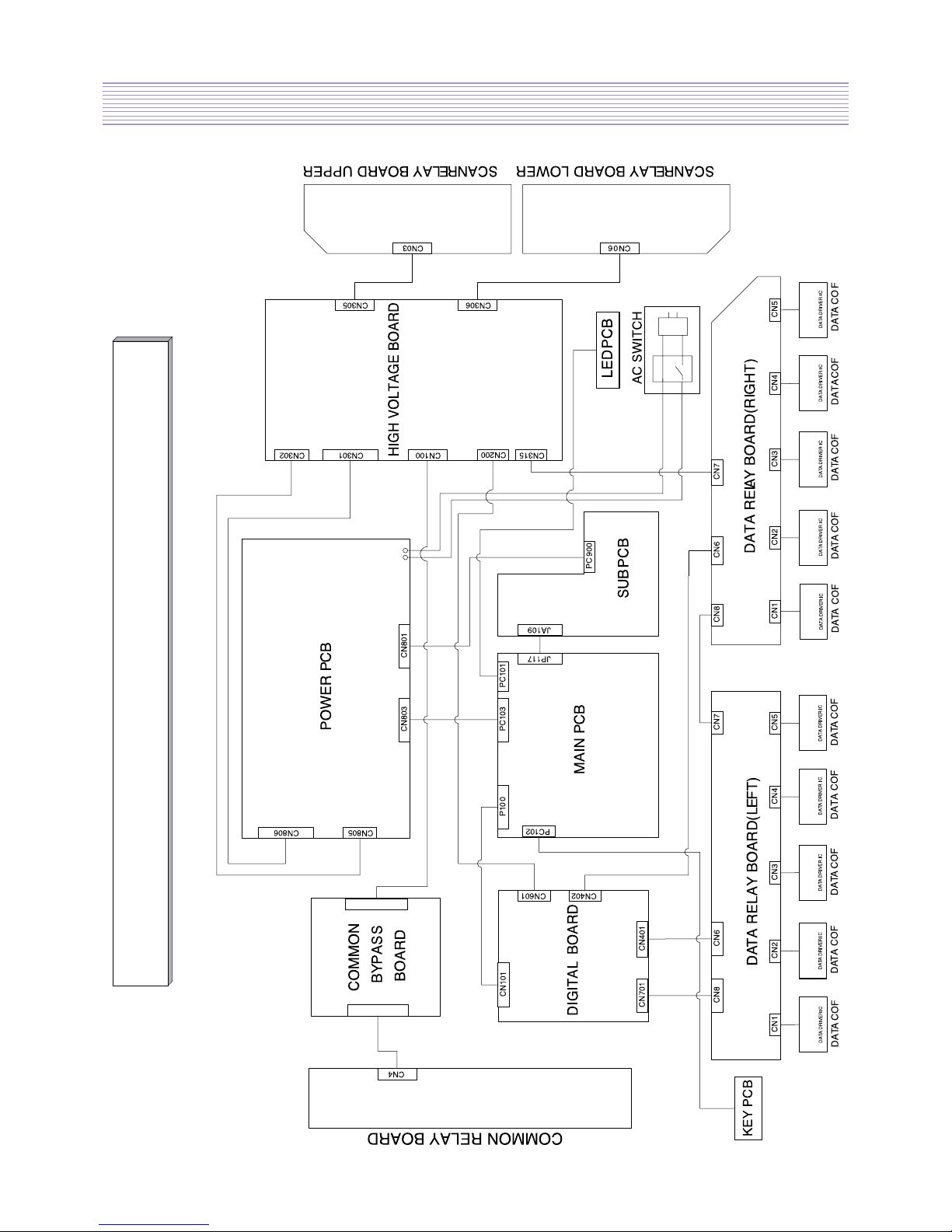

3. BLOCK DIAGRAM 14
4. Description Of A/V and power 15
4-1. B ock Diagram of main IC and TP 15
4-2. Overview 16
4-3. POWER PCB 24
4-4. Interface with PDP modu e 26
5. SERVICE MODE 27
5-1. Checking initia menu data 27
5-2. Entering SERVICE MODE 28
5-3. Description Of SERVICE MODE Items 30
6. Adjusting Method 33
6-1. Adjusting WHITE BALANCE 33
6-2. Adjusting POWER PCB 34
7. SOFTWARE UPGRADE Method 36
8. Main PCB Troub e Diagnosis 39
8-1. MAIN & SUB PCB Troub e Diagnosis 39
8-2. POWER PCB Troub e Diagnosis 46
9. TROUBLE DIAGNOSIS 47
9-1. Facts You Must Know When Diagnosing And Repairing 47
9-2. Typica Symptoms of PCB prob em or bad Connection 47
9-3. Troub e Diagnosis and Repairing Method for Representative Symptoms 48
10. ASSEMBLY LIST 53
11. STRUCTURE OF PDP SET 54
12. EXPLODED VIEW 59
II. Parts of MODULE
1. Confirmation Manual
2. Repair Manual
-1-

-2-
1. Safety Precautions
I. Parts with the exception of MODULE
1. Safety Precautions
(1) When moving or laying down a PDP Set, at least two people must work together. Avoid
any impact towards the PDP Set.
(2) Do not leave a broken PDP Set on for a long time. To prevent any further damages, after
checking the condition of the broken Set, make sure to turn the power (AC) off.
(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric
shock. When PDP is operating, high voltage and high current inside the Set can cause
electric shocks.
(4) When loosening screws, check the position and type of the screw. Sort out the screws and
store them separately for reassembling. Because screws holding PCBs are working as
electric circuit GROUNDING, make sure to check if any screw is missing when
assembling/reassembling. Do not leave any screws inside the set.
(5) If you open the BACK COVER, you will see a
Panel Gas Exhaust Tube (Picture. 1-1) inside
the bracket. If this part is damaged, the entire
PDP PANEL must be replaced. Therefore,
when working with the set, be careful not to
damage this part.
Picture 1-1. Pane Gas Exhaust Tube
(6) A PDP Set contains different kinds of
connector cables. When connecting or disconnecting cables, check the direction and
position of the cable beforehand.
(7) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC
cables. Do not connect or disconnect connectors instantaneously with force, and handle
them carefully for reassembling.
(8) Connectors are designed so that if the number of pins or the direction does not match,
connectors will not fit. When having problem in plugging the connectors, check their kind,
position, and direction.

-3-
2. Product Specification
I T E M S P E C I F I C A T I O N REMARK
1. GENERAL
1-1. MODEL NO DT-4280NH
1-2. CHASSIS NO SP-200P
1-3. SCREEN SIZE 42” (16:9)
1-4. COUNTRY Europe
1-5. RESOLUTION 853(H) x 480(V)
1-6. REMOCON TYPE R-53DP4
1-7. SAFETY STANDARD CE(CLASS B), CB
1-8 .TUNIG METHOD FS
1-9. MEMORY CHANNEL 99CH
2. MECHANICAL
2-1. APPEARANCE
1) WITHOUT STAND W x H x D =1044 x 631 x 89 mm
2) WITH STAND W x H x D =1044 x 705.9 x 310 mm
2-2. WEIGHT
1) WITHOUT STAND 30.2 Kg
2) WITH STAND 34.7 Kg
3. ELECTRICAL
3-1. VIDEO INPUT COMPOSITE(NTSC, PAL, SECAM, PAL-M/N, NTSC4.43) &
S-VHS(50/60Hz Y/C) 1 set
3-2. DTV/DVD INPUT 1080 i, 720P, 480P , 480i, 576P, 576i
(Y, Pb/Cb, Pr/Cr COMPONENT SIGNAL) 2sets
3-3. SCART INPUT SCART(COMPOSITE, R,G,B, SOUND) R/L 2sets
3-4. PC INPUT VGA ~ SXGA(Dot c ock : 120MHz), 15 PIN D-SUB 1set
3-5. DVI INPUT DVI-D INPUT (DVI Jack) 1set
3-6. TV INPUT
1) COLOR STANDARD PAL B/G+I/I+D/K, L-SECAM, L’--SECAM
2) ANTENNA IN ONE INPUT 75 Unba anced (DIN Standard)
3) RECEPTION CHANNEL VHF LOW : E2 ~ S6 Ch.
VHF HIGH : S7 ~ S36 Ch.
UHF : S37 ~ E69 Ch.
L’-SECOM : FB, FC1, FC
4)
IF & SUBCARRIER PIF : 38.90MHz (PAL B/G+I/I+D/K, L-SECAM
33.9 MHz (L’-SECAM)
SIF : 33.40MHz (B/G), 32.90MHz (I/I),
32.4MHz (D/K, L-SECAM), 40.4MHz (L’--SECAM)
3-7. SOUND INPUT VIDEO 1set, DTV/DVD 2set, PC 1set, DVI 1set
3-8. SPEAKER OUTPUT 10W(R) + 10W(L)
3-9. POWER REQUIREMENT AC 100V~240V, 50/60Hz
2-1. SPECIFICATION

-4-
Product Specification
I T E M S P E C I F I C A T I O N REMARK
3-10. POWER CONSUMPTION 260W(Typica )
3-11. RS-232 CONTROL RS-232 Communication (FOR SERVICE UPGRADE)
3-12. AV OUTPUT SCART(CVBS, SOUND R/L) 2 sets
3-11. AV OUTPUT CVBS 1 set, SOUND R/L 1 set
3-13. FUNCTION
1) SCALING DVI : H/V SIZE
PC: H/V SIZE, POSITION, PHASE, FREQUENCY
VIDEO/DVD(480i/576i) : 16:9, 4:3, AUTO, En argeLB,
En argeLBS, PANORAMA
DTV/DVD(480P and Better Reo usion) : 16:9, 4:3
2) ZOOM 20 STEP ZOOM and PANING
3) OSD Language 18 Languages (Eng ish, Greek, Dutch, German, Russian, Rumanian,
Swedish, Danish, Finnish, Norwegian, Spanish, Ita ian, French,
Po ish, Portuguese, Czech, Hungarian , S ovakian)
4) OTHERS STILL, SLEEP MODE, SOUND MODE, PICTURE MODE
TIMER, TELETEXT (LEVEL 2.5)
4. OPTICAL
4-1. SCREEN SIZE 42”(106 cm) DIAGONAL
4-2. ASPECT RATIO 16 : 9
4-3. NUMBER OF PIXELS 853(H)X480(V)
4-4. DISPLAY COLOR 1,677 Mi ion Co ors ( 8bits for each RGB)
4-5. CELL PITCH 1.08(H) x 1.08(V)mm (1 Pixe = a Set of RGB Ce s )
4-6. PEAK LUMINANCE 400cd/m2(WITH FILTER GLASS)
4-7. CONTRAST RATIO 1500:1 (Dark Room)
4-8. VIEWING ANGLE 160 degree(VERTICAL/HORIZONTAL)
5. USERCONTROL & ACCESSORIES
5-1 CONTROL BUTTON(SET) PUSH-PULL S/W : AC POWER BUTTON
SOFT S/W: MOVE/CH(UP, DOWN), VOLUME(LEFT, RIGHT),
MENU, INPUT SELECT
5-2. REMOTE CONTROL
(R-53DP4) Power, Universa Se ection (TV, VIDEO/DVD, CABLE, SAT),
10 KEYS(0~10), Reca , VCR /DVD KEY
(RR, P ay, FR, Stop, Freeze, OPEN/CLOSE, PREV, NEXT ),
Menu, TV/VIDEO, MULTIMEDIA, Sti , Previous Channe ,
Sound Off, Channe (UP/DOWN), Vo ume(UP/DOWN),
Screen Mode/MIX, Screen Size, Zoom-, Zoom+, S eep Timer,
Mu ti ingua /CYAN, Sound Mode/INDEX,. RED, GREEN, YELLOW,
TEXT, REVEAL, UPDATE, EXPAND, SUBPAGE, HOLD
5-3. ACCESSORIES
REMOCON, BATTERY, USERS MANUAL, A/V CABLE, RF CABLE
5-4. OPTIONAL PARTS STAND, WALL HANGER, SPEAKER UNITS(Left, Right)

-5-
Product Specification
Reso ution H Freq. (KHz) V Freq. (Hz) Remark DVI PC
640x400 37.861 85.080 VESA O
640x480 31.469 59.940 DOS O O
37.861 72.809 VESA O O
37.500 75.000 VESA O O
43.269 85.061 VESA O O
720x400 31.469 70.087 IBM O O
37.927 85.039 VESA O
800x600 35.156 56.250 VESA O O
37.879 60.317 VESA O O
48.077 72.188 VESA O O
46.875 75.000 VESA O O
53.674 85.061 VESA O O
1024x768 48.363 60.004 VESA O O
56.476 70.069 HP&VESA O O
60.023 75.029 VESA O O
68.677 84.997 VESA O
1152x864 67.500 75.000 VESA O O
1280x960 60.000 60.000 VESA O O
2-2. Available Input Signal
(1) PC & DVI
(2) DTV
-1080i/ 60 Hz
-720P / 60 Hz
-480P / 60 Hz
(3) VIDEO
-PAL, PAL-M, PAL-N
-NTSC , NTSC4.43
- SECAM

-6-
Product Specification
2-3. Remote Contro Setup Code
[BRAND LIST R-53DP4]
1. VCR/DVD LAST UPDATE 2004.05.19
1) VCR (STANDARD 002)
Maker (Brand) Name Code Number (3 digit) List
AIWA 038 043 054 072 111 115 120
AKAI 027 034 043 069 089 091 102 123
AKURA 028 111
ALBA 028 060 072 113 118 119 120
AMSTRAD 038
ANITSCH 029
ARC EN CIEL 043 044 089
ARISTONA 048 090 108
ASA 053 054
BAIRD 043 102
BASIC LINE 028 060 072
BLAUPUNKT 026 085 090 097 106 108
BRANDT ELECTRONIQUE
043 044 089
BUSH 027 028 060 072 118 119 120
CAPEHART 060
CGE 038 043 089
CONTINENTAL EDISON 043 044 089
CRAIG 001 041
CURTISMATHES 059 061
DAEWOO 002 008 060 062 063 067 068
DAYTRON 060
DECCA 038 043
DEGRAAF 014 017 038 048 053
DUAL 043 089
DUMONT 014 038 053
DYNATECH 038
ELBE 035
EMERSON 010 031 038 059 061 072
FERGUSON 004 043 082 084 089 093 099 103 107 121 126
FIDELITY 038
FINLADIA 014 053
FINLUX 014 017 038 053
FISHER 001 014 018 033
FUNAI 038

-7-
Product Specification
Maker (Brand) Name Code Number (3 digit) List
GBC 092
GE 059 061
GELOSO 092
GOLDSTAR 054
GOODMANS 028 038 041 049 053 054 060 072
GRAETZ 043 044 083 089 105
GRANADA 014 018 053 108 124
GRUNDIG 053 085 090 096 097 098 108
HIFIVOX 043 044 089
HINARI 010 028 071 072 077 092 111 116 120
HITACHI 017 024 038 043 073 086
IMPERIAL 038 095
INGELEN 043 044 089 105
INGERSOL 077
INNO HIT 092
ITT 018 043 083 102
ITT-NOKIA 043 044 089 105
JENSEN 043
JVC 003 006 009 043 044 046 084 089 111 114 124
KENWOOD 018 043 046 111
KRIESLER 048 090 108
LLOYD 038
LOEWE 064
LOEWE OPTA 053 081 090 108
LOGIK 028 041 072 077 102
LUXOR 102 105
LXI 054
MAGNASONIC 105
MAGNAVOX 059 061
MARANTZ 049 053 072 090 108 110
MATSUI 010 031 041 054 072 077 113 117 120
MEMOREX 001 014 018 038 048 054
METZ 090 097 104 108
MGA 052
MINERVA 085 097 108
MINOLTA 017 024

-8-
Product Specification
Maker (Brand) Name Code Number (3 digit) List
MITSUBISHI 046 052 075 122
MTC 038 041
MULTITECH 020 028 038
MURPHY 038
NAONIS 043 044 089
NATIONAL 106
NEC 035 043 046 089
NECKERMANN 010 043 089 108
NOBLIKO 108
NOGAMATIC 043 044 089
NOKIA 014 018 043 044 083 089 102 105
NORDMENDE 003 006 009 013 015 019 021 022 036 043 044 089 094 096 100
101
OPTONICA 048 049
ORION 010 030 031 032 058 072 077
OSAKI 038 054
PANASONIC 016 070 087 088 106
PATHE’ MARCONI 043 044 089
PENTAX 017 024
PERDIO 038
PHILIPS 005 040 042 045 048 049 053 064 078 081 090 108
PHONOLA 048 053 081 090 108
PIONEER 046 053 112
PORTLAND 060
PROLINE 038
PYE 048 053 081 090 108
QUARTZ 018
QUELLE 010 047 097 108
RADIOLA 048 090 108
RCA 059 061
REALISTIC 001 014 018 038 041 048 049
REX 003 043 044 089
ROADSTAR 028 041 054
SABA 003 006 011 012 013 015 021 022 043 044 089 101
SAISHO 010 031 072 077 086 113
SALORA 018 052 124

-9-
Product Specification
Maker (Brand) Name Code Number (3 digit) List
SAMSUNG 041 055 056 059 061 065 066 091 095
SANSUI 043 046
SANYO 001 014 018 039 072 105 125
SBR 053 078 081
SCHAUB LORENZ 043 044 083 089 105
SCHNEIDER 028 038 048 090 095 108
SEG 095
SEI-SINUDYNE 077
SELECO 043 044 089
SENTRA 060
SHARP 048 049 057 074
SHINTOM 028
SIEMENS 085 090 097 105 108
SIERA 048 090 108
SINUDYNE 077
SONY 047 050 051 076 080
STERN 043 044 089
STS 017
SUNKAI 072
SYLVANIA 038 052
SYMPHONIC 038 052
TASHIKO 038
TATUNG 038 043
TEAC 038 043
TEKNIKA 038
TELEAVIA 043 044 089
TELEFUNKEN 006 015 023 025 037 043 044 089
TENOSAL 028
THOMSON 015 019 043 044 089
THORN 043 084 089 109
THORN-FERGUSON 021 022 043 082 084 089 093 099 103 107
TOSHIBA 008 043 044 052 079 089
TOTEVISION 041
UHER 043 095
UNITECH 041
VICTOR 043 046

-10-
Product Specification
Maker (Brand) Name Code Number (3 digit) List
WARDS 059 061
YAMAHA 043
ZANUSSI 043 044 089
ZENDER 089
ZOPPAS 043 044
2) DVD
Maker (Brand) Name Code Number (3 digit) List
ANAM 158 159
AKAI 154
DAEWOO 152 160
DENON 157 161
HYUNPAZ 162
KENWOOD 156
LG 150 168 169
MAGNAVOX 155
ONKYO 165 166 167
PANASONIC 157 170
PHILIPS 155
PIONCER 153
SAMSUNG 151 163 164
THOMSON 171
TOSHIBA 155
YAMAHA 157
WILL CAN 172

-11-
Product Specification
2. SAT (STANDARD 002)
Maker (Brand) Name Code Number (3 digit) List
AKAI 032
ALBA 016 023 055 069 111 115 117 120
AMSTRAD 070 096
ANKARO 050
ARCON 078
ARISTONA 052
ARTHUR MARTIN 094
ASTRA 067 097
BARCOM 050
BLAUPUNKT 037
BT SATELLITE 119
BUSH 023 047 052 055 069 076 106
CAMBRIDGE 059
CAMBRIDGE ARD200 103
CHAPARRAL 011
CONNEXIONS 038 041 095
DAEWOO 002
DISKXPRESS 038 050
DRAKE 001 039 043 060 077
ECHOSTAR 015 020 046 049 064 065 071 085
ELTASAT 058
FERGUSON 044 047 051 052 062 063 066 076 106 108 111
FINLUX 008 009
FRACARRO 054 086
FTE 079
FUBA 013
GIUCAR RECORD 006 088
GOLDSTAR 078 107
GOODMANS 111
GRAETZ 087 098
GRANADA 098
GRUNDIG 037 052 066 089 122
HIGH PERFORMANCE 084
HIRSCHMANN 008 037
HITACHI 106 111
INGELEN 087 098
ITT 068
ITT-NOKIA 020 066 087 098

-12-
Product Specification
Maker (Brand) Name Code Number (3 digit) List
JEEMON 058
JERROLD 044
JOHANSSON 093
KATHREIN 032 079 080 089 090 095 099 110 112 114 118 120
KRIESLER 052
LENCO 078
LUXOR 042 087 094 098
MACAB 083
MAGAI 079
MANHATTAN 058 106 111 116
MARANTZ 032
MASPRO 048 052 092 095 106 108 113 121
MATSUI 019 109 119
METZ 089
MINERVA 089
MULTISTAR 079
NEC 029 035 072
NEIRU 078
NOKIA 087 098 105
NORSAT 045
PACE 010 052 063 066
PACE MSS SERIES 066
PALCOM 091
PALSAT 024
PANASONIC 030
PHILIPS 018 031 032
PHONOLA 052
PROSAT 055
PYE 052
QUELLE 089
RADIOLA 052
RADIX 046
RC-1000 103 104
REDIFFUSION 035 045
SAKURA 053 056
SALORA 033 067 087 094 098
SAMSUNG 079
SATECO 016
SATPORTNER 078
SCHAUB LORENZ 087 098

-13-
Product Specification
Maker (Brand) Name Code Number (3 digit) List
SCHNEIDER 052
SENTRA 036
SIEMENS 037 089
SIERA 052
SILVA 078
SINTRACK 012
STARSAT 079
STELLA 040
STRONG 024 061
STV 013
TANDBERG 007
TANDY 084
TATUNG 034 073
TECHNISAT 004 005 027 083 101 102
TELECOM 040 123 124
TELEFUNKEN 082
TELEMAX 017
THORN-FERGUSON 022 044 047 051 052 062 063 066
TRIACL 083
TRIAD 084 100
UNIDEN 057 074 075 079
VIDIO WAY 014
VORTEC 081 082
WINERSAT 093
WISI 003 021 025 026 046
WOLSEY 084
ZEHNDER 079
ZENITH 043
3. CATV (STANDARD 002)
Maker (Brand) Name Code Number (3 digit) List
CABLETIME 201 206 207
FILMNET CABLECRYPT 202
JERROLD 203 204
MATSUSHITA 202
SCIENTIFIC ATLANTA 205
SKYLIFE 002
STARCOM 203
UNITED CABLE 203
VISIOPASS 209
WESTMINSTER CABLE 208

-14-
DT-4280NH BLOCK DIAGRAM
3. BLOCK DIAGRAM

-15-
4. Description of A/V(MAIN and SUB PCB) and POWER
4-1. B ock Diagram of main IC and TP
IC112
IC149
IC140
IC114
IC102 IC134
IC121
IC132
IC104
IC904
IC903
IC901
C901
TUNER LED
KEY
C101
C102
C102
C900
JA109
J 117
A102
100
TO WR
TO WR
TO D
MODULE
C103
T 116
T 117
T 130
T 128
T 204 T 205
T 187
T 184
T 181
T 188
T 261
T 136 T 135 T 134
T 143
T 145
T _AUDIO
Top
Bottom
IC126
IC156
J 118
JA110

-16-
Description of A/V(MAIN and SUB PCB) and POWER
4-2. Overview
A/V b ock (Main and Sub PCB) is Mu ti Media circuit board that can process various input signa s
such as video, component, PC, DVI, and ana og TV signa . It is main y composed of switching,
sync processing, decoding, ana og TV, digita image processing, and system contro part
4-2-1. Composite video, Y/C(S-Video) and SCART (CVBS, RGB) composite video
Y/C(S-Video) and SCART(CVBS) have simi ar signa paths, IC102 receives these signa s
and swithes out a se ected signa . Then the signa goes into IC132 for video processing,
SCART(RGB) signa goes direct y into IC132. The output of IC132 goes through IC134 and
IC140 for deinter acing and digita image processing respective y.
- Main IC
A. IC102: Switching IC (Input: ana og inputs Output: an ana og output)
B. IC126: Te etext IC
C. IC132: Video processor (Input: Y/C, CVBS Output: 16bit digita , HV)
D. IC134: Deinter acer (Input: 16bit digita , HV Output: 24bit digita RGB, HV)
E. IC140: Image Processor (Input: 24bit digita RGB, HV Output: 24bit digita RGB, HV)

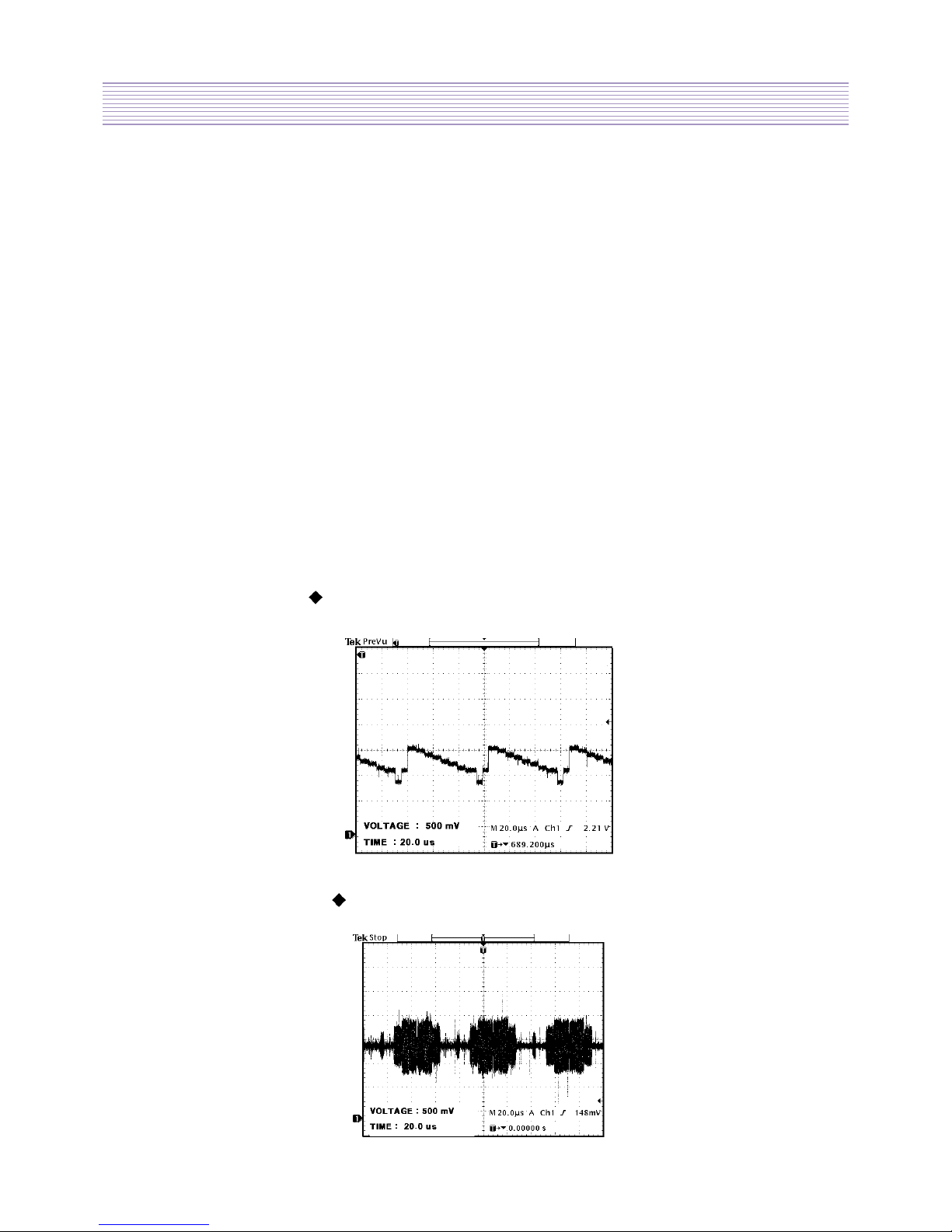

- Main TP (Input: Co or Bar Pattern)
TP145: Brightness signal (input to IC132)
TP143: Color signal (input to IC132)

-17-
Description of A/V(MAIN and SUB PCB) and POWER
TP184: Horizonta sync (output of IC140)
TP187: Vertical sync (output of IC140)
TP181: Data enable (output of IC140)

-18-
Description of A/V(MAIN and SUB PCB) and POWER
4-2-2. TV signa
Tuner(PC901) receives antenna signa and outputs CVBS and sound signa . IC102 switches out the
CVBS and the rest of the signa f ow is same as composite video signa f ow mentioned ear ier.
- Main IC
A. PC901: Tuner (Input: antenna signa Output: CVBS)
B. IC102: Switching IC (Input: CVBS Output: CVBS)
C. IC126: Te etext IC
D. IC132: Video processor (Input: Y/C Output: 16bit digita , HV)
E. IC134: Deinter acer (Input: 16bit digita , HV Output: 24bit digita RGB, HV)
F. IC140: Image Processor (Input: 24bit digita RGB, HV Output: 24bit digita RGB, HV)

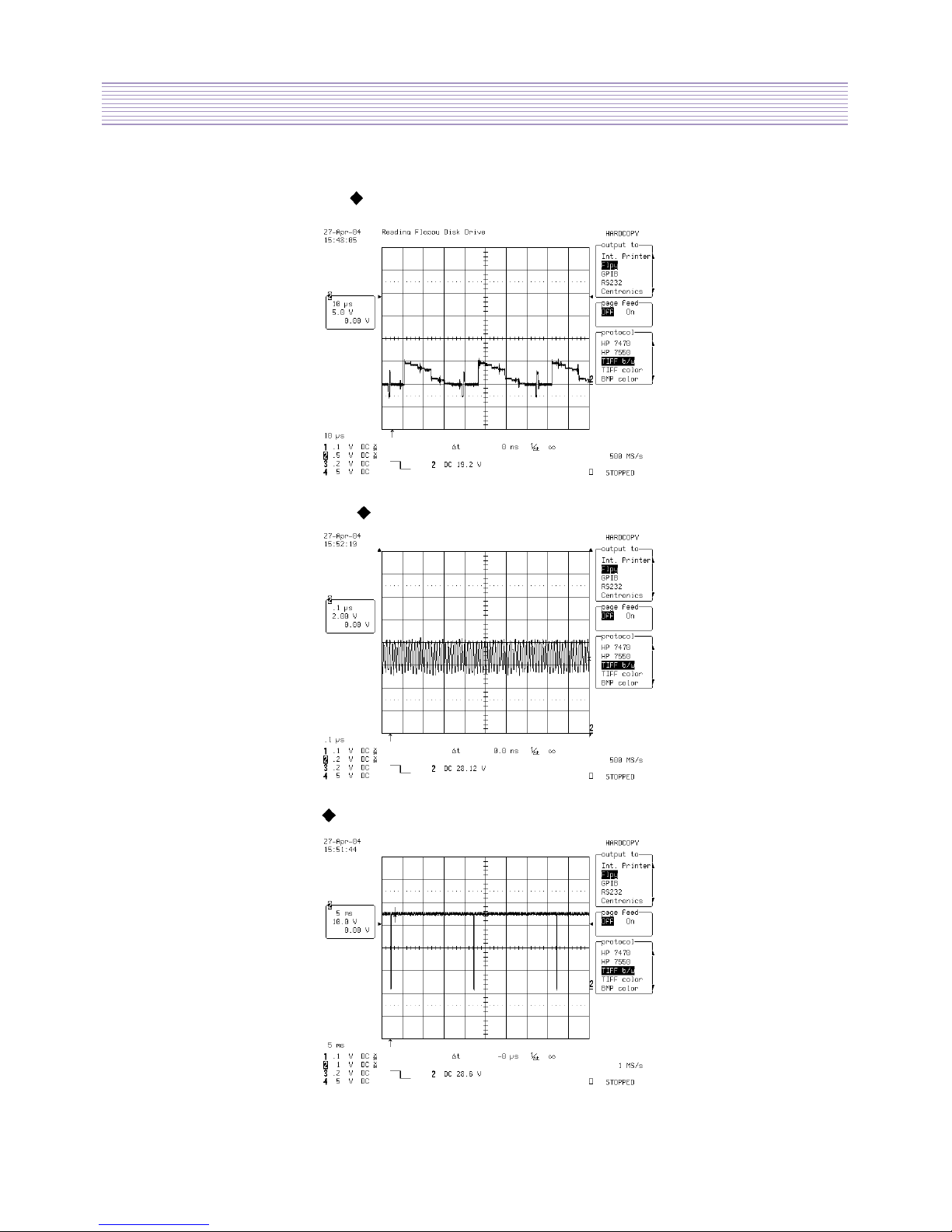

- Main TP (Input: Co or Bar Pattern)
TP143, 145
TP181, 184, 187, 188
4-2-3. DTV/DVD signa
Both DTV(Y, Pb, Pr) and DVD(Y, Cb, Cr) share same jack and signa path. IC102 switches out
signa and a so detects type of signa so that IC121 can convert the ana og signa to digita . Then
the signa goes through IC134(deinter acer) and IC140 for digita image processing.
- Main IC
A. IC102: Switching IC (Input: Component Output: Component, HV)
B. IC121: A/D converter (Input: Component, HV Output: 24bit digita RGB, HV)
C. IC134: Deinter acer (Input: 24bit digita RGB, HV Output: 24bit digita RGB, HV)
D. IC140: Image Processor (Input: 24bit digita RGB, HV Output: 24bit digita RGB, HV)
TP188: Clock for display (output of IC140)

-19-
Description of A/V(MAIN and SUB PCB) and POWER
- Main TP (Input: 480P, Co or Bar Pattern)
TP261: Y signa (Input to IC121)
TP134: C ock (output to IC121)
TP135: Horizonta sync (output of IC121)
