Daewoo FR-521KT/KB User manual

Service Manual
Refrigerator
Model: FR-521/551 KT/KB
FR-630/662/700 KT/KB
http : //svc.dwe.co.kr Mar. 2000
DAEWOO ELECTRONICS CO., LTD.
S/M No. :FR521KTB10
✔ Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).

1
TABLE OF CONTENTS
1. External Views ............................................................................................................................... 2
1. External Size ................................................................................................................................ 2
2. Name of Parts ............................................................................................................................... 3
2. Specifications ................................................................................................................................ 4
1. Outline .......................................................................................................................................... 4
2. Electric Parts ................................................................................................................................ 4
3. Power Cord ................................................................................................................................... 9
4. Door Color .................................................................................................................................... 10
3. Diagram 11
2. Air Flow Diagram .......................................................................................................................... 11
3. Refrigent Cycle Diagram .............................................................................................................. 13

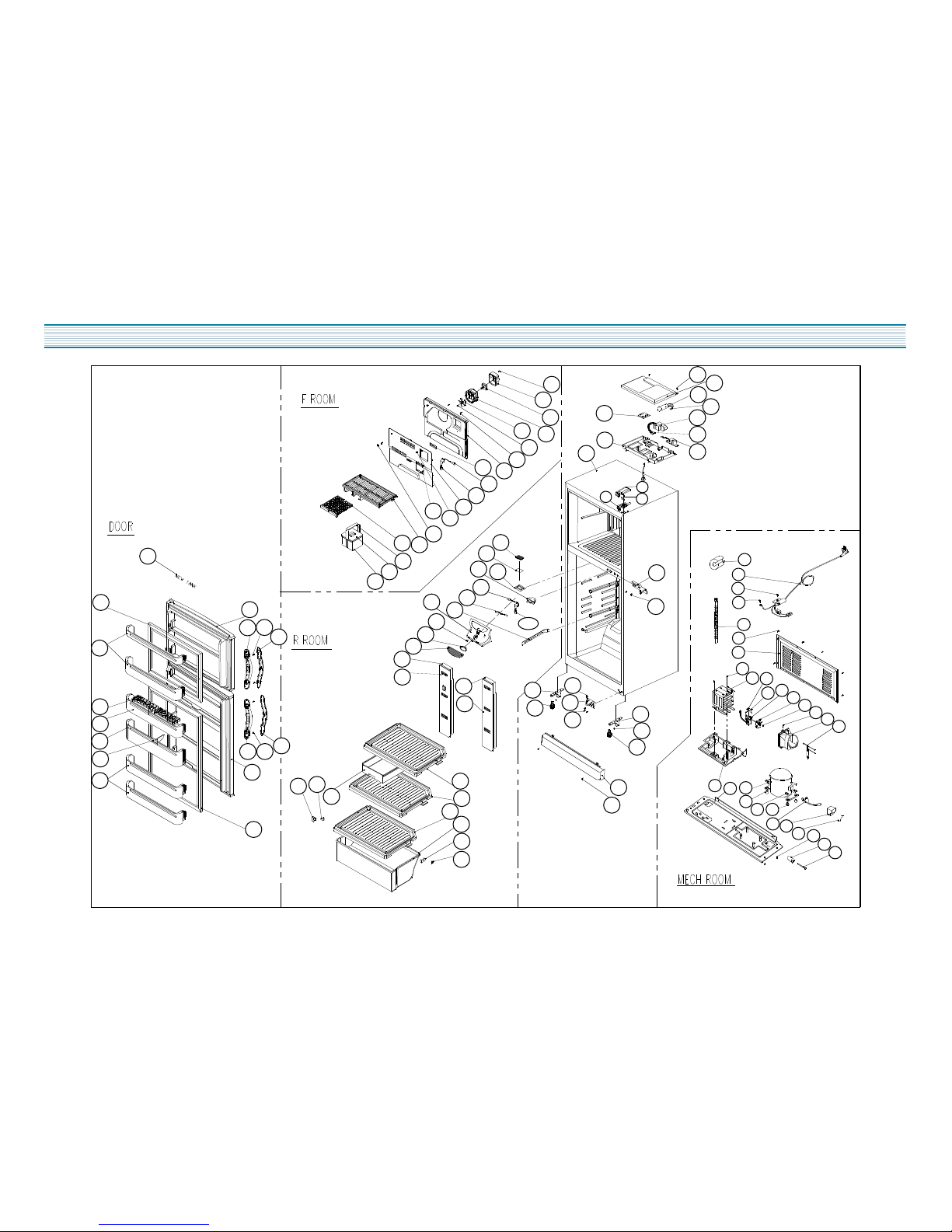

4. Exploded View And Parts List....................................................................................................... 14
1. FR-521,551 KT/KB ....................................................................................................................... 14
2. FR-630,662,700 KT/KB................................................................................................................. 19
3. Machine Room Exploded View And Parts List ............................................................................. 24
1) For starters, be sure to check any chances of the leakage of electricity.
2) You could handle a part in the vicinity of electricity after unplugging.
3) You should put on rubber glovers to prevent an electric shock on operation test.
4) Make sure the rated current, voltage, capacity before using an instrument.
5) Keep your wet hands away from the metal goods in the freezer compartment not to be frostbitten.
6) Be careful not to let water to permeate the electric part in the machine room.
7) With the door open during your working, you might be damaged by that door.
8) You should give a title to the refrigerator for your safe after removing the breakable goods inside the refrigerator.
9) You'd better use cotton gloves if you fix it up around the evaporator.
SAFETY AND PRECAUTIONS

2
"*A"
1. EXTRNAN VIEWS
2) FR 551 KT/KB
3) FR 630,662,700 KT/KB
“ *A ”
630KT/KB 662KT/KB 700KT/KB
590mm 620mm 650mm
1) FR521 KT/KB

3
2. NAME OF PARTS
1. FR-521,551KT/KB
2. FR-630,662,700KT/KB
1 Freezer Compartment Lamp
2 Shell Freezer & Icr Tray
3 Case Icing
4 Temperature Controller
(Freezer Compartment)
5 Refrigerator Compartment Lamp
6 Temperature Controller
(Refrigerator Compantment)
7 Fresh Case
8 Shell Refrigerator
9 Cover Vegetable
10 Case Vegetable
11 Front Grille
12 Adjustable Foot
13 Freezer Pocket
14 Egg Pocket
15 Egg Tray
16 Bottle Pocket
17 Multi Pocket
18 Multi Pocket
1 Freezer Compartment Lamp
1-1 Temperature contraller
(Freezer Compartment)
2 Shelf Freezer
¨3 Case Icing
4 Guide Icing
5 Ice Box
5-1 Temperature contraller
(Refrigerator Compartment)
6 Refrigerator Compartment Lamp
7 Cover Cubic Duct
8 Fresh Case
9 Shelf Refrigerator
10 Deodorant
11 Cover Vegetable
12 Case Vegetable(B)
13 Case Vegetable(A)
14 Guide Vegetable
15 Front Grille
16 Adjustable Foot
17 Freezer Pocket Top
18 Freezer Pocket Under
19 Egg Pocket
20 Egg Tray
21 Guide Bottle
22 Bottle Pocket
23 Multi Pocket
24 Multi Pocket
EXTENAN VIEWS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
5-1
1-1
19
20
21
22
23
24

4
2. SPECIFICATION
1. OUTLINE
2. ELECTRIC PARTS
1) COMPRESSOR
(1) FR-521/551 KT/KB
(2) FR-630/662/700 KT/KB
DIVISION CONTENTS
MODEL NAME FR-521KT/KB FR-551KT/KB FR-630KT/KB FR-662KT/KB FR-700KT/KB
USABLE CAPACITY FREEZER 125
§¤ 125 §¤ 138 §¤ 147 §¤ 156 §¤
REFRIGERATOR 319
§¤ 355 §¤ 366 §¤
377 398
TOTAL 444
§¤ 480 §¤ 504 §¤
524 554
EXTERNAL DIMENSION WIDTH 757mm 757mm 818mm 818mm 818mm
DEPTH 750mm 750mm 752mm 782mm 812mm
HEIGHT 1749mm 1809mm 1818mm 1818mm 1818mm
REFRIGENT R12 160g 160g 170g
R134a 130g 130g 140g
COOLING & CONTROL
SYSTEM COOLING SYSTEM Fan Cooling System
DEFROST SYSTEM Fin Evaporator Forced
DEFORST CONTROL Automatic Start & Stop
NET WEIGHT 71kg 72kg 84kg 91kg 94kg
REFRIGERANT R12
VOLTAGE(V/HZ) 100/50, 60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
COMP MODEL XXXXSL28YE-5 PL23YH-4 SL28YE-5 SL28YE-5
PART CODE XXXX3954128A50 3956123P40 3954128A50 3954128A50
STARING TYPE XXXXRSIR RSCR RSIR RSIR
REFRIGERANT R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
COMP MODEL XHBL25YG-3 X X HPL26YH-5 XHPL26YH-5 HPL26YH-5
PART CODE X3952125R30 X X 3956126S50 X3956126S50 3956126S50
STARING TYPE XCSR X X RSCR XRSCR RSCR
REFRIGERANT R12
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
COMP MODEL X X X X SL28YE-5 PL23YH-4 SL28YE-5 SL28YE-5
PART CODE X X X X 3954128A50 3956125G40 3954128A50 3954128A50
STARTING TYPE X X X X RSIR RSCR RSIR RSIR
REFRIGERANT R134a
VOLTAGE ( V/HZ) 100 /50,60 110 / 60 115,120/60 127/60 220/50 220 / 60 230 / 50 240 / 50
COMP MODEL XHBL25YG-3 X X HPL26YH-5 XHPL26YH-5 HPL26YH-5
PART CODE X3952125R30 X X 3956126S50 X3956126S50 3956126S50
STARTING TYPE XCSR X X RSCR XRSCR RSCR

5
SPECIFICATIONS
2)RELAY
(1) FR-521/551 KT/KB
(2) FR-630/662/700 KT/KB
3) STARTING CAPACITOR
( 1) FR-521/551 KT/KB
(2) FR-630/662/700 KT/KB
REFRIGERANT R12
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
ASSY TYPE NAME X X X X 276THBYY-52 181SHBYY-52 276THBYY-52 276THBYY-52
PART CODE X X X X3018119940 3018116610 3018119940 3018449940
PTC RESISTANCE X X X X S220 S330 S220 S220
OVER LOAD TYPE NAME X X X X 276THB 181SHB 276THB 276THB
REFRIGERANT R134a
VOLTAGE(V/HZ)100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
ASSY TYPE NAME X 783NHBZZ-52 X X 197NHBYY-52 X197NHBYY-52 197NHBYY-52
PART CODE X3018119390 X X3018119920 X3018119920 3018449920
PTC RESISTANCE XS220 X X S330 XS220 S330
OVER LOAD TYPE NAME X783NHB X X 197NHB X197NHB 197NHB
REFRIGERANT R12
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
ASSY TYPE NAME X X X X 276THBYY-52 181SHBYY-52 276THBYY-52 276THBYY-52
PART CODE X X X X3018119940 3018116610 3018119940 3018449940
PTC RESISTANCE X X X X S220 S330 S220 S220
OVER LOAD TYPE NAME X X X X 276THB 181SHB 276THB 276THB
REFRIGERANT R134a
VOLTAGE(V/HZ)100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
ASSY TYPE NAME X 783NHBZZ-52 X X 197NHBYY-52 X197NHBYY-52 197NHBYY-52
PART CODE X3018119390 X X3018119920 X3018119920 3018449920
PTC RESISTANCE XS220 X X S330 XS330 S330
OVER LOAD TYPE NAME X783NHB X X 197NHB X197NHB 197NHB
REFRIGERANT R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
PART CODE X3016400100 X X X X X X
RATED VOLTAE X200V X X X X X X
RATED CAPACITANCE X X X X X X X
REFRIGERANT R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
PART CODE X3016400100 X X X X X X
RATED VOLTAE X200V X X X X X X
RATED CAPACITANCE X100uF X X X X X X
100uF

6
SPECIFICATIONS
4) RUNNING CAPACITOR
(1) FR-521,551,630,662,700 KT/KB
5) C-FAN MOTER
(1) FR-521/551 KT/KB
(2) FR-630,662,700 KT/KB
6) F-FAN MOTER
(1) FR-521/551 KT/KB
(2) FR-630/662/700 KT/KB
REFRIGERANT R12
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
PART CODE X X X X X 400EL15110 X X
RATED VOLTAE X X X X X 350V X X
RATED CAPACITANCE X X X X X X X
REFRIGERANT R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
PART CODE X 3816800400 X X 3016401900 X3016401900 3016401900
RATED VOLTAE X300V X X 400 X400V 400
RATED CAPACITANCE X X X X
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
TYPE NAME DL-2213DWCB
PART CODE 3015907300
REVOLUTION 2200RPM
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
TYPE NAME DL-2213DWCB
PART CODE 3015906800
REVOLUTION 2200RPM
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
TYPE NAME DL-2213DWCB
PART CODE 3015907200
REVOLUTION 2200RPM
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
TYPE NAME DL-2213DWCB
PART CODE 3015905300
REVOLUTION 2200RPM
5uF
7uF 4uF 4uF 4uF

7
7) R-FAN MOTER
(1) FR-630 ,662,700 KT/KB
8) DEFROST HEATER
(1) FR-521/551 KT/KB
(2) FR-630/662/700 KT/KB
9) LAMP ASSEMBLY
(1) FR-521,551,630.662.700 KT/KB
10) PCB TRANSFORMER
(1) FR-521,551,630,662,700 KT/KB
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
TYPE NAME XORM-1027W X ORM-1018C2 1S-23211DWBFC ORM-108C2 ORM-108C2
PART CODE X3015902831 X3015902691 3015912672 3015902691
REVOLUTION X2200rpm X2200rpm
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
SPEC(W) X148W
PART CODE X3012803210 3012805500
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
SPEC(W) X180W
PART CODE X3012803210 3012805500
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
SPEC(W) X15W
PART CODE X3013600050 3013600020
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
SPEC(W) XFRB-5070KT
PART CODE X5EPK648110 5EPK048007 5EPK0548041
SPECIFICATIONS

8
SPECIFICATIONS
11) MAIN PCB ASSEMBLY
(1) FR-521/551 KT/KB
(2) FR-630/662/700 KT/KB
12) DEFROST TIMER
13) DOOR S/W
(1) FR-521,551,630,662,700 KT/KB
14) DRYER
(1) FR-521/551 KT/KB
(2) FR-630/662/700 KT/KB
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
SPEC(W) XRT
PART CODE X3014387020 3015387010
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
SPEC(W) XRT
PART CODE X3014386020 3014386010
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
SPEC(W) XTMDEX09UD1 TMDE807F1 TMDEX09UR1 TMDE807UF1
PART CODE X3018120030 3018120020 30181200100 30181200200
REFRIGERANT R12,R134a
VOLTAGE(V/HZ) 100/50,60 110/60 115,120/60 127/60 220/50 220/60 230/50 240/50
PART CODE 3018100010
REFRIGERANT R12 R134a
VOLTAGE(V/HZ) 10g 15g
SPEC(W) 3016801000 3016801010
REFRIGERANT R12 R135a
VOLTAGE(V/HZ) 10g 15g
SPEC(W) 3016805300 3016801020

9
3. POWER CORD
Upper power cord’s part code is only for lead wire, without any kinds of terminal or housing
NO SHAPE OF CODE PART CODE DESCRIPTION REMARK
13011315000 CP-2PIN FOR EUROPEAN COUNTRY
2401RA17200 CP-2PIN FOR OTHER COUNTRY
34006D17101 KP-30 FOR AMERICA & ELSALVADOR
4401PD17101 KP-211 FOR JAPAN & TAIWAN
53011300801 BP-3PIN
63011303010 #267 FOR CHILE
73011315310 FOR ISRAEL
8
3011303050 BS-1363A FOR U.K, MIDDLE ASIA
SINGAPORE & MALAYSIA
93011301200 KP551/550 FOR CHINA & AUSTRALIA
SPECIFICATIONS

10
4. DOOR COLOR (FR-521/551 KT/KB)
1) ASSEMBLY URETHAN FREEZER DOOR
2) ASSEMBLY URENTHAN REFRIGERATOR DOOR
FR-521KT
(1) NON-KEY TYPE
(2) KEY TYPE
FR-551KT
(1) NON-KEY TYPE
(2) KEY TYPE
3) DOOR COLOR (FR-630/660/700 KT)
(1) ASSEMBLY URETHAN FREEZER DOOR
(2) ASSEMBLY URETHAN REFRIGERATOR DOOR
REFRIGERANT R12 R134a
COLOR TYPE
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
PART CODE X3010075140 X X X 3010075180 X X
REFRIGERANT R12 R134a
COLOR TYPE
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
PART CODE X3010079100 X X X 3010079140 X X
REFRIGERANT R12 R134a
COLOR TYPE
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
PART CODE X3010079150 X X X 3010079160 X X
REFRIGERANT R12 R134a
COLOR TYPE
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
PART CODE X3010079100 X X X 3010079130 X X
REFRIGERANT R12 R134a
COLOR TYPE
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
PART CODE X3010079150 X X X 3010079180 X X
REFRIGERANT R12 R134a
COLOR TYPE
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
PART CODE X3010081970 X X X 3010082610 X X
REFRIGERANT R12 R134a
COLOR TYPE
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
Dull
lamina sheet
High-glossy
Lamina sheet Normal PCM High-glossy Bright PCM
PART CODE X3010077740 X X X 3010077770 X X
SPECIFICATIONS

11
3. DIAGRAM
1. AIR FLOW DIAGRAM
1) FR-521,551 KT/KB

12
DIAGRAM
2) FR-630,662,700 KT/KB
Freezer
Pleas don’t put bottles such as beer,
beverage etc.
It might be broken because of freezing.
Freezer pocket
Please don’t put long term storing
items such as ice cream etc.
It might be melted because of
opening the door freguently.
Chilled room
It is good for the storage of
fishes and meats.
Crisper
It is suitable to store veg-
etable and fruit.
The moisture panel which is
attached to the cover humidity prop-
erly.
Inlet of cooling air
It should not be blocked with
food etc. as it is the inlet where
cooling air returns.
Multiple outlet of cooling air.
Please don’t put in vegetable etc. which
contain moisture. It might be frozen
because of low temperature.

13
DIAGRAM
2. REFRIGRANT CYCLE DIAGRAM
C
O
M
P
R
E
S
S
O
R
W
I
-
C
O
N
H
O
T
P
I
P
E
D
R
Y
E
R
C
A
P
I
L
L
A
R
Y
T
U
B
E
E
V
A
P
O
R
A
T
O
R
A
C
C
U
M
U
L
A
T
O
R
S
U
C
P
I
P
E

14
4. EXPLODED VIEW AND PARTS LIST (FR-521/551 KT/KB)
106
105
104
103
102
101
100
112
113
111
114 115
107
108 109
110
99 98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83 82
81
80
79 78
77
76
74
73
72
75
71
70
69 68
67
66
65
64 63
62
61
60 59
58
57
56
116
6
5
1
10
7
8
9
11
12
13
23
4
14
15
80-1
16
20
22
21
23 17
18
19
25
24
55
54
53
52
51
50
4948
46
47
44 45
42
43
41
40
39
38
37
36
35
34
33
32
31
29
28
27
26

15
is recommendable parts for essential stock.
NO PART CODE PART NAME PART DESCRIPTION QUANTITY REMARK
13010074920 ASSY CAB URT FRM-480 1
3010074940 ASSY CAB URT FRM-480 1
3010074820 ASSY CAB URT FRM-440 1
3010074840 ASSY CAB URT FRM-440 1
23012905400 HINGE *T "SCP1, T2.3" 1
33016001230 SPECIAL BOLT T/U 6°X22 SWCH22A(WH) 3
43011429000 COVER *T HI PP 1
53010519800 BOX MAIN POWER PP 1
6PCB MAIN AS 1Refer to p.8
7TRANS POWER 1Refer to p.7
83012723400 HARNESS DEF TIMER 1
9SWITCH DEF TIMER 10HR 1Refer to p.8
10 3012712501 HARNESS RUN CON 1
11 CAPACITOR RUN 1Refer to p.6
12 3011444900 COVER M-PCB BOX P.P 1
13 7112401211 SCREW TAPPING T1 TRS 4°X12 MFZN 2
14 3012905801 HINGE *M AS "PO T3.2 , FRB-5460CT" 1
14-1 3011424700 COVER *M HI ABS 1
15 3016001220 SPECIAL BOLT M 6°X20 SWCH22A(WH) 3
16 3012102900 FOOT *F *L AS 1
17 3012103000 FOOT *F *R AS 1
18 3016000700 SPECIAL SCREW M6°X15 2
19 3012101500 FOOT ADJ AS FRB-5350NB 1
20 3012102500 FOOT ADJ *L AS FRB-5350NB 1
21 3012906410 HINGE *U AS FRB-5460CT 1
22 3016005300 SPECIAL WASR S10C T1.5 1
23 3016001230 SPECIAL BOLT T/U 6°X22 SWCH22A(WH) 3
24 3011439900 COVER CAB BRKT PP 1
25 7112401211 SCREW TAPPING T1 TRS 4°X12 MFZN 2
26 3010103700 ABSORBER SUC P NR 1
27 CORD POWER AS 1Refer to p.9
28 7112401211 SCREW TAPPING T1 TRS 4°X12 MFZN 1
29 7001400865 SCREW MACHINE PAN 4°X8 BSNI 1
31 3013202700 HOSE DRN B PP 1
32 7112401211 SCREW TAPPING T1 TRS 4°X12 MFZN 6
33 3012401410 GRILLE SBHGI T0.4 1
34 7112401211 SCREW TAPPING T1 TRS 4°X12 MFZN 2
EXPLODED VIEW AND PARTS LIST
R
R
R
R
R
R

16
35 3014426900 PLT WICON AS FLTT SW D4.76 1
36 3010102100 ABSORBER C MOTR "NR, FRB-5350NT" 1
37 3012004400 FIXTURE C MOTR SUC 1
38 3015906800 MOTOR C BLDC 12V 1
39 3011800400 FAN 1
40 3011200500 CLAMP FAN SUS304 1
41 7112401211 SCREW TAPPING T1TRS 4x12 MFZN 1
42 3011445000 COVER C FAN 1
43 DRYER AS 1Refer to p.8
44 3011119300 CASE VAPORI P.P 1
45 3010314910 BASE COMP SBHGI T1.0 1
46 COMPRESSOR 1Refer to p.4
47 3010101440 ABSORBER COMP AS 2
48 3016002500 SPECIAL WASHER SK-5 T0.8 4
49 3010100201 ABSORBER COMP NR H=40 2
51 SWITCH P-RELAY AS 4TM197NHBYY-52 1Refer to p.5
52 3012610000 CLAMP BAND RELAY SK-5 T0.7 1
53 3016003300 SPECIAL BOLT T2 M6.5°X20 4
54 3016500000 CASTER *B "PP, FRB-5350NT" 2
55 3014902900 SHAFT CASTER *B SWRM-10 2
56 7112401211 SCREW TAPPING T1TRS 4x12 MFZN 1
57 3012007900 FIXTURE MOTR B P.P 1
58 MOTOR R BLDC 12V 1Refer to p.6
59 3012007800 FIXTURE MOTR A P.P 1
60 3011802200 FAN ABS(OD110) 1
61 3011200500 CLAMP FAN SUS 304 1
62 7112401611 SCREW TAPPING T1TRS 4x16 MFZN 2
63 3013334100 INSU F-LUVR F-PS 1
64 3013402100 KNOB F CONTL PP 1
65 3017903420 SOCKET F LAMP AS 1
66 LAMP AS 1Refer to p.7
67 3018908200 LOUVER F HIPS 1
68 7112401611 SCREW TAPPING T1 TRS 4°X16 MFZN 2
69 3015504200 WINDOW F GPPS 1
70 3010924600 CAP F-LUVR HIPS T2.3 1
71 3017807500 SHELF F HIPS 1
72 3011110200 CASE ICING "PP, FRB-5350NT" 2
73 3012603400 HANDLE ICE BOX ABS 1
74 3011445500 COVER ICE BOX GPPS 1
NO PART CODE PART NAME PART DESCRIPTION QUANTITY REMARK
EXPLODED VIEW AND PARTS LIST
R
R
R
R
R

17
75 3010519600 BOX ICE HIPS 1
76 3018701300 DEO ANTI RETURN 1
77 3018700700 DEODORANT SHEET UNITRON 1
78 3011102501 CASE DEO A P.P 1
79 3018100050 SWITCH DR 2 BUTTON/4PIN 1
80 3017903600 SOCKET R LAMP AS 1
80-1 LAMP AS 1Refer to p.7
81 3012805200 HEATER THERMO AS 1
82 3011439500 COVER CUBIC/D HIPS 4
83 3011445000 COVER CONTL HIPS 1
84 7112401611 SCREW TAPPING T1TRS 4x16 MFZN 1
85 3013401500 KNOB CONTL ABS 1
86 3015504000 WINDOW R GPPS 1
87 3013331100 INSU R *S *L "F-PS, FRB-4460NT" 1
3013330900 INSU R *S *L "F-PS, FRB-4760NT" 1
88 3018906300 LOUVER R *S *L "PP, FRB-4460NT" 1
3018902500 LOUVER R *S *L "PP, FRB-4760NT" 1
89 3013331200 INSU R *S *R "F-PS, FRB-4460NT" 1
3013331000 INSU R *S *R "F-PS, FRB-4760NT" 1
90 3018906400 LOUVER R *S *R "P.P, FRB-4460NT" 1
3018902600 LOUVER R *S *R "P.P, FRB-4760NT" 1
91 3017802300 SHELF R *T GPPS 1
92 3017805100 SHELF R *U GPPS 1
93 3011439700 COVER V/CASE GPPS 1
94 3011117700 CASE VEGETB GPPS 1
95 3011432800 COVER ROLL A HIPS 2
96 3014700500 ROLLER V/CASE POM 2
97 3011117800 CASE CHILLED GPPS 1
98 3014700600 ROLLER V/CASE FIXR POM 2
99 3015303600 SUPPORTER V/CASE ROL HIPS 2
100 3019011000 POCKET MULT "GPPS, FRB-4760NT" 1
3019008900 POCKET EGG 1
3019011000 POCKET MULT "GPPS, FRB-4760NT" 2
101 3012505700 GUIDE JUMBO POCKT "ABS, FRB-5050NT" 1
102 3019010900 POCKET JUMBO GPPS 1
103 3019008900 POCKET EGG (1¥‹)GPPS 1
104 301117600 CASE EGG GPPS 2
105 3019011100 POCKET F GPPS 2
NO PART CODE PART NAME PART DESCRIPTION QUANTITY REMARK
EXPLODED VIEW AND PARTS LIST
R

18
NO PART CODE PART NAME PART DESCRIPTION QUANTITY REMARK
106 3012307330 GASKET F DR AS "PVC,FRB-4870KT" 1
107 3010075140 ASSY F DR FRB-44/4870KT 1
108 3012610710 HANDLE F DR ABS+CR 1
109 7002501611 SCREW MACHINE TRS 5x16 MFZN 2
110 3011603310 DECO F HNDL ABS 1
111 3012307440 GASKET R DR AS "PVC, FRB-4470NT" 1
3012307430 GASKET R DR AS "PVC, FRB-4870NT" 1
112 3010082310 ASSY R DR FRB-4470NT 1
3010082300 ASSY R DR FRB-4870NT 1
113 3012610810 HANDLE R DR ABS+CR 1
114 7002501611 SCREW MACHINE TRS 5x16 MFZN 2
115 3011603410 DECO R HNDL ABS 1
116 3014532600 PLATE TANK EBLM 1
EXPLODED VIEW AND PARTS LIST

19
4. EXPLODED VIEW AND PARTS LIST (FR-630/662/700 KT/KB)
117
116
115
114
113
112
111
110
109
119
123 124 125
118
121
120 122
126
64
63
62
61
60
59
58
57
56
55
54
53
52 51
50
67
66
65
71
70
72
73
68
69
92 91
88
90
89
89-1
89-4
89-3
89-2
87
86
85
80
79
78
77
76
75
81
82
83
84
97
98
99
93
100
101
94 95 96 108
107
106
105
104
103
102
74
24
23
25
26
27
20
22
21
19
18
14 15
16
17
12
11 10
13
1
4
3
2
9
56
8
7
32
31
30
31
32
33
34
35
36 37
38 39
40
41
44
45
46
47
43
42
48
49
