Daewoo FR-146 User manual

S/M No. : FR14600010
✔ Caution :
In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS Corp.
Mar. 2004
http : //svc.dwe.co.kr
Service Manual
Refrigerator
MODEL : FR-146
FR-146R
FR-146RV
FR-147
FR-147R
FR-147RV
Downloaded from Fridge-Manual.com Manuals

1. SPECIFICATION.......................................................................................................2
2. EXTERNAL VIEW .....................................................................................................3
3. WIRE DIAGRAM.......................................................................................................4
4. NAME OF PARTS......................................................................................................5
5. REFRIGERANT CYCLE DIAGRAM ...........................................................................6
6. MACHINE ROOM VIEW AND PARTS LIST................................................................7
7. MAIN COMPONENTS...............................................................................................8
8. DOOR COLOR SPECIFICATION...............................................................................9
9. EXPLODED VIEW AND PARTSLIST .......................................................................13
1
CONTENTS
Downloaded from Fridge-Manual.com Manuals

2
SPECIFICATION
MODEL NAME FR-13
R12 120g
Refrigerant
R134a 105g
Cooling System Aluminum-embossedPlat ì Roll Bondî type
Refrigeration System Natural Cold-air Convention
Defrost System Natural
Defrost Operation Manual start & Stop
Cold Control Adjustable Dial
Freezer -
Refrigerator -
Capacity
Total 122
Height 858
Width 480
External Dimension
depth 531
Net Weight 31
Downloaded from Fridge-Manual.com Manuals

3

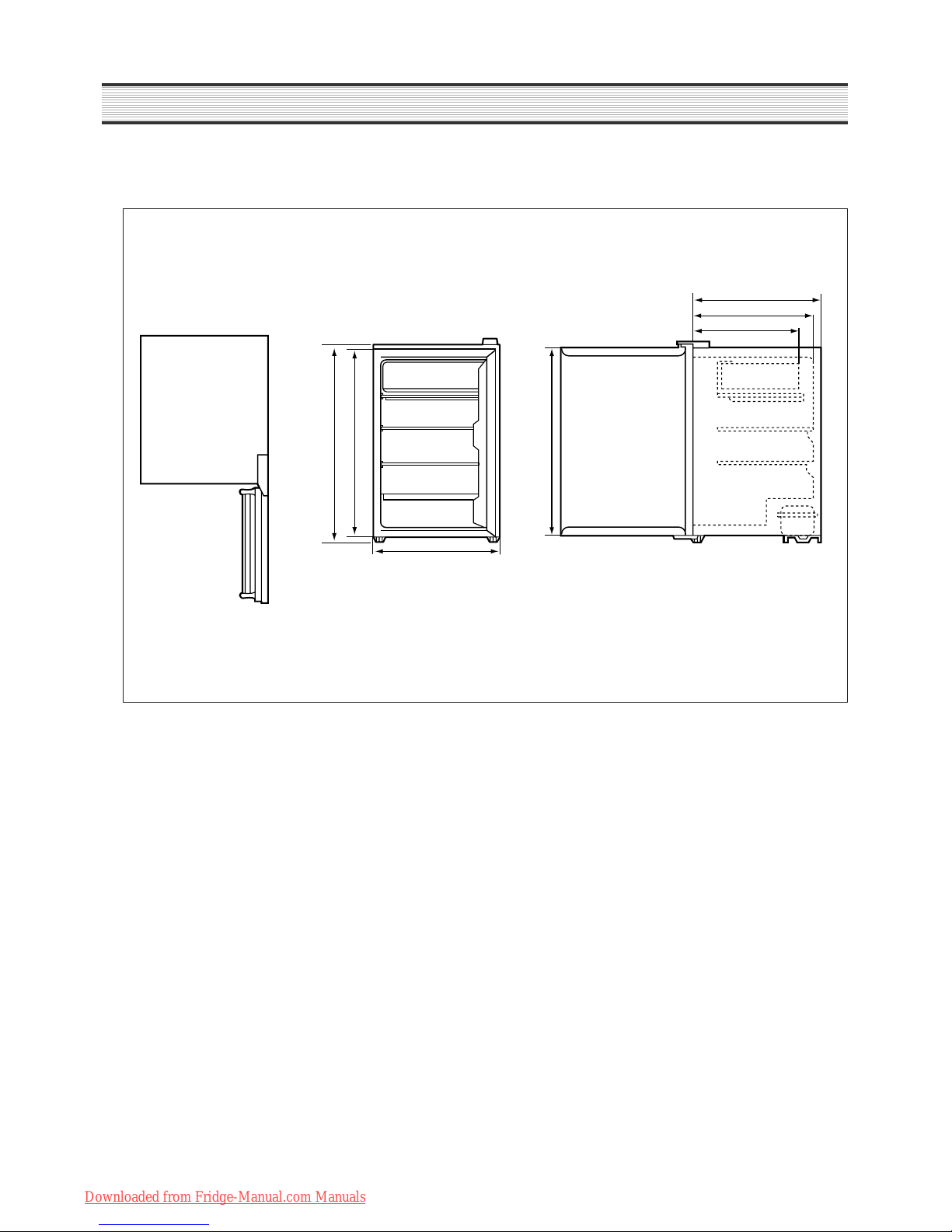

EXTERNAL VIEW
471
430
379
816
858 820
480
Downloaded from Fridge-Manual.com Manuals

4

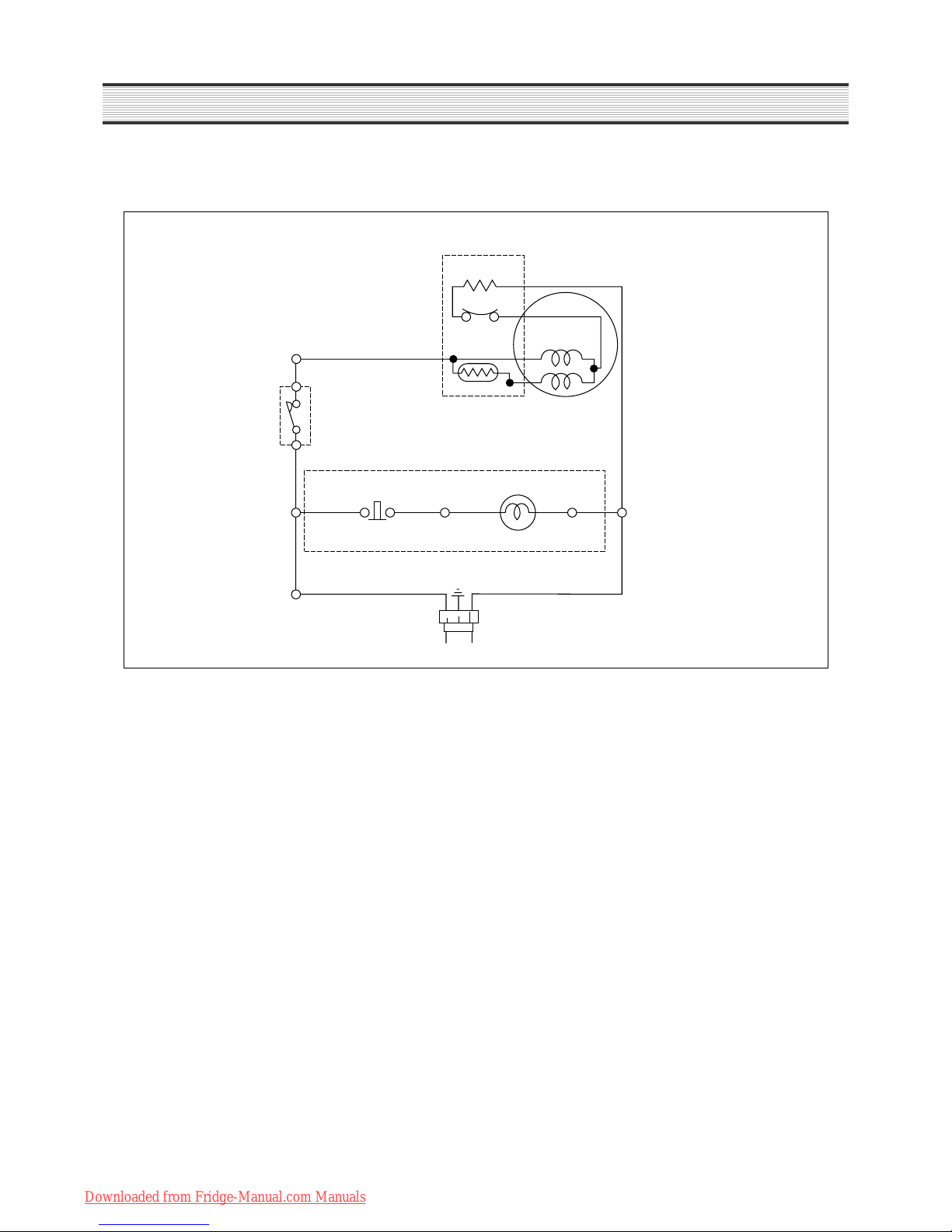

WIRE DIAGRAM
P-RELAY
COMPRESSOR
L/BLUE
PLUG
L/BLUEBLACKBROWN
BROWN
THERMOSTAT
YELLOW
LAMP
LAMP SWITCH
Downloaded from Fridge-Manual.com Manuals

5

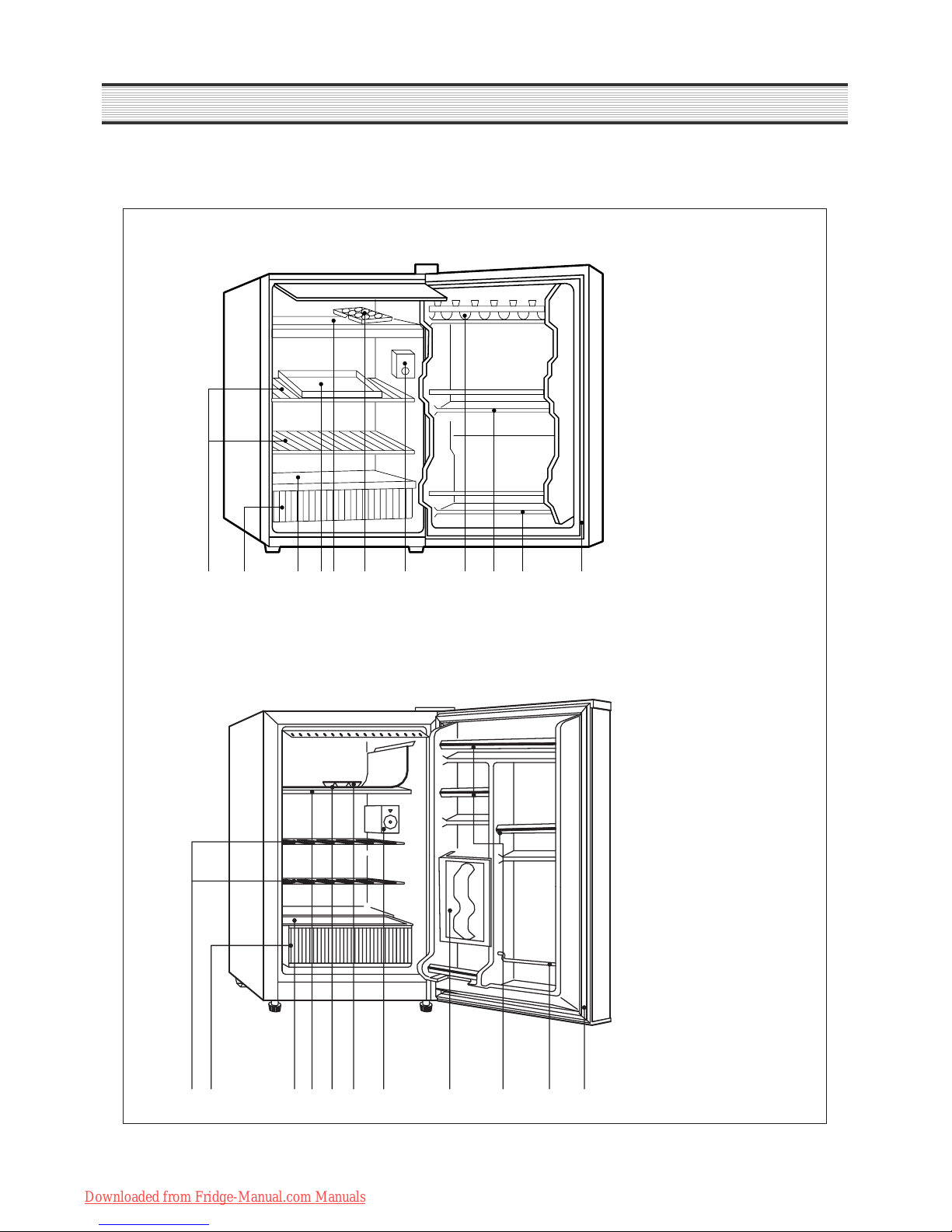

NAME OF PARTS
410 11 21 7 3 5 8 9 6
1 Evaporator
2 Drain Pan
3 Control Box
4 Plastic Coated Shelf
5 Rack
6 Magnetic Door Seals
7 Ice Tray
8 Usable Rack
9 Bottle Rack
10 Crisper
11 Slide Out Crisper
Cover
410 11 2173 5
896
1 Evaporator
2 Drain Pan
3 Control Box
4 Plastic Coated Shelf
5 Rack
6 Magnetic Door Seals
7 Ice Tray
8 Can cover
9 Bottle Rack
10 Crisper
11 Slide Out Crisper
Cover
FR-146RV, 147RV
FR-146, 146R, 147, 147R
Downloaded from Fridge-Manual.com Manuals

6
REFRIGERANT CYCLE DIAGRAM
EVAPORATOR
DRYER
CAPI-TUBE
SUCTION PIPE
COMPRESSOR
SIDE PIPE
C
O
M
P
R
E
S
S
O
R
S
I
D
E
P
I
P
E
D
R
Y
E
R
C
A
P
I
T
U
B
E
E
V
A
P
O
R
A
T
O
R
A
C
C
U
M
S
U
C
P
I
P
E
Downloaded from Fridge-Manual.com Manuals

7

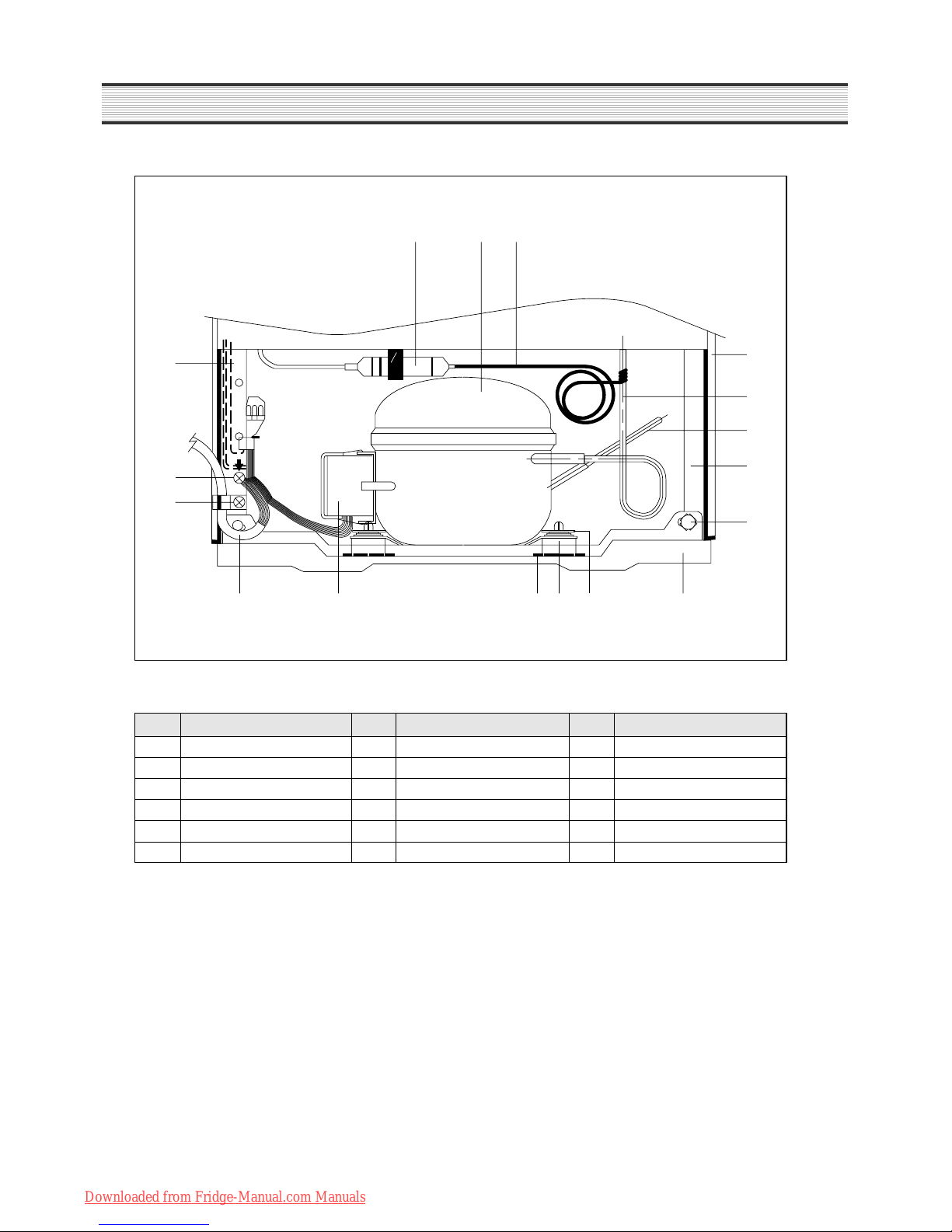

MACHINE ROOM VIEW AND PART LIST
5 4
6
1
7
8
3
10
9
15
11
12
14 13
2
16
17
NO PART NAME NO PART NAME NO PART NAME
1 CABINET 7 SUCTION PIPE 13 WASHER *T
2 REINFORCE *L 8 PIPE CON 14 ABSORBER
3 REINFORCE *R 9 BASE COMP 15 WASHER *U
4 COMPRESSOR 10 BOLT HEX 16 MACHINE SCREW
5 DRYER 11 P RELAY AS 17 TAPPING SCREW
6 CAPI TUBE 12 POWER CORD
Downloaded from Fridge-Manual.com Manuals

8
MAIN COMPONENTS
1.COMPRESSOR
Refrigerant R12
Voltage 100V/50,60 110V/60 115,120V/60 127V/60 220V/50 220V/60 230V/50 240V/50
Comp model DS22LCF1 DS22LCF1 DS22LCF1 DS22LCF1 DS22LCS8 DS22LCS8 DS22LCS8 DS22LCS8
Part Code 3951122X10 3951122X10 3951122X10 3951122X10 3954122X80 3954122X80 3954122X80 3954122X80
Start type RSIR RSIR RSIR RSIR RSIR RSIR RSIR RSIR
Refrigerant R134a
Voltage 100V/50,60 110V/60 115,120V/60 127V/60 220V/50 220V/60 230V/50 240V/50
Comp model DS25LHF0 DS22LHF1 DS22LHF1 DS25LHF2 DS22LCS8 DS22LCS8 DS22LCS8 DS22LCS8
Part Code 3951125Y00 3951125Y10 3951125Y10 3954107F50 3954107F50 3954107F50 3954107F50
Start type RSIR RSIR RSIR RSIR RSIR RSIR RSIR RSIR
2. RELAY ASSEMBLY
Refrigerant R12
Voltage 100V/50,60 110V/60 115,120V/60 127V/60 220V/50 220V/60 230V/50 240V/50
Relay model
197SHB,S068 197SHB,S068 197SHB,S068 197SHB,S068 129RFB,S220 129RFB,S220 129RFB,S220 129RFB,S220
Part Code 3018101411 3018101411 3018101411 3018101411 3018123030 3018123030 3018123030 3018123030
Refrigerant R134a
Voltage 100V/50,60 110V/60 115,120V/60 127V/60 220V/50 220V/60 230V/50 240V/50
Relay model
734RFB,S068 174SHB,S068 174SHB,S068 213THB,S068 129SHB,S220 129SHB,S220 129SHB,S220 129SHB,S220
Part Code 3018122250 3018108140 3018116175 3018123121 3018123080 3018123151 3018116310 3018122201
3.CONTROL SWITCH
Refrigerant R12
Voltage 100V/50,60 110V/60 115,120V/60 127V/60 220V/50 220V/60 230V/50 240V/50
Relay model
PFN-110U-02D PFN-110U-02D PFN-110U-02D PFN-110U-02D PFN-110U-02D PFN-110U-02D PFN-110U-02D PFN-110U-02D
Part Code 3018303100 3018303100 3018303100 3018303100 3018303100 3018303100 3018303100 3018303100
Refrigerant R134a
Voltage 100V/50,60 110V/60 115,120V/60 127V/60 220V/50 220V/60 230V/50 240V/50
Relay model
PFN-110U- 02SS PFN-110U- 02SS PFN-110U- 02SS PFN-110U- 02SS PFN-110U-02D PFN-110U-02D PFN-110U- 02SS PFN-110U-02SS
Part Code 3018303110 3018303110 3018303110 3018303110 3018303100 3018303100 3018303110 3018303110
4. DRYER
Refrigerant R12 R134a
Spec. 10g 10g
Part code 3016801301 3016801301
Hz Hz
Hz Hz Hz Hz Hz HzHzHz
Hz
Hz Hz Hz
Hz Hz Hz Hz Hz HzHzHz
Hz Hz Hz Hz Hz Hz Hz Hz
Hz Hz Hz Hz Hz
Hz Hz Hz Hz Hz Hz Hz
Hz Hz Hz Hz Hz Hz
Downloaded from Fridge-Manual.com Manuals

9
MAIN COMPONENTS

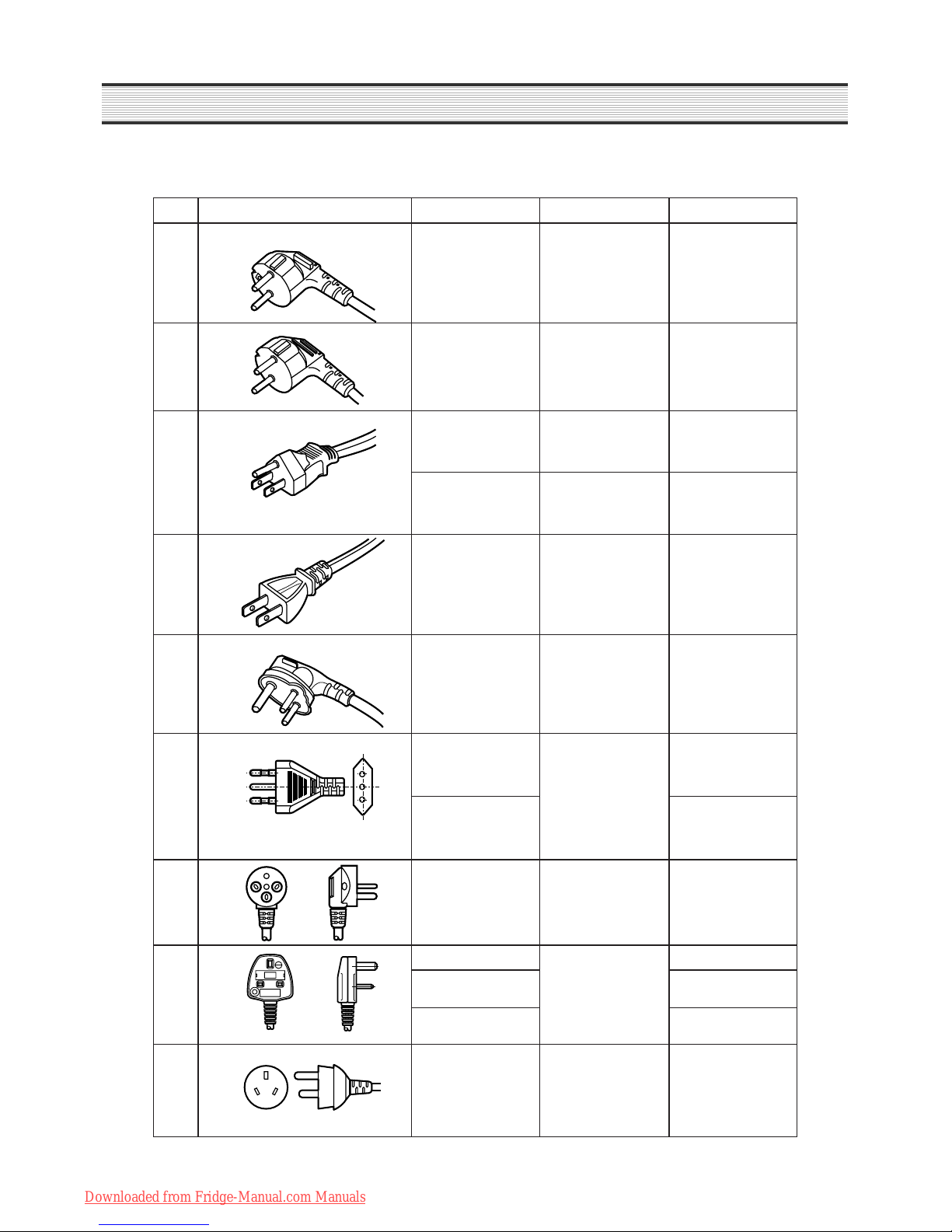

POWER CORD SPECIFICATION
NO SHAPE OF POWER CODE PART CODE DESCRIPTION REMARK
1 3011300321 CP-2PIN
2 4017J17101 CP-2PIN
4006D17101 KP-30
3
3011304520 DKP-301U
4 401PD17101 KP-211
5 3011316201 BP-3PIN
3011300971 FOR SWISS
6
3011303020
#267
FOR OTHER CONURTY
7 3011316101 FOR ISRAEL
3011303901 FOR EUROPEAN&SAUDI
3011303921 FOR SINGAPORE
8
3011303040
BS-1363A
FOR OTHER COUNTRY
9 3011301171
Downloaded from Fridge-Manual.com Manuals

10
DOOR COLOR SPECIFICATION
1. ASSEMBLY URETHAN DOOR
Refrigerant R12, R134a
TPYE Key type Non Key type
Color Type Dull lamina
sheet
High flossy
Lamina sheet Normal PCM High glossy
bright PCM
Dull lamina
sheet
High flossy
Lamina sheet Normal PCM High glossy
bright PCM
Normal - - PFTT00D215 - - PFTT00D210 - -
Part Code Deco - - PFTT00D220 - - PFTT00D200 - -
Downloaded from Fridge-Manual.com Manuals

11
DOOR COLOR SPECIFICATION

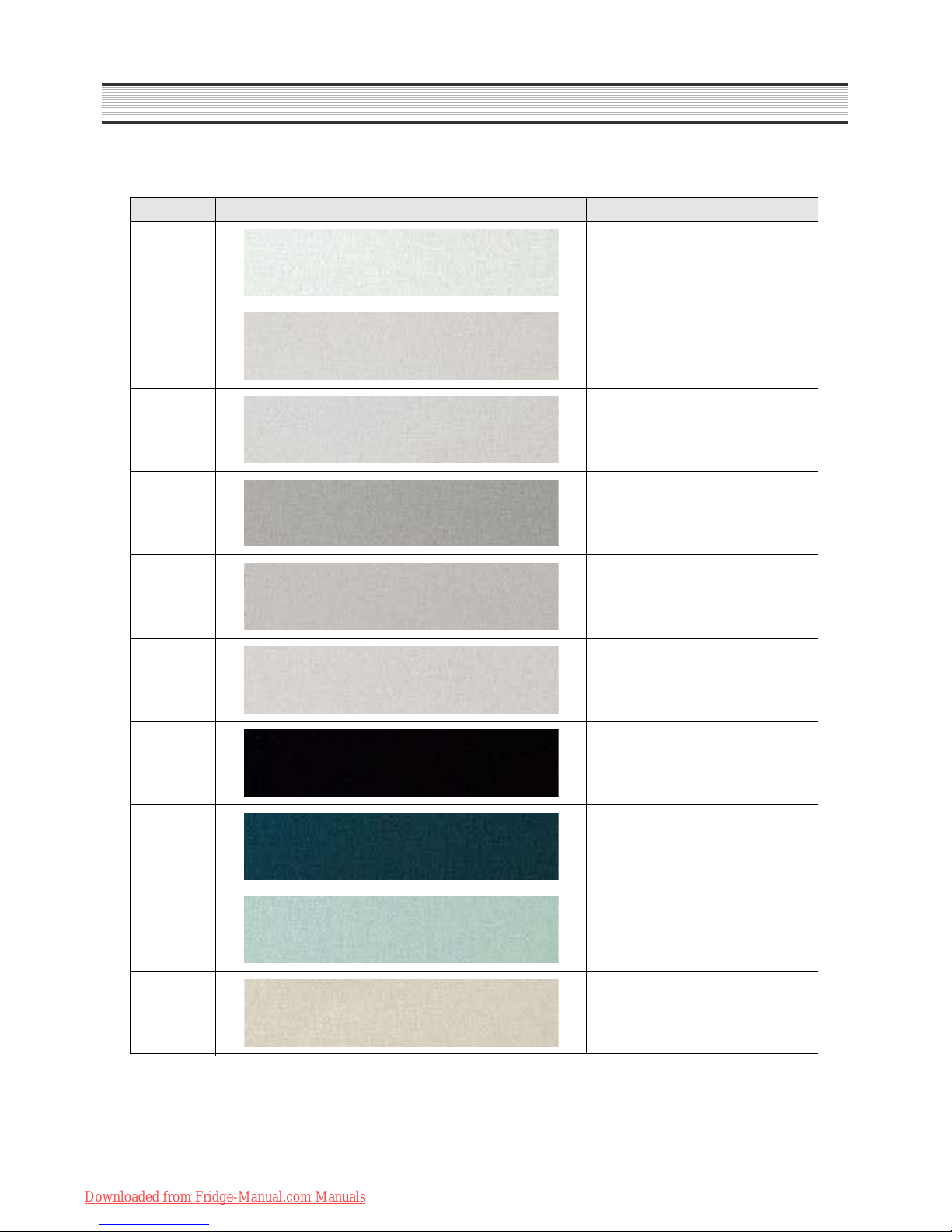

1. PCM type
NO COLOR CHIP COLOR NAME
1P/WITH (WH069)
2 '94 L/GRAY (GY158)
3 '95 L/GRAY (GY259)
4 '94 M/GRAY (GY331)
5 '95 M/GRAY (GY335)
6 '97 M/GRAY (GY267)
7 M. D/GRAY (GY750)
8 N/BLUE (BL718)
9 MINT GREEN (GN206)
10 '97 BEIGE (BE215)
Downloaded from Fridge-Manual.com Manuals

12
DOOR COLOR SPECIFICATION

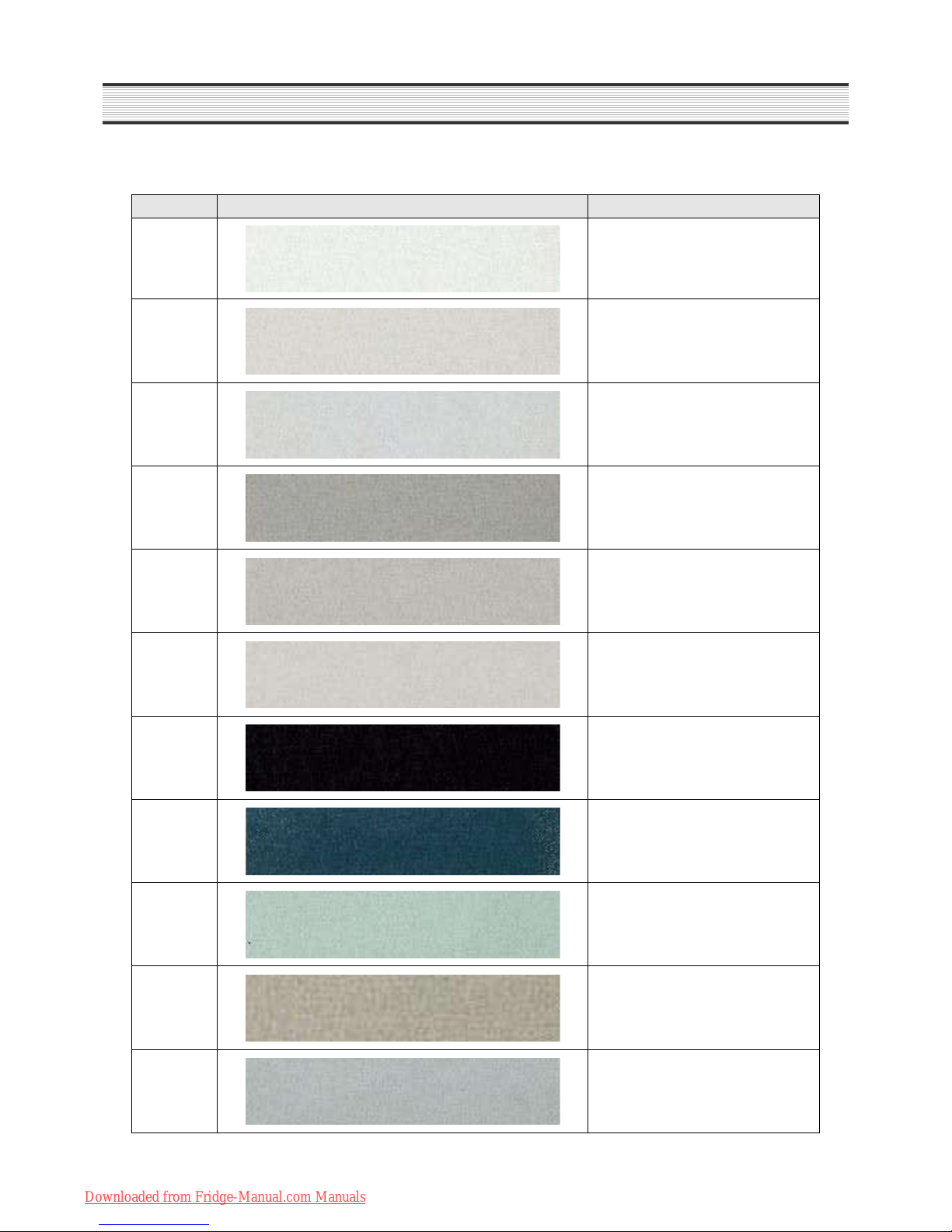

2. Lamina sheet type
NO COLOR CHIP COLOR NAME
1P/WITH (WH069)
2 '94 L/GRAY (GY158)
3 '95 L/GRAY (GY259)
4 '94 M/GRAY (GY331)
5 '95 M/GRAY (GY335)
6 '97 M/GRAY (GY267)
7 M. D/GRAY (GY750)
8 N/BLUE (BL718)
9 MINT GREEN (GN206)
10 S/GOLD
11 G/GREEN
Downloaded from Fridge-Manual.com Manuals

13

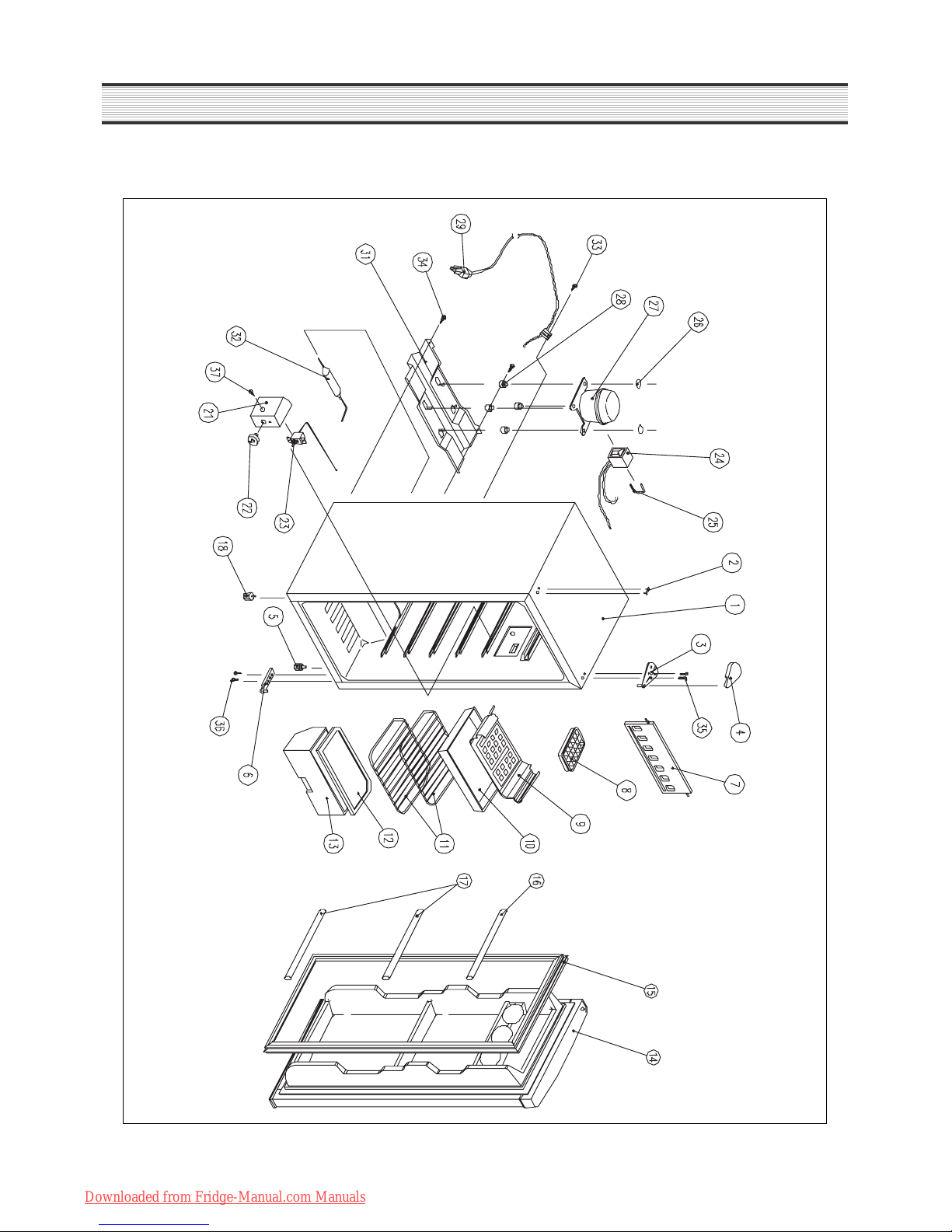

EXPLODED VIEW AND PARTS LIST
1. FR-146, 146R, 147, 147R
Downloaded from Fridge-Manual.com Manuals

14
EXPLODED VIEW AND PARTS LIST
NO PART CODE PART NAME DESCRIPTION QUANTITY REMARK
1 ASSY CAB PRE FRM-13 1
2 3010927900 CAP CAB HOLE FRM-13 2 OPTION
3 3012910600 HINGE *T AS FRM-123 1
4 3011409400 COVER *T HINGE PP FRM-123 1
5 3012103300 FOOT ADJ AS PP INSERT 1
6 3012910500 HINGE CAB FR-K184BM 1
7 4017J53213 DOOR F FRA-12DP 1
8 3011106021 CASE ICING PP 1
9 3017000202 EVAPORATOR AS FRA-1220 1
10 4017J54111 DRAIN PAN PP 1
11 4017J55226 SHELF SWRM PE-COATING 1
12 4018R30421 COVER V/CASE LG25SP 2
13 4017L30612 CASE VEGTB LG25SP-111 1
14 ASSY ONE DOOR TOTLA 1 Refer to #8
15 3012316800 GASKET DR AS PVC 1
16 3019022200 POCKET BAR PVC 1
17 3019024800 POCKET BAR PVC-H T1.8 12LL 2
18 4006D32533 FOOT *F PP(JI-360) 1
19 -
20 -
4017J70115 RAMP
21 3010505400 BOX CONTL HIPS 1
22 4006D70027 KNOB HIPS 1
23 3018301000 THERMOSTAT 1 Refer to #7
24 3018123080 SWITCH P RELAY AS 1 Refer to #7
25 3816100110 RELAY BAND SUS304 T0.7 1
26 3016004120 SPECIAL WASR SPG T0.8 3
27 3954125Y80 COMPRESSOR 1 Refer to #7
28 3010102910 ABSORBER COMP NBR 4
29 CORD POWER AS 1 Refer to #7
31 3010309800 BASE COMP SBHG T0.8 1 Refer to #7
32 3016801300 DRYER AS NON CFC 10g 1
33 7112401011 SCREW TAPPING T1 TRS 4 X 10 MFZN 1
34 7122501211 SCREW TAPPING T2S TRS 5 X 12 MFZN 2
35 3016000301 SPECIAL SCREW M5X14 S1018C 2
36 7147501411 SCREW TAPPING T2.5 X 14 MFZN 2
37 7112402011 SCREW TAPPING T1 TRS 4X20 MFZN 1
✔ CAUTION : In this Service Manual, some parts can be changed for improving their performance without
notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts
Price List)in Service information Center(http://svc.dwe.co.kr)
Downloaded from Fridge-Manual.com Manuals

15

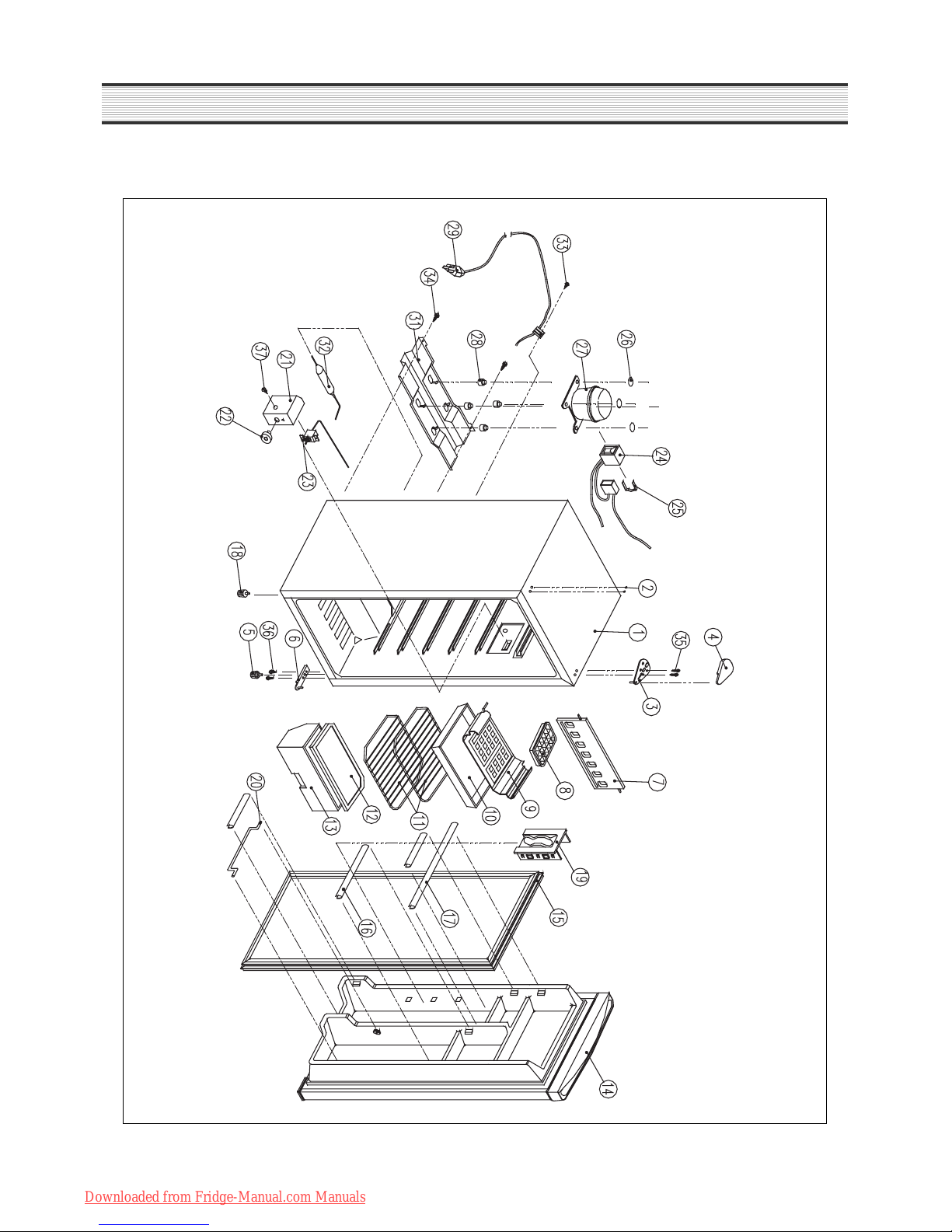

EXPLODED VIEW AND PARTS LIST
2. FR-146RV, 147RV
Downloaded from Fridge-Manual.com Manuals

16
EXPLODED VIEW AND PARTS LIST
NO PART CODE PART NAME DESCRIPTION QUANTITY REMARK
1 ASSY CAB PRE FRM-13 1
2 3010927900 CAP CAB HOLE FRM-13 2 OPTION
3 3012910600 HINGE *T AS FRM-123 1
4 3011409400 COVER *T HINGE PP FRM-123 1
5 3012103300 FOOT ADJ AS PP INSERT 1
6 3012910500 HINGE CAB FR-K184BM 1
7 4017J53213 DOOR F FRA-12DP 1
8 3011106021 CASE ICING PP 1
9 3017000202 EVAPORATOR AS FRA-1220 1
10 4017J54111 DRAIN PAN PP 1
11 4017J55226 SHELF SWRM PE-COATING 1
12 4018R30421 COVER V/CASE LG25SP 2
13 4017L30612 CASE VEGTB LG25SP-111 1
14 ASSY ONE DOOR TOTLA 1 Refer to #8
15 3012316800 GASKET DR AS PVC 1
16 3019022700 POCKET BAR PVC-H , L195 1
17 3019024800 POCKET BAR PVC-H T1.8 12LL 2
18 4006D32533 FOOT *F
CAN COVER
POCKET BAR
HIPS
PP(JI-360) 1
1
1
19 3011452200
3019012130
WIRE PR-COATING
-
20 -
4017J70115 RAMP
21 3010505400 BOX CONTL HIPS 1
22 4006D70027 KNOB HIPS 1
23 3018301000 THERMOSTAT 1 Refer to #7
24 3018123080 SWITCH P RELAY AS 1 Refer to #7
25 3816100110 RELAY BAND SUS304 T0.7 1
26 3016004120 SPECIAL WASR SPG T0.8 3
27 3954125Y80 COMPRESSOR 1 Refer to #7
28 3010102910 ABSORBER COMP NBR 4
29 CORD POWER AS 1 Refer to #7
31 3010309800 BASE COMP SBHG T0.8 1 Refer to #7
32 3016801300 DRYER AS NON CFC 10g 1
33 7112401011 SCREW TAPPING T1 TRS 4 X 10 MFZN 1
34 7122501211 SCREW TAPPING T2S TRS 5 X 12 MFZN 2
35 3016000301 SPECIAL SCREW M5X14 S1018C 2
36 7147501411 SCREW TAPPING T2.5 X 14 MFZN 2
37 7112402011 SCREW TAPPING T1 TRS 4X20 MFZN 1
✔ CAUTION : In this Service Manual, some parts can be changed for improving their performance without
notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts
Price List)in Service information Center(http://svc.dwe.co.kr)
Downloaded from Fridge-Manual.com Manuals

686, AHYEON-DONG MAPO-GU
SEOUL, KOREA
C.P.O. BOX 8003 SEOUL, KOREA
DAEWOO ELECTRONICS Corp.
