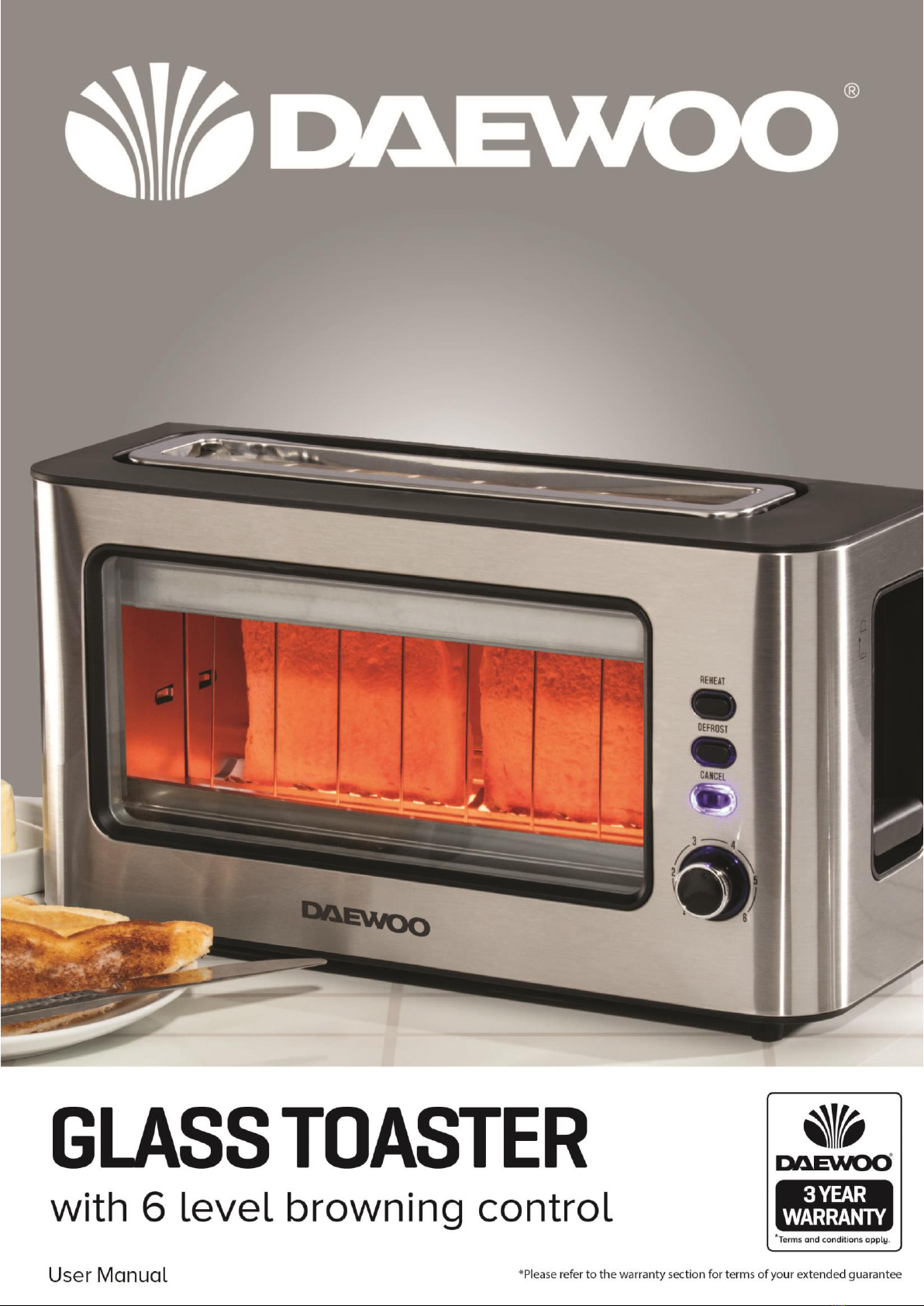

Daewoo SDA1060 User manual

1
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

2
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should always
be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
Read and familiarise yourself with all operating instructions before
using this Toaster.
Before plugging your unit into the mains, visually check that the unit is
intact and has not suffered any transit damage.
The bread may burn, therefore do not use the toaster near or below
combustible material such as curtains or cupboards.
DO NOT use this toaster with an external timer or separate remote-
control system or any other device that switches the toaster on
automatically.
The Crumb tray must be removed and emptied regularly.
The outer surface may get hot when the appliance is operating.
DO NOT use this toaster with an extension cable.
Check that the voltage indicated on the data plate corresponds with
that of the local network before connecting the appliance to the mains
power supply.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised.

3
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Keep the appliance and its cord out of reach of children less than 8
years.
DO NOT immerse the appliance or its cord in water or any other
liquids.
DO NOT leave the appliance unattended during use.
DO NOT leave the appliance unattended whilst connected to the mains
supply.
Always use this appliance on a solid, level, non-flammable surface.
DO NOT use this appliance outdoors.
It is imperative to unplug the power cord after the appliance has been
used, before it is cleaned and whilst being repaired.
Repairs to electrical appliances should only be performed by qualified
personnel. Improper repairs may place user at serious risk.
DO NOT operate this appliance with a damaged plug or cord, after a
malfunction or after being dropped or damaged in any way.
Regular, periodic checks should be carried out on the mains cable to
ensure no damage is evident. Should there be any signs of damage the
appliance should not be used.
If the power cable is damaged, it should only be replaced by the
manufacturer or a suitable qualified after-sales-service in order to
avoid a hazard
DO NOT allow the mains cable to hang over sharp edges or come in
contact with hot surfaces.
DO NOT run the mains cable under carpets, rugs, etc.
Allow the unit to cool before storage.
Before cleaning, disconnect the appliance from the mains supply and
allow to cool.
This appliance is intended for household use only and should not be
used for industrial purposes.
DO NOT use any accessories or attachments with this appliance other
than those supplied or recommended by supplier.
DO NOT use this appliance for anything other than its intended use.
DO NOT push objects into any openings as damage to the appliance
and/or electric shock may occur.
Unplug after each use. Grasp the plug, not the cord.
THIS APPLIANCE MUST BE EARTHED

4
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
NBDuring the first few minutes of initial use, you may notice a slight
odour and a little smoke. This is normal and will quickly disappear, It is
the coating applied to the heating elements to prevent any corrosion
during transit.
•PLEASE NOTE: Before use, ensure that the Toaster is used in an open,
well ventilated area well away from other appliances and other
obstructions.
•DO NOT use the Toaster in front of, near or below combustible
materials such as plastics, curtains or cupboards, etc.
•DO NOT place the appliance against a wall or against other
appliances. Leave at least 10cm minimum free space on the back and
sides and 10cm minimum free space above the appliance.
•DO NOT place anything on top of the appliance.
•DO NOT operate the Toaster with the Crumb Tray removed.

5
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
You should now recycle your waste electrical goods and in
doing so help the environment. This symbol means waste
electrical products at the end of their useful life should not be
disposed of with normal household waste and sent to landfill.
Please ensure it is taken to a suitable facility for disposal. Check
with your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the
use of this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This symbol indicates that the surface is gets hot and care must
be taken.

6
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Description of Parts
Before the first use of your Toaster
Remove all packing materials and discard responsibly.
Ensure that the Removable Inner Glass Panel (8) is fully inserted as per the
below:
This toaster is fitted with a safety interlock
switch, which can be seen to the left. In order
for your toaster to operate, please ensure that
the Removable Inner Glass Panel (8) is fully
inserted and locked into place to ensure contact
with the interlock switch is made.
Push the Removable Inner Glass Panel (8) fully
into the slot at the base of the toaster, this will
make contact with the interlock switch and then
slide the lock to the locked position.
The toaster will not operate unless the
Removable Inner Glass Panel (8) is properly
located and locked in place.
1. Bread Slot
2. Reheat Button
3. Defrost Button
4. Cancel Button
5. Bread Carriage Lever
6. Browning Control
7. Glass Panel lock (Underneath)
8. Removable Inner Glass Panel
9. Removable Crumb Tray (Rear)
1
2
3
4
5
6
7
8
9

7
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Operating Instructions
Toasting
Place the toaster on a solid, level non-flammable
surface.
Insert the mains plug (with dry hands) into the
mains socket and switch on (if applicable).
Place the slices of bread into the Bread Slot (1).
Select the desired browning level using the
Browning Control (6). Rotate the control clockwise
to increase browning and anticlockwise to
decrease browning.
Push the Bread Carriage Lever (5) down to begin toasting, the lever will lock down
and then pop up once the toasting is complete.
If you wish to cancel the toasting at any time, simply press the Cancel Button (4).
DO NOT insert bread slices that are too thick for the Bread Slot, always ensure that the Bread
Carriage Lever (5) is free to move up and down.
DO NOT operate the Toaster with the Crumb Tray (9) removed.
Please note that the four quartz heating elements are of differing wattages, this is to
compensate for the heat rising from the bottom of the toasting chamber and the greater
heat reflection from the solid back of the toaster. The top elements will appear to not be
as bright as the lower elements, this is normal and will not affect the toasting adversely.
Reheat Feature
This feature is used for reheating toast that has
previously been made but has gone cold.
Place the slices of toast into the Bread Slot (1),
push the Bread Carriage Lever (5) down then
immediately press the Reheat Button (2 –arrowed
right). The Bread Carriage Lever (5) will pop up
once the reheat cycle has completed.
If you wish to cancel the reheating mode at any
time, simply press the Cancel Button (4).
Defrost Feature
This feature is used for toasting bread from frozen.
Place the slices of frozen bread into the Bread Slot (1).
Select the desired browning level using the
Browning Control (6). Slide the control right to
increase browning and left to decrease browning.
Push the Bread Carriage Lever (5) down then
immediately press the Defrost Button (3). The Bread
Carriage Lever (5) will pop up once the defrost and
toasting cycle has completed.
If you wish to cancel the defrosting mode at any time,
simply press the Cancel Button (2).

8
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Care and Use of your Toaster
Always disconnect the toaster from the mains power
supply and allow to cool before cleaning.
After each use remove the Crumb Tray (9) from the
toaster and empty out any crumbs.
Clean outside of the toaster with a clean damp cloth.
Never clean with harsh or abrasive cleaners.
Do not submerge any part of the toaster in water or
any other liquids.
Do not use metal implements (i.e., Knife, fork, etc.) to
remove trapped debris.
Troubleshooting Guide
Problem
Possible Cause
Possible Fix
Toast is too pale and
underdone
The Browning Control (6)
is on a too lower setting.
Rotate the Browning Control (6)
clockwise to a higher browning
number.
The Cancel Button (4) has
been pressed.
Leave the Toaster to complete its
toasting cycle and the carriage to
pop up.
The Reheat button (2) has
been pressed and
therefore the toasting
time is shortened.
Ensure the Reheat Button (2) is not
pressed.
Bread is frozen
Press the Defrost button (3) after
pushing the Bread Carriage (5)
down.
Toast is dark and
overcooked.
The Browning Control (6)
is on a too higher setting.
Rotate the Browning Control (6)
anticlockwise to a lower browning
number.
The Defrost button (3) has
been pressed and
therefore the toasting
time is too long.
Ensure the Defrost Button (3) is not
pressed.
Non-Wireable Mains Plug
If your appliance is supplied with a non-wireable plug fitted to the mains lead
and should the fuse need replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). If in doubt, consult a qualified
electrician who will be pleased to do this for you. If you need to remove the plug
–DISCONNECT FROM THE MAINS –and then cut it off the mains lead and
immediately dispose of it safely. Never attempt to reuse the plug or insert it into
a socket outlet as there is a danger of electric shock.

9
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Technical Data
Model Number
SDA1060
Rated Voltage
220 –240V ~ 50-60Hz
Rated Power
850 –1000W
Protection Class
I (This appliance must be earthed)

10
Glass Toaster
Model No. SDA1060
User Manual
IMPORTANT –RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof
of purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
Theproduct must be used solely for domestic purposes.
It does not cover general wear and tear, damage, misuse or any consumable parts.
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at
www.daewoowarrantyregistration.com/warranty-registration
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by ESG Ltd
Manchester M3 1JS www.esgltd.com
