Daewoo DWD-E1211R'S User manual

INSTRUCTION MANUAL
DWD-E1211R’S/E1211W’S
Washing Machine Instruction Manual
CONTENTS Page
A NOTE TO YOU
Thank you for buying a DAEWOO appliance.
DAEWOO washers are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your washer property and safely.
Please read it carefully.
󱇲Economic wash system
Using artificial intelligence, the washer uses minimum energy and water by
selecting optimal water lever and washing time.
󱇲Low noise system
The washer minimizes the washing and spinning noises by sensing the
amount of laundry.
󱇲Child-Lock
The Child-Lock system has been used to prevent children from pressing any
button to change the program during operation.
󱇲Nano-silver sterilization washing(Option)
By applying very fine silver particles on essential parts inside, the washer
sterilizes up to 99.9% as is done by boiling wash.
󱇲Air bubble washing(Option)
This is an advanced technology that generates millions of air bubbles inside the drum on washing sequence,
and the bubbles dissolve the detergent particles completely and cleanse all the soil in clothes gently and neatly.
PARTS AND FEATURES.................................................................................................................2
WASHER SAFETY...........................................................................................................................3
INSTALLATION INSTRUCTIONS....................................................................................................4
INLET HOSE CONNECTION...........................................................................................................5
ELECTRICAL REQUIREMENTS .....................................................................................................6
OPERATING YOUR WASHER........................................................................................................7

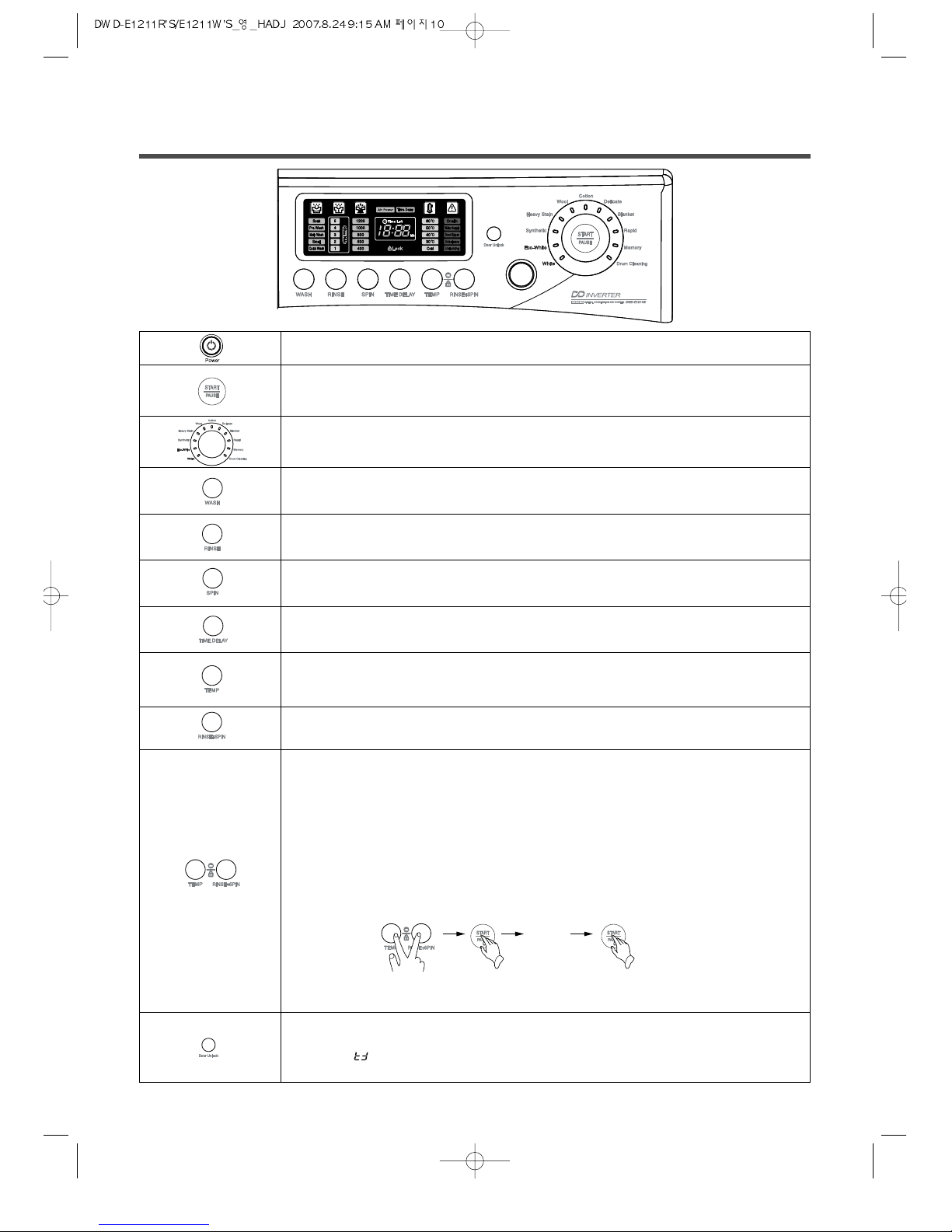

THE FUNCTIONS OF THE CONTROL PANEL...............................................................................9
WASHING PROGRAM...................................................................................................................11
WASHING PROCEDURE AND SELECTION ................................................................................12
GUIDE FOR OTHER USEFUL PROGRAMS.................................................................................23
MAINTENANCE .............................................................................................................................27
HOW TO CLEAN THE FILTER......................................................................................................28
REMOVING STAINS......................................................................................................................29
TROUBLE SHOOTING ..................................................................................................................30
SPECIFICATION............................................................................................................................31

2
PARTS AND FEATURES
The parts and features of your washer are illustrated on the page.
Become familiar with all parts and features before using your washer.
Accessories
NOTE
The drawings in the book may vary from your washer model.
They are designed to show the different features of all models coverd by this book,
Your model may not include all features.
Hose drain Inlet hose Spanner Manual Cap holder
ADJUSTABLE LEG
CONTROL PANEL
DOOR
PUMP COVER
DETERGENT CASE
INLET HOSE
(HOT, OPTION) INLET HOSE (COLD)
PANEL LOWER
POWER CORD
HOSE DRAIN

3
Save these instructions
Your safety is important to us.
To reduce the risk of fire, electrical shock, or injury when using your washer adhere to the
following basic precautions.
Understanding your responsibilities
• Do not use chlorine bleach and ammonia or acid(such as vinegar or rust remover) in the same
wash. Hazardous fumes can form.
• Unplug power supply cord before attempting to service your washer.
• Do not wash fiberglass material.
Small particles can stick to fabrics washed in following loads and cause skin irritation.
• Do not spray water on the control panel of the washer.
It could cause fire or an electric shock.
• In case of the dual valve model, if you connect only cold water inlet valve, while water
temperature is selected as hot or warm, there can be water leakage from unconnected water
inlet valve.
• This appliance must be grounded.
To avoide electrical shock, use a metal pipe for the ground connection.
• Flammable fluids (dry-cleaning solvents,
kerosene, gasoline, etc.) should not be used
or stored in or near your washer.
Do not add flammable fluids to your wash
water.These substances give off vapors that
can create a fire hazard or explosion.
• After starting a cycle, do not reach into the
washer until all motions stop.
• Do not tamper with the controls.
• The appliance is not intended for use by
young children or infirm persons without
supervision.
• If the supply cord is damaged, it must be
replaced by the manufacturer, or its service
agent or a similarly qualified person in order
to avoid a hazard.
• If the appliance is supplied from a cord
extension set or electrical portable outlet
device it should be positioned so that it is not
subjected to splashing or ingress of
moisture.
Please ...
• Have only a qualified person install, repair,
or replace parts on washer.
• Maintain washer properly.
• Protect washer from the weather and keep
it where the temperature will not fall below
freezing.
• Do not install the washer at a place of
extremely high humidity. It could cause an
electric shock or a short circuit.
• Connect washer to the correct outlet,
electrical supply, water supply, and drain
supply.
WASHER SAFETY
Read all instructions before using your washer

4

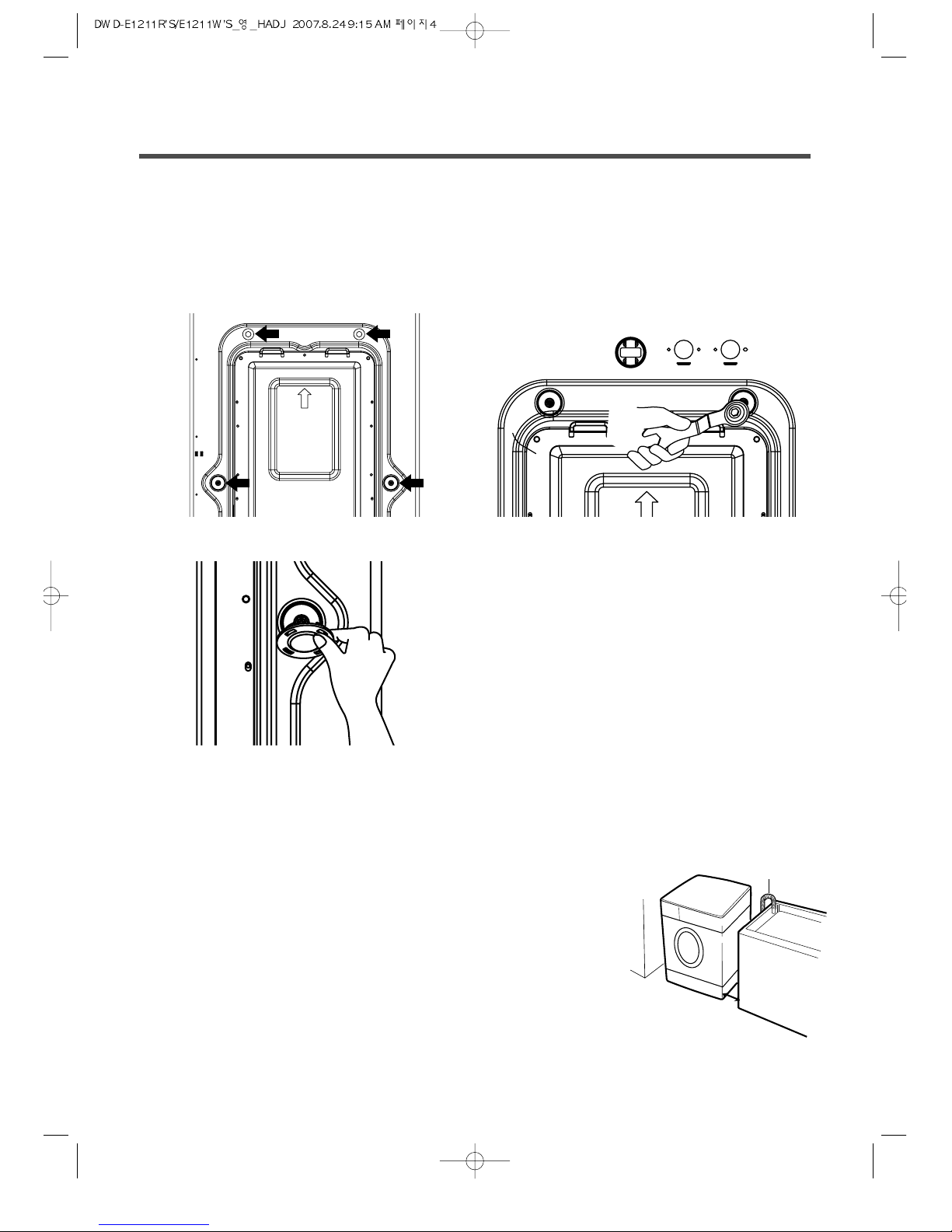

Removing transit bolts
1. Before operating the washer, remove the
transit bolts(4ea) along with the rubber.
• If the bolts are not removed, it may cause
heavy vibration, noise and malfunction.
2. Unscrew the 4 bolts with the spanner
supplied. Keep the 4 bolts and spanner for
future use.
• Whenever the appliance is transported, the
transit bolts must be refitted.
3. Close the holes with the cap holders supplied.
Location of washer
• Check location where the washer will be installed. Make sure you have everything necessary for
correct installation.
• Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.
• Do not place or store laundry products on top of washer at any times.
• Install the washer on the horizontal solid floor.
If the washer is installed on an unsuitable floor, it could make
considerable noise, vibrate severely and cause a malfunction. If the
washer is not level, adjust leg up or down for horizontal installation.
• Ventilation openings must not be obstructed by carpeting when the
washer is installed on a carpeted floor.
• Leave some space (right & left : 2cm, rear : 10cm).
• In case of built-in installation, the distance between top of the washer
and bottom of upper plate should be at least 3mm.
INSTALLATION INSTRUCTIONS
Laundry
Tub
Washer
approx.
2cm
Drain Hose

5
The washer should be connected to the water mains using new hose sets and old hose sets
should not be reused.
In using only one water tap or in case of only one water inlet valve, connect the inlet hose to the
cold water inlet valve.
Option : Be careful not to confuse hot water inlet and cold water inlet.
For Ordinary Tap
For Screw-Shaped Tap

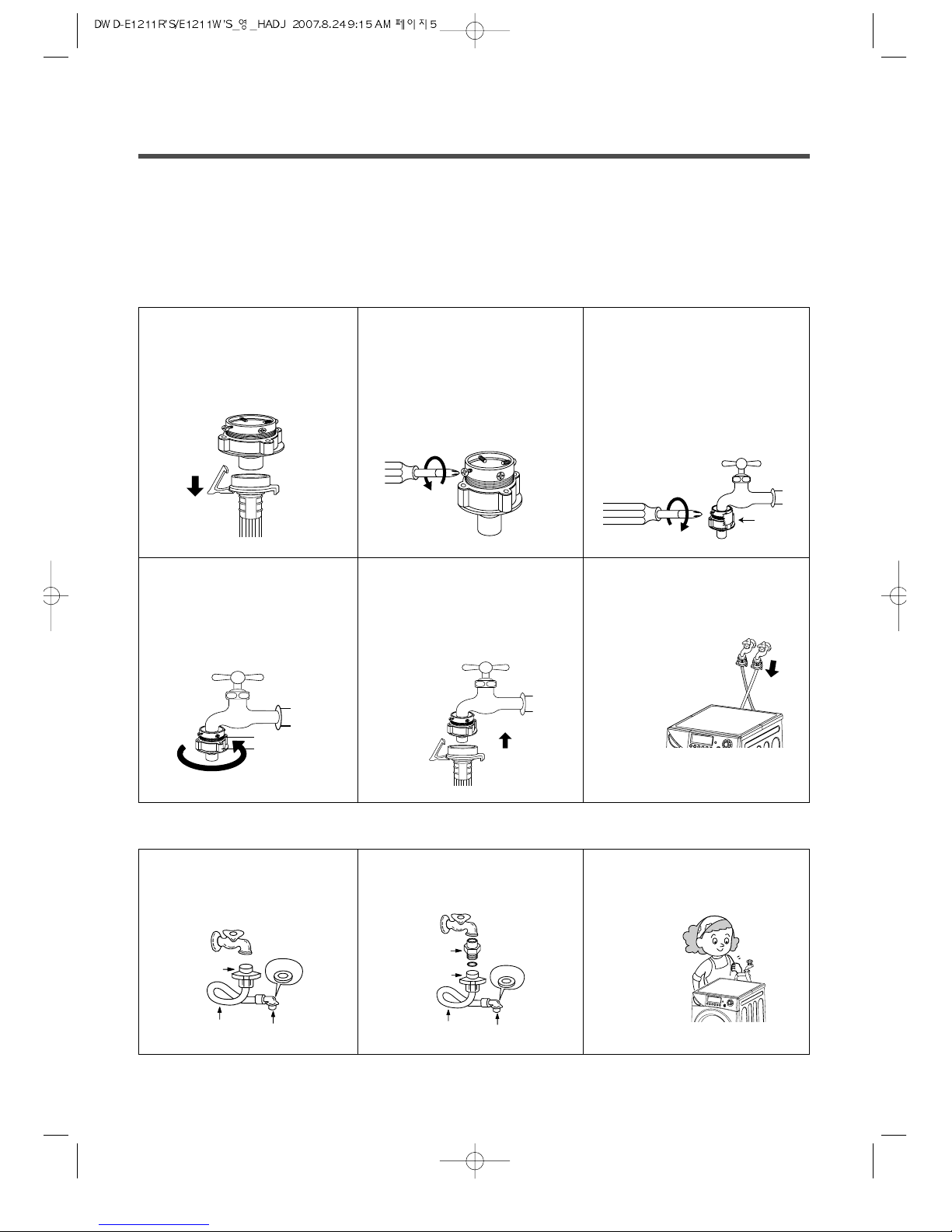

INLET HOSE CONNECTION
1Pull down the collar of the
inlet hose to separate it
from the water tap
adapter.
2Loosen the four screws
properly in order to fit into
water tap.
3Fit the water tap adapter
into the water tap and
tighten the four screws
evenly while pushing up
the adapter so that the
rubber packing can stick
to the water tap tightly.
4Remove the tape, and
screw connector B into
connect A tightly.
5Connect the inlet hose to
the water tap adapter by
pulling down the collar of
the hose end.
6Connect the inlet hose
adapter of the hose to the
water inlet of the washer
by turning it clockwise to
be fixed tightly.
• Please check the rubber
packing present inside the inlet
hose adapter of the hose.
1Connect the inlet hose to
the water tap by screwing
the connector tightly.
2Connect the connector-
inlet supplied if necessary. 3Connect the inlet hose adapter to the water inlet
of a washer and turn it to
be fixed.
*Check the packing in the inlet
TAPE
Connector B
Connector A
Connector
Connector
Rubber
Packing
Hose
Connector Rubber
Packing
Hose
Connector
inlet
Connector

6
ELECTRICAL REQUIREMENTS
•Electrical earth is required on this washer
•If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
•Don’t earth to a gas pipe.
•Don’t change the power supply cord plug.
•Check with a qualified electrician if you are not
sure the washer is properly earthed.
WARNING
Recommended earthing method
Electrical shock hazard : Failure to follow these instructions could result in
death or serious injury.
For your personal safety, this washer must be earthed.
This washer is equipped with a power supply cord ‘A’having a earthing plug ‘B’.
To minimize possible shock hazard, the cord must be plugged into a mating
earthing-type wall receptacle ‘C’. If a mating wall receptacle is not available,
it is the personal responsibility and obligation of the customer to have the
proper earthed wall receptacle installed by a qualified electrician.
C
B
A
Drain system
•Never forget to install drain hose before operating your washer.
•Open the packing box, and there is a drain hose inside the drum.
•Connect the drain hose to the drain outlet at the back side of the washer.
• Top of laundry tub must be at least 60cm high and no higher than 100cm from bottom of washer.
•When installing the drain hose to tub(sink), secure it tightly with a string.
•Proper securing of the drain hose will protect the floor from damage due to water leakage.
•When the drain hose is too long, do not force it back into the washer.
This will cause abnormal noise.
Level adjustment
1If the washer is installed on an
unsuitable floor, it could make
considerable noise, vibrate and
cause a malfunction.

7
OPERATING YOUR WASHER
2Adjust the level of washer using adjustable legs.
•Please check if there is any gap between the
four adjustable legs and the floor.
•Turning adjustable legs by the enclosed
spanner, adjust the level of washer and make
it sure that there is no swaying of washer.
•After the adjustment is finished, turn the fixing
nuts up tightly so that the washer maintains
the adjustment.
3Make it sure that the washer does not sway when you press
down the four corners of the washer's top plate.
adjustable leg
Fixing Nut
NOTE
There should be no swaying of washer and all the
adjustable legs should stick to the floor closely.
To obtain the best washing results, you must operate your washer properly.
This section gives you this important information.
•Close zippers, snaps, and hooks to avoid
snagging other items.
Remove pin, buckles, and other hard
objects to avoid scratching the washer
interior.
•Empty pockets and pull them inside out.
•Turn down cuffs and turn synthetic knits
inside out to avoid pilling.
•Tie strings and sashes to avoid tangling.
•Treat spots and stains.
(See “Removing stains”on page 21)
Preparing clothes for washing

8
•Drop items into washer loosely. Items should move
easily through wash water for best cleaning and
wrinkle-free results.
•Load washer properly and select correct load size
setting.
Overloading and selecting a setting too small for
the wash load can :
- Cause poor cleaning
- Increase wrinkling
- Create excessive lint
- Wear out items faster (because of pilling)
•Mix large and small items in each load. Load evenly
to maintain washer balance.
An unbalanced load can make the washer vibrate
during spin.
•Reduce wash time when using a small load size
setting. Load with only a few small items needs
less wash time.
•Use a large load size setting to reduce wrinkling with
permanent press clothes and some synthetic knits.
These items should have more room to move in
the water than heavy items. (towels, jeans)
Loading

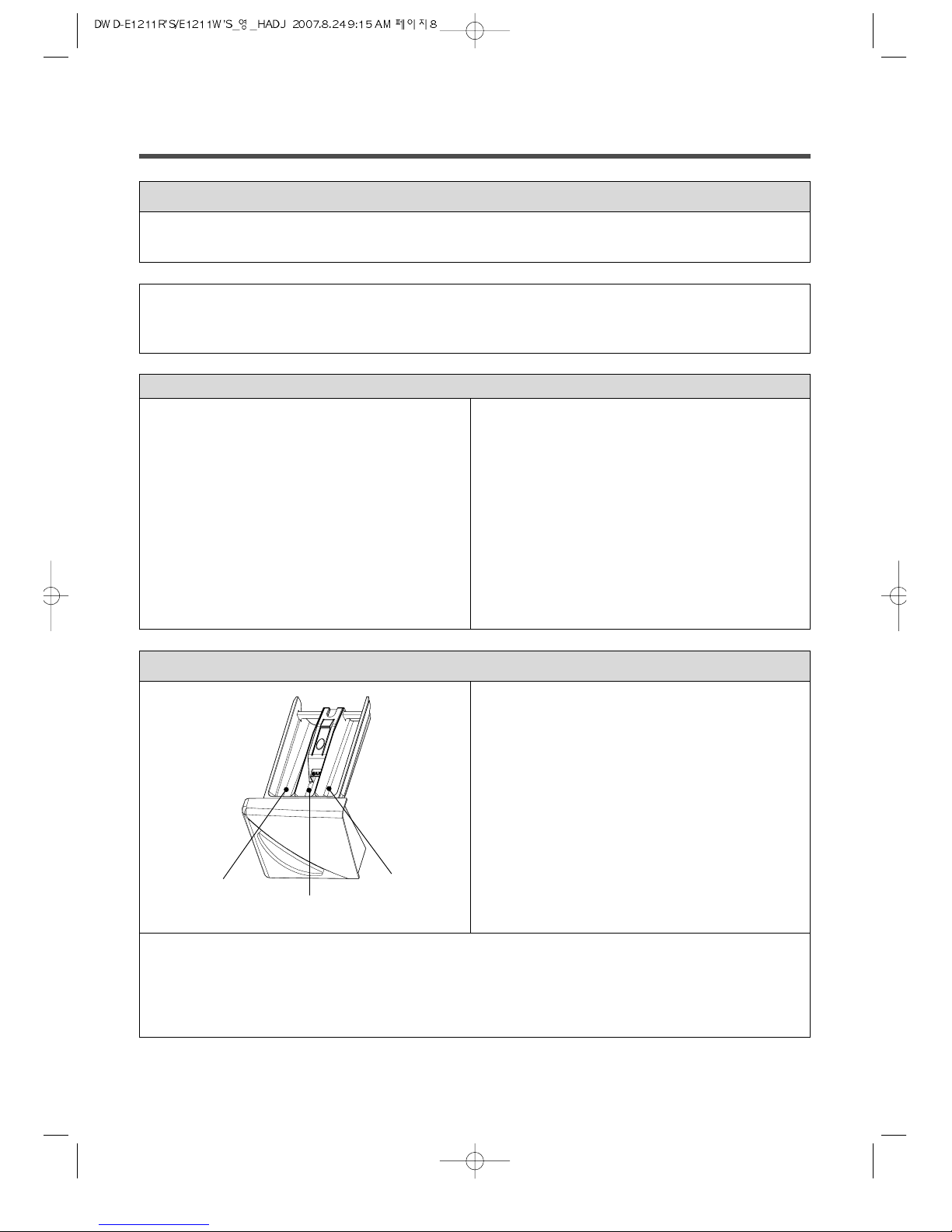

1Detergent case 2Adding fabric softener
•If desired, add measured liquid fabric softener to
the softener inlet.
•Pour liquid fabric softener into the dispenser
using the amount recommended on the package.
•Do not exceed the maximum fill line. Overfilling
can cause early dispensing of the fabric softener
which could stain clothes.
•Do not open the detergent case when water is
supplied.
•Avoid pouring fabric softener directly on the
clothes.
Adding detergent
•Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together.
•Separate dark colors from light colors, colorfast items from non-colorfast item.
Sorting
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lignts, Darks) Separate white clothes from colored clothes.
Lint (Lint producers, Collectors) Wash lint producers and lint collectors separately.
Main wash Pre wash
Fabric softener
•
Please use only the powder detergent for the front loader washing machine.
•Please use the proper amount of detergent in conformity with the instruction of the detergent manufacturer.
•A use of a large amount of fetergent more than the recommended amount can cause many soapsuds and
the overload to the motor. In addition to, this will deteriorate the washing and rinse performmance.

9
Press this switch to turn the power 'ON' or 'OFF'.
Operation and temporary stop is repeated as it is pressed. When you want to change program in
operating; Press the 'Start/Pause' button →Select the program that you want to change→Press the
'Start/Pause' button again.
You can select the course you want and each lamp is turned on when that course is selected.
You can select the spin speed you want and each lamp is turned on when that course is selected.
It can be used to pre-engage time for wash from 1 hr to 12 hrs.
You can select the dry condition you want and each lamp is turned on when that course is selected.
If you want to open Door intensionally during operation, press the 'Start/Pause' button and press again
'Door unlock' button.
In this case, signal will be appeared on PCB board, then you can open Door after cooling insideTub
temperature and draining water, also no button functions except Power button.
It can be used to adjust water temperature according to types of the load to be washed.
As this button is pressed, water temperature is selected by Cold
→ 30°C → 40°C → 60°C → 95°C.
You can select the wash course you want and each lamp is turned on when that course is selected.
As this button is pressed, the wash course is selected by 'Quick Wash'(proper load amount :1~2kg)
→
'Small'(proper load amount :2~3kg) → 'Main Wash' → 'Pre Wash' → 'Soak' → 'Quick Wash' .
You can select the rinse time(s) you want and each lamp is turned on when that course is selected.
As this button is pressed, the rinse time(s) is selected by '1'
→ 'Rinse Hold' → '2' → 'Rinse Hold'
→ ... ... → '5' → 'Rinse Hold' → '1'.
Use this function when you want to protect any accident occurring from handling of washer by a child.
During an operation of washer, press 'TEMP' and 'DRY' buttons simultaneously during 3 second.
If this mode will be set successfully, CHL and remain time will be showen on PCB board alternately.
In Child Lock mode, no button functions except Power button.
If you want to set this mode, press 'TEMP' and 'DRY' buttons simultaneously during 3 second.
And if you want to release this mode, press 'TEMP' and 'DRY' buttons simultaneously again during 3
second.
If you want to change to the desire program, while this mode is working;
1. Press 'TEMP' and 'DRY' buttons simultaneously again during 3 second.
2. Press the 'Start/Pause' button.
3. Select the desired program and press the 'Start/Pause' buttom again.
THE FUNCTION OF CONTROL PANEL(DWD-E1211R'S)
* The Child Lock mode can be set at any time and it is automatically released when operation errors
happen. Also, this mode works when power is off.
Change
the desired
program

10
Press this switch to turn the power 'ON' or 'OFF'.
Operation and temporary stop is repeated as it is pressed. When you want to change program in
operating; Press the 'Start/Pause' button
→ Select the program that you want to change → Press the
'Start/Pause' button again.
You can select the course you want and each lamp is turned on when that course is selected.
You can select the wash course you want and each lamp is turned on when that course is selected.
You can select the rinse time(s) you want and each lamp is turned on when that course is selected.
You can select the spin speed you want and each lamp is turned on when that course is selected.
It can be used to pre-engage time for wash from 1 hr to 12 hrs.
It can be used to do only Rinse and Spin.
It you want to open Door intensionally during operation, press the 'Start/Pause' button and press again
'Door unlock' button.
In this case, signal will be appeared on PCB board, then you can open Door after cooling insideTub
temperature and draining water, also no button functions except Power button.
It can be used to adjust water temperature according to types of the load to be washed.
As this button is pressed, water temperature is selected by Cold
→ 30°C → 40°C → 60°C → 95°C.
Use this function when you want to protect any accident occurring from handling of washer by a child.
During an operation of washer, press 'TEMP' and 'RINSE+SPIN' buttons simultaneously during 3 second.
If this mode will be set successfully, CHL and remain time will be showen on PCB board alternately. In Child
Lock mode, no button functions except Power button.
If you want to set this mode, press 'TEMP' and 'RINSE+SPIN' buttons simultaneously during 3 second.
And if you want to release this mode, press 'TEMP' and 'RINSE+SPIN' buttons simultaneously again during
3 second.
If you want to change to the desire program, while this mode is working;
1. Press 'TEMP' and 'RINSE+SPIN' buttons simultaneously again during 3 second.
2. Press the 'Start/Pause' button.
3. Select the desired program and press the 'Start/Pause' buttom again.
THE FUNCTION OF CONTROL PANEL(DWD-E1211W'S)
* The Child Lock mode can be set at any time and it is automatically released when operation errors
happen. Also, this mode works when power is off.
Change
the desired
program
