Reinvents the PV Module

* When Module exposed to sunshine or other lights, it can produce DC, in this case it may cause electric shock hazard
if touch electrical parts.
* Focus sunlight on to PV module via mirror or lenses is prohibited.
* Temples glass and backsheet have protective effect, broken PV modules have electrical risks(electric shock and
burnt), this kind of modules can not be fixed or repaired, should be replaced in time.
* Under nominal outdoor condition, the current and voltage produced by module are different with datasheet. The
parameters in datasheet is tested under STC condition, therefore when determining other components rated voltage,
wire capacity, fuse rate, controller capacity and PV module power output relative datas of PV system, please refer to
the short circuit current and open circuit voltage of the PV module, and design and install the system in 125% of the
value as well.
* In case to lower electric shock or burnt risk, it’s better to cover the PV modules by opaque material when installing.
* PV array installation job should be operated under isolating sunlight condition, installation and maintenance also
should be handled by professionals.
* If batteries bank equipped in the PV system, it should comply with battery supplier’s suggestion.
* PV modules shall not replace rooftop and wall material, partial replacement is also not allowed.
* Don’t install PV modules in the area where may has combustible gases.
* Touch PV module’s electrical part by hand directly is prohibited, should use insulating tools to handle the electrical
connecting.
* Don’t dismantle any components of DAH Solar PV module personally.
* Don’t lift modules by junction box or connecting cables.
* All the modules system should be connected to ground, if without special stipulations, please refer to International
Electrical Standard or other International Standards.
* Please do not stand, sit, lying on modules, it may damage modules and also have injured risks.
* Same size and specification models modules can only be connected together.
* During delivery please make sure transport tools or modules are not subjected to large vibrations, vibrations may
cause modules damage or cells microcrack inside of modules.
* During all the delivery,don not allow modules to fall onto ground from transport tools, house or hand, this will
damage modules or cells inside.
* Don’t wipe the module with corrosive chemicals.
* When loads are working, please do not disconnect the modules.
WARNING
The maximum permitted
system voltage (DC) of the modules is
1000V DC(Option 1500V DC)
PV module
application class is A
* Electrical performance parameter of module, such as nominal value of Isc、Voc and Pmas has ±3% random error
compared with value of STC. The standard testing environment of module is: Irradiance 1000/m2、Cell temperature
25℃、Spectrum AM 1.5.
* Normally, the current and voltage of module, will be a little higher compared with the value under STC, so when
confirmed the associated parameters of solar system accessories, such as rated voltage、cable capacity、fuse
capacity and module power, the corresponding short circuit current and open circuit voltage should be amplified by
1.25 times.
* The maximum number of modules per series string must be calculated according to the requirements. The value of
the Voc in the local expected minimum temperature cannot exceed the maximum system voltage value specified of
the module (According to IEC61730 safety test, the maximum system voltage of DAH Solar Module is DC1000V) and
other DC electrical components require values.
* The Voc correction factor can be calculated according to the following formula: CVoc=1-βVoc×(25-T), T is the
minimum ambient temperature expected for the installation of the system, β (% / ℃) is The temperature coefficient of
the selected module Voc (according to the corresponding module data sheet).
* If the reverse current which probably exceed the maximum fuses current of module passed through the module, the
modules must be protected by an equivalent current protection device. If the number of parallel is more than or equal
to 2 strings, there must be equipped an overcurrent protection device on each series of modules.

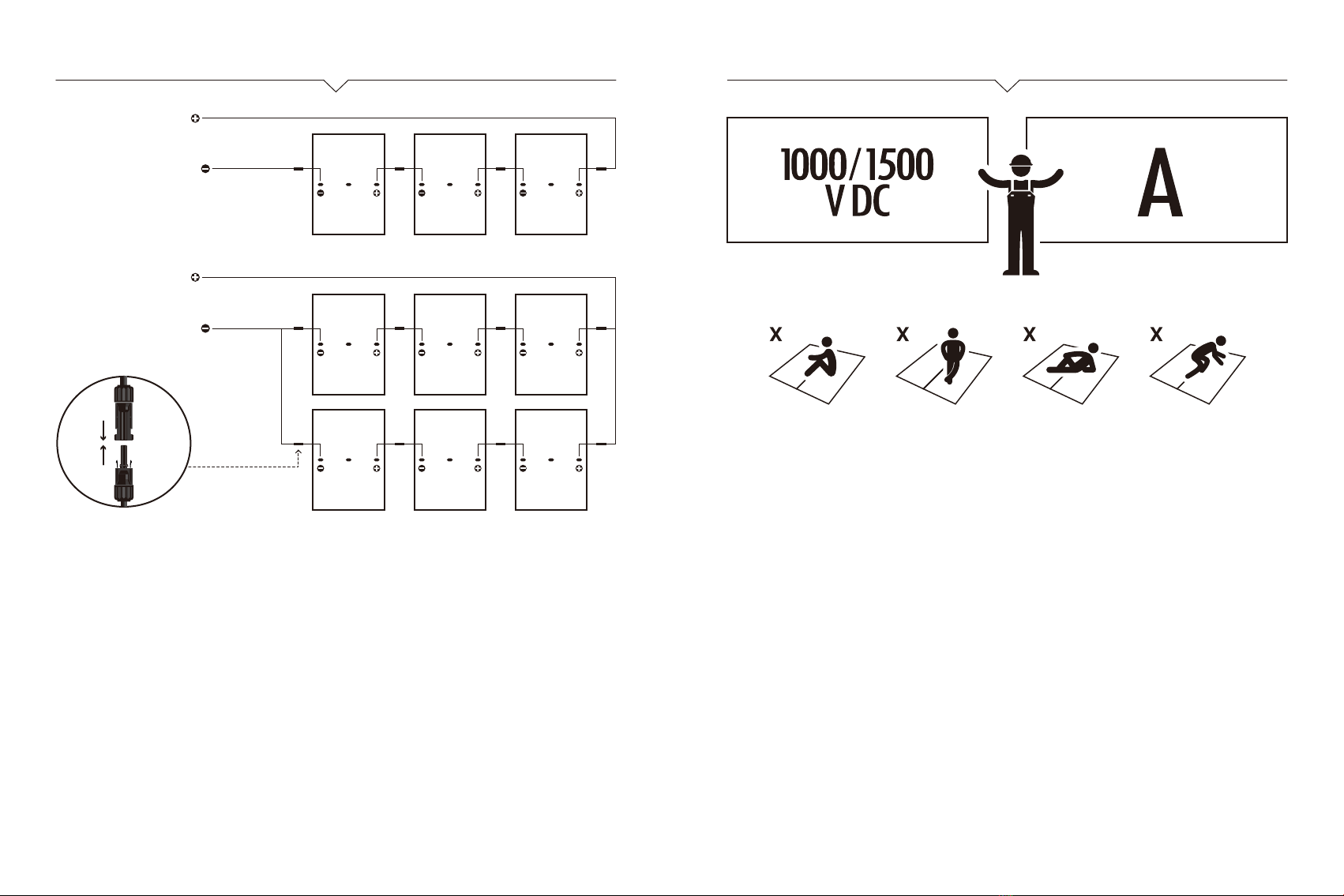

ELECTRICAL INSTALLATION
SERIES
CONNECTION
PARALLEL
AFTER
SERIES
Connector

Please
read
the manual
carefully
THANKS FOR CHOOSING
DAH SOLAR
Please remember that you are using a electricity
generation product, in order to avoid any accident,
it should adopt relative security measures.
The PV modules should be installed in the place with the maximum sunlight thoughout the year.
The output power will be maximum when modules are facing the sun in vertical.
In the northern hemisphere, modules should be placedtoward south as the first choice,
while in the southern hemisphere, it should be placed toward north.
Angle Selection
Northern Hemisphere
Summer
Winter
PV module
Spring/Autumn
Southern Hemisphere
Climatic Condition
-40°C ~ 85°C
(-4°F ~ 185°F)
Ambient temperature
Don't install
PV modules in a
flooded risk area
Don't install in
raining, snowing or windy
weather conditions
- Please wear protective headcoats, insulated gloves, and rubber insulated shoes during installation job.
- To avoid unnecessary touching of the PV module during installation. The surface of modules may over
heated, it has risk of burnt and electric shock.
- Due to the risk of electric shock, please do not proceed the installation work if junction box was wet.
- Use insulated and dry tools, do not use wet tools.
- Don’t use sharp tools to wipe the glass of PV module. It would leave scratches on the module.
Installation Safety

INSTRUCTION OF INSTALLATION METHODS
CLAMPS
MOUNTING
METHOD
The clamp must overlap the module frame by at least 7mm (0.28in)
but no more than 10mm (0.39in).
When choosing this type of clamp-mounting method, use at least four clamps on each module, two clamps should be
attached on each long sides of the module (for portrait orientation) or each short sides of the module (for landscape
orientation). Depending on local wind and snow loads, additional clamps may be required to ensure that modules can
bear the load.
Clamp BClamp A
SCREWS
INSTALLING
METHOD
Modules can be attached through the mounting holes on the back
frame of the module, by fixing the module to the support rails with
bolts. The mounting details are shown in the following figures.
Secure the module in each mounting location with an M8 bolt and a flat washer, spring washer and nut as shown in
Figure 1 and tighten to a torque of 16~20 N.m(140-180lbf.in.).
All parts in contact with the frame should use flat stainless steel washers of minimum 1.8mm thickness with an outer
diameter of 20-24mm (0.79-0.94in).
The frame of each module has 4-φ9*14mm
mounting holes, ideally placed to optimize
the load handling capability, to secure the
modules to supporting structure.
Bolt
Gaskets
Spring Gaskets
Nut
Gaskets
Mounting Hole
1
23
All mentioned clamp mounting methods here are only for reference, DAH Solar will not
be responsible for the system design and installation. The mechanical loads and its
safety must be operated and completed by the professional solar system installer and
experienced installation team.
NOTES WWW.DAHSOLARPV.COM
Washer
Mounting rail
Spring washer
Laminate
Aluminum frame
Screw cap
Screw
Washer
Mounting rail
Spring washer
Laminate
Aluminum
frame
Aluminum
frame
Screw cap
Screw
Washer
Clamp A
Clamp B
EPDM anti-slip matEPDM
anti-slip mat

The conditions of installation, operation, using and maintenance of the modules shown in this
manual are beyond the controlling range of DAH Solar, lead to any personal injury or property
lose during the installation, operation, using and maintenance, and any non DAH Solar product
defect caused disputes, DAH Solar does not bear any legal responsibility.
Intellectual Property: DAH Solar is not responsible for any infringement of intellectual property
rights or other rights of third parties due to the use of component products. The customer does
not obtain any intellectual property rights or relevant use authorization for use of the products,
whether express or implied.
DAH Solar reserves the right to modify the manual, PV products, specifications or product
information. The modification of any information may be due to business requirements, technical
level or other objective environment, but it does not represent the negation of the original
information.
Information of this manual is reliable knowledge and experience of DAH Solar, including but not
limited to all the above information and advice, but all the above information and related
suggestions, whether express or implied, does not represent the only, proprietary methods, also
does not pose any safety and quality warranty.
