Dahua VTO65 Series User manual

Digital Door Station (VTO65 Series)
Quick Start Guide
V1.0.0
V1.0.0

I
Foreword
General
This manual introduces basic operations of the digital door station (VTO). For details, see the
user manual.
Model
VTO6521H, VTO6521H-D, VTO6531H, VTO6541H
VTO6521F, VTO6531F.
Safety Instructions
The following categorized signal words with defined meaning might appear in the manual.
Signal Words
Meaning
CAUTION
Indicates a potential risk which, if not avoided, could result in property
damage, data loss, lower performance, or unpredictable result.
Note
Provides additional information as the emphasis and supplement to the
text.
Revision History
Version
Revision Content
Release Date
V1.0.0
First release
Feburary, 2020
About the Manual
The manual is for reference only. If there is inconsistency between the manual and the
actual product, the actual product shall prevail.
We are not liable for any loss caused by the operations that do not comply with the manual.
The manual would be updated according to the latest laws and regulations of related
jurisdictions. For detailed information, refer to the paper manual, CD-ROM, QR code or our
official website. If there is inconsistency between paper manual and the electronic version,
the electronic version shall prevail.
All the designs and software are subject to change without prior written notice. The product
updates might cause some differences between the actual product and the manual. Please
contact the customer service for the latest program and supplementary documentation.
There still might be deviation in technical data, functions and operations description, or
errors in print. If there is any doubt or dispute, we reserve the right of final explanation.
Upgrade the reader software or try other mainstream reader software if the manual (in PDF
format) cannot be opened.
All trademarks, registered trademarks and the company names in the manual are the
properties of their respective owners.

II
Please visit our website, contact the supplier or customer service if there is any problem
occurring when using the device.
If there is any uncertainty or controversy, we reserve the right of final explanation.

III
Important Safeguards and Warnings
The following description is the correct application method of the device. Read the Guide
carefully before use, in order to prevent danger and property loss. Strictly conform to the Guide
during application and keep them properly after reading.
Operating Requirement
Do not place and install the device in an area exposed to direct sunlight or near heat
generating device.
Do not install the device in a humid, dusty or fuliginous area.
Keep its horizontal installation, or install it at stable places, and prevent it from falling.
Do not drip or splash liquids onto the device; don’t put on the device anything filled with
liquids to prevent liquids from flowing into the device.
Install the device at well-ventilated places; do not block its ventilation opening.
Use the device only within rated input and output range.
Do not dismantle the device arbitrarily.
The device shall be used with screened network cables.
Power Requirement
Use electric wires (power wires) recommended by this area, which shall be used within its
rated specification!
Use power supply that meets SELV (safety extra low voltage) requirements, and supply
power with rated voltage that conforms to Limited Power Source in IEC60950-1. For
specific power supply requirements, refer to device labels.
Appliance coupler is a disconnecting device. During normal use, keep an angle that
facilitates operation.
Do not cut off power supply during device upgrade. Power supply can be cut off only after
the device has completed upgrade and has rebooted.

IV
Table of Contents
Foreword.................................................................................................................................................... I
Important Safeguards and Warnings.................................................................................................... III
1 Structure................................................................................................................................................. 1
2 Cable Connection.................................................................................................................................. 2
3 Installation.............................................................................................................................................. 3
4 Web Configuration ................................................................................................................................ 6
Configuration Process................................................................................................................... 64.1 Initializing Web Interface............................................................................................................... 64.2 Modifying IPAddress.................................................................................................................... 84.3 Selecting SIP Servers................................................................................................................... 84.4 4.4.1 Door Station (VTO) as SIP Server...................................................................................... 9
4.4.2 Platform (DSS Express/DSS Pro) as SIP Server............................................................. 12
5 Engineering Setting ............................................................................................................................ 16
Entering Engineering Setting...................................................................................................... 165.1 Setting IPAddress....................................................................................................................... 165.2
6 User Registration ................................................................................................................................ 17
Notes of Face Recording.................................................................................................. 18Appendix 1 Fingerprint Record Instruction......................................................................................... 20Appendix 2 Cybersecurity Recommendations................................................................................... 22Appendix 3

1
1 Structure
The door station (VTO) has six models. Different models have different front panels but the
same rear panel. Dimensions (mm [inch])Figure 1-1
Table 1-1 Component description
No.
Description
No.
Description
1
White illuminator
6
Keyboard
2
MIC
7
Loudspeaker
3
Camera
8
Fingerprint sensor
4
Display
9
Tamper button
5
Card swiping area
10
Function ports (connected to locks, access
controllers, alarm in/out devices)

2
2 Cable Connection

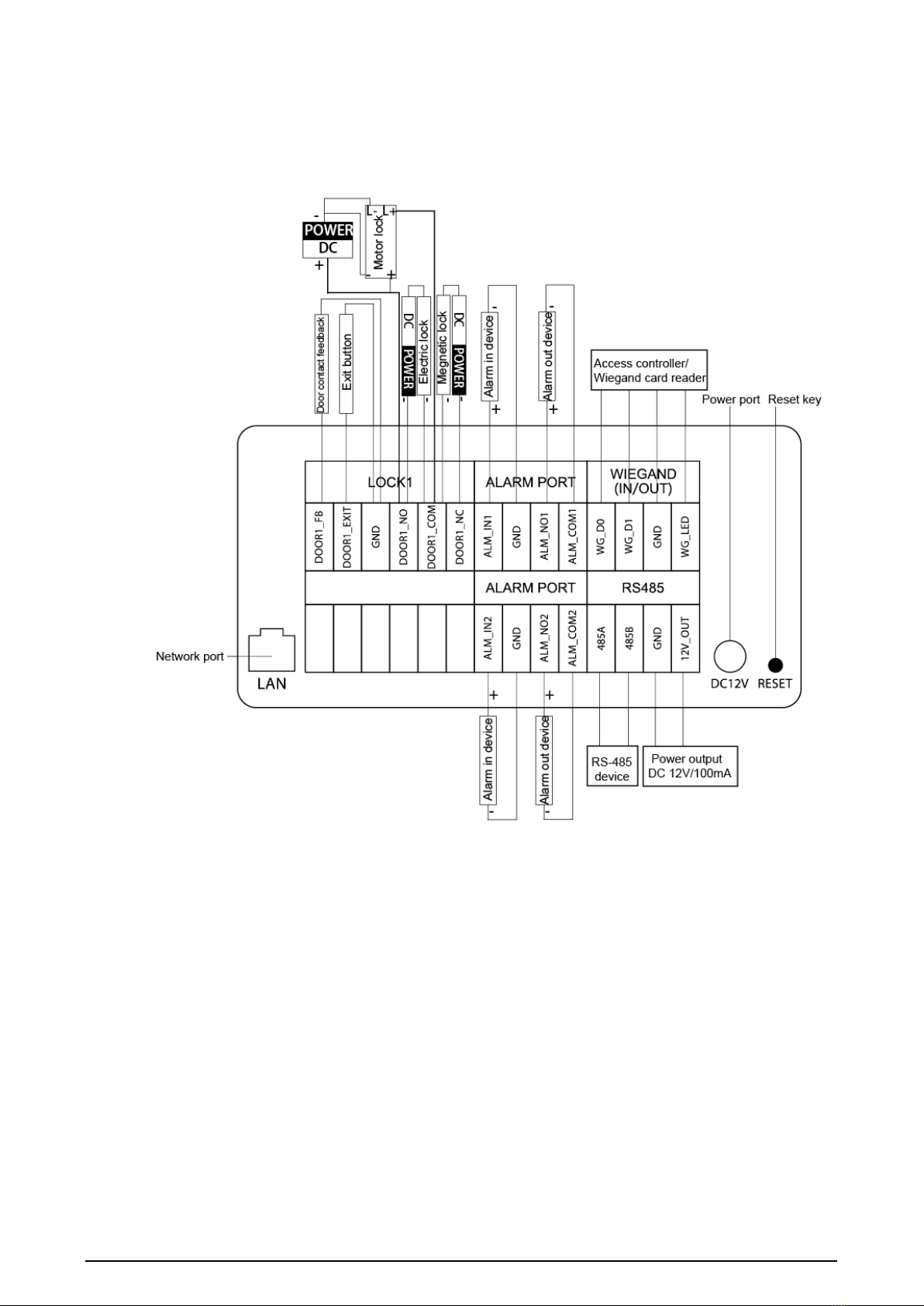

Cable connectionFigure 2-1

3
3 Installation
Do not install the digital door station in environment with condensation, high temperature,
and direct sunshine, and stained, dusty, chemically corrosive places.
Engineering installation and test shall be done by professionals. Do not dismantle or repair
arbitrarily in case of device failure. Contact after-sales service.
Prepare cross screwdrivers and gloves yourself.
Recommended distance between the camera and ground is 1.4m–1.6m.
Installation heightFigure 3-1

4
InstallationFigure 3-2
Table 3-1 Component description
No.
Description
No.
Description
No.
Description
1
Door station
3
Cable entry
5
Wall
2
Screw
4
Mounting plate
—
—
Installation Procedure
Cut an opening in the wall according to dimensions of the mounting plate.Step 1 Detach hole covers according to cable entry positions.Step 2 Put the mounting plate in the opening in the wall.Step 3 Fix the mounting plate with cement or sealant.Step 4 Connect cables. Refer to "2 Cable Connection."Step 5
Before connecting cables, make sure that the power is disconnected.
Put the door station into the mounting plate, and then place the hook on the back of theStep 6 door station into the installation slot of the mounting plate.
Tighten screws at the bottom of the door station.Step 7 Apply silicone sealant to gaps between the door station and mounting plate.Step 8 The installation is completed.

5
Apply silicone sealantFigure 3-3

6
4 Web Configuration
This chapter introduces how to initialize, connect, and configure parameters for the door
stations to realize functions like device management, calling, and monitoring. For more details,
see the user manual.
Configuration Process4.1
Plan IP address and number for each door station and indoor monitor.Step 1 Make sure that there is no short circuit or open circuit in the circuits.Step 2 Configure door station (VTO).Step 3 Beside initializing web interface and modifying IP address, configurations will be
different depending on SIP server types.
1) When the door station you are operating works as the SIP server, refer to "4.4.1
Door Station (VTO) as SIP Server."
2) When the management platform works as the SIP server, refer to "4.4.2 Platform
(DSS Express/DSS Pro) as SIP Server."
Configure indoor monitors (VTH). See the indoor monitors (VTH) users' manual or theStep 4 door station user’s manual.
Initializing Web Interface4.2
For the first time login, you need to create a password for logging in to the web interface.
The default IP address of door station is 192.168.1.108. Make sure that the PC IP address is in
the same network segment as that of the door station.
Connect the door station to power source, and then start it.Step 1 Open the browser on the PC, enter the default IP address of the VTO in the addressStep 2 bar, and then press Enter.

7
Device initializationFigure 4-1
Enter and confirm the password, and then click Next.Step 3 The email setting interface is displayed.
The password should consist of 8 to 32 non-blank characters and contain at least two
types of characters among upper case, lower case, number, and special character
(excluding ' " ; : &).
Select the Email check box, and then enter your email address.Step 4
This email address is used to reset the password.
Click Next.Step 5 The initialization succeeded.
Click OK.Step 6 Login interfaceFigure 4-2
Enter username and password, and then click Login to log in to the web interface.Step 7
The username is admin by default; the password is the one that you set in Figure 4-1.

8
Modifying IP Address4.3
To realize communication among video door phones, you need to modify IP address of the door
station. You can modify IP address on the door station or through the web interface. Modifying
IP address through the web interface will be demonstrated here. For IP address modification on
the door station, see "5.2 Setting IPAddress."
Select Network Setting > Basic.Step 1 TCP/IP informationFigure 4-3
Enter the network parameters that you planned, and then click Save.Step 2
Make sure that your PC IP address and the door station are in the same network
segment.
The VTO will restart.
Preferred DNS and alternate DNS are both 8.8.8.8 by default.
If PC IP address is in the planned IP segment, the interface will go to the login interface
automatically.
If PC IP address is not in the planned IP segment, the interface will not go to the login
interface. You need to make the PC IP address in the planned IP segment.
Selecting SIP Servers4.4
The Session Initiation Protocol (SIP) is used for signaling and controlling multimedia
communication sessions in applications of voice and video calls. A SIP server is an application
that provides information or direction to a user agent.
When door stations (VTO) work as SIP server, select VTO from the Server Type
drop-down list. It applies to a scenario where there is only one building.
When the platform (Express/DSS) works as SIP server, select Express/DSS from the
Server Type drop-down list. It applies to a scenario where there are multiple buildings or
multiple units.
Log in to the web page.Step 1 On the homepage, select Network Setting > SIP Server.Step 2

9
SIP serverFigure 4-4
Select a SIP server.Step 3
4.4.1 Door Station (VTO) as SIP Server
Select the Enable check box next to SIP Server.Step 1 Select VTO from the Server Type drop-down listStep 2 Configure parameters (see Table 4-3 for details).Step 3 Click Save.Step 4 The door station (VTO) will restart automatically.
4.4.1.1 Setting Door Station (VTO) No. (1)
Each door station (VTO) has a unique number. The numbers are normally the same as building
numbers.
You can change the number of a door station (VTO) when it does not work as a SIP server.
Door station (VTO) numbers can contain 5 numbers at most, and it cannot be the same as
any room number.
Log in to the web interface.Step 1 The homepage is displayed.
Select Local Setting > Basic.Step 2 Device properties
Figure 4-5
In the VTO No. input box, enter the door station (VTO) number you planned, and thenStep 3 click Confirm to save the configuration.

10
Table 4-1 Device property description
Parameter
Description
Device Type
The door station can be used as unit door station and fence station. Select
according to places where door stations are installed.
Centre Call No.
888888 by default. The default value cannot be modified.
VTO No.
VTO No. can only be modified when the door station you are operating
does not work as a SIP server.
Group Call
After you have enabled the group call function, you can call the main
indoor monitor (VTH) and its extensions at the same time.
If the Group Call function is enabled, the door station (VTO) will restart
automatically, and then this function will be valid.
4.4.1.2 Adding Indoor Monitors (VTH)
When the door station (VTO) you are operating works as the SIP server, you need to add all
indoor monitors (VTH) to the door station (VTO); otherwise door stations (VTO) cannot
communication with indoor monitors.
When there are master indoor monitors (VTH) and extensions, first you need to enable the
Group Call function on the Basic Interface, and then add indoor monitors (VTH). To enable the
Group Call function, refer to "4.4.1.1 Setting Door Station (VTO) No. (1)".
Adding One Indoor Monitor (VTH)
You need to add indoor monitor (VTH) to the web of the door station (VTO) only when door
station (VTO) works as SIP server.
When there are master indoor monitor (VTH) and extensions, both shall be added to the
web of the door station (VTO).
Select Household Setting > Room No. Management.Step 1 Room No. managementFigure 4-6
Click Add.Step 2

11
AddFigure 4-7
Set indoor monitor (VTH) parameters by reference to Table 4-2.Step 3
Table 4-2 Descriptions of adding indoor monitors (VTH)
Parameter
Description
First Name
Set username and nickname for each indoor monitor (VTH).
Last Name
Nick Name
Room No.
Set room number at the indoor monitor (VTH).
Indoor monitor (VTH) short number consists of 1–5 numbers, which
includes numbers and "#". It shall be the same as the room number
configured at indoor monitor (VTH).
When there are master indoor monitors (VTH) and extensions, to
realize group call function, master indoor monitor (VTH) short No.
shall end with "#0", and extension VTH short No. shall end with #1, #2
and #3. For example, if master indoor monitor VTH No. is 101#0,
extension numbers will be 101#1, 101#2…
Register
Password
Keep the default value to enable signaling interactive in the SIP system.
Register Type
Click Save to complete adding.Step 4 Repeat these steps to add more indoor monitors.
Adding Indoor Monitors (VTH) in Batch
Select Household Setting > Room No. Management.Step 1

12
Adding indoor monitors (VTH) in batchFigure 4-8
Enter Unit Layer Amount,Room Amount in One Layer,First Floor Number, andStep 2 Second Floor Number.
The unit layer amount range is 1–99, room amount in one layer range is 1–99,
and first floor number range is 1–9999.
Room numbers of the second floor must be in the same form as those of the first
floor. For example, room numbers of the first floor is 100–199, and room numbers
of the second floor must be 200–299.
Click Add to complete the adding.Step 3
4.4.2 Platform (DSS Express/DSS Pro) as SIP Server
When a management platform works as the SIP server, you need to register indoor monitors
(VTH) and door stations (VTO) through the management platform.
Select Network Setting > SIP Server.Step 1

13
SIP serverFigure 4-9
Select Express/DSS from the Server Type drop-down list.Step 2 Set parameters according to Table 4-3.Step 3

14
Table 4-3 SIP server parameter description
Parameter
Description
IPAddress
IP address of SIP server.
Port
It is 5060 by default when other door stations (VTO) rather than

the one you are operating works as SIP server.
It is 5080 by default when management platform works as SIP

server.
Username/Password
Use default value.
SIP Domain
It shall be VDP when other door stations (VTO) rather than the

one you are operating works as SIP server.
It can be null or keep default value when the platform works as

SIP server.
Login Username/
Password
Username and password to login SIP server.
Alternate IPAddr.
IP address of the alternate server (the door station (VTO) you are
operating).
If DSS Express or DSS Pro works as SIP server and alternate server
is enabled, when DSS Express or DSS Pro cannot work normally,
the door monitor (VTO) you are operating will be used as SIP server.
Alternate Username
Username and password for logging in to the alternate server.
Alternate Password
Alternate VTS IP
Addr.
IP address of the alternate VTS.
Alternate Server
After entering alternate IP address, username, password, and VTS
IP address, you need to select the Enable checkbox to enable the
alternate server.
Click Save.Step 4 The VTO will restart automatically.
4.4.2.1 Setting Door Station (VTO) Number (2)
After you have selected the Alternate Server enable checkbox in Figure 4-9, the door station
(VTO) will restart automatically. You need to select device type, building No., unit No., and VTO
No. as needed.
Log in to the web interface again.Step 1 Select Local Setting > Basic.Step 2

15
Device propertiesFigure 4-10
Click Confirm.Step 3
Table 4-4 Device properties description
Parameter
Description
Device Type
The door station can be used as unit door station and fence station. Select
according to places where door stations are installed.
Centre Call No.
888888 by default. The default value cannot be modified.
Building No.
Building No. range is 0-99999. Click next to the input box to enable
the building No. input function, and then enter the No. of the building
where the door station is installed.
Unit No.
Unit No. range is 0-9999. Click behind the input box to enable the
building No. input function, and then enter the No. of unit where the door
station is installed.
VTO No.
VTO No. range is 8001-8099. Enter No. of the door station (VTO) that you
are operating.
VTO No. can only be modified when the door station you are
operating does not work as a SIP server.
If there are more than one door stations (VTO) in a unit, the numbers
of the door stations (VTO) cannot be the same.
