Dahua C series User manual

Dahua C Series Home Camera Quick Start Guide
V 1.0.1
Dahua Technology CO., LTD

1
1Packing List

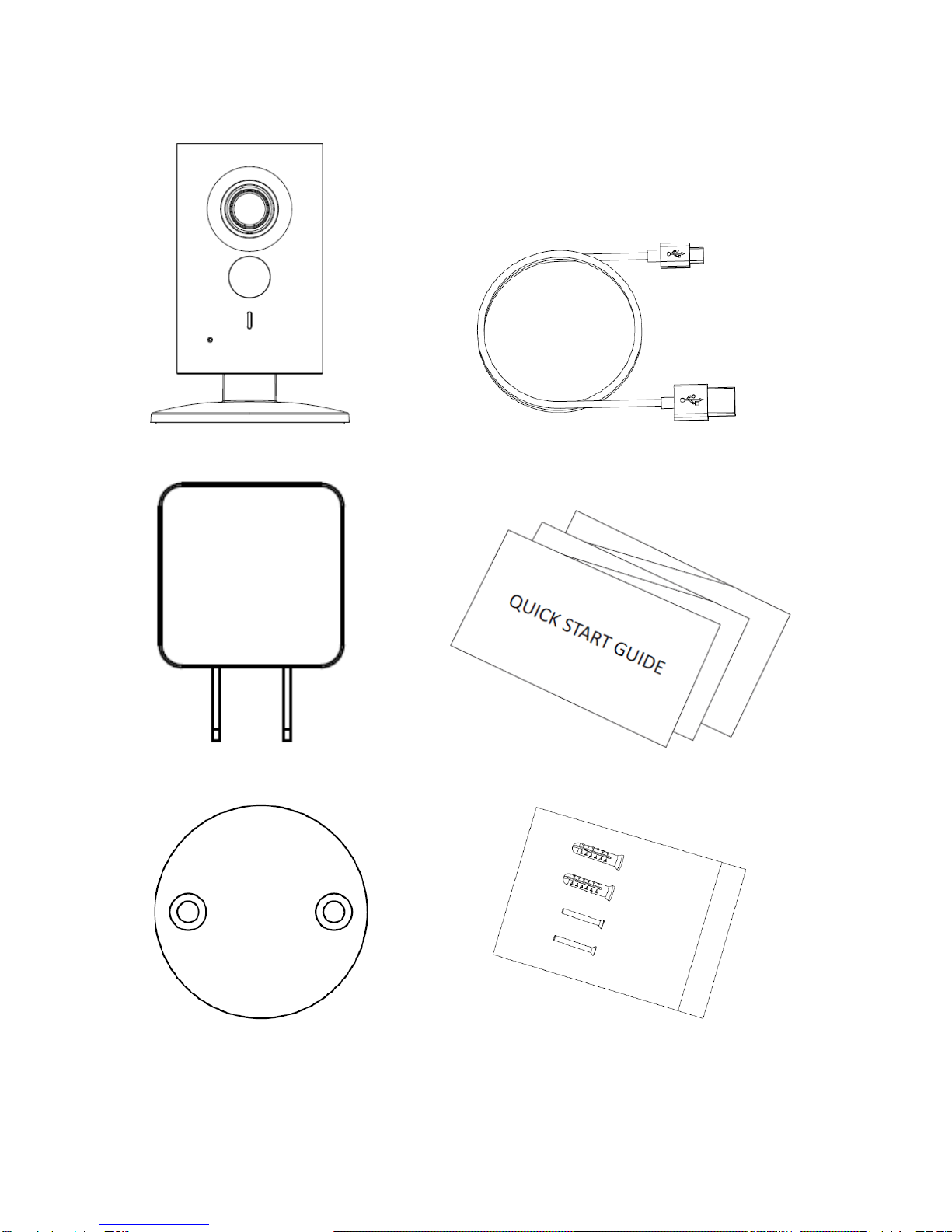

Device ×1 USB ×1
Power Adapter ×1 QSG ×1
Quick Installation Board ×1 Screw Package ×1

2

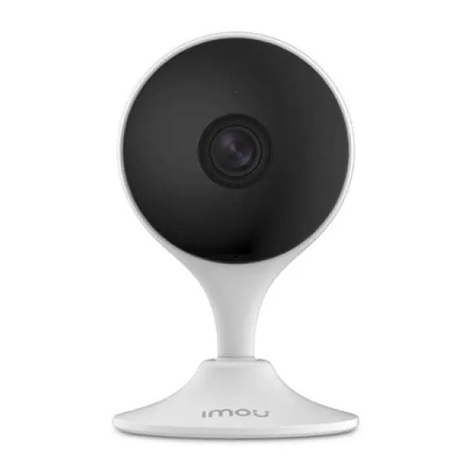

2Product Appearance

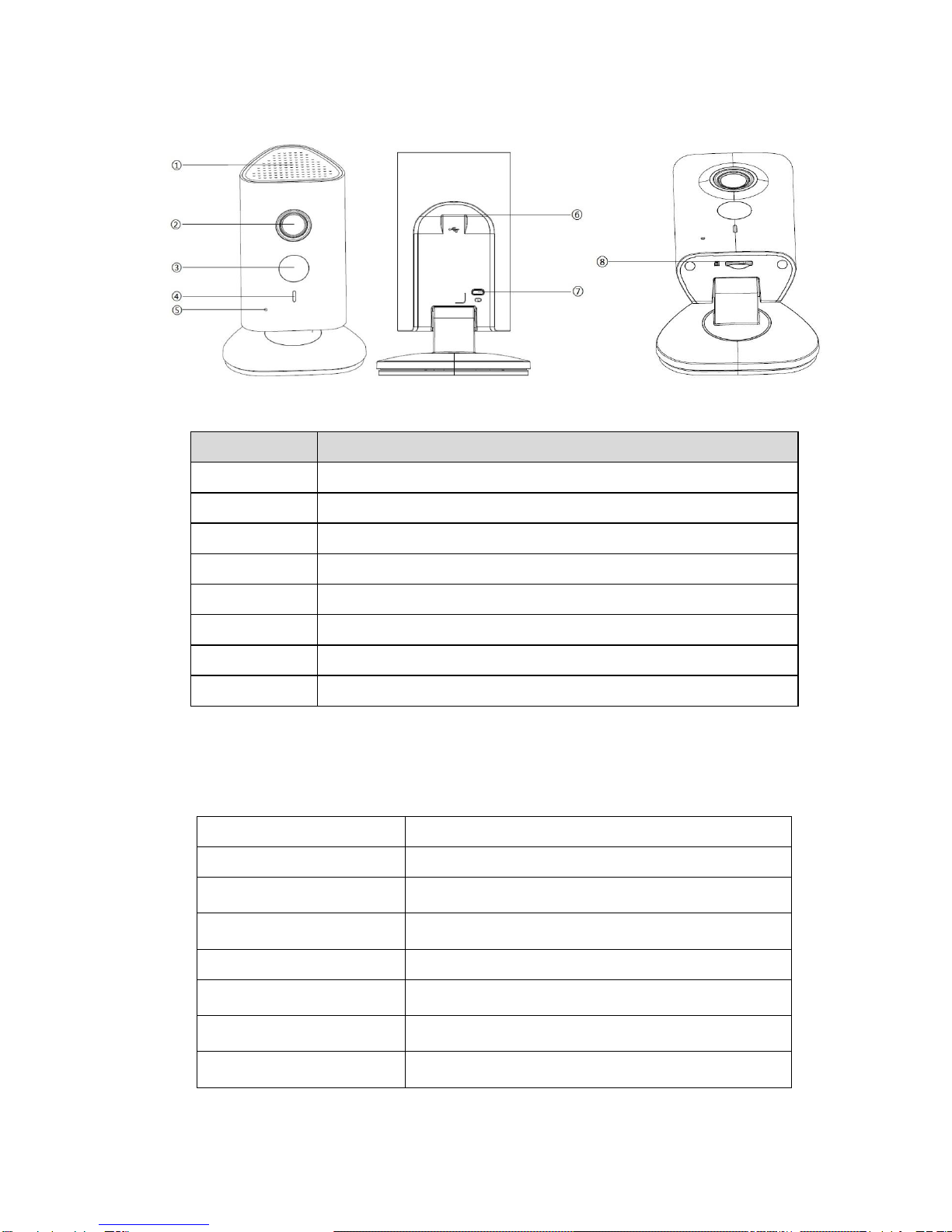

Figure 2-1 Figure 2-2 Figure 2-3
Please refer to the following sheet for more details about each port.
Sheet 2-1
Note:
For reset, long press for 8 seconds and then the light off; For WPS, one quick press.
Please refer to the following sheet for more details about status of indicator light.
Indicator light status
Device status
Red light normally on
Booting
Green light slow flashing
Booting completed, await wifi config, enter smart
config status;
Green light quick flashing
Wifi smart config in progress, including WPS,
management frame and etc.
Green light normally on
Wifi connection succeeded, operate normally.
Red and green lights flash
alternately
Device upgrade
Red light slow flashing
Network connection failure or disconnection after
network connection success.
Red light quick flashing
Device malfunction, fail to boot up; alarm or SD card
malfunction
Sheet 2-2
SN
Name
1
Speaker
2
Lens
3
IR LED
4
Indicator light
5
Microphone
6
USB power supply
7
Reset/WPS button
8
Micro SD Card Slot

3
3Operate by Easy4ip APP
1. Power on the device with power adapter.
2. Connect your smart phone to your WiFi network. Scan the “Easy4ip APP” QR on the packing box,
download and install the Easy4ip APP.

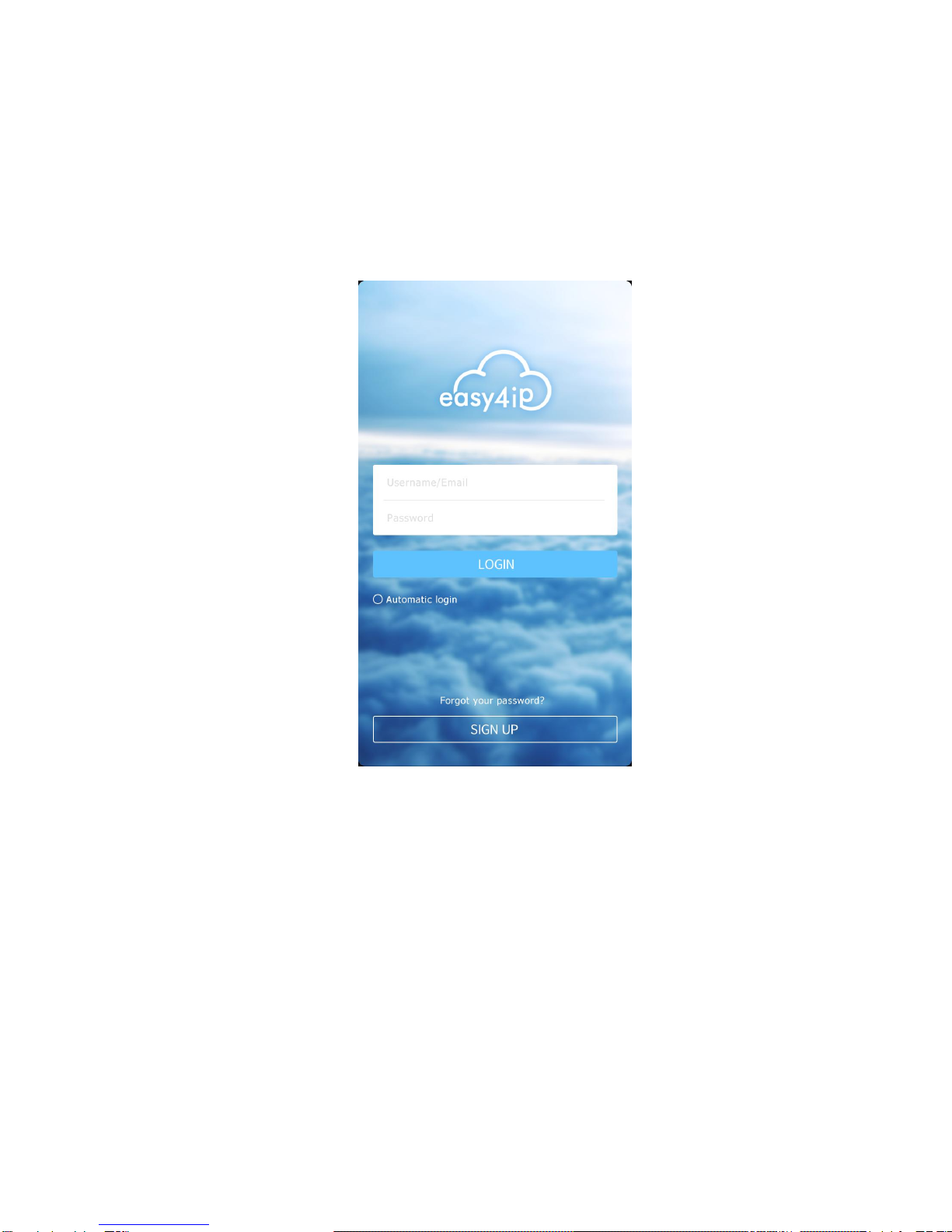

3. Open Easy4ipAPP (take IOS as an example), tap login to login theAPP, see Figure 3-1.
Figure 3-1

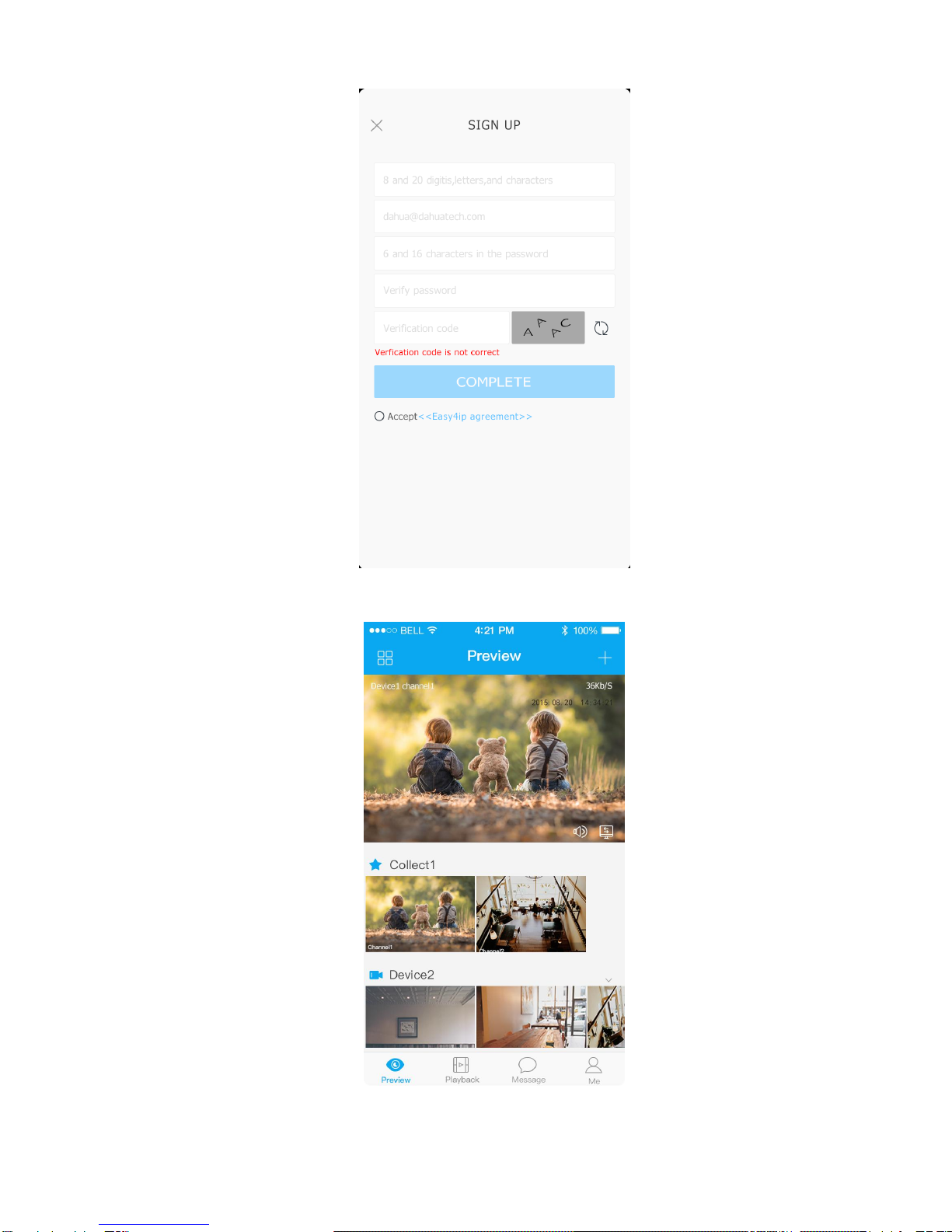

4. Tap “register”for first use.

4
Figure 3-2
5. Tap “+”to add devices.
Figure 3-3

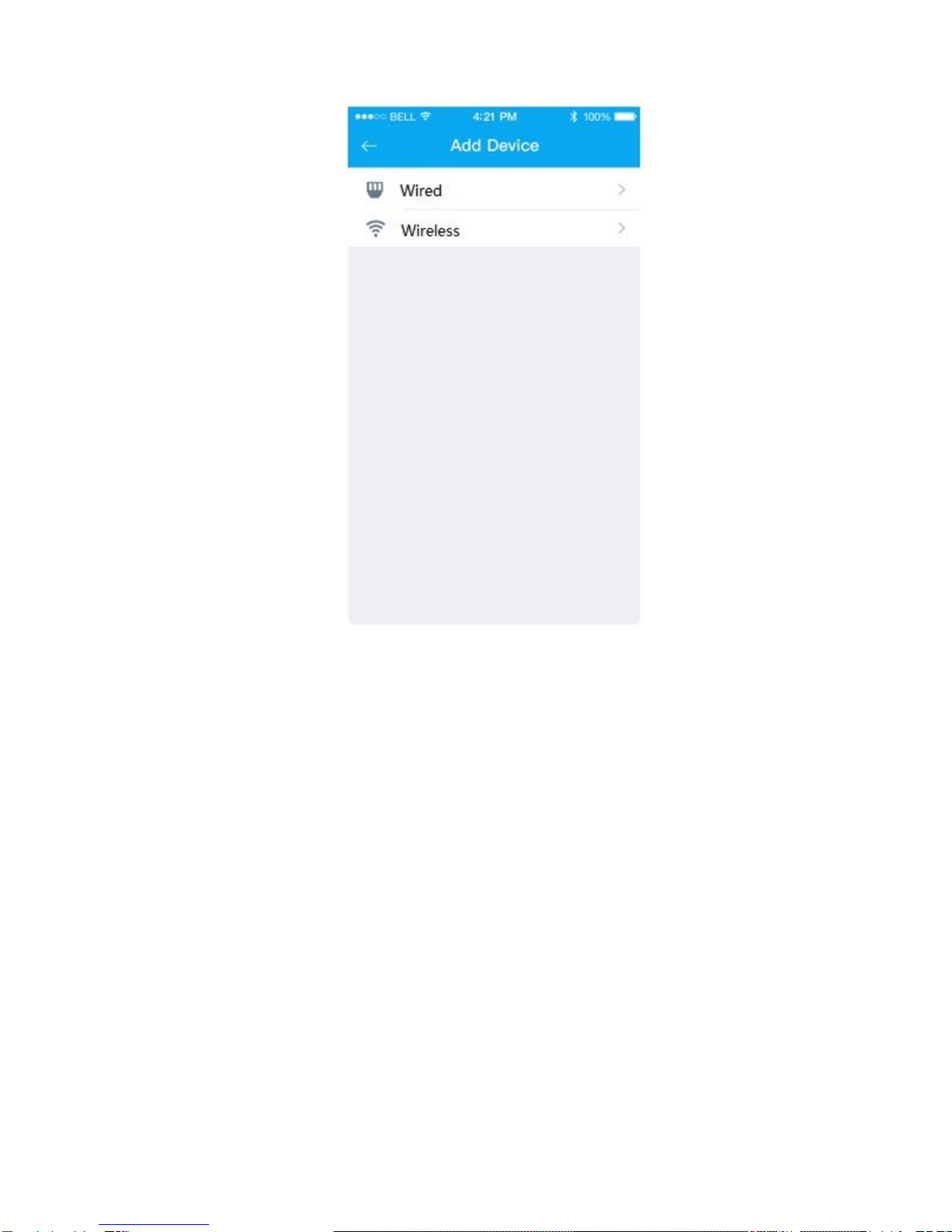

6. Choose “Wireless”.

5
Figure 3-4

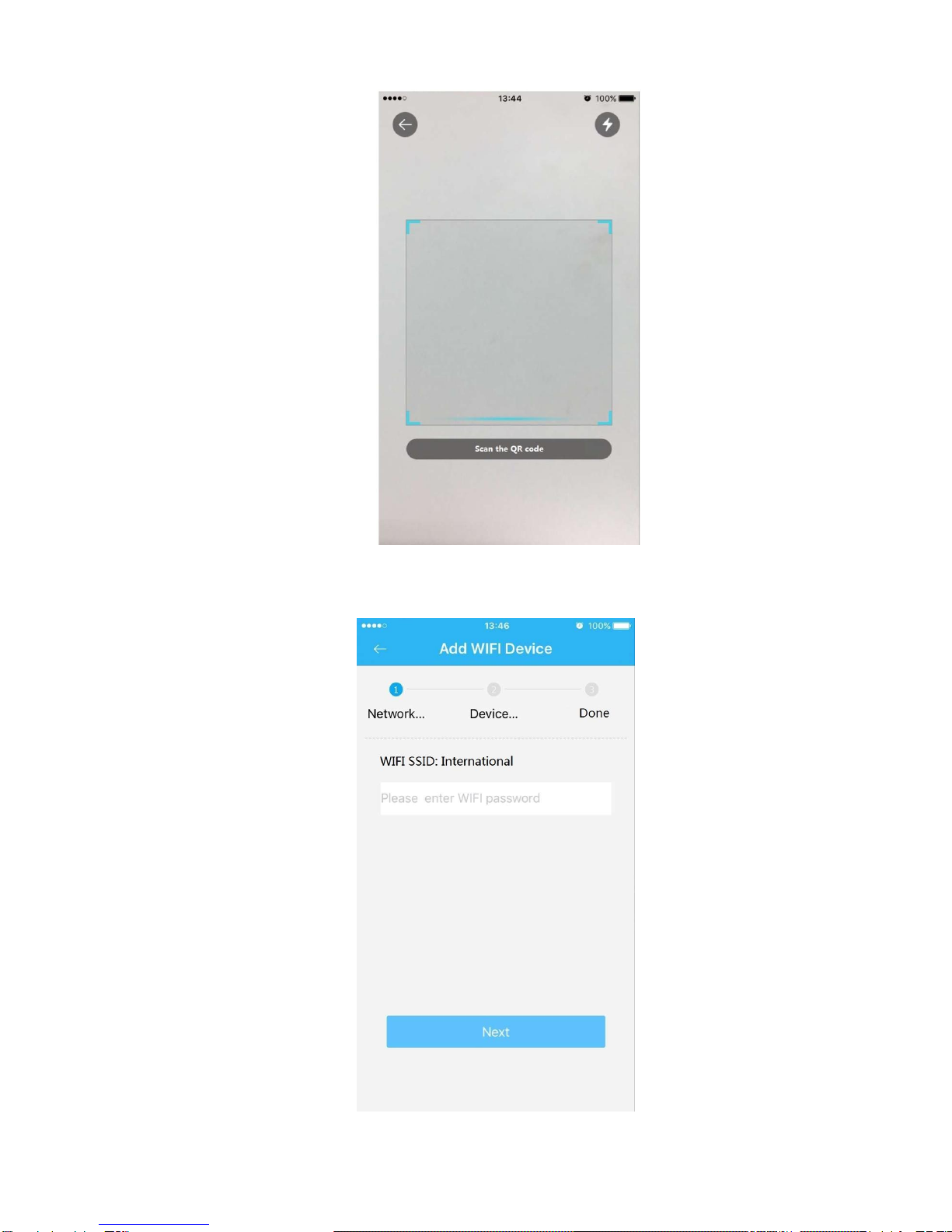

7. Name the camera and scan the QR code on camera.

6
Figure 3-5
8. Input the Wi-Fi password.
Figure 3-6

7

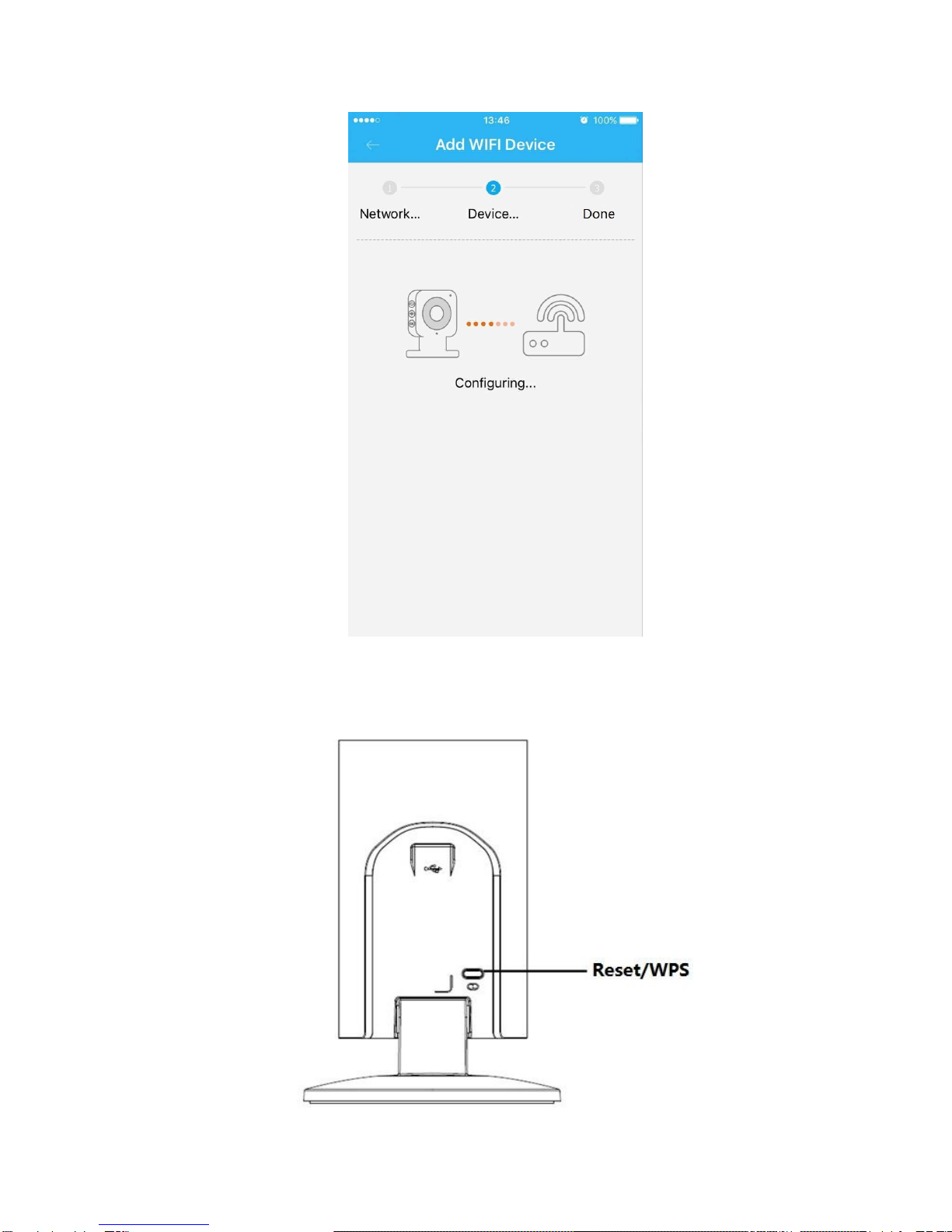

9. Waiting for 60s to finish the Wi-Fi connection.
Figure 3-7
Note: If you want to change the Wi-Fi signal, please reset the camera to factory default and repeat
step 6-9;
Figure 3-8

8
4Operate by DMSS APP
Step 1
Power on the camera.
Step 2
Connect iphone to a WiFi signal.
Step 3

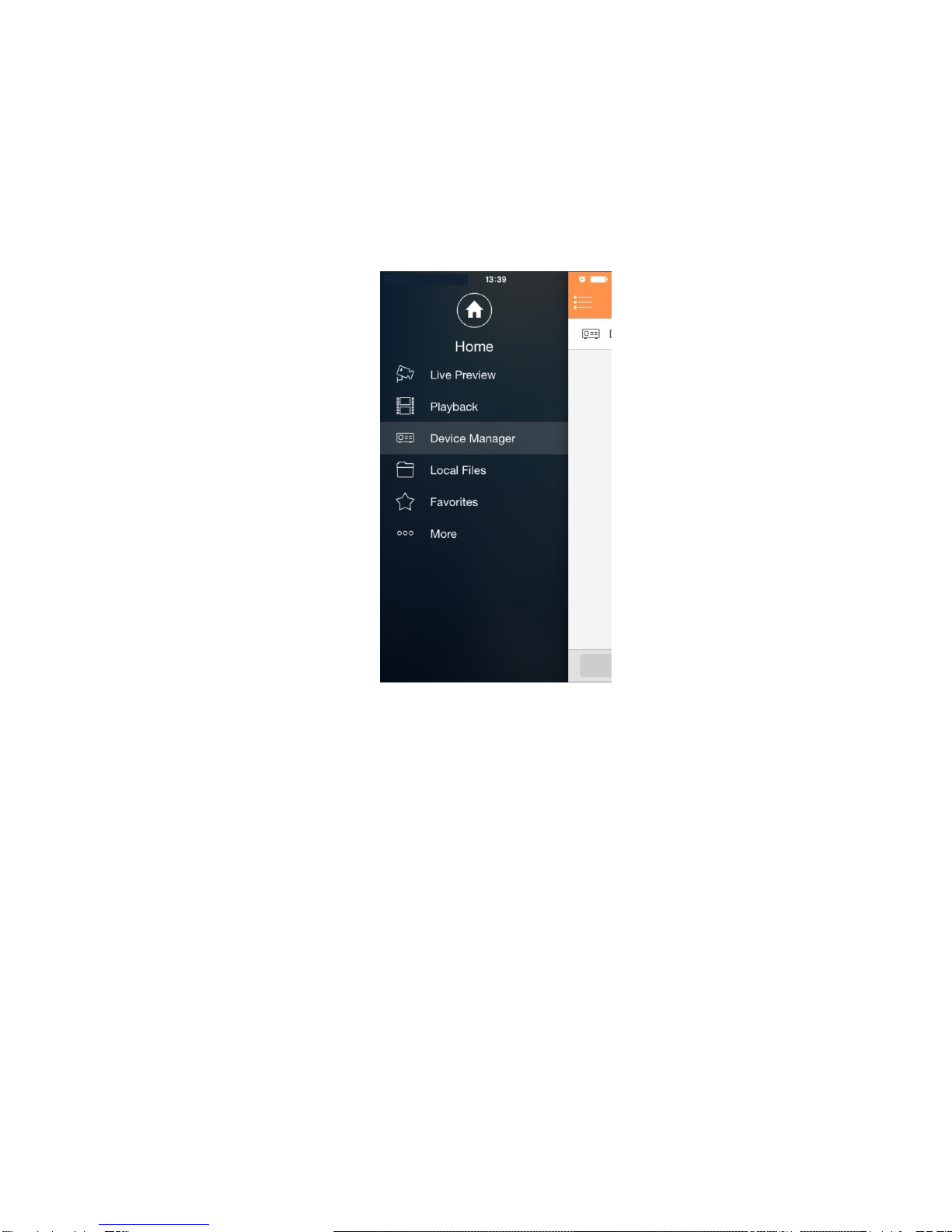

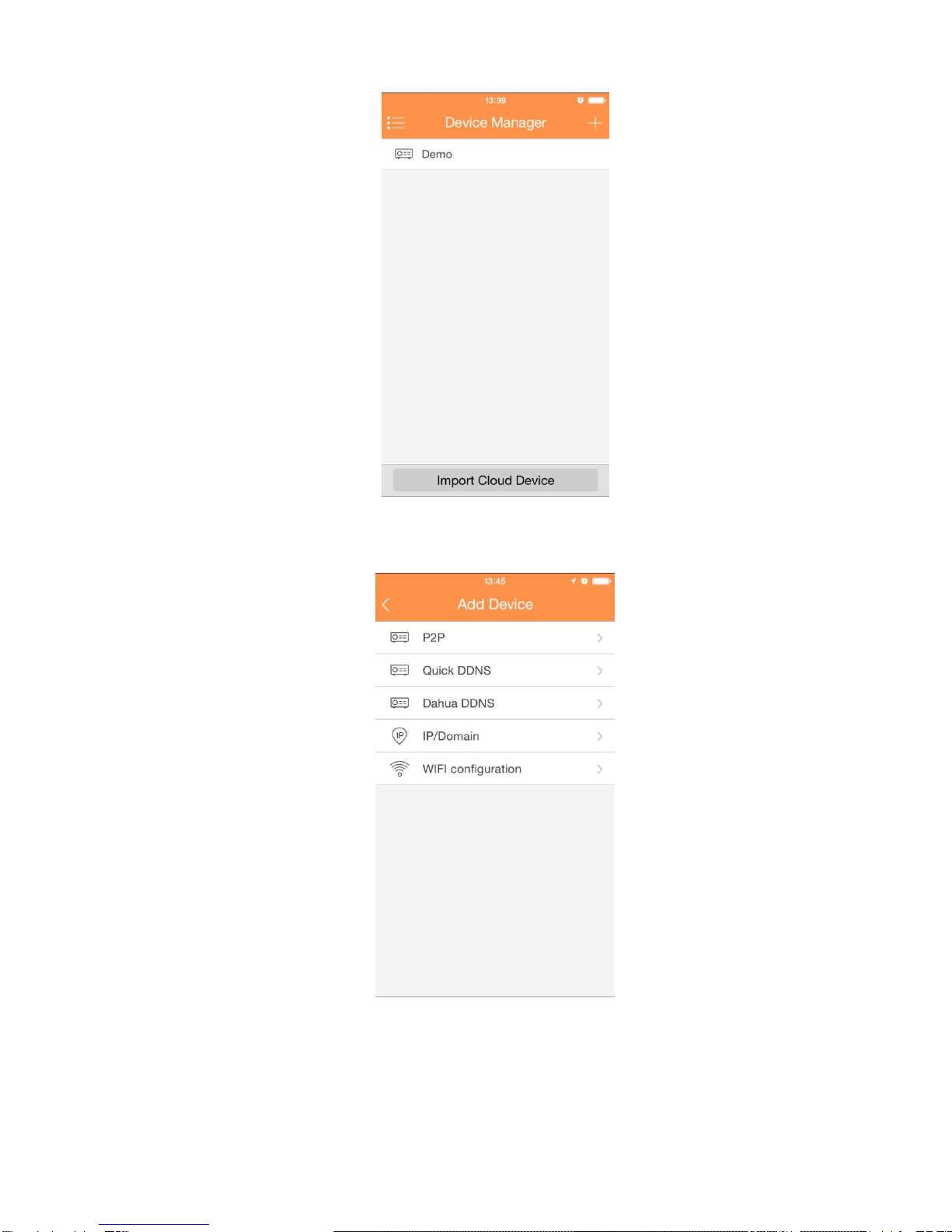

Open DMSS (downloaded from APP Store), choose Device Manager.
Figure 4-1
Step 4
Click “+”.

9
Figure 4-2
Step 5
Choose “WiFi configuration”.
Figure 4-3
Step 6
Input a device name and scan the QR code on camera, then “next”.

10
Figure 4-4
Step 7

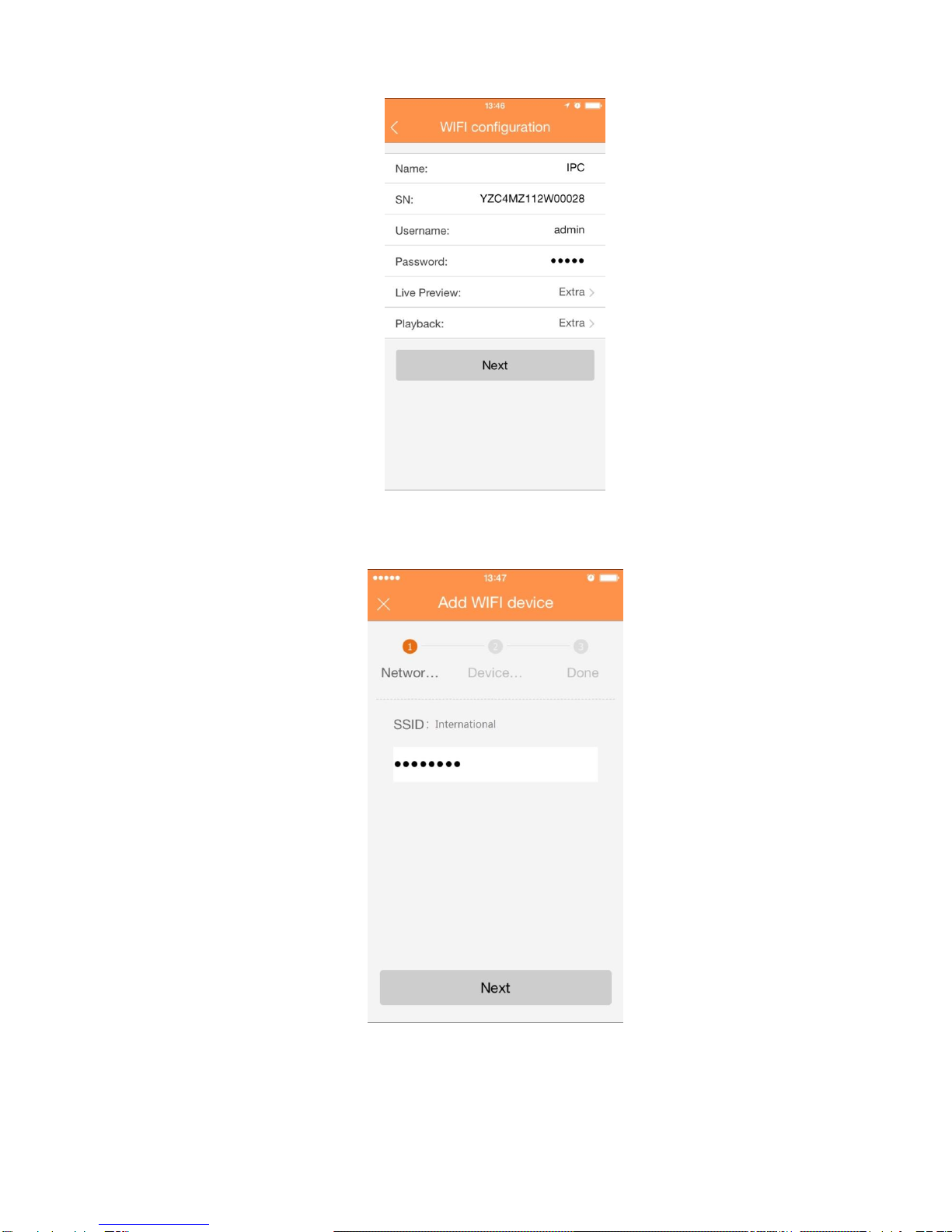

Input the WiFi password, then “next”.
Figure 4-5
Step 8
Connection succeeds.

11

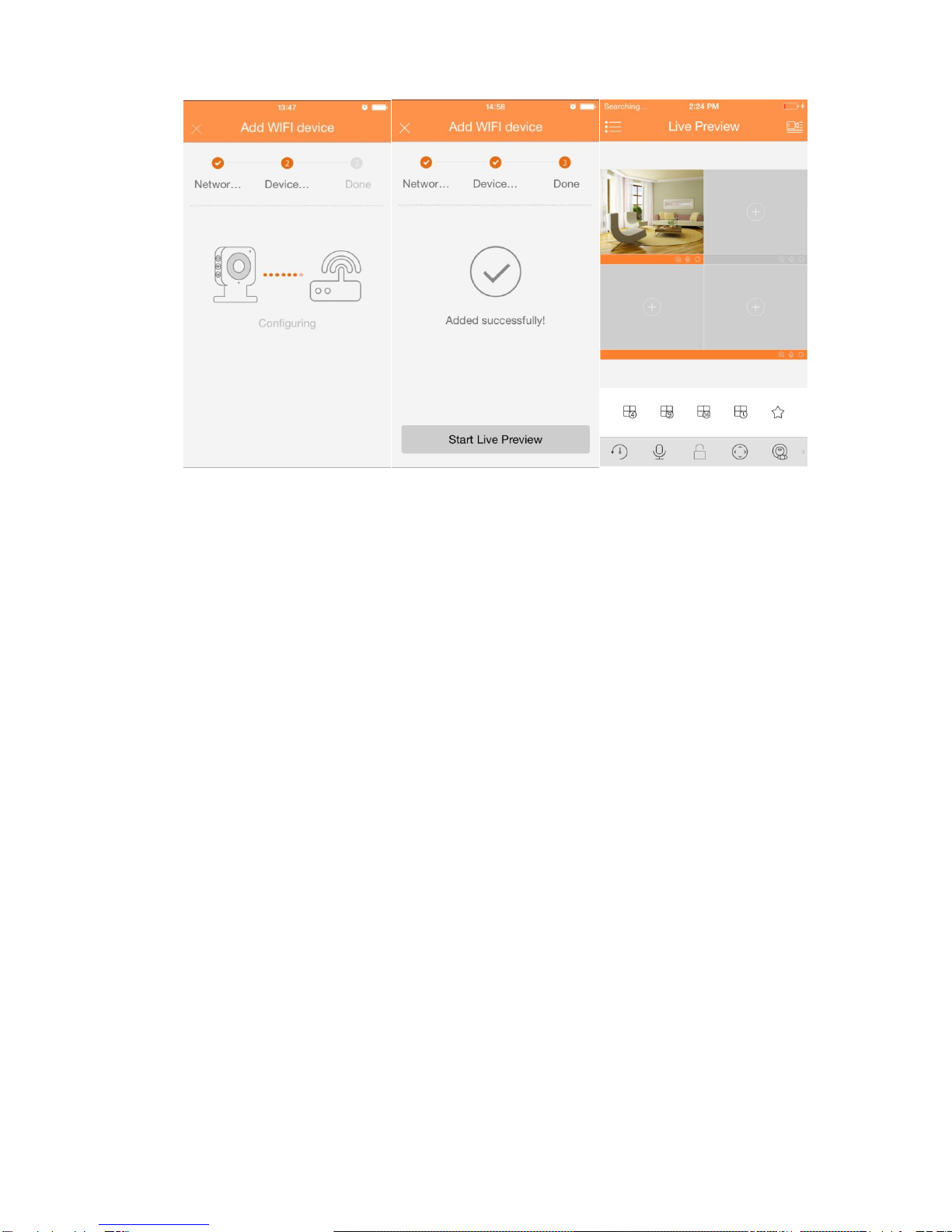

Figure 4-6 Figure 4-7 Figure 4-8
Note:
Please try again or check the WiFi password if it failed.
The WiFi configuration will be closed if activating WPS function, Please reset the device if you still
need to configure WiFi via DMSS App.

12
5Device Installation
Important
Before the installation, please make sure the installation environment can at least support 3x weight of
the camera.
5.1 Non-metal Surface
Step 1
Fix the metal plate with screws.
Step 2
Stick the camera onto the metal plate.
5.2 Metal Surface
Stick the camera onto the metal surface directly.
Note:
This quick start guide is for reference only. Slight difference may be found in user interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website or contact your local service engineer for more information.
