Dahua SD49225-HC-LA User manual

User Manual
Code: SD49225-HC-LA
HD-CVI SPEED DOME CAMERA OUTDOOR SD49225-HC-LA - 1080p 4.8 ... 120 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-07 SD49225-HC-LA 1/7
Warning!
Please read the user manual included in this work as it contains important information related with safety of installation and use of
the device.
Only persons who read the user manual may use the device.
The user manual must be kept because it may be required in the future. The device is to be used exclusively for purposes specified
in this user manual.
The device must be unpacked prior to starting-up. After removing the packaging make sure the device is in working order.
If the product has defects, it should not be used until it is repaired.
The product is intended for use at home and commercial use and may not be used for other than intended use.
The manufacturer is not liable for damages resulting from not adhering to the rules contained in the user manual, therefore, we
recommend to follow the aforementioned safety rules for operation and maintenance of the device. In this way you will ensure
yourself safety and avoid causing damage to the device.
The manufacturer and the supplier are not liable for losses or damages arising out of the product, including financial or intangible
losses, loss of profits, income, data, pleasure from use of the product or other products related with it - indirect, incidental or
consequential loss or damage. The above provisions apply whether the loss or damage concerns:
1. Deterioration of quality or the lack of operation of the products or products related with it due to damage as well as the lack of
access to the product when it is undergoing repair, which results in stoppage the loss of user's time or a break in business activity;
2. Improper results of operation of the product or products related with it;
3. It applies to losses and damages according to any legal category, including negligence and other losses, termination of a
contract, expressed or implied guarantee and strict liability (even if the manufacturer or the supplier was notified about the
possibility of occurrence of such damages).
Safety measures:
Particular attention at designing was directed to quality standards of the device where ensuring safety of operation is the most
important factor.
The device must be secured against contact with caustic, staining and viscous fluids.
The device was designed in such a way that it restarts operation when power supply is restored after a break.
Attention! We recommend using protections to further protect the device from possible overvoltages in installations.
Surge protectors are effective protection against accidental pass to the device voltages higher than the rated. Damages
caused by pass the voltages higher than specified in manual, are not under warranty.
Turn off the device before transporting it.
Prior to connecting the device to a power source check whether the supplied voltage is consistent with rated voltage specified in
the user manual.
Proper product disposal:
A marking of a crossed out waste bin indicates that the product may not be disposed together with other household waste in the
entire EU. To avoid possible damage to the natural environment of health due to uncontrolled waste disposal, therefore, it should be
handed over for recycling, propagating in this way sustainable use of natural resources.
To return a worn-out product, use a collection and disposal system of this type of equipment or contact a seller from whom it was
purchased. He will then be recycled in an environmentally-friendly way.
User Manual
Code: SD49225-HC-LA
HD-CVI SPEED DOME CAMERA OUTDOOR SD49225-HC-LA - 1080p 4.8 ... 120 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-07 SD49225-HC-LA 2/7
Megapixel camera with 1/2.8" STARVIS™ CMOS sensor and HD-CVI / PAL.
The HD-CVI interface allows to transmission of analog video signal via coaxial cable
in max. 8.3 Mpx (4K UHD) resolution. During transmission there are no delays and
is maintained the original, high quality image.
The "Starlight" series cameras provide a clear color image even at very poor
lighting.
Camera is according to IP66 Index of Protection norm.
Standard: HD-CVI
Sensor: 1/2.8 " STARVIS™ CMOS
Matrix size: 2.1 Mpx
Resolution: 1920 x 1080 - 1080p
1280 x 720 - 720p
Range of IR illumination: 100 m
Lens: 4.8 ... 120 mm
View angle: • 59 ° ... 2.8 ° (manufacturer data)
• 57 ° ... 3.1 ° (our tests result)
Optical zoom: x 25
Digital zoom: x 16
Rotation speed depending on ZOOM level:
Auto IR illuminator: Adaptive adjusting of the IR illuminator power to the lens zoom and outdoor light
conditions
Horizontal rotation range: 360 ° continuous
Vertical rotation range: -15 ° ... 90 °
Rotation speed (manual control): • 0.1 °/s ... 200 °/s (horizontal),
• 0.1 °/s ... 120 °/s (vertical)
User Manual
Code: SD49225-HC-LA
HD-CVI SPEED DOME CAMERA OUTDOOR SD49225-HC-LA - 1080p 4.8 ... 120 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-07 SD49225-HC-LA 3/7
Preset rotation speed: • 240 °/s (horizontal)
• 200 °/s (vertical)
PTZ control: Via interface RS-485
The ability to control via coaxial cable from recorder
Protocols: Pelco-D, Pelco-P, DH-SD (auto detection)
Video output: HD-CVI / CVBS : 1 Vpp 75 Ω
Audio: External microphone input
Number of presets: 300
Route settings: 8
Horizontal scan:
Park action: Call the set function (tour, scan, etc.) after specified dwell time
Alarm inputs / outputs: 2 / 1
Main features:
• WDR - 120 dB - Wide Dynamic Range
• 2D-DNR, 3D-DNR - Digital Noise Reduction
• F-DNR (Defog) - Reduction of image noise caused by precipitation
• BLC/HLC - Back Light / High Light Compensation
• Day/night mode
• ICR - Movable InfraRed filter
• Auto White Balance
• AGC - Automatic Gain Control
• 24 Configurable Privacy Zones
OSD menu:
Power supply: 12 V DC / 3 A (power adapter not included)
Power consumption: ≤ 23.2 W
Housing: Speed Dome, Metal + Plastic
Color: White + Black
"Index of Protection": IP66
Vandal-proof:
Operation temp: -40 °C ... 70 °C
Weight: 3.80 kg (with bracket)
Dimensions: 160 x 250 x 385 mm (with bracket)
Supported languages: English
Manufacturer / Brand: DAHUA
Guarantee: 3 years
User Manual
Code: SD49225-HC-LA
HD-CVI SPEED DOME CAMERA OUTDOOR SD49225-HC-LA - 1080p 4.8 ... 120 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-07 SD49225-HC-LA 4/7
Bottom view:
Bottom view (configuration switches visible):
User Manual
Code: SD49225-HC-LA
HD-CVI SPEED DOME CAMERA OUTDOOR SD49225-HC-LA - 1080p 4.8 ... 120 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-07 SD49225-HC-LA 5/7
Configuration switches:
Bracket dimensions:
User Manual
Code: SD49225-HC-LA
HD-CVI SPEED DOME CAMERA OUTDOOR SD49225-HC-LA - 1080p 4.8 ... 120 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-07 SD49225-HC-LA 6/7
Camera dimensions:
Camera connectors:
User Manual
Code: SD49225-HC-LA
HD-CVI SPEED DOME CAMERA OUTDOOR SD49225-HC-LA - 1080p 4.8 ... 120 mm DAHUA
DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl
POL; 60-713 Poznań; Graniczna 10
e-mail: [email protected]; tel: +(48) 61 864 69 60
2021-06-07 SD49225-HC-LA 7/7
Connectors description:
In the kit:

Other Dahua Security Camera manuals

Dahua HAC-HDBW1400R-Z-2712 User manual

Dahua

Dahua HAC-HDBW1400R-Z-2712 User manual

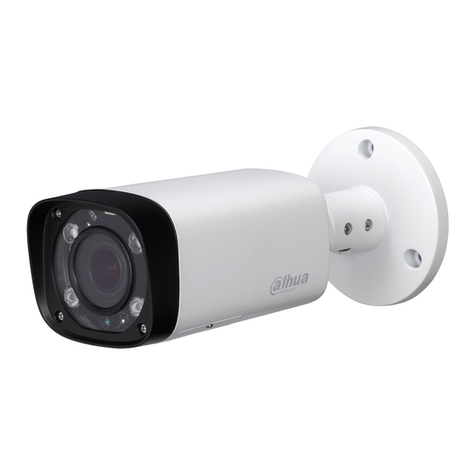

Dahua IPC-HFW2221R-ZS/VFS-IRE6 User manual

Dahua

Dahua IPC-HFW2221R-ZS/VFS-IRE6 User manual

Dahua IPC-HUM8231-L3 User manual

Dahua

Dahua IPC-HUM8231-L3 User manual

Dahua DH-IPC-HDB2X-W User manual

Dahua

Dahua DH-IPC-HDB2X-W User manual

Dahua DH-HAC-HDBW2231F User manual

Dahua

Dahua DH-HAC-HDBW2231F User manual

Dahua F Series User manual

Dahua

Dahua F Series User manual

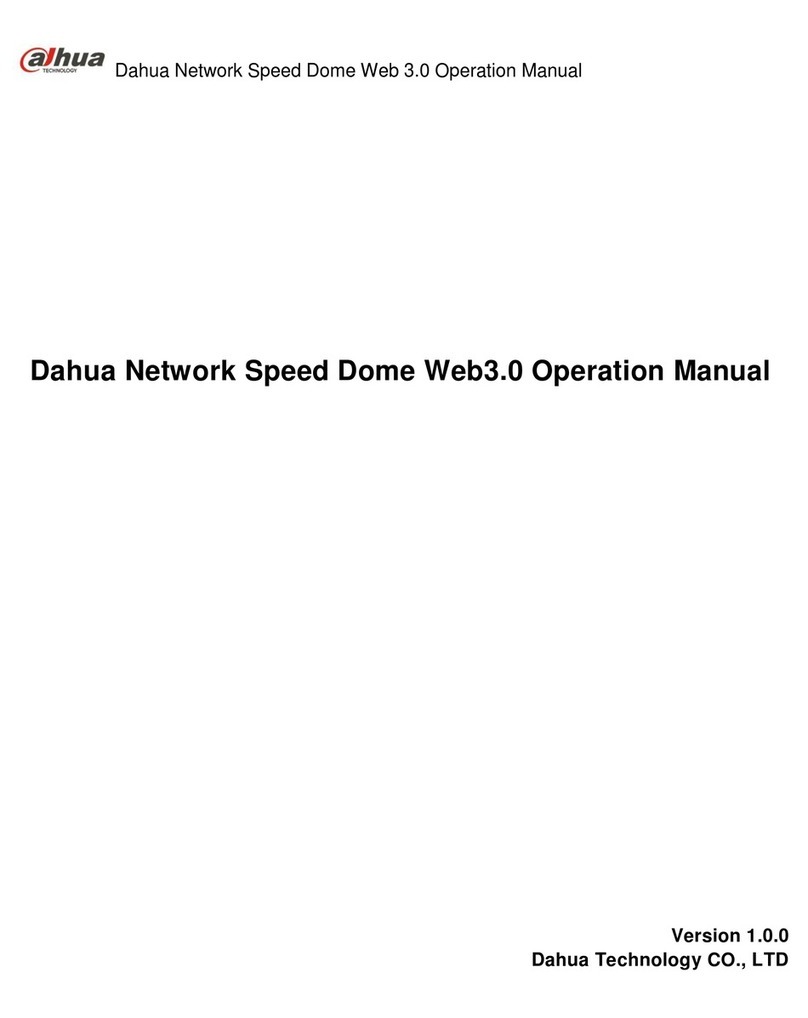

Dahua SD6AL2-HNI User manual

Dahua

Dahua SD6AL2-HNI User manual

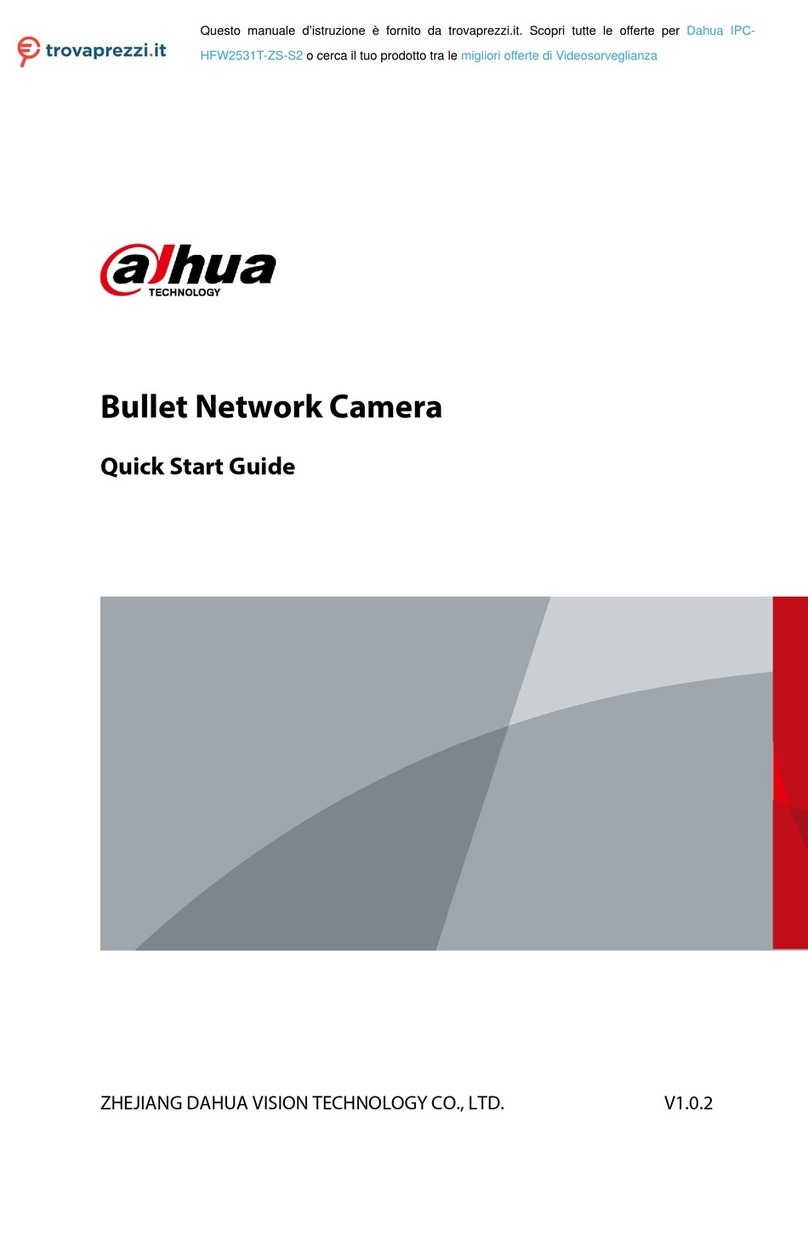

Dahua IPC-HFW2531T-ZS-S2 User manual

Dahua

Dahua IPC-HFW2531T-ZS-S2 User manual

Dahua DH-SD42C212T-HN User manual

Dahua

Dahua DH-SD42C212T-HN User manual

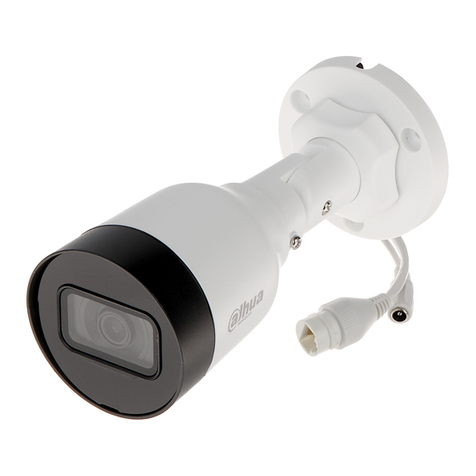

Dahua DH-IPC-CB1C20-0280B User manual

Dahua

Dahua DH-IPC-CB1C20-0280B User manual

Dahua IPC-HDBW5502N User manual

Dahua

Dahua IPC-HDBW5502N User manual

Dahua IPC-HDW8341X-3D Operating and maintenance instructions

Dahua

Dahua IPC-HDW8341X-3D Operating and maintenance instructions

Dahua HAC-HFW3231E-ZT User manual

Dahua

Dahua HAC-HFW3231E-ZT User manual

Dahua EW5541-AS User manual

Dahua

Dahua EW5541-AS User manual

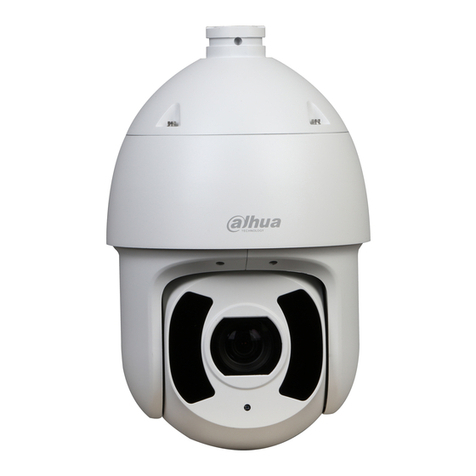

Dahua SD6CE series User manual

Dahua

Dahua SD6CE series User manual

Dahua F Series User manual

Dahua

Dahua F Series User manual

Dahua TPC-BF2120-1F4 User manual

Dahua

Dahua TPC-BF2120-1F4 User manual

Dahua DH-IPC-HDW2531R-ZS User manual

Dahua

Dahua DH-IPC-HDW2531R-ZS User manual

Dahua IPC-MBW4231-AS/M12 User manual

Dahua

Dahua IPC-MBW4231-AS/M12 User manual

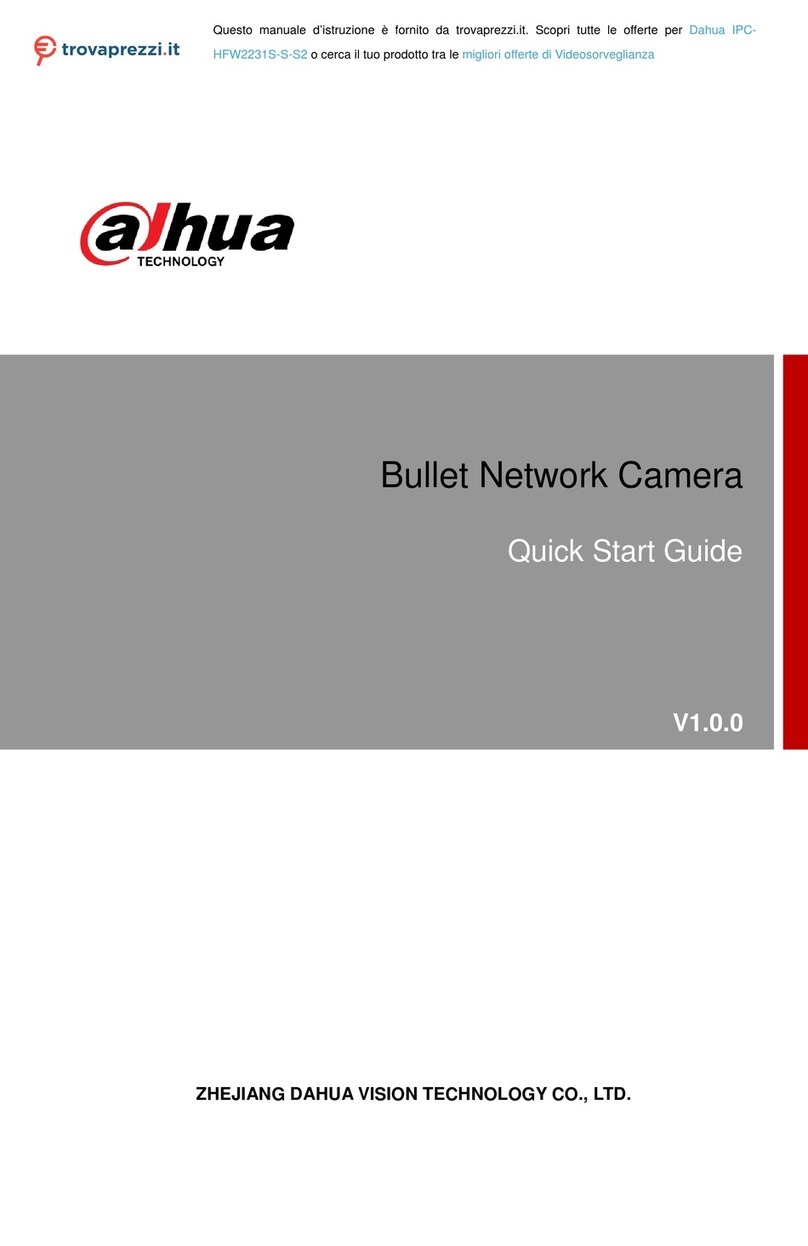

Dahua IPC-HFW2231S-S-S2 User manual
