English 1
LRYEQ16AY1(E)
LCBKQ3AV1(E) CONVENI-PACK Operation manual
CONTENTS
1. SAFETY PRECAUTIONS ............................... 1
2. NAME OF PART.............................................. 4
3. WHAT TO DO BEFORE OPERATION ............ 4
4. REMOTE CONTROLLER AND COOL/HEAT
SELECTOR: NAME AND FUNCTION OF
EACH SWITCH AND DISPLAY....................... 5
5. OPERATION PROCEDURE ........................... 6
6. OPTIMUM OPERATION ................................. 9
7. CARE AND CLEANING METHOD................ 10
8. TROUBLESHOOTING .................................. 10
9. INSPECTION ................................................ 12
10. PRODUCT MODELS AND
MAIN SPECIFICATIONS............................... 13
11. AFTER-SALE SERVICE AND
WARRANTY.................................................. 14
Important information regarding the refrigerant
used
This product contains fluorinated greenhouse gases
covered by the Kyoto Protocol.
(1) GWP = global warming potential
∗Values are indicated in F-gas regulations (EC)
No.842/2006, Annex I, Parts 1 and 2.
Periodical inspections for refrigerant leaks may be
required depending on European or local legisla-
tion.
Please contact your local dealer for more informa-
tion.
1. SAFETY PRECAUTIONS
To gain full advantage of the CONVENI-PACK’s
functions and to avoid malfunction due to mishan-
dling, we recommend that you read this instruction
manual carefully before use.
This CONVENI-PACK is classified under “appli-
ances not accessible to the general public”.
•The precautions described herein are classi-
fied as WARNING and CAUTION. They both
contain important information regarding
safety. Be sure to observe all precautions
without fail.
WARNING ....... Failure to follow these instruc-
tions properly may result in per-
sonal injury or loss of life.
CAUTION ........ Failure to observe these
instructions properly may result
in property damage or personal
injury, which may be serious
depending on the circum-
stances.
•After reading, keep this manual in a conve-
nient place so that you can refer to it whenever
necessary. If the equipment is transferred to a
new user, be sure also to hand over the man-
ual.
WARNING
Be aware that prolonged, direct exposure to
cool or warm air from the air conditioner, or
to air that is too cool or too warm can be
harmful to your physical condition and
health.
When the CONVENI-PACK is malfunctioning
(giving off a burning odour, etc.) turn off
power to the unit and contact your local
dealer.
Continued operation under such circumstances
may result in a failure, electric shocks or fire haz-
ards.
Consult your local dealer about installation
work.
Doing the work yourself may result in water leak-
age, electric shocks or fire hazards.
Consult your local dealer regarding modifi-
cation, repair and maintenance of the CON-
VENI-PACK.
Improper workmanship may result in water leak-
age, electric shocks or fire hazards.
Do not place objects, including rods, your fin-
gers, etc., in the air inlet or outlet.
Injury may result due to contact with the CON-
VENI-PACK’s high-speed fan blades.
Never touch the air outlet or the horizontal
blades while the swing flap is in operation.
Fingers may become caught or the unit may break
down.
Beware of fire in case of refrigerant leakage.
If the CONVENI-PACK is not operating correctly
(i.e. the interior temperature of the CONVENI-
PACK does not drop efficiently), refrigerant leak-
age could be the cause.
Consult your dealer for assistance.
The refrigerant within the CONVENI-PACK is
safe and normally does not leak.
However, in the event of a leakage, contact with
a naked burner, heater or cooker may result in
generation of noxious gas.
Refrigerant type R410A
GWP(1) value 1975

2English
Do not longer use the CONVENI-PACK until a
qualified service person confirms that the leak-
age has been repaired.
Consult your local dealer regarding what to
do in case of refrigerant leakage.
When the CONVENI-PACK is to be installed in a
small room, it is necessary to take proper mea-
sures so that the amount of any leaked refriger-
ant does not exceed the concentration limit in the
event of a leakage. Otherwise, this may lead to
an accident due to oxygen depletion.
Contact professional personnel about
attachment of accessories and be sure to
use only accessories specified by the manu-
facturer.
If a defect results from your own workmanship, it
may result in water leaks, electric shock or fire.
Consult your local dealer regarding reloca-
tion and reinstallation of the CONVENI-
PACK.
Improper installation work may result in leakage,
electric shocks or fire hazards.
Do not replace fuses.
Do not use improper fuses, copper or other wires
as a substitute, as this may result in electric
shock, fire, injury or damage to the unit.
Be sure to earth the unit.
Do not earth the unit to a utility pipe, lightning
conductor or telephone earth lead. Imperfect
earthing may result in electric shocks or fire.
A high surge current from lightning or other
sources may cause damage to the CONVENI-
PAC K .
Be sure to install an earth leakage breaker.
Failure to install an earth leakage breaker may
result in electric shocks or fire.
Consult the dealer if the CONVENI-PACK sub-
merges owing to a natural disaster, such as a
flood or typhoon.
Do not operate the CONVENI-PACK in that
case, or otherwise a malfunction, electric shock,
or fire may result.
Do not start or stop operating the CONVENI-
PACK with the power supply breaker turned ON
or OFF.
Otherwise, fire or water leakage may result. Fur-
thermore, because power failure compensation
is set, the fan will rotate abruptly, which may
result in injury.
Do not use the product in the atmosphere con-
taminated with oil vapor, such as cooking oil or
machine oil vapor.
Oil vapor may cause crack damage, electric
shocks, or fire.
Do not use the product in places with exces-
sive oily smoke, such as cooking rooms, or in
places with flammable gas, corrosive gas, or
metal dust.
Using the product in such places may cause fire
or product failures.
Do not use flammable materials (e.g., hairspray
or insecticide) near the product.
Do not clean the product with organic sol-
vents such as paint thinner.
The use of organic solvents may cause crack
damage to the product, electric shocks, or fire.
Do not keep in the unit anything volatile or
flammable.
Doing so may result in explosion or fire.
Be sure to use a dedicated power supply for
the CONVENI-PACK.
The use of any other power supply may cause
heat generation, fire, or product failures.
CAUTION
Do not use the CONVENI-PACK for purposes
other than those for which it is intended.
Do not use the CONVENI-PACK for cooling preci-
sion instruments, works of art as this may
adversely affect the performance, quality and/or
longevity of the object concerned.
Do not use the unit for water cooling use.
Freezing may result.
Do not remove the unit’s fan guard.
The guard protects against the unit’s high speed
fan, which may cause injury.
Do not place objects that are susceptible to
moisture directly beneath the indoor or out-
door units.
Under certain conditions, condensation on the
main unit or refrigerant pipes, air filter dirt or drain
blockage may cause dripping, resulting in fouling
or failure of the object concerned.
To avoid oxygen depletion, ensure that the
room is adequately ventilated if equipment
such as a burner is used together with the
CONVENI-PACK.
After prolonged use, check the unit stand
and its mounts for damage.
If left in a damaged condition, the unit may fall and
cause injury.
Do not place flammable sprays or operate
spray containers near the unit as this may
result in fire.
Be sure to stop the operation of the unit and
turn off the power circuit breaker at the time
of cleaning, maintenance and inspection.
Otherwise, electric shock or injury may result.
Turn off the power supply if the unit is not
used for a long time.
Otherwise, dust gathered may result in heat gen-
eration or ignition.
To avoid electric shocks, do not operate with
wet hands.
Do not place appliances that produce naked
flames in places exposed to the air flow from
the unit as this may impair combustion of the
burner.

English 3
Do not place heaters directly below the unit,
as resulting heat can cause deformation.
Do not allow a child to mount on the outdoor
unit or avoid placing any object on it.
Falling or tumbling may result in injury.
Do not block air inlets nor outlets.
Impaired air flow may result in insufficient perfor-
mance or trouble.
Do not wash the unit or the remote controller
with water.
Doing so may result in electric shock or ignition.
Do not install the CONVENI-PACK at any
place where there is a danger of flammable
gas leakage.
In the event of a gas leakage, build-up of gas near
the CONVENI-PACK may result in fire hazards.
Do not put flammable containers, such as
spray cans, within 1 m from the blow-off
mouth.
The containers may explode because the warm air
output of the indoor or outdoor unit will affect them.
Perform drain piping to ensure perfect drain-
age.
Imperfect drainage may result in water leakage.
Do not place the controller exposed to direct
sunlight.
The LCD display may get discolored, failing to dis-
play the data.
Do not wipe the controller operation panel
with benzine, thinner, chemical dustcloth,
etc.
The panel may get discolored or the coating
peeled off. If it is heavily dirty, soak a cloth in
water-diluted neutral detergent, squeeze it well
and wipe the panel clean. And wipe it with another
dry cloth.
The appliance is not intended for use by unat-
tended young children or infirm persons.
Impairment of bodily functions and harm to health
may result.
Children should be supervised to ensure that
they do not play with the unit or its remote con-
troller.
Accidental operation by a child may result in
impairment of bodily functions and harm health.
Do not let children play on or around the out-
door unit.
If they touch the unit carelessly, injury may be
caused.
Do not place water containers (flower vases,
flowerpot, etc.) on the unit, as this may result
in electric shocks or fire.
To avoid injury, do not touch the air inlet or
aluminium fins of the unit.
Do not touch the aluminium fin directly at the
time of cleaning.
Doing so may result in injury.
Do not place objects in direct proximity of the
unit and do not let leaves and other debris
accumulate around the unit.
Leaves are a hotbed for small animals which can
enter the unit. Once in the unit, such animals can
cause malfunctions, smoke or fire when making
contact with electrical parts.
Consult your dealer regarding cleaning the
inside of the CONVENI-PACK.
Improper cleaning may cause breakage of plastic
parts, water leakage and other damage as well as
electric shocks.
Do not operate the CONVENI-PACK when
using a room fumigation - type insecticide.
Failure to observe could cause the chemicals to
become deposited in the unit, which could endan-
ger the health of those who are hypersensitive to
chemicals.
Never press the button of the remote control-
ler with a hard, pointed object.
The remote controller may be damaged.
Never pull or twist the electric wire of a
remote controller.
It may cause the unit to malfunction.
Never touch the internal parts of the control-
ler.
Do not remove the front panel. Touching certain
internal parts will cause electric shocks and dam-
age to the unit. Please consult your dealer about
checking and adjustment of internal parts.
Do not leave the remote controller wherever
there is a risk of wetting.
If water gets into the remote controller there is a
risk of electrical leakage and damage to electronic
components.
Watch your steps at the time of air filter
cleaning or inspection.
High-place work is required, to which utmost
attention must be paid.
If the scaffold is unstable, you may fall or topple
down, thus causing injury.
There is a possibility that periodic inspec-
tions for refrigerant leakage are sched-
uled. Consult your local dealer for more
information.
[Installation site]
Is the unit installed in a well-ventilated place
with no obstacles around?
Do not use the product in the following places.
a. Places with mineral oil, such as cutting oil.
b. Places directly exposed to seawater spray and
briny air.
c. Places where sulphide gas is generated, such as
hot springs.
d. Places with radical voltage fluctuations, such as
factories.
e. In vehicles or on board ships.

4English
f. Places with sprays of oil or excessive steam, such
as kitchens.
g. Places with machines generating electromagnetic
waves.
h. Places with acid gas, alkaline gas, or steam.
i. Places with poor drainage.
j. Places in potentially explosive atmosphere.
Install the unit, power supply wiring, transmis-
sion wiring and refrigerant piping at least
1 meter away from televisions, radios and ste-
reo sets.
Otherwise, the picture and sound may be inter-
fered with noise.
Are snow protection measures taken?
For detailed arrangements, such as the installation
of a snow protection hood, consult your dealer.
Is there no clearance around the through hole
between the internal and external units?
The chilled air will leak from the clearance and the
cooling efficiency of the unit will be degraded.
Is service space secured?
[Electrical work]
Do not attempt to conduct electrical work or
grounding work unless you are licensed to do
so.
Consult with your dealer for electrical work and
grounding work.
Check that the power supply is suitable to the
unit and that an exclusive circuit is provided to
the unit.
Check the electric capacity and voltage.
2. NAME OF PART
2-1 In the case of LRYEQ16AY1(E)
2-2 In the case of LCBKQ3AV1(E)
3. WHAT TO DO BEFORE OPERATION
This operation manual is for the following sys-
tem with standard control. Before initiating
operation, contact your Daikin dealer for the
operation that corresponds to your system type
and mark.
If your installation has a customized control
system, ask your Daikin dealer for the operation
that corresponds to your system.
Example of connecting system
1Outdoor unit
2Booster unit
3Indoor unit for air-conditioning
4Remote controller
5Blower coil (Indoor unit for refrigerating)
6Showcase (Indoor unit for refrigerating)
7Showcase (Indoor unit for freezing)
8Defrost control panel
For the device except outdoor unit and booster unit,
refer to the Operation Manuals of the respective
pieces of equipment.
Air outlet
Fan
Air inlet
Heat exchanger
(aluminium fin)
Transmission
wiring
Refrigerant
piping
Earth wire
A wire that makes the system
safe by connecting the outdoor
unit to the ground for the
prevention of electric shocks
or fire resulting from electric
leakage.
Power supply wires
(to dedicated earth
leakage breaker)
Power supply wires
(to dedicated earth
leakage breaker)
Earth wire
A wire that makes the system
safe by connecting the outdoor
unit to the ground for the
prevention of electric shocks
or fire resulting from electric
leakage.
Refrigerant
piping
Transmission
wiring
1
2
3
4
5
6
7
8

English 5
4. REMOTE CONTROLLER AND
COOL/HEAT SELECTOR: NAME
AND FUNCTION OF EACH SWITCH
AND DISPLAY
Refer to the operation manual attached with the
remote controller if a remote controller is
BRC1E51A. (This manual assumes that a
remote controller is BRC1C62.)

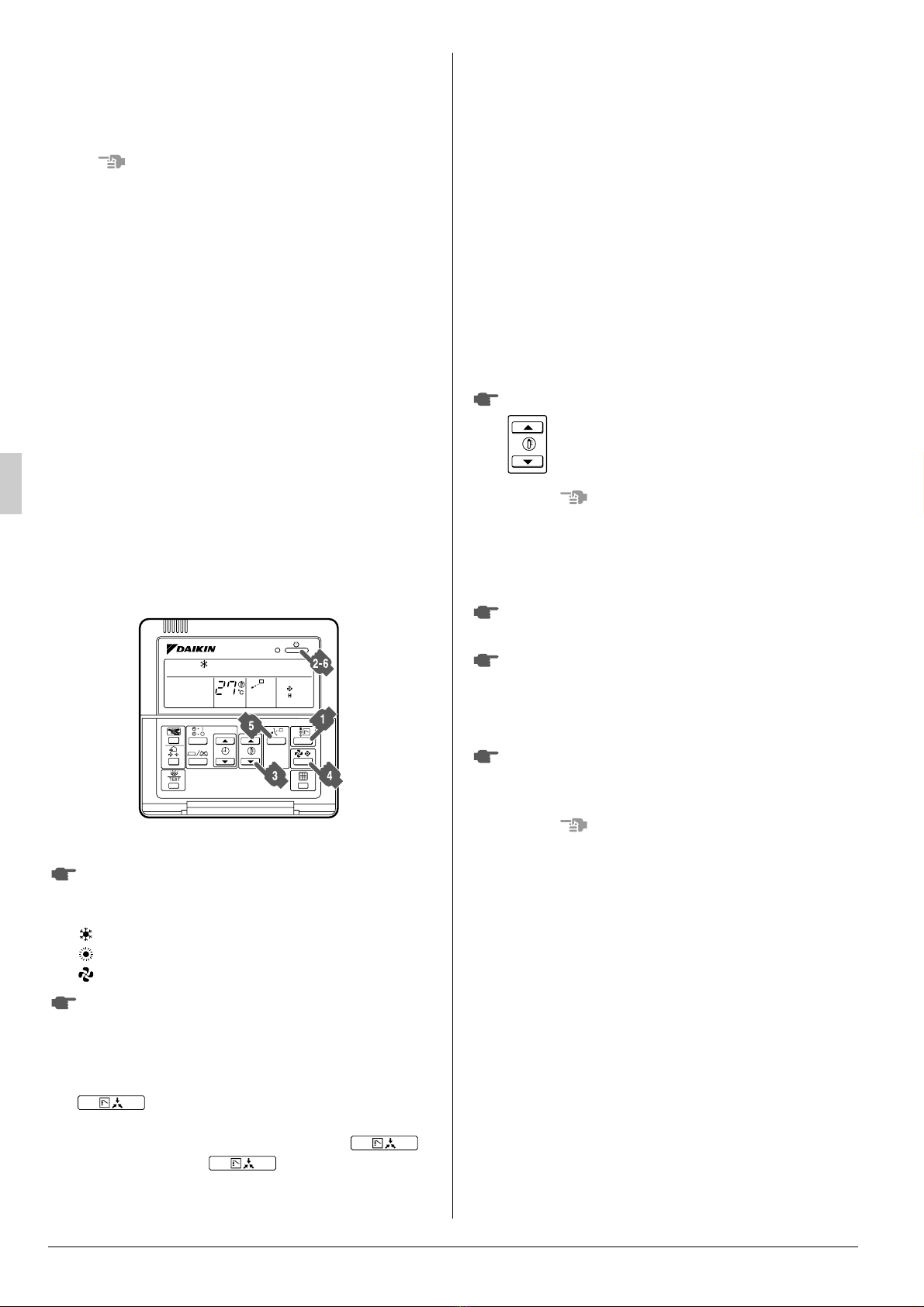

Fig.1
1. On/off button
Press the button and the system will start. Press
the button again and the system will stop.
2. Operation lamp (red)
The lamp lights up during operation.
3.
Display “” (changeover under control)
It is impossible to changeover heat/cool with the
remote controller which display this icon.
4. Display “ ” (air flow flap)
Refer to the chapter “Operation procedure -
Adjusting the air flow direction”.
5. Display “ ” (ventilation/air cleaning)
This display shows that the ventilation unit are in
operation. (these are optional accessories)
6. Display “ ” (set temperature)
This display shows the temperature you have
set.
7.Display“”“”“”“”“”(oper-
ation mode)
This display shows the current operation mode.
8. Display “ ” (programmed time)
This display shows the programmed time of the
system start or stop.
9. Display “ ” (inspection/test operation)
When the inspection/test operation button is
pressed, the display shows the mode in which
the system actually is.
10.Display “ ” (under centralized con-
trol)
When this display shows, the system is under
centralized control. (This is not a standard spec-
ification.)
11.Display “ ” (fan speed)
This display shows the fan speed you have
selected.
12.Display “ ” (time to clean air filter)
Refer to the operation manual of indoor unit.
13.Display “ ” (defrost/hot start)
Refer to the chapter “Operation procedure -
Explanation of heating operation.”
14.Timer mode start/stop button
Refer to the chapter “Operation procedure - Pro-
gramming start and stop of the system with
timer.”
15.Timer on/off button
Refer to the chapter “Operation procedure - Pro-
gramming start and stop of the system with
timer.”
16.Inspection/test operation button
This button is only used by qualified service per-
sons for maintenance purposes.
17.Programming time button
Use this button for setting the programming start
and/or stop time.
18.Temperature setting button
Use this button for setting the desired tempera-
ture.
19.Filter sign reset button
Refer to the operation manual of indoor unit.
20.Fan speed control button
Press this button to select the fan speed of your
preference.
21.Operation mode selector button
Press this button to select the operation mode of
your preference.
22.Air flow direction adjust button
Refer to the chapter “Operation procedure -
Adjusting the air flow direction”.
23.Fan only/air conditioning selector switch
Set the switch to “ ” for fan only operation or to
“ ” for heating or cooling operation.
24.Cool/heat changeover switch
Set the switch to “ ” for cooling operation or to
“ ” for heating operation.
25.Thermistor
It sense the room temperature around the
remote controller.
C
TEST

6English
26.These button are used when the ventilation
unit are installed (These are optional acces-
sories)
Refer to the operation manual of the ventilation
unit.
NOTE
• In contradistinction to actual operating situations,
the display on figure 2 shows all possible indica-
tions.
• Figure 1 shows the remote controller which is
opened the cover.
5. OPERATION PROCEDURE
• Operation procedure varies according to the com-
bination of outdoor unit and remote controller.
Read the chapter “What to do before operation”.
• To protect the unit, turn on the main power switch
6 hours before operation.
• And do not turn off the power supply during the air
conditioning season because of smoothly start
up.
• If the main power supply is turned off during oper-
ation, operation will restart automatically after the
power turns back on again.
5-1 COOLING, HEATING , AUTOMATIC AND
FAN ONLY OPERATION
Fig.2
Press the operation mode selector button sev-
eral times and select the operation mode of
your choice;
• “ ” Cooling operation
• “ ” Heating operation
• “ ” Fan only operation
Press the on/off button.
The operation lamp lights up and the system
starts operation.
• The operation mode cannot be changed with the
remote controller whose display shows
“ ” (changeover under control).
Change the operation mode with the remote con-
troller whose display does not show “ ”.
• When the display “ ” (changeover under
control) flashes, refer to the chapter “Operation
procedure - Setting the master remote controller”.
• The fan may keep on running for about 1 minute
after the heating operation stops for removing the
heat in the indoor unit.
• The air flow rate may be adjusted automatically
depending on the room temperature or the fan
may stop immediately. This is not a malfunction.
• For machine protection the system may control
the air flow rate automatically.
• It may take sometime for finishing to change the
air flow rate.
This is normal operation.
ADJUSTMENT (Refer to Fig.2)
For adjustment the desired temperature, fan
speed and air flow direction (only for the
remote controller: FXC, FXF, FXH), follow the
procedure shown below.
Press the temperature setting button and set
the desired temperature.
Each time this button is pressed, the
temperature setting rises or lowers 1°C.
NOTE
• Set the temperature within the operation
range.
• The temperature setting is impossible for fan
only operation.
Press the fan speed control button and select
the fan speed of your preference.
Press air flow direction adjust button.
Refer to the chapter “Adjusting the air flow
direction” for details.
STOPPING THE SYSTEM (Refer to Fig.2)
Press the on/off button once again.
The operation lamp goes off and the system
stops operation.
NOTE
• Do not turn off the power immediately after
the unit stops.
• The system need at least 5 minutes for
residual operation of drain pump device.
Turning off the power immediately will cause
water leak or trouble.
EXPLANATION OF HEATING OPERATION
• For general heating operation, it may take longer
to reach the set temperature than in cooling oper-
ation.
We recommend starting the operation which was
used before using timer operation.
• The following operation is performed in order to
prevent the heating capacity from dropping or
cold air from blowing.
1
2
3
4
5
6

English 7
Defrost operation
• In heating operation, freezing of the outdoor
unit heat exchanger increases. Heating
capability decreases and the system goes
into defrost operation.
• The indoor unit fan stops and the remote
controller displays “ ”.
• After maximum 10 minutes of defrost opera-
tion, the system returns to heating operation
again.
Hot start
• In order to prevent cold air from blowing out
of an indoor unit at the start of heating oper-
ation, the indoor fan is automatically
stopped. The display of the remote controller
shows “ ”.
NOTE
• The heating capacity drops as the outside tem-
perature falls. If this happens, use another heat-
ing device together with the unit. (When using the
appliances which produce open fire together, ven-
tilate a room constantly.)
Do not place appliances which produce open fire
in places exposed to the air flow from the unit or
under the unit.
• It takes some time for the room to warm up from
the time the unit is started since the unit uses a
hot-air circulatory system to warm the entire
room.
• If the hot air rises to the ceiling, leaving the area
above the floor cold, we recommend using the cir-
culator (the indoor fan for circulating air). Contact
your dealer for details.
5-2 PROGRAM DRY OPERATION
• The function of this operation is to decrease the
humidity in your room with a minimum tempera-
ture decrease.
• The micro computer automatically determines
temperature and fan speed.
• The system does not go into operation if the room
temperature is low.
• The microcomputer automatically controls the
temperature and fan speed, so these cannot be
set using the remote controller.
• This function is not available if the room tempera-
ture is 20°C or lower.
Fig.3
Press the operation mode selector button sev-
eral times and select “ ” (program dry oper-
ation).
Press the on/off button.
The operation lamp lights up and the system
starts operation.
Press the air flow direction adjust button (only
for FXC, FXF, FXH). Refer to the chapter
“Adjusting the air flow direction” for details.
Press the on/off button once again.
The operation lamp goes off and the system
stops operation.
NOTE
• Do not turn off the power immediately after
the unit stops.
• The system need at least 5 minutes for
residual operation of drain pump device.
Turning off the power immediately will cause
water leak or trouble.
5-3 ADJUSTING THE AIR FLOW DIRECTION
(only for Double-flow, Multi-flow, Ceiling-
suspended)
Fig.4
Press the air flow direction button to
select the air direction.
The air flow flap display swings as
shown right and the air flow direction
continuously varies. (Automatic swing
setting)
1
2
3
4
1

8English

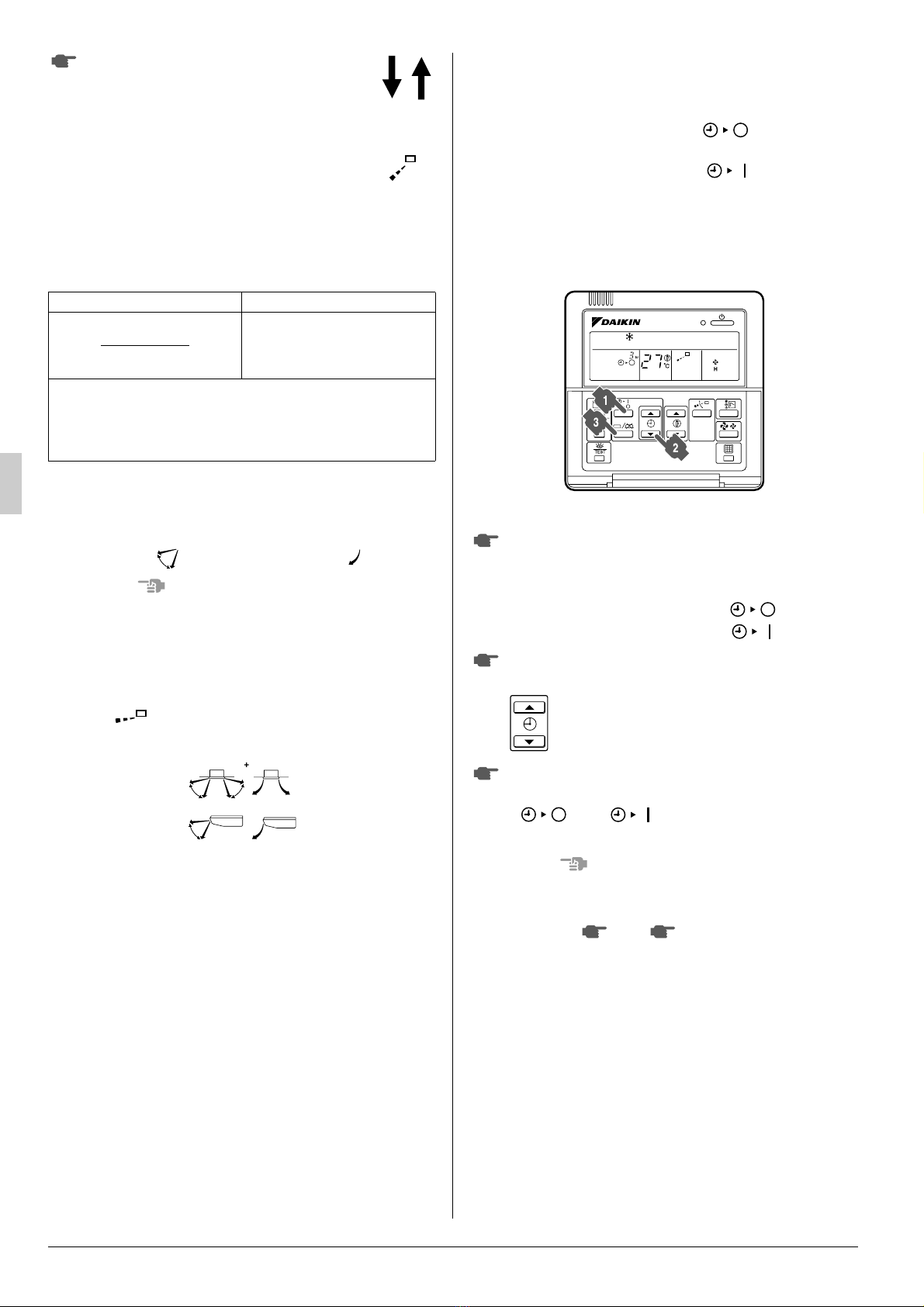

Press the air flow direction adjust but-
ton to select the air direction of your
choice.
The air flow flap display stops swing-
ing and the air flow direction is fixed.
(Fixed air flow direction setting)
MOVEMENT OF THE AIR FLOW FLAP
For the following conditions, a micro computer con-
trols the air flow direction which may be different
from the display.
The air flow direction can be adjusted in one of the
following ways.
• The air flow flap itself adjusts its position.
• The air flow direction can be fixed by the user.
Automatic “ ” or desired position “ ”.
NOTE
• The movable limit of the flap is changeable.
Contact your Daikin dealer for details. (Only
for Double-flow, Multi-flow, Corner, Ceiling-
suspended and Wall-mounted.)
• Avoid operating in the horizontal direction
“ ”. It may cause dew or dust to settle on
the ceiling.
Fig.5
5-4 PROGRAMMING START AND STOP OF
THE SYSTEM WITH TIMER
• The timer is operated in the following two ways.
Programming the stop time “ ”. The system
stops operating after the set time has elapsed.
Programming the start time “ ”. The system
starts operating after the set time has elapsed.
• The timer can be programmed for a maximum of
72 hours.
• The start and the stop time can be simultaneously
programmed.
Fig.6
Press the timer mode start/stop button several
times and select the mode on the display.
The display flashes.
• For setting the timer stop “ ”
• For setting the timer start “ ”
Press the programming time button and set
the time for stopping or starting the system.
Each time this button is pressed, the
time advances or goes backward by 1
hour.
Press the timer on/off button.
The timer setting procedure ends. The display
“ ” or “ ” changes from flashing
light to constant light.
NOTE
• When setting the timer off and on at the
same time, repeat the above procedure
(from “ ” to “ ”) once again.
• After the timer is programmed, the display
shows the remaining time.
• Press the timer on/off button once again to
cancel programming. The display vanishes.
COOLING HEATING
• When starting operation.
• When the room temperature is
higher than the set temperature.
• At defrost operation.
• When operating continuously at horizontal air flow direction.
• When continuous operation with downward air flow is performed at the
time of cooling with a ceiling-suspended or a wall-mounted unit, the
micro-computer may control the flow direction, and then the remote con-
trol indication also will change.
2
Double-flow
Ceiling Suspended
Multi-flow
1
2
3
1 2

English 9
For example:
When the timer is programmed to stop the sys-
tem after 3 hours and start the system after 4
hours, the system will stop after 3 hours and
start 1 hour later.
Fig.7
5-5 PRECAUTIONS FOR GROUP CON-
TROL SYSTEM OR TWO REMOTE CON-
TROLLER CONTROL SYSTEM
This system provides two other control systems
beside individual control (one remote controller con-
trols one indoor unit) system. Confirm about your
system to Daikin dealer.
•Group control system
One remote controller controls up to 16 indoor
units. All indoor units are equally set.
•Two remote controller control system
Two remote controllers control one indoor unit (in
case of group control system, one group of indoor
units). The unit is individually operated.
NOTE
• Contact your Daikin dealer in case of chang-
ing the combination or setting of group con-
trol and two remote controller control
systems.
6. OPTIMUM OPERATION
Observe the following precautions to ensure the
system operates properly.
• Turn off the power if the unit is not operated for a
long time.
The unit will consume a power of several watts to
several tens of watts if the power is on (see note).
For the purpose of machine protection, however, be
sure to turn on the power at least 6 hours before
resuming the operation of the unit.
Note: The power consumption of the unit varies with
the operating factors, such as the CONVENI-
PAC K m o de l .
• Install an alarm if operational errors are likely to
degrade the commodities in storage.
The unit is provided with a terminal to output an
alarm signal.
If the system should malfunction and there is no
alarm, the operation of the unit will be interrupted for
a long time and damage to the commodities in stor-
age may result.
The installation of an alarm is recommended in
order to take appropriate measures promptly in such
cases.
For details, consult your dealer.
• Adjust the air outlet properly and avoid direct air
flow to room inhabitants.
• Adjust the room temperature properly for a com-
fortable environment. Avoid excessive heating or
cooling.
• Prevent direct sunlight from entering a room dur-
ing cooling operation by using curtains or blinds.
• Ventilate often.
Extended use requires special attention to venti-
lation.
• Do not keep doors and windows opened. If the
doors and windows remain open, air will flow out
of your room causing a decrease in the cooling or
heating effect.
• Never place objects near the air inlet or the air
outlet of the unit. It may cause deterioration in the
effect or stop the operation.
• Turn off the main power supply switch to the unit
when the unit is not used for longer periods of
time. If the switch is on, it uses electricity. Before
restarting the unit, turn on the main power supply
switch 6 hours before operation to ensure smooth
running. (Refer to the chapter “Maintenance” in
the indoor unit manual.)
• When the display shows “ ” (time to clean the
air filter), ask a qualified service person to clean
the filters. (Refer to the chapter “Maintenance” in
the indoor unit manual.)
• Keep the indoor unit and remote control at least 1
m away from televisions, radios, stereos, and
other similar equipment.
Failing to do so may cause static or distorted pic-
tures.
• Do not use other heating devices directly beneath
the indoor unit.
If you do, they might get deformed by the heat.
• It takes time for the room temperature to reach the
set temperature.
We recommend starting the operation in advance
using timer operation.
OFF

10 English
7. CARE AND CLEANING METHOD
Be sure to stop the operation of the unit with the
power switch and turn off the power (i.e., turn off
the earth leakage breaker) before starting the
maintenance of the unit.
CAUTION
Do not touch the aluminium fin directly at the
time of cleaning.
Doing so may result in injury.
Do not wash the unit with water.
Doing so may result in electric shock or ignition.
Be sure to stop the operation of the unit and
turn off the power circuit breaker at the time
of cleaning, maintenance and inspection.
Otherwise, electric shock or injury may result.
Cleaning the outdoor unit
• Consult your local dealer.
Cleaning the indoor unit
• As the system is an all-in-one air-conditioner and
refrigerator, the fan may rotate in a heating mode
even if operation is stopped with the remote con-
troller.
Be sure to stop operation with the remote control-
ler and cut off the power breaker before cleaning.
Refer to the operation manual attached to the
indoor unit for details.
Cleaning the showcase and the unit cooler
• Refer to the operation manual attached to the
showcase and the unit cooler for details.
Cleaning the drain pan (Optional accessory)
• Clean the drain pan so that it does not become
clogged and dusty.
• Turn off the power (i.e., turn off the earth leakage
breaker) if the unit is not used for a long time.
8. TROUBLESHOOTING
8-1 The following cases are not malfunc-
tions.
1. The unit does not operate.
•The air conditioner does not start immedi-
ately when restart the operation after stop
the operation or change operation mode
after set the operation mode.
If the operation lamp lights, the system is in
normal condition.
To prevent overloading of the compressor
motor, the air conditioner starts 5 minutes after
it is turned ON again in case it was turned OFF
just before.
•If “Centralized Control” is displayed on the
remote controller and pressing the opera-
tion button causes the display to blink for a
few seconds.
This indicates that the central device is control-
ling the unit.
The blinking display indicates that the remote
control cannot be used.
•The system does not start immediately
after the power supply is turned on.
Wait one minute until the micro computer is
prepared for operation.
2. It stops sometimes
•The remote controller display reads “U4” or
“U5” and stops but then restarts after a few
minutes.
This is because the remote control is intercept-
ing noise from electrical appliances other than
the air conditioner, and this prevents communi-
cation between the units, causing them to stop.
Operation automatically restarts when the
noise goes away.
3. COOL/HEAT cannot be changed over.
•When the display shows “ ”
(changeover under control).
It shows that this is a slave remote controller.
Refer to “Setting the master remote controller”.
•When the cool/heat selector switch is
installed and the display shows
“ ” (changeover under control).
This is because cool/heat changeover is con-
trolled by the cool/heat selector. Ask your
Daikin dealer where the remote control switch
is installed.
4. Fan operation is possible, but cooling and
heating do not work.
•Immediately after the power is turned on.
The micro computer is getting ready to oper-
ate.
Wait 10 minutes.
5. The fan strength does not correspond to the
setting.
•The fan strength does no change even if the
fan strength adjustment button in pressed.
During heating operation, when the room tem-
perature reaches the set temperature, the out-
door unit goes off and the indoor unit changes
to whisper fan strength.
This is to prevent cold air blowing directly on
occupants of the room.
The fan strength will not change even if the but-
ton is changed, when another indoor unit is in
heating operation.

English 11
6. White mist comes out of a unit.
<Indoor unit for air conditioning>
•When humidity is high during cooling oper-
ation.
If the interior of an indoor unit is extremely con-
taminated, the temperature distribution inside
a room becomes uneven. It is necessary to
clean the interior of the indoor unit. Ask your
Daikin dealer for details on cleaning the unit.
This operation requires a qualified service per-
son.
•Immediately after the cooling operation
stops and if the room temperature and
humidity are low.
This is because warm refrigerant gas flows
back into the indoor unit and generates steam.
<Indoor unit for air-conditioning, outdoor
unit>
•When the system is changed over to heat-
ing operation after defrost operation.
Moisture generated by defrost becomes steam
and is exhausted.
7. Noise of air-conditioners.
<Indoor unit for air-conditioning>
•A continuous low “shah” sound is heard
when the system is in cooling operation or
at a stop.
When the drain pump (optional accessories) is
in operation, this noise is heard.
•A low “sah”, “choro-choro” sound is heard
while the indoor unit is stopped.
When the other indoor unit is in operation, this
noise is heard. In order to prevent oil and
refrigerant from remaining in the system, a
small amount of refrigerant is kept flowing.
<Outdoor unit, booster unit>
•When the tone of operating noise changes.
This noise is caused by the change of fre-
quency.
<Indoor unit for air-conditioning, outdoor
unit, booster unit>
•A continuous low hissing sound is heard
when the system is in cooling or defrost
operation.
This is the sound of refrigerant gas flowing
through both indoor and outdoor units.
•A hissing sound which is heard at the start
or immediately after stopping operation or
defrost operation.
This is the noise of refrigerant caused by flow
stop or flow change.
8. Dust comes out of the unit.
•When the unit is used after stopping for a
long time.
This is because dust has gotten into the unit.
9. The units can give off odours.
•During operation.
The unit can absorb the smell of rooms, furni-
ture, cigarettes, etc., and then emit it again.
10.The outdoor unit fan does not spin.
•During operation.
The speed of the fan is controlled in order to
optimize product operation.
11.The display shows “ ”
•This is the case immediately after the main
power supply switch is turned on.
This means that the remote controller is in nor-
mal condition. This continues for one minute.
12.The compressor or fan in the outdoor unit
does not stop.
•This is to prevent oil and refrigerant from
remaining in the compressor. The unit will
stop after 5 to 10 minutes.
13.Hot air is emitted even though the unit is
stopped.
•Hot air can be felt when the unit is stopped.
Several different indoor units are being run on
the same system, so if another unit is running,
some refrigerant will still flow through the unit.
14.Does not cool very well.
•Program dry operation.
Program dry operation is designed to lower the
room temperature as little as possible.
Refer to page 7.
15.The indoor fan may rotate while the unit
stops.
•The fan rotates even if the operation is
stopped with the remote controller.
As the system operates as an all-in-one air-
conditioner and refrigerator, the fan works to
prevent oil and refrigerant from accumulating
on the air conditioner during operation of the
showcase.
8-2 Check before Requesting Servicing.
1. The unit does not operate at all.
• Has the power supply fuse not blown out?
Turn off the power. (Consult your dealer for the
replacement of the power supply fuse.)
• Is the power circuit breaker not turned off?
Turn on the power if the knob of the power cir-
cuit breaker is set to the OFF position.
Do not turn on the
power if the knob of
the power circuit
breaker is set to the
trip position. (Consult
your dealer.)
Switch
Trip position
Breaker
ON
OFF

12 English
• Is there no blackout?
Wait until power is restored. If power failure
occurs during operation, the system automati-
cally restarts immediately after the power sup-
ply is recovered.
• Are all the power supplies turned on?
Turn all the power on.
2. The unit comes to a stop soon after the unit
starts operating.
• Do obstacles not block the air inlet or outlet of
the outdoor unit or indoor unit?
Remove the obstacles.
• Check if the remote controller display shows
“ ” (time to clean the air filter);
Refer to the operation manual of the indoor unit
for air-conditioning. And clean the air filter.
3. The system operates but cooling or heating
is insufficient (Air-conditioning).
• Check if air inlet or outlet of outdoor or indoor
unit is not blocked by obstacles.
Remove any obstacle and make it well-venti-
lated.
• Check if the remote controller display shows
“ ” (time to clean the air filter);
Refer to the operation manual of the indoor unit.
And clean the air filter.
• Check the temperature setting.
Refer to “Operation procedure”.
• Check the fan speed setting on your remote
controller.
Refer to “Operation procedure”.
• Check for open doors or windows.
Shut doors and windows to prevent wind from
coming in.
• Check if there are too many occupants in the
room during cooling operation.
• Check if the heat source of the room is exces-
sive during cooling operation.
• Check if direct sunlight enters the room during
cooling operation.
Use curtains or blinds.
• Check if the air flow angle is not proper.
Refer to “Operation procedure”.
4. The cooling operation of the unit is bad.
• Does the indoor unit (unit cooler and show-
case) not have much frost?
Defrost manually or shorten the cycle of
defrosting operation.
• Are there not too many articles inside?
Reduce the number of articles.
• Is the circulation of cold air in the indoor unit
(unit cooler and showcase) smooth?
Change the allocation of the articles.
• Is there not much dust on the heat exchanger of
the outdoor unit?
Remove the dust with a brush or vacuum
cleaner without using water or consult your
dealer.
• Is cold air not leaking outside?
Stop the leakage of cold air.
• Is the set temperature in the indoor unit (unit
cooler and showcase) not too high?
Set the temperature appropriately.
• Are high-temperature articles not stored?
Store them after they are once cooled off.
• Is the opening time of the door not long?
Minimize the opening time of the door.
8-3 Consult your dealer in the following
cases.
WARNING
When the CONVENI-PACK is malfunctioning
(giving off a burning odour, etc.) turn off
power to the unit and contact your local
dealer.
Continued operation under such circumstances
may result in a failure, electric shocks or fire haz-
ards.
1. Safety devices, such as the fuse, breaker, and
earth leakage breaker, frequently operate or
the operation of the RUN switch is not stable.
Contact your dealer after turning the power off.
2. Turn off the power and consult your dealer if
symptoms other than the above are noticed
or the equipment does not go into normal
operation after taking the steps specified in
8-2.
9. INSPECTION
The preventive maintenance of the unit is
required in order not to damage commercial
products. Request a contractor authorized by
our dealer for inspection.
Refer to information on maintenance inspection on
page 14 for maintenance inspection.

English 13
10. PRODUCT MODELS AND MAIN SPECIFICATIONS
10-1Models and Main Specifications.
Note:
• Operating conditions:
Outdoor unit
(Air-conditioning side) Indoor temperature: 27ºCDB/19ºCWB, Outdoor temperature: 32ºCDB, Piping
length: 7.5m, Level difference: 0m (In cooling priority mode)
(Cooling equipment side) Evaporating temperature: -10ºC, Outdoor temperature: 32ºCDB, Suction SH:
10ºC (In cooling priority mode)
(Heating conditions)Indoor temperature: 20ºCDB, Outdoor temperature: 7ºCDB/6ºCWB, Cooling equip-
ment load: 18 kW,
Piping length: 7.5 m, Level difference: 0 m
Saturated temperature equivalent to suction pressure (Cooling equipment side) : -10ºC (Under chilled con-
dition),
Connection capacity for indoor air-conditioner: 10HP, When heat recovery is 100%
Booster unit
Evaporating temperature: -35ºC, Outdoor temperature: 32ºC, Suction SH: 10ºC, Saturated temperature to
discharge pressure of booster unit: -10ºC
• The figures for the outside unit models show values measured at a distance of 1 m in the front and a height
of 1.5 m.
Values measured with the models actually installed are usually larger then the values shown as a result of
ambient noise and reflections.
When the outdoor temperature is low, the temperature reading may be below the target evaporating tem-
perature set for the protection of the unit.
• Values are subject to change without notice for product improvements.
• The "E" suffix indicates anti-corrosion models.
Model LRYEQ16AY1 (E) LCBKQ3AV1 (E)
Power supply 3 phase 380~415V 50Hz 1 phase 220~240V 50Hz
Refrigerant R410A
Operating condition
Evaporating temperature -20ºC~10ºC (Refrigeration) -45ºC~-20ºC
Outdoor
temperature
Refrigeration -15ºC~43ºCDB
-15ºC~43ºCDB
Cool -5ºC~43ºCDB
Heat -15ºC~21ºCDB
-15ºC~15.5ºCWB
Capacity (kW)
Cool
Air-conditioning 14 -
Refrigerating 21.8 -
Freezing - 3.35
Heat
Air-conditioning 27 -
Refrigerating 21.8 -
Freezing - 3.35
Outer dimensions (HxWxD) (mm) 1680×1240×765 480×680×310
Product mass (kg) 370 47
Sound pressure level (dB(A)) 62 49
Design pressure
High-pressure
side
(bar) 38 38
(MPa) 3.8 3.8
Low-pressure
side
(bar) 25 25
(MPa) 2.5 2.5

14 English
11. AFTER-SALE SERVICE AND
WARRANTY
11-1 After-sale Service
WARNING
Consult your local dealer regarding modifi-
cation, repair and maintenance of the CON-
VENI-PACK.
Improper workmanship may result in water leak-
age, electric shocks or fire hazards.
Consult your local dealer regarding relocation
and reinstallation of the CONVENI-PACK.
Improper installation work may result in leakage,
electric shocks or fire hazards.
Beware of fire in case of refrigerant leakage.
If the CONVENI-PACK is not operating correctly
(i.e. the interior temperature of the CONVENI-
PACK does not drop efficiently), refrigerant leak-
age could be the cause.
Consult your dealer for assistance.
The refrigerant within the CONVENI-PACK is safe
and normally does not leak.
However, in the event of a leakage, contact with a
naked burner, heater or cooker may result in gen-
eration of noxious gas.
Do not longer use the CONVENI-PACK until a
qualified service person confirms that the leakage
has been repaired.
1. Inform your dealer of the following items
when you request repairs.
• Model name Described in the warranty card.
• Serial number and date of installation
Described in the warranty card.
• Defective condition
– as precise as possible
• Your address, name, and telephone number
2. Repairs after Expiration of Warranty Period
Consult your dealer. Onerous repairs will be pos-
sible if the unit can maintain its original functions
after the repairs are made.
3. Maintenance Inspection
The interior of the refrigeration CONVENI-PACK
will become dirty and its performance may be
degraded if it is used for several seasons.
The disassembly and internal cleaning of the unit
requires specialized techniques. Therefore, our
dealer recommends an onerous maintenance
inspection besides usual maintenance services.
For details, consult your dealer.
Keep in mind that our dealer’s warranty may not
cover malfunctions resulting from the disassem-
bly or internal cleaning of the unit conducted by
contractors not authorized by our dealer.
4. Relocation and Disposal
• Contact your dealer for removing and reinstall-
ing the system CONVENI-PACK since they
require technical expertise.
• The system CONVENI-PACK uses fluorocar-
bon refrigerant.
Contact your dealer for discarding the system
CONVENI-PACK since it is required by law to
collect, transport and discard the refrigerant in
accordance with relevant local and national
regulations.
• In either case, consult your dealer.
5. Inquiries
Contact your dealer for after-sale services.
11-2 Warranty Card
1. This product comes with a warranty card.
Your dealer will deliver you the warranty card
filled out with the necessary items. Check the
details and have the administrative person in
charge of the heat source unit for refrigeration
system keep the warranty card carefully.
2. When requesting repairs for free during the war-
ranty period, contact your dealer and be sure to
present the warranty card.
Repair services may be charged during the war-
ranty period if the warranty card is not presented.
Be sure to keep the warranty card carefully.
Warranty period: 1 year counting from the date
of installation.
For details, read through the warranty card.
3. Secondary Warranties
Our dealer will not provide secondary warranties,
such as compensation for chilled product dam-
age or business loss, resulting from failures in
the product.
Perform regular temperature control if secondary
disaster is feared. Besides, consult your dealer
and take appropriate measures, such as the
installation of an alarm system or auxiliary equip-
ment.
In addition, take out accident insurance.

English 15
11-3 Onerous Repairs (Outside Scope of
Warranty Coverage)
11-3-1 Accidents Resulting from Use
beyond Standards for Use
• Use beyond Limits
• Applications other than its designed purpose of
use or modification.
Standards for Use
11-3-2 Selection, Installation, Work Failures
Specified below and Other Failures
Note: Asterisk-marked items show concrete exam-
ples.
1. Model selection failures
• A model not suitable for storage applications is
selected.
∗The cooling of products not reaching the tar-
get storage temperatures.
• Cooling overloading or underloading judged by
our dealer.
∗The frequency of stoppage is 6 or more times
per hour or the set cooling temperature is not
attained.
2. Installation failure (Installation and environ-
mental problems)
• The unit is not installed on a stable horizontal
plane.
∗The unit is not fixed securely.
• The environmental conditions of the place of
installation differ from normal atmospheric con-
ditions.
∗Briny air environment, shore side, oil mist
environment, kitchen exhaust side, other cor-
rosive gas and adhesive mist environment.
• The place of installation had poor ventilation
and heat dissipation.
∗The machine took in exhausted air again.
3. Work failure
• The interior of the piping was not vacuum dried
sufficiently.
∗The clogging of the thin areas of the piping
caused by icing.
• The interior of the piping was not sufficiently air-
tight.
∗Leakage of refrigerant gas.
• The interior of the piping was contaminated
with foreign substance.
∗The clogging of the thin areas of the piping.
• The unit was adversely affected by on-site
modification work.
∗
The use of the unit beyond the operating temper-
ature range as a result of on-site modification.
• An accident resulted from the improper han-
dling of the unit under installation work.
∗The loosening or wobbling of the outer panel
or broken or bent damage to the piping.
4. Operational failure
• Temperature settings for stored objects were
wrong.
∗The storage of vegetables at temperatures
below 0°C.
• The periodical maintenance of the unit was
neglected.
∗The clogging of the air heat exchanger, rust
generation from each part, gas leakage, and
icing of the indoor unit (showcase and unit
cooler).
5. Others
• Improvements recommended by our dealer in
advance were not accomplished.
∗The simultaneous starting and stopping of a
number of units.
• Accidents were caused by natural disaster or
fire.
∗
Damage to electrical parts caused by lightning.
• There were other installation and operational
problems beyond common sense.
∗The use of the unit without heat insulation
work on the piping.
• Work was conducted without keeping the fol-
lowing showcase restrictions.
<Showcase restrictions>
· The design pressure for the indoor unit is 2.5
MPa or more.
· The installation of the thermostatic expansion
valve and liquid supply solenoid valve (both of
which are for R410A) on a showcase basis.
Thermal insulation of feeler tube of thermo-
static expansion valve must be thermal insu-
lated.
·
Install showcases on the same floor if the show-
cases are connected to a single outdoor unit.
Standards for Use
Item Outdoor unit Booster unit
Power supply Voltage
fluctuation Within ±10% of rated voltage
Outdoor temperature
range (Cool) -5
ºC~ +43 ºC DB
-15
ºC ~+43 ºC DB
Outdoor temperature
range (Heat) -15
ºC~ 21 ºC DB
-15 ºC~ 15.5 ºC WB
Connecting piping
length
Within 130 m
(Piping length
between Indoor and
Outdoor unit)
Within 30 m
(Piping length
between Indoor and
Booster unit)
Height difference
between inside and
outside units
Within 35 m
(within 10 m if the out-
side unit is lower)
Within 10 m
(within 0 m if the
booster unit is lower)
Height difference
between outside unit
and booster unit
Within 35 m (within 10 m if the outside unit is
lower)
Height difference
between inside units
(Air-condition side) Within 0.5 m
Height difference
between inside units
(Showcase side) Within 5 m

16 English
· Make sure that the outlet of piping used for
the heat exchanger is located downward (as
shown on the following figure).
Inlet
(upper side)
Outlet
(lower side)
Heat exchanger

Deutsch 1
LRYEQ16AY1(E)
LCBKQ3AV1(E) CONVENI-PACK Betriebsanweisung
INHALT
1. SICHERHEITSHINWEISE .............................. 1
2. BEZEICHNUNG DES TEILS........................... 5
3. MASSNAHMEN VOR DEM BETRIEB ............ 5
4. FERNBEDIENUNG UND WAHLSCHALTER
KÜHLEN/HEINZEN: BEZEICHNUNG UND
FUNKTION DER SCHALTER UND
ANZEIGEN...................................................... 5
5. BEDIENUNG DES GERÄTS........................... 6
6. OPTIMALER BETRIEB................................. 10
7. PFLEGE- UND REINIGUNGSVERFAHREN 11
8. FEHLERSUCHE ........................................... 11
9. ÜBERPRÜFUNG .......................................... 14
10. PRODUKTMODELLE UND
HAUPTSPEZIFIKATIONEN........................... 15
11. KUNDENDIENST UND GARANTIE.............. 16
Wichtige Informationen zum verwendeten Kälte-
mittel
Dieses Produkt enthält fluorhaltige Treibhausgase
nach dem Kyoto-Protokoll.
(1) GWP = global warming potential (globaler Erwär-
mungsfaktor)
* Die Werte sind angegeben in F-Gas vorschriften
(EC) No.842/2006, Anhang I, Teil 1 und 2.
Entsprechend den europäischen oder lokalen Vor-
schriften können regelmäßige Überprüfungen auf
Kältemittellecks erforderlich sein.
Weitere Informationen erhalten Sie von Ihrem Händ-
ler.
1. SICHERHEITSHINWEISE
Um die Funktionen des CONVENI-PACK voll auszu-
nutzen und Funktionsstörungen durch falsche
Behandlung zu vermeiden, empfehlen wir, diese
Bedienungsanleitung vor der Benutzung aufmerk-
sam durchzulesen.
Dieses Kondensatorgerät fällt unter die Kategorie
“Geräte, die der Öffentlichkeit nicht zugänglich
sind”.
•Die hier beschriebenen Warnhinweise sind
mit WARNUNG und ACHTUNG gekennzeich-
net. Sie enthalten wichtige Informationen
bezüglich der Sicherheit. Beachten Sie unbe-
dingt alle Warnhinweise.
WARNUNG...... Eine Missachtung dieser
Anweisungen kann zu Körper-
verletzungen oder Tod führen.
ACHTUNG.......Eine Missachtung dieser
Anweisungen kann zu Sachbe-
schädigung oder Körperverlet-
zungen führen, die je nach den
Umständen ernsthaft sein kön-
nen.
•Bewahren Sie diese Anleitung nach dem
Durchlesen griffbereit auf, damit Sie bei
Bedarf darin nachschlagen können. Wenn Sie
das Gerät einem neuen Benutzer übergeben,
händigen Sie ihm auch unbedingt die Anlei-
tung aus.
WARNUNG
Beachten Sie, dass wenn Sie sich direkt und
über einen längeren Zeitraum der Luft aus
der Klimaanlage aussetzen, oder wenn diese
Luft zu kalt oder zu warm ist, Ihre physische
Kondition und Gesundheit beeinträchtigen
werden könnte.
Falls eine Funktionsstörung im Kondensa-
torgerät auftritt (mit Abgabe eines Brandge-
ruchs usw.), schalten Sie das Gerät aus, und
kontaktieren Sie Ihren Händler.
Fortgesetzter Betrieb unter solchen Umständen
kann zu einem Ausfall, elektrischen Schlägen
oder Brand führen.
Wenden Sie sich bezüglich der Installations-
arbeit an Ihren Händler.
Falls Sie die Arbeiten selber ausführen, kann es
zu Wasserlecks, elektrischen Schlägen oder
Brand kommen.
Wenden Sie sich bezüglich einer Abände-
rung, Reparatur und Wartung des CONVENI-
PACK an Ihren Händler.
Eine unsachgemäße Ausführung der Arbeiten
kann zu Wasserlecks, elektrischen Schlägen
oder Brand führen.
Stecken Sie keine Gegenstände, wie z. B. Stan-
gen oder Ihre Finger usw., in den Lufteinlass
oder Luftauslass.
Bei Berührung der schnell rotierenden Ventila-
torflügel des CONVENI-PACK besteht Verlet-
zungsgefahr.
Berühren Sie niemals den Luftauslass oder die
horizontalen Lamellen, während der Ventilator
in Betrieb ist.
Hierdurch können die Finger eingeklemmt oder
das Gerät beschädigt werden.
Kältemitteltyp R410A
GWP(1)-Wert 1975

2Deutsch
Hüten Sie sich vor Feuer im Falle eines Kälte-
mittellecks.
Falls das Kondensatorgerät nicht korrekt funktio-
niert (d. h. die Innentemperatur des CONVENI-
PACK fällt nicht ausreichend ab), kann ein Kälte-
mittelleck die Ursache sein.
Wenden Sie sich an Ihren Händler um Hilfe.
Das Kältemittel im Kondensatorgerät ist sicher
und läuft normalerweise nicht aus.
Im Falle eines Lecks kann jedoch Kontakt mit
einem offenen Brenner, Heizkörper oder Kocher
zur Erzeugung von giftigen Gasen führen.
Benutzen Sie das Kondensatorgerät nicht wei-
ter, bis eine qualifizierte Kundendienstperson
sicherstellt, dass das Leck repariert worden ist.
Wenden Sie sich hinsichtlich der Maßnah-
men im Falle eines Kältemittellecks an Ihren
Händler.
Wenn das Kondensatorgerät in einem kleinen
Raum installiert werden soll, müssen entspre-
chende Maßnahmen ergriffen werden, die ver-
hüten, dass im Falle eines Kältemittellecks die
Menge des ausströmendem Kältemittels die
Konzentrationsgrenze überschreitet. Anderen-
falls kann es zu einem Unfall durch Sauerstoff-
mangel kommen.
Wenden Sie sich bezüglich der Anbringung
von Zubehör an Fachpersonal, und verwen-
den Sie nur vom Hersteller angegebenes
Zubehör.
Falls Ihre eigene Arbeitsausführung zu einem
Defekt führt, kann es zu Wasserlecks, elektri-
schen Schlägen oder Brand kommen.
Wenden Sie sich bezüglich eines Standort-
wechsels und einer Neuinstallation des CON-
VENI-PACK an Ihren Händler.
Eine unsachgemäße Installation kann zu Was-
serlecks, elektrischen Schlägen oder Brand füh-
ren.
Tauschen Sie Sicherungen nicht aus.
Verwenden Sie keine ungeeigneten Sicherun-
gen, Kupfer- oder andere Drähte als Ersatz, weil
dies zu elektrischen Schlägen, Brand, Verlet-
zung oder Beschädigung des Gerätes führen
kann.
Das Gerät muss unbedingt geerdet werden.
Erden Sie das Gerät nicht an einer Gas- oder
Wasserleitung, einem Blitzableiter oder der Erd-
leitung eines Telefons. Falsche Erdung kann zu
elektrischen Schlägen oder Brand führen.
Ein starker Stromstoß von einem Blitzschlag
oder anderen Quellen kann Beschädigung des
CONVENI-PACK verursachen.
Immer einen Leckstrom-Unterbrecher installie-
ren.
Wenn keine Erdschluss-Sicherung installiert ist,
besteht die Gefahr von elektrischen Schlägen
oder Feuer.
Wenden Sie sich an Ihren Händler, falls das
Kondensatorgerät durch eine Naturkatastro-
phe, wie z. B. eine Überschwemmung oder
einen Taifun, unter Wasser gerät.
Unterlassen Sie die Benutzung des CONVENI-
PACK in dieser Situation, weil es anderenfalls zu
einer Funktionsstörung, einem elektrischen
Schlag oder Brand kommen kann.
Unterlassen Sie das Starten oder Stoppen des
Betriebs des CONVENI-PACK, wenn der Lei-
stungsschalter ein- oder ausgeschaltet ist.
Anderenfalls kann es zu einem Brand oder Was-
serleck kommen. Außerdem kann das Gebläse
plötzlich anlaufen, weil die Stromausfallkompen-
sation aktiviert ist, was zu Verletzungen führen
kann.
Benutzen Sie das Produkt nicht in einer Atmo-
sphäre, die mit Speiseöl- oder Maschinenöl-
dampf verunreinigt ist.
Öldampf kann Rissbildung, elektrische Schläge
oder Brand verursachen.
Benutzen Sie das Produkt nicht an Orten mit
starker Ölrauchbildung, z. B. in Küchen, oder
an Orten mit brennbaren, korrosiven Gasen
oder Metallstaub.
Die Benutzung des Produkts an solchen Orten
kann einen Brand oder Ausfälle verursachen.
Verwenden Sie keine brennbaren Stoffe (z. B.
Haarspray oder Insektizide) in der Nähe des
Produkts.
Reinigen Sie das Produkt nicht mit organi-
schen Lösungsmitteln, wie z. B. Lackverdün-
ner.
Die Verwendung von organischen Lösungsmit-
teln kann Rissbildung im Produkt, elektrische
Schläge oder Brand verursachen.
Bewahren Sie keine leichtflüchtigen oder
brennbaren Substanzen im Gerät auf.
Anderenfalls kann es zu einer Explosion oder
einem Brand kommen.
Verwenden Sie unbedingt eine festgeschaltete
Stromquelle für das Kondensatorgerät.
Die Verwendung einer anderen Stromquelle
kann zu Wärmebildung, Brand oder Ausfall des
Produkts führen.
ACHTUNG
Verwenden Sie das Kondensatorgerät nicht
für sachfremde Zwecke.
Verwenden Sie das Kondensatorgerät nicht zum
Kühlen von Präzisionsinstrumenten oder Kunst-
werken, weil dadurch die Leistung, die Qualität
und/oder die Lebensdauer des betreffenden
Objekts beeinträchtigt werden kann.
Benutzen Sie das Gerät nicht für Wasserküh-
lung.
Es kann sonst zu Gefrieren kommen.
