OPERATION MANUAL
SPLIT SYSTEM HEAT PUMP
MODELS
Air Handling Unit
FTQ18PBVJU
FTQ24PBVJU
FTQ30PBVJU
FTQ36PBVJU
FTQ42PBVJU
Read these instructions carefully before installation.
Keep this manual in a handy place for future reference.
This manual should be left with the equipment owner.
Lire soigneusement ces instructions avant l’installation.
Conserver ce manuel à portée de main pour référence ultérieure.
Ce manuel doit être donné au propriétaire de l’équipement.
Lea cuidadosamente estas instrucciones antes de instalar.
Guarde este manual en un lugar a mano para leer en caso de tener alguna duda.
Este manual debe permanecer con el propietario del equipo.
00_CV_3P250362-4B.indd 100_CV_3P250362-4B.indd 1 1/17/2012 9:39:37 AM1/17/2012 9:39:37 AM

[1]
On/Off
Mode
Fan
Speed
Cancel
Menu
OK
10
8
9
4
5
6
7
11
1
2
3
1
db
f
k
e
or
g
h
c
e
f
a
j
dki
db
f
k
e
Set to
Cool
Heat
74F
70F
Auto
This function is not available
CENTRAL
CONTROL MASTER CONTROLLED
SETBACK
STANDBY
<Standard display example>
2
1
8
10
6
7
3
4
5
9
3
2
00_CV_3P250362-4B.indd Sec.1100_CV_3P250362-4B.indd Sec.11 1/17/2012 9:39:37 AM1/17/2012 9:39:37 AM

1 English
CONTENTS
ILLUSTRATIONS .............................................. [1]
1. WHAT TO DO BEFORE OPERATION ......... 1
2. SAFETY CONSIDERATIONS ...................... 1
3. OPERATION RANGE ................................... 5
4. INSTALLATION SITE ................................... 5
5. LABELS AND CORRESPONDING
FUNCTIONS OF THE REMOTE
CONTROLLER ............................................. 5
6. OPERATION PROCEDURE ........................ 6
7. OPTIMUM OPERATION .............................. 9
8. MAINTENANCE (FOR SERVICE
PERSONNEL) ............................................ 10
9. MALFUNCTIONS NOT RELATED TO
HEAT PUMP ............................................... 12
10. TROUBLE SHOOTING .............................. 13
WHAT TO DO BEFORE1.
OPERATION
This operation manual is for the following system
with standard control. Before initiating operation,
contact your dealer for the operation that corre-
sponds to your system.
Indoor unit
Outdoor unit
Unit with
remote controller
Outdoor unit
or
NOTE
If the unit you purchased is controlled by the•
wired remote controller (BRC1E71), refer to the
operation manual of the wired remote controller
(BRC1E71).
If your installation has a customized control sys-
tem, ask your dealer for the operation that corre-
sponds to your system.
TWO REMOTE CONTROLLERS CONTROL
SYSTEM
Confirm the following if your unit is the following
control system type.
Two remote controllers control system•
Two remote controllers control one indoor unit.
The unit is individually operated.
NOTE
Contact your dealer in case of two remote con-•
trollers control system.
Names and functions of parts

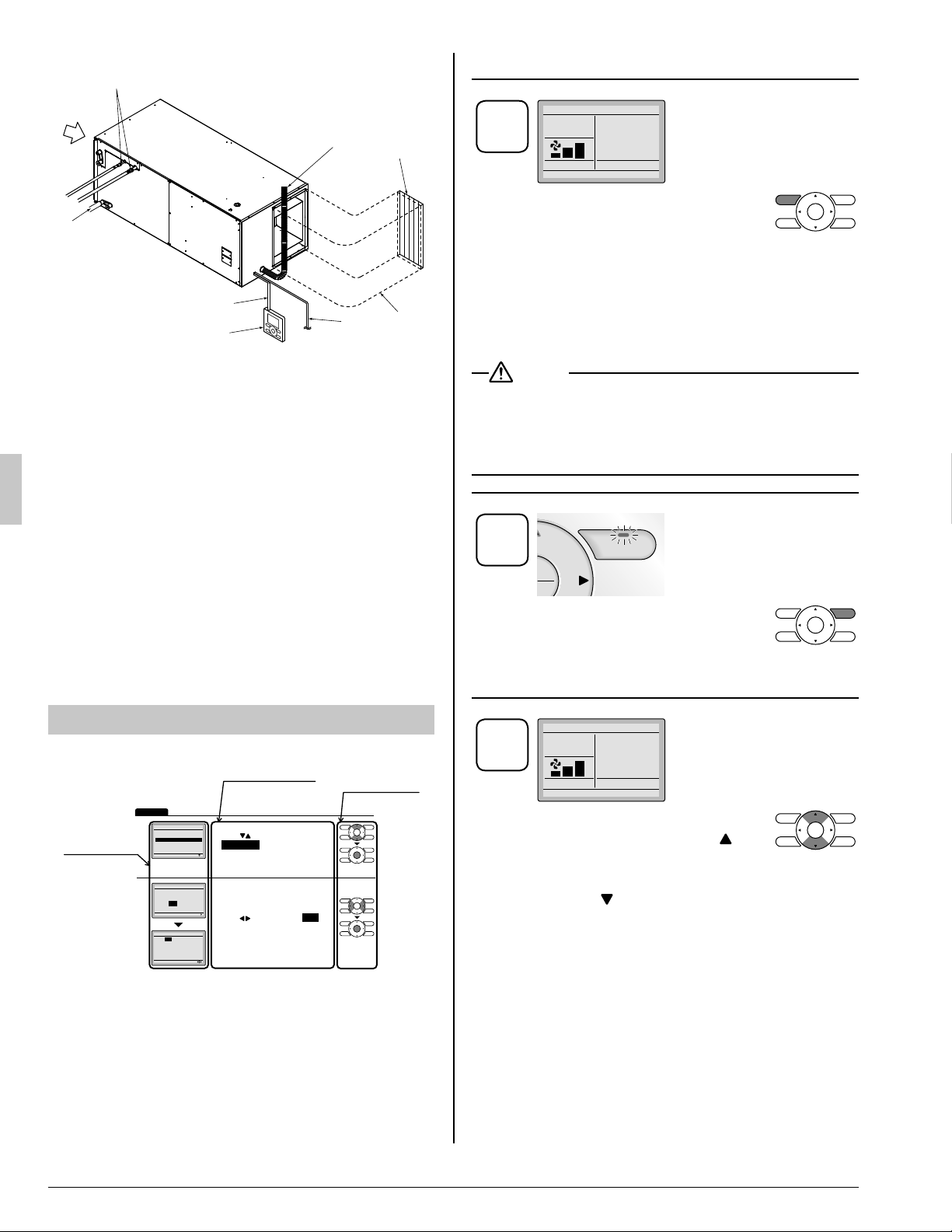

Refer to figure 2 on page [1]
aIndoor unit
bOutdoor unit
cRemote controller
dAir inlet
eDischarged air
fAir outlet
gTransmission wiring
hRefrigerant piping
iDrain pipe
jAir inlet
The built-in air filter removes dust and dirt.
k
Ground wire
Wire to ground from the outdoor unit to pre-
vent electrical shocks.
SAFETY CONSIDERATIONS2.
Read these “Safety Considerations for Operations”
carefully before installing air conditioning or heat
pump equipment. After completing the installation,
make sure that the unit operates properly during
the startup operation. Instruct the customer on how
to operate and maintain the unit.
Inform customers that they should store this Op-
eration Manual with the Installation Manual for
future reference.
This air conditioner is classified under “appliances
not accessible to the general public”.
01_EN_3P250362-4B.indd 101_EN_3P250362-4B.indd 1 1/5/2012 2:56:50 PM1/5/2012 2:56:50 PM

English 2
After reading, keep this manual in a conve-•
nient place so that you can refer to it when-
ever necessary. If the equipment is trans-
ferred to a new user, be sure also to hand
over the manual.
Meanings of DANGER, WARNING, CAUTION, and
NOTE Symbols:
DANGER .......... Indicates an imminently haz-
ardous situation which, if not
avoided, will result in death or
serious injury.
WARNING ........ Indicates a potentially hazard-
ous situation which, if not
avoided, could result in death
or serious injury.
CAUTION ......... Indicates a potentially hazard-
ous situation which, if not avoid-
ed, may result in minor or mod-
erate injury. It may also be used
to alert against unsafe practices.
NOTE................Indicates situations that may
result in equipment or proper-
ty-damage accidents only.
DANGER
Do not install the unit in an area where flam-•
mable materials are present due to risk of
explosion resulting in serious injury or death.
Any abnormalities in the operation of the air•
conditioner or heat pump such as smoke or
fire, could result in severe injury or death.
Turn off the power and contact your dealer
immediately.
Refrigerant gas may produce toxic gas if it•
come in contact with fire, such as from a fan,
heater, stove, or cooking device. Exposure to
this gas could cause severe injury or death.
Consult your local dealer regarding modifica-•
tion, repair and maintenance of the air condi-
tioner.
Improper workmanship may result in water
leakage, electric shocks or fire hazards.
For refrigerant leakage, consult your dealer.•
Refrigerant gas is heavier than air and re-
places oxygen. A massive leak could lead to
oxygen depletion, especially in basements,
and an asphyxiation hazard could occur lead-
ing to serious injury or death.
If equipment utilizing a burner is used in the•
same room as the air conditioner or heat
pump, there is the danger of oxygen deficien-
cy which could lead to an asphyxiation haz-
ard resulting in serious injury or death. Be
sure to ventilate the room sufficiently to
avoid this hazard.
Safely dispose of the packing materials.•
Packing materials, such as nails and other
metal or wooden parts, may cause stabs or
other injuries.
Tear apart and throw away plastic packaging•
bags so that children will not play with them.
Children playing with plastic bags face the
danger of death by suffocation.
Do not install the air conditioner at any place•
where there is a danger of flammable gas
leakage.
In the event of a gas leakage, build-up of gas
near the air conditioner may result in fire haz-
ards.
WARNING
Contact your dealer for repair and mainte-•
nance. Improper repair and maintenance may
result in water leakage, electric shock, and
fire. Only use accessories made by Daikin
that are specifically designed for use with the
equipment and have them installed by a pro-
fessional.
Contact your dealer to move and reinstall the•
air conditioner or heat pump. Incomplete
installation may result in water leakage, elec-
tric shock, and fire.
Never let the indoor unit or the remote con-•
troller get wet. Water can cause an electric
shock or a fire.
Never use flammable spray such as hair•
spray, lacquer, or paint near the unit. Flam-
mable spray may cause a fire.
When a fuse blows out, never replace it with•
one of incorrect ampere ratings or different
wires. Always replace any blown fuse with a
fuse of the same specification.
Never remove the fan guard of the unit. A fan•
rotating at high speed without the fan guard
is very dangerous.
Never inspect or service the unit by yourself.•
Contact a qualified service person to perform
this work.
01_EN_3P250362-4B.indd 201_EN_3P250362-4B.indd 2 1/5/2012 2:56:51 PM1/5/2012 2:56:51 PM

3 English
Shut off all electrical power before doing any•
maintenance to avoid the risk of serious
electric shock; never sprinkle or spill water
or liquids on the unit.
Do not touch the switch with wet fingers.•
Touching a switch with wet fingers can cause
electric shock.
Do not allow children to play on or around•
the unit to prevent injury.
The heat exchanger fins are sharp enough to•
cut. To avoid injury wear gloves or cover the
fins while working around them.
Do not put a finger or other objects into the•
air inlet or air outlet. The fan is rotating at
high speed and will cause injury.
Check the unit foundation for damage on a•
continuous basis, especially if it has been in
use for a long time. If left in a damaged con-
dition the unit may cause injury.
Placing a flower vase or other containers•
with water or other liquids on the unit could
cause a shock or fire if a spill occurs.
Never touch the internal parts of the control-•
ler. Do not remove the front panel because
some parts inside are dangerous to touch. To
check and adjust internal parts, contact your
dealer.
Be aware that prolonged, direct exposure to•
cool or warm air from the air conditioner, or
to air that is too cool or too warm can be
harmful to your physical condition and
health.
Ask your dealer to install in a machine room•
that has no water drops by raining.
This unit is for indoor use.
Incomplete installation performed by yourself
may result in a water leakage, electric shock,
and fire.
CAUTION
Do not use the air conditioner or heat pump•
for any other purposes other than comfort
cooling or heating. Do not use the unit for
cooling precision instruments, food, plants,
animals or works of art.
Do not place items under the indoor unit as•
they may be damaged by condensates that
may form if the humidity is above 80% or if
the drain outlet gets blocked.
Before cleaning, stop the operation of the•
unit by turning the power off or by pulling the
supply cord out from its receptacle. Other-
wise, an electric shock and injury may result.
Do not wash the air conditioner or heat pump•
with excessive water. An electric shock or
fire may result.
Avoid placing the controller in a spot•
splashed with water. Water entering the con-
troller may cause an electric shock or dam-
age the internal electronic parts.
Do not operate the air conditioner or heat•
pump when using a room-fumigation type of
insecticide. Failure to observe this could
cause the chemicals to be deposited in the
unit and can endanger the health of those
who are hypersensitive to chemicals.
Do not shut off the power immediately after•
stopping operation. Always wait for at least
five minutes before shutting off the power.
Otherwise, water leakage may occur.
The appliance is not intended for use by•
young children or infirm persons without
supervision.
The remote controller should be kept away•
from children so they cannot play with it.
Consult with the installation contractor for•
cleaning.
Incorrect cleaning of the inside of the air con-•
ditioner or heat pump could make the plas-
tics parts break and cause water leakage or
electric shock.
Do not touch the air inlet or aluminum fin of•
the air conditioner or heat pump as they can
cut and cause injury.
Do not place objects in direct proximity of•
the outside unit. Do not let leaves and other
debris accumulate around the unit. Leaves
are a hotbed for small animals which can
enter the unit. Once inside the unit, animals
can cause the unit to malfunction, and cause
smoke or fire when they make contact with
electrical parts.
Be sure that children, plants or animals are•
not exposed directly to airflow from the unit,
as adverse effects may ensue.
01_EN_3P250362-4B.indd 301_EN_3P250362-4B.indd 3 1/5/2012 2:56:51 PM1/5/2012 2:56:51 PM

English 4
NOTE
Never press the button of the remote control-•
ler with a hard, pointed object. The remote
controller may be damaged.
Never pull or twist the electric wire of the•
remote controller. It may cause the unit to
malfunction.
Do not place appliances that produce open•
flames in places that are exposed to the air
flow of the unit or under the indoor unit. It
may cause incomplete combustion or defor-
mation of the unit due to the heat.
Do not wipe the controller operation panel•
with benzine, thinner, chemical dustcloth, etc.
The panel may get discolored or the coating
peeled off. If it is heavily dirty, soak a cloth in
water-diluted neutral detergent, squeeze it
well and wipe the panel clean. And wipe it
with another dry cloth.
Do not expose the controller to direct sun-•
light. The LCD display can become discol-
ored and may fail to display the data.
Dismantling of the unit, disposal of the refrig-•
erant, oil, and additional parts, should be
done in accordance with the relevant local,
state, and national regulations.
Operate the air conditioner or heat pump in a•
sufficiently ventilated area and not surround-
ed by obstacles. Do not use the air condition-
er or heat pump in the following places.
a.Places with a mist of mineral oil, such as
cutting oil.
b.Locations such as coastal areas where
there is a lot of salt in the air.
c.Locations such as hot springs where there
is a lot of sulfur in the air.
d.Locations such as factories where the pow-
er voltage varies a lot.
e.In cars, boats, and other vehicles.
f. Locations such as kitchens where oil may
splatter or where there is steam in the air.
g.Locations where equipment produces elec-
tromagnetic waves.
h.Places with an acid or alkaline mist.
i. Places where fallen leaves can accumulate
or where weeds can grow.
Take snow protection measures. Contact•
your dealer for the details of snow protection
measures, such as the use of a snow protec-
tion hood.
Do not attempt to do electrical work or•
grounding work unless you are licensed to
do so. Consult with your dealer for electrical
work and grounding work.
Pay Attention to Operating Sound. Be sure to•
use the following places:
a.Places that can sufficiently withstand the
weight of the air conditioner or heat pump
yet can suppress the operating sound and
vibration of the air conditioner or heat
pump.
b.Places where warm air from the air outlet of
the outside unit or the operating sound of
the outside unit does not annoy neighbors.
Make sure that there are no obstacles close•
to the outside unit. Obstacles close to the
outside unit may drop the performance of the
outside unit or increase the operating sound
of the outside unit.
Consult your dealer if the air conditioner or•
heat pump in operation generates unusual
noise.
Make sure that the drainpipe is installed•
properly to drain water. If no water is dis-
charged from the drainpipe while the air con-
ditioner or heat pump is in the cooling mode,
the drainpipe may be clogged with dust or
dirt and water leakage from the indoor unit
may occur. Stop operating the air conditioner
or heat pump and contact your dealer.
Carry out drain piping properly to ensure•
complete drainage.
If drain piping is not carried out properly,
drain will not flow out. Then, dirt and debris
may be accumulated in the drain pipe and
may cause water leakage. If it occurs, stop
the air conditioner and call your dealer for
assistance.
01_EN_3P250362-4B.indd 401_EN_3P250362-4B.indd 4 1/5/2012 2:56:51 PM1/5/2012 2:56:51 PM

5 English
OPERATION RANGE3.
If the temperature or the humidity is beyond the
following conditions, safety devices may work and
the air conditioner or heat pump may not operate,
or sometimes, water may drop from the indoor unit.
OPERATION TEMPERATURE (°F)
OUTDOOR INDOOR
COOLING 23 to 115 (DB) 57 to 77 (WB)
HEATING 0 to 60 (WB) 59 to 80.5 (DB)
DB: Dry bulb temperature
WB: Wet bulb temperature
The setting temperature range of the remote con-
troller is 60°F to 90°F.
INSTALLATION SITE4.
Regarding places for installation
Is the air conditioner or heat pump installed•
at a well-ventilated place where there are no
obstacles around?
Do not use the air conditioner or heat pump•
in the following places:
a. An atmosphere laden with mineral oil
b. Places with an abundance of salt such as
coastal areas
c. Where sulfured gas exists such as a hot-
spring resort
d. Where there are considerable voltage fluctua-
tions such as a factory or plant
e. Vehicles and vessels
f . A place like a kitchen with a lot of oil and va-
por
g. Where there are machines generating electro-
magnetic waves
h. An areas filled with acid and/or alkaline steam
or vapor
Is a snow protection measure taken?•
For details, consult your dealer.
Regarding wiring
All wiring must be performed by an autho-•
rized electrician.
To do wiring, ask your dealer. Never do it by
yourself.
Make sure that a separate power supply cir-•
cuit is provided for this air conditioner or
heat pump and that all electrical work is car-
ried out by qualified personnel according to
local laws and regulations.
Pay attention to the installation location
Are the following places selected?•
a. A place that can sufficiently withstand the
weight of the air conditioner or heat pump with
minimal vibration and operation sound.
b. A place where the air discharged from the
outlet of the outdoor unit and the running
sound do not become bothersome.
Are you sure that there are no obstacles near•
the air outlet of the outdoor unit?
Such obstacles may result in declined perfor-
mance and increased running sound.
If abnormal sounds occur in use, stop the•
operation of the air conditioner or heat pump
and consult your dealer.
Regarding drainage of drain piping
Is the drain piping executed to perform com-•
plete drainage?
If proper drainage is not carried out from the
outdoor drain pipes during air-conditioning op-
eration, chances are that dust and dirt are
clogged in the pipe. This may result in a water
leakage from the indoor unit. Under such circum-
stances, stop the operation of the air conditioner
or heat pump, and then consult your dealer or
our service station.
LABELS AND CORRESPONDING5.
FUNCTIONS OF THE REMOTE
CONTROLLER
Refer to figure 1 on page [1]
The illustrations in this operating manual corre-
spond to the remote control format BRC1E type.
Operation mode selector button1.
Used to change the mode.
Fan speed control button2.
Used to change the fan control.
01_EN_3P250362-4B.indd 501_EN_3P250362-4B.indd 5 1/5/2012 2:56:51 PM1/5/2012 2:56:51 PM

English 6
Menu/OK button3.
Used to indicate the main menu.•
(For details of the main menu, see the opera-
tion manual.)
Used to enter the item selected.•
Main Menu
Air Flow Direction
Ventilation
Schedule
Off Timer
Celsius / Fahrenheit
Maintenance Information
Configuration
Current Settings
Clock & Calendar
Daylight Saving Time
Language
∗Depending on connected model
Up button4.
Used to raise the setpoint temperature.•
The previous menu items will be highlighted.•
(The highlighted items will be scrolled con-
tinuously when the button is pressed continu-
ously.)
Used to change the selected item.•
Down button5.
Used to lower the setpoint temperature.•
Items below the currently selected item will•
be highlighted.
(The highlighted items will be scrolled con-
tinuously when the button is pressed continu-
ously.)
Used to change the selected item.•
Right button6.
Used to highlight items to the right of the•
currently selected item.
Display contents are changed to next screen•
per page.
Left button7.
Used to highlight items to the left of the cur-•
rently selected item.
Display contents are changed to previous•
screen per page.
On/Off button8.
Press once to operate, and press once again
to stop.
Operation lamp9.
Green lamp lights up during operation. The
lamp will blink if an malfunction occurs.
Cancel button10.
Used to return to the previous screen.•
Press and hold this button for 4 seconds or•
longer to display service settings menu.
LCD (with backlight)11.
The backlight will illuminate for approximately
30 seconds by pressing any operation button.
NOTE
Operate the button while the backlight is illumi-•
nated.
When one indoor unit is controlled by two remote•
controllers (main / sub) only the first controller to
be accessed by the user will illuminate it’s back-
light.
OPERATION PROCEDURE6.
Read the operation manual that came with
the remote controller.
To protect the unit, turn on the main power•
switch 6 hours before operation.
If the main power supply is turned off during•
operation, operation will restart automatically
after the power turns back on again.
Part name and functions
4
3
1
27
8
9
In case of vertical position.
5
1
2
6
7
8
9
In case of vertical position.
5
01_EN_3P250362-4B.indd 601_EN_3P250362-4B.indd 6 1/5/2012 2:56:51 PM1/5/2012 2:56:51 PM

7 English
3
29
1
7
5
In case of horizontal position.
4
6
8

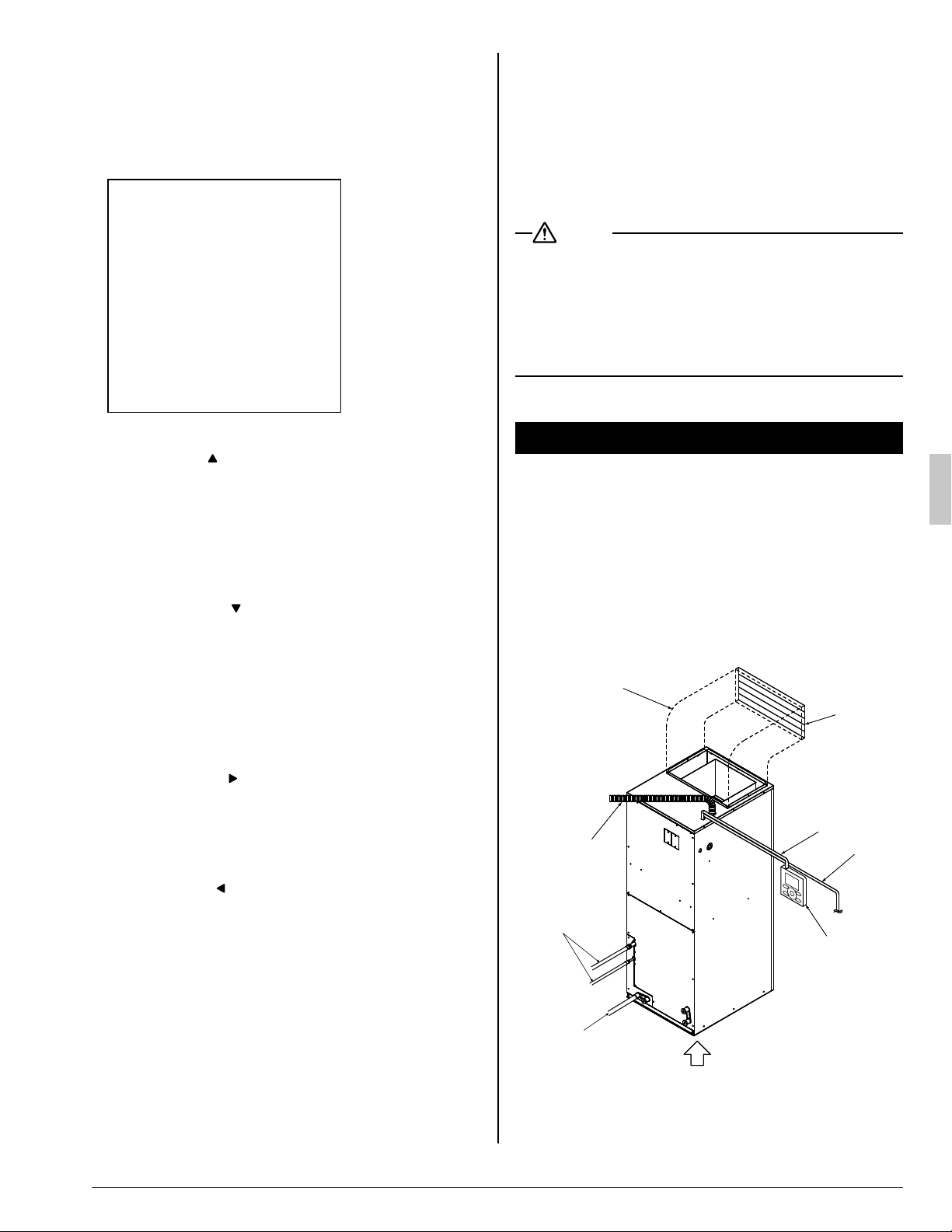

Airflow duct (local procurement)1.
Power supply wiring and ground wire2.
through conduit
Refrigerant piping3.
Drain pipe4.
Air inlet5.
Remote controller6.
Transmission wiring7.
Controller wiring8.
Air outlet (local procurement)9.
BASIC OPERATION
COOL/HEAT/AUTO/FAN OPERATION
How to follow the operation manual
Operation
1
2

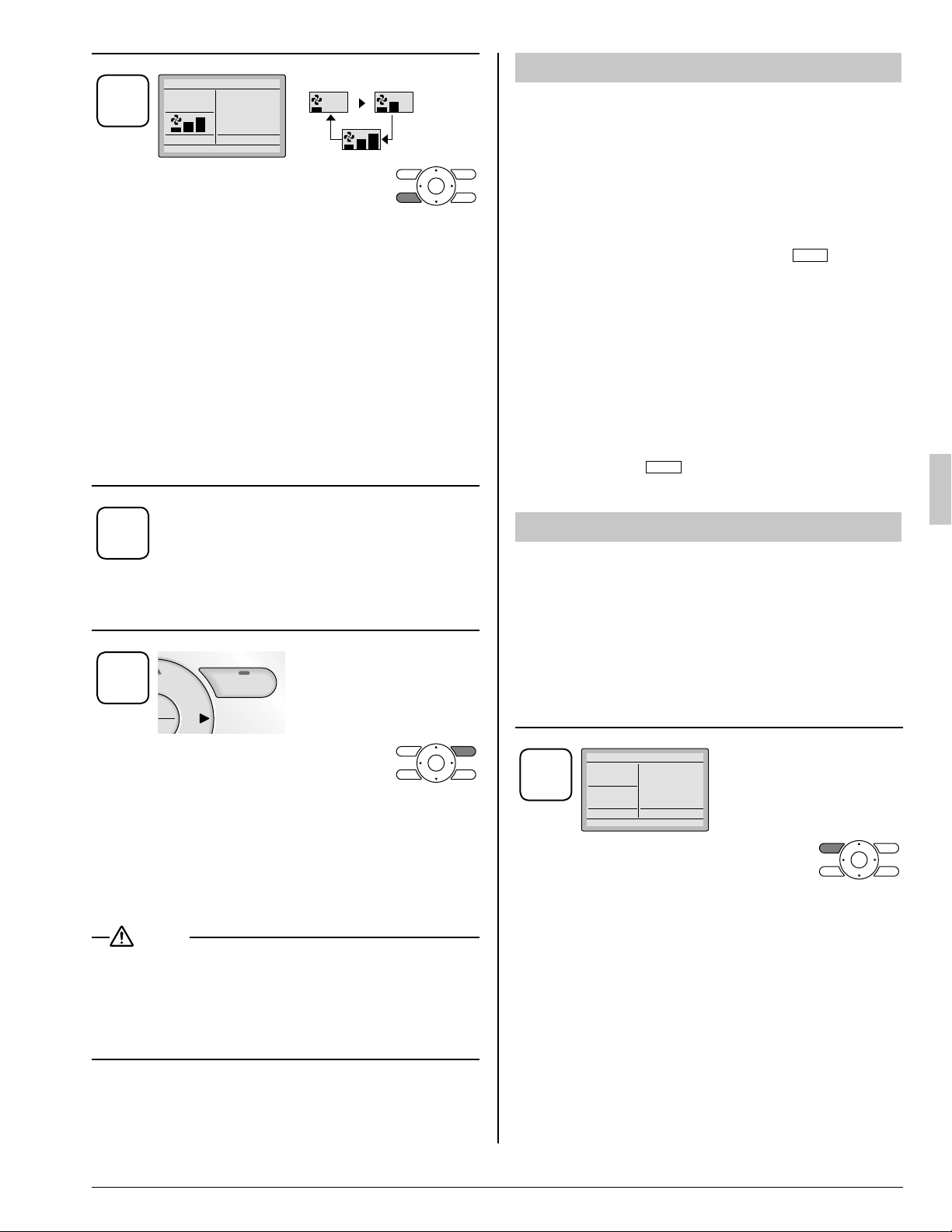

Display the main menu screen.
Before setting the schedule , the
clock must be set.
The date & time screen will appear.
Set the current year, month, day, and
time.
If the clock has not been set, a screen
like the one on the left will appear.
Press buttons to select Ye s and
press Menu/OK button.
Press buttons to select
Schedule the main menu screen.
Press Menu/OK button to display
the timer screen.
Setting
Clock has not been set.
Would you like to set it now?
Schedule
Ye s No
Setting
Date & Time
Year 2008
Month 01
Day 01
Tuesday
12:00 A
Operation screen
display
Describes screens that
will be displayed on the
remote controller in
operation.
Operation procedure
Explains the sequence of
operation for the remote controller.
Operate the buttons according to
the procedure.
Operation button
display
Displays the location of
buttons to be operated.
Setting
Main Menu
Air Flow Direction
Ventilation
Schedule
Off Timer
Celsius / Fahrenheit
Maintenance Information
1/2
Preparation
For mechanical protection purposes, apply pow-•
er to the outdoor units at least six hours before
starting the operation of the system.
OPERATION
1Cool
Return Setting
Set to
Cool
74F
Press the Operation mode•
selector button several
times until the desired
mode Cool, Heat, Fan, or
Auto mode is selected.
Unavailable operation modes are not dis-*
played.
NOTE
Before changing the mode, confirm that the•
display does not indicate master controlled sta-
tus. Both heat and cool mode may not be select-
ed if the unit is master controlled.
2
On/Off
n
u
K
Press On/Off button.•
The Operation lamp (green)
will illuminate and the sys-
tem will start operating.
3Cool
Return Setting
Set to
Cool
74F
The setpoint will increase•
by 1°F (or 1°C) when
button is pressed and de-
crease by 1°F (or 1°C)
when button is pressed.
Setpoint is not available in fan or dry mode.*
01_EN_3P250362-4B.indd 701_EN_3P250362-4B.indd 7 1/5/2012 2:56:52 PM1/5/2012 2:56:52 PM

English 8
4Cool
Return Setting
Set to
Cool
74F
Low Medium
High
To change the fan speed,•
press the Fan speed control
button and select the de-
sired fan speed from Low,
Medium or High.
Only two fan speed adjustment levels, low and*
high may be available depending on the type
of indoor unit.
The system may be in automatic fan speed*
control for equipment protection purposes.
The system may be in automatic fan speed*
control according to the room temperature. It
is normal for the fan to intermittently stop
operating.
It is normal for a delay to occur when chang-*
ing the fan speed.
5Adjust Air Flow Direction from the main•
menu.
If the connected indoor unit model does not*
include oscillating louvers this function will not
be available.
6
On/Off
n
u
K
When the On/Off button is•
pressed again, the system
will stop operating and the
operation lamp will turn off.
When the system is stopped while in the*
heating mode, the fan will continue to operate
for approximately one minute to remove
residual heat from the indoor unit.
NOTE
To prevent water damage or system failure, do•
not immediately remove power from the indoor
unit following system operation. Wait at least five
minutes for the condensate pump to finishing
draining residual water from the unit.
CHARACTERISTICS OF HEAT MODE
The system automatically controls the follow-
ing operating modes to prevent the reduction
of heating capacity and space comfort.
Defrost operation
The system will automatically go into defrost•
operation to prevent frost accumulation at the
outdoor unit and loss of heating capacity.
The indoor unit fan will stop, and “•
STANDBY
” (De-
frost/Hot start) will be displayed on the remote
controller.
The system will return to normal operation usu-•
ally within six to eight minutes (but not more than
10 minutes).
Hot start
When the system goes into heat mode, the in-•
door unit fan will stop in order to prevent a cold
draft.
(In that case, “
STANDBY
” (Defrost/Hot start) will be
displayed on the remote controller.)
DRY MODE
Preparation
For equipment protection purposes, apply power•
to the outdoor units at least six hours before
starting the operation of the system.
The dry mode may not be selected if the remote•
controller is master controlled and the system is
not already in the cooling mode of operation.
OPERATION
1Dry
Return Setting
Press Mode button several•
times until the Dry mode is
selected.
The dry mode may not be available depend-*
ing on the type of indoor unit.
01_EN_3P250362-4B.indd 801_EN_3P250362-4B.indd 8 1/5/2012 2:56:53 PM1/5/2012 2:56:53 PM
