Daisy 9016 X-Purge User manual

February 2022
D010-000002
Model 9016 X-Purge
User Manual

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 2 D010-000002
DISCLAIMER
Daisy Data Displays, Inc. (DAISY) makes no representations or warranties with respect to the
contents or use of this manual, and specifically disclaims any express or implied warranties of
merchantability or fitness for any particular purpose. Further, Daisy Data Displays, Inc. reserves
the right to revise this publication and to make changes to its content, at any time, without
obligation to notify any person or entity of such revisions or changes.
Further, Daisy Data Displays, Inc. makes no representations or warranties with respect to any
DAISY manufactured equipment, and specifically disclaims any express or implied warranties of
merchantability or fitness for any particular purpose. Further, Daisy Data Displays, Inc. reserves
the right to make changes to any and all DAISY manufactured equipment, at any time, without
obligation to notify any person or entity of such changes.
FCC WARNING
Computing devices and peripherals manufactured by DAISY generate, use, and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions in this manual
may cause interference to radio communications. Such equipment has been tested and found to
comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of the FCC
Rules, which are designed to provide reasonable protection against radio interference when
operated in a commercial environment. Operation of this equipment in a residential area is likely
to cause interference, in which case the user - at his own expense - will be required to take
whatever measures may be required to correct the interference.
Some components may not have been manufactured by Daisy Data Displays, Inc. If not, DAISY has
been advised by the manufacturer of the component that the component has been tested and
complies with the Class A computing device limits as described above.
Copyright 2022 Daisy Data Displays, Inc. All rights reserved. No part of this publication may be
reproduced, photocopied, stored on a retrieval system, or transmitted without express prior
written consent.
Daisy Data Displays, Inc.
5031 Richard Lane, Suite 103
Mechanicsburg, PA 17055 USA
Phone: [phone]
www.daisydata.com
February 2022 Edition
Manual Revision 2.0
Part Number D010-000002

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 3 D010-000002
Limited Warranty and Liability Statement
To the original purchaser, Daisy Data Displays, Inc., hereinafter referred to collectively as SELLER,
warrants each of its manufactured products, and all components therein contained to be free
from defects in materials and/or workmanship for a period of 24 months from the date of
purchase.
Should a malfunction or other indication of defect attributable directly to faulty materials and/or
workmanship occur, Seller will, at its option, and without charge to the customer for labor and
parts, repair or replace the defective product, F.O.B. Seller’s plant, but Seller will not be
responsible for freight from Purchaser to Seller’s plant.
In no event shall Seller be liable for any loss, inconvenience, or damage, whether direct, incidental,
consequential or otherwise resulting from abuse, misapplication, or modification of the product,
improper or faulty power, damage resulting from repairs or alterations performed by
unauthorized persons, or conditions resulting from any other equipment attached to the product.
Seller assumes no liability for damage occurring in transit due to the product not being returned
in its original shipping material.
This warranty is exclusive and is in lieu of any warranty of merchantability or fitness for a
particular purpose or other warranty of quality whether expressed or implied, except of title
and against patent infringement. Correction of nonconformities, in the manner and for the
period of time provided above, shall constitute fulfillment of all liabilities of the Seller to the
Purchaser with respect to, or arising out of the goods, whether based on contract, negligence,
strict tort or otherwise.
LIMITATION OF LIABILITY: The Seller shall not under any circumstances be liable for special or
consequential damages, such as, but not limited to, damage or loss of other property or
equipment, loss of profits or revenues, cost of capital, cost of purchased or replacement goods,
or claims of customers of Purchaser for service interruptions. The remedies of the Purchaser set
forth herein are exclusive, and the liability of Seller respect to any contract, or anything done in
connection therewith such as the performance or breach thereof, of from the manufacture, sale,
delivery, resale, installation or use of any goods covered by or furnished under this contract
whether arising out of contract, negligence, strict tort or breach of warranty or otherwise, shall
not, except as expressly provided herein, exceed the price of the goods upon which such liability
is based.
This warranty gives you specific legal rights, and you may also have other rights, which vary from
state to state. Seller makes every effort to provide clear and accurate technical information on the
application of its products in the Operator's Manual and assumes no liability for misuse of the
information.

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 4 D010-000002
TABLE of CONTENTS
Model 9016 X-Purge.......................................................................................................... 1
DISCLAIMER..............................................................................................................................................................2
FCC WARNING ..........................................................................................................................................................2
Limited Warranty and Liability Statement ...............................................................................................................3
TABLE of CONTENTS .................................................................................................................................................4
1 Introduction ................................................................................................................ 5
2 Hazardous Area Safety Methods: Theory of Operation................................................. 5
2.1 Division 1: X-Purge Protection ...................................................................................................................5
3 Pre-Installation Testing................................................................................................ 6
3.1 Division 1 X-Purge Test ..............................................................................................................................6
4 Installation .................................................................................................................. 8
4.1 PAC-Seal Connection Instructions..............................................................................................................8
4.2 Purge Air Line Connection Instructions....................................................................................................10
4.2.1 For Division 1 X-Purge Systems Model 9016.................................................................................10
5 Start-Up Operation .................................................................................................... 11
5.1 Division 1 X-Purge Start-Up Operation ....................................................................................................11
6 Operation Notes ........................................................................................................ 12
6.1 Division 1 X-Purge ....................................................................................................................................12
7 Customer Service....................................................................................................... 14
8 Trouble-Shooting Guide ............................................................................................. 15
8.1 Division 1 X-Purge Trouble-Shooting .......................................................................................................15
9 Specifications ............................................................................................................ 16
10 Drawings ................................................................................................................... 17
P007 Cable and conduit entry 9016 15” & 18” enclosures .........................................................................19
P008 X-Purge front panel item location ......................................................................................................20
P011 Cable and conduit entry 9016 mounted to enclosure........................................................................21
E030 Electrical input connections ...............................................................................................................22
M015 9016 X-Purge dimensions ...................................................................................................................23
M013 9016 X-Purge mounting......................................................................................................................24
M016 9016 X-Purge mounting options.........................................................................................................25
P012 9016 X-Purge front panel item location .............................................................................................26
P013 X-Purge back panel item location.......................................................................................................27
P014 Stand alone X-Purge pneumatic block diagram..................................................................................28
E028 Stand alone X-Purged electrical block diagram ..................................................................................29
E017 Power interface board item location..................................................................................................30
CHART Div.1 X-Purge signal switching board/internal signal interface board................................................31
E018 Signal switching board item location..................................................................................................32
E019 Internal signal interface board item location .....................................................................................33
E020 DIP switch mounting (DMB) board item location...............................................................................34
E022 Connections for Remote X-Purged enclosures ...................................................................................35
E025 Connections for LCD-PC X-Purged enclosures ....................................................................................36
E029 DIP switch mounting (DMB) board item location...............................................................................37
E032 DIP switch mounting (DMB) item location (130 C.F.) .........................................................................38
E021 Purge control board item location .....................................................................................................39

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 5 D010-000002
1Introduction
Thank you for selecting a DAISY solution for your hazardous area operator interface
requirements!
This manual describes the general procedures for installing and operating DAISY Model
9016 X-Purge interface systems. The text portion of the manual also includes an overview of
the theory behind the methods used to make electronic systems safe for hazardous areas.
Section 9, Specifications, also contains an overview of system specifications, and Section 10
Drawings, includes mechanical drawings of each unit.
2Hazardous Area Safety Methods: Theory of Operation
2.1 Division 1: X-Purge Protection
X-Purge systems are another option available for Division 1 hazardous areas. The
installation of an X-Purge system on an enclosure in a Division 1 area renders the area
within the enclosure to an essentially non-rated environment. Thus, normally rated
equipment may be installed within the enclosure (within reasonable limits, such as
complying with temperature and power restrictions).
An X-Purge system is fully automated. The system not only provides the protective
purge and maintains positive pressure, but it also automatically controls the
connection and disconnection of power supplies and signal paths. A well-designed X-
Purge system also automatically control flow rates, internal pressure regulation, purge
timing, and switching of states between purge flow and normal operation. DAISY X-
Purge controls provide all of these features.
X-Purge controls must also satisfy the FM 3620: 4.2 specifications. DAISY X-Purged
equipment has also been validated by Factory Mutual as meeting these requirements.

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 6 D010-000002
3Pre-Installation Testing
Before installing your system in its final location, you may wish to test it to verify that the
purge system is functioning correctly.
3.1 Division 1 X-Purge Test
IMPORTANT NOTE: Pre-installation testing should always be conducted in a safe area.
Equipment Required
•Clean, dry purge air, or an inert gas supply equipped with local water/oil separator
or filter capable of supplying 40 to 300 SCFH at 30 to 60 PSI.
•Fittings and tubing for purge air or inert gas supply (0.25” NPT Male to connect to
the inlet of the purge system).
•Local air pressure shutoff valve.
•120V, 8A or 240V, 4A AC power (w/ Ground) with pigtails, tinned bare wire and
stripped 0.25”
Procedure
1. PLACE UNIT in a safe area near a source of the purge gas to be used .
2. Install pressure regulator, along with a water/oil separator or filter, a shutoff
valve, a pressure relief valve, and a pressure gauge in the pressurized purge air (or
inert gas) line (see drawing P007).
3. INPORTANT,Bleed the pressurized purge air (or inert gas) line ensuring that any
dirt, moisture, and contaminants are cleared from the line before connecting the
pressurized purge air (or inert gas) line to the unit.
4. Connect the purge gas line to the inlet of the regulator on the Purge Unit.
5. Remove cover of the explosion-proof I/O casting (see drawing P007)
6. Connect an AC power line to the power interface board (see drawing P008). For
connection, location, and wiring, see drawing E017 (NOTE1).
7. Close all access doors and covers.
8. Apply purge gas to the system by opening the shutoff valve. Adjust pressure
regulator on the air-in box (see drawing P008) to 40 PSI.
9. Apply AC power to the unit.
10. When pressure inside the unit reaches 1.0” WC and > 40 SCFH, the Purge Status
LED should illuminate yellow, indicating that it is purging.
IF THE INDICATOR DOES NOT ILLUMINATE a thorough inspection for leakage of
the unit must be made. Panel gaskets can be checked with a soap solution. If
leaks are not visually apparent, verify that the pressurized air is clean, dry and is
40 PSI at the inlet.
DO NOT ATTEMPT TO OPEN THE ENCLOSURE WHILE IT IS PRESSURIZED!
OPENING PRESSURIZED ENCLOSURE CAN RESULT IN SERIOUS INJURY!

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 7 D010-000002
11. Slowly increase air pressure with the regulator until the purge process stops.
Note Pressure the pressure at which the purge process stops.
The Purge Status LED will flash red and display an error code -[2 – 2] (over
pressure) or [3 –2] (over-flow).
12. Remove AC power from the enclosure for a minimum of 30 seconds. Decrease
the pressure reading on the pressure gauge by 5 PSI.
This change may vary slightly on some units; if in later testing the unit fails with
an [3 –2] (over-flow) error code, decrease the inlet pressure by another 2 PSI.
Note Pressure for use during start-up.
13. Re-apply AC power. The Purge Status LED will illuminate yellow and should purge
for a minimum of 8 minutes. Time will vary according to the flow rate of the air
into the enclosure.
14. After the purge is complete, the Purge Status indicator will illuminate green.
AC power is now applied to the internal electronics to power on the display or PC.
15. If the purge status light blinks red, refer to Table 6.1 X-Purge Status Light Key on
page 12 for error code details.

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 8 D010-000002
4Installation
4.1 PAC-Seal Connection Instructions
A conduit seal is necessary for most equipment enclosures in hazardous areas. Consult
your local codes for full guidance.
It is very important that knowledgeable personnel, familiar with national and local
codes, supervise hazardous area equipment installations.
The sealing compound generally used for PAC-seals is an inorganic, chemically setting,
magnesium oxide base material, which develops a slight expansion while hardening
into a porcelain-like body. Sealing Compound is supplied as a powder and need only
be mixed with water to apply. Approximately one ounce of sealing compound is
needed per cubic inch of space to be filled.
IMPORTANT
•The sealing compound powder has a shelf life of six months when stored in
unopened, tightly sealed containers in a dry location at 70°F.
•Any equipment accidentally splashed with sealing compound should be
cleaned with soap and water before the sealing compound cures.
Equipment Required
•Four PAC-Seal fittings, 1” NPT or 0.75” NPT for the X-Purge (2 for conduit
connection at the enclosure or I/O casting, 2 for connection in the safe area), or
sealing conduits. The PAC Seal and conduit size selected will depend on the size
and number of conductors, which must be run to the unit. Check with NEC tables to
determine the conduit size necessary
•Conduit for electrical signals and for electrical power (separate runs), NEC and NFPA
approved for use in hazardous areas
•NEC and NFPA approved flexible conduit if needed for difficult installations
•Fittings as required for permanent conduit installation NEC and NFPA approved for
use in hazardous areas
•Signal cables, power cables, and connectors as required to mate with the
equipment within the enclosure or cast aluminum box
•AC power switch for use in the safe area
IMPORTANT
ALWAYS follow NEC, NFPA, and local codes when installing conduit and PAC-seals
in hazardous areas!

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 9 D010-000002
Procedure
1. Clean threaded surfaces and pour locations should be with soap and water and
thoroughly dried before proceeding.
2. Install two conduit runs (one signal, one power) between the enclosure I/O casting
and AC power source (located ina safe areaorin an explosion-proof box). See
drawing P011 for added details.
3. Shake the sealing compound powder well before mixing with water. The
recommended mix ratio is 5 parts powder to 1-part clean water, by weight.
4. Place 25ml of70°F water into a clean mixing container and gradually add powder to
water whilemixing with a slow-speed mixer orby hand with a spatula until a uniform
consistency isobtained.
•A minimum amount ofwater should be used. Excessive water reduces
mechanical strength, increases shrinkage, and delays set time.
•Failure of the cement toadhere indicates setting has begun. Do not attempt to
re-temper by adding more water.Discard cement andstart a new batch.
5. Apply compound by pouring, casting, orusing a mechanical dispenser. The sealing
compound hardens with an internal chemical-setting action in 18 to 24hours at
ambient temperature. Working time of the sealing compound when the powder is
mixed with water isapproximately 30minutes at 70°F. Ifaccelerated curing is
desired, lowtemperature oven drying at180°Fcan be used. Do not expose the
sealing compound to higher temperatures, constant water immersion, orsteam
environments while curing. If high humidity resistance isrequired in the cured
product, a moisture-resistant lacquer or silicone coating should beapplied to the
exposed surfaces.
6. Place Packing fiber around the ends of each individual wire or cable ends tocreate a
dam for pouring the compound into the PAC Seal. This allows forthe entire contents
of the PAK Seal to be encapsulated by the compound with environmentally safe,
non-asbestos material.
7. LUBT-2 lubricant isrecommended for use on threaded joints. This lubricant is used
to prevent galling of the pipe threads when threading into couplings,junction boxes,
etc. It provides for undamaged male and female threads and a quick release when
parts are being disassembled. The thread lubricant should be a high-quality lubricant
used in temperatures ranging from -40°to +50°F, andis recommended for use in
hazardous locations. The PAC Seal Compound, packing fiber andLUBT-2 areavailable
from Killark at http://www.killark.com/.
8. For enhanced reliability of the Purge unit, an AC line conditioner is recommended.
AC power lines should be no smaller than 14gauge andhave a TRUE EARTH
GROUND.

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 10 D010-000002
4.2 Purge Air Line Connection Instructions
4.2.1 For Division 1 X-Purge Systems Model 9016
After the unit has been mounted in its final location in the hazardous area, it
must be permanently connected to a purge air or inert gas line and checked for
leaks and proper operation of the purge/pressurization system. Only when its
pressure integrity has been established should electrical signals and power be
brought “live” to the unit.
ALWAYS follow all NEC, NFPA, and local codes when installing purge systems
in hazardous areas! It is very important that knowledgeable personnel,
familiar with national and local codes, supervise hazardous area equipment
installations.
Equipment Required
•Clean, dry purge air or inert gas supply equipped with local water/oil separator or
filter capable of supplying 40 to 300 SCFH at 30 to 60 PSI.
•Fittings and tubing for purge air or inert gas supply (0.25” NPT Male to connect to
the inlet of the purge system).
•Local air pressure shutoff valve.
Procedure
1. Mount the enclosure in the location in which it will be installed near the source of air or
inert gas to be used for the purge system.
2. Install the pressure regulator, water/oil separator or filter, shutoff valve, pressure relief
valve, and pressure gauge in the purge air or inert gas line (see drawing P011).
3. Bleed the purge air or inert gas line to ensure that dirt, moisture, and other contaminants
are cleared from the line prior to connecting the line to the unit!
4. Connect the purge gas line to the inlet of the regulator on the Purge Unit.
5. The PAC-Seals bringing the power and signals to the explosion-proof I/O casting should
already be installed. Connect the signal lines to the interlock system (see drawings E018,
E019, E022, and E025).
6. Ensure that the power to the AC supply lines is disconnected.Connect the power line(s) to
the X-Purge system (see drawing E017).
7. If the area can be made safe, you may want to test your connections before closing the
explosion-proof I/O casting. If you test the system in place, it is VITAL that you ENSURE
THAT THE AREA IS SAFE during the test and FOLLOW ALL APPLICABLE SAFETY
PROCEDURES for “hot work” in a hazardous area! You can test connections without
purging by holding down the “Bypass Purge” button (see drawing E020) while applying
power; you must release the button within 30 seconds of power application to prevent a
diagnostic error. When the button is released, power and signals are immediately “live” to
the system; you can test operation to make sure that the connections have been made
correctly. Disconnect power IMMEDIATELY upon completion of this test to ensure that the
unit is not erroneously operated in bypass mode!
8. When the signal and power connections are complete, replace the cover on the I/O casting
and secure with the supplied 14 hex-head bolts and torque to 7.5 ft. lbs.

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 11 D010-000002
5Start-Up Operation
5.1 Division 1 X-Purge Start-Up Operation
1. Set DIP switches (see drawing P008, note 8 and drawing E029 note 3 to set the DIP
switches for the size enclosure you are going to purge.
2. Replace and close all access doors and covers when the air, signal, and power
connections are complete.
3. Apply AC power. The Purge Status LED will illuminate RED indicating power though the
Intrinsic Safety Barrier to the purge/pressurization control circuit.
4. Apply purge gas to the system by opening the shutoff valve. Adjust pressure regulator
if needed on the air-in box (see drawing P008) to 40 PSI.
5. When pressure inside the unit reaches 1.0” WC and > 40 SCFH, the Purge Status
LED should illuminate YELLOW, indicating that it is purging.
IF THE INDICATOR DOES NOT ILLUMINATE a thorough inspection for leakage of
the unit must be made. Panel gaskets can be checked with a soap solution. If
leaks are not visually apparent, verify that the pressurized air is clean, dry and is
40 PSI at the inlet.
6. If the Pre-installation Test (Section 3) was completed successfully and the same results
were seen up to this point in the procedure, you may skip the remaining steps of this
procedure. If not, continue to Step Error! Reference source not found.
7. Slowly increase air pressure with the regulator until the purge process stops.
Note Pressure the pressure at which the purge process stops.
The Purge Status LED will flash red and display an error code -[2 – 2] (over
pressure) or [3 –2] (over-flow).
8. Remove AC power from the enclosure for a minimum of 30 seconds. Decrease
the pressure reading on the pressure gauge by 5 PSI.
This change may vary slightly on some units; if in later testing the unit fails with
an [3 –2] (over-flow) error code, decrease the inlet pressure by another 2 PSI.
Note Pressure for use during start-up.
9. Re-apply AC power. The Purge Status LED will illuminate yellow and should purge
for a minimum of 8 minutes. Time will vary according to the flow rate of the air
into the enclosure.
10. After the purge is complete, the Purge Status indicator will illuminate green.
AC power is now applied to the internal electronics to power on the display or PC.
11. If the purge status light blinks red, refer to Table 6.1 X-Purge Status Light Key
page 12 for error code details.
DO NOT ATTEMPT TO OPEN THE ENCLOSURE WHILE IT IS PRESSURIZED!
OPENING PRESSURIZED ENCLOSURE CAN RESULT IN SERIOUS INJURY!

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 12 D010-000002
6Operation Notes
6.1 Division 1 X-Purge
X-Purge systems are fully automatic. The system disconnects power and signal in the
enclosure in the event of a purge failure. The DAISY purge control also performs automatic
self-diagnostics and can report other errors. Table 6.1 X-Purge Status Light Key details both
the normal conditions and the errors (fatal and non-fatal) that are reported by the purge
status LED (see drawing P008, Note 9).
NOTE: Blink Codes can be read in Forward or Reverse. For example, Code [2 – 3] is the same
as Code [3 – 2]. A [ “0” ] in the code column indicates a steady (non-blinking) light.
The Status Column indicates the nature of the information being given:
•“Informative”is simply a status indication with no action needed.
•“Non-fatal” is a condition that can be corrected, and operation will then proceed
normally.
•“Fatal” Errors require the purge system be SHUT DOWN before correcting the
problem and restarting the purge cycle.
Table 6.1 X-Purge Status Light Key
Color Code Meaning Status Recommended Action
Green 0 Operate, purge
complete Informative N/A
Yellow Purge in progress Informative N/A
Yellow 1-1 Minor overflow Non-fatal Reduce PSI via air-regulator
Red 0 Waiting to begin
purge Non-fatal
Verify Purge air supply is on. If still not indicating
needed pressure, verify all doors and access panels are
closed and tightly sealed. Increase air pressure with air-
regulator as needed after all doors and seals have been
verified.
Red 1-1 System Error Fatal
Contact DAISY Customer Service (See Section 7)
Review Customer Service on page 14 and
Troubleshooting Section page 15.
Red 2-1 Under pressure Fatal Loss of pressure. Verify proper door seal and Purge Gas
supply.
Red 2-2 Over pressure Fatal
Reduce air pressure 5 PSI min. via air regulator.
Continue to reduce pressure until purge completes
without error. If problem continues, contact DAISY
customer service (See Section 7).
Red 3-2 Major overflow Fatal Reduce air pressure 5 PSI min. via air regulator.

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 13 D010-000002
Color Code Meaning Status Recommended Action
Red 3-3 Water detected Fatal
Occurs if Water Sensor option installed. If indicated, the
unit must be SHUT DOWN, MADE SAFE, OPENED AND
DRIED OUT COMPLETELY!
VERIFY no water remains in the unit and no damage has
occurred to internal components resulting from the
water.
IN CASES OF SERIOUS WATER INCURSION, DO NOT
ATTEMPT TO REAPPLY POWER TO THE EQUIPMENT!
Equipment should be returned to DAISY for
evaluation.
Red 4-1 Faulty pressure
sensor Fatal
Purge System component failure.
Contact DAISY Customer Service (See Section 7)
Review Customer Service on page 14 and
Troubleshooting Section page 15.
Red 4-2 Faulty flow sensor Fatal
Purge System component failure.
Contact DAISY Customer Service (See Section 7)
Review Customer Service on page 14.
Red 4-3 Short purge switch
is stuck Fatal
The “SHORT PURGE” switch on the DIP switch
mounting board (drawing E020) is shorted, stuck, or
was held down too long while beginning a test.
VERIFY nothing is holding the switch closed or shorting
the circuit.
If you continue to experience problems, Contact DAISY
Customer Service (See Section 7)
Review Customer Service on page 14.
Red 4-4 Bypass purge
switch is stuck Fatal
The “BYPASS PURGE” switch on the DIP switch
mounting board (drawing E020) is shorted, stuck, or
was held down too long while beginning a test.
VERIFY nothing is holding the switch closed or shorting
the circuit.
If you continue to experience problems, Contact DAISY
Customer Service (See Section 7)
Review Customer Service on page 14.

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 14 D010-000002
7Customer Service
All Daisy systems pass detailed quality control configuration and inspection before being
shipped. Daisy strives to create the highest quality systems and chooses top quality parts.
However, like most electronic devices, units may experience issues over time. Should you
experience problems, or have any inquiries or comments, please contact Daisy’s Customer
Service Department:
Equipment returned to DAISY for service must be accompanied by a valid Return
Merchandise Authorization (RMA) number. Anything shipped to DAISY without a valid RMA
number will be refused. Please contact customer service for an RMA number; be prepared
to provide model AND serial numbers to help identify your equipment. Typical I.D label
shown below with Serial and Model numbers highlighted.
You may be able to trouble shoot problems yourself. To save time and money, please
consult the trouble-shooting guide in this manual.
Business Phone: [phone] ext.222
Fax: [phone]
Email: [e-mail]

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 15 D010-000002
8Trouble-Shooting Guide
8.1 Division 1 X-Purge Trouble-Shooting
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION
When power is applied, the
purge status indicator light
does not come on
Power is not connected to
the unit
Connect AC power to the power
connection on the purge system.
Ensure that the power switch is on.
Ensure that AC power is on.
Improper line voltage
selection
Ensure that the 120/240 VAC switch
on the purge control is set
appropriately for your power
source.
After power is applied, the
purge status indicator stays
solid red; it does not switch to
yellow or blink
No air supply to unit
Ensure that a purge gas line is
connected to the unit and that the
supply line is “on.” The pressure
gauge on the air-in box should
indicate a higher pressure than 20
PSI
Restrictions in air line
Ensure that supply line and inlet
connect have no restrictions and
that the supply line is not kinked
Restrictions in main purge
line inside enclosure
Ensure that the main purge line
(terminating in a brass tee fitting) is
not kinked or disconnected
Leaks in the enclosure
Ensure that all access doors are
closed and latched. Ensure that all
access panels are closed and sealed.
There should be no holes or
openings in the enclosure.
The purge status indicator is
yellow, but the enclosure
takes an excessively long time
to complete the purge (when
the status indicator turns
green)
Low purge gas supply
pressure
Increase purge gas inlet pressure at
the air-in regulator or on the main
supply line
Restriction in the main purge
line
Ensure that the main purge line
within the enclosure (ending in a
brass tee fitting) is not kinked or
obstructed
Purge status indicator flashes
yellow and purge takes an
excessively long time to
complete.
Low purge gas supply
pressure
Increase purge gas inlet pressure at
the air-in regulator or on the main
supply line
Purge or operation stops and
purge status indicator flashes
red code
Fatal purge error
See Table 6.1 X-Purge Status Light
Key on page 12.

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 16 D010-000002
9Specifications
MATERIAL
Purge Control main panel, Interface Box,
and all mounting screws............................ 304 Stainless Steel
I/O Casting and lid ..................................... Cast Aluminum
I/O Casting bolts ........................................ Irradiated Steel

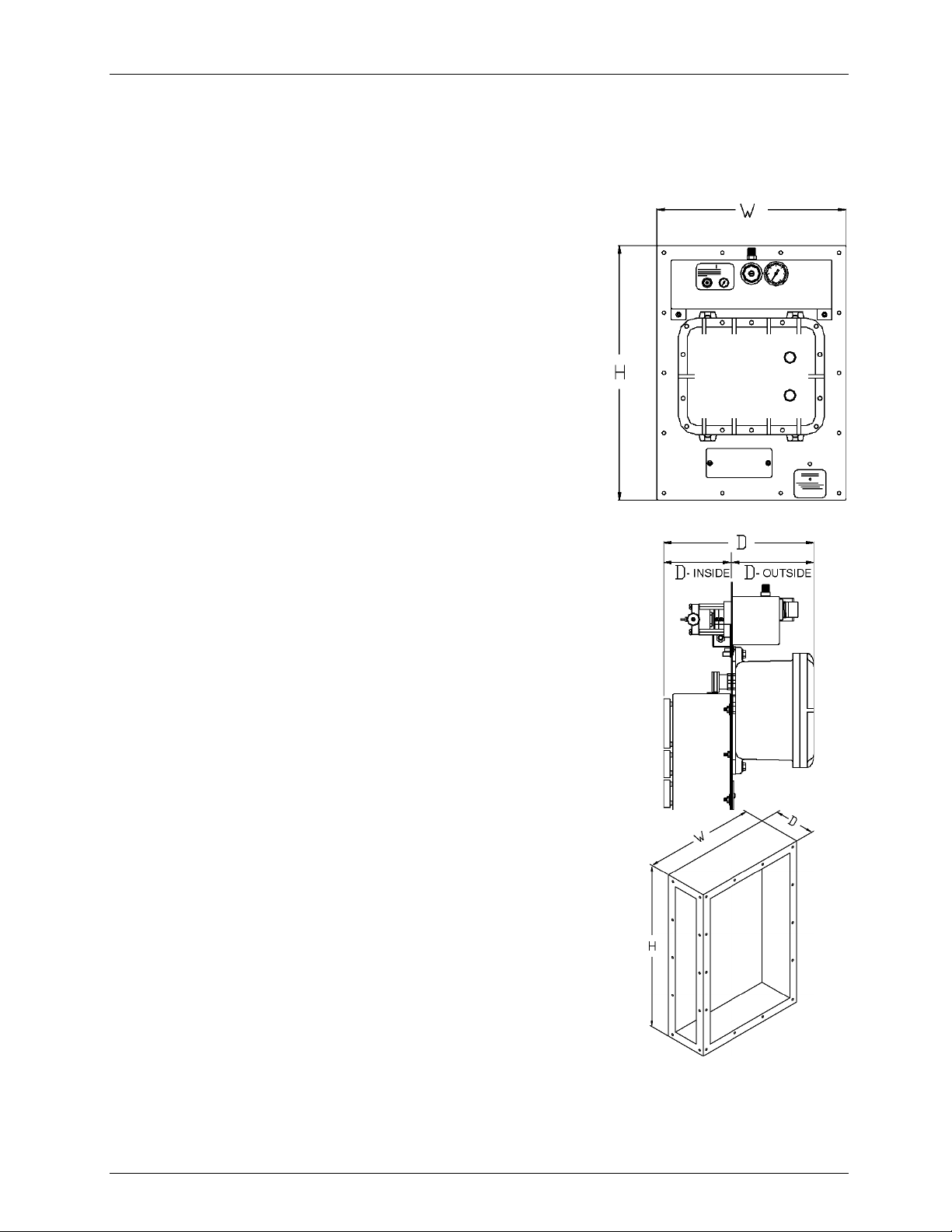

PHYSICAL
Purge Controller ........................................ 17.5 Height (H)
11.5” Width (W)
10.81” Depth (D)
4.0” D-Inside
5.63” D-Outside
25 lbs.
Interface Box ............................................. 17.5” Height (H)
11.5” Width (W)
5.0” Depth (D)
5 lbs.
ENVIRONMENTAL
Operating Temperature ............................ 32-122°F
Storage Temperature ................................ 32-158°F
Relative Humidity ...................................... 10-95% Non-condensing
ELECTRICAL
Power Usage.............................................. 5 watts maximum
Switching Capacity (power) ....................... 120V/8A or 240V/4A (Max)
Switched contacts (signal) ......................... 36
Contact ratings .......................................... 24VDC @ 1A
FCC Class A computing device
Alarm Contacts .......................................... SPDT
................................................................... 120V/8A or 240V4A (Max)
PRESSURE AND AIR REQUIREMENTS
Incoming Air Pressure
(Customer Air Input).................................. 20-60 psi
Operating Pressure.................................... 1” - 4” of water column
Air Flow During Purge................................ 40-300 SCFH
CONTROLS MONITORING
Microprocessor based
For current options and for special requirements, consult factory.

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 17 D010-000002
10 Drawings
The following is a list of drawings in the order in which they appear:
Dwg No. Description Page
P007 Cable and conduit entry 9016 15” & 18” enclosures .............................................................. 19
P008 X-Purge front panel item location ........................................................................................... 20
P011 Cable and conduit entry 9016 mounted to enclosure ............................................................ 21
E030 Electrical input connections .................................................................................................... 22
M015 9016 X-Purge dimensions........................................................................................................ 23
M013 9016 X-Purge mounting........................................................................................................... 24
M016 9016 X-Purge mounting options.............................................................................................. 25
P012 9016 X-Purge front panel item location .................................................................................. 26
P013 X-Purge back panel item location............................................................................................ 27
P014 Stand alone X-Purge pneumatic block diagram ...................................................................... 28
E028 Stand alone X-Purged electrical block diagram....................................................................... 29
E017 Power interface board item location ...................................................................................... 30
CHART Div.1 X-Purge signal switching board/internal signal interface board.................................... 31
E018 Signal switching board item location ...................................................................................... 32
E019 Internal signal interface board item location.......................................................................... 33
E020 DIP switch mounting (DMB) board item location ................................................................... 34
E022 Connections for Remote X-Purged enclosures........................................................................ 35
E025 Connections for LCD-PC X-Purged enclosures......................................................................... 36
E029 DIP switch mounting (DMB) board item location ................................................................... 37
E032 DIP switch mounting (DMB) item location (130 C.F.).............................................................. 38
E021 Purge control board item location .......................................................................................... 39

Model 9016 X-Purge Operator Interface Daisy Data Displays, Inc.
February 2022 18 D010-000002
THIS PAGE INTENTIONALLY BLANK

Page 19

Page 20
