Daktronics P1348 Instruction Manual

201 Daktronics Drive
Brookings, SD 57006-5128
www.daktronics.com/support
800.325.8766
ANALOG CLOCK
INSTALLATION &
MAINTENANCE MANUAL
P1348
ED-16102
Rev 02
18 June 2018

Copyright © 2006-2018
All rights reserved. While every precaution has been taken in the preparation of this manual, the publisher assumes no
responsibility for errors or omissions. No part of this book covered by the copyrights hereon may be reproduced or copied
in any form or by any means—graphic, electronic, or mechanical, including photocopying, taping, or information
storage and retrieval systems—without written permission of the publisher.
Daktronics trademarks are property of Daktronics, Inc. All other trademarks are property of their respective companies.

– i –
Table of Contents
1 Introduction���������������������������������������������������������������������������������������������������������������������������1
Important Safety Instructions...............................................................................................................1
Resources ..............................................................................................................................................1
2 Mechanical Installation �������������������������������������������������������������������������������������������������������2
Mounting ...............................................................................................................................................2
Removal & Replacement....................................................................................................................2
Small Clocks �������������������������������������������������������������������������������������������������������������������������������������2
Large Clocks�������������������������������������������������������������������������������������������������������������������������������������3
3 Electrical Installation ������������������������������������������������������������������������������������������������������������4
Clock Control Installation ....................................................................................................................4
4 Replacement Parts ���������������������������������������������������������������������������������������������������������������5
Replacement Fuses..............................................................................................................................5
Routine/Preventative Maintenance ..................................................................................................5
A Reference Drawings �������������������������������������������������������������������������������������������������������������7

This page intentionally left blank.

Introduction
1
1 Introduction
This manual explains the installation and maintenance of Daktronics Analog Clocks.
This manual is not specic to a particular installation. Project-specic information takes
precedence over general information found in this manual.
Important Safety Instructions
• Read and understand all instructions before beginning the installation process.
• Disconnect power when not in use or when servicing.
• Do not modify the structure or attach any panels or coverings to the clock without
the express written consent of Daktronics.
• Do not disassemble control equipment or electronic controls of the clock; failure to
follow this safeguard will make the warranty null and void.
Resources
Figure 1 illustrates a Daktronics drawing label.
This manual refers to drawings by listing the last
set of digits. In the example, the drawing would
be referred to as DWG-1007804. All references to
drawing numbers, appendices, gures, or other
manuals are presented in bold typeface.
Any drawings referenced in a section are listed
at the beginning of it as shown below:
Reference Drawing:
System Riser Diagram....................................................................................... DWG-1007804
Daktronics identies manuals by the DD or ED number located on the cover page.
Ensure all applicable materials have been gathered before beginning the installation.
Contact a Daktronics sales coordinator or project manager.
Drawing Number
Figure 1: Drawing Label

Mechanical Installation
2
2 Mechanical Installation
Mounting
Reference Drawings:
Attachment- DA-1100-4 to DA-1004-XX ........................................................... DWG-272683
Each analog clock will be mounted differently depending on the diameter of the clock
face and the surface to which it will be attached.
DWG-272683 in Appendix A shows the typical location and hardware required when
mounting an analog clock to a standard Daktronics arch truss. For all other types of
mountings, refer to contract-specic shop drawings or system riser diagrams.
Note: For installation procedures of the truss itself, refer to the Outdoor Decorative
Accent Installation Manual (ED-16076), available online at www.daktronics.com/
manuals.
Removal & Replacement
Small Clocks
Refer to Figure 2 and the instructions below for removal of clocks that are 4' (1.2 m) and
smaller in diameter:
Clock Face
Clock
Mechanism
Cover
Clock
Mechanism
Bracket
Screw
@4
Clock
Mechanism
Figure 2: Rear View, Small Analog Clock
1� Disconnect power to the clock.
2� Remove both clock hands from the front of the clock.
3� Remove rear cover from the back of the clock.
4� Remove the four screws from within the clock mechanism to free the clock from the
bracket.

Mechanical Installation
3
Large Clocks
Refer to Figure 3 and the instructions below for removal of clocks that are 5’ (1.5 m) and
larger in diameter:
Clock Face
(with Splice
Plates @2)
Clock
Mechanism
(with Attached
Mounting Plate)
Clock
Mechanism
Bracket
Screw
@4
Figure 3: Rear View, Large Analog Clock
1� Disconnect power to the clock.
2� Remove both clock hands from the front of the clock.
3� Remove the four screws securing the Clock Mechanism (with Attached Mounting
Plate) to the Clock Mechanism Bracket.
4� Unbolt the Mounting Plate from the Clock Mechanism, and keep it for the
replacement clock.
Note: Do not use straps provided by Electric Time; reuse the Daktronics mounting
plate when replacing the clock mechanism.

Electrical Installation
4
3 Electrical Installation
CAUTION: Only qualied individuals should perform power routing and termination.
Electrical contractors are responsible for ensuring that all electrical work meets or
exceeds local and national codes�
Clock Control Installation
Reference Drawings:
System Riser: Clock Assy..................................................................................... DWG-263976
The clock control system consists of two parts: a controller and a motor mechanism. The
controller is used to set the current time and send power to the motor mechanism, which
in turn rotates the clock hands. DWG-263976 in Appendix A illustrates a typical wiring
diagram for 115 and 230 VAC installations. For additional clock installation and setup
information, refer to the 99B-MI User’s Manual, located online at www.electrictime.com/
services/support.
1� After the motor mechanism is mounted to the rear of the clock face, install the clock
hands to the front of the clock face with both hands pointing up at the 12:00 position.
2� Determine the controller location and mount per manufacturer’s instructions.
Note: The controller and motor may be located no more than 100' (30.5 m) away
from each other.
3� Connect power in conduit to the controller.
4� Connect power in conduit from the controller to the motor mechanism.
5� Set the clock to the correct time per manufacturer’s instructions.

Replacement Parts
5
4 Replacement Parts
Refer to the following table for standard and optional replacement parts.
Description Part Number Clock Model #
Clock Movement, 36" (B28G7-MI) A-2034 DA-1101-3
Clock Movement, 48" (B28G7-MI) A-2035 DA-1100-4, DA-1102-4
Clock Movement, 60" (B28G7-MI) A-2036 DA-1100-5, DA-1101-5
Clock Movement, 72" (B28G7-MI) A-2037 DA-1100-6, DA-1102-6
Electric Time Analog Clock Controller (99B-MI) A-2038 All
Replacement Fuses
Primary fuse:
• Daktronics: P/N FUSE-99BMI-2.5-250-F
• Digikey: P/N WK4713-ND FUSE 2.5/250V SLO 5X20 UL/CSA
• WICKMAN: 1971250000
Secondary fuse:
• Daktronics: P/N FUSE-99BMI-1.0-250-F
• Digikey: P/N WK4709-ND FUSE 1.00 250V FAST 5X20 UL
• WICKMAN: 1911100000
Routine/Preventative Maintenance
Perform an annual visual inspection of each clock and check the following:
• Check and tighten fasteners or replace them as required.
• Check the electrical components for proper connection and any signs of corrosion.

This page intentionally left blank.

Reference Drawings
7
A Reference Drawings
Refer to Resources (p�1) for information regarding how to read the drawing number.
Any contract-specic drawings take precedence over the general drawings.
Reference Drawings:
System Riser; Clock Assy..................................................................................... DWG-263976
Assy: DA-1100-4................................................................................................... DWG-272682
Attachment- DA-1100-4 to DA-1004-XX ........................................................... DWG-272683

This page intentionally left blank.

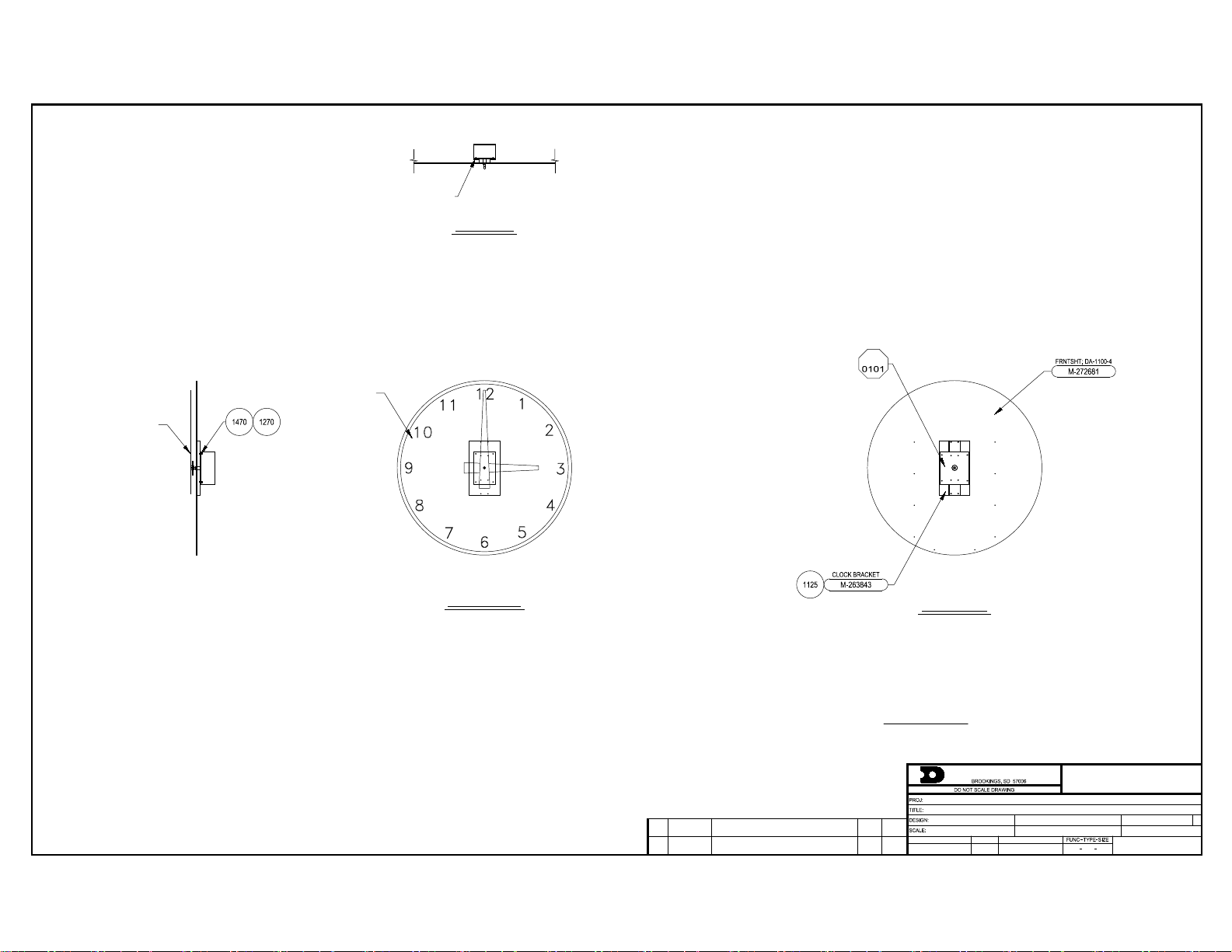

HC
@4
BOLT SERT
HS
@4
APPLY SERTS AND BOLTS
BEFORE RIVETING TO
FRONTSHEET.
CLOCK MECHANISM AND
HANDS WILL BOTH BE
CALLED OUT IN THE
SAME ASSEMBLY PACKET.
- REFER TO 0W PACKET FOR MOUNTING PROCEDURE AND LOCATION.
- DA-1100-4 WILL BE MOUNTED TO THE FRONT FACE OF A TRUSS.
0A-1348-0203...... F. ASSY, DA-1102-4
ASSEMBLY PACKETS
CLOCK NUMERALS ARE
SHOWN FOR CONCEPT ONLY.
CONTACT COPY MANAGEMENT
COORDINATOR FOR ACTUAL
FACE STYLE USED.
@1
HC
@8
RIVET
REAR VIEW
FRONT VIEW
TOP VIEW
@1
0A
1348
@1
CLOCK MECHANISM
THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON THIS
DRAWING ARE CONFIDENTIAL AND PROPRIETARY. DO NOT
REPRODUCE BY ANY MEANS WITHOUT THE EXPRESSED
WRITTEN CONSENT OF DAKTRONICS, INC.
COPYRIGHT 2013 DAKTRONICS, INC.
DAKTRONICS, INC.
BH
DRAWN: DATE:
SHEET JOB NO:REV
DECORATIVE ACCENTS
ASSY: DA-1100-4
TJOHNSON 22MAY06
P1348 E 10 B
1=15*
TJOHNON
272682
02
DATE:REV BY:
01 05 APR 10 SAG
REPLACED HC-1022 @4 WITH HC-1470 @4
PER ECO-060149.
DATE:
REV BY:
02 06 MAY 13 KDD
PER EC-8972, REPLACED HC-1135 W/HC-1125
