Daktronics Rc-200 User manual

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

REMOTE CONTROL SYSTEM

RC-200

ALL SPORT OPERATION

MANUAL

P1110

DD3572889

Rev 00

18 May 2018

responsibility for errors or omissions. No part of this book covered by the copyrights hereon may be reproduced or copied

in any form or by any means—graphic, electronic, or mechanical, including photocopying, taping, or information

storage and retrieval systems—without written permission of the publisher.

Daktronics trademarks are property of Daktronics, Inc. All other trademarks are property of their respective companies.

– i –

Table of Contents

1 Introduction��1

Important Safeguards ..........................................................................................................................1

Specications Label .............................................................................................................................1

Recommended Temperatures ...........................................................................................................1

Resources ..............................................................................................................................................1

Daktronics Exchange and Repair & Return Programs .....................................................................2

Exchange Program ��2

Repair & Return Program ��3

Daktronics Warranty & Limitation of Liability��3

2 RC-200 System Overview��4

Important Installation Range Considerations��4

3 RC-200 Handheld Controller��5

Powering the Controller On & Off ......................................................................................................5

Using the Keypad ��5

Using External Power ��5

Battery Operation.................................................................................................................................5

Idle Time ��5

Battery Recharging .............................................................................................................................5

Cong Mode.........................................................................................................................................6

Setting Default Radio Broadcast Group & Channel ��6

Setting LCD Contrast��6

Setting Power Save Mode��6

Connect Mode.....................................................................................................................................7

Switching to Connect Mode��7

Signal Strength Indicator ��7

Common Keys.......................................................................................................................................8

Alternate Function Keys��9

4 All Sport Applications��10

Selecting All Sport Applications (Code Numbers)..........................................................................10

Keypad Inserts.....................................................................................................................................11

Keypad Insert Operation Concepts ��11

Common All Sport Application Keys ................................................................................................12

New Code (Alt� Function) ��12

New Game (Alt� Function)��12

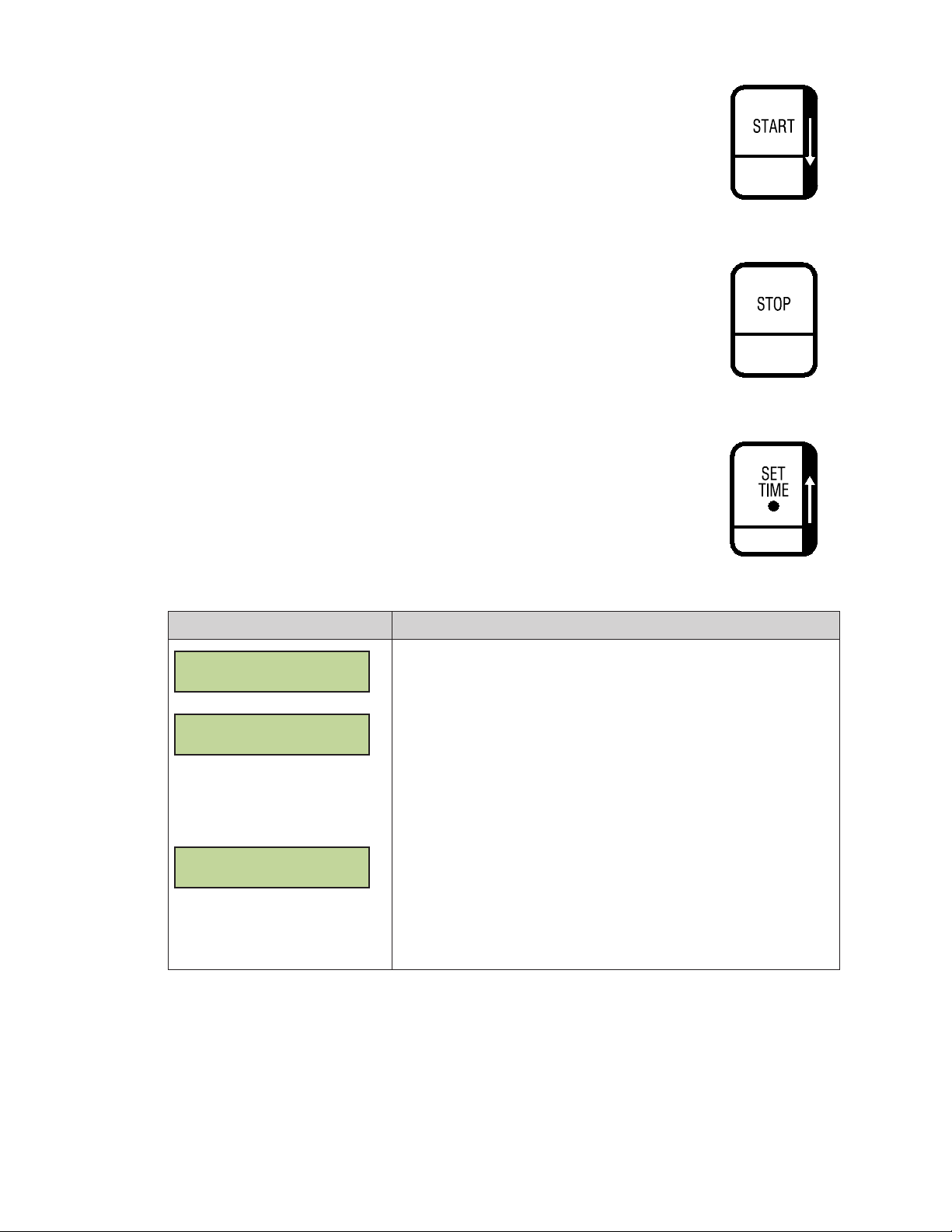

Start ��13

Stop��13

Set Time ��13

UP/DN (Alt� Function) ��14

Dim (Alt� Function)��14

Manual Horn ��14

Auto Horn ��15

5 Clock/Score Operation ��16

– ii –

Table of Contents

Score (+1/-1) .......................................................................................................................................16

Period +1..............................................................................................................................................16

Set TOD (Alt. Function) .......................................................................................................................16

6 Volleyball Operation��17

Score (+1/-1) .......................................................................................................................................17

Won (+1/-1) .........................................................................................................................................17

Reset Game Score .............................................................................................................................17

Game (+1/-1) ......................................................................................................................................17

7 Baseball Operation ��18

Score (+1/-1) .......................................................................................................................................18

Out +1, Inning +1.................................................................................................................................18

Ball +1, Strike +1, Clear Ball & Strike ..................................................................................................18

Hit..........................................................................................................................................................18

Error ......................................................................................................................................................19

Time, At Bat, H/E (Alt. Function) ........................................................................................................19

Time/At Bat..........................................................................................................................................19

8 Play Clock & Pitch Timer Operation��20

Set Reset 1, Set Reset 2 ......................................................................................................................20

Reset 1, Reset 2 ...................................................................................................................................20

9 Segment Timer Operation��21

Segment Timer Information ...............................................................................................................21

Segment Number/Time......................................................................................................................21

First/Last Segment...............................................................................................................................21

Current Segment +1 ...........................................................................................................................22

Reset Current Segment......................................................................................................................22

Reset to First Segment ........................................................................................................................22

Interval Time ........................................................................................................................................22

Copy Range........................................................................................................................................22

Auto Stop.............................................................................................................................................23

Warning Time ......................................................................................................................................23

10 Tennis Operation��24

Court Selection ...................................................................................................................................24

Serve ....................................................................................................................................................24

Game +1 .............................................................................................................................................24

Point .....................................................................................................................................................25

Reset Game ........................................................................................................................................25

Tie Break...............................................................................................................................................25

TOD/Game..........................................................................................................................................25

Set +1 ...................................................................................................................................................25

Matches Won (Alt. Function) ............................................................................................................26

Reset Match (Alt. Function)...............................................................................................................26

Next Match (Alt. Function – DakTennis Only) ..................................................................................26

– iii –

Table of Contents

Winner (Alt. Function – DakTennis Only)...........................................................................................26

11 Sand Volleyball Operation ��27

Court Selection ...................................................................................................................................27

Serve ....................................................................................................................................................27

Point .....................................................................................................................................................27

Set +1 ...................................................................................................................................................28

Reset Game (Reset Match) ..............................................................................................................28

TOD/Game..........................................................................................................................................28

Matches Won (Alt. Function) ............................................................................................................28

Game +1, Tie Break, Next Match, Winner........................................................................................28

12 Basketball Operation ��29

Score (+1/+2) ......................................................................................................................................29

Score (+3/-1) (Alt. Functions).............................................................................................................29

Fouls +1 ................................................................................................................................................29

Possession ............................................................................................................................................29

Period +1..............................................................................................................................................30

Set TOD (Alt. Function) .......................................................................................................................30

1/10 SEC (Alt. Function) .....................................................................................................................30

Bonus (Alt. Function)...........................................................................................................................30

13 Football Operation ��31

Score (+1/+6) ......................................................................................................................................31

Score (+3/-1) (Alt. Functions).............................................................................................................31

QTR +1..................................................................................................................................................31

Down +1...............................................................................................................................................31

To Go....................................................................................................................................................32

Ball On..................................................................................................................................................32

TOL -1 ...................................................................................................................................................32

Possession (Alt. Function) ...................................................................................................................32

14 Remote Start/Stop Operation ��33

Start .....................................................................................................................................................33

Stop ......................................................................................................................................................33

Manual Horn/Reset ............................................................................................................................33

15 Goal Judge Operation��34

Goal Light On/Off...............................................................................................................................34

16 CAN Handheld Operation ��35

Common CAN Handheld Operation...............................................................................................35

Diving & Synchronized Swimming Operations ................................................................................35

Rodeo Operations..............................................................................................................................35

17 Troubleshooting ��36

Handheld Controller Error Messages................................................................................................36

Base Station Errors...............................................................................................................................37

IN RANGE LED On Start-up ��37

– iv –

Table of Contents

General Base Station Failures��37

Obtaining Base Station Status Information��37

A Reference Drawings ��39

B Sport Inserts ��57

C Daktronics Warranty and Limitation of Liability ��71

Introduction

1

1 Introduction

This manual is designed to explain the operation of the Daktronics RC-200 Remote

Control System for All Sport®applications. For additional information regarding the safety,

installation, operation, or service of this system, refer to the telephone numbers listed in

Daktronics Exchange and Repair & Return Programs (p�2).

Important Safeguards

• Read and understand all instructions, both general and for specic applications.

• Always turn off and/or unplug the control equipment when it is not in use� Never yank

the power cord to pull the plug from the outlet� Grasp the plug and pull to disconnect�

• Do not drop the control console or allow it to get wet�

• Do not disassemble control equipment or electronic controls of the display; failure to

follow this safeguard will make the warranty null and void�

• Do not let any power cord touch hot surfaces or hang over the edge of a table that

would damage or cut the cord�

• If an extension cord is necessary, use a three-pronged, polarized cord� Arrange the

cord with care so that it will not be tripped over or pulled out�

• Inspect console for shipping damage such as rattles and dents, and verify that all

equipment is included as itemized on the packing slip� Immediately report any

problems to Daktronics; save all packing materials if exchange is necessary�

• Use only the 18 VDC wallpack charger or charging station provided from Daktronics

for recharging the battery� Refer to Battery Recharging (p�5)�

CAUTION! RISK OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED�

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS�

Specications Label

Power specications as well as product assembly

information can be found on an ID label on the back

of the handheld device and on the bottom of the

base station, similar to those shown in Figure 1.

When calling Daktronics customer service,

please have the assembly number and the date

manufactured available to ensure the request is

serviced as quickly as possible.

Recommended Temperatures

• Operation: 14° to 149° Fahrenheit (-10° to 65° Celsius)

• Charging: 32° to 104° Fahrenheit (0° to 40° Celsius)

• Storage: -4° to 113° Fahrenheit (-20° to 45° Celsius)

Resources

Figure 2 illustrates a Daktronics drawing label. This

manual refers to drawings by listing the last set of digits.

In the example, the drawing would be referred to as

DWG-1007804. All references to drawing numbers,

appendices, gures, or other manuals are presented in

bold typeface.

ASSY NO.

SER. NO.

MFG DATE

BROOKINGS, SD 57006-5128 PHONE 800-325-8766 LL-2305 R01

201 DAKTRONICS DR.

DAKTRONICS

Wireless Handheld:

Wireless Base Station:

ASSY NO.

SER. NO.

MFG DATE

BROOKINGS, SD 57006-5128 PHONE 800-325-8766 LL-2305 R01

201 DAKTRONICS DR.

DAKTRONICS

0A-1110-0062

S/N: ####

(DATE) REV ##

POWER: 18V , 1.1A

MODEL: DAKT-0406-00

0A-1110-0067

S/N: ####

(DATE) REV ##

POWER: 12-18V , 0.1A

MODEL: DAKT-0406-00

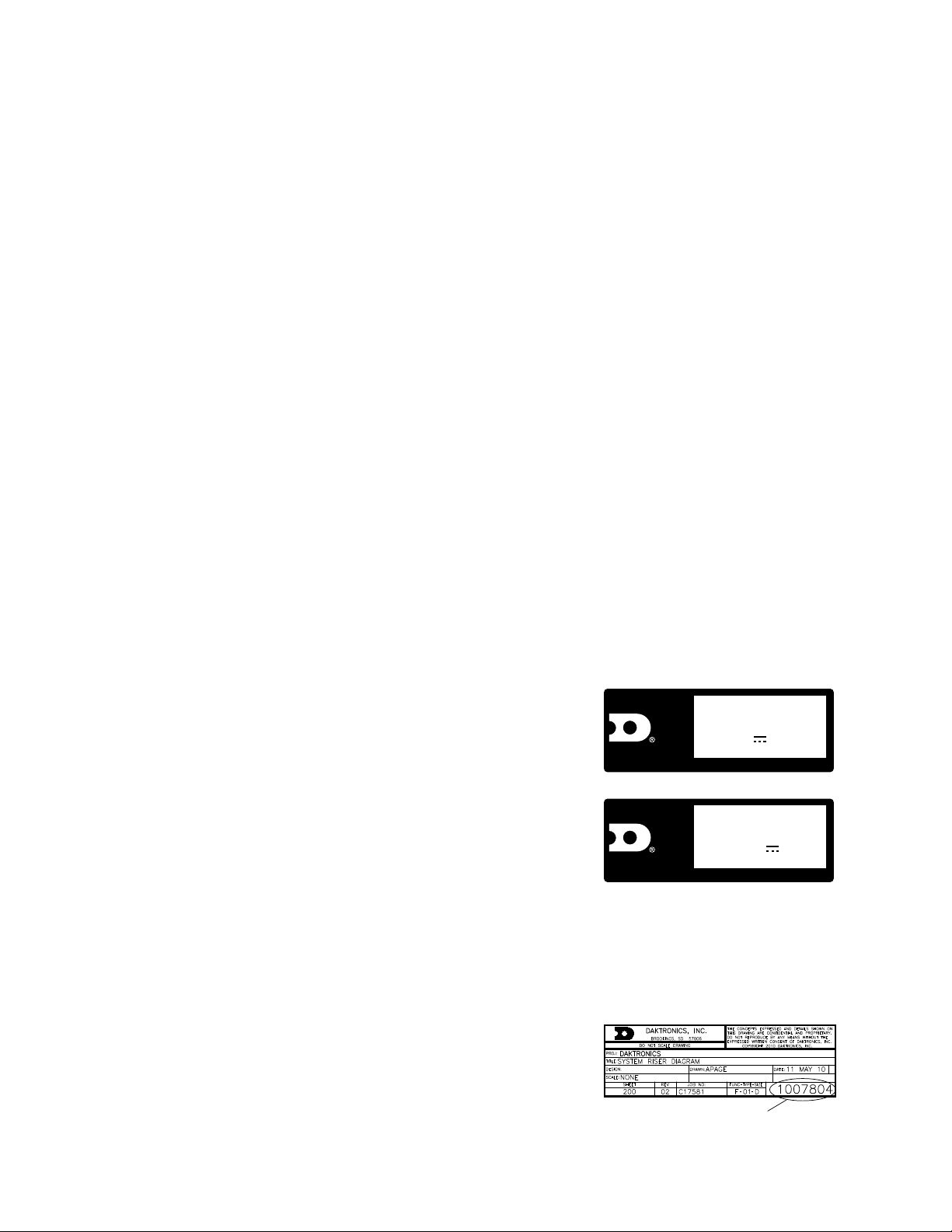

Figure 1: Specications Labels

Drawing Number

Figure 2: Drawing Label

Introduction

2

Any drawings referenced in a section are listed at the beginning of it as shown below:

Reference Drawings:

System Riser Diagram....................................................................................... DWG-1007804

Daktronics identies manuals by the DD or ED number located on the cover page.

Daktronics Exchange and Repair & Return Programs

Exchange Program

The Daktronics Exchange Program is a service for quickly replacing key components

in need of repair. If a component fails, Daktronics sends a replacement part to the

customer who, in turn, returns the failed component to Daktronics. This decreases

equipment downtime. Customers who follow the program guidelines explained below

will receive this service.

Before contacting Daktronics, identify these important numbers:

Display Serial Number: ________________________________________________________________

Display Model Number: _______________________________________________________________

Job/Contract Number: _______________________________________________________________

Date Manufactured/Installed: _________________________________________________________

Daktronics Customer ID Number: ______________________________________________________

To participate in the Exchange Program, follow these steps:

1� Call Daktronics Customer Service�

Market Description Customer Service Number

Schools (including community/junior colleges), religious

organizations, municipal clubs, and community centers

877-605-1115

Fax: 605-697-4444

Universities and professional sporting events, live events for

auditoriums, and arenas

866-343-6018

Fax: 605-697-4444

2� When the new exchange part is received, mail the old part to Daktronics�

If the replacement part xes the problem, send in the problem part being replaced.

a� Package the old part in the same shipping materials in which the replacement

part arrived.

b� Fill out and attach the enclosed UPS shipping document.

c� Ship the part to Daktronics.

3� The defective or unused parts must be returned to Daktronics within 5 weeks of initial

order shipment�

If any part is not returned within ve (5) weeks, a non-refundable invoice will be

presented to the customer for the costs of replenishing the exchange parts inventory

with a new part. Daktronics reserves the right to refuse parts that have been

damaged due to acts of nature or causes other than normal wear and tear.

Introduction

3

Repair & Return Program

For items not subject to exchange, Daktronics offers a Repair & Return Program. To send

a part for repair, follow these steps:

1� Call or fax Daktronics Customer Service�

Refer to the appropriate number in the chart on the previous page.

2� Receive a case number before shipping�

This expedites repair of the part.

3� Package and pad the item carefully to prevent damage during shipment�

Electronic components, such as printed circuit boards, should be placed in an

antistatic bag before boxing. Daktronics does not recommend using packing

peanuts when shipping.

4� Enclose:

• name

• address

• phone number

• the case number

• a clear description of symptoms

5� Ship to:

Daktronics Customer Service

[Case #]

201 Daktronics Drive, Dock E

Brookings, SD 57006

Daktronics Warranty & Limitation of Liability

The Daktronics Warranty & Limitation of Liability is located at the end of this manual. The

Warranty is independent of Extended Service agreements and is the authority in matters

of service, repair, and display operation.

RC-200 System Overview

4

2 RC-200 System Overview

The RC-200 system allows wireless control of multiple

scoring and display applications. This system is made

up of two distinct hardware components: the RC-200

wireless handheld controller, and the RC-200 wireless

Base Station.

The RC-200 wireless handheld controller (Figure 3)

includes a 4x4 keypad and a 97x32 liquid crystal

display (LCD). The RC-200 wireless handheld

controller is used to enter information to be displayed

on a scoreboard or display. The handheld operates

using a 2.4 GHz radio with internal antenna and

comes with a rechargeable Ni-MH (Nickel Metal

Hydride) 2000 mAh battery which provides 8-10 hours

of operation. A complete RC-200 system may include

multiple RC-200 wireless handheld controllers.

The RC-200 wireless Base Station processes

information received from the wireless handheld

controllers and sends this information to the

scoreboard or another external controller. Based on

the application, an RC-200 wireless receiver may be

mounted inside the display (Figure 4), or placed in an

external tabletop enclosure (Figure 5). An outdoor

enclosure is also available for certain applications.

Important Installation Range Considerations

The wireless Base Station must be located at least 10’ (3 m) from the wireless handheld

controller and no more than 500’ (152 m) away. If the wireless handheld is used outside

this range, the wireless handheld signal may drop out. Ideally, the handheld controller

should have a clear line-of-sight to the Base Station antenna. Make sure the Base Station

antenna is pointed straight up for best reception (it should look like a capital “L” when

viewed from the side).

Figure 3: RC-200 Handheld Controller

Figure 4: Internal RC-200 Receiver

Figure 5: External RC-200 Base Station

(Tabletop Enclosure)

Daktronics RC-200 User manual

Popular Remote Control manuals by other brands
