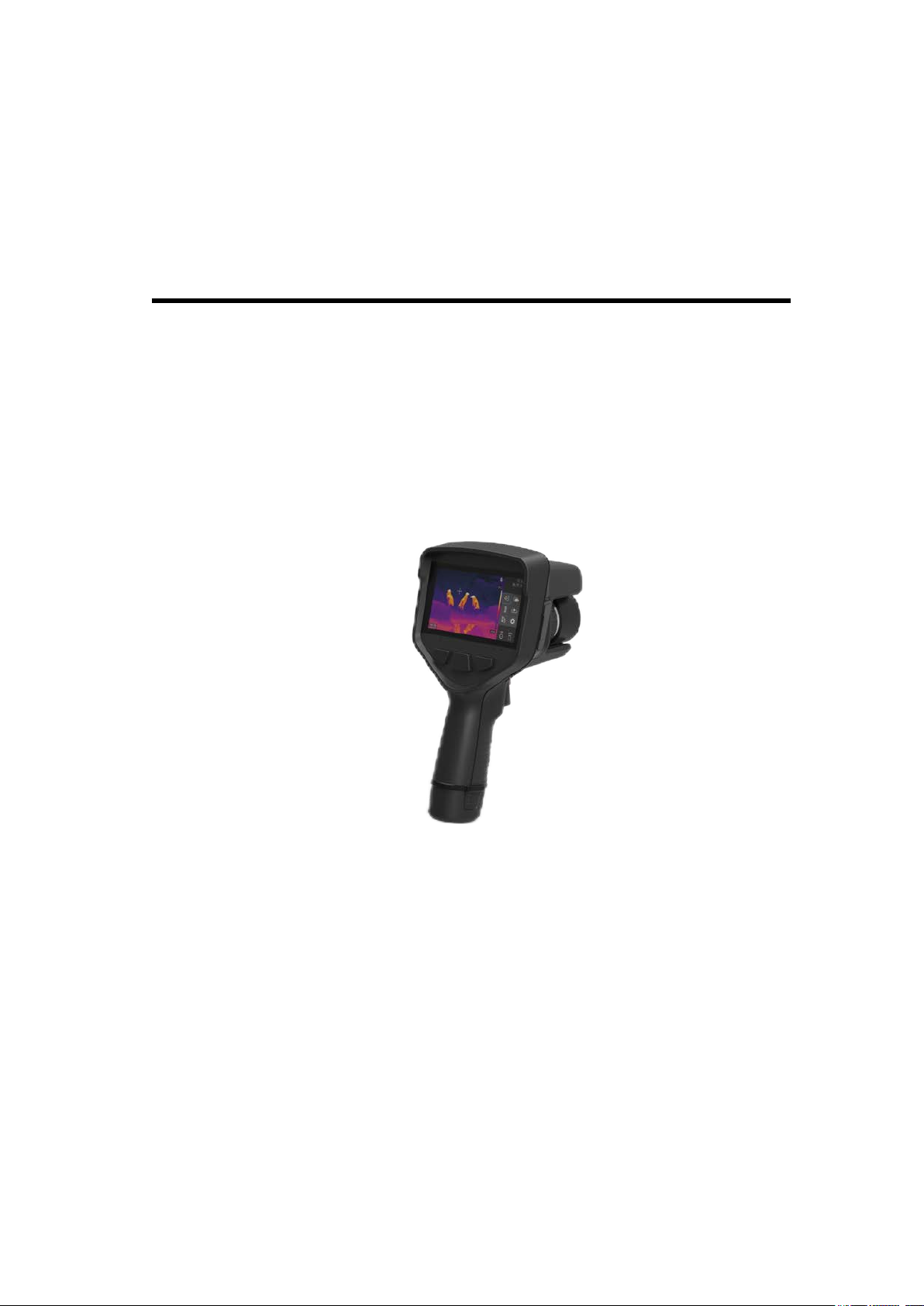

Dali T12-M User manual

T12-M
User's manual
Copyright © 2023 DALI TECHNOLOGY

2
! WARNING, CAUTION AND ATTENTION
Definition
!
A warning represents a dangerous situation or action that could result in personal injury or death.
!
Caution represents a condition or action that may result in damage to the camera or permanent loss of
data.
!
Attention represents useful information for the user.
Important – Read before using the instrument
!
WARNING – This instrument has a built-in laser transmitter. Do not stare at the laser beam. The laser
specification is 635 nm, 0.9 mW, second order.
!
CAUTION – As the camera uses a very sensitive thermal sensor, under no circumstances (power on or
off) should the lens be aimed directly at a strong radiation source (such as the sun, direct or reflected
laser beam, etc.), otherwise the camera will be permanently damaged!
!
Caution-The original packing box must be used during transportation. Do not shake or hit the thermal
imager strongly during use and transportation.
!
CAUTION – It is recommended that the camera be stored in the original container in a cool, dry,
ventilated environment free of strong electromagnetic fields.
!
CAUTION-Avoid staining and damaging the lens surface with oil and various chemicals. After use,
close the lens cap.
!
Caution-To prevent potential data loss, copy (back) the data to your computer frequently.
!
Note-The camera may require a 3-5 minute warm-up period before accurate readings can be taken.
!
Note-Temperature calibration is performed on each thermal imager when it leaves the factory. It is
recommended to perform temperature calibration every year.
!
CAUTION-Do not open or modify the enclosure without authorization. Only authorized personnel of
the company can carry out maintenance.

3
Table of contents
Catalog
! WARNING, CAUTION AND ATTENTION ....................................................................................... 2
Table of contents............................................................................... 3
1 Introduction........................................................................................ 6
1.1 Standard configuration........................................................................................................... 8
1.2 Optional configuration ........................................................................................................... 8
2 Introduction to thermal imagers................................................................. 9
2.1 Function key............................................................................................................................ 9
2.2 Interface................................................................................................................................11
3 Basic operation .................................................................................. 12
3.1 Battery installation and replacement....................................................................................12
3.1.1 Battery handling............................................................................................................ 12
3.1.2 Replace the battery........................................................................................................12
3.2 Common sense of safe use of battery...................................................................................13
3.3 Lens loading and unloading .................................................................................................14
3.4 Quick start............................................................................................................................ 15
3.4.1 Get a thermal image...................................................................................................... 15
3.4.2 Temperature Measure................................................................................................... 15
3.4.3 Store the image.............................................................................................................. 17
3.4.4 Play back the image ...................................................................................................... 17
3.4.5 ExportImage.................................................................................................................. 17

4
3.4.6 LCD screen settings...................................................................................................... 17
3.4.7 Menu operating instructions.......................................................................................... 18
4 Operating instructions .......................................................................... 19
4.1 Description of operation interface........................................................................................19
4.1.1 User interface of thermal imager working status.......................................................... 19
4.1.2 Drop-down menu..........................................................................................................21
4.1.3 Main menu interface .....................................................................................................21
4.2 Laser...................................................................................................................................... 22
This function is used to turn on/off the laser, and laser ranging can be performed when it is
turned on ..................................................................................................................................... 22
4.3 Image mode switching .........................................................................................................22
4.4 Image adjustment .................................................................................................................23
4.5 Temperature measurement mode..........................................................................................23
4.6 Color scale switching...........................................................................................................24
4.7 Image playback ....................................................................................................................24
4.8 Image storage ....................................................................................................................... 25
4.9 Set up .................................................................................................................................... 25
4.9.1 Temperature measurement parameter setting................................................................ 26
4.9.2 Temperature measurement function setting ..................................................................28
4.9.3 Image settings ...............................................................................................................31
4.9.4 Store settings................................................................................................................. 31
4.9.5 Task mode settings........................................................................................................32
4.9.6 Connection settings....................................................................................................... 33
4.9.7 System settings
..............................................................................................................34

5
5 Countermeasures for Common Faults......................................................... 36
AppendixA ......................................................................................... 37
Emissivity of common materials(For reference only)................................................................. 37
Appendix B ......................................................................................... 38
Table of factory setting parameters............................................................................................. 38

6
1Introduction
Thank you for choosing T12-M infrared thermal imager from Zhejiang Dali Technology Co.,
Ltd.
Main functions
Measurement of maximum temperature, minimum temperature and 15 movable points
Temperature measurement in 15 movable areas
8 arbitrary lines for temperature measurement
16 color codes to choose from
Infrared and visible image fusion
Isothermal function
Temperature measurement settings
Fusion of high and low temperature
Built-in common material emissivity meter
Manual and automatic integrated focusing
Multiple interchangeable independent lenses
5 "LCD High Brightness Display
LCD brightness adjustable
Capacitive touch screen
13 million visible light cameras
LED fill light
Laser rangefinder
WiFi
Bluetooth headset
GPS Positioning and Electronic Compass
SD card image storage
USB-C data transfer
HDMI video output
Single or continuous shooting storage
Live video
Time recording
Voice or text annotation

7
Custom Shortcut Key
Power saving mode
Multilingual
Time/Date Settings
Restore factory settings
Upgrade options
Optional wide-angle lens (0.5 X), medium lens (2 X) or telephoto lens (3 X);
It can extend the temperature measurement at high temperature and improve the temperature
measurement range at high temperature.
Main applications:
Preventive maintenance
Power industry: thermal state inspection of transmission lines and power equipment,
fault and defect diagnosis.
Electrical system: pre-identify circuit overloads before they occur.
Mechanical systems: reduce downtime and prevent failures.
Building Science
Roofs: Detect and detect water seepage quickly and efficiently.
Building structure: conduct infrared energy assessment survey for commercial and
residential buildings.
Moisture Detection: Find the source of dampness and mold.
Repair: Evaluate the remedy and make sure the area is completely dry.
Other applications
Iron and steel industry: monitoring of steelmaking and rolling process, diagnosis of hot
blast stove damage, temperature detection of plate blank, etc.
Fire protection: forest fire prevention and potential fire source search, special material
spontaneous combustion prevention and detection, electrical fire safety detection.
Medicine: body surface temperature detection and temperature field distribution
analysis.
Petrochemical industry: inspection of oil pipeline status, inspection of material interface,
inspection of heat leakage and thermal insulation structure, inspection of power equipment status,
etc.

8
1.1 Standard configuration
Thermal imager (armrest)
Carry case
Rechargeable Batteries (2)
National standard charger
Battery charging stand
Lens cover
User manual, report analysis system CD
SD card
SD card reader
USB cable
HDMI video cable
1.2 Optional configuration
0.5 times wide-angle Lens
2x medium focal lens
3x telephoto lens
Portable backpack
Non-GB (European Standard/British Standard/Australian Standard) charger

9
2Introduction to thermal imagers
2.1 Function key
[1] Power key
[2] Mode key
[3] Back key
[7] Microphone
[10]Manual
focusing ring
[4] Photo key
[5]Trigger key

10
[1] Power key
Used for turning the camera on and off, standby, and wake-up. Press the switch for more than
three seconds to turn the camera on/off; press briefly to enter standby/wake-up.
! Note: It is recommended to wait for at least ten seconds after shutdown to ensure the safety
of the camera.
[2] Mode key
Used for image mode switching. Short press to switch the image mode. There are four image
modes to choose: infrared, visible light, picture-in-picture and dual-band fusion image.
[3] Back key
•In menu/edit mode, press briefly to cancel the current menu operation or return to the previous
menu.
[4] Photo key
Use to freeze or save an image. Press the key once to freeze the image, press the key again to
save the image, and press the back key to return to active mode. Press and hold for 3 seconds to
record. At this time, press and hold to stop recording and save the video. The photo key can be set
as a custom shortcut key.
[5] Trigger key
The triggerkey defaults to the laser key. Click the laser key to turn the laser rangefinder on/off.
The trigger key can be set as a custom shortcut key.
[6] Manual focusing ring
When facing the LCD screen, the operator rotates the focusing ring clockwise to focus in the
far focus direction, and rotates the focusing ring counterclockwise to focus in the near focus
direction.
[7] Microphone
Used for voice annotation when saving images.

11
2.2 Interface
[1] TF card slot
Using a standard TF card, Used to save images and upgrade instrument software.
[2] USB interface
For random charging and data transmission and video output.
[2] USB
interface
[1] TF card
slot

12
3Basic operation
3.1 Battery installation and replacement
3.1.1 Battery handling
The battery is in the camera key handle of the instrument, and the end of the handle is the
battery cover.
The battery can be pulled out by pressing the U-shaped elastic area on both sides of the
battery cover and pulling outward.
When inserting the battery, the battery is designed with a fool-proof structure. If it cannot be
inserted, please change the direction to insert it. When the battery cover is pushed inward and a
"click" is heard, the battery has been installed and self-locked, and the instrument can be used.
3.1.2 Replace the battery

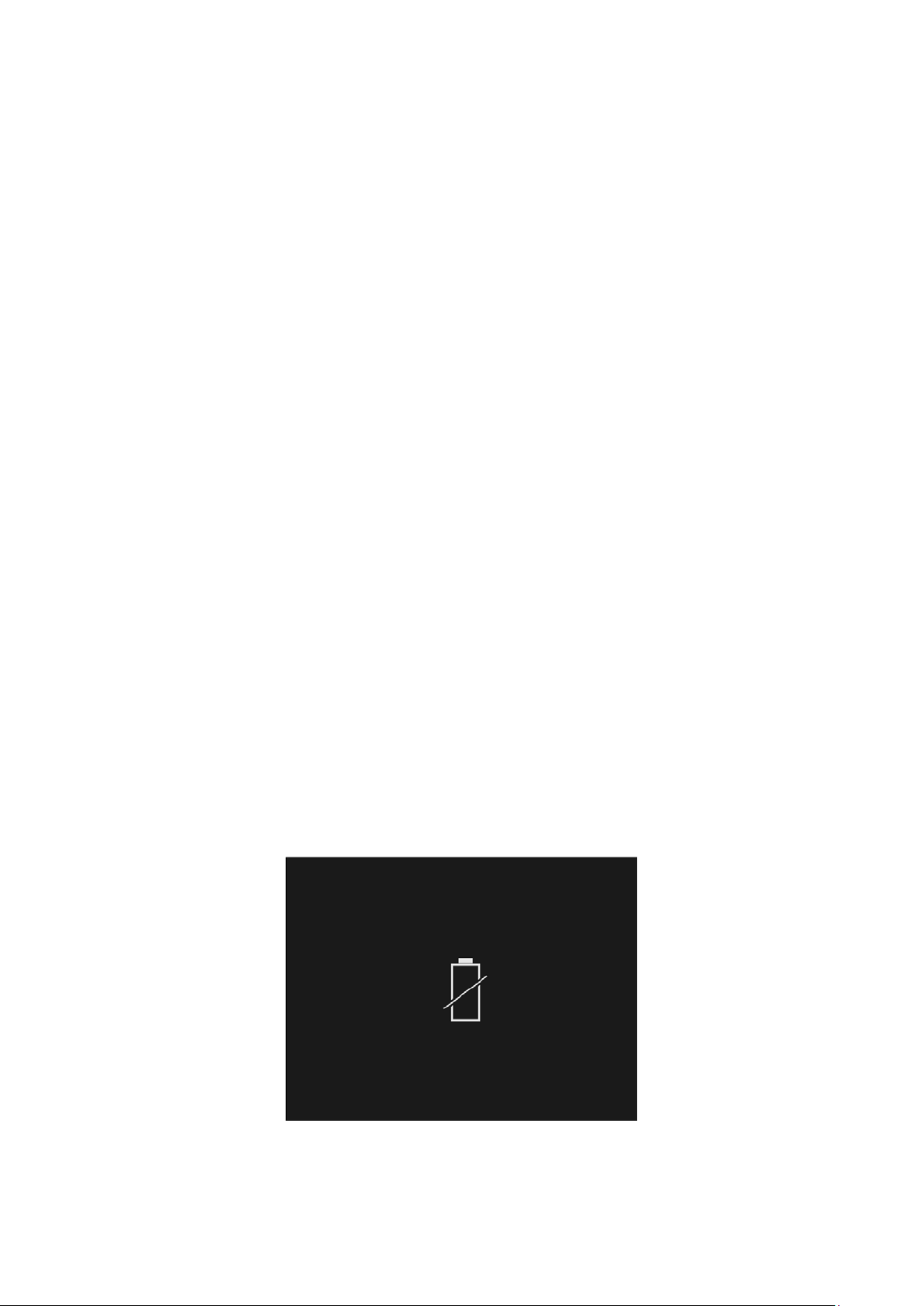

When the battery symbol is blank and blinking, it indicates that the battery has been
discharged and the battery should be replaced. The instrument will automatically shut down after
displaying the low power prompt.
Shutdown prompt

13
3.2 Common sense of safe use of battery
The battery shall be stored at the ambient temperature of -20 ℃ an d 20 ℃ as m uch as possi b l e.
As the battery has a small amount of self-discharge during storage, the battery shall be fully
charged and charged at regular intervals to avoid the possible over-discharge during storage
that may affect the battery capacity. The time interval is as follows:
Ambient temperature is -20 ℃ 20 ℃, once every 6 months;
The ambient temperature is 20 ℃ 45 ℃, once every 3 months;
The ambient temperature is 45 ℃ 60 ℃, once a month.
Each charge must be more than 50% of the battery capacity.
The battery should be charged at an ambient temperature of 0 ℃ 40 ℃. Charging at an
ambient temperature of 0 ℃ w i l l reduce the capaci ty of the battery. Chargi ng at a temperature
above 40 ℃ may cause the battery to overheat and be damaged.
! Warning:
! Do not disassemble, squeeze or stab the battery;
! Do not short-circuit the external contacts of the battery;
! Keep the battery dry and do not place it in fire or water;
! Do not place in a place easily accessible to children;
! Dispose of waste batteries in accordance with local government regulations.

14
3.3 Lens loading and unloading
Align the red dot of the lens with the red dot in the instrument, carefully insert it to the end, and
rotate it clockwise (in the direction of the red arrow) for about 50 ° until it cannot be rotated (there
is a sense of positioning), and the installation is completed.
When removing, turn the lens counterclockwise (in the direction of the red arrow) to the end, and
then take it out carefully.

15
3.4 Quick start
3.4.1 Get a thermal image
After installing the battery, press and hold the camera power switch (more than 3
seconds) until the power light turns green. After about 15 seconds, the instrument is
initialized and enters the working state.
Open the lens cover, aim at the target, and use the focusing wheel to focus the thermal
imager, so that the target image is clear.
Double-tap the screen to autofocus the camera.
! Note: The focus is not clear, which may lead to measurement errors.
3.4.2 Temperature Measure
Move the cross temperature measuring point in the screen to the target object, and the
"XX" displayed in the upper left corner of the screen is the temperature of the target at the
temperature measuring point. See "4.2 Temperature Measurement Mode" for details of
adding temperature measurement objects.
If you want to measure the temperature of the current thermal image displayed on the
screen in detail, you can store the thermal image for further analysis.
When the target temperature is higher or lower than the upper or lower limit temperature
corresponding to the temperature measurement position of the thermal imager, the screen
temperature will display > XXX ℃ or < X X X ℃ to prompt the user.
If you need to set the attribute of the temperature measurement object, click the object on
the touch screen to select it, and then press thesetting iconat the bottom right ofthe screen
to enter the attribute setting menu of the temperature measurement object. After setting,
click the arrow at the top left corner of the screen to return to the active image. The
following are the attribute setting menus of temperature measuring point, temperature
measuring line and temperature measuring area:

16

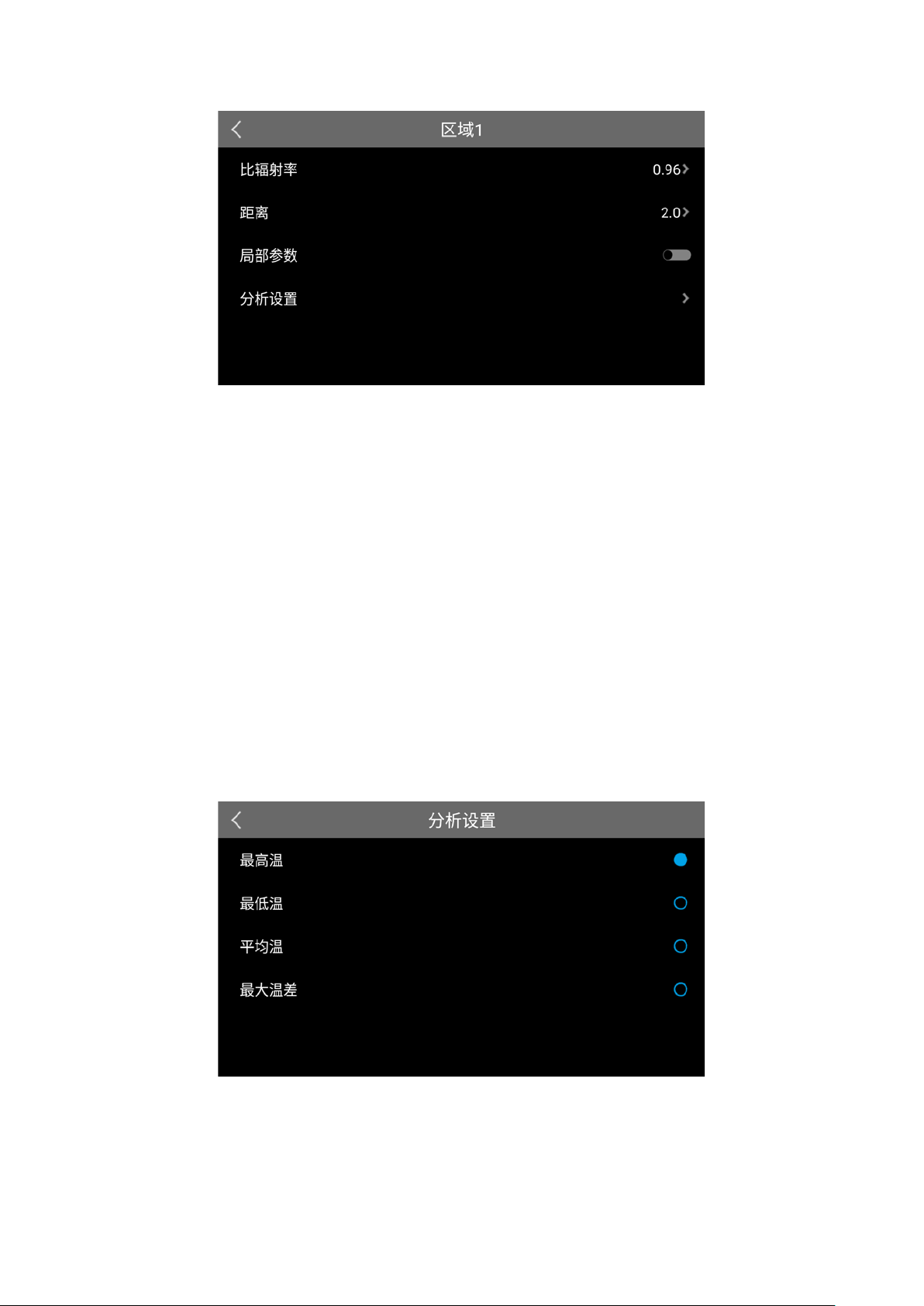

Temperature measurement area attribute setting menu
Click the selected temperature measuring point, andpress and holdthe point to drag it
directly within the screen range. There are three items in the temperature measurement
point attribute setting menu: specific radiation coefficient, distance setting and local
parameter. When the local parameter switch is on, the emissivity and distance of a single
temperature measurement target can be set.
Click to select the temperature measuring line, and hold the middle point on the line
to drag the temperature measuring line as a whole; hold any point at both ends of the line
to drag one end of the temperature measuring line to change the direction and length of
the line. The temperature measuring line attribute setting menu has four items: specific
amplitude coefficient, distance setting, local parameter and analysis setting. Under the
analysis setting, there are submenus: maximum temperature, minimum temperature,
average temperature and maximum temperature difference.
Temperature measurement area analysis setting submenu
Click to select the temperature measurement area, press and hold the middle point of
the area to drag the temperature measurementarea as a whole; press and hold anypoint of

17
the four corners of the area to drag the corner of the temperature measurement area to
change the size of the area. The temperature measurement area attribute setting menu has
four items: specific amplitude coefficient, distance setting, local parameter and analysis
setting. Under the analysis setting, there are submenus: maximum temperature, minimum
temperature, average temperature and maximum temperature difference.
If you want to set the temperature measurement object as a "reference object", refer to
"4.8.2 Temperature Measurement Function Settings".
! Note: Only one reference temperature measurement target can be set for the thermal
imager.
3.4.3 Store the image
To store the acquired current image, one of the following two methods can be selected:
Press the store key or click the "Picture" icon on the touch screen ? Select the "Photo"
icon in the menu, and the system will automatically save the image.
Press the store key. After the image is frozen, press this key again to save the image.
3.4.4 Play back the image
Click to select the "Playback" icon on the touch screen Pop up the picture library,
select the folder or image to be played back, and play back the image
Click to select the image library, and you can edit the image for the second time, record it,
make a report, upload it to the cloud, and delete it.
3.4.5 ExportImage
The card reader can be used to operate the data stored in the TF card, including image
export, deletion, formatting and other operations.
USB data cable can be connected to the computer to operate the data stored in the TF card
of the thermal imager, including image export, deletion, formatting and other operations.
! Note: It is recommended to format the TF card by using the format function in the
thermal imager solidification software.
3.4.6 LCD screen settings
Press the pull-down menu or click the touch screen setting icon to enter the "Settings"
menu."System Settings""Power saving mode setting"Under "Brightness
Adjustment", set the LCD brightness.

18
3.4.7 Menu operating instructions
Touch screen operation:
Click the icons on both sides of the touch screen, and click each icon for corresponding
operation. Enter the setting menu, click the menu item to be set, enter the next level of
submenu, the last level of menu for function switch, parameter setting, option selection
and other operations; click the arrow sign in front of the interface name, return to the
previous level of menu.
Click the pull-down shortcut menu on the touch screen to switch on/off WiFi, Bluetooth
and LED lights. Click the clear screen icon to clear the main interface UI, open/close
GPS, hotspot andQR code scanning functions, enter the panoramic mode to take photos,
and set the screen brightness.

19
4Operating instructions
4.1 Description of operation interface
4.1.1 User interface of thermal imager working status
User interface of thermal imager working status
10
11
12
15 14 13
3
2
1
4 5
6
7
8
9

20
[1] Laser ranging: This function is used to turn on/off the laser. After turning on, laser
indication and laser ranging can be performed.
[2] Image mode switching: It is used for image mode switching. There are four image modes
available, including infrared, visible light, picture-in-picture and dual-band fusion image.
[3] Image adjustment:This function is used for manual/automatic mode selection of image
adjustment.
[4] Temperature measurement mode: This function is used to add or delete temperature
measurement objects, including temperature measurement points, temperature
measurement areas, temperature measurement lines, etc.
[5] Color scale switching: This function is used to select the color scale for image display.
There are 17 color scales available.
[6] Image playback: This function is used to browse and play back the saved image and
video files.
[7] Image storage: This function is used to save images. Short press to take a picture and
long press to record a video.
[8]] Setting function: This function is used to set various parameters of the thermal imager,
including temperature measurement parameter setting, temperature measurement function
setting, image setting, storage setting, task mode setting, connection setting, system setting,
etc.
[9] Battery status: displays the current battery charge status
[10]
[11] WIFI status: indicates that the current WIFI function is enabled.
[12] Bluetooth status: indicates that the Bluetooth function is currently enabled.
[13] Image mode standard: indicates that the current image mode is infrared mode.
[14] Remaining capacity of memory card: indicates the remaining capacity of memory.
[15] Electronic compass: displays the direction of the current electronic compass.
Table of contents
Other Dali Thermal Camera manuals
