Dali T9 User manual

T9/T10 Thermal Imaging Camera
User manual
Copyright
© 2019 DALI TECHNOLOGY

2
! Warning, caution and attention
Definition
Warning, represents dangerous situations or actions that may cause personal injury
or death.
Caution, represents situations or actions that may cause damage to the thermal
imager or permanent data loss.
Note, represents the prompt useful information to the user.
Important information please read before using the instrument.
Warning –This instrument has a built-in laser transmitter, do not stare into the laser
beam. The laser specification is 635 nm, 0.9mW, Class II.
Caution-As the thermal imager uses a very sensitive thermal sensor, under any
circumstances (turn on or off) the lens should not be directly aimed at a strong
radiation source (such as the sun,direct or reflected laserbeam, etc.),otherwise it will
Permanent damage to the thermal imager!
Caution-The original packaging box must be used during transportation. Do not
shake or bump the thermal imager strongly during use and transportation.
Caution –It is recommended to use the original packaging box when storing the
thermal imager, and place it in a cool, dry, ventilated environment without strong
electromagnetic fields.
Caution-Avoid oil stains and various chemical substances from staining and
damaging the surface of the lens. After use, please close the lens cap.
Caution-In order to prevent the potential danger of data loss, please copy (backup)
the data to the computer frequently.
Note-The thermal imager may need 3-5 minutes to warm up before reading the data

3
accurately.
Note-Every thermal imager has been temperature-calibrated before leaving the
factory. It is recommended to perform temperature calibration every year.
Caution-Do not open the case or modify it without authorization. Maintenance can
only be carried out by authorized personnel of our company.
Table of cotents
! Warning, caution and attention ............................................................... 2
Table of cotents ................................................................................ 3
1 Introduction................................................................................... 5
1.1 Standard configuration........................................................................................................7
1.2 Optional configuration ..................................................................................................8
2 Introduction................................................................................... 9
2.1 Button function..................................................................................................................9
2.2 Interface...........................................................................................................................11
3 Operation ..................................................................................... 12
3.1 Battery installation and replacement....................................................................12
3.1.1 Battery loading and unloading..........................................................................12
3.1.2 Battery replacement.............................................................................................13
3.2 Common sense of battery safe use.......................................................................13
3.3 Lens loading and unloading......................................................................................14
3.4 Quick start.......................................................................................................................15
3.4.1 Get thermal image................................................................................................15
3.4.2 Temperature measurement...............................................................................15
3.4.3 Images Storage .....................................................................................................17
3.4.4 Image playback.....................................................................................................17
3.4.5 image export ..........................................................................................................18
3.4.6 LCD screen settings .............................................................................................18
3.4.7 Menu operation instructions .............................................................................18
4 Operation ..................................................................................... 19
4.1 Operation interface description...............................................................................19
4.1.1 User interface of thermal imager working status..........................................................19

4
4.1.2 Drop-down menu...................................................................................................20
4.1.3 Main menu ...............................................................................................................21
4.2 Temperature measurement mode..........................................................................21
4.3 Color code switching ...................................................................................................22
4.4 Image adjust..................................................................................................................23
4.5 Image storage ...............................................................................................................23
4.6 Video recording .............................................................................................................24
4.7 Image playback.............................................................................................................25
4.8 Setting ..............................................................................................................................26
4.8.1 Temperature measurement parameter setting..........................................27
4.8.2 Temperature measurement function setting..............................................28
4.8.3 Image setting.........................................................................................................31
4.8.4 Storage setting ......................................................................................................33
4.8.5 Connection setting ...............................................................................................33
4.8.6 System setting.......................................................................................................34
5 Technical parameter..................................................................... 35
6 RFQ .............................................................................................. 37
appendix A ...................................................................................... 38
Specific emissivity of commonly used materials (for reference only)...............................38
Appendix B...................................................................................... 39
Factory setting parameter table .....................................................................................39

5
1Introduction
Thank you for choosing the T9/T10 handheld thermal imaging camera from Zhejiang Dali
Technology Co., Ltd.
Main function
The highest temperature, lowest temperature and 4 movable points
measurement
3 movable areas for temperature measurement
1 arbitrary line temperature measurement
11 color codes can be selected
Infrared and visible light image fusion
Isothermal function
Temperature measurement setting
Fusion of high and low temperature
Built-in emissivity table of common materials
Integrated manual focusing
Multiple interchangeable independent lenses
4”LCD high brightness display
Adjustable LCD brightness
Capacitive touch screen
5 million pixel visible light camera

6
LED fill light
Laser rangefinder
WiFi wireless network
Bluetooth earphone
GPS positioning and electronic compass
TF card image storage
USB-C data transfer
HDMI video output
Single or continuous shooting storage
Real-time recording
Timed recording
Voice or text annotation
Custom shortcuts
Power saving mode
multi-language
Time/date setting
reset
Upgrade options
Optional wide-angle lens (0.5x), medium-focus lens (2x) or long-focus
lens (3x);
It can extend the temperature measurement at high temperature and
increase the range of high temperature measurement.
Main application:
Preventive maintenance
Power industry: thermal state inspection of transmission lines and power
equipment, fault and defect diagnosis.
Electrical system:pre-identify before the circuit overload occurs.

7
Mechanical system: reduce downtime and prevent malfunction.
Building Science
Roof: quickly and efficiently detect water penetration
Building structure: Infrared energy assessment survey for commercial
buildings and residential buildings.。
Moisture detection: find the source of moisture and mold.
Remediation: Evaluate remedial measures to ensure that the area is completely
dry.
Others
Iron and steel industry: monitoring of steelmaking and rolling processes,
diagnosis of hot blast furnace damage, detection of the temperature of the slab produced
from the furnace, etc.
Fire protection: forest fire prevention and potential fire source search,
spontaneous combustion prevention test of special materials, electrical fire protection
safety test.
Medical: Human body surface temperature detection and temperature field
distribution analysis.
Petrochemical industry: oil pipeline state inspection, material interface
inspection, heat leakage and thermal insulation structure, power equipment condition
inspection, etc.
1.1 Standard configuration
Thermal imager (handrail)
Carrying case
Rechargeable battery (2)
National standard charger
Battery charging stand
Lens cover
User manual, report analysis system CD

8
TF card
TF card reader
USB data cable
HDMI video cable
1.2 Optional configuration
0.5x wide-angle lens
2x medium focal lens
3x telephoto lens
Portable backpack
Non-national standard (European standard/British standard/Australian standard)
charger

9
2Introduction
2.1 Button function
1
7
2
4
3
5
6
8

10
[1] power switch
Used for turning on and off, standby and wake-up of the thermal imager. Press this
switch for more than three seconds to turn on/off the thermal imager; short press to enter
standby/wake up (any other key can also wake up).
! Note: It is recommended to wait at least ten seconds after turning off the camera and
turning it on again to ensure the safety.
[2] Mode key
Used to switch and zero the image mode. Short press to switch the image mode,
there are 4 image modes to choose from infrared, visible light, picture-in-picture and
dual-band fusion image; long press for 3 seconds to manually adjust the zero.
[3] Back button
In the menu/edit mode, short press to cancel the current menu operation or
return to the previous menu.
In the active image mode, short press to auto focus.
[4] Storage key
Used to freeze or save the image. Press this key once to freeze the image, press this
key again to save the image, and press the return key to return to the active mode. Long
press for 3 seconds to record, then short press to stop recording and save the video.
[5] Five direction keys
Including up, down, left, right and middle keys. It has different functions in different
operation modes.
In the menu mode (press the middle button to activate the menu and enter the
menu mode), the up, down, left, and right buttons are used for the same level of
menu operations, and the middle button enters the lower level menu or confirms
the selection.
In the active image mode, press the up and down buttons for digital zoom, and
the left and right buttons for electric focus.
[6] Trigger button

11
The trigger button is the laser rangefinder switch.
[7] Microphone
Used to make voice notes when saving images.
[8] Manual focus ring
When the operator faces the LCD screen, rotates the focusing ring clockwise to
adjust the focus toward the far focus direction; rotates the focusing ring counterclockwise
to adjust the focus toward the near focus direction.
2.2 Interface
[1] TF card slot
Use standard TF card to save images and upgrade instrument software.
[2] HDMI
Used for HDMI video output.
[3] USB
Used for charging and data transmission.
1
2
3

12
3Operation
3.1 Battery installation and replacement
3.1.1 Battery loading and unloading
The batteryis in the instrument handle, and the end of the handle is the batterycover.
Press the U-shaped elastic area on both sides of the battery cover (as shown by the
red arrow) and pull it outward to remove the battery.
When inserting the battery, the battery is designed with a foolproof structure. If it
cannot be inserted, please change the direction and insert it. Push the battery cover
inward and hear a "click", the battery has been installed and self-locked, and the
instrument can be used.

13
3.1.2 Battery replacement
When the battery symbol is empty and flashes, it indicates that the battery is
exhausted and the battery should be replaced at this time. After the instrument displays
the low battery prompt, it will automatically shut down.
shut down prompt
3.2 Common sense of battery safe use
The battery should be stored as far as possible at an ambient temperature of
-20℃∽20℃. Because the battery has a small amount of self-discharge during
storage, in order to avoid possible over-discharge during storage and affect the
battery capacity, the battery should be fully charged and stored , And charge it at
regular intervals. The time interval is as follows:
The ambient temperature is -20℃∽20℃, once every 6 months;；
The ambient temperature is 20℃∽45℃, once every 3 months;
The ambient temperature is 45℃∽60℃, once every 1 month.
Each charge must be more than 50% of the battery capacity.
The batteryshould be charged at an ambient temperature of 0°C∽40°C. Charging at
an ambient temperature of0°C will reduce the batterycapacity. Charging above 40°C
may cause the battery to overheat and cause damage.
! Warning ：

14
! Do not disassemble, squeeze, or puncture the battery;
! Do not short-circuit the external contacts of the battery;
! Keep the battery dry and do not put it in fire or water;
! Do not place it in a place where children can reach;
! Please dispose of used batteries in accordance with local government regulations.
3.3 Lens loading and unloading
Align the red dot of the lens with the red dot in the instrument, insert it carefully, and
rotate it clockwise (in the direction of the green arrow) by about 50°until it can't rotate (it
has a feeling of locking and positioning).
When removing, turn the lens counterclockwise (in the direction of the red arrow) to
the end, and then take it out carefully.

15
3.4 Quick start
3.4.1 Get thermal image
After installing the battery, press and hold the power switch of the thermal
imager (more than 3 seconds) until the power light turns green. After about 15
seconds, the instrument is initialized and enters the working state.
Open the lens cover, aim at the target, use the left and right keys or the focus
wheel to adjust the focus of the thermal imager to make the target image clear.
Press the return key to auto focus the thermal imager.
! Note: Unclear focus can cause measurement errors.
3.4.2 Temperature measurement
Move the cross temperature measurement point on the screen to the target
object, the "XX" displayed in the upper left corner of the screen is the
temperature of the target at the temperature measurement point. For details on
adding temperature measurement objects, see "4.2 Temperature Measurement
Mode".
If you want to perform detailed temperature measurement of the thermal image
displayed on the current screen, you can store the thermal image for further
analysis.。
When the target temperature is greater or less than the upper or lower
temperature corresponding to the temperature measurement range of the
thermal imager, the screen temperature will display >XXX℃or <XXX℃to
remind the user.
If you need to set the properties of a temperature measurement object, click on
the object on the touch screen to select it, and then press the setting icon at the
bottom of the screen to enter the property setting menu of the temperature
measurement object. After setting, click the arrow in the upper left corner of the
screen or press the return key to return Active image. The following are the
attribute setting menus for temperature measurement points, temperature
measurement lines, and temperature measurement areas:

16

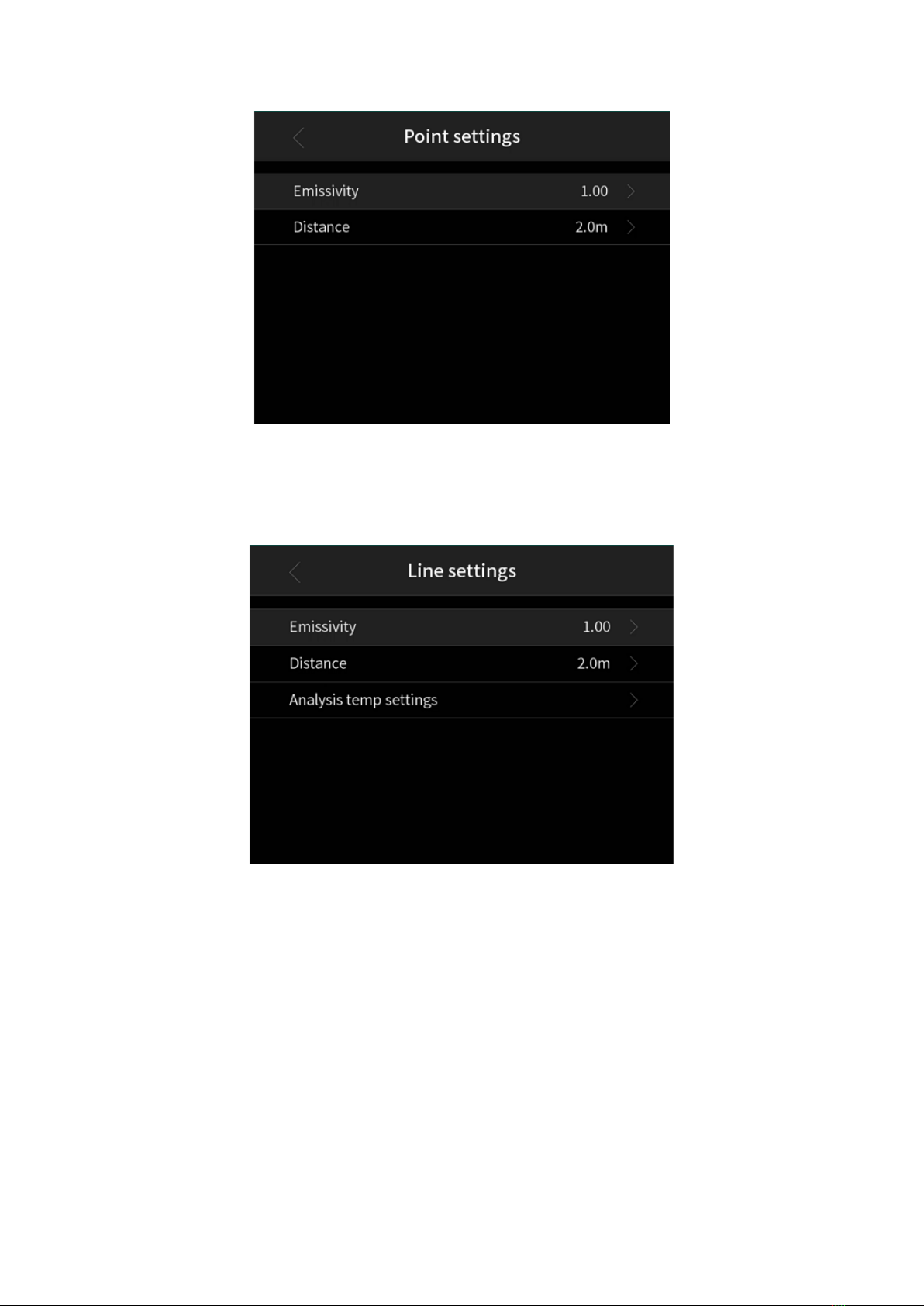

Temperature measuring point attribute setting menu
Click to select the temperature measurement point, hold down the point to drag
directly within the screen. The temperature measuring point attribute setting menu has two
items: ratio coefficient and distance setting.
Temperature measurement line attribute setting menu
Click to select the temperature measurement line, press and hold the spot on the
line, you can drag the temperature measurement line as a whole; press and hold any point
at both ends of the line, you can drag one end of the temperature measurement line to
change the direction and length of the line. The temperature measuring line attribute
setting menu has threeitems: ratio coefficient, distance setting, and analysis setting. Under
the analysis setting, there are sub-menus of maximum temperature, minimum temperature,
average temperature, and maximum temperature difference.

17

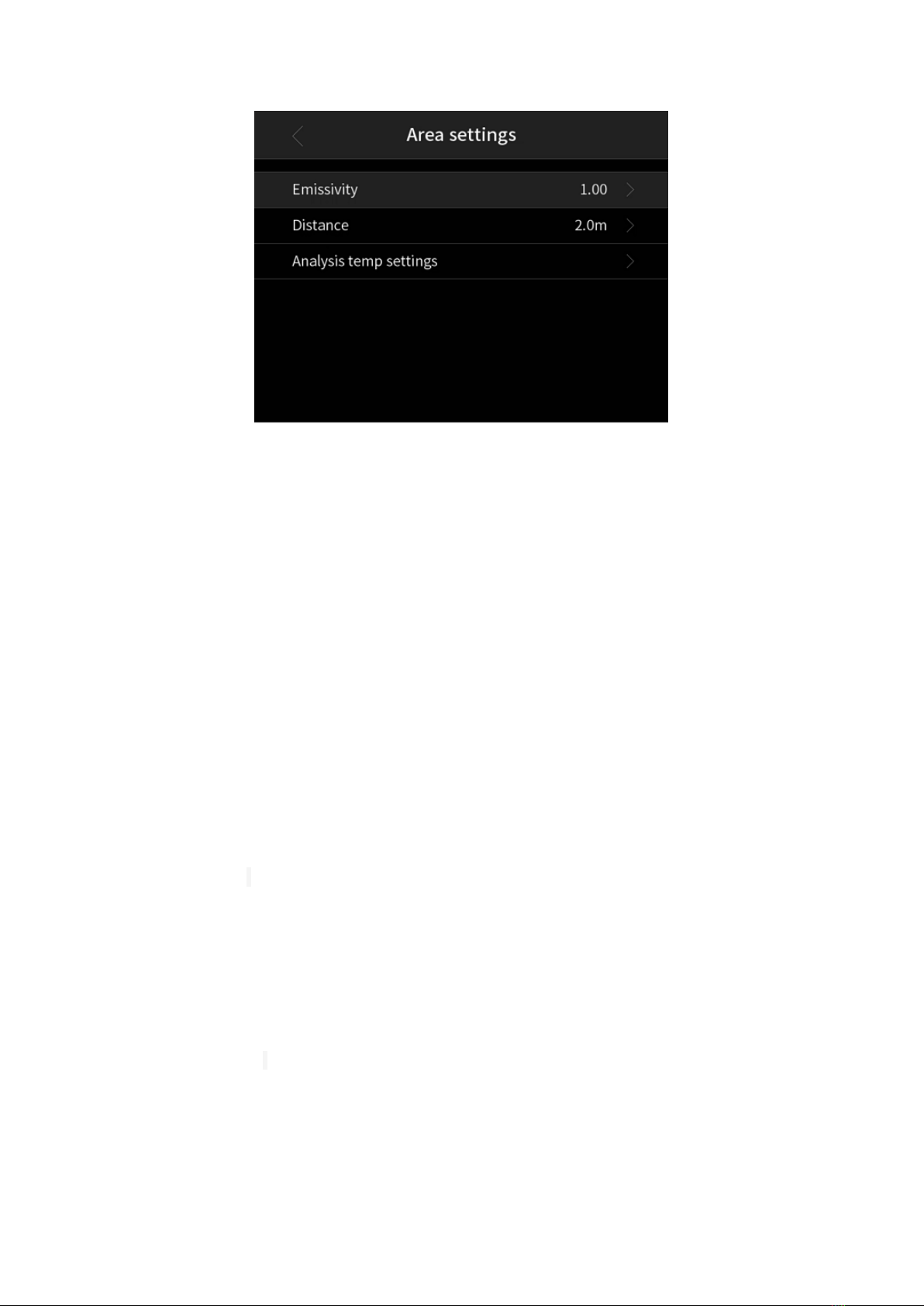

Temperature measurement area attribute setting menu
Click to select the temperature measurement area, and press and hold the middle
point of the area to drag the temperature measurement area as a whole; press and hold
any of thefour cornersof the area todrag the cornerof the temperaturemeasurementarea
to change the size of the area. The temperature measurement area attribute setting menu
has three items: ratio coefficient, distance setting, and analysis setting. Under the analysis
setting, there are submenus of maximum temperature, minimum temperature, average
temperature, and maximum temperature difference.
If you want to set the temperature measurement object as the "reference object",
please refer to "4.8.2 Temperature measurement function setting".
! Note: The thermal imager can only set one reference temperature measurement
target.
3.4.3 Images Storage
To store the acquired current image, you can choose one of the following two
methods:
Press the middle button or click the three dots at the bottom of the touch screen to
pop up the main menu, select the "photograph" icon in the menu, and the system
will automatically save the image.
Press the store button. After the image is frozen, press this button again to save
the image.
3.4.4 Image playback
Press the middle button or click the three dots at the bottom of the touch screen
to pop up the main menu, select the "playback" icon to pop up the picture library, select
the folder to be played back, and perform image playback.

18
3.4.5 image export
A card reader can be used to operate the stored data in the TF card, including
image export, delete, format and other operations.
AUSB data cable can be used to connect the computer to operate the stored data
in the TF card of the thermal imager, including image export, deletion, formatting
and other operations.
! Note: It is recommended to use the format function in the thermal imager's firmware
to format the TF card.
3.4.6 LCD screen settings
Press the middle button or click the three small dots at the bottom of the touch
screen to pop up the main menu and enter the "Settings" menu. Under "Settings",
"System Settings", "Power Saving Mode Settings" and "Brightness Adjustment",
adjust the brightness of the LCD screen.
3.4.7 Menu operation instructions
Key operation:
Main menu: Press the middle button to pop up the mainmenu. On the mainmenu,
use the left and right buttons to switch icons, pressthe middle button to select and
enter the corresponding menu interface, and press the return button to exit the
menu.
Icon interface: When the secondary menu is an icon interface, press the left and
right buttons to switch icons, press the middle button to confirm the selection, and
press the return button to exit the menu.
Text interface: When the secondary and lower sub-menus are text interfaces,
press the up and down keys to switch menu options, and press the return key to
return to the previous menu.
Parameter interface: Press the "left,right, up, down" keys to switch options, press
the middle keyto confirm the selection, save and return to the previous menu,and
press the return key to return to the previous menu.
Touch screen operation:
Tap the three small dots at the bottom of the touch screen to pop up the main
menu, click each icon to perform the corresponding operation. Enter the setting
menu, click the menu item to be set, and enter the next sub-menu. The last-level
menu performs function switch, parameter setting, option selection and other
operations; click the arrow mark in front of the interface name to return to the
previous menu.
Tap the four small dots at the top of the touch screen and pull down the shortcut

19
menu to switch WiFi, Bluetooth, LED lights, check battery power, storage space,
display brightness, and clear the UI interface.
4Operation
4.1 Operation interface description
4.1.1 User interface of thermal imager working status
User interface of thermal imager working status
[1] Temperature measurement result: Display the temperature value of the
temperature measurement object.
[2] Battery status: Display the current battery power status.
[3] Storage mark: indicates that the current image is being saved.
[4] Recording mark: indicates that it is currently recording.
[5] Continuous capture flag: indicates that the current state is continuous capture.
[6] Company logo: Dali Technology Company logo.
[7] Upper temperature limit: The upper limit temperature value of the color code.
[8] Temperature color code: The color code bar of the current image display.
11
12
1
6
7
8
9
10
2
3
4
5
13

20
[9] Lower limit temperature: The lower limit temperature value of the color code.
[10] Menu logo: Click to pop up the main menu.
[11] System time: Display the current system time.
[12] Temperature measurement object: point the cross cursor of the temperature
measurement object, in addition to the box, the straight line indicating the area, and the
line temperature measurement object.
[13] Compass logo: indicates the current direction.
! Note: There are different functions in different modes, and all the signs in the interface
may not be displayed in various modes.

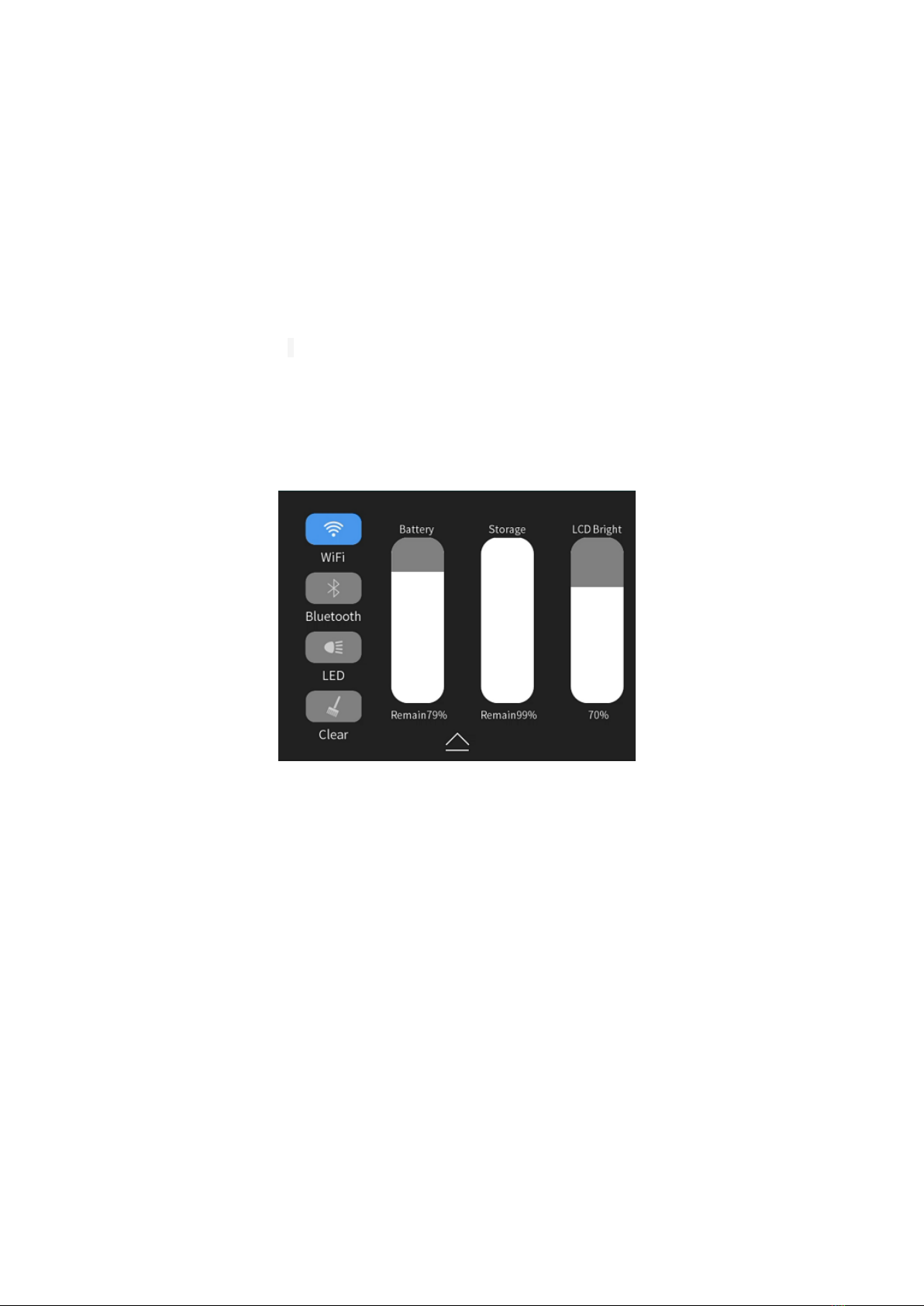

4.1.2 Drop-down menu
Drop-down menu
Drop-down menu：Click the corresponding icon to turnon/off WIFI, Bluetooth,
LED fill light, click the clear screen icon to clear the main interface UI, according to the
battery power icon, storage space icon, screen brightness icon, you can view the
remaining power and remaining storage Space and screen brightness setting status.
