DAMP Kontrol DL-68W User manual

Mini Dehumidifier
Model: DL-68W

SAFETY INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING
WARNING – This appliance is intended for use in a domesc environment only.
Any other use is notrecommended by the manufacturer and may cause fire, electrical shocks or other
injury to person or property. When using electrical appliances, basic safety precauons should always
be followed:
1. Do not operate the unit with a damaged cord or plug, if it malfunctions or has been dropped
or damaged in any way. Return to an authorized service facility for examination and repair.
2. This unit should always be kept in an upright position to avoid any accidental spillage. Locate
the unit on a flat stable surface – this will also help to avoid accidental spillage.
3. Check the household voltage to ensure it matches the units rated specification before
operating.
4. Operate this unit in an ambient temperature between 15°C and 40°C
5. Ensure the air inlets and outlets are not blocked or covered.
6. Never place anything on top of the unit and do not cover with any kind of material while in
use.
7. This product is intended for domestic and light office use ONLY and not for commercial,
industrial or outdoor use.
8. To protect against electrical shocks, do not immerse unit, plug or cord in water, or spray with
liquids. Do not open the vent.
9. Never unplug the power cord without pressing the “ON/OFF” button to off first, as this could
damage the unit.
10. Always unplug the unit when not in use or moving location. To disconnect from the power
supply, grip the plug and pull from the power socket. Never pull the cord.
11. Always empty the water tank before storing the unit away. When relocating the reservoir,
slide carefully along the runners.
12. Close supervision is necessary when the appliance is used by or near children or pets.
13. Do not run power cord under carpeting or cover with rugs or runners. Arrange the cord away
from areas where it may be tripped over.
14. To repair the unit, take it to a qualified engineer. Repairs carried out by unqualified people
may cause damage to the unit or injury to persons or property.
15. Where possible, avoid the use of an extension cable as they may overheat and cause a risk of
fire. Only use an extension cord after ensuring it is in perfect condition.
16. Always switch off the unit before cleaning and remove the plug from the socket. Use a soft
cloth to clean the surface of the unit and soft bristled brush to remove dust from the air inlet
and outer grills.
2

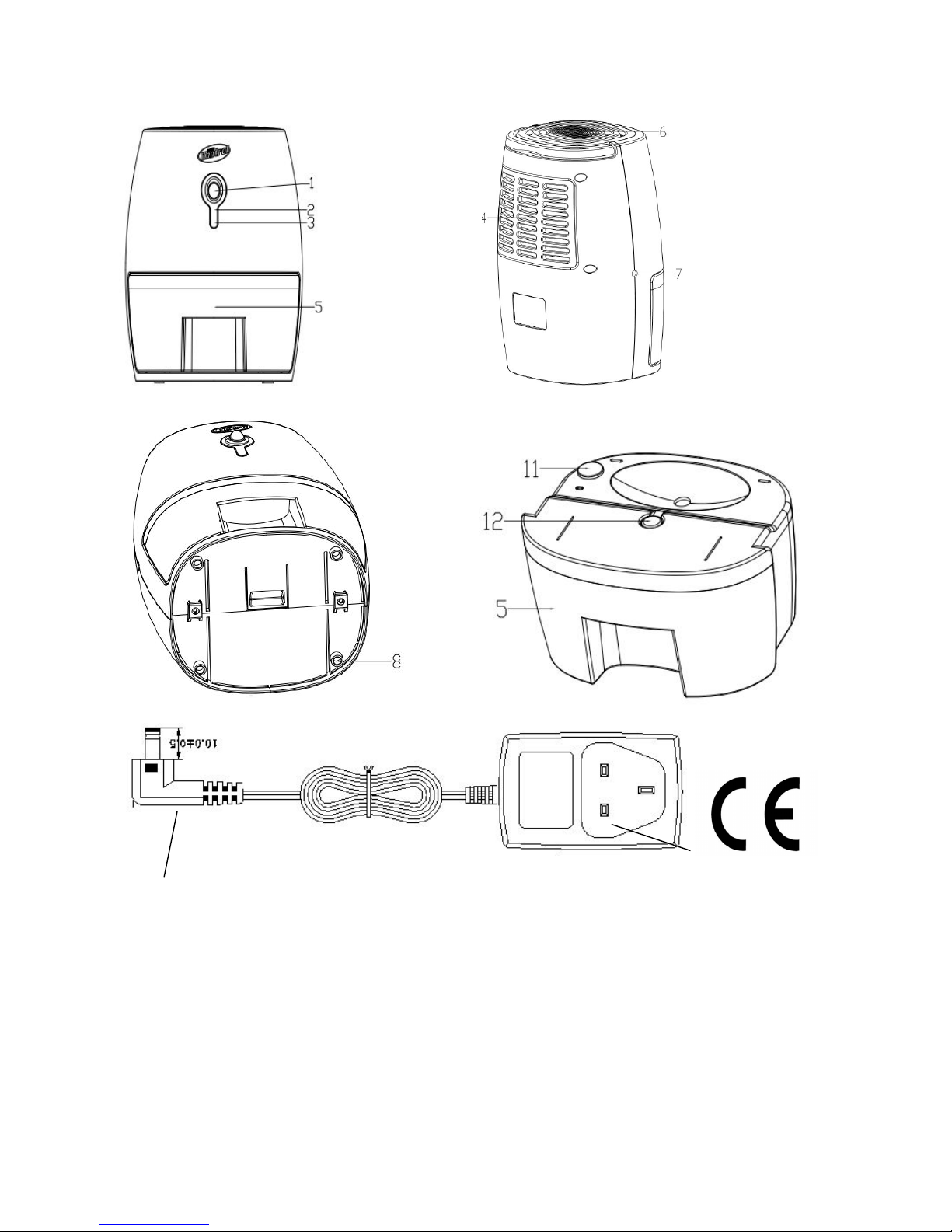

KNOW YOUR APPLIANCE
9
10
1.On/Off button 2.”Full” red LED 3.”Onl” green LED
4.Air inlet 5.Removable water tank 6.Air outlet
7. DC Power socket 8.Rubber feet 9.AC/DC switching mode
10.DC power jack 11.Water drain bung power supply
12. Water displacement hole
3

FEATURES
The Kontrol Elite 600ml uses Peltier technology (no compressor), which makes it light and quiet. It is
perfect for small rooms. Damp and condensation can cause musty odours, unsightly mould and
mildew, stains and peeling wallpaper. The Kontrol Elite 600ml helps eliminate this problem by
keeping room’s free of unwanted excess moisture and condensation.
CONNECTION
NOTE: IF THE UNIT IS OPERATED BELOW THE MINIMUM WORKING
ENVIRONMENT TEMPERATURE OR HUMIDITY IT WILL NOT OPERATE
CORRECTLY.
1. After removing the packaging materials, there should be 3 items;
a.Mini Dehumidifier
b.AC/DC Power Adaptor
c.lnstruction
2. Plug the DC power jack of AC/DC power adaptor to the DC power socket, then connect the AC plug
of the AC/DC power adaptor to the appropriate main socket.
3. Place the mini dehumidifier on a flat and firm surface.
4. Press the” On/Off” button to” On” position, the mini dehumidifier will begin to operate. The green
LED will illuminate. Listen and feel for the air blowing from the dry air outlet.
5.To switch off the unit ,press the”On/Off”button to” Off” position, the mini dehumidifier will turn
off.
Note
Fig.1
Fig.3
Fig.2
1) Do not use the dehumidifier when the temperature is over 35℃ or below 15℃
2) Never operate the dehumidifier without the filter
REMOVABLE WATER TANK
When the water tank is full, the unit will automatically switch off and the red LED will illuminate.
Switch off the mini dehumidifier by pressing the” On/Off” button to the”Off”position.
Then remove the water tank form the unit and discard the collected water down a drain etc.
Refit the water tank and to continue dehumidifying, press the” On/Off” button to the”On”position
again.
4

CLEANING
Before cleaning the unit, turn off the mini dehumidifier and unplug the AC plug from the main
socket first. Use a soft cloth to clean the surface of the unit and a soft bristled brush to remove
dust from the air inlet and outlet grills.
STORAGE
If not using the unit for an extended period of time, please:
-Turn the unit off andunplug it from the mains.
-Completely empty the water tankand wipe it clean.
-Cover the unit and store away from direct sunlight.
TROUBLE SHOOTING
Never try to repair or dismantle the dehumidifier youerself.Incompetent repairs result in loss of
warranty and can endanger the user and the property.
5

SPECIFICATIONS
Capacity :Approximately 200ml to 250ml per day at 30°C,80% Relative
Humidity (Absorbs approximately 600ml)
Cooling element :Thermo- electric Peltier module
Fan :80*80*25mm DC Brushless motor
Power adaptor :12V DC 3A
Power consumption :36W
Removable water tank :600ml
Water level detector :Automatically change green LED to Red LED indicator when water
tank is full. Auto cut out switch
Product dimension :170mm (W)*246mm (H)*142.5mm (D)
Working environment :Over 15°C, over 40% Relative Humidity
CAUTIONS
1.After use, the mini dehumidifier should be switched off by pressing the”On/Off”button
to”Off”position.
2. Avoid using the AC/DC power adaptor in wet or damp conditions and use it in well ventilated
areas.
3. Keep the front inlet grille and the top outlet grille clear at all times and do cover with clothing or
poly bags, ect.
4. The A/C Power adaptor will get warm during use. This is normal and does not mean there is a
fault.
5. Always keep the unit upright to avoid water leakage.
6

PRODUCT GUARANTEE
This product is guaranteedagainst manufacturing defects for a period of
This product is guaranteed for twelve months form the date of original purchase. Any defect that
arises due to faulty materials or workmanship will either be replaced.refunder or repaired free of
charge where possible during this period by the dealer from whom you purchased unit.
The guarantee is subject to the following provisions:
- The guarantee does not cover accidental damage. misuse cabinet parts. knobs or consumable
items.
- The product must be correctly installed and operated in accordance with the instructions
contained in this manual.
- It must be used solely for domestic purpose.
- The guarantee will be rendered invalided if the product is re-sold or has been damaged by
inexpert repair.
- Specifications are subject to change without notice.
- The manufacturer disclaims any liability for the incidental or consequential damages.
- The guarantee is in addition to, and does not diminish your statutory or legal rights.
-
KONTROL UK LIMITED
UNIT1,WOODSIDE FARM,
LIZARD LANE, SHIFNAL, SHROPSHIRE TF11 8QE
Tel: [phone] ·Fax: [phone] ·
http://www.kontrolukltd.com
7
