Dane Technologies WM2000 User manual

WHEELCHAIR MOVER
OWNERS MANUAL
OPERATING INSTRUCTIONS AND TRAINING MANUAL
WheelChair Mover
WM2000 Electric Utility Machine
Manufactured by:
Dane Technologies, Inc. Phone: [phone]
7105 Northland Terrace Toll Free: 1-888-544-7779
Minneapolis, MN 55428 Fax: [phone]
970-068 6/19/17 Rev F www.danetechnologies.com

Dane Technologies, Inc. WheelChair Mover Owners Manual 2
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
WHEELCHAIR MOVER
INTRODUCTION
Thank you for purchasing the Dane Technologies WheelChair Mover. With
proper operation and maintenance, the WheelChair Mover will provide
years of dependable service. This manual contains information, which will
assist in the training, operation and maintenance of the WheelChair Mover.
Please read it thoroughly and review it regularly.
The WheelChair Mover is a tool that will increase workplace safety and
productivity. Those goals will only be accomplished if all employees using
the WheelChair Mover are thoroughly trained in the safe operation of the
WheelChair Mover. We urge all of our clients to develop and implement a
training and certification program for all employees using and supervising
the use of the WheelChair Mover.
Daniel T. Johnson
President and CEO

Dane Technologies, Inc. WheelChair Mover Owners Manual 3
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
TABLE OF CONTENTS
User Assistance Information ........................................................................................4
WheelChair Mover Warnings and Safety Notes...........................................................4
WheelChair Mover Precautionary Notes......................................................................7
Intended Purpose of the Device...................................................................................8
WCM Models................................................................................................................8

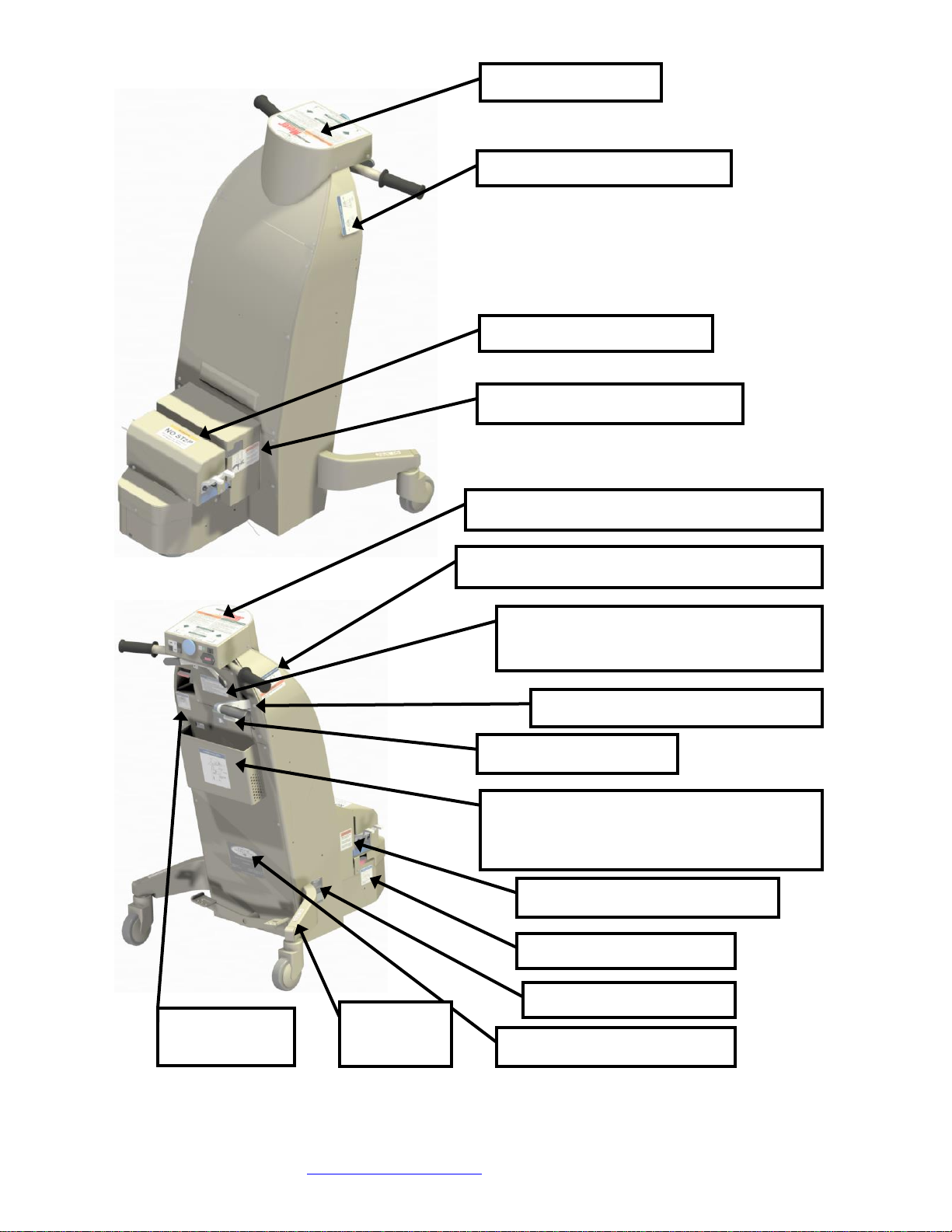

WheelChair Mover - Labels..........................................................................................9
WheelChair Mover –Front View.................................................................................13
WheelChair Mover –Left Side View...........................................................................14
WheelChair Mover –Right Side View ........................................................................15
WheelChair Mover –Back View.................................................................................16
WheelChair Mover –Top View...................................................................................17
WheelChair Mover –Side and Back View with Wheelchair........................................18
Unpacking & Setup of the WheelChair Mover............................................................19
Orientation to the WheelChair Mover.........................................................................20
WheelChair Mover –Controls View............................................................................21
Test for Correct Operation..........................................................................................24
Operating the WheelChair Mover...............................................................................25
WheelChair Mover Care and Maintenance ................................................................31
Fastener Torque Chart...............................................................................................33
Battery Charging ........................................................................................................34
Maintenance Notes ....................................................................................................36
Storage.......................................................................................................................43
Troubleshooting..........................................................................................................44
WheelChair Mover Accessories .................................................................................46
IV Pole Holder Option (P/N 100-225).....................................................................47
Gas Bottle Holder Option (P/N 100-226)................................................................53
Document Holder Option (P/N 100-227)................................................................54
Hook Option (P/N 100-235)....................................................................................55
Summary....................................................................................................................56
Appendix: What you need to know about EMI...........................................................57
Technical Specifications.............................................................................................60
Standards and Testing...............................................................................................61
WheelChair Mover Warranty......................................................................................64
Operator Training Manual Basic Information..............................................................66
Operator Training Manual Trainer’s Guide.............................................................68
Operator Training Manual Classroom Training Script:...........................................69
WheelChair Mover Important Operating Procedures .............................................70
Operator Training Manual Demonstration Training Script:.....................................72
Wheelchair Mover Trainee Quiz.............................................................................77
Wheelchair Mover Trainee Quiz.............................................................................78
WheelChair Mover Record of Purchase Form............................................................79
The CE marking, if present, declares that this equipment meets relevant EU Directives and Standards.

Dane Technologies, Inc. WheelChair Mover Owners Manual 4
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
User Assistance Information
If you have questions regarding the safe operation or maintenance of the
WheelChair Mover, or items which are not covered in this manual, please
contact Dane Technologies at our toll-free service line: 888-544-7779.
WheelChair Mover Warnings and Safety Notes
IMPORTANT SAFETY NOTE:
The red service maintenance switch must be
turned off, the key removed, and the charging cord
unplugged ANY TIME MAINTENANCE IS BEING
PERFORMED!
1) The WheelChair Mover is intended to push various types of manual wheelchairs on
dry surfaced walkways indoors. Any other use of the machine may cause injury or
damage to property and is prohibited unless specifically endorsed by the
manufacturer. Do not use with any standing or motorized wheelchairs.
The maximum load capacity shown is for patient plus wheelchair. Use with heavier
patients degrades the operation of the machine and may cause injury or damage to
property.
Model (Serial No.’s)
Wheelchair Width
Max. Load Capacity
(Patient + Wheelchair)
Standard (WM-0100 –
WM-0119, WM3-XXXX)
Up to 24”
550
Bariatric (WMB-XXXX)
Up to 30”
750
Airport (WMA-XXXX)
Up to 24”
550

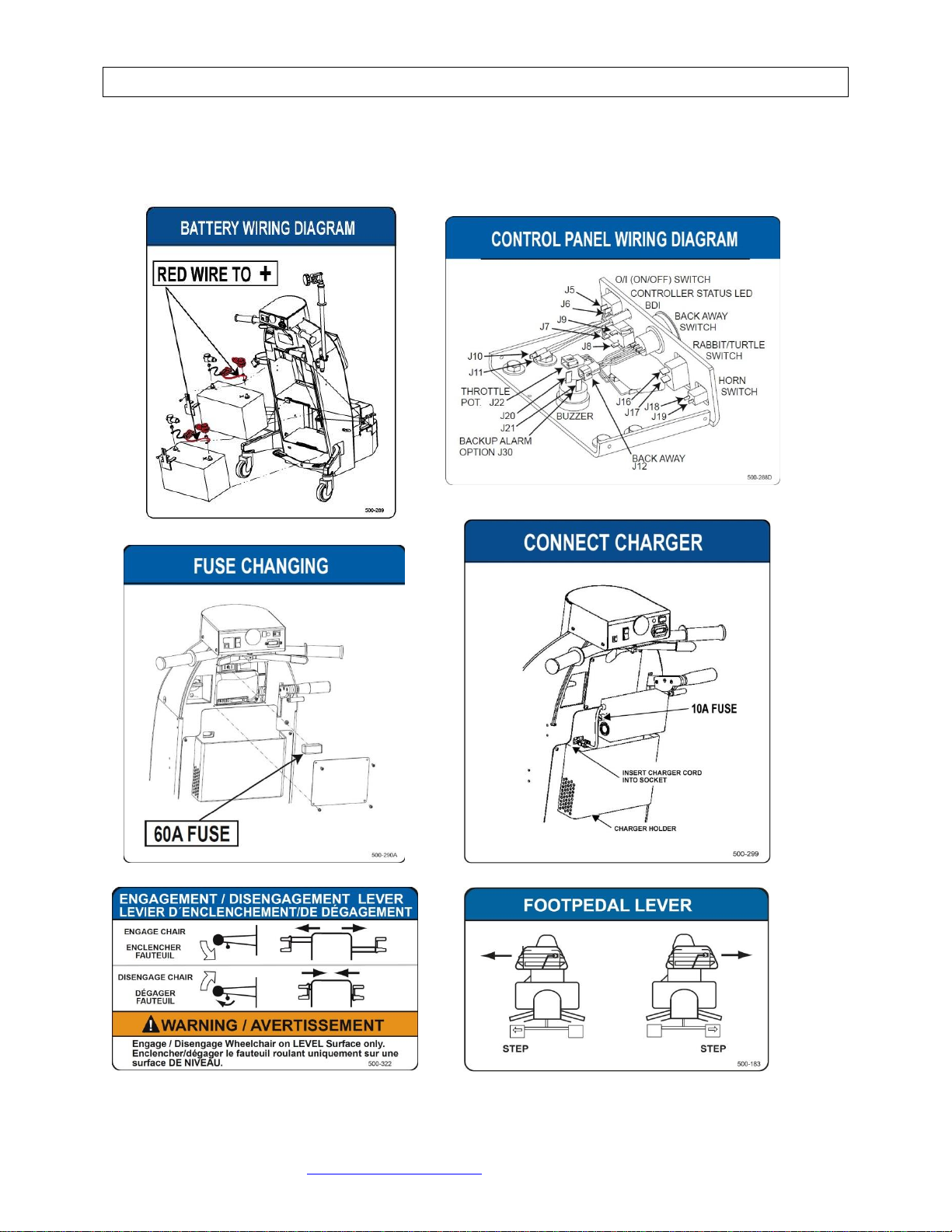

2) The WheelChair Mover comes equipped with several warning labels. Read them
before operating the machine.
3) A Wheelchair Owners manual is delivered with this machine. It contains Warning,
Safety Notes and Precautionary notes. Read and understand this manual
before operating the machine.
4) The WheelChair Mover is equipped with a brake that automatically engages when
the machine is turned off or not in motion. To avoid an accident, do not leave the
machine parked or unattended on slopes. When the WheelChair Mover is to be
left unattended or in storage, always turn the switch to the “O” off position. Do not
leave the WheelChair Mover unattended while the switch is in the “I” on position.

Dane Technologies, Inc. WheelChair Mover Owners Manual 5
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
5) Driving:
Operate the vehicle only as fast as safety considerations will allow, taking into
consideration the traffic, doors and needs of the patient. Running into other traffic or
doors may cause injury or damage to property
Do not make sharp, abrupt turns at high speeds or while going down an incline. The
operator’s ability to control the machine is reduced in these situations and may
cause injury or damage to property.
Do not operate on inclines with loose material on the surface. Always take operating
conditions, such as wet or slippery floors, into consideration. Do not push more than
the individual trained operator can safely control given those conditions.
Do not drive over objects or irregular surfaces more than 1/2 inch high.
When driving over bumps, dips or inclines, approach them at a 90 degree angle.
Operate indoors only.
Don’t expose the WheelChair Mover to excessive moisture, such as using it in the
rain or spraying it with a hose.
To insure sufficient traction, avoid inclines or ramps having a rise of more than 1
inch (2.5 cm) per one foot (30.5 cm) (federal standard for wheelchair ramps)
Do not drive at full speed into any fixed obstacles or objects as this may result in
personal injury or structural damage.
Do not operate the WheelChair Mover in any position except standing or walking
with the handlebars and throttle directly in front of you.
Do not bend over the machine or controls while the Wheelchair Mover is turned “on”.
Damage or injury may occur.
Only one person may operate the WheelChair Mover controls at any one time.
Do not leave the WheelChair Mover unattended with a patient in the attached
wheelchair.
A trained operator must use one hand on each handlebar while operating the
WheelChair Mover.
No one is allowed on the machine at any time. NO PASSENGERS! No stepping or
standing on any part of the machine.
Do not park on inclines.
6) Operation of Hitch:
Verify that the hitch jaws are fully engaged on every wheelchair, every time.
Do not connect to powered wheelchairs or any item except correctly sized manual
wheelchairs.
A trained operator must stop at any time fluids are spilled on the machine and clean
the machine and wheelchair before beginning or continuing transport.
The transport of a patient must be stopped anytime fluids are spilled.
Follow facility procedures for fluid spills. Report spills as required.
Disconnect the wheelchair from the WheelChair Mover and park the WheelChair
Mover in an appropriate position and turn off. Continue the transport of the patient.

Dane Technologies, Inc. WheelChair Mover Owners Manual 6
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
Return later and fully clean the machine or clean at least enough to transport the
machine to a location to be cleaned.
DO not disconnect from the wheelchair while moving.
Verify cleaning of the machine and safe operation of the WheelChair Mover before
resuming patient transport operations.
After impact with the Wheelchair Mover, wheelchair or patient, a qualified individual
must inspect the Wheelchair Mover before being used to transport patients.
Follow facility procedures for patient injury of equipment damage.
7) Maintenance:
Do not lay metal objects (wrenches, screwdrivers, etc.) on any of the batteries to
prevent electrical short circuits.
Batteries are heavy. Always use care and proper lifting technique to avoid injury
when removing or replacing batteries. Maintenance or battery changing may only be
performed by qualified maintenance personnel.
Hydrogen gas is formed when charging the batteries. Use adequate ventilation
when charging batteries. Never smoke near batteries. Do not charge batteries in an
area with open flame or around electrical equipment that could cause an electrical
arc.
The electrolyte in a storage battery is an acid, which can cause severe burns to the
skin and eyes. The batteries used in the WheelChair Mover are sealed and need no
attention over their life span. Should battery damage occur, wear appropriate
protective clothing when working with the batteries. Treat all electrolyte spills with
an extended flushing with clear water. Contact a physician immediately if contact is
made with battery acid.

Dane Technologies, Inc. WheelChair Mover Owners Manual 7
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
WheelChair Mover Precautionary Notes
1) Improper use and operation of the WheelChair Mover may void the warranty.
2) Always look at the path in front of and behind the WheelChair Mover before
operating the machine and in the direction of motion while operating the machine.
3) Drive cautiously around people, in hallways and rooms.
4) Only operate the WheelChair Mover under adequate and safe lighting conditions.
5) Drive slowly while turning and on inclines especially when operating without a
wheelchair attached.
6) Carefully back down steep inclines when transporting a patient.
7) It is very important that you read Appendix: What you need to know about EMI
regarding the possible effects of electromagnetic interference on your WheelChair
Mover.
8) Store only in a dry environment and avoid temperature extremes.
CAUTION:
Turning the WheelChair Mover off using the red
service maintenance key while in motion will bring
the WheelChair Mover to an abrupt stop. This
sudden stop may cause discomfort to the
wheelchair patient.

Dane Technologies, Inc. WheelChair Mover Owners Manual 8
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
Intended Purpose of the Device
The WheelChair Mover is designed to reduce the operating forces when moving
patients in manual wheelchairs.
WCM Models
There are three versions of the Wheelchair Mover, providing solutions for varying
patient weights, wheelchair widths and other requirements.
Standard Bariatric
Airport

Dane Technologies, Inc. WheelChair Mover Owners Manual 9
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
WheelChair Mover - Labels
All the labels on the WheelChair Mover are shown here and on the following pages. If
your machine does not have these label or they are not readable, call Dane
Technologies at our toll-free service line: 888-544-7779 and order replacements.

Dane Technologies, Inc. WheelChair Mover Owners Manual 10
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F

Dane Technologies, Inc. WheelChair Mover Owners Manual 11
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
Standard and Airport Model Control Panel Label
Bariatric Model Control Panel Label

Dane Technologies, Inc. WheelChair Mover Owners Manual 12
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
Control panel label
Foot pedal operation label
Caution, No Step label
Warning, moving parts label
Hitch engagement handle operation label
Self-help guide label
Fuse changing label (under cover)
Charger plug label
Warning moving parts label
Serial number label
Dane Patent Pending label
No Step
label
Power
controls label
Brake release label
Hitch Lever Pinch Warning label
Control Panel Wiring label (under cover)
Connect Charger label
Battery Wiring Diagram (under cover)
Battery Charger label (on charger)

Dane Technologies, Inc. WheelChair Mover Owners Manual 13
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
WheelChair Mover –Front View
Drive wheel
Anti-static
wire
23.6
42.5

Dane Technologies, Inc. WheelChair Mover Owners Manual 14
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
WheelChair Mover –Left Side View
Drive
wheel
Anti-static
wire
27.6

Dane Technologies, Inc. WheelChair Mover Owners Manual 15
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
WheelChair Mover –Right Side View
Charger
Holder
Gearbox
release lever
Rear
casters

Dane Technologies, Inc. WheelChair Mover Owners Manual 16
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
WheelChair Mover –Back View
Foot pedal
Steering handlebar
grips
Replaceable fuse
under cover
Power Controls and
Emergency Off (Service
Maintenance Key)

Dane Technologies, Inc. WheelChair Mover Owners Manual 17
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
WheelChair Mover –Top View
Jaws and
arms
Hitch
handle
Steering handlebar
grips

Dane Technologies, Inc. WheelChair Mover Owners Manual 18
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
WheelChair Mover –Side and Back View with Wheelchair

Dane Technologies, Inc. WheelChair Mover Owners Manual 19
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
Unpacking & Setup of the WheelChair Mover
1) The WheelChair Mover is shipped on a wooden pallet. Examine the machine for
any signs of damage caused by shipping. If the machine is damaged, report your
finding to the shipping company before proceeding.
2) Remove the straps that hold the machine onto the pallet base.
3) Using a claw hammer, pry loose the wooden restraint blocks nailed to the pallet.
These blocks are located on all four sides of the machine. Immediately dispose of
these blocks.
4) Make a ramp with a piece of plywood so the machine can be pulled backward off the
pallet. Note: The WheelChair Mover has minimal clearance from the bottom of the
machine to the floor. When removing the WheelChair Mover from the pallet, avoid
dragging it over the edge so as not to scrape and damage the base of the machine.
5) The machine may be driven off the pallet or moved manually. If moving the machine
without power, make sure the gearbox release lever, located on front right side of
the machine, is in the "forward" position. This will allow the machine to be moved
manually without motor power. Return the gearbox release lever to the “rear” after
moving the machine.
6) Once the machine is on the floor, remove the pallet to a safe place for storage or
disposal.
7) Verify that the anti-static wire is still attached to the bottom of the WheelChair Mover
and will be in contact with the floor during operation. See diagram WheelChair
Mover –Left Side View (page 14).

Dane Technologies, Inc. WheelChair Mover Owners Manual 20
7105 Northland Terrace, Minneapolis, MN 55428 / 888-544-7779 / 763-544-7779 / Fax [phone]
www.danetechnologies.com 970-068 6/19/17 Rev F
Orientation to the WheelChair Mover
1) The controls include the following which are shown on the next pages:
Forward/reverse throttle control levers
“O/I” on/off switch
Horn button
Back-Away button
Rabbit/turtle switch
Controller status indicator
Battery level indicator
Hitch handle
Latch release
Hitch foot pedal
Power Controls and Emergency Off (Service Maintenance Key)
2) The WheelChair Mover should be parked on a level surface and turned off using the
“O/I” switch when not in use.
3) The WheelChair Mover is turned by exerting light pressure to move the handlebars,
to the left or right, similar to steering a bicycle.
4) Acceleration and braking of the WheelChair Mover are controlled by the throttle
control located on both sides of the handle bar. WheelChair Mover speed is
controlled by pushing the throttle control, i.e. push slightly to move slowly and push
more to move faster. Braking action occurs as pressure is released. Braking force
can be controlled for quick or gradual stops. Releasing the control slowly brings the
WheelChair Mover to a gradual stop. Releasing the throttle control quickly stops the
WheelChair Mover more quickly. Maximum braking force is applied when the throttle
is fully released.
5) Pressing the "HORN" button will sound the horn as long as it is pressed.
6) Manually Moving the WheelChair Mover. To move by hand, disconnect the
wheelchair and any attached devices. Find the gearbox release lever on the front
right hand side on the machine and push the lever forward. See diagram
WheelChair Mover –Right Side View (page 15). The machine can now be moved
using the handlebars. Push the gearbox release lever back in after use.
CAUTION:
The machine has no brakes and cannot be
operated with the gearbox release lever released.
7) The Wheelchair Mover is inhibited from moving when the charging cord is plugged
into the wall receptacle. Disconnect cord before turning on the machine for use.
