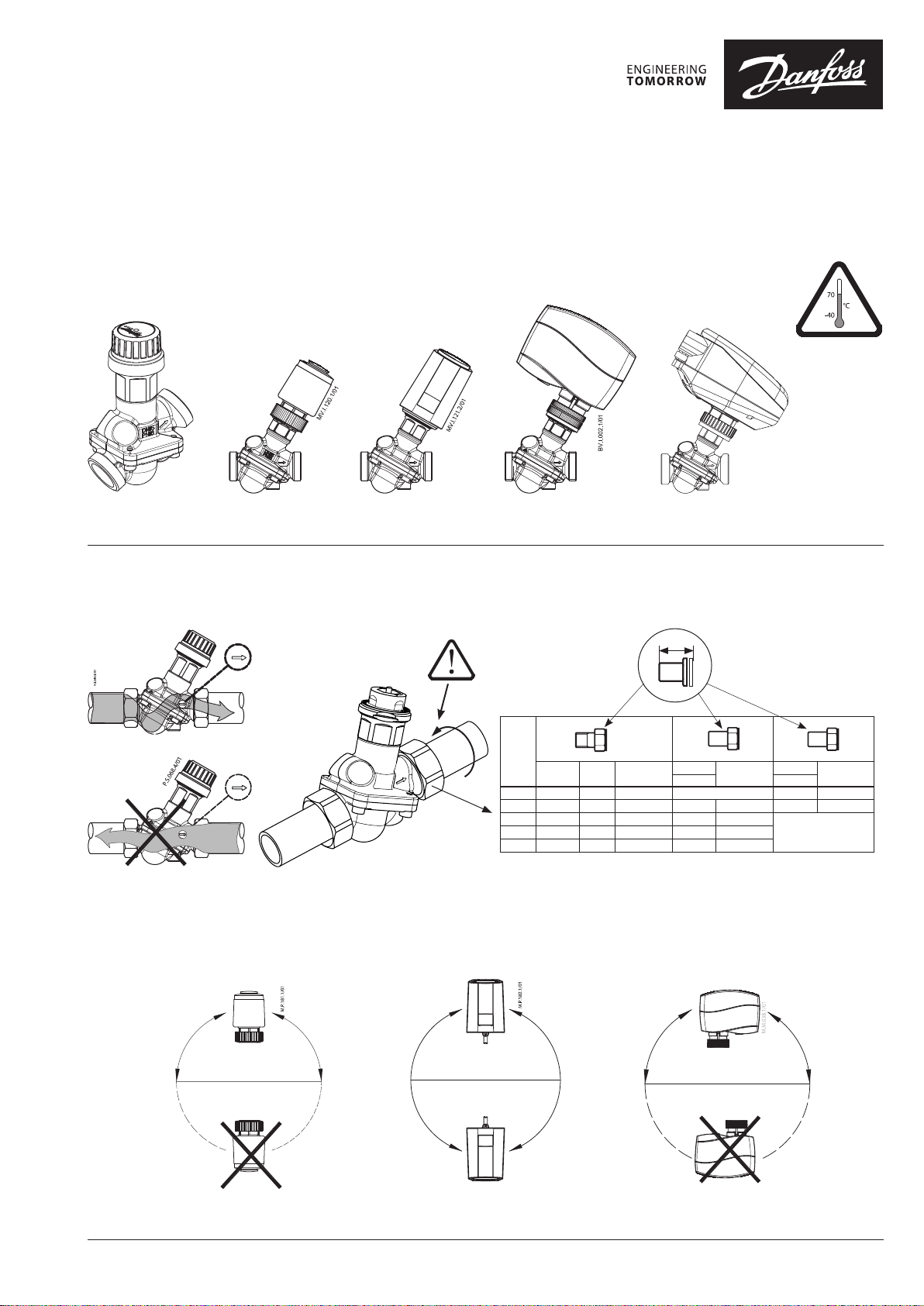

Danfuss AB-QM DN 10-32 User manual

© Danfoss | 2017.07 VI.A7.C4.3T | 1
AB-QM DN 10-32
Operating Guide
TWA-Z +
AB-QM DN 10-32
ABNM +
AB-QM DN 10-32
AMV/AME 110 NL, 120 NL +
AB-QM DN 10-32
94
112
80
Installation / Montering / Einbau / Installation /Installatie / Installation / Asennus / Montaż / Uzstādīšana / Beépítés / MONTAJ /
Монтаж / Instalace / 安装 / Vgradnja / Instalación / Montavimas
IP 41
TWA-Z
DN
To pipe L (mm) Code No. Weld.c. Code No. Solder.c. Code No.
L(mm) L(mm)
10 R 3/8 26 003Z0231 17 065Z7016
15 R 1/2 27.5 003Z0232 37 003Z0226 22 065Z7017
20 R 3/4 30.5 003Z0233 42 003Z0227
25 R 1 35 003Z0234 42 003Z0228
32 R 1 1/4 38.5 003Z0235 42 003Z0229
1) Mmax for DN 10 is 35 Nm
2) Not applicable with valves with Eurocone connection (003Z1281)
L
IP 54
ABNM
IP 42
AMV/AME 110NL, 120 NL
Mmax *
NovoCon™ +
AB-QM DN 10-32

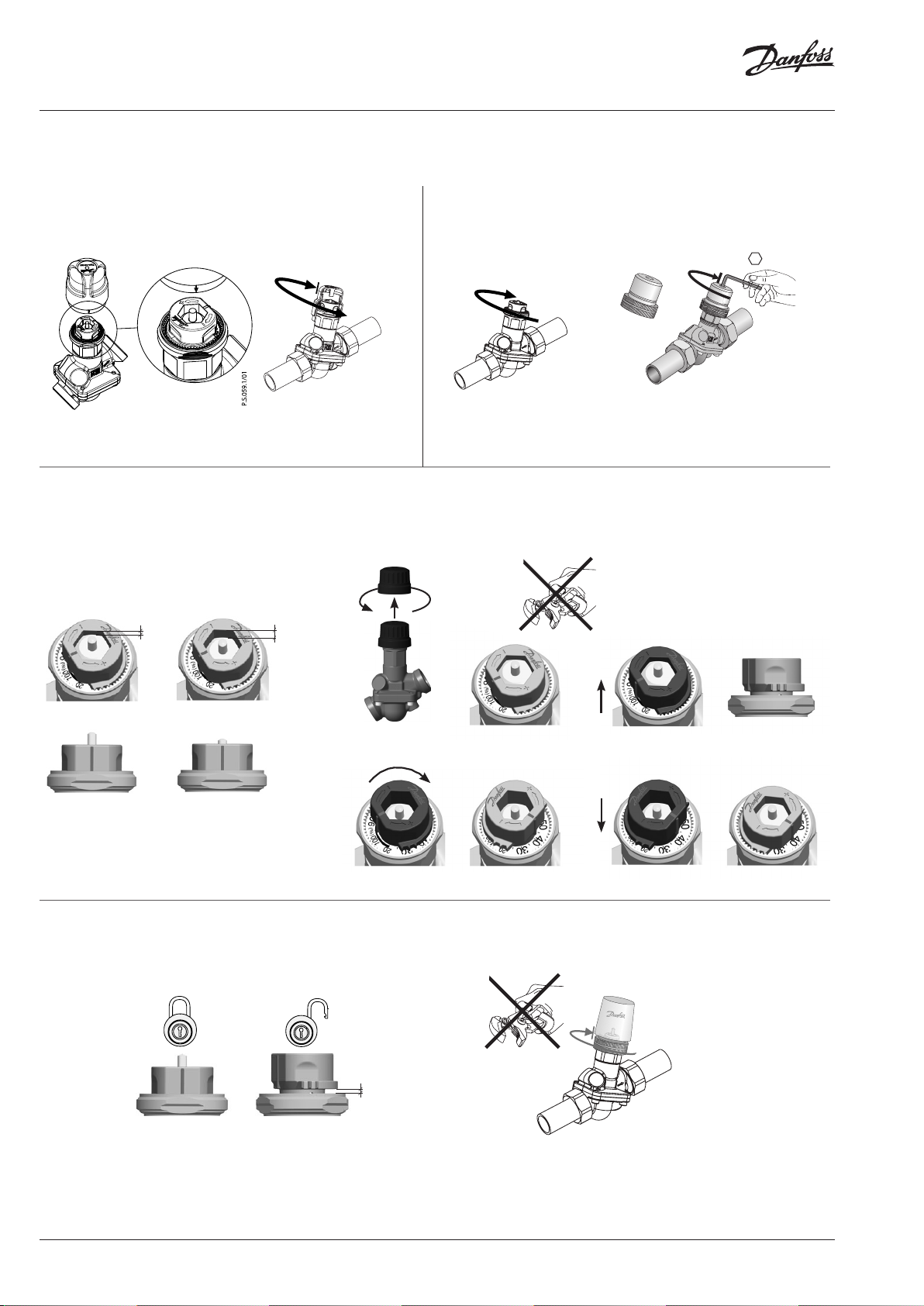

2 | © Danfoss | 2017.07 VI.A7.C4.3T
AB-QM DN 10-32
Shut off / Afspærring / Absperrung / Fermeture / Afsluiten / Avstängning / Sulkuventtiili / Funkcja odcięcia / Aizvēršana / Elzárás /
KAPAMA / Отключение /Uzavření / 关闭 / Zapiranje pretoka / Corte / Uždarymas
Setting / Indstilling / Einstellung / Réglage / Instelling / Inställning / Asettelu / Wykonywanie nastawy / Iestādījumi / Beállítás /
AYARLAMA / Настройка / Nastavení / 设定 / Nastavitev / Ajuste / Nustatymas
Δpmax = 16 bar
Locking / Låsning / Blockierung / Verrouillage / Vergrendelen / Låsning / Lukitseminen / Blokowanie nastawy / Noslēgšana / Korlátozás /
KİLİTLEME / Блокировка / Uzamykání / 锁定 / Blokiranje / Bloqueo / Blokavimas
4.5 lbf ft
(6 Nm)
4.5 lbf ft
(6 Nm)
10%
100%
②
③
≠
h
h+ 2 mm
(DN 10-20)
h+ 4 mm
(DN 25-32)
④
①
Code No.: 003Z0240
Δpmax = 1 bar
1.5 mm
0 %
∞
3 Nm 3mm
3mm
Code No.: 003Z1230

© Danfoss | 2017.07 | 3
VI.A7.C4.3T
AB-QM DN 10-32
* Δpmin = (P1-P3)min
** Δpcv.min = Δpcvmin
2
P2-P3
Measuring / Måling / Messung / Mesure / Meten / Mätning / Mittaaminen / Wykonywanie pomiarów / Mērīšana / Mérés / ÖLÇÜM /
Измерение / Měření / 测量 / Merjenje / Medida / Matavimas
–10…120 °C
Δp
max.
= 600 kP
a (6 bar)
PN 16

73693780 / VI.A7.C4.3T
4 | © Danfoss | DHS-SRMT/SI | 2017.07
Danf
oss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
already on order pro
vided that such alterations can be made without subsequential changes being necessary eady agreed.
All trademarks in this material are property of the respec
tive companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
AB-QM DN 10-32
DN 15 Low Flow Normal Flow High Flow
L/h L/s GPM L/h L/s GPM L/h L/s GPM
20% 55 0,015 0,24 90 0,025 0,40 227 0,063 1,00
25% 69 0,019 0,30 113 0,031 0,50 284 0,079 1,25
30% 83 0,023 0,36 135 0,038 0,59 341 0,095 1,50
35% 96 0,027 0,42 158 0,044 0,69 397 0,110 1,75
40% 110 0,031 0,48 180 0,050 0,79 454 0,126 2,00
45% 124 0,034 0,54 203 0,056 0,89 511 0,142 2,25
50% 138 0,038 0,61 225 0,063 0,99 568 0,158 2,50
55% 151 0,042 0,67 248 0,069 1,09 624 0,173 2,75
60% 165 0,046 0,73 270 0,075 1,19 681 0,189 3,00
65% 179 0,050 0,79 293 0,081 1,29 738 0,205 3,25
70% 193 0,053 0,85 315 0,088 1,39 795 0,221 3,50
75% 206 0,057 0,91 338 0,094 1,49 851 0,236 3,75
80% 220 0,061 0,97 360 0,100 1,58 908 0,252 4,00
85% 234 0,065 1,03 383 0,106 1,68 965 0,268 4,24
90% 248 0,069 1,09 405 0,113 1,78 1022 0,284 4,49
95% 261 0,073 1,15 428 0,119 1,88 1078 0,300 4,74
100% 275 0,076 1,21 450 0,125 1,98 1135 0,315 4,99
105% 289 0,080 1,27 473 0,131 2,08 1192 0,331 5,24
110% 303 0,084 1,33 495 0,138 2,18 1249 0,347 5,49
115% 316 0,088 1,39 518 0,144 2,28 - - -
120% 330 0,092 1,45 540 0,150 2,38 ---
DN 20 Normal Flow High Flow
L/h L/s GPM L/h L/s GPM
20% 180 0.050 0.79 340 0.094 1.50
25% 225 0.063 0.99 425 0.118 1.87
30% 270 0.075 1.19 510 0.142 2.24
35% 315 0.088 1.39 595 0.165 2.62
40% 360 0.100 1.58 680 0.189 2.99
45% 405 0.113 1.78 765 0.213 3.37
50% 450 0.125 1.98 850 0.236 3.74
55% 495 0.138 2.18 935 0.260 4.11
60% 540 0.150 2.38 1020 0.283 4.49
65% 585 0.163 2.57 1105 0.307 4.86
70% 630 0.175 2.77 1190 0.331 5.24
75% 675 0.188 2.97 1275 0.354 5.61
80% 720 0.200 3.17 1360 0.378 5.98
85% 765 0.213 3.37 1445 0.401 6.36
90% 810 0.225 3.56 1530 0.425 6.73
95% 855 0.238 3.76 1615 0.449 7.11
100% 900 0.250 3.96 1700 0.472 7.48
105% 945 0.263 4.16 1785 0.496 7.85
110% 990 0.275 4.36 1870 0.519 8.23
115% 1035 0.288 4.55 - - -
120% 1080 0.300 4.75 - - -
DN 25 Normal Flow High Flow
L/h L/s GPM L/h L/s GPM
20% 340 0.094 1.50 540 0.150 2.38
25% 425 0.118 1.87 675 0.188 2.97
30% 510 0.142 2.24 810 0.225 3.56
35% 595 0.165 2.62 945 0.263 4.16
40% 680 0.189 2.99 1080 0.300 4.75
45% 765 0.213 3.37 1215 0.338 5.35
50% 850 0.236 3.74 1350 0.375 5.94
55% 935 0.260 4.11 1485 0.413 6.53
60% 1020 0.283 4.49 1620 0.450 7.13
65% 1105 0.307 4.86 1755 0.488 7.72
70% 119 0 0.331 5.24 1890 0.525 8.32
75% 1275 0.354 5.61 2025 0.563 8.91
80% 1360 0.378 5.98 2160 0.600 9.50
85% 1445 0.401 6.36 2295 0.638 10.10
90% 1530 0.425 6.73 2430 0.675 10.69
95% 1615 0.449 7.11 2565 0.713 11. 29
100% 1700 0.472 7.48 2700 0.750 11.88
105% 1785 0.496 7.85 2835 0.788 12.47
110% 1870 0.519 8.23 2970 0.825 13.07
DN 32 Normal Flow High Flow
L/h L/s GPM L/h L/s GPM
20% 640 0.178 2.82 800 0.222 3.52
25% 800 0.222 3.52 1000 0.278 4.40
30% 960 0.267 4.22 1200 0.333 5.28
35% 1120 0. 311 4.93 1400 0.389 6.16
40% 1280 0.356 5.63 1600 0.444 7.04
45% 1440 0.400 6.34 1800 0.500 7.92
50% 1600 0.444 7.04 2000 0.556 8.80
55% 1760 0.489 7.74 2200 0.611 9.68
60% 1920 0.533 8.45 2400 0.667 10.56
65% 2080 0.578 9.15 2600 0.722 11.44
70% 2240 0.622 9.86 2800 0.778 12.32
75% 2400 0.667 10.56 3000 0.833 13.20
80% 2560 0.711 11. 26 3200 0.889 14.08
85% 2720 0.756 11.97 3400 0.944 14.96
90% 2880 0.800 12.67 3600 1.000 15.84
95% 3040 0.844 13.38 3800 1.056 16.72
100% 3200 0.889 14.08 4000 1.111 17.60
105% 3360 0.933 14.78 4200 1.167 18.48
110% 3520 0.978 15.49 4400 1.222 19.36
DN 10 Low Flow Normal Flow
L/h L/s GPM L/h L/s GPM
20% 30 0.008 0.13 55 0.015 0.24
25% 38 0.010 0.17 69 0.019 0.30
30% 45 0.013 0.20 83 0.023 0.36
35% 53 0.015 0.23 96 0.027 0.42
40% 60 0.017 0.26 110 0.031 0.48
45% 68 0.019 0.30 124 0.034 0.54
50% 75 0.021 0.33 138 0.038 0.61
55% 83 0.023 0.36 151 0.042 0.67
60% 90 0.025 0.40 165 0.046 0.73
65% 98 0.027 0.43 179 0.050 0.79
70% 105 0.029 0.46 193 0.053 0.85
75% 113 0.031 0.50 206 0.057 0.91
80% 120 0.033 0.53 220 0.061 0.97
85% 128 0.035 0.56 234 0.065 1.03
90% 135 0.038 0.59 248 0.069 1.09
95% 143 0.040 0.63 261 0.073 1.15
100% 150 0.042 0.66 275 0.076 1.21
105% 158 0.044 0.69 289 0.080 1.27
110% 165 0.046 0.73 303 0.084 1.33
115% 173 0.048 0.76 316 0.088 1.39
120% 180 0.050 0.79 330 0.092 1.45
