Danley DSLP48 User manual

DSLP48
Loudspeaker Management System
User Manual

DSLP48 User's manual - Page 2 of 27
Table of Contents
1.0 Introduction ............................................................... 3
2.0 Features ..................................................................... 4
3.0 Front Panel Functions............................................... 5
4.0 Rear Panel Functions................................................ 6
5.0 Powering Up the Device............................................ 7
6.0 Unlocking the Device................................................. 8
7.0 Operating the Device / Input menus......................... 9
7.2 Output Menus.............................................................. 11
7.3 System Menus ............................................................ 13
8.0 Security/Password...................................................... 15
9.0 Quick Reference......................................................... 17
10.0 PC Control................................................................... 18
11.0 Software Navigation.................................................... 21
12.0 Specifications…………………………………………….. 25
13.0 Warranty…………………………………………………… 27

DSLP48 User's manual - Page 3 of 27
1.0 Introduction
The DSLP48 is a complete 4 input - 8 output digital loudspeaker management
system designed for the touring or fixed sound installation markets. The absolute
latest in available technology is utilized with 40 bit floating point processors and
high performance 24-bit Analog Converters. The high-bit DSP prevents noise and
distortion induced by truncation errors of the commonly used 24-bit fixed-point
devices.
A complete set of parameters include I/O levels, delay, polarity, 8 bands of
parametric EQ per channel, plus 1/3rd oct graphic EQ on the Inputs, multiple
crossover selections and full function compressors (Input) and limiters (Output).
Precise frequency control is achieved with its 1 Hz resolution.
Inputs and outputs can be routed in multiple configurations to meet any
requirements. The DSLP48 can be controlled or configured in real time on the
front panel or with the intuitive PC GUI accessed via the RS-232/USB or Ethernet
interface. Software upgrade for CPU and DSP via PC keeps the device current with
newly developed algorithms and functions once available.
Multiple setup storage and system security complete this professional package.
Shipped contents:
- DSLP48 unit
- User Manual
- DSLP Control Software CD

DSLP48 User's manual - Page 4 of 27
2.0 Features
> 4 Inputs and 8 Outputs with flexible routing
> 40-bit floating point DSP
> High Performance 24-bit A/D Converters
> 1 Hz Frequency Resolution
> 8 Parametric Equalizers for each Input and Output
>1/3rd graphic EQ for each input
> Multiple Crossover types with Full Function compressors on the inputs
>Multiple Crossover types with hard limiting on the outputs
> Precise Level, Polarity and Delay on both inputs and outputs
> CPU and DSP upgrade via PC
> Individual Channel Buttons with Linking capability
> 2-Line x 16 Character Backlit LCD Display
> Full 5-segment LED on every Input and Output
> Storage of up to 30 Program Setups
> Security Lock
> RS-232-USB-Ethernet Interface for PC Control and Configuration
> Future options available

DSLP48 User's manual - Page 5 of 27
3.0 Front Panel Functions
1 2 3 4 5 6
7 8 9
1) USB input
2) INPUT Meters Displays the actual Input level
3) Display Screen
4) OUTPUT Meters Displays the onset of limiting-not actual output level
5) Control Bottons
<<MENU>> Allows navigation between different menus under a desired
page
<<CURSER>> Allows navigation between parameters in a particular MENU
ENTER Allows data entry to be stored.
HOME Brings up the HOME screen
6) DATA WHEEL Allows for data parameters to be changed.
7) RS232 Input jack
8) MUTE and INPUT select buttons (when used in conjunction with the
<<MENU button)

DSLP48 User's manual - Page 6 of 27
9) MUTE and OUTPUT select buttons (when used in conjunction with the
<<MENU button)
4.0 Rear Panel Functions
1 2 3 4 5 6
1) Power switch - Controls power On/Off.
2) Main Fuse - T200mA-250V. Slow blow type.
3) Main Power - Connects via a standard IEC socket. A compatible power cord
is supplied with the unit. The voltage input is either 115VAC or 230VAC and
is clearly specified on the unit. Voltage requirement has to be stated upon
ordering.
4) Ethernet connection.
5) OUTPUT JACKS M XLR 2 Hot- 3 Cold
6) INPUT JACKS F XLR 2 Hot-3 Cold

DSLP48 User's manual - Page 7 of 27
5.0 Powering Up the Device
After powering up the unit, the following initialization screen is displayed
on the LCD:
This shows the software version
The initialization process takes about 8 seconds and during that period the
unit boots and displays the DSLP48 firmware version.
After the initialization process is finished the DSLP48 displays its main
screen:
The screen shows the current program number and program name
assigned to the unit. The program assigned is always the last program the
user recalled or stored before powering down the unit.
Now the DSLP48 is now ready to operate.

DSLP48 User's manual - Page 8 of 27
6.0 Unlocking the Device
The first thing you will need to do is to make sure your DSLP48 is unlocked.
If the unit is locked you can see all functions but cannot make any changes
via the front panel nor computer interface.
1: Press the Upper Left MENU key (on the control button on the right side
of the unit) and while holding down-press one of the output Mute buttons,
Release. This should bring up a screen with a Level control on it. Turn the
data wheel and see if this level changes. If it does your DSP is unlocked. If
it does not, follow the next steps.
2: If your unit is locked-proceed with the following. On the front of the
DSP locate the control buttons towards the right side. Press the HOME
button, then the ENTER button. This will get you back to the start screens.
Press the Upper Right MENU button repeatedly until you get to the OLD
PASSWORD screen. Then press one the same button one more time. This
will get you to the SYSTEM PASSWORD screen.
Now press ENTER- TWICE. This should unlock your DSP. Try step 1 above
to see if the unit is unlocked.
You will need to unlock the DSP in this manner whether you are using the
computer interface or front panel access.
See ALSO the section on Security/Passwords (page 15) for more
information.

DSLP48 User's manual - Page 9 of 27
7.0 Operating the Device
Tips:
Channel Linking - If the user presses the LEFT MENU KEYS and the MUTE
button of the Input or Output keys, holds it down and press any other
MUTE key(s) in the same group (Input or Output group), then the channels
are linked together. The green menu LEDs for the linked channels are lit.
Any modification of the data for the selected channel will be applied to the
linked channels as well. To cancel the linking, just press and hold the LEFT
Menu key and a channel.
7.1 Input menus
Each of DSLP48 input channels has a separate Menu key. There are 6 menus for
each input channel.
The MENU buttons select the different blocks of the signal chain. The CURSOR
buttons select the different parameters within that particular block. The DATA
WHEEL selects the particular adjustment needed.
Signal - Signal parameters
SIGNAL - Gain, -40.00dB to +15.00dB in 0.25dB steps.
POL - Polarity, can be normal (+) or inverted (-).
DELAY - Delay in 21us steps. Can be displayed in ms, ft or m. The time unit
of the delay can be changed in the System menu. The maximum delay
permitted is (90ms).
EQ - EQ parameters
EQ# - Selects one of the 8 available Equalizers.
LEVEL - EQ level gain. Ranges from -30.00dB to +15.00dB in 0.25dB steps.

DSLP48 User's manual - Page 10 of 27
(Input Menus continued)
FREQ - EQ center frequency. Ranges from 20 to 20,000Hz in either 1Hz
steps or 1/36 octave steps. The sampling rate and the frequency steps can
be selected in the System Menu.
BW - EQ Bandwidth. Ranges from 0.02 to 2.50 octaves in steps of 0.01
octave steps for PEQ. The Q value is automatically shown beneath the
octave value. For Lo-Slf or Hi-Shf, it is either 6 or 12dB/Oct.
I1: XXXXXX EQ
BW: 0.33 Q=4.36
Type - Type of EQ. The types can be parametric (PEQ), Lo-shelf (Lo-shf) and
Hi-shelf (Hi-shf), AP (All Pass).
GEQ
This is a standard 1/3rd octave graphic EQ on ISO centers (you cannot adjust
the freq), but only the boost/cut.
XOVER
This allows for both high and low CUT filters of L/R, Bessel or Butterworth
types and 6-48dB/oct slope rates.
COMP
This is a compressor that allows for THRESHOLD, ATTACK, RELEASE (as a
ratio of input time), RATIO,
Ch-Name - Channel Name
Name - Channel name. It is 6 characters in length.
Use the cursor keys and the data wheel to enter the name

DSLP48 User's manual - Page 11 of 27
7.2 Output Menus
Each output channel of the DSLP48 has a separate menu key. There are 6 menus
for each output channel.
Signal - Signal parameters
Signal Level (Output gain)-Polarity-Delay functions are available just
as on the input channels.
EQ Refer to the Input Menus for details EQ - EQ parameters
XOver - Crossover parameters
Refer to the Input Menus for details
FRQL - Filter cut-off Frequency of low frequency crossover point (low
cut/high pass). Ranges from 20 to 20,000Hz in either 1Hz steps or
1/36 octave steps. The frequency steps can be selected in the System
General Menu.
SLPL - Filter Slope of low frequency crossover point (low cut/high
pass). Ranges from 6 to 48dB/octave. If the selected Filter Type is
Linkwitz Riley, the available slopes are 12 / 24 / 36 / 48 dB/octave.
FTRH - Filter Type of high frequency crossover point (low pass).
FTRH - Filter Type of high frequency crossover point (high cut/low
pass).
FRQH - Filter cut-off Frequency of high frequency crossover point
(high cut/low pass).
SLPH - Filter Slope of high frequency crossover point (low pass).

DSLP48 User's manual - Page 12 of 27
(Output Menus continued)
Filter Low crossover High crossover
Configuration point point
None FTRL Off FTRH Off
Highpass FTRL not Off FTRH Off FRQL
Lowpass FTRL Off FTRH not Off FRQH
Bandpass FTRL not Off FTRH not Off FRQL FRQH
Limit - Output Limiter
THRESH - Limit Threshold. Ranges from -20 to +20dBu in 0.5dB steps.
The Threshold adjusts the output LEVEL meter to read the onset of
limiting-NOT output clipping.
ATTACK - Attack time. Ranges from 0.3 to 1ms in 0.1ms steps, then
ranges from 1 to 100ms in 1ms steps.
RELEASE - Release time. Can be set at 2X, 4X, 8X, 16X or 32X the
attack time.
Source - Input Source
1,2,3,4 Input channel source for the current output channel. Can be
set to enable the input source (On) or disable it (Off). If more than
one input source are enabled, they will be added together as the
source for the current output channel. The numbers indicate the
gain of a particular input routed to that particular output.
O1:XXXXXX Source
In1:0.00
O1:XXXXXX Source
In2:-10
O1:XXXXXX Source
In3:Off
O1:XXXXXX Source
In4:2.5
Ch-Name - Channel Name
Refer to the Input Menus for details

DSLP48 User's manual - Page 13 of 27
7.3 System Menus
The System Menus allow the user to control and change parameters that are
related to the system behavior and general operation. It can be accessed by
pressing the HOME and then ENTER key in the main menu. All System Menus
require the Enter key to be pressed for the selected action.
Recall - Program Recall
The DSLP48 has a built in non-volatile memory that can store up to 30 different
program setups. A program can be recalled using this menu.
PROG - Program Number to be recalled. Only first 8 characters of the
program name are displayed.
Store - Program store
The DSLP48 has a built in non-volatile memory that can store up to 30 different
program setups. A program can be stored using this menu. The old program with
the same program number will be replaced. Once the program is stored in the
flash memory, it can be recalled at a later time, even after power down.
PROG - Program Number for the current data to be stored.
O1:XXXXXX Store
PROG:01
NAM - Program Name, allows a maximum length of 12 characters.
Use the cursor keys and data wheel for entry
O1:XXXXXX Store
NAM:XXXXXXXXXXXX
Config - Device Configuration
MODE - configures the mode of operation.

DSLP48 User's manual - Page 14 of 27
(System Menus continued)
SYSTEM-SETUP MENU: Config
MODE: 2-Way
Mode: Out 1 Out 2 Out 3 Out 4 Out 5 Out 6 Out 7 Out 8
None Any Any Any Any Any Any Any Any
Stereo 2-Way In1 In1 In2 In2 Any Any Any Any
Stereo 3-Way In1 In1 In1 In2 In2 In2 Any Any
Stereo 4-way In1 In1 In1 In1 In2 In2 In2 In2
The unit assigns the Input source for the corresponding outputs when the Mode
of Configuration is selected. The crossover point parameters like the filter type,
cut-off frequency and slope have to be configured manually in the Xover Menu in
each Output menu.
*Note: The configuration mode configures the input sources when selected. The
user can change the source afterwards if desired. It does not keep the
configuration in memory. Individual crossover points will have to be adjusted as
well.
Copy - Copy channels
Copy Channels from the source to the target. When the Source and Targets are
both Inputs or Outputs, all audio parameters will be copied. When one of the
Source or the Target is an input while the other is an output, only the Level,
Polarity, Delay and EQ are copied.
SOURCE - Channel to be copied from.
O1:XXXXXX Copy
SOURCE: In1
TARGET - Channel to be copied to.
O1:XXXXXX Copy
TARGET: In2

DSLP48 User's manual - Page 15 of 27
(System Menus continued)
General - General system parameters
SYSTEM-SETUP MENU: General
FREQ MODE: All Freq
DELAY UNIT: 01
DEVICE#: 1
FREQ MODE - Selects the frequency control mode for EQ and
crossover filters. Can be 36 steps/octave or All Frequencies (1 Hz
resolution).
O1:XXXXXX Generl
FREQ MODE: All
DELAY UNIT - ms, ft or m.
O1:XXXXXX Generl
DELAY UNIT: ms

DSLP48 User's manual - Page 16 of 27
8.0 Security/passwords
The DSLP48 enables the user to secure the unit and prevent undesired changes in
the setup. In order to lock/unlock the unit the user must enter the correct
password.
PASSWORD - the password of the DSLP48 is 4 characters in length. The user
can change it as needed.
SETTING PASSWORD
In order to be able to set a new password the front panel needs to be
UNLOCKED. (See section on UNLOCKING (page 8) for procedure)
Press HOME-ENTER and then the Right MENU button until you get to the
SYSTEM OLD PW screen. Press the Right CURSER until it goes past the
blanks and then the NEW PW screen will open. Use the Data wheel and the
CURSER keys to enter the new Password. Then press ENTER and ENTER
again. This will lock out the computer from accessing the DSP.
When you try to CONNECT to the DSP it will ask you to LOG ON. Go to the
START menu and open the LOG ON box and enter your password.
In order to lock out the front panel controls on the DSP unit –On the front
panel-press HOME-ENTER and the MENU>> curser until SYSTEM Secure
PASSWORD comes up. Enter the same password as NEW PASSWORD. Then
ENTER Two times.
To CHANGE the PASSWORD go to the software and the SETUP menu and
then SECURITY. This will open up a window that you can enter a new
password into.
This window will not be available if there is not password in the unit. The
original password must be set from the NEW PASSWORD entry area.
If you want to leave the unit unlocked with no password, then unlock as
necessary and go SYSTEM OLD PW and enter the old password, then press
ENTER Two times.

DSLP48 User's manual - Page 17 of 27
9.0 Quick Reference
Parameters Menu Field Min Max Steps Units
< <<Menu>> <<Cursor>> >
Level Signal LEVEL -40 +15 0.25 dB
Polarity Signal POL + / -
Delay Signal DELAY 0 2,400 1 21us step
EQ Number EQ EQ# 1 8 1
EQ Level EQ LEVEL -30 +15 0.25 dB
EQ Frequency EQ FREQ 20 20,000 1 Hz
EQ Bandwidth EQ BW 0.0/2 3.61 0.01 Octave
Crossover Low XOver FTRL Off / Butterworth / Linkwitz-Riley / Bessel
Crossover Low XOver FRQL 20 20,000 1 Hz
Crossover Low XOver SLPL 6 48 6 dB/octave
Crossover High XOver FTRH Off / Butterworth / Linkwitz-Riley / Bessel
Crossover High XOver FRQH 20 20,000 1 Hz
Crossover High XOver SLPH 6 48 6 dB/octave
Out Limit Thresh Limit THRESH -20 +20 0.5 dBu
Out Attack Time Limit ATTACK 0.3 100 0.1/1 ms
Out Release Time Limit RELEASE 2 / 4 / 8 / 16 / 32X Attack time
Source Source 1, 2, 3,4 Off / On/Level
Channel Name Ch-Name NAME 6 characters

DSLP48 User's manual - Page 18 of 27
10.0 PC Control Software
The DSLP48 is shipped with a special PC Graphic User Interface (GUI) application –
DSLP Control. This gives the user an option to control the DSLP48 unit from a
remote PC via the RS232/USB/Ethernet communication link.
The GUI application makes it much easier to control and monitor the device,
allowing the user to get the whole picture on one screen. Programs can be
recalled and stored from/to PC hard drive, thus expanding the storage to become
virtually limitless.

DSLP48 User's manual - Page 19 of 27
(PC Control Software continued)
COMPUTER SETUP

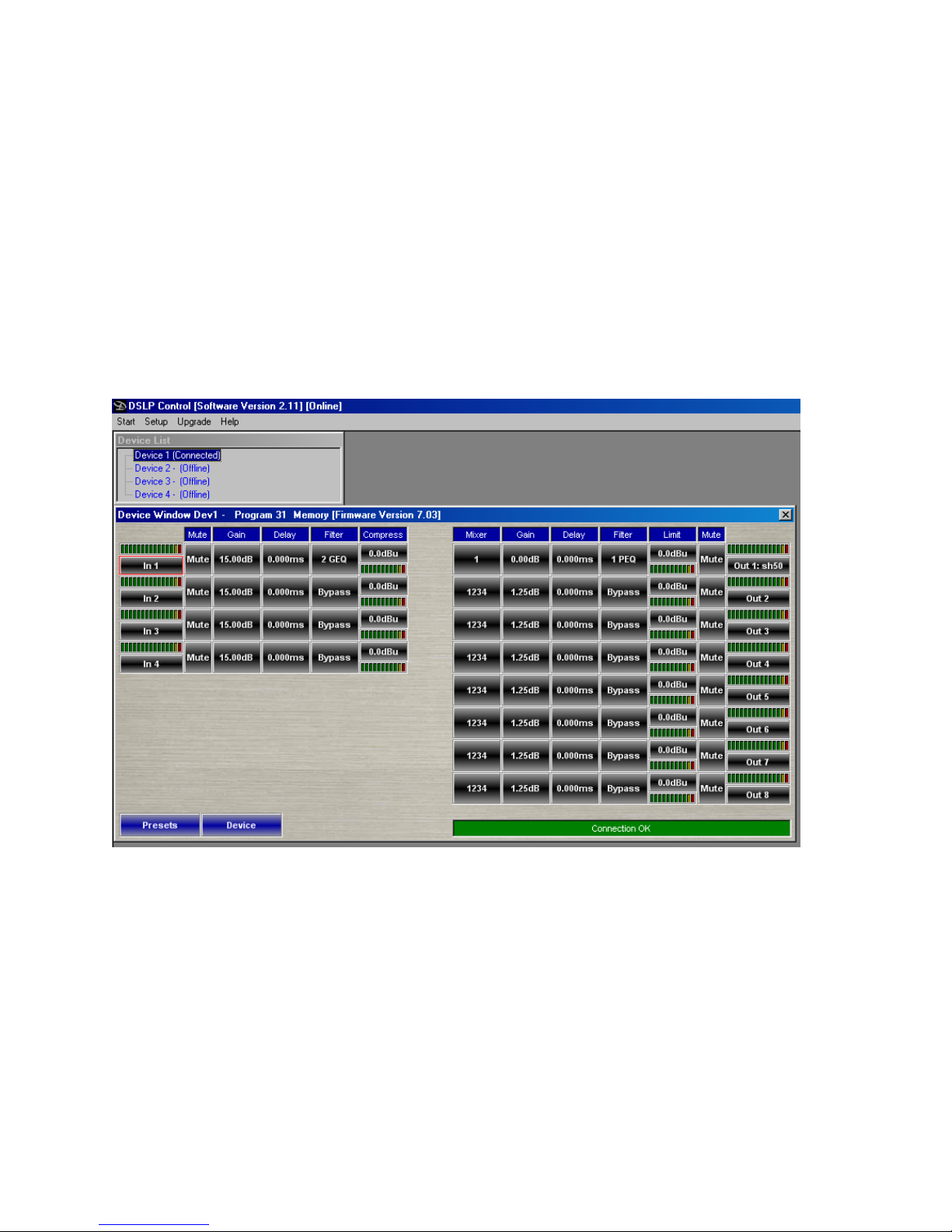

1: Once you have unlocked your DSP you can now connect to it via the computer.
Open the software and follow the prompts. If you are able to talk to the device
you will get a screen that looks like this:
2: If you have OFF LINE in device 1 Check the following things. Open the SETUP
window and go to Port connections. Make sure the ONLINE button is checked
under the Details window. If it was not, then check it and close the software and
reopen the software and try to connect.
3: If you still do not have a connection, it is probably because you are not using
the correct port number. Generally the Serial port is COM 1. If using a USB
connection, it could be just about any number. Open the COM Port pull down
window under Details in the SETUP-Port Connections window.
4: Scroll down and see if you have ports that have a blank beside the numbers.
Most will say “not available”. If you have several with a blank, you will need to go
to more detail to see which port is which. But if you only see one port that has a
blank name then double-click that number and it should be entered into the port
number. You will need to close and restart the software for this change to take
effect-instructions on the screen will say this also.
5: If you have several blanks then you will need to identify which port is which.
Do the following: Right click on MY COMPUTER-then MANAGE and then DEVICE
MANAGER.

DSLP48 User's manual - Page 20 of 27
(PC Control Software continued)
Scroll down until you see Ports Com and LPT. Open that up. You should see the
port number next to the particular device that is using it. In the case of USB it
should look like this
Note that number and then go back to step 4 above and enter that port number.
6: In a few weird cases you will need to make another change. Following the
steps in #5 above, go to the com port being used and double click it. Then open
the RESOURCES tab. In the middle there should be a box that says “Use
automatic settings”.It does not matter whether the box is checked or not;
change it, then hit CHANGE SETTINGS and close out the windows. It may take a
couple of seconds for this change to take effect.
NOTE: If you have to do step 6 with your computer, you will need to change it
every time you start your computer up and use the DSP.
You should be able to hook up to the device at this point and go ONLINE.
