DAPAudio DS-CM-4 User manual

DS-CM-4
ORDERCODE D2180

Congratulations!
You have bought a great, innovative product from DAP Audio.
The DAP Audio DS-CM-4 brings excitement to any venue. Whether you want simple plug-&-play action or
a sophisticated show, this product provides the effect you need.
You can rely on DAP Audio, for more excellent audio products.
We design and manufacture professional audio equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [e-mail]
You can get some of the best quality, best priced products on the market from DAP Audio.
So next time, turn to DAP Audio for more great audio equipment.
Always get the best -- with DAP Audio !
Thank you!

1
2
2
2
3
4
5
5
5
6
6
6
7
11
11
12
12
13
Dap Audio
Dap Audio DS-CM-40™ Product Guide
Warning.......................................................................................................................................................................
Unpacking Instructions.........................................................................................................................................
Return Procedure..................................................................................................................................................
Safety-instructions.................................................................................................................................................
Operating Determinations...................................................................................................................................
Description..................................................................................................................................................................
Overview................................................................................................................................................................
Frontside.................................................................................................................................................................
Backside.................................................................................................................................................................
Installation...................................................................................................................................................................
Functions.....................................................................................................................................................................
Set Up and Operation................................................................................................................................................
Maintenance..............................................................................................................................................................
Replacing a fuse........................................................................................................................................................

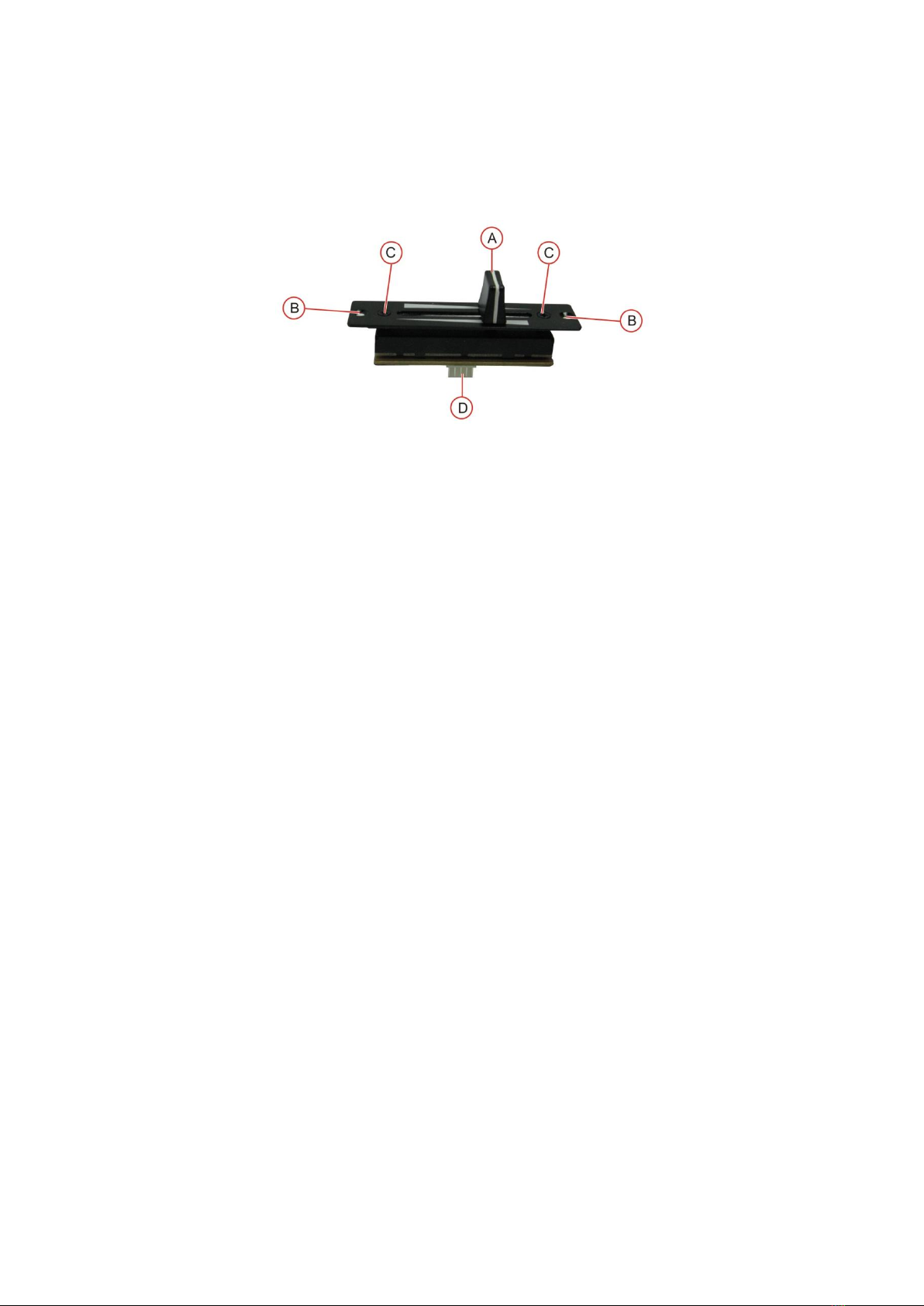

Replacing the crossfader..........................................................................................................................................
Troubleshooting..........................................................................................................................................................
Product Specifications...............................................................................................................................................

2
WARNING
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
• DAP DS-CM-40
• IEC power cable
• User manual
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
1) Your name
2) Your address
3) Your phone number
4) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!

3
WARNING
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this system has to:
-be qualified
-follow the instructions of this manual
Before you initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-
observance of this manual or any unauthorized modification to the system.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this system to a dimmerpack.
Do not switch the system on and off in short intervals, as this would reduce the system’s life.
Do not open the device and do not modify the device.
Do not drive the inputs with a signal level bigger, than required to drive the equipment to full
output.
Do not plug Mics into the console (or stagebox) while Phantom Power is on. Also mute the monitor
/ Pa system when turning Phantom Power on or off. Allow the system to adjust for a couple of
seconds, before setting the input gains.
Only use system indoor, avoid contact with water or other liquids.
Avoid flames and do not put close to flammable liquids or gases.
Always disconnect power from the mains, when system is not used. Only handle the power-cord
by the plug. Never pull out the plug by tugging the power-cord.
Always operate the unit with the AC ground wire connected to the electrical system ground.
Make sure you don’t use the wrong kind of cables or defective cables.
Make sure that the signals into the mixer are balanced, otherwise hum could be created.
Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear.
CAUTION!
Keep this system away from rain and moisture!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!

4
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the system and the power-
cord from time to time.
Please turn off the power switch, when changing the power cord or signal cable, or select the
input mode switch.
Extreme frequency boosts in connection with a high input signal level may lead to overdriving
your equipment. Should this occur, it is necessary to reduce the input signal level by using the
INPUT control.
To emphasize a frequency range, you don’t necessarily have to move its respective control
upward; try lowering surrounding frequency ranges instead. This way, you avoid causing the next
piece of equipment in your sound path to overdrive. You also preserve valuable dynamic reserve
(“headroom”)
Avoid ground loops! Always be sure to connect the power amps and the mixing console to the
same electrical circuit to ensure the same phase!
If system is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your system. Leave
the system switched off until it has reached room temperature.
If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Dap Audio dealer for
service.
Repairs, servicing and electric connection must be carried out by a qualified technician.
For replacement use fuses of same type and rating only.
WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
This system is not designed for permanent operation. Consistent operation breaks will ensure that the
system will serve you for a long time without defects.
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU (including UK)
From April 2004
North America
Pin
L
Brown
Black
Phase
N
Blue
White
Neutral
Green/Yellow
Green
Protective Earth
Make sure that the device is always connected properly to earth!

5
Description of the device
Features
Multifunctional Entertainment Mixer.
•10 inputs
•3 outputs
•50 mm faders
• Cross faders
• Master output with equalizer
Overview

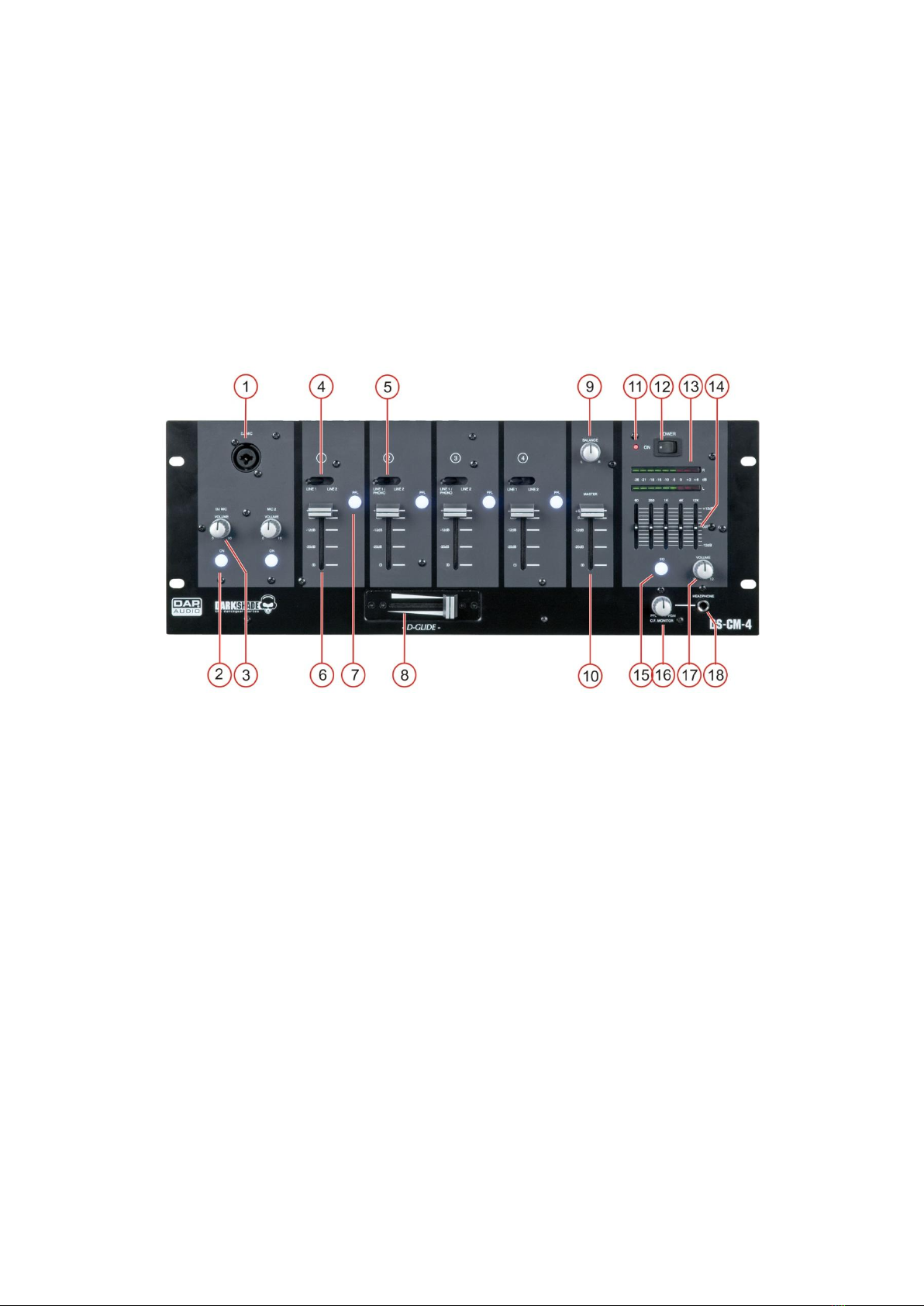

Front
Fig. 1
1) Mic Input Balanced 10) Master Volume Fader
2) Mic Channel ON/OFF 11) Power ON LED
3) Mic Channel volume 12)Power Switch
4) Channel Input Selector Line 1/ line 2 13) Output Signal VU-meter
5) Channel Input Selector Phono/ Line 14) 5-band EQ
6) Channel Fader 15) EQ ON/ OFF Switch
7) PFL Switch 16)PFL/ PGM
8) Crossfader 17)Headphone Volume
9) Master Balance 18)Headphone

6
Backside
Fig. 2
19)Record RCA Unbalanced Out 27)Channel 4 L2 RCA Input
20)Channel 4 L1 RCA Input 28)Channel 3 L2 RCA Input
21)Channel 3 Level Selector 29) Channel 3 PH1L1 RCA Input
22) Channel 2 Level Selector 30) Channel 2 L2 RCA Input
23)Channel 1 L1 RCA Input 31) Channel 2 PH1/L1 RCA Input
24)GND 32) Channel 1 L2 RCA Input
25) AC Inlet with integrated fuse holder 33) Mic 2 Jack Unbalanced Input
26)Master RCA Unbalanced Out
Installation
Remove all packing materials from the DS-CM-4. Check that all foam and plastic padding is removed.
Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Functions
1. MIC
Electronically balanced XLR-type input for connecting low impedance
microphone. The input has exremely low noise and hum processing. When
connecting a microphone make sure that the pin assignment
is correct. Always make sure to read the manual of the microphone you want to
connect. The XLR- input is not suitable for connecting an additional mixing
console, FX- unit, etc. You have to use the LINE-inputs, when connecting this kind
of equipment.
Note: When connecting signal sources, please make sure that the corresponding
channel faders and the master faders are at minimum settings. Otherwise
unpleasant plug-in noise can occur.
2. MIC Channel ON Switch
Use this switch to enable the Mic channel.
3. DJ MIC Level
Controls the volume of the Microphone channel.

7
4. Selection Switch (CD/Line)
With this switch you can select multiple devices you have connected to your
DS-CM-4.
5. Selection Switch (Phono/Line)
With this switch you can select multiple devices you have connected to your
DS-CM-4.
6. Channel Fader
A logarithmic 50mm fader, which controls the volume of its’channel. The faders
should be positioned within the range of -12dB to 0dB, leaving you with sufficient
room to allow precise matching of differences in the channel’s level settings. The
overall volume is set with the master fader. Even though the channel faders offer
an additional gain of +6dB, it is better not to exceed the +0dB position by
default.
7. PFL
The PFL button (pre fade listening) is designed to route the channel input to the
monitor section independent of the individual channel’s volume fader setting. It
It is possible to assign more than one channel simultaneously to the PFL bus.
8. Crossfader
The crossfader allows you to mix evenly from channel 2 to channel 3.
9. Balance
Use to set the balance between the Left and right master output.
10. Master
You can adjust the output signal to the Master Output (26).
11. Power LED
Indicates that the DS-CM-4 is active.
12. Power On / Off
Do not supply power before the whole system is set up and connected properly.
13. Output Signal VU Meter
This meter is a multi-step LED; respectively the blue LEDs show –26, -21, -18, -15,
-10, -5dB. The red LED shows +0, +3, +6dB. The accurate level indication allows
you to monitor the output signal level at anytime, and match with other
devices.
14. EQ
All 7 frequency bands (60Hz, 250Hz, 1 KHz, 4 KHz, 12 KHz) provide a
±12dB amplification/attenuation. You can change the overall sound, thus
meeting your requirements for different locations. If you want your sound to
have more bass, you have to boost the low frequency range, using the 60Hz or
the 250Hz controls. If you experience too much bass, lower the levels of the
60Hz and 250HZ controls. If the mid-range sounds a bit nasal, try attenuating
the 250Hz, 1Khz and 4Khz controls by some decibels. If you want to have a
clear and highly intelligible sound, you should increase the level setting of the
4kHz or 12kHz band a bit. When using the equalizer, less attenuation is better
than a great change of the control settings.
15. EQ On/ Off
Use this switch to bypass the EQ section.
16. CF Monitor
Use this control to make a headphone mix between your PFL and your master
signal.
17. Phones
This control allows you to adjust the headphones’ volume.
18. Headphone
You can connect a pair of headphones with an impedance of 32 - 600 Ohm to
the headphones connector. It is a 6,3mm/ 1/4” TRS socket, wired as Tip=left,
Ring=right and sleeve = ground.
Caution: Depending on the type of headphones connected to the Headphones jack, the ds-cm-4 is
capable of producing high output levels via the phones output. Therefore, make sure to turn the control
all the way to the left (minimum setting) before connecting the headphones. Be aware of the fact that
listening to loud sound pressure levels over a longer period of time leads to hearing-damage!

8
19. Record RCA Unbalanced Out
Use these to connect a recording device.
20. Channel 4 L1 RCA Input
Use to connect a line level device.
21. Channel 3 CD/PHONO Selector
Used to set the input level for the PH/L1 Input (29) to either phono or line level.
22. Channel 2 CD/PHONO Selector
Used to set the input level for the PH/L1 Input (31) to either phono or line level.
23. Channel 1 L1 RCA Input
Use to connect a line level device.
24. GND
Use to connect the ground wire of your turntable.
25. AC Inlet with integrated fuse holder.
This connector is meant for the connection of the supplied main cord. Connect one end of the power
cord to the connector, the other end to the mains, then turn on the power switch to operate the unit.
Note: Please make sure that the supply voltage matches the operation voltage before connecting
the unit to mains. Replace the fuse only with a fuse of same specification (T250mA).
26. Master RCA Unbalanced Out
Use these outputs to connect an amplifier with unbalanced inputs.
27. Channel 4 L2 RCA Input
Use to connect a line level device.
28. Channel 3 L2 RCA Input
Use to connect a line level device.
29. Channel 3 PH/L1 RCA Input
Use to connect either a Line level or Phono level device. Depending on the position of the Channel 3
CD/Phono Selector (21)
30. Channel 2 L2 RCA Input
Use to connect a line level device.
31. Channel 2 PH/L1 RCA Input
Use to connect either a Line level or Phono level device. Depending on the position of the Channel 2
CD/Phono Selector (22)
32. Channel 1 L2 RCA Input
Use to connect a line level device.
33. MIC 2 Jack Unbalanced Input
MIC 2 channel ¼” unbalanced microphone input.

9
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connection Cables
Take care of your cables, always holding them by the connectors and avoiding knots and twists when
coiling them: This gives the advantage of increasing their life and reliability.
Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges,
etc.) are caused entirely by using unsuitable or faulty cables.
Headphones Unbalanced mono Balanced mono Insert

10
Compensation of interference with balanced connections
Maintenance
The DAP Audio-CD-Player DS-CM-40 requires almost no maintenance. However, you should keep the unit
clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse
in liquid. Do not use alcohol or solvents.
Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp
cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do
so.
1. Unplug the unit from electric power source.
2. Insert a flat-head screwdriver into a slot in the fuse cover. Gently pry up the fuse cover. The fuse will
come out.
3. Remove the broken fuse. If brown or unclear, it is burned out.
4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover.
Be sure to use a fuse of the same type and specification. See the product specification label for
details.

11
Replacing the crossfader
1. Unscrew the fader(B) screws. Do not touch the innerscrews(C). Carefully remove the old crossfader
and unplug the cable.(D)
2. Plug in the new Crossfader, attach the cable (D)and place the new Crossfader back in the mixer.
3. Screw the Crossfader into the mixer using the fader plate screws.
4. Replace the fader knob.
Fig. 3
Troubleshooting
DAP Audio-CD-Player DS-CM-40
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following
steps.
1. If the device does not operate properly, unplug the device.
2. Check power from the wall, all cables, connections, etc.
3. If all of the above appears to be O.K., plug the unit in again.
4. If nothing happens after 30 seconds, unplug the device.
5. Return the device to your DAP Audio dealer.

12
Product Specification
Model: Dap Audio DS-CM-40
Power: 230V-50/60Hz
Fuse: T250mA
Light: BNC 12V max. 5W
Weight: 3,4kg
Dimensions: 480 x 178 x 82mm (LxWxD)
Input sensitivity mic: 3mV/ 1kΩ
line: 3mV/ 47kΩ
phono: 150mV/ 100kΩ
aux: 150mV/ 100kΩ
Output level master: 775mV/ 600Ω
Record: 400mV/ 600Ω
Phones: 775mV/ 600Ω
Frequency response: 20Hz –20kHz
THD: < 0,1%
Stereo separation: >45dB
Signal/ noise ratio mic: 75dB
phono: 70dB
line: 80dB
aux: 80dB
Equalizer: +/-12dB at 60Hz, 250Hz, 1kHz, 4kHz, 12kHz
Design and product specifications are subject to change without prior notice.
Website: www.Dap-audio.info
Email: [e-mail]

2009 Dap Audio.
