About the User Manual
To ensure better performance of your new Trident E Spike , please read
through the manual carefully before using it. It will give you all the details
including installation and settings and normal use of the Dapu Display. The
manual will also help you with troubleshooting any malfunctions should
they arise.
!
!
!
!
Material and Color and Dimensions
!
!
!
LCD- K products are made from Black PVC. They are made to function
normally in temperatures ranging from 0° to 140° F
Product dimensions are listed below (in MM)
!

www.dapush.cn
CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
4
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Function Summary and Button Definitions
!
The LCD Display provides a wide range of functions. The functions are as
follows:
!
ODO Display；
!
Riding Distance Display；
!
Speed Display；
!
Backlight ON/OFF；
!
Assist Level；
!
Capacity Display；
!
Mode display;
!
Error Code Display；
!
Wheel Diameter Setting；
!
KMH, MPH Switching；

www.dapush.cn
CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
5
!
!
!
Full Display Area
!
!
Normal Display Area
!

www.dapush.cn
CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
6
!
!
!
Button Definition
!
There are four buttons on the LCD-K, ON/OFF,
!
!
SET, UP and DOWN.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Normal Operation
!
1. ON/OFF
!
Pressing the ON/OFF button will power up the display. Pushing the power
button a second time will backlight the display for nighttime use. Pressing
the ON/OFF button for three seconds can turn off the display.
If your E Spike has not been used for five minutes the display will
automatically shut down.
If the display is powered up and you have the Parking Brake on you will
get an Error 5 message on the Display. This is normal. Squeezing the
brake lever will automatically remove the error code.!!

www.dapush.cn
CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
7
!
!
!
2. Display Interface
!
The LCD-K will display speed, Odometer (in whole miles/km) Trip, Assist
Level, and Battery Level.!!
Speed display:
!
!
!
Distance display:
!
!

CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
8
www.dapush.cn
!
!
!

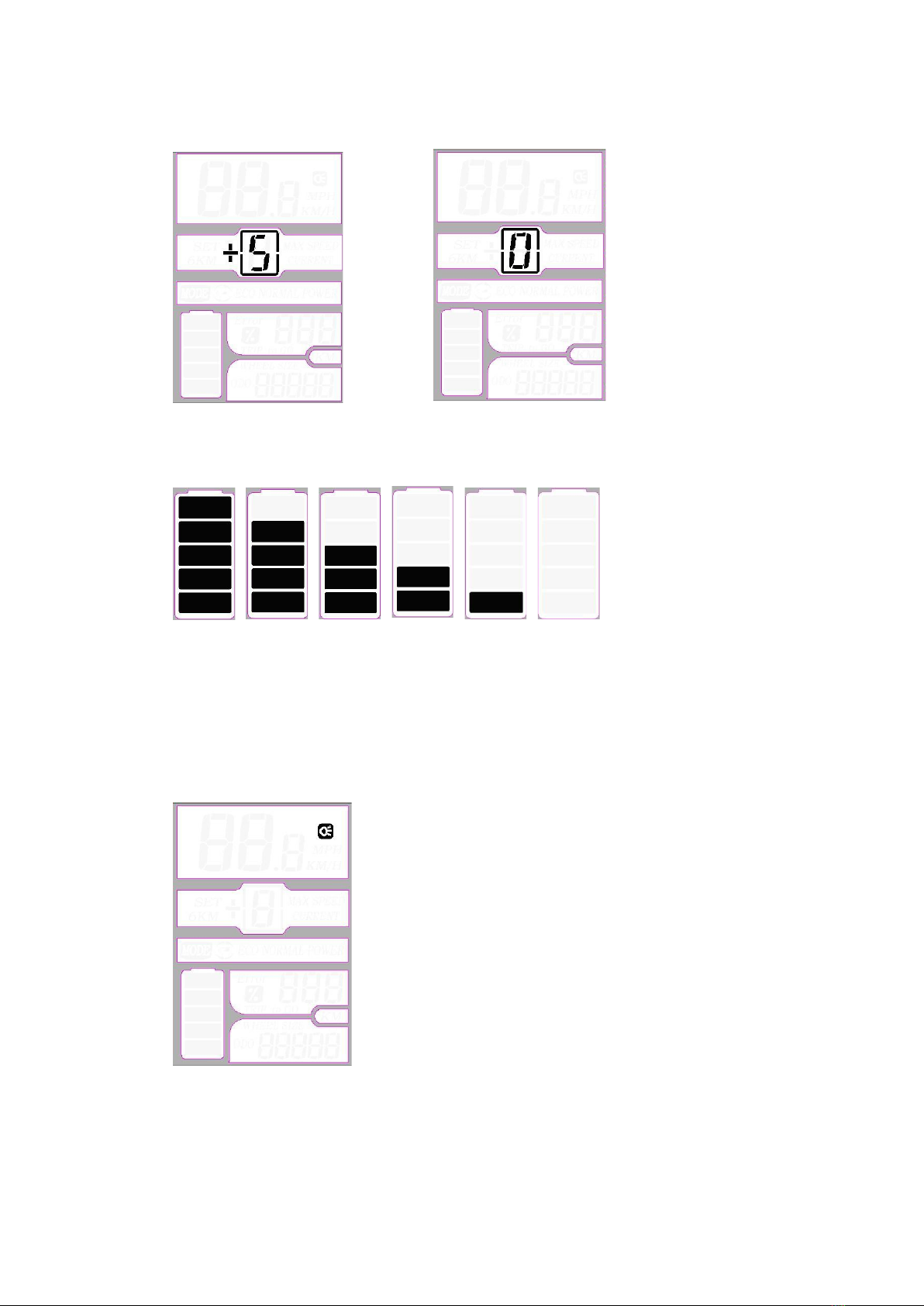

Assist level display:
!
!
!
!
Battery display:
!
!
3. Backlight ON/OFF
!
With the Display on, pressing the ON/OFF Button again turns the backlight on and off
for nighttime riding.

CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
9
www.dapush.cn
!
!
!
!
!

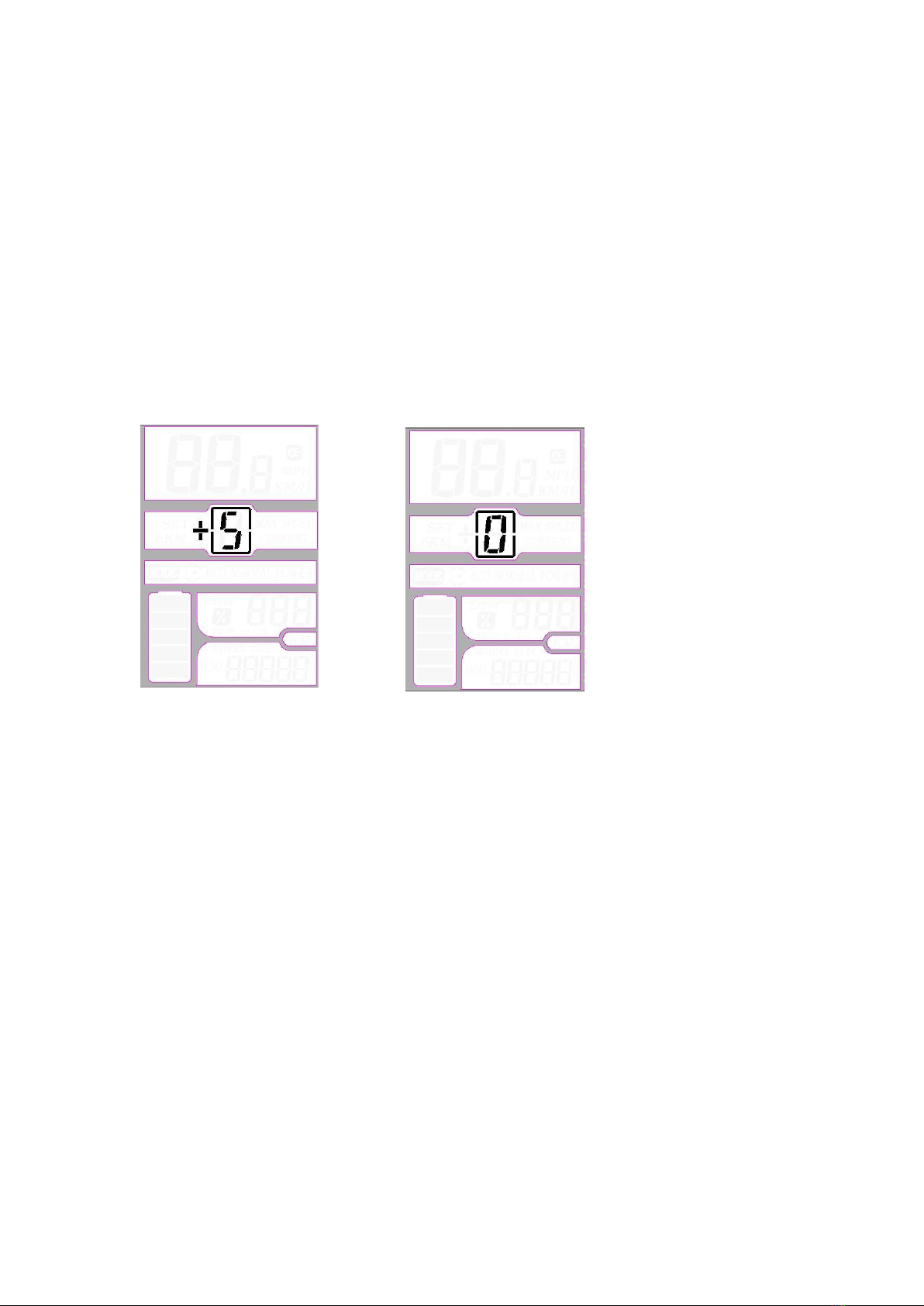

4. Power Assist Level Select
Press UP or DOWN to change the E Spike Assist Level. You can choose
between 0-6 . When the display shows !0!the!Throttle!on!the!left!handlebar!
will!operate.!When!you!choose!196!,!the!Throttle!will!no!longer!operate!but!
you!will!have!different!levels!of!assist.!1!is!the!least!amount!of!assist!6!is!
the!most.!The!level!will!be!saved!when!you!turn!the!display!off.!You!are!
able!to!change!this!setting!while!moving.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
10
www.dapush.cn
!
!
!
!
!
5. Battery Charge Display
!
When the battery is fully charged, the battery icon is filled. When the
battery is in low voltage, the last check will flash, indicating the
necessity to recharge the battery immediately.
!
!
!
!
!
!
!
!
!

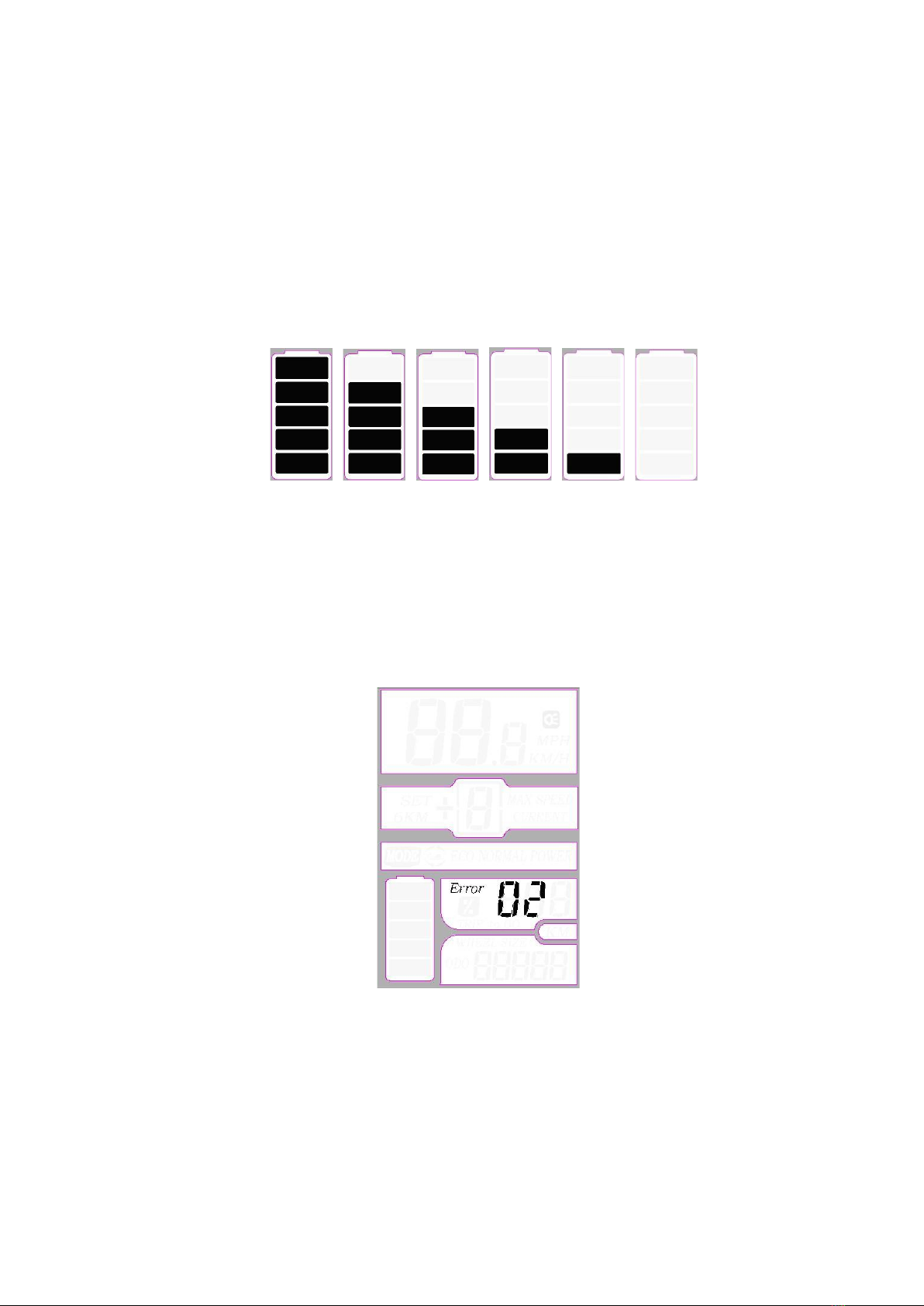

6 . Error Code Display
!
If there is something wrong with the electronic control system, the
display will show the error code automatically. Refer to Table 1 for
detailed error code information.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Error display interface can be exited only when the problems have
been fixed.

CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
11
www.dapush.cn
!
!
!
General Settings
!
!
1、Distance and Riding Time Clearing
!
 Press SET for 5 seconds to enter into TRIP distance
display mode and press DOWN to clear Riding Distance.
 Hold SET,UP and DOWN for 5 seconds to clear Riding
!
Distance and Total Distance.
!
2、Wheel Size Setting
!
 Hold SET for 10 seconds to enter into wheel diameter
setting interface.
Optional wheel diameter parameters include：16, 20,
!
!
24, 26, 700C, 28. Press UP or DOWN to select the
suitable diameter so as to ensure the accuracy of display
about speed and mileage. Press SET to save current
setting and exit the setting mode. The wheel diameter
is preset at the factory for your Trident E Spike.

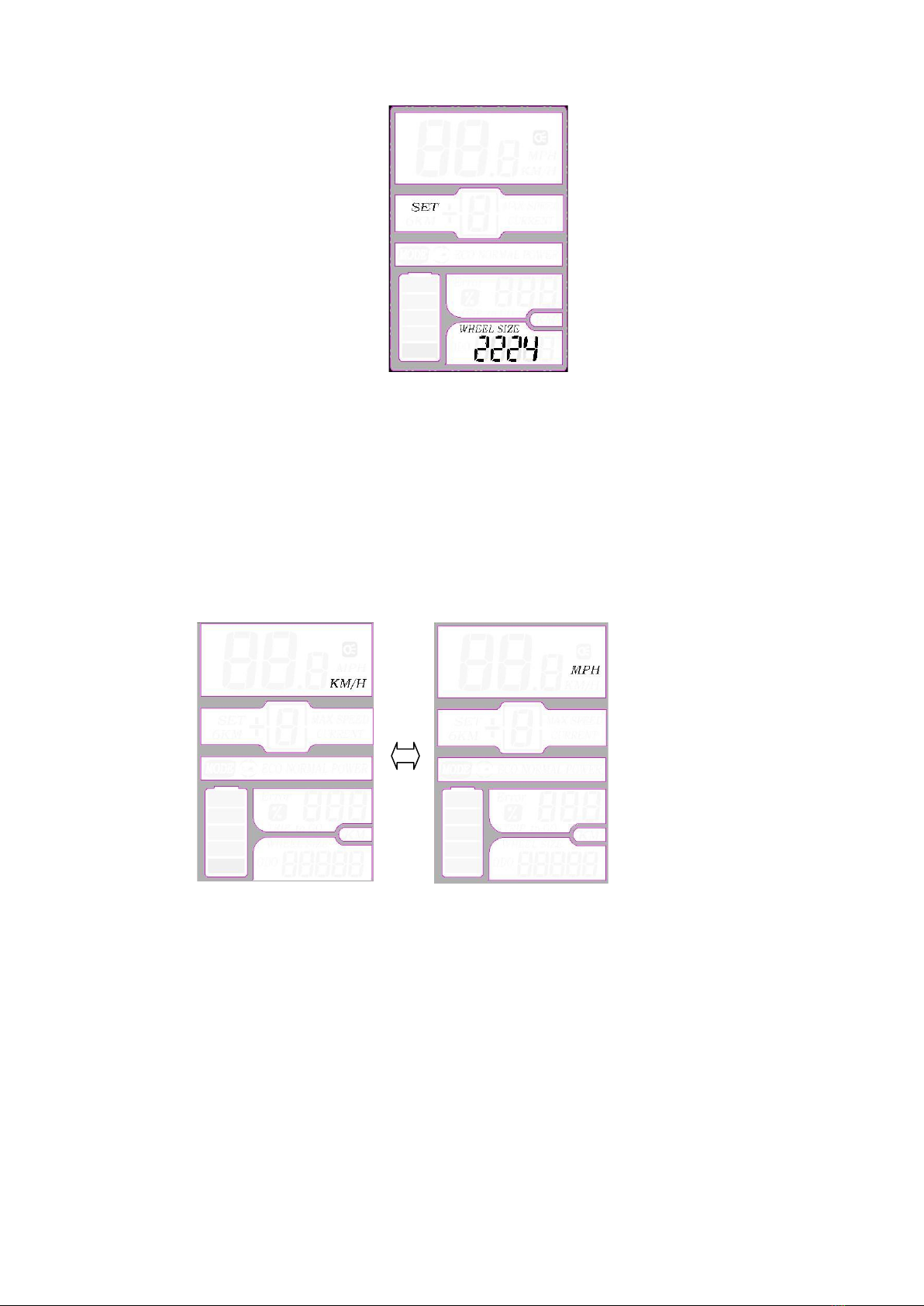

It is shown as below when the diameter is set at 700C:

CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
12
www.dapush.cn
!
!
!
!
Press UP or DOWN to choose the wheel diameter, Press SET to
!
save the current setting and exit the setting mode.
!
3、KM/H, MPH Switching
!
!
Press UP and DOWN for 5 seconds to switch between KM/H and
!
!
MPH. (Show KM/H at default)
!

CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
13
www.dapush.cn
!
!
!
Press SET to exit the above setting interface.
!
FAQ
!
Q: Why the display is not able to start up?!
A: Check the connector between the display wiring harness and
controller.
Q：How to fix the error code?
A: Find the corresponding problem according to the error code table. If
you are unable to fix it by yourself please call us or your Trident Trikes
Dealer
!
!
!
!
Quality assurance and Warranty
!
Warranty
!
1、Under warranty, Dapu will to provide limited warranty to any
faults caused by the quality of the product under normal use.
2.The warranty period lasts for 12 months from the date of!
purchase.
!
Other items
!
The following items are not covered by the warranty
!
1. Disassembly or modification without authorization.
!
2. Malfunction or damage caused by the misuse or improper
installation and debugging by the users or the third party.
3. Shell /Display scratches or breakage after delivery.
!
4. Wiring breakage.

CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
14
www.dapush.cn
!
!
!
!
!
!
Error code definitions
!
Corresponding error code is shown to indicate the malfunction:
!
!
Error code
!
Definition
!
!
2
!
Current Abnormality or Damage of
Operating System
!
!
!
3
!
Motor locked up
!
4
!
Low voltage
!
5
!
Brake Sensor Abnormality
!
6
!
Motor Abnormality
!
7
!
Throttle Abnormality
!
8
!
358 Error
!
9
!
Over voltage (>45V)
!
!
10
!
Controller Communication
!
!
Abnormality
!
15
!
Panel Communication Abnormality
!

CHUBUT PRECISE ELECTRONIC COMPANY LIMITED
Add: No.6101 LongDong Road He Qing Industry Zone Pudong New Area Shanghai
Tel: [phone]-178.
Fax: [phone]
15
www.dapush.cn
!
!
!
!
!
Other Operating Tips:
Never use the charge indicator on the battery itself when it is installed, as it
will make the display operate improperly. If you have done it, just slide the
battery in and out to reset the system.
Sometimes in rare circumstances an error code will not clear. In this case
open up the controller compartment at the front of the battery. Disconnect
and reconnect each wire one by one. This often clears up any problem.
There is a fuse underneath the battery near the on off switch of the battery.
The rear light on the battery is run by AA Batteries- not the Lithium Ion
Battery.
!
!
!
!
!
!
!
!
