Dartel LJ-100 User manual

User guide
Please read these instructions
carefully before use and keep
this User Guide for future
reference!
LJ-100

1
User Guide
LJ-100
Please read these instructions
carefully before use and keep this
User Guide for future reference.

2
Contents LJ-100
Contents
I. Introduction......................................................................................... 3
Telephone features............................................................................... 3
Function button index............................................................................ 5
II. Getting started................................................................................... 7
How to connect the batteries................................................................ 7
How to mount the stand…………………………………………………… 7
How to connect the handset and telephone line................................... 8
How to set the dial mode for your type of telephone exchange............ 8
Wall mounting………………………………………………………………. 8
III. Using the telephone......................................................................... 9
How to set the display contrast............................................................. 9
How to set date and time...................................................................... 9
Ringer volume control........................................................................... 10
How to select ringer melody.................................................................. 10
2-way speaker function......................................................................... 11
How to make a call............................................................................... 12
How to receive a call............................................................................. 12
OUT memory........................................................................................ 13
How to delete the OUT number............................................................ 13
Redial function...................................................................................... 14
Auto-redial function………………………………………………………… 14
How to enter a pause............................................................................ 14
How to set a pause………………………………………………………… 15
Hold function......................................................................................... 15
Memory.......................................................................…………………. 16
Flash function........................................................................................ 19
How to lock telephone numbers............................................................ 20
Alarm function....................................................................................... 20
“Don’t disturb” function.......................................................................... 22
Calculator.............................................................................................. 23
IV. Clip (Caller ID) – Calling line identification presentation............. 24
How to review Clip numbers................................................................. 24
How to delete Clip numbers.................................................................. 25
VIP function.......................................................................................... 25
How to make a call from the Clip memory............................................ 26
How to set the prefix……………………………………………………….. 27
How to set the local area code.............................................................. 27
V. Connecting the headphone……………………………………………. 29
VI. Help................................................................................................... 30
Important advice.................................................................................. 31

3
I. Introduction LJ-100
I. Introduction
Important!
Please read these instructions carefully before use and keep this User Guide
for future reference.
Telephone components supplied:
! telephone set (base unit + handset),
! handset cord,
! line cord,
! stand,
! user guide,
! guarantee card.
# Telephone features
♦ 12-digits, green backlit LCD display
♦ 10 two-touch number memory
♦ 7 one-touch number memory
♦ Calculator
♦ CLIP(Caller ID) – calling line identification
presentation in FSK/DTMF European
system
- 100 memory locations
- telephone number review
- date and time display
- local area code enter
- prefix
- call back
- VIP function
♦ Alarm-clock
♦ Call timer
♦ Adjustable display contrast
♦ Date and time setting
♦ Handset volume rotary switch
♦ Last number redial
♦ 30 redial number memory
♦ Pause

4
I. Introduction LJ-100
♦ 2-way speaker function
♦ 2-way speaker volume rotary switch
♦ Pre-dial function
♦ Flash
♦ 16 types of ringer sound selectable
(8 melody ringers)
♦ Ringer volume control
♦ „Don’t disturb” function
♦ Music on hold
♦ Tone/pulse dialling
♦ Lock for long distance calls
♦ Headphone socket
♦ Wall mounting

5
I. Introduction LJ-100
# Function button index
1. NEW indicator
2. M1...M7 buttons
3. Display
4. DEL/TIME button
5. BRT/SLP button
6. VIP/P button
7. VOLUME HI/LOW rotary switch
8. STORE button
9. RECALL button
10. FLASH button
11. SP-PHONE button
12. RD/ARD button
13. SET/HOLD button
14. Keypad
15. Handset socket
16. Handset volume rotary switch
17. Handset loudspeaker
18. UP/+ button
19. DOWN/- button
20. OUT/x button
21. BACK/÷
÷÷
÷button
22. CAL button
23. DC 9V socket
24. RINGER Hi/Low switch
25. DIAL MODE T/P switch
26. TEL OUT line socket
27. TEL IN line socket
28. Handset hole
29. Handset microphone
30. Handset socket
31. */. button
32. Base microphone
33. #/= button
34. Wall clip
35. Hold clip

6
I. Introduction LJ-100
Note!
The line sockets TEL OUT, TEL IN, the RINGER Hi/Low switch, the DIAL MODE T/P switch,
the DC9V socket, the handset socket are located on the side of the base unit. In addition, on the
bottom of the base unit, is the socket for blocking telephone numbers.

7
II. Getting started LJ-100
II. Getting started
# How to connect the batteries
♦ Remove the cover of the battery
compartment on the underside of the base
unit.
♦ Fit three 1,5V AA batteries,
♦ Replace the battery compartment cover.
Note!
Instead of batteries, the adaptor to the DC9Vsocket, which is placed on the side of the base
unit can be connected. The parameters of the adaptor must be as follows:
! inside voltage –
UIN = 230V, f =50 Hz
! outside voltage–
Uout = 9V DC
! current
Ioutmin = 100 mA
! standard plug (
Φ =2.1 mm)
with „-” inside.
Adaptor is not in complete!

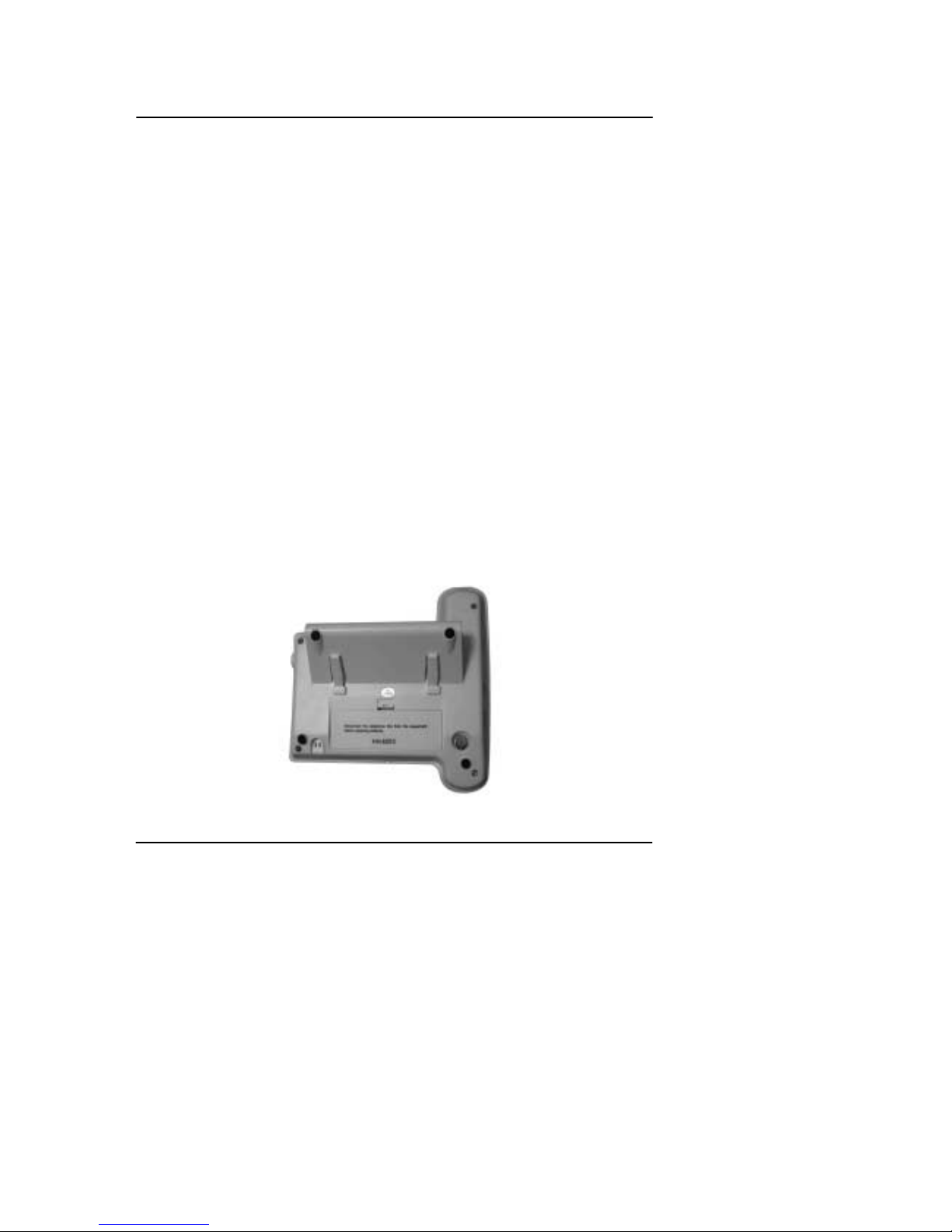

# How to mount the table stand
See below picture.

8
II. Getting started LJ-100
# How to connect the handset and telephone line
! Plug one end of the coiled handset cord into the handset and the
other end into the socket on the side of the telephone.
! Insert the base unit’s telephone line plugs into the PTT wall socket and
telephone socket TEL IN as shown on the illustration.
Note!
The telephone is equipped with two line sockets. These sockets are connected in parallel. It does
not matter, where the telephone line and second telephone are connected.
After connecting the telephone, the display shows the date and two clocks.
These symbols will be always displayed in the standby mode.
# How to set the dial mode for your type of telephone exchange
These are two different modes a telephone can use to communicate with the
local exchange. Modern telephone exchanges accept TONE dialling, but some
older exchanges accept only PULSE dialling. This telephone is capable of
either type of dialling- but if your local telephone exchange is a modern one
that accepts TONE dialling, this is the best type to use, because:
! it gives you much faster connections,
! it allows you to use special functions if they are available in your area.
To set the right dial mode:
move the DIAL MODE T/P switch to T or P
position.
Note!
Special functions are available only if the relevant TP S.A. services have been subscribed to.
If more information is required, please contact the BOK office or your network provider.
# Wall mounting
The wall mount brackets are located underneath the telephone base unit. The
telephone can be conveniently wall mounted near the PTT line socket.
To mount the base onto the wall:
! drill two holes into the wall in the correct position, a distance of 124mm
apart. Put the screws into the wall, leaving about 5 mm free to hang
the wall mounting bracket,
! set the wall clip in the right position,
! replace the handset on the base unit,
! hang the telephone onto the screws.
YOUR TELEPHONE IS NOW READY FOR USE!!!

9
III. Using the telephone LJ-100
III. Using the telephone
# How to set the display contrast
The setting factory is 3. To set the display contrast:
♦ press the SET/HOLD button, until the
display will show the right setting for you.
♦ Press the DEL/TIME button to return to
the standby mode.
If the DEL button is not pressed, the telephone will return to standby mode
after several seconds. The setting will be stored.
# How to set date and time
To set date and time:
♦ press the SET/HOLD button. The display
will show - 0 1 2 3 4 5 6 7 -.
♦ Press the 1button. The display will show
the symbol 2004 indicating the year. The
one before last digit will be flashing.
♦ Use the keypad to enter the right digits.
For example, if you want to set the year
2005:
! press the 0button, the last digit will
start to flash,
! then, press the 5button.
♦ After setting the year, the first digit
indicating the month will start to flash. Use
the keypad to enter the right digits. For
example, if you want to set August:
! press the 0button, the next digit will
start to flash,
! then, press the 8button.
♦ After setting the month, the first digit
indicating the day will start to flash. Use
the keypad to enter the right digits. For
example, if you want to set the 27th day of
BRT/SLP
DEL/TIME
SET/HOLD
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=

10
III. Using the telephone LJ-100
month:
! press the 2button, the next digit will
start to flash,
! press the 7button.
♦ After setting the day, the first digit
indicating the hours will start to flash. Use
the keypad to enter the right digits. For
example, if you want to set 16.00:
! press the 1button, the second digit
will start to flash,
! press the 6button.
♦ After setting the hour, the first digit
indicating the minutes will start to flash.
Use the keypad to enter the right digits.
For example, if you want to set the 59th
minute:
! press the 5button, the last digit will
start to flash,
! press the 9button.
After entering the minutes, the telephone will
return to standby mode automatically. All
settings will be stored.
Note!
♦ If incorrect buttons are pressed, the settings will not be
confirmed.
♦ During the setting, press the UP/+ or DOWN/- button to move
between the digits (to choose the digit, you want to change).
# Ringer volume control
The volume at which the base unit will ring for an incoming call can be
adjusted.
To select the volume you prefer:
move the RING Hi/Low switch to:
! Low position– low ringing volume
or
! Hi position– high ringing volume.
# How to select the ringer melody
One ringer melody can be selected from among 16 ringer melodies. The
settings rING 01-08 indicate the normal ringers and settings rING 09-16
indicate the melody ringers.
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=

11
III. Using the telephone LJ-100
To select one ringer melody:
♦ press the SET/HOLD button. The display
will show - 0 1 2 3 4 5 6 7 -.
♦ Press the 7button. The display will show
an actual setting rING 09. The ringer
melody will be played.
♦ Press the UP/+ or DOWN/- button to
select the right signal (melody).
♦ Press the SET/HOLD button to confirm
the setting. The display will show the
symbol - 0 1 2 3 4 5 6 7 – again.
♦ Press the DEL/TIME button. The
telephone will return to the standby mode.
If the DEL/TIME button is not pressed, the
telephone will return to standby mode after
several seconds. The setting will be stored.
Note!
The melody ringers are available only, when the batteries are
placed in the battery compartment. If there are no batteries,
only the normal ringer will sound.
# 2-way speaker function
The 2-way speakerphone function allows a number to be dialed, or a call to be
made, without the handset needing to be lifted. The party on the other end of
the line will automatically be able to hear and to be heard through the speaker
located in the base unit of the telephone. When using this function, the user
needs to speak within a reasonable distance of the telephone microphone in
order that the microphone may pick-up voice sound. This function may also be
used to make a conference call between several parties in the same office.
Using the SP-PHONE button, the 2-way speakerphone function can be
switched on/off.
After pressing the SP-PHONE button, the
display will show the timer.
In addition, the VOLUME HI/LOW rotary
switch can be used to adjust the volume of the
loudspeaker.
SET/HOLD
UP/+ DOWN/-
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=
DEL/TIME
SP-PHONE
HI
VOLUME
LOW

12
III. Using the telephone LJ-100
# How to make a call
To make a call:
♦ lift the handset from the base unit
or
♦ press the SP-PHONE button.
The display will show the timer.
♦ When the PTT on-line signal is heard, the
required number should be dialed. The
number will be displayed. After several
seconds, the call time counter will be
switched on.
♦ To end your conversation, replace the
handset on the base unit or press the
SP-PHONE button. The time of your last
call can be displayed by pressing the
OUT/X button (see the chapter: ”OUT
memory”)
Note!
The telephone number in the standby mode can also be entered (before lifting the handset or
pressing the SP-PHONE button).If you wish to delete the last incorrect digit, press the
DEL/TIME button. If you wish to make a call, press the BACK
÷ button. The 2-way speaker
function will be switched on and the number will be dialed automatically.
# How to receive a call When the telephone rings:
♦ lift the handset from the base unit or press
the SP-PHONE button.
In addition, on the side of the handset there is
the rotary switch, which can be used to adjust
the volume of the handset or the VOLUME
HI/LOW rotary switch to adjust the volume of
the base’s loudspeaker.
♦ After completing your conversation,
replace the handset on the base unit or
press the SP-PHONE button.
SP-PHONE
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=
SP-PHONE
SP-PHONE

13
III. Using the telephone LJ-100
# OUT memory
Your telephone can store 30 the most recently dialed numbers in the OUT
memory. They can be reviewed by pressing the OUT/X button in standby
mode. Each number may consist of up to 16 digits.
To review OUT numbers:
♦ press the OUT/X button. The display
shows the last number dialed.
♦ Press the OUT/X button again to display
the time of this call and the number of the
memory location.
♦ Press the OUT/X button again. The
display shows the number, stored in the
lower memory location.
♦ Press the OUT/X button again to display
the time of this call and the number of the
memory location.
♦ By pressing the OUT/X button, the
remaining numbers can be reviewed.
If the OUT/X button is not pressed, the telephone will return to standby mode
after several seconds. If the memory is empty, the display will show the
symbol - - - End - - -.
To make a call:
♦ press the OUT/X button to select the
number .
♦ Press the BACK/÷
÷÷
÷. button. The 2-way
speaker function will be switched on and
the number will be dialed automatically.
♦ After the call, replace the handset on the
base unit or press the SP-PHONE button.
# How to delete an OUT number
To delete an individual number:
♦ press the OUT/X button to select the
number, to be deleted.
OUT/x
OUT/x
BACK/
SP-PHONE
OUT/x

14
III. Using the telephone LJ-100
♦ Press the DEL/TIME button twice. The
number will be removed.
To delete the all numbers:
♦ Press the OUT/X button.
♦ Press and hold the DEL/TIME button until
- - - End - - - is displayed. After several
seconds, the telephone will return to
standby mode. All numbers will be
removed.
# Last number redial
Your telephone automatically stores the last number dialed of up to 32
digits long. This function can be used, when the number is busy.
To redial:
♦ lift the handset or press the SP-PHONE
button.
♦ Press the RD/ARD button. The last
number will be displayed and dialed.
# Autoredial function
The Autoredial function allows the last number to be redialed during the
using the 2-way speaker button. This operation can be repeated many
times, until a connection is made.
To dial the number again:
♦ press the RD/ARD button. The 2-way
speaker function will be switched off
briefly. After an interval, the 2-way
speaker function will be switched on and
the number will be dialed again
automatically.
# How to enter a pause
With some switchboards, after dialing the access code you may have to
wait for a moment while the switchboard picks up an outside line. To
compensate for this, you can enter a pause within a phone number.
DEL/TIME
SP-PHONE
RD/AR
D
RD/AR
D

15
III. Using the telephone LJ-100
To enter a pause:
♦ lift the handset or press the SP-PHONE
button.
♦ Enter the access code for an outside line,
for example 0.
♦ Press the VIP/P button to enter a pause.
The symbol Pwill be showed on the
display.
♦ Enter the remaining digits of the telephone
number.
♦ After your call, replace the handset on the
base unit or press the SP-PHONE button.
Note!
The number and pause can be also entered in the standby mode. To
make a call, press the BACK/÷
÷÷
÷button.
# How to set a pause To set a pause:
♦ press the SET/HOLD button. The display
will show - 0 1 2 3 4 5 6 7 -.
♦ Press the 6button. The display will show
an actual setting PAUSE 3_6.
♦ Press the UP/+ or DOWN/- button to
select the right time of the pause from
among the following setting: 1_0, 2_0,
3_0, 3_6.
♦ Press the SET/HOLD button.
♦ Press the DEL/TIME to return to the
standby mode.
# Hold function
The Hold function allows music to be switched on during the conversation.
After pressing the HOLD button, the person on the other end of the line
SP-PHONE
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=
VIP/P
SP-PHONE
SET/HOLD
UP/+ DOWN/-
DEL/TIME
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=

16
III. Using the telephone LJ-100
will automatically be able to hear music. This function may be used, for
example, in offices while a client is on hold.
To switch the hold music on:
♦ inform the person on the other end of the
line about a music pause.
♦ Press the SET/HOLD button. The display
will show Hold. The telephone will start to
play music. The NEW indicator will light
up.
Note!
In activating this function using the UP/+ or DOWN/- button, you may select the melody you
wish the caller to hear. There are 8 melodies available, from which you can choose. These are
indicated by symbols from 01 to 08. ♦ You can replace the handset on the base.
The connection will not be interrupted.
The hold music will be heard through the
speaker located in the base unit of the
telephone.
♦ Lift the handset or press the SP-PHONE
button to continue speaking. The Hold
function will be switched off.
Note!
If the handset is not replaced on the base, press the SET/HOLD button again to switch the hold
music off.
# Memory
Your telephone can store 7 telephone numbers in the one-touch memory
and 10 telephone numbers in the two-touch memory. The number can
then be dialed by pressing one button or two buttons. The one-touch
memory locations are located under the buttons indicating M1-M7 and the
two-touch memory locations are located under the buttons of the keypad.
Each number that is stored can have up to 16 digits.
! One-touch memory To store a number in the memory:
♦ press the STORE button. The display will
show INPUt CodE_.
SET/HOLD
SP-PHONE
STORE

17
III. Using the telephone LJ-100
♦ Enter the number, to be stored in the
memory. The number will be displayed.
Note!
The pause can be stored in the memory by pressing VIP/P button.
♦ Press the STORE button a second time.
♦ Now press one of the number buttons
(M1-M7). This gives you the code under
which your number will be stored. The
telephone will return to standby mode.
To dial a number using the memory :
♦ lift the handset or press the SP-PHONE
button.
♦ Next press the appropriate code number
key. The number will be displayed and
dialed.
Note!
If there is no number under the code number key, the telephone displays symbol NO COdE.
♦ Replace the handset or press the
SP-PHONE button to end the call.
Note!
1. Storing a number in the memory automatically deletes any previous number kept under the
individual code number you choose.
2. The stored numbers can be reviewed in the standby mode. To display the number from the
code number key:
! press the code number key. The number will be displayed.
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=
STORE
M1
M2
M3
M4
M5
M6
M7
SP-PHONE
SP-PHONE

18
III. Using the telephone LJ-100
! Two-touch memory To store a number in the memory:
♦ press the STORE button. The display will
show INPUt CodE_.
♦ Enter the number, to be stored in the
memory. The number will be displayed.
Note!
The pause can be stored in the memory by pressing VIP/P button.
♦ Press the STORE button a second time.
♦ Now press one of the number buttons
(0-9). This gives you the code under which
your number will be stored. The telephone
will return to standby mode.
To dial a number using the memory :
♦ lift the handset or press the SP-PHONE
button.
♦ Press the RECALL button.
♦ Next press the appropriate code number
key (0-9). The number will be displayed
and dialed.
Note!
If there is no number under the code number key, the telephone displays symbol NO COdE.
♦ Replace the handset or press the
SP-PHONE button to end the call.
STORE
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=
STORE
SP-PHONE
SP-PHONE
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=
RECALLRECALL

19
III. Using the telephone LJ-100
Note!
1. Storing a number in the memory automatically deletes any previous number kept under the
individual code number you choose.
2. The stored numbers can be reviewed in the standby mode. To display the number from the
code number key:
! press the RECALL button,
! press the code number key. The number will be displayed.
! How to delete a number from one-touch and two-touch memory
During the review:
♦ Press the DEL/TIME button twice. The
number will be removed. The telephone
will return to standby mode.
# Flash function
This allows various switchboard facilities such as call transfer and
conference calls to be used. Contact your communications manager or the
person responsible for maintaining your switchboard to find out what
facilities are available.
The telephone allows the following values to be set: 90ms, 120ms, 180ms,
300ms, 600ms and 1000ms
To set the right Flash value:
♦ press the SET/HOLD button. The display
will show - 0 1 2 3 4 5 6 7 -.
♦ Press the 2button. The display will show
an actual setting. The factory setting is
600ms.
♦ Press the UP/+ or DOWN/- button to
select the right value.
♦ Press the SET/HOLD button to confirm
the setting.
♦ Press the DEL/TIME button. The
telephone will return to standby mode.
If the DEL/TIME button is not pressed, the
telephone will return to standby mode after
several seconds. The setting will be stored.
DEL/TIME
SET/HOLD
UP/+ DOWN/-
DEL/TIME
123
456
789
0
A
BC DEF
GHI JKL M NO
PQRS TUV WXYZ
/
OPER
/
=
