USER'S MANUAL
CD PLAYER
USER'S MANUAL
CD PLAYER

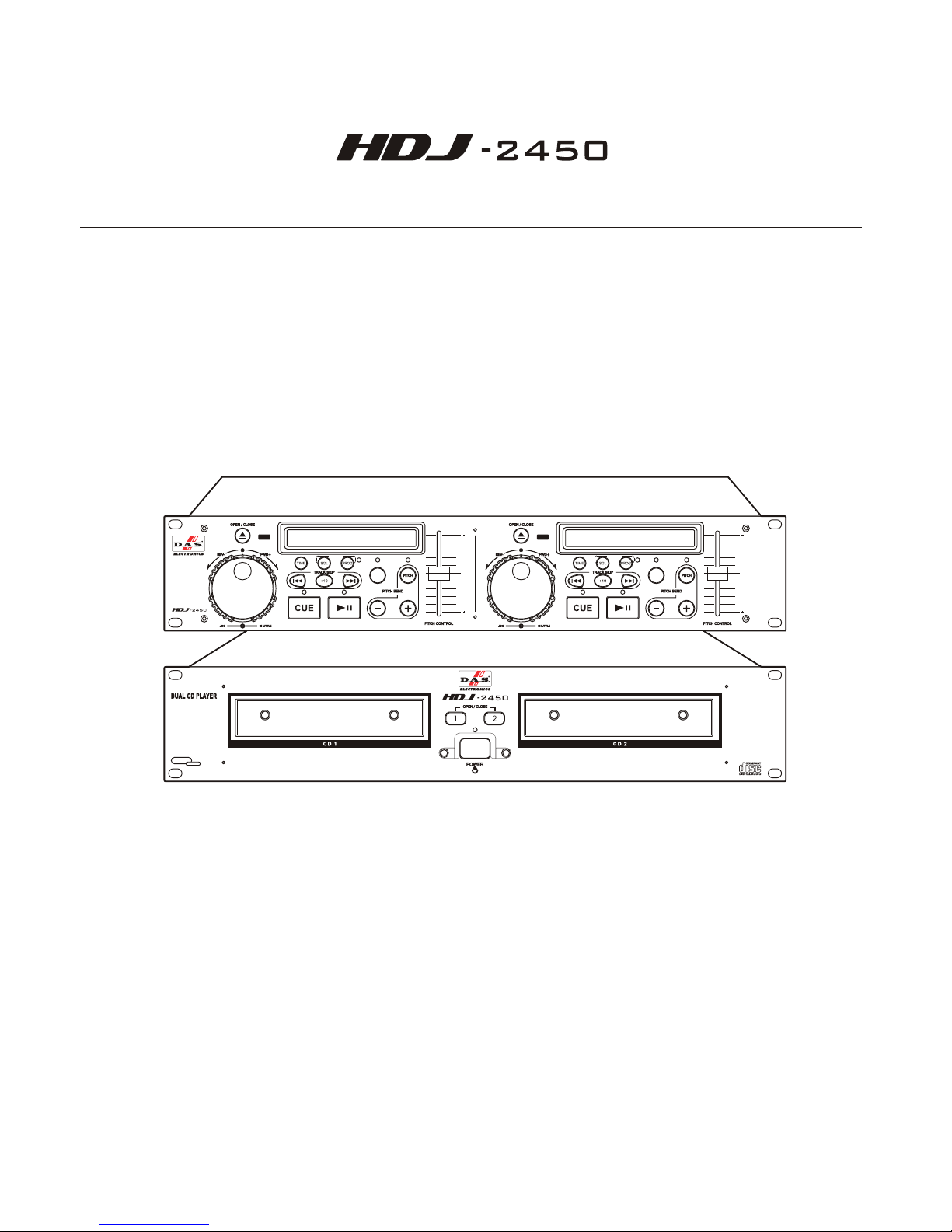

PROFESSIONAL DUAL CD PLAYER

IMPORTANT TO SAFETY
IMPORTANT TO SAFETY
WARNING:
TO PREVENT FIRE OR SH
OCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
1. Handle the power supply cord carefully
Do not damage or deform the power supply cord. If it is
damaged or deformed, it may cause electric shock or
malfunction when used. When removing from wall
outlet, be sure to remove by holding the plug
attachment and not by pulling the cord.
2. In order to prevent electric shock, do not open the top
cover. If a problem occurs, contact your dealer.
3. Do not place metal objects or spill liquid inside the CD
player. Electric shock or malfunction may result.
Please, record and retain the Model name and serial
number of your set shown on the rating label.
Model No. ____________ Serial No._____________
CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER
(OR BACK) . THERE ARE NO
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
•FOR U.S.A. & CANADA MODEL ONLY
CAUTION
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
NOTE:
This CD player uses a semiconductor-based laser. To
allow you to enjoy music in a stable manner, it is
recommended to operate the appliance between 41°F–
95°F (5°C–35°C).
DATE LABEL
MONTH YEAR
CAUTION:
ANY USE OF THE CONTROLS, OR ANY ADJUSTMENT,
OR THE PERFORMANCE OF ANY PROCEDURE
OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE
OPENED OR REPAIRED BY ANYONE EXCEPT
PROPERLY QUALIFIED SERVICE PERSONNEL.
DOUBLE INSULATED -WHEN SERVICING, USE ONLY
IDENTICAL REPLACEMENT PARTS.
NOTE:
This unit may cause interference to radio and television
reception.
•
Line Voltage Selection (for multiple voltage
model only)
«The desired voltage may be set with the
VOLTAGE SELECTOR switchon the rear
panel, using a screwdriver.
«Do not twist the VOLTAGE SELECTOR
switchwith excessive force as this may
cause damage.
«If the VOLTAGE SELECTOR switch does not move
smoothly, please contact aqualified serviceman.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CLASS 1 LABEL
VOLTAGE LABEL DATE LABEL
DIGITAL OUT DIGITAL OUT
AUDIO OUT AUDIO OUT
CONNECT TO
REMOTE CONTROL
2
CONNECT TO
REMOTE CONTROL
1
DIGITAL OUT DIGITAL OUT
AUDIO OUT AUDIO OUT
CONNECT TO
REMOTE CONTROL
2
CONNECT TO
REMOTE CONTROL
1
115V
230V

IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions –All the safety and operating
instructions should be read before this product is
operated.
2. Retain Instructions －The safety and operating
instructions should be retained for future reference.
3. Heed Warnings －All warnings on the appliance and
in the operating instructions should be adhered to.
4. Follow Instructions －All operating and use
instructions should be followed.
5. Water and Moisture －The appliance should not be
used near water -for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, and the like.
6. Carts and Stands －The appliance should be used
only with a cart or stand that is recommended by the
manufacturer.
An appliance and cart combination
should be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the appliance and cart
combination to overturn.
7. Wall or Ceiling Mounting －The product should be
mounted to a wall or ceiling only as recommended by
the manufacturer.
8. Heat －The appliance should be situated away from
heat sources such as radiators, heat registers, stoves,
or other appliances (including amplifiers) that produce
heat.
9. Power Sources –This product should be operated
only from the type of power source indicated on the
rating label. If you are not sure of the type of power
supply to your home, consult your product dealer or
local power company. For products intended to
operate from battery power, or other sources, refer the
operating instructions.
10. Grounding or Polarization –This product may be
equipped with a polarized alternation-current line plug
(a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is
a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose
of the polarized plug.
11. Power-Cord Protection－Power-supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to the cord in correspondence of
plugs, convenience receptacles, and the point where
they exit from the appliance.
12. Cleaning -The appliance should be cleaned only as
recommended by the manufacturer.
Clean by wiping with a cloth slightly damp with water.
Avoid getting water inside the appliance.
13. For AC line powered units -Before returning repaired
unit to user, use an ohm-meter to measure from both
AC plug blades to all exposed metallic parts. The
resistance should be more than 100,000 ohms.
14. Non-use Periods－The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.
15. Object and Liquid Entry－Care should be taken so
that objects do not fall and liquids are not spilled into
the enclosure through openings.
16. Damage Requiring Service－The appliance should be
serviced by qualified service personnel when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled into
the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate
normally or exhibits a marked change in
performance; or
E. The appliance has been dropped, or the enclosure
damaged.
17. Servicing－The user should not attempt any service to
the appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
18. Ventilation –Slots and openings in the cabinet are
provided for ventilation and to ensure reliable
operation of the product and to protect it from
overheating, and these openings must not be blocked
or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other
similar surface. This product should not be placed in a
built-in installation such as a bookcase or rack unless
proper ventilation is the manufacturer’s instructions
have been adhered to.
19. Attachments –do not use attachments not
recommended by the product manufacturer as they
may cause hazards.
20. Accessories –Do not place this product on an
unstable cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to a child or
adult, and serious damage to the product. Use only
with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the
product. Any mounting of the product should follow the
manufacturer’s instructions, and should use a
mounting accessory recommended by the
manufacturer.
21. Lightning –For added protection for this product
during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due
to lightning and power-line surges.
22. Replacement Parts –When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer or
have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric
shock, or other hazards.
23. Safety Check –Upon completion of any service or
repairs to this product, ask the service technician to
perform safety checks to determine that the product is
in proper operating condition.

NOTE ON USAGE
Allow for sufficient heat dispersion when installed on a rack.
•Handle the power cord carefully.
Hold the plug when unplugging the cord.
•Keep the appliance free from moisture, water, and dust.
•Unplug the power cord when not using the appliance for long periods of time.
•Do not obstruct the ventilation holes. (For units with ventilation holes)
•Do not drop foreign objects into the unit.
•Do not let insecticides, benzene, and thinner come in contact with the set.
•Never disassemble or modify the set in any way.
•For 220 volt use in USA, USA NEMA style 220 volt plug. For other countries, use proper plug for the local outlet.
MAIN FEATURES
(1) 8 times over sampling 1 bit D/A converter.
(2) Auto cue.
(3) Pitch display.
(4) +10 Track skip search.
(5) Digital out
(6) Pitch range: +/-8%,+/-12%,+/-16%
(7) Selectable elapsed, remain and total remain time display
(8) Single/Continuous
(9) Relay play allow consecutive playback during two decks
(10) Frame search
(11) 4 fast search mode
(12) Transport protection
(13) 20 tracks program play
(14) Fader stop (back cue), Relay playback
MAIN UNIT
(1)POWER (Power ON/OFF Switch)
(2)Disc Holder
(3)OPEN/CLOSE (Open/Close Button)
(4)REMOTE CONTROL CONNECTOR
(5)LINE OUT
(6)DIGITAL OUT SOCKET
output
digital
1 22 3
DIGITAL OUT DIGITAL OUT
AUDIO OUT AUDIO OUT
CONNECT TO
REMOTE CONTROL
2
CONNECT TO
REMOTE CONTROL
1
4 5 45 6

MAIN FEATURES
CONTROL UNIT
(1)SHUTTLE (Shuttle Dial)
(2)OPEN/CLOSE (Open/Close Button)
(3)TIME (Time Button)
(4)LCD (Liquid Crystal Display)
(5)SGL (Single Button)
(6)PROGRAM (Program Button)
(7)PROGRAM Indicator
(8)LOOP Indicator
(9)LOOP (Loop Button)
(10)PITCH Indicator
(11)JOG (Jog Dial)
(12)B. SKIP
(13)CUE Indicator
(14)CUE (Cue Button)
(15)+10 (Track +10 Button)
(16)PLAY/PAUSE /(Play/Pause Button)
(17)PLAY Indicator
(18)F. SKIP
(19)PITCH -(Pitch Bend -Button)
(20)PITCH +(Pitch Bend + Button)
(21)PITCH (Pitch Button)
(22)Pitch Slider
(23)CONTROL START SOCKETS
(24)CONTROL CONNECTOR
LCD (25)~(28)TRACK, MINUTE, SECOND and
FRAME Displays
(29)TIME BAR Indicators
(30)ELAPSED Indicator
(31)CONTINUE Indicator
(32)SINGLE Indicator
(33)REMAIN Indicator
(34)PITCH Displays
CONTROL START
UNIT 1
CONTROL START
UNIT 2
RELAYRELAYRELAYRELAY
8%,12%,16%8%,12%,16% 8%,12%,16%8%,12%,16%
0000
CD2CD2CD1CD1
LOOPLOOP
ELAPSED
REMAIN
SINGLE
CONTINU
TRACK MSF
25 26 27 28 29 30 31 32 33 34

PREPARATIONS
1. Checking the Contents
Check that the carton contains the following items:
1) Main unit
2) Control unit
3) Operating instruction (this booklet)
4) Pair of RCA pin cord.
5) Control cords
2. Installing the Unit
Mount the unit into your console or rack with 19" EIA rack rails.
CAUTION:
lThe player will work normally when the main unit is
mounted with the front panel at within 15 degrees of
the vertical plane. If the unit is tilted excessively, discs
may not be loaded or unloaded properly.
(Figure 1)
lThe control panel's LCD’s are designed to be clearly
visible within the angles shown in Figure 2. Mount the
control unit so that the visual angle is within this range.
Max.
15 °
45 °
5 °
MainunitControl
panelButton
Figure 1 Figure 2
.Connections
1) Turn off the POWER switch.
2) Connect the RCA pin cord to the input on your mixer.
3) Connect the control cords to the REMOTE connector on the main unit.
CAUTION:
•Be sure to use the supplied control cords. Using another type of cable may result in damage.
•Be sure the power is off when connecting the control cords. Otherwise the units may not work properly.
NAMES AND FUNCTIONS
Below is a description of the functions of the controls listed on Pages3 and 4.
MAIN UNIT
(1) POWER (Power ON/OFF Switch)
When the POWER switch is pressed, the power turns
on.
(2) Disc Holder
Place the discs in the holder. Press the OPEN/CLOSE
button to open and close the disc holder.
(3) OPEN/CLOSE Button
Press it to open and close the disc holder. The control
unit also includes OPEN/CLOSE button. The disc
holder cannot be opened during playback, so stop
playback before pressing the button.
(4) REMOTE CONTROL CONNECTOR
Connect this connector to the control unit using the
included control cord.
(5) LINE OUT 1 and 2
The audio signals from each player are output from
these jacks.
(6) DIGITAL OUT SOCKET
The music-signal of this socket is digital. Connect the
output to the respective input of a digital amplifier for
example.

NAMES AND FUNCTIONS
Below is a description of the functions of the controls listed on Pages3 and 4.
CONTROL UNIT
(1) SHUTTLE (Shuttle Dial)
Use the dial to select the scanning direction and
speed. The disc is scanned in the forward direction
when the shuttle dial is turned clockwise from the
neutral position, in the reverse direction when the
shuttle dial in turned counterclockwise. The scanning
speed increases when the shuttle dial is turned faster.
(2) OPEN/CLOSE (Open/Close Button)
Press it to open and close the disc holder. The main
unit also includes OPEN/CLOSE buttons. The disc
holder cannot be opened during playback, so stop
playback before pressing the button.
(3) TIME (Time Button)
Press this button to switch the time display between
the elapsed time and remaining time.
The selected mode is indicated by the ELAPSED and
REMAIN indicator on the LCD.
(4) LCD
(5) SGL (Single Button)
Press it to switch the single and continuous play
modes. The SINGLE mode is indicated by the
SINGLE indicator on the LCD and continuous mode is
indicated by the CONTINU indicator on the LCD.
(6) PROGRAM (Program Button)
Press the PROGRAM button, the player will enter the
program mode and stop the CD playback.
(7) PROGRAM Indicator
The PROGRAM LED lights when program mode is set.
(8) LOOP Indicator
When the LOOP start point is set, the LED flashes.
When in LOOP mode, the LED lights.
(9) PITCH Indicator
When the indicator lights, the pitch adjustment is
enabled.
(10)Pitch Slider
Use the slider to adjust the CD pitch. Slide up to
decrease the pitch, down to increase the pitch.
(11)JOG (Jog Dial)
When the dial is turned during CD pause, the point at
which the sound is being produced mover by a
number of frames corresponding to the number of
clicks. Clockwise moves the point forward,
counterclockwise moves the point backward.
(12)B. SKIP
Use these buttons to go back to the beginning of the
current track or select a previous track for playing.
(13)CUE Indicator
When in CUE mode, the CUE indicator lights.
(14)CUE (Cue Button)
Press the CUE button during playback to return to the
position at which playback started.
(15)+10 (Track +10 Button)
Use the button to skip ahead 10 tracks.
(16)PLAY Indicator
The PLAY indicator lights during play mode.
(17)PLAY/PAUSE Button
Use the button to start playback. Press once to start
playback, once again to set the pause mode, and
once more to resume playback.
(18)F. SKIP
Use these buttons to skip to the next CD track.
(19)LOOP (Loop Button)
Press the LOOP button to set the loop start point,
press the LOOP button again to set the loop end point.
(20)PITCH -Button
The CD slows down while this button is pressed.
Release the button to return to the original BPM.
(21)PITCH + Button
The CD speeds up while this button is pressed.
Release the button to return to the original BPM.
(22)PITCH (Pitch Button)
Press PITCH button to switch on/off pitch.; hold the
PITCH button down for more than 0.6 sec to switch
pitch in +/-8% / +/-12% / +/-16%.
(23)CONTROL START SOCKETS
These sockets are to connect to a mixer using a
3.5mm jack plug to give remote start capability. When
the switch contacts are shorted the respective unit will
play, and similarly when the switch contacts are open
the player will be in pause mode.
(24)CONTROL CONNECTOR
Connect this connector to the REMOTE connector on
the main unit using the included control cord.
LCD
(25)~(28)TRACK, MINUTE, SECOND and FRAME
Displays
These displays indicate information for the CD’s
current position and time.
(29)BAR Indicator
These ten indicators provide a visual display of the
approximate position of the pickup within the current
track.
(30)ELAPSED Indicator
It indicates that the time shown for the display is the
elapsed time.
(31)CONTINU Indicator
When the indicator lights, the function will cause the
unit to play continuously.
(32)SINGLE Indicator
When the indicator lights, playback will stop at the
beginning of the next track.
(33)REMAIN Indicator
It indicates that the time shown on the display is the
remaining time of playing track.
(34)PITCH DISPLAY
It shows the BPM change range, the BPM changes
within a range of +/-8,+/-12,+/-16%.

OPERATIONS
1. Opening and Closing the Disc Holder
lTurn the unit power on. Press the OPEN/CLOSE button to open the disc holder. OPEN/CLOSE buttons are
provided on both the main unit and control unit.
lThe disc holder cannot be opened during playback to prevent playback from being interrupted if the OPEN/CLOSE
button is pressed accidentally. Stop the playback first, then press the OPEN/CLOSE button.
2. Loading discs
j
Hold the disc by the edges and place it in the disc holder, then press the
OPEN/CLOSE button again to close the disc holder. The unit will show the total
tra
ck number and the total playing time for about 2 seconds then enter the cue
condition, the cue point will be set to the music starting point of the first track
automatically.
CAUTION: Figure 2-1
lDo not place any foreign objects in the disc holder, and do not place more than one disc in the disc holder at a time.
lDo not push the disc holder in manually when the power is off, as this may result in malfunction and damages the
player.
3. Selecting Tracks
lPress the SKIP button once to move to next higher or lower track.
lHold the SKIP button to change tracks continuously at a higher speed.
lWhen a new track is selected during playback, playback begins as soon as the skip search operation is completed.
lIf the skip button is pressed while at the last track, the first track is selected. In the same way, if the skip
button is pressed while at the first track, the last track is selected.
4. Starting Playback
lPress the PLAY/PAUSE button during the pause or cue condition to start playback, the PLAY indicator lights.
lThe point at which playback starts is automatically stored in the memory as the cue point. The pickup then returns
to the cue point when the CUE button is pressed. (Back Cue)
Figure 4-1
5. Stopping Playback
lThere are two ways to stop playback.
•Press the PLAY/PAUSE button during playback to pause at
that point.
‚Press the CUE button during playback to return to the cue
point and enter pause condition.(Back Cue)
Figure 5-1
6. Pausing
lPress the PLAY/PAUSE button to switch the play and pause.
lThe play indicator flashes when the pause mode is set.
lFigure 6-1 show the relationship between the play and pause.
2 4 6
1 5
3 7
Figure 6-1
ŒThe player has completed the cue or pause operation
and is waiting for the play start command.
•When the PLAY/PAUSE button is pressed, playback
starts and the cue point is stored in the memory.
ŽPlaying.
•The pause mode is set when the PLAY/PAUSE button
is pressed again
•Pausing.
‘Playback resumes when the PLAY/PAUSE button is
pressed again.
’Playing.
CUE

OPERATIONS
7. Cueing
l"Cueing" is the action of preparing for playback.
lPress CUE button, the player will enter cue mode, the playback returns to cue point and enter pause condition, the
cue indicator light up and play indicator flashes. When PLAY/PAUSE button is pressed, play starts from the cue
point.
lWhen the track search operation is completed after pressing the SKIP buttons, the player automatically finds the
position at which the sound starts and cues there(Auto Cue).
lIf the CUE button is pressed after the search operation or the scanning operation, the playback returns to cue point
and enter pause condition.
lFigure 7-1 shows the relationship between the play and back cue operations.
62 4
1 5
3
2
1
8
9
3
9
7
8
Figure 7-1
ŒThe player has completed the cue or pause operation
and is waiting for the play start command.
•When the PLAY/PAUSE button is pressed, playback
starts and the cue point is stored in the memory.
ŽPlaying.
•The pause mode is set when the PLAY/PAUSE button
is pressed again.
•Pausing.
‘When the PLAY/PAUSE button is pressed again,
playback resumes and the new cue point is stored in the
memory.
’Playing.
“Press the CUE button.
”The pickup returns to the cue point.(Back Cue)
jCue point setting:
When play starts from pause or skip to a new track by using skip button, the begin play point will be set to the new cue
point.
When a new cue point is set, the cue indicator lights by flash for about 1 second.
NOTE: During cue mode, if the CUE button is pressed and hold, playback will start from the cue point, when the button
is released, the player will return to the cue mode automatically, it allows you to check the cue point.
8. Frame search
lFrame search is a function for monitoring the sound at a certain section of the disc and manually changing the
position. Searching is used to set play start points with precision.
lTurn the JOG dial while in pause or cue mode to begin searching. The sound for one revolution of the disc is output
repeatedly. The point at which the sound starts is indicated on the LCD.
lWhen the JOG dial is turned, the point from which the sound is output moves a number of frames corresponding to
the number of the clicks, and the time display on the LCD also changes.
lThe search point moves in the forward direction wen the JOG dial is turned clockwise, in the reverse direction when
the JOG dial is turned counterclockwise.
9. Scanning (Fast forward/Fast backward)
lScanning is a function for moving quickly forward or backward when the SHUTTLE is rotated.
lThis unit supports 4 different speeds according to the rotating angle of the SHUTTLE.
lTurn the shuttle dial to begin scanning. The disc moves rapidly forward or backward and the sound is output. The
current scan point is indicated on the LCD.
lTurn the shuttle dial clockwise to scan in the forward direction, counterclockwise to scan in the reverse direction.
10.Time display
Press TIME button to select time display mode:
TIME
TIME TIME
total remaining time of the disc

OPERATIONS
11.Matching the Beats Per Minute (BPM)
There are three tools available for matching the BPM of the two CDs:
•Use the pitch slider to adjust the BPM satirically.
‚Use the PITCH BEND buttons to change the BPM temporarily.
ƒTurn the JOG dial to change the BPM temporarily.
1) Pitch Slider
ŒTo adjust the BPM by sliding the pitch slider up or down, press the PITCH button to turn on the PITCH adjustment
function before useing.
•Slide the pitch slider up to decrease BPM, or down to increase BPM. The adjustment range is +/-8,+/-12,+/-16%.
2) Pitch Bending
lThe BPM increases or decreases
respectively while the PITCH BEND+ or
PITCH BEND-button is pressed.
lThe BPM increase depends on how long
you hold the button. If you hold the button
for about 1/2 second, theBPM will go either
to +16% for PITCH BEND+ or -16% for
PITCH BEND-. If you tap the button, the
BPM will only change a little so you can
change the beat slightly without audible
changes in the music.
lThe CD will return to the tempo indicated
by the Pitch slider when you let go to the PITCH BEND+ or -.
lFigure 11 shows an example of how to use the pitch bend function.
In this example, both players are playing and the BPM has already
been matched with the pitch sliders.
The bass beats also match
CD1 Bass beat
bass beat
PITCH BEND
CD2
bass beat
Bass beat Figure 11-1
3) Turn the JOG dial
Turn the jog dial clockwise during play to increase the BMP in the forward direction, counterclockwise to decrease
the BMP in the reverse direction. The faster you turn the wheel, the more the BMP changes. The BMP changes with
a range of +/-8,+/-12,+/-16%.
When you release jog wheel, the CD will return to the tempo indicated by the pitch slider.
12.Program play
ŒPress the PROGRAM button, the player will enter the program mode and the CD will stop rotating.
•Select the desired track by pressing the SKIP button, then press the PROGRAM button again. The selected
track will be added to the program sequence.
ŽRepeat step 2 operation. A maximum of 20 tracks can be programmed at one time.
•Press the PLAY/PAUSE button to start the program play from the first selection.
•Press the program button again during program play to stop play.
‘Press and hold the program button more than 2 secords to cancel the program mode and erase all the current
program contents.
13.Loop Play
ŒPress the LOOP button to set the loop start point A, the LOOP indicator will flashes on the LCD.
•Press the LOOP button again to set the loop end point B, after the B point is set, the playback will enter the loop
play from A to B repeatedly.
ŽPress the LOOP button again, the loop play function is canceled, the LOOP indicator goes out.
14.Relay Play
Press PROG and SGL button to switch relay function; the indicator on the LCD track display when flash when relay
is on.
15.Fader start
You have the possibility to start the respective CD-player directly from the mixer. Make sure that the Control socket is
connected with the respective socket on the mixer. Additionally, the Audio out socket have to be connected with the
Line-input sockets of your mixer. Please note that the Fader start function only works with the appropriate mixers.
Insert the CD and select the desired track. Start playback from your mixer.

BEFORE SWITCHING OFF THE POWER
When you have finished using the CD player, before switching off the power, be sure that the disc holder had been closed
with the OPEN/CLOSE button.
CAUTION:
Do not forcibly close the disc holder when the power is off.
POWEROFF
û
POWEROFF
Do not switch off the power when the disc holder is open.
Switch off the power after the disc holder has been
closed with the OPEN/CLOSE button.
COMPACT DISCS
1. Precautions on handling compact discs
ŸDo not allow fingerprints, oil or dust to get on the
surface of the disc.
ŸIf the disc is dirty, wipe it off with a soft dry cloth.
ŸDo not use benzene, thinner, water, record spray,
electrostatic-proof chemicals, or silicone-treated cloths
to clean discs.
ŸAlways handle discs carefully to prevent damaging the
surface; in particular when removing a disc from its
case or returning it.
ŸDo not bend the disc.
ŸDo not apply heat.
ŸDo not enlarge the hole in the center of the disc.
ŸDo not write on the label (printed side) with a hard-
tipped implement such as a pencil or ball point pen.
ŸCondensation will form if a disc is brought into a warm
area from a colder one, such as outdoors in winter. Do
not attempt to dry the disc with a hair dryer, etc..
2. Precaution on storage
ŸAfter playing a disc, always unload it from the player.
ŸAlways store the disc in the jewel case to protect
from dirt or damage.
ŸDo not place discs in the following areas:
•Areas exposed to directs sunlight for a
considerable time.
‚Areas subject to accumulation of dust or high
humidity.
ƒAreas are affected by heat from indoor heaters,
etc..
SPECIFICATIONS
GENERAL
Dimensions: Main unit: 482(W) x 88.8(H) x 262(D) mm
Control unit:482(W) x 88.8(H) x 97(D) mm
Weight: Player unit: 5 kgs
Control unit: 2 kgs
Power supply: 115/230V AC, 50/60Hz
Power consumption: 25W
