Data Video DAC-8P 4K User manual

DAC-8P 4K

2
Table of Contents
FCC COMPLIANCE STATEMENT ............................................ 4
WARNINGS AND PRECAUTIONS........................................... 4
WARRANTY......................................................................... 6
STANDARD WARRANTY ..............................................................6
THREE YEAR WARRANTY ............................................................6
DISPOSAL............................................................................ 7
1. INTRODUCTION............................................................... 8
2. CONNECTIONS AND CONTROLS ....................................... 9
2.1FRONT PANEL.......................................................................9
2.2 REAR PANEL......................................................................10
3. FIRMWARE UPDATE .......................................................12
3.1 INTRODUCTION ............................................................12
3.2 PREPARATION ..............................................................12
3.2.1 SYSTEM REQUIREMENTS ..................................................12
3.2.2 FIRMWARE UPDATE PREPARATION .....................................13

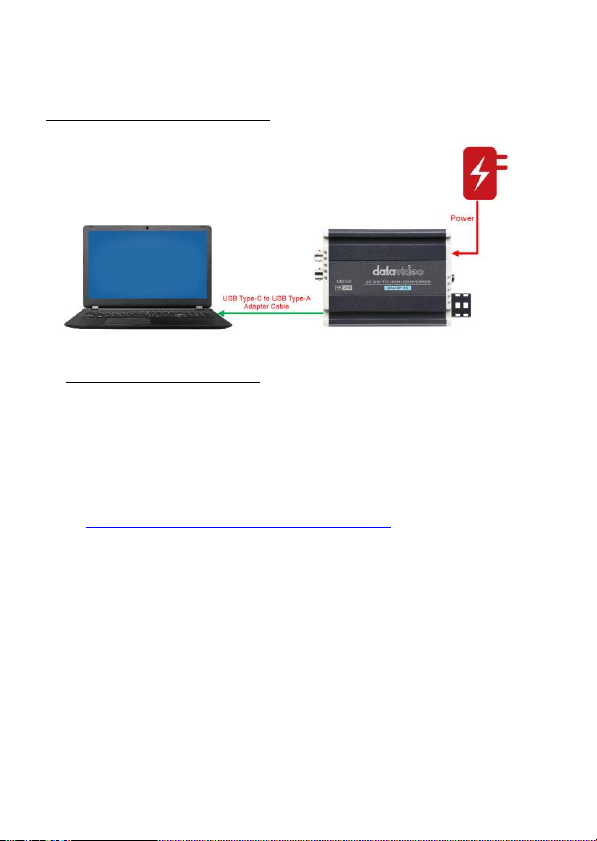

3.2.3 SYSTEM CONNECTION DIAGRAM .......................................14

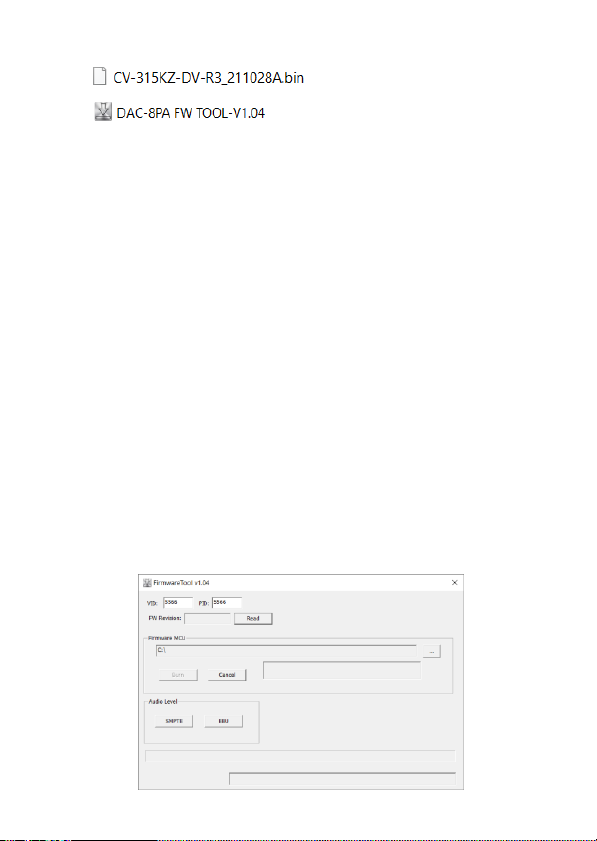

3.2.4 PREPARING THE FIRMWARE..............................................14
3.3 UPDATE........................................................................15
3.3.1 UPDATING THE FIRMWARE ...............................................15
3.4 HOW TO CHECK THE FIRMWARE VERSION ....................17

3
5. SPECIFICATIONS .............................................................21
SERVICE AND SUPPORT ......................................................24
Disclaimer of Product & Services
The information offered in this instruction manual is intended as a guide only. At all times, Datavideo
Technologies will try to give correct, complete and suitable information. However, Datavideo
Technologies cannot exclude that some information in this manual, from time to time, may not be
correct or may be incomplete. This manual may contain typing errors, omissions or incorrect
information. Datavideo Technologies always recommend that you double check the information in this
document for accuracy before making any purchase decision or using the product. Datavideo
Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage
caused by using the information contained within this manual. Further advice on the content of this
manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

4
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Warnings and Precautions
1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid
or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may
fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided
for ventilation. To ensure safe and reliable operation of this unit, and to
protect it from overheating, do not block or cover these openings. Do
not place this unit on a bed, sofa, rug, or similar surface, as the
ventilation openings on the bottom of the cabinet will be blocked. This
unit should never be placed near or over a heat register or radiator. This
unit should not be placed in a built-in installation unless proper
ventilation is provided.
7. This product should only be operated from the type of power source
indicated on the marking label of the AC adapter. If you are not sure of
the type of power available, consult your Datavideo dealer or your local
power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit
where the power cord will be walked on, rolled over, or otherwise
stressed.
9. If an extension cord must be used with this unit, make sure that the total
of the ampere ratings on the products plugged into the extension cord
do not exceed the extension cord rating.

5
10. Make sure that the total amperes of all the units that are plugged into a
single wall outlet do not exceed 15 amperes.
11. Never push objects of any kind into this unit through the cabinet
ventilation slots, as they may touch dangerous voltage points or short
out parts that could result in risk of fire or electric shock. Never spill
liquid of any kind onto or into this unit.
12. Except as specifically explained elsewhere in this manual, do not
attempt to service this product yourself. Opening or removing covers
that are marked “Do Not Remove” may expose you to dangerous
voltage points or other risks, and will void your warranty. Refer all
service issues to qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service
personnel under the following conditions:
a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating
conditions. Adjust only those controls that are covered by the
operating instructions in this manual; improper adjustment of other
controls may result in damage to the unit and may often require
extensive work by a qualified technician to restore the unit to normal
operation;
e. When the product has been dropped or the cabinet has been
damaged;
f. When the product exhibits a distinct change in performance,
indicating a need for service.

6
Warranty
Standard Warranty
Datavideo equipment are guaranteed against any manufacturing defects
for one year from the date of purchase.
The original purchase invoice or other documentary evidence should be
supplied at the time of any request for repair under warranty.
The product warranty period beings on the purchase date. If the purchase
date is unknown, the product warranty period begins on the thirtieth day
after shipment from a Datavideo office.
Damage caused by accident, misuse, unauthorized repairs, sand, grit or
water is not covered under warranty.
Viruses and malware infections on the computer systems are not covered
under warranty.
Any errors that are caused by unauthorized third-party software
installations, which are not required by our computer systems, are not
covered under warranty.
All mail or transportation costs including insurance are at the expense of
the owner.
All other claims of any nature are not covered.
Cables and batteries are not covered under warranty.
Warranty only valid in the country or region of purchase.
Your statutory rights are not affected.
Three Year Warranty
All Datavideo products purchased after July 1st, 2017 are qualified for a
free two years extension to the standard warranty, providing the product
is registered with Datavideo within 30 days of purchase.
Certain parts with limited lifetime expectancy such as LCD panels, DVD
drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting,
Camera module, PCIe Card are covered for 1 year.
The three-year warranty must be registered on Datavideo's official
website or with your local Datavideo office or one of its authorized
distributors within 30 days of purchase.

7
Disposal
For EU Customers only - WEEE Marking
This symbol on the product or on its packaging
indicates that this product must not be disposed of
with your other household waste. Instead, it is your
responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment.
The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve
natural resources and ensure that it is recycled in a manner that protects
human health and the environment. For more information about where you
can drop off your waste equipment for recycling, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.

8
1. Introduction
The DAC-8P4K Converter converts 12G-SDI in resolutions up to 4K50/60to 4K
HDMI, it is easy to connect the 4K HDMI signal devices and professional 12G-
SDI video equipment.
Featuring SDI input and both an SDI and an HDMI output, the audio is de-
embedded from the SDI input, and available in the HDMI output and analog
audio output.
The DAC-8P4K Converter is useful for a variety of broadcast and professional
AV applications.
Features
Supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
12G-SDI input and loop-thru output
Supports HDMI 2.0 to 18 Gbps Video bandwidth
Supports Re-Clocking
Provides Additional 2-Channel RCA Analog Audio Output
Supports Automatic Input Signal Detection
Supports HDMI Deep Color function.
Aluminum appearance design, which is rugged and durable.

9
2. Connections and Controls

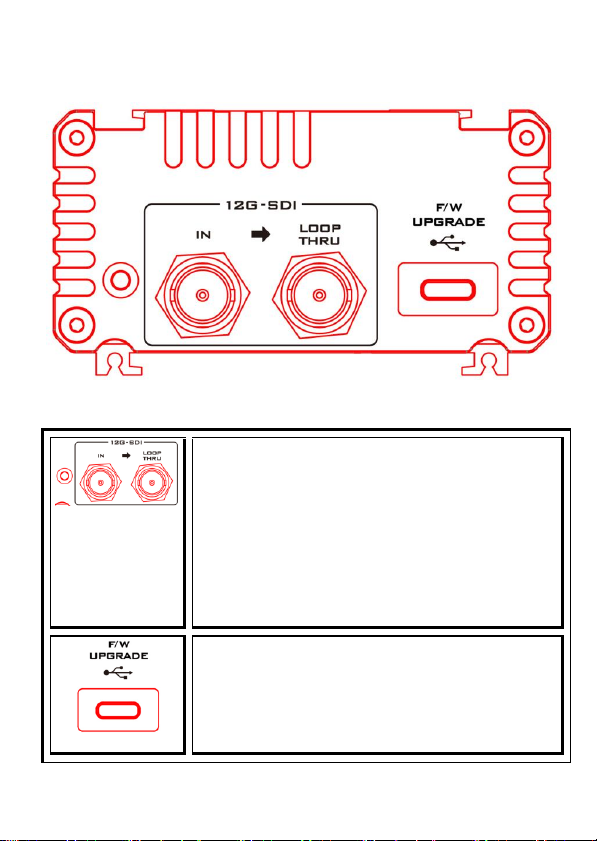

2.1Front Panel
12G-SDI HD/SD - SDI Input & Output (bypass)
SDI provides video signals for professional applications
and allows long distance signal transmission.
IN：12G HD/SD-SDI Input.
LOOP THRU：12G-HD/SD-SDI Loop Through Output.
Signal LED Indicator：When the input signal is
connected, this indicator will light up.
F/W UPGRADE
This USB Type C interface is used for firmware update
only.

10

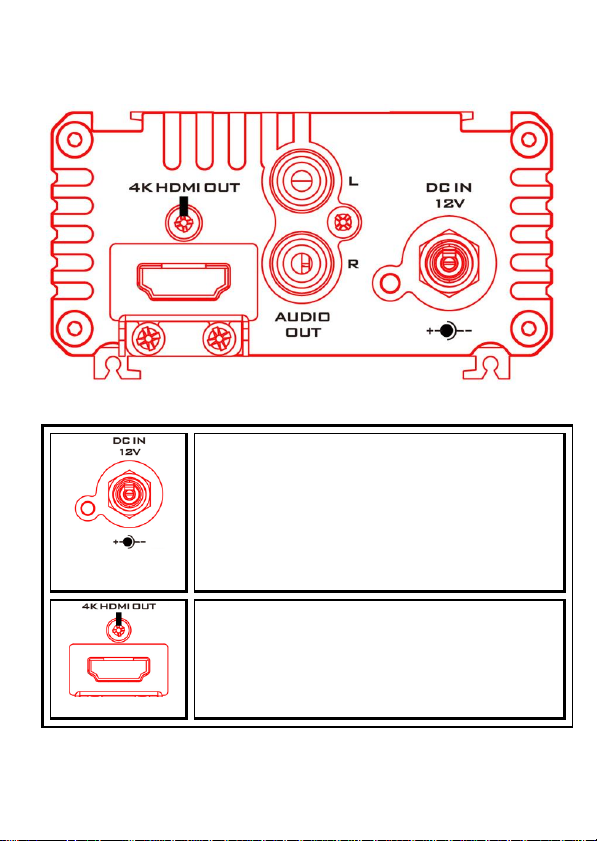

2.2 Rear Panel
DC IN Socket
Please connect the supplied 12V DC adapter to this
interface. The connection can be secured by screwing
the outer fastening ring of the DC In plug to the
socket.
Power LED Indicator
If the DC IN 12V power is connected, this indicator will
light up.
4K HDMI OUT
This is the 4K HDMI OUT interface.

11

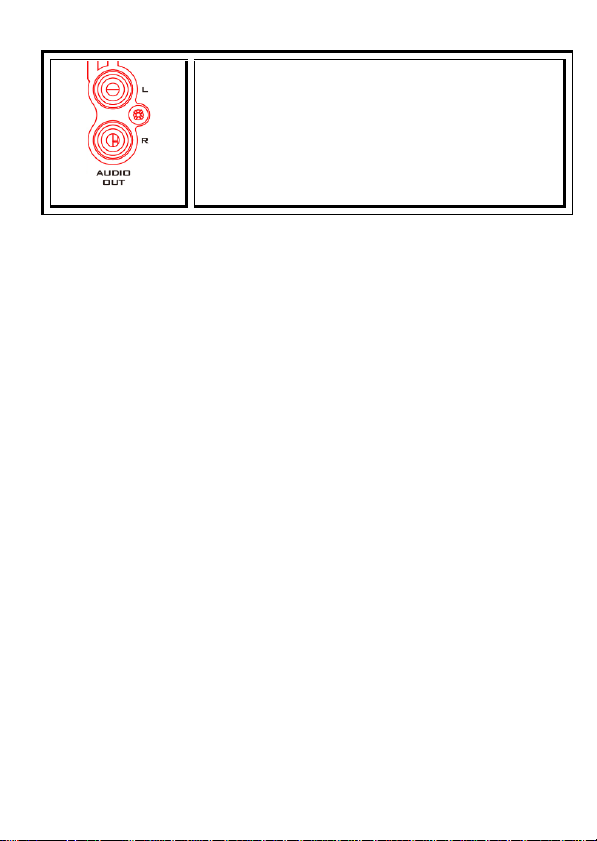

AUDIO OUT RCA Output
Two channels of Unbalanced L / R Audio input.
The audio signal can be de-embedded from the SDI
input signal and then be outputted from this AUDIO
OUT interface.

12
3. Firmware Update
Firmware Update Procedure for DAC-8P 4K
3.1 Introduction
The firmware is updated by connecting a USB Type C male to USB Type-A
male adapter cable from the USB Type C interface of your DAC-8P 4K to the
USB Type-A interface of your laptop or PC. After that, please use the Firmware
Update Tool for updating the firmware.
This firmware update procedure applies to the following product.
Product Model
DAC-8P 4K
Product Name
4K SDI to HDMI Converter
There is one firmware
Firmware x 1: CV-315KZ-DV-R3_211028A.bin
This document describes how to perform a firmware update on a Windows
computer
Screen images from the Windows 10 operating system are used in this
document as an example. Images used in this document may differ from the
actual screens. For details on Windows and computer operations, please refer
to the instruction manual of your computer.
3.2 Preparation
3.2.1 System Requirements
A computer that meets the following requirements is necessary to perform
the firmware update procedure.

13
Laptop
A normal laptop which supports a
USB 3.0 interface is needed.
3.2.2 Firmware Update Preparation
The following items are required to perform this firmware update. Please
prepare these items in advance before performing the update.
DAC-8P 4K x 1
The DAC-8P 4K which is needed
for updating the firmware.
USB Type-C to USB Type-A adapter cable x 1
The USB Type-C to USB Type-A
adapter cable for connecting
the DAC-8P 4K and your laptop
or PC.
Firmware Update Tool x 1
The firmware update tool
which is used to update the
firmware.
Latest Firmware
CV-315KZ-DV-R3_211028A.bin
The Latest downloaded
firmware.
Operation is not guaranteed on all computers that meet the above requirements

14
3.2.3 System Connection Diagram
3.2.4 Preparing the Firmware
3.2.4.1. Download the Firmware
DAC-8P 4K Product Page from the Datavideo website:
https://www.datavideo.com/product/DAC-8P%204K
3.2.4.2. Unzip the firmware
Please download the firmware to the hard disk of your laptop. After
that, please unzip the firmware and then you can see the DAC-8P 4K
firmware and firmware update tool which are shown in the following
diagram.

15
3.3 Update
3.3.1 Updating the firmware
3.1.1.1 Please connect a 12V adapter to the DC IN 12V power interface.
Please use a 12V power adapter to connect to the DC IN 12V power
interface of the DAC-8P 4K.
3.3.1.2. Please use a USB Type-C to USB Type-A adapter cable to
connect DAC-8P 4K and your laptop or PC.
Please use a USB Type-C to USB Type A adapter cable to connect from
the USB Type-C interface of the DAC-8P 4K to the USB Type-A interface
of your laptop or PC.
3.3.1.3. Please open your firmware update tool.
Please open your firmware update tool “DAC-8PA FW TOOL V1.04”

16
3.3.1.4. Please click the button which is next to the “Firmware MCU”
button to select your downloaded firmware.
Please click the button which is next to the “Firmware MCU” button to
select your downloaded firmware and then please press the “Open”
button to load the firmware.

17
3.3.1.5. You can see that the firmware is selected successfully.
You can see that the firmware is selected successfully. Please press the “Burn”
button for starting the firmware update. After the progress bar below reaches
100%, the whole firmware update procedure is done successfully.
3.4 How to check the firmware version
3.4.1 Please use a 12V power adapter to connect to the DC IN 12V
interface.
Please use a 12V power adapter to connect to the DC IN 12V power
interface of the DAC-8P 4K.

18
3.4.2. Please use a USB Type-C to USB Type-A adapter cable to connect
the DAC-8P 4K and your laptop or PC.
Please use a USB Type-C to USB Type-A adapter cable to connect from
the USB Type-C interface of the DAC-8P 4K to the USB Type-A interface
of your laptop or PC.
3.4.3. Please open the downloaded firmware update tool.
Please open the downloaded firmware update tool “DAC-8PA FW TOOL
V1.04”.
3.4.4. Please press the “Read” button which is next to the “FW
Revision” column.
Please press the “Read” button which is next to the “FW Revision”
column for reading the current firmware version.

19

20
4. Dimensions
All measurements in millimeters (mm)
