Datex-Ohmeda CARESCAPE R860 Assembly instructions

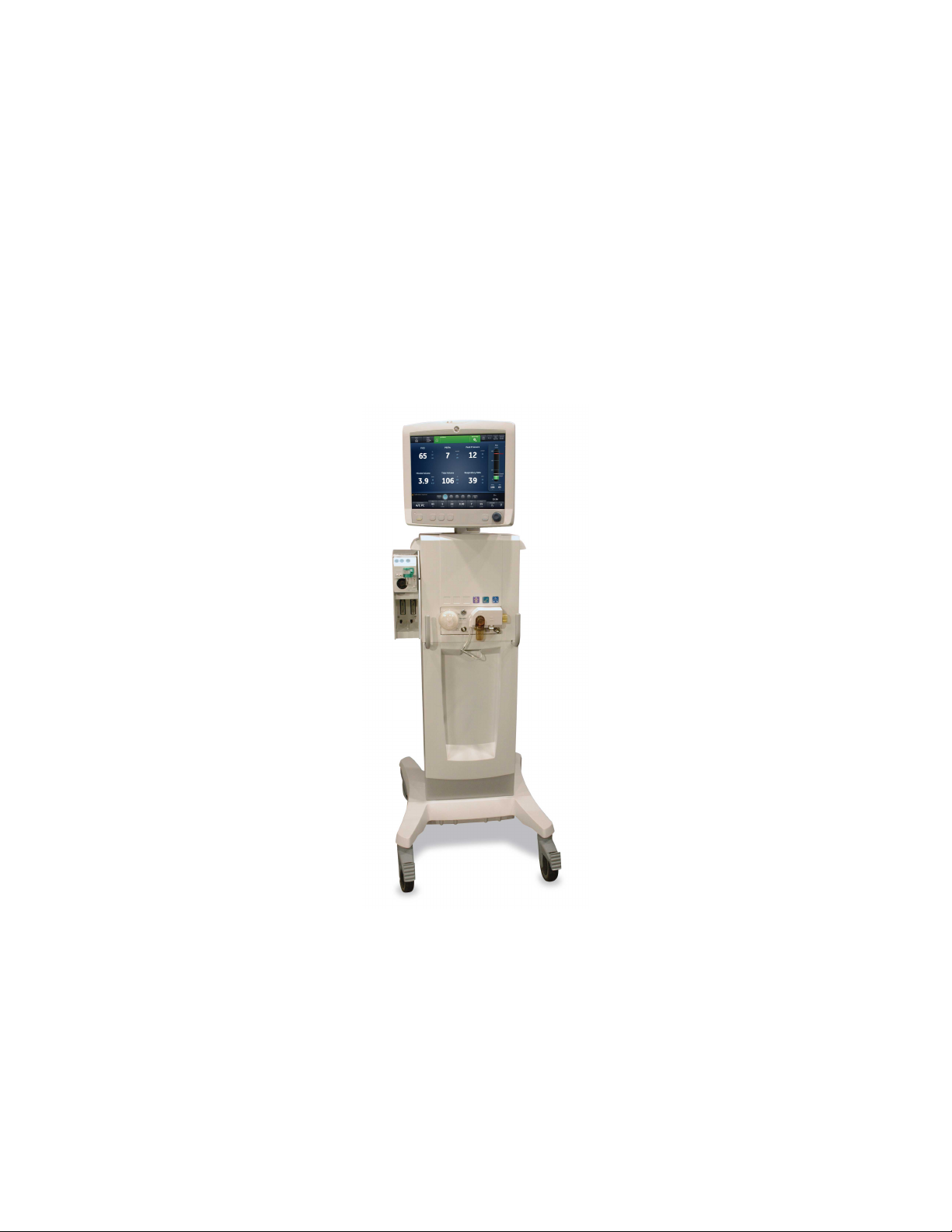

CARESCAPE™ R860
User's Reference Manual
Software Revision 10

User responsibility
Datex-Ohmeda, Inc. a General Electric Company, doing business as
GE Healthcare.
This product will perform in conformity with the description thereof
contained in this User’s Reference manual and accompanying labels
and/or inserts, when assembled, operated, maintained, and repaired
in accordance with the instruction provided. This Product must be
checked periodically. A defective Product should not be used. Parts
that are broken, missing, plainly worn, distorted, or contaminated
should be replaced immediately. Should repair or replacement
become necessary, Datex-Ohmeda recommends that a telephonic or
written request for service advice be made to the nearest Datex-
Ohmeda Customer Service Center. This Product or any of its parts
should not be repaired other than in accordance with written
instructions provided by Datex-Ohmeda and by Datex-Ohmeda
trained personnel. The Product must not be altered without the prior
written approval of Datex-Ohmeda. The user of this Product shall
have the sole responsibility for any malfunction which results from
improper use, faulty maintenance, improper repair, damage, or
alteration by anyone other than Datex-Ohmeda.
U.S. Federal law restricts this device to sale by or on the
order of a licensed medical practitioner.Outside the
U.S.A., check the local laws for any restriction that may
apply.
CAUTION

Table of Contents
1 Introduction
Welcome ........................................1-2
Indications for use/Intended use ...................1-2
Contraindications ...............................1-2
Operational use ................................1-2
Trademarks ...................................1-3
Serial numbers .................................1-3
General information ................................1-4
Neonatal manual ...............................1-5
2 Symbols and abbreviations
Abbreviations .....................................2-2
Symbols, safety and manual terms ....................2-5
Symbols on the equipment .......................2-5
Symbols on the user interface .....................2-7
Symbols on the packaging ....................... 2-9
3 Navigation
Ventilator display ..................................3-2
Display user interface ..............................3-4
Navigating active alarms .........................3-5
Standby ......................................3-6
Main menu ....................................3-7
System menu ..................................3-8
Changing a setting ..............................3-9
Navigating the user interface ....................... 3-11
Present/Patient Status workspace and views ...........3-12
Past/Historical Trends workspace and views ...........3-15
Future/Clinical Decision Support workspace and views ...3-17
2065490-001 i

4 Setup and connections
General use and safety precautions ...................4-3
Ventilator overview front ............................4-5
Ventilator overview back ............................4-6
Connecting power .................................4-7
Connecting and removing the exhalation valve housing ... 4-8
Connecting gas supplies ............................4-9
Connecting the exhalation valve heater ...............4-10
Connecting the accessory rail .......................4-12
Attaching the rail adapter to the accessory rail .......4-12
Attaching system accessories ....................4-13
Connecting the breathing circuit .....................4-14
Connecting the water trap to the breathing circuit ....... 4-15
Connecting a HME (heat and moisture exchanger) ......4-16
Connecting the humidifier ..........................4-18
Connecting the nebulizer ...........................4-20
Disposable nebulizer ...........................4-21
Assembling the nebulizer ....................... 4-21
Filling the nebulizer ............................4-22
Disassembling the nebulizer .....................4-23
Functional test ................................4-24
Airway modules ..................................4-25
Compatible airway modules ..................... 4-26
Connecting the airway module and module bay ......4-28
Connecting the Pedi-lite(+) and D-lite(+) sensors .... 4-30
Airway module calibration .......................4-31
Connecting the support arm ........................4-33
Removing the display unit ..........................4-35
Installing the display unit on a rail system ............. 4-36
Installing the display unit on the ventilator ............. 4-37
Connecting the auxiliary pressure tubing ..............4-38
Purging the auxiliary pressure tubing ..............4-38
CARESCAPE™ R860
ii 2065490-001

Zeroing auxiliary pressure .......................4-39
Connecting to a compressor ........................4-40
Nurse call connection ............................. 4-41
Communication port connection .....................4-43
IT network connection .............................4-45
Connecting isolated electrical outlets .................4-46
5 Ventilation modes
Ventilation mode basics ............................ 5-2
Invasive and non-invasive ventilation ...............5-2
Mechanical and spontaneous breaths .............. 5-2
Ventilation mode settings ........................ 5-3
Positive end expiratory pressure (PEEP) ............5-5
Pressure support ...............................5-6
Flow and pressure triggering ......................5-6
Breath timing preferences ........................5-7
Ventilation mode features ...........................5-9
Tube compensation .............................5-9
Assist control ..................................5-9
Leak compensation ............................5-10
Trigger compensation ..........................5-10
Backup mode .................................5-11
Assist control volume control (A/C VC) ................5-12
Assist control pressure control (A/C PC) .............. 5-14
Assist control pressure regulated volume control (A/C
PRVC) .........................................5-16
Synchronized intermittent mandatory ventilation volume
control (SIMV VC) ................................5-18
Synchronized intermittent mandatory ventilation pressure
control (SIMV PC) ................................5-20
Synchronized intermittent mandatory ventilation pressure
regulated volume control (SIMV PRVC) ...............5-22
Continuous positive airway pressure / pressure support
(CPAP/PS) ......................................5-24
BiLevel airway pressure ventilation (BiLevel) ...........5-26
Table of Contents
2065490-001 iii

BiLevel airway pressure ventilation volume guaranteed
(BiLevel VG) .................................... 5-28
Airway pressure release ventilation (APRV) ............5-30
Volume Support (VS) ............................. 5-32
Non-invasive ventilation (NIV) .......................5-34
Spontaneous breathing trial (SBT mode) ..............5-37
6 Operation
Power ...........................................6-2
Turning on power to the ventilator ..................6-2
Turning off power to the ventilator ..................6-2
Patient Setup .....................................6-4
New Patient ...................................6-4
Previous Patient ............................... 6-4
Current Patient .................................6-5
System Check ....................................6-6
System Check overview ......................... 6-6
Circuit Setup .................................. 6-7
Running a System Check ........................6-7
Patient ventilation ................................ 6-10
Setting the ventilator data source .................6-10
System menu .................................6-10
Setting a ventilation and backup mode .............6-11
Starting patient ventilation .......................6-12
Pausing ventilation ............................ 6-13
Setting Favorites ..............................6-14
7 Procedures
Suction ..........................................7-2
Nebulizer treatment ................................7-3
Pneumatic nebulizer ...............................7-5
Performing an Increase O2 procedure .................7-6
Performing an Inspiratory Hold .......................7-7
CARESCAPE™ R860
iv 2065490-001

Performing an Expiratory Hold ....................... 7-8
Manual breath ....................................7-9
Measuring P 0.1 ................................. 7-10
Measuring Negative Inspiratory Force (NIF) ............7-11
Measuring Vital capacity ...........................7-12
Measuring Auto PEEP .............................7-13
PEEPi Volume ................................7-13
8 Alarms and troubleshooting
Alarms ..........................................8-2
Alarm management ................................8-3
Alarm bar .....................................8-3
Alarm setup ...................................8-4
Auto limits .................................... 8-6
Alarm priority ..................................8-6
Audio pause ...................................8-7
Secondary audio alarm ..........................8-8
Measured data alarms ...........................8-8
List of alarms - adult and pediatric .................... 8-9
Alarm filters ..................................8-25
Alarm delays .................................8-26
Alarm tests ......................................8-28
Low O2 alarm test .............................8-28
High O2 alarm test .............................8-28
Low EtO2 alarm test ...........................8-29
High EtO2 alarm test ...........................8-30
Low EtCO2 alarm test ..........................8-30
High EtCO2 alarm test ......................... 8-31
PEEPe low alarm test ..........................8-31
PEEPe high alarm test ......................... 8-32
VTexp low alarm test ...........................8-32
VTexp high alarm test ..........................8-33
Pmax alarm test ...............................8-33
Table of Contents
2065490-001 v

O2 supply pressure low alarm test ................8-34
Air supply pressure low alarm test ................ 8-34
Sustained airway pressure (Paw) alarm test ........ 8-35
Minute volume alarm test ....................... 8-35
Breathing circuit occlusion alarm test ..............8-36
Breathing circuit alarm leak test ..................8-36
Apnea alarm test ..............................8-37
Patient disconnected alarm test ..................8-37
Nebulizer not connected alarm test ............... 8-38
Low internal battery alarm test ................... 8-38
Power failure alarm test .........................8-39
Internal errors ................................... 8-40
Troubleshooting ..................................8-41
NIV Troubleshooting ..............................8-43
General messages ............................... 8-44
9 Patient monitoring
Patient data and waveforms .........................9-2
Measured data definitions ........................9-2
Waveform settings ..............................9-5
Spirometry settings .............................9-7
Reading waveforms .............................9-8
Reading spirometry loops .......................9-10
Trends workspace ................................9-11
Review trends ................................9-12
Trends timeline ............................... 9-12
Graphical trends view ..........................9-13
Numerical trends view ..........................9-14
Trends log view ...............................9-15
Snapshot trends view .......................... 9-17
10 Clinical decision support
SBT view .......................................10-2
CARESCAPE™ R860
vi 2065490-001

Review spontaneous breathing trial data ...........10-3
Perform a spontaneous breathing trial .............10-3
Functional residual capacity view ....................10-5
FRC procedures .............................. 10-5
FRC INview procedure ......................... 10-6
PEEP INview procedure ........................10-7
Lung INview procedure .........................10-8
FRC tabs ....................................10-9
Spirometry view .................................10-14
Spirometry tab ...............................10-14
SpiroDynamics tab ........................... 10-16
Set up and view SpiroDynamics .................10-20
Metabolics view .................................10-22
Steady state ventilation ........................10-23
Perform a Metabolics measurement ..............10-23
Review Metabolics data ....................... 10-24
Calculations view ................................10-26
Lab data ....................................10-27
Input tab ....................................10-27
Ventilation tab ...............................10-28
Oxygenation tab ............................. 10-28
11 System configuration (Super User) and service
Configuration menu (Super User) ....................11-2
Access the Configuration menu .................. 11-2
Configuring units ..............................11-2
Configuring time and date .......................11-3
Configuring ventilator settings ....................11-4
Assign mode favorites ..........................11-4
Calibrations ..................................11-5
Copy configuration .............................11-6
Assign facility default settings .......................11-7
Assign facility default views ......................11-8
Table of Contents
2065490-001 vii

Factory default settings .........................11-9
Service menus ..................................11-12
Localization .................................11-12
Optional features .............................11-13
Service log ..................................11-14
12 Cleaning and maintenance
Repair policy ....................................12-2
Approved service ..............................12-2
Storing the ventilator ...........................12-2
Disposal .....................................12-3
System data .....................................12-4
Testing battery performance .....................12-4
Maintenance summary and schedule .................12-6
User maintenance .............................12-6
Airway module maintenance .....................12-7
Compressor maintenance .......................12-7
Component replacement schedule ...................12-8
Component processing compatibility ................. 12-9
External surfaces processing compatibility ............12-10
Fan filters ......................................12-11
Compressor filter ................................12-13
ISO 17664 compliance ...........................12-14
Component processing ...........................12-15
Inspiratory safety guard ........................12-15
Disassemble for processing ....................... 12-16
Neonatal flow sensor (NFS) .................... 12-16
Pedi-lite(+) and D-lite(+) sensors ................ 12-16
Expiratory flow sensor .........................12-17
Exhalation valve assembly .....................12-18
Water trap (cart mounted) ......................12-19
Manual cleaning ................................ 12-21
Soaking ....................................12-21
CARESCAPE™ R860
viii 2065490-001

Manual disinfection ..............................12-23
Hydrogen peroxide ........................... 12-23
Ortho-phthaldehyde ...........................12-24
Automated cleaning ..............................12-25
Sterilization .................................... 12-26
Autoclave ...................................12-26
Aerogen Pro Nebulizer ...........................12-27
Component replacement schedule - nebulizer ......12-27
Disassemble for processing - nebulizer ...........12-27
Manual cleaning - nebulizer .................... 12-28
Manual disinfection - nebulizer ..................12-28
Automatic cleaning and disinfection ..............12-29
Sterilization - nebulizer ........................12-30
13 Specifications
Overview .......................................13-2
Physical specifications ............................ 13-3
Alarm sound pressure .............................13-4
Environmental specifications ........................13-5
Pneumatic specifications ...........................13-6
Electrical specifications ............................13-7
Battery information ............................ 13-7
Battery status .................................13-8
Low internal battery alarm test ................... 13-9
Testing battery performance ....................13-10
Equipotential stud ............................13-11
Ventilation specifications ..........................13-12
Ventilation settings ........................... 13-12
Alarm settings ...............................13-15
Waveform specifications .......................13-16
Nebulizer ...................................13-16
Ventilation delivery specifications ................13-19
Tidal volume delivery ..........................13-20
Table of Contents
2065490-001 ix

Inspired pressure control .......................13-20
PEEP control ................................13-20
Oxygen-air mixture accuracy ................... 13-21
Ventilator breathing system compliance and
resistance .................................. 13-21
Filter specifications ...........................13-22
Ventilation monitoring specifications ..............13-22
Airway module ..................................13-25
Gas specifications for E- series modules ..........13-25
Gas specifications for CARESCAPE modules ......13-26
E-series typical performance ....................13-27
CARESCAPE module typical performance ........ 13-28
Airway module measurement limitations .......... 13-29
Electromagnetic compatibility (EMC) ................13-31
Essential performance .........................13-31
Cables and accessories ....................... 13-32
Guidance and manufacturer’s declaration -
electromagnetic emissions .....................13-32
Guidance and manufacturer’s declaration -
electromagnetic immunity ......................13-33
Recommended separation distances .............13-35
Electrical safety .................................13-37
Classification ...................................13-38
14 Clinical theory
Functional residual capacity ........................14-2
Nitrogen washout ..............................14-3
Metabolics ......................................14-4
Leak compensation calculation ......................14-5
Airway module ...................................14-6
Gas exchange ................................14-6
Gas exchange measurements ................... 14-6
Static measurements ...........................14-7
Evaluate airway module data ....................... 14-8
CARESCAPE™ R860
x2065490-001

Oxygen consumption (VO2) .....................14-8
Carbon dioxide production (VCO2) ................14-9
Respiratory quotient (RQ) .......................14-9
Energy expenditure (EE) .......................14-10
Airway module test method ........................14-12
VT setting calculation ............................ 14-13
Body Surface Area (BSA) calculation ................14-14
Ideal Body Weight (IBW) calculation .................14-15
15 System theory of operation
System operation .................................15-2
Electrical operation ...............................15-3
Display Unit ..................................15-4
Ventilator Control Board ........................15-5
Ventilation Monitoring Board .....................15-5
Power Management Board ......................15-5
Motherboard ................................. 15-5
Monitoring Interface Board ......................15-6
Pneumatic operation ..............................15-7
Inspiratory ...................................15-8
Expiratory ....................................15-9
Hazard protection ............................. 15-9
16 Parts and accessories
Replacement parts and accessories ..................16-2
System accessories ...............................16-3
System parts ....................................16-5
Power cords .....................................16-6
Airway module ...................................16-7
Exhalation valve assembly .........................16-8
Exhalation valve heater ............................16-9
Table of Contents
2065490-001 xi

17 Neonatal Introduction
Overview of neonatal ventilation .....................17-2
Neonatal manual ..............................17-2
18 Neonatal setup and connections
General use and safety precautions ..................18-2
Connecting the Neonatal Flow Sensor (NFS) ...........18-4
19 Neonatal ventilation modes
Ventilation mode basics ........................... 19-2
Invasive and non-invasive ventilation ..............19-2
Mechanical and spontaneous breaths ............. 19-2
Ventilation mode settings ....................... 19-3
Positive end expiratory pressure (PEEP) ...........19-5
Pressure support ..............................19-6
Flow and pressure triggering .....................19-6
Breath timing preferences .......................19-7
Ventilation mode features ..........................19-9
Assist control .................................19-9
Leak compensation ............................19-9
Trigger compensation .........................19-10
Backup mode ................................19-10
Nasal continuous positive airway pressure (nCPAP) ....19-12
Invasive neonatal ventilation modes .................19-14
20 Neonatal Operation
Power ..........................................20-2
Turning on power to the ventilator ................ 20-2
Turning off power to the ventilator .................20-2
Patient Setup ....................................20-4
New Patient ..................................20-4
CARESCAPE™ R860
xii 2065490-001

Previous Patient .............................. 20-4
Current Patient ............................... 20-5
System Check ...................................20-6
System Check overview - neonatal ................20-6
Running a neonatal system check ................ 20-7
Patient ventilation ................................ 20-9
Setting the ventilator data source .................20-9
System menu (neonatal) ........................20-9
Setting a ventilation and backup mode ............20-10
Starting patient ventilation ......................20-11
Standby ....................................20-12
Ventilation adjustments ........................20-13
Setting Favorites .............................20-13
21 Neonatal procedures
Suction .........................................21-2
Nebulizer treatment ...............................21-3
Pneumatic nebulizer ..............................21-4
Performing an Increase O2 procedure ................21-5
22 Neonatal alarms and troubleshooting
Alarms .........................................22-2
Alarm management ...............................22-3
Alarm bar ....................................22-3
Alarm setup ..................................22-4
Alarm priority .................................22-6
Audio pause ..................................22-7
Measured data alarms ..........................22-8
List of alarms ....................................22-9
Alarm filters .................................22-23
Alarm delays ................................22-24
Battery status ...................................22-26
Internal errors .................................. 22-27
Table of Contents
2065490-001 xiii

Troubleshooting .................................22-28
nCPAP Troubleshooting ..........................22-30
General messages .............................. 22-31
23 Neonatal patient monitoring
Patient data and waveforms ........................23-2
Neonatal measured data definitions ...............23-2
Waveform settings ................................23-5
Access waveform settings .......................23-5
Waveform field configuration .....................23-6
Waveform style ...............................23-6
Waveform speed ..............................23-6
Waveform color ...............................23-6
Waveform and spirometry loop scaling .............23-6
Spirometry settings ...............................23-8
Configure spirometry loops - Neonatal .............23-8
Waveform and spirometry loop scaling .............23-8
Reading waveforms ...............................23-9
Reading spirometry loops .........................23-11
Neonatal Trends ................................23-12
Trends workspace - Neonatal ...................23-12
Review trends ...............................23-13
Trends timeline .............................. 23-14
Graphical trends view .........................23-14
Neonatal numerical trends view .................23-15
Trends log view ..............................23-17
Snapshot trends view ......................... 23-18
Measured patient data snapshots ................23-20
Waveform snapshots ..........................23-20
Alarms snapshots ............................23-20
Review snapshot trends .......................23-21
CARESCAPE™ R860
xiv 2065490-001

24 Neonatal clinical decision support
SBT view - Neonatal ..............................24-2
Perform a spontaneous breathing trial .............24-3
Review spontaneous breathing trial data - neonatal .. 24-4
Spirometry view ..................................24-5
Spirometry ...................................24-5
25 Neonatal cleaning and maintenance
Neonatal flow sensor (NFS) ........................ 25-2
Processing the neonatal flow sensor ................. 25-3
Calibrating the neonatal flow sensor ..................25-4
26 Neonatal specifications and settings
Overview .......................................26-2
Neonatal ventilation settings .....................26-2
Neonatal alarm settings .........................26-3
Waveform specifications ........................26-4
Neonatal tidal volume delivery ................... 26-5
Inspired pressure control ........................26-5
PEEP control .................................26-5
Oxygen-air mixture accuracy .................... 26-6
Ventilation breathing system compliance and
resistance - Neonatal .......................... 26-6
Ventilation monitoring specifications - Neonatal ......26-7
27 Neonatal parts and accessories
Replacement parts and accessories ..................27-2
Inspiratory safety guard .........................27-2
Neonatal flow sensor ..............................27-3
Index
Table of Contents
2065490-001 xv

CARESCAPE™ R860
xvi 2065490-001

1 Introduction
Introduction
Welcome........................................1-2
General information............................... 1-4
In this section
2065490-001 1-1

Welcome
Thank you for choosing the GE Healthcare CARESCAPE™ R860.
Our goal is to provide you with the highest quality product and
services available. This ventilator features a user interface
specifically designed to streamline workflow while providing
exceptional insight into patient needs.
Indications for use/Intended use
The CARESCAPE R860 ventilator is designed to provide mechanical
ventilation or support to neonatal, pediatric, and adult patients
weighing 0.25 kg and above.
The CARESCAPE R860 ventilator is a microprocessor based,
electronically controlled, pneumatically driven ventilator that includes
integrated monitoring of FiO2, airway pressure, flow, and volume.
Additional respiratory gas monitoring capabilities are supported
through the use of optional GE patient monitoring modules.
Not all features are available for all patient types or product
configurations.
The CARESCAPE R860 ventilator is not a pulmonary function
calculation device.
The system is designed for facility use, including within-facility
transport, and should only be used under the orders of a clinician.
Contraindications
None known.
Operational use
The ventilator must only be operated by authorized medical
personnel well trained in the use of this product. The ventilator must
be operated according to the instructions in this User’s Reference
Manual.
This ventilator is not intended for use as a facility to
facility transport ventilator.
This ventilator is not indicated for use with anesthetic
agents.
MR unsafe. This ventilator is not suitable for use in a
magnetic resonance imaging (MRI) environment.
WARNING
•
•
CARESCAPE™ R860
1-2 2065490-001
