DaVinci 250-04942 User manual

DaVinci LED Power Supply
Sku# 250-04942
Page 1 of 2 17602057 - Printed 10/5/18 © Travis Industries, Inc.
Packing List
Power Supply with attached wire harness
Wire Tie
Crimp Connectors
Overview
This kit provides the parts and information needed for updating or replacing the LED power supply in a DaVinci
fireplace. This power supply will be a smaller and quieter replacement for the older power supplies or a direct
replacement for newer units.
Disconnect gas and power to the fireplace before proceeding.
Make sure the fireplace has fully cooled prior to conducting service.
Installation (Fireplaces W/O TouchSmart Controllers)
1. Gain access to the component area of the fireplace (see installation manual for details).
2. Locate the LED power supply. Disconnect the Molex connector from the “power in” on the fireplace.
Disconnect the wires marked “LED XFMR” from the terminals on the power supply. You may discard the
power supply and harness.
3. Install the replacement power supply into the location of the previous power supply. The power supply
should be oriented so the label is facing upward. Secure the power supply in place using the included
wire tie.
DisconnectLED
XFMRwires
Disconnect
“PowerIn”
Labelshouldbe
facingupward

DaVinci LED Power Supply
Sku# 250-04942

Page 2 of 2 17602057 - Printed 10/5/18 © Travis Industries, Inc.

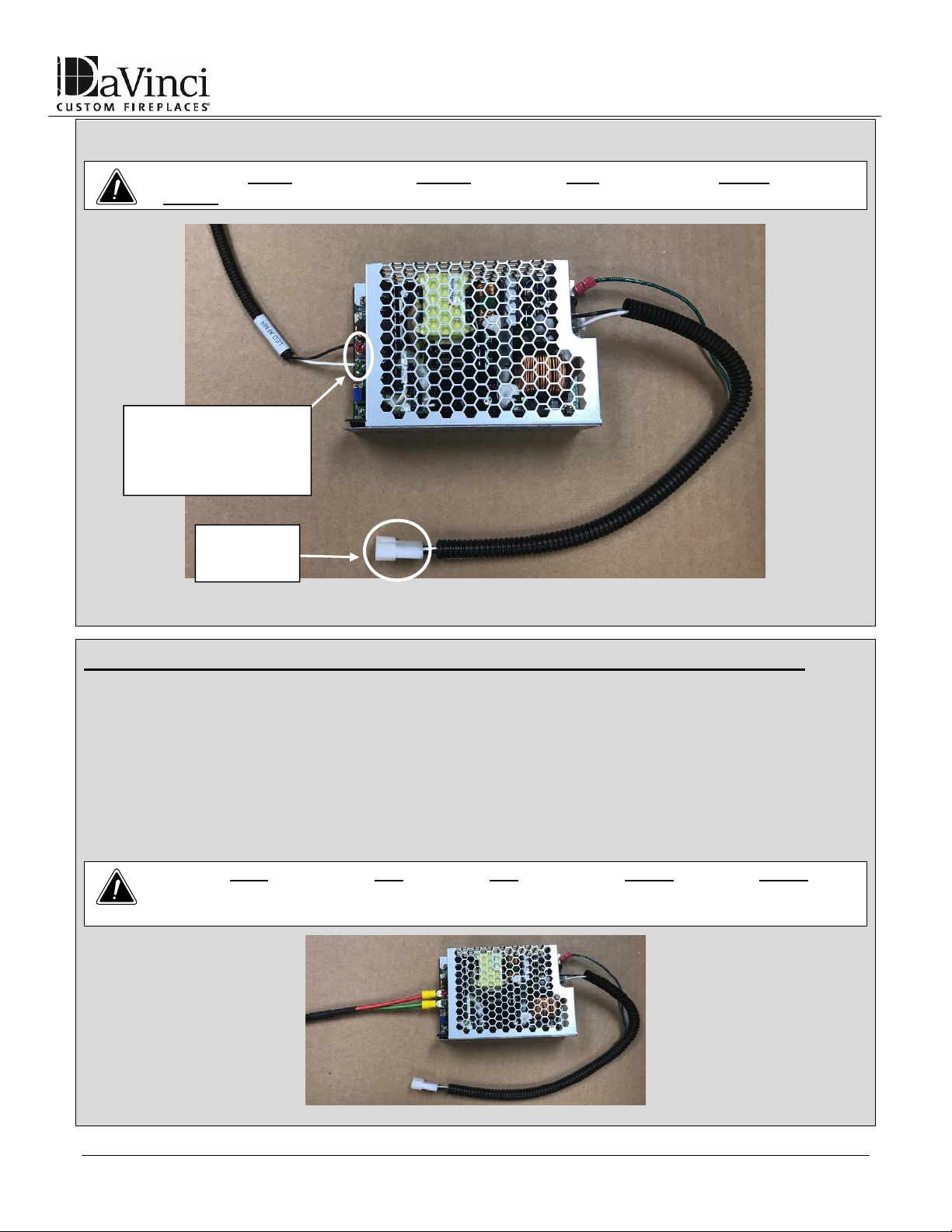

4. Connect the pre-attached power wire harness to the “power in” Molex on the fireplace. Connect the “LED
XFMR” wires to the Red and Green terminals on the replacement power supply.
POLARITY DOES MATTER. The BLACK wire to the RED terminal. The WHITE wire to the
GREEN terminal.
5. Restorethefireplacetoitscorrectconfiguration.
Installation (Current Fireplace W/ TouchSmart Controllers)
1. Gain access to the component area of the fireplace (see installation manual for details).
2. Locate the LED power supply. Disconnect the Molex connector from the “power in” on the fireplace.
Disconnect the Red and Green wires from the terminals on the end of the power supply. Remove and
Replace the power supply.
3. Connect the RED and GREEN wires to the corresponding terminal on the power supply (RED to RED, Green
to Green).
If there are no connectors attached to the existing red and green wires, we recommend that you use the
included crimp connectors to ease installation.

POLARITYDOESMATTER.TheREDwiretotheREDterminal.TheGREENwiretotheGREEN
terminal.
4. Restorethefireplacetoitscorrectconfiguration.

ConnectLEDXFMR
wires(BLACKtoRED,
WHITEtoGREEN)
Connectto
“PowerIn”
