Focal Range: 5.74 – 16.4 ft. ( 1.75 – 5 m )
Zoom Factor: 1,5 x
Uniformity: 85% image center-to-corner
Image configuration: "Green Button Set Up" with
auto image positioning,
auto tracking and auto
synchronization
Audio system: Built in 10-watt loudspeaker
Inputs: PC, Stereo Audio, RS232,
Video, TV
Outputs: Stereo Audio
Vertical Frequency: 48-85 Hz
Horizontal Frequency: 15-60 KHz
Power Input: 100 –250V AC, 50 – 60 Hz,
Full Range
Power Consumption Typical: 210W, Max 230W
Operating Temperature: 10 – 40 C ( 50 – 104 F )
Dimensions: W: 335mm, D: 225mm,
H: 130mm
W: 13.2 in., D: 8.86 in.,
H: 5.122 in.
Weight: 4,5 kg (9,9 lbs)
Standard Accessories: Davis Remote Control incl.
Batteries, Power Cable ( EUR, UK, US ), Lens Cap,
User Manual, CD.
Optional Accessories: Ceiling Mount Kit, Davis Dual
Soft Bag, Video Kit, TV Tuner Kit, PC Connection Kit,
Mac Connection Kit, SCART Plug, EVC Cable.
Dealer:
Specifications are subject to change without notice • v1 Productsheet data 10/99 • Saturn Trykk, Drammen
Technical Specifications
Display: Single-Chip DMD
( Digital Micromirror Device)
Resolution: 800x600 with compression
for 1024x768
Brightness: 700 ANSI Lumens
Projection Lamp: 150W UHP
( Ultra High Performance ),
User Replaceable
Lamp Life: 2000 Hours Typical
Colour Palette: 16,7 million colours (24 bit)
Aspect Ratio: 4:3 or 16:9
Response Time: 16 ms
Contrast Ratio: 230:1
(ANSI Checkerboard Typical)
500:1
(ANSI Full on/off Typical)
Computer Compatibility: SVGA, Modes 56-85Hz, VGA,
PC, Macintosh, Powerbook
and others
Video Compatibility: NTSC M, PAL B/D/G/I/H/M,
SECAM
Projection Lens: Motorized Zoom 1.2 : 1.7
with 17-degree keystone
DAVIS is a registered trademark of DAVIS A/S.
Digital Light Processing, DLP, Digital Micromirror Device
and DMD are trademarks of Texas Instruments.

DIGITAL
BY
DESIGN
Tailored for the home

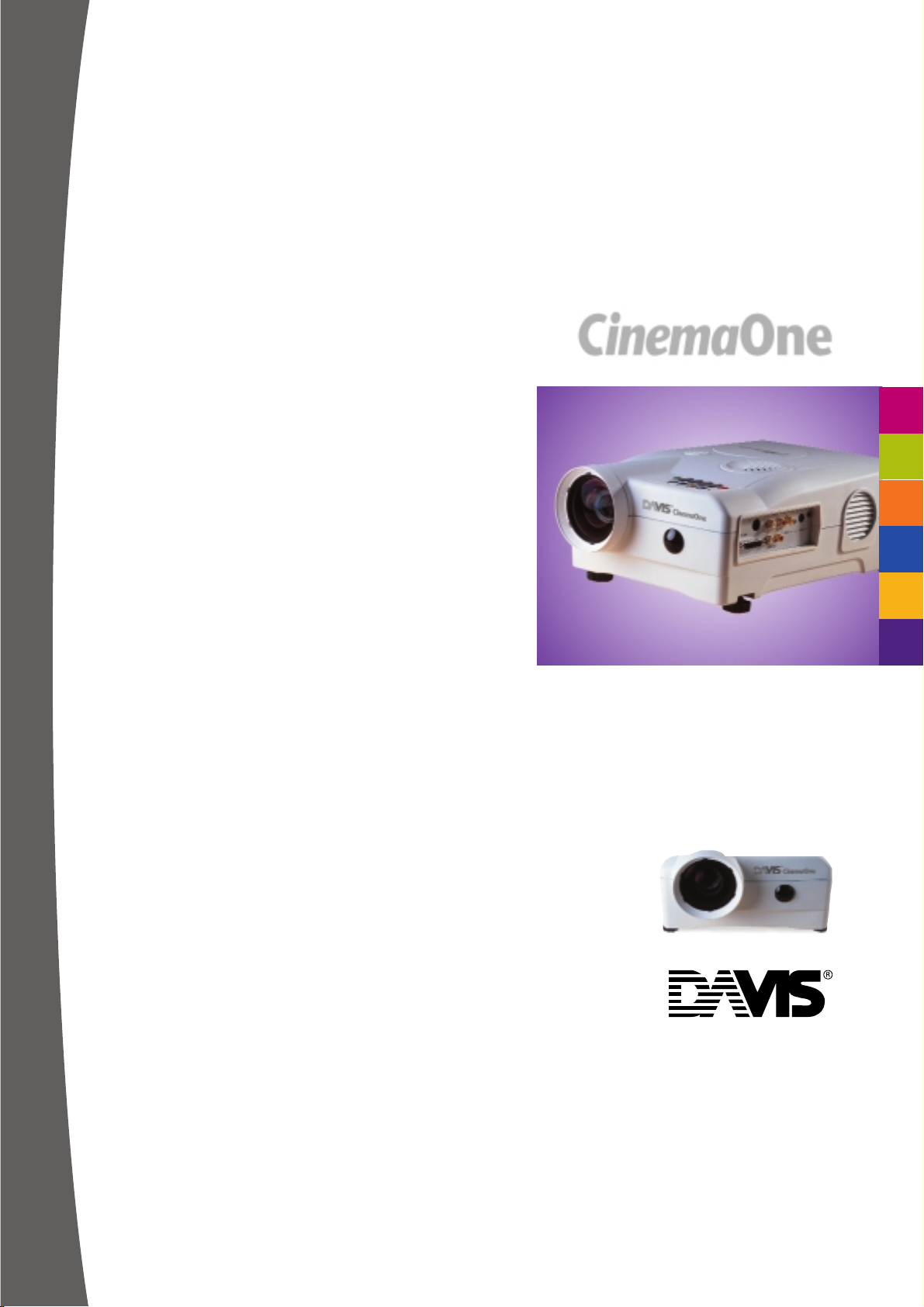

DAVIS is bringing the cinema experience to the living room with the
launch of CinemaOne. The ivory coloured projector has been specially
designed for the home user. It enables high quality DVD, TV and
video images to be viewed at sizes of up to five metres across.
Home users can even choose to have an integrated TV tuner included in
the projector, which allows them to replace
traditional television sets. The projector’s TV control
panel can be accessed through its on-screen display.
Perfect Image Quality
CinemaOne contains a specially developed colour wheel
to give greater chromatic accuracy. This enhances colour
saturation whilst only marginally reducing the brightness.
Chip technology incorporating Texas Instruments DLP™
(Digital Light Processing™) is also contained within the
projector, giving superior image clarity and sharpness.
CinemaOne features ASCTM technology developed by
DAVIS. ASC is a novel technique for TV-signal deinter-
lacing (also known as line-doubling) based on intra field
motion estimation. The ASC algorithms have proved to give
crisp video images (twice the vertical resolution compared
to poorer line-doublers) and remove tearing and avoid artefacts.
The result is brilliant video performance.
A 16:9 switch is included in the projector which enables wide-screen
films to be viewed in their original format, without distortion. An internal
10 watt speaker provides cinema-style sound, and users can create a
‘surround sound’ effect in their living room by connecting the projector
to a hi-fi.
Weighing only 4.5kg and with a footprint the size of an A4 sheet of
paper, CinemaOne is compact, discreet and portable. The projector
combines compact size with considerable power. It has high-clarity,
SVGA resolution, and is extremely bright at 700 ANSI lumens.
Ease of use
CinemaOne’s cabling is all colour coded and the icon-based menu sys-
tem makes the projector very easy to set up and use. The functions can
be operated both from the touch panel and the infrared remote control.
As well as compatibility with all TV and video formats, the projector is
suitable for use with PCs, MACs and laptops.
- CinemaOne from DAVIS - Blockbuster Quality at Home -
CinemaOne from DAVIS –
The A4-sized wide-screen digital home entertainment projector
