DAXOM UKDAX-11ST User manual

1

2
TO DAXOM USER
In order to perform device’s function properly and for your safety follow the
instructions mentioned in the user manual of the device during the mounting and the
usage of the device. In case of an unauthorized mounting and maintenance, the
device will be void from warranty cover. In addition to that, our company will not be
responsible from failure or an accident that may occur in the device. Please keep this
user manual in good conditions for future reference.
The mounting of the water heater should be made by an authorized person.
Please contact with our authorized sales agencies or companies which are
authorized by the authorized gas administration (EGO, İGDAŞ, BOTAŞ, İZGAZ,
etc). Do not attempt to operate the device by yourself.
In case of you use LPG gas, do not mount your water heater in places below the
ground level.
Check whether your device conforms to the gas type you will use or not.
Provide flexible connections in a safe way.
The pipe of water heater should not be installed to places Which stays inside the
building like air well, lightings and balconies. Consult with the authorized service
or the companies about this matter.
The device operates with 220V voltage. Ensure the network voltage is 220V.
With it’s original pipe set, your heater has combustion air from external
environment and again discharges gases to external environment that are
occurred as a result of combustion. Because of this, it has to be used with original
pipe set which is given with the product. Do not definitely connect to building
chimneys.
The life time of the water heater which is determined by department of industry
is 10 years.
1. SAFETY WARNINGS

3
Withdigital constant watersetting function the water temperature will remain constant
in the degree you set.
The fuel efficiency because of your device can operate constantly at set water
temperature, fuel efficiency decreases.
By the automatic water controlled on/off system, when the water tap is turn on, the
water heater will automatically operate and the hot water flow will be provided. When
the water valve is turn off, the water flow will stop and water heating will stop.
Operation with low water pressure function: it does not affect by the low water
pressure that occurs in the high apartment flats.
The temperature control adjustment buttons make for users easy to obtain different
water temperature that they desire Provide consumers to obtain different water
temperatures that they desire.
By the high temperature safety system, in case of the water getting hotter than it is
needed, the gas will be cut off automatically and the damage of the water heater will
be prevented. The flame instability is prevented and the water is cooled after the
flame is off with the features of blowing inside the water heater before the ignition (air
fan blows air for 2~4 seconds before ignition) and the blowing after service (air fan
will go on blowing air for 10 seconds after the water stops and the flame is off).
Safe and reliable design of the combustion system, Air is taken from outside by the
fan for the purpose of providing combustion and discharged exhaust gas to outside
again which is occurred after combustion. By the system of continuous electronic
ignition, 100% success is achieved in ignition.
Multi -purpose safety system. Even if the power is supplied to the water heater again
in power failure, fan failure, the blocking of the waste gas pipe or strong reverse wind
blowing the gas will be automatically cut and the automatic ignition system will be
disabled. In this case the water heater can restarted again after negative conditions
that prevent operation of heater is disappeared.
LCD display provides information about usage. In case of operation, you can see the
water flowing, operation of fan, flame formation, water temperature, temperature set,
2. THE FEATURES AND THE CHARATERISTICS OF WATER HEATER

4
instant water flow, instant gas consumption and warnings. In case of fault condition,
it gives information about fault reason with fault code.
3. THE CONFIGURATION OF WATER HEATER

5
Device Model
UKDAX-11ST
Device Type
C12
Gas Category
II2H3 B/P
Gaz Type
LPG(G30/G31)
Natural Gas(G20)
Gas Inlet Pressure
30mBar
20mBar
Nominal Load (Q)
22,80 kW
Nominal Power (P)
19,61 kW
Gas Consumption
1,78 kg/h
2,38 m3/h
Water Pressure
Min.
0.3 Bar
Max.
10 Bar
Minimum Water Flow
2,7 l/dak
Electrical Power
34 W
Electrical Connection
220 V 50 Hz AC
Protection Class
IP 44
Net Weight
9,4 kg
Dimensions
522 x335 x 145
Connections
Cold Water
1/2''
Hot Water
1/2''
Gas
1/2” (Opsiyonel 3/4”)
Waste Gaz
Ø60 mm
Air Channel
Ø100 mm
Capacity Chart
GInlet /Outlet Water Temperature
Difference (Δt)(°C)
10
15
20
25
30
35
Hot Water Flow(l/dak)*
28
19
14
11
9
8
* Values are rounded .
4. TECHNICAL INFORMATIONS

6
The waste gas pipe should not be installed in the general chimney or ventilation
space of the building. The waste gas pipeshould definitely go outside the building.
Pipe exit should not be made to passages and corridors, narrow eaves, ventilation
and light spaces of buildings, balconies (open or closed), elevator shafts and
protruding building parts that prevent waste gas outlet, openings that provide
fresh air to other units, and places that may be exposed to direct wind resistance.
The open end of the air intake pipe should be at least 100 mm from the wall where
it is installed.
In order to prevent the backflow of the condensed water or the rain water to the
heater, the part of the waste gas pipe remaining outside the environment should
be placed as to make a horizontal angle of 3 degrees.
Squall to waste gas pipe may cause device out of function.
The environment where the water heater is mounted should be free from blocking,
preventing parts and projections during the repair and maintenance; there should
be sufficient space around the device for repair and maintenance.
Flammable and explosive substances must definitely be kept away from the water
heater.
The waste gas pipe can be extended when necessary however the total pipe
length should not exceed 2 m. More than 2 brackets should not be used for
extension (including original elbow), the pipes should be appropriately fixed
The hole opened for the waste gas pipe in the wall after the mounting should be
filled with a substance resistant to burning and it should be isolated.
Electric connection of the heater must be grounded and 2 amper fuse must have.
The wall, which your water heater is mounted, should be strong as to carry the
weight of the water heater.
Do not mount your water heater on the power supplies
5. INSTALLATION OF WATER HEATER
5.1 Installation Conditions and Safety Warnings

7
Your water heater is a household device. In case of using industrial places, your
device will unguaranteed
Drill at least two holes of appropriate diameter from the bottom and top of the device
according to the measurements of the water heater mounting holes in the place
selected in accordance with the above mentioned conditions. Fix the appropriate
diameter fixing plug to the holes.
Drill 110 mm diameter waste gas pipe hole according to pipe dimensions given in the
figure below. (Waste gas pipes are provided with water heater.) All drilling must be
made before water heater install to wall. Precautions should be taken to prevent
wastes entering the water heater that occur during drilling.
After drilling pipe hole, Screw the water heater from up and down to holes that you
drill before. Screw more than point that is necessary.
5.2. Wall Installation Of Water Heater

8
Place the fresh air / discharge gas pipe as open side will be outside to hole which is
drilled before. Install the bracket part as installing one edge is to heater pipe another
edge is to discharge pipe.
Fill the hole on the wall opened for discharge pipe with fire resistance material and
insulate it. Make sure that insulation is done well and pipe will not fall down. While
making device installation be carefull to avoid any accident.
5.2.1. Waste Gas Pipe Installation

9
There must absolutely be valve at water supply which will be connected to cold
water inlet of heater.
Silt trap has to be installed aftervalve for some installations which have probability
entering dirt from water network to inside of heater.
With ½ flexible pipe, connect cold water inlet of device to cold water supply
network,hot water outlet to hot water supply network .Seal must be used for
connections to prevent water leakage.
Use absolutely TSE valve and flexible pipe for gas connection. Never use Teflon
for connection.
5.2.2. Installation Of Water And Gas Connections

10
Be sure that, gas type which will be used is same with the one stated in the
brand plate.

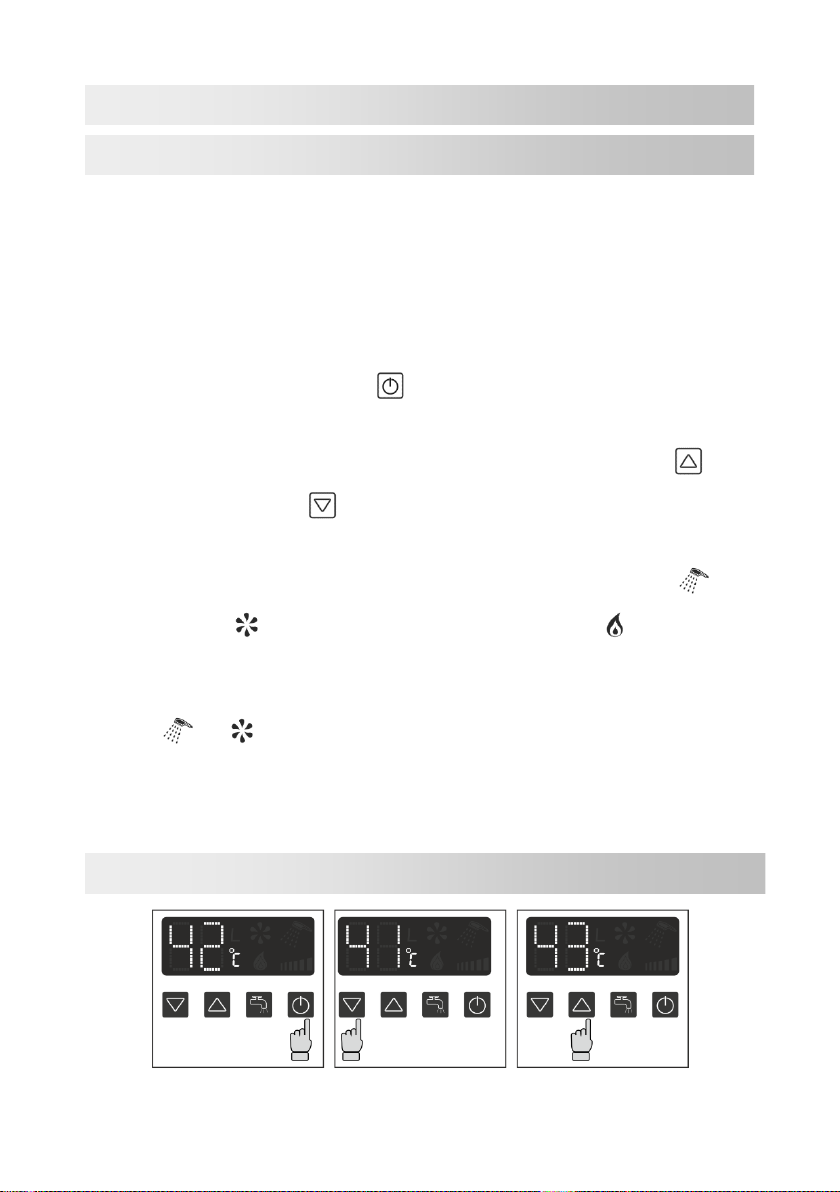

Follow following steps for operate of your heater.
Turn On the water valve of water heater
Open fuse of water heater ( warning beep will be)
. Open the gas valve
Activate the heater by pressing button. (Temperature set value is seen at
LCD Display)
Set the water temperature between 35C and 55C by increasing with button
and by decreasing with button.
Turn On water tap.
At the display of the heater it is respectively seen water flow sign , fan
operation sign and in a few min water heating start sign and your water
heater starts to heat water. Hot water flow time show a change according to
distance between water heater and tap.
Although and signs are seen if device gives “E1”warning without operation,
make sure that gas is coming into device and try operating procedures a few times
however if it is not operated , apply to authorized service.
6. WATER HEATER USAGE
6.1. Operation of Water Heater
6.1.1. Control of Water Temperature

11
When it is pressed to button, set value is seen.
By pressing button you can increase temperature.
By pressing button you can decrease the temperature.
When it is pressed to button once , instant water flow is seen in terms of l/min.
When it is pressed twice numerical values between 00 and 99 are appeared.
With or buttons intended flow rate between 10 and 99 is set. When total flow
rate passes from heater reaches to set value, warns with a beep.
For example: The meaning of number 03 is 30 liters, number 11 is 110 liters, number
99 is 990 liters. This function provides convenience to consumer while filling bathtub
and Jacuzzi.
6.1.2. The Amount of Water Used In Liter

12
When it is pressed third time, with numeric values between 05 and 34 you can
see instant gas amount that device consumed. Values changing between 05 and 34
shows gas amount as l/h.
When water is turned off device will automatically stop and will be at standby mode.
Device does not operate until water tap is opened again. If the device will not use for
a long time andno dangerous for freezing, turn off gas and water valve of device then
bring fuse off position shut off the device.
Make sure the used gas type is the same with the one stated in the brand plate.
The use of inappropriate type of gas may lead to accident.
The repair of the water heater as unauthorized is dangerous and it may cause
accidents.
Unauthorized repairing or have repaired device to unauthorized person is
dangerous and may cause to accidents.
Make sure that there is sufficient space around water heater.
Always take precautions against possible gas leakage and when the gas smell is
felt, shut the gas valves off urgently, ventilate the environment by opening the
door and the windows Never make a phone call inside the room, do not turn the
lights on and off, do not plug anything to the electric plugs or unplug anything
before the gas leaves out completely. Do not forget that any flame or a spark that
may occur in such a case, will lead to fire or explosion.
6.1.3. Determination of Quantity of Used Gas
6.2. Turn Off Water Heater
6.3. The Precautions to be Taken

13
Check pipes and connections pipes regularly. If you suspect that there is gas
leakage caused by pipe and connection pipes, consult to number 187 gas failure
department of necessary gas company.
If you suspect that there is gas leakage except pipe and pipe connections consult
to your service agency.
Make urgently change old or cracked pipes by authorized person after controlling
gas pipes regularly.
When unusual burning sound is heard in water, stop using the water heater and
consult to our service agency.
Please check water flow temperature with your hand before applying your body
in case of burning.
Check the newly mounted water heater carefully and make sure that it operates
properly before using.
Do not drink the water passing inside the water heater
Take precautions for not blocking of heat exchanger because of specification of
water such as (hard water). Blocking of water heater exchanger is out of warranty.
If your pressure of installation is high, because of water quantity passing from
water heater will be more, noise can occur at device and your installation can be
damage. In such cases, absolutely you need to install pressure reduce valve to
device inlet.
If necessary precautions are not taken, situations which ambient temperature
deduct under the 0 degree, water inside heater can give damage to your heater
by freezing. It is possible to prevent this situation by doing following information.
With freezing prevention of your water even device inside temperature reduce
under “0” degree, it can be prevented freezing of water which is inside the
device. When ambient temperature decreases specific value, your water
heater will heat water by automatically operating in short period and will
prevent freezing. In the meantime, “AF” warning will be seen.
6.4. For The Safe Use

14
. For operating of this system, gas and electric connection must not be cut off,
LCD display must be ON. In other words, make sure that device is at “ON”
position.
Although the device has a freezing prevention system, the freezing prevention
system will not operate in case of electric or gas cut off very short time in very
cold and windy weather. The water inside the device should be discharged as
a precaution.
Never touch the waste gas pipe during using and after a short time of using
(against skin burns)
In case of failure of your water heater, do not panic and stop using the heater.
Disconnect the gas and the electricity. Consult the service department or an
authorized technician. Dirty water passing inside the water heater may negatively
affect your device. To prevent this, a water filter must be absolutely installed to
water inlet.
Never leave electric supply and gas of water heater “ON” position when you leave
the home.
Never keep inflammable, explosive materials and objects near water heater.

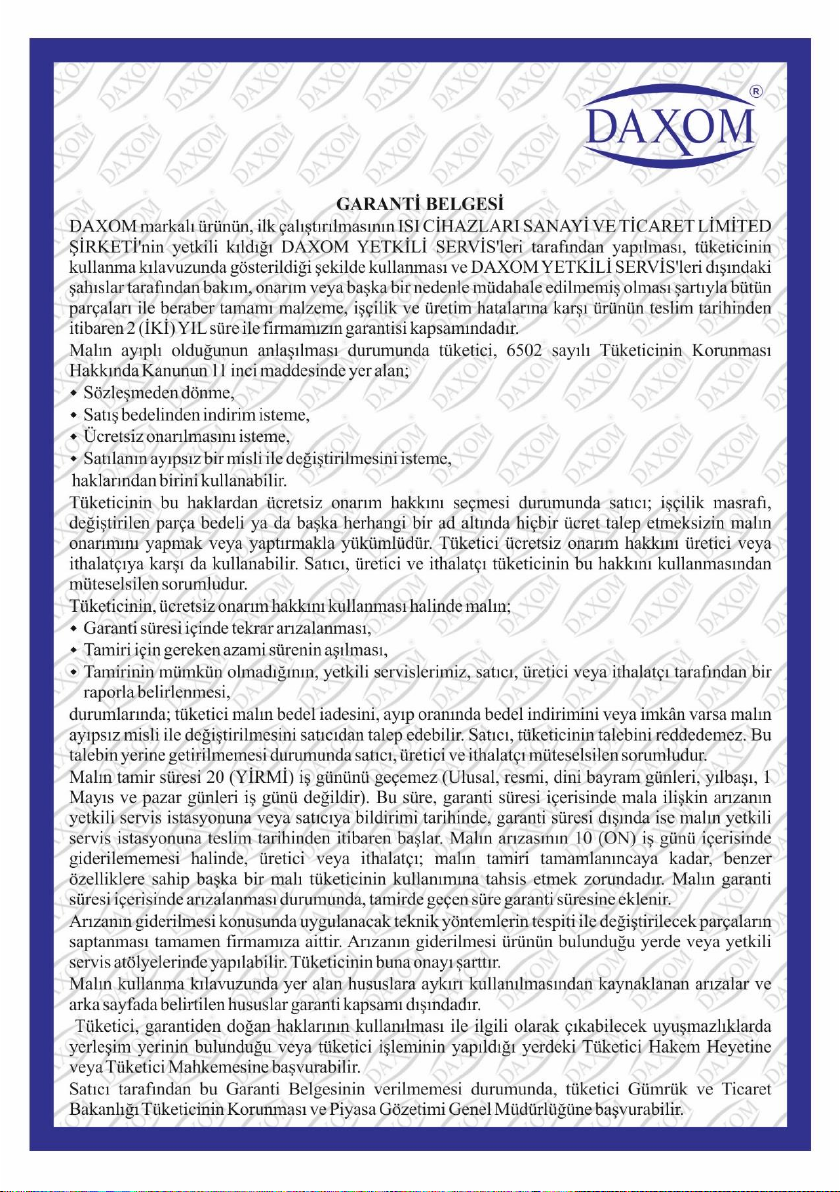

We have been providing service free of charge during the warranty period of the
device for relevant parts and manufacturing defect. When you have a problem during
using please contact our after sales service department. The unauthorizedrepair and
the maintenance of the device will void its warranty cover. Our company will not be
liable for the failures and the accidents that might occur later. After start-up of the
device, if changes are made without knowledge of our authorized services, the device
will be out of warranty.
7. REPAIR AND SERVICE

15
Warning
Code
Cause
Solution
E0
Water inlet NTC failure
Electrical Connection
Problem
Call Authorised Service
E1
No Gas
Gas Valve problem or cable
connection loose
Flame Out
Pipe Connection Failure
Ionisation Failure
Check if gas is coming to device or not.
Change gas type or open gas valve
Call Authorized Service
E4
Fan Operation Failure
Fan Connection Failure
Main Control Board Failure
Call Authorized Service
E5
Water Outlet Temperature is
power 85 C
Call Authorized Service
E6
Water Outlet Sensor Failure
Call Authorized Service
AF
Freezing Prevention is
Active
It is device protection not failure. Stop
after device operates for a while. Do not
turn off device. Check point 6.4
.
8. MULFUNCTION

16
PROBLEM
CAUSE
No Light on control pannel i
No ignition at the device after valve is opened
Ignition with explosion
Smell
Abnormal ignition sound
Cold Water at Low Temperature
Flame does not go out although water valve is off.
No constant hot water
SOLUTION WAYS
No Energy
●
Check the electricity fuse
Gas valve is not ON
●
Turn on gas valve or perform gas load
Gas valve semi
●
●
Gas Turn on the gas valve completely
Air in the gas pipe
●
Turn on / Turn off until combustion
occurs
Water pressure is not
constant
●
Contact with installation company
Abnormal pressure
●
●
●
Call authorized service
Water valve is not turn on
enough
●
Turn On water valve completely
Insufficient fresh air
●
●
Control device pipe
Windy weather
●
●
Do not use it until the wind passes
Freezing water
●
Use again after melting
In sufficient water
pressure
●
Control water pressure
Power supply or device is
not turn on
●
Turn On power supply
heater exchanger
blockage
●
Call authorized service
Heat exchanger block
●
●
Call authorized service
Gas Valve Failure
●
Call authorized service
LCD Failure
●
Call authorized service
Water Control valve
failure

●
●
●
Call authorized service
Ignition Pin not proper
position

●
Call authorized service
Leakage in gas pipe or
original pipe
●
Turn off main valve call the authorized
service
Too many elbow installed
●
●
Choose appropriate mounting area

17

18

19

20
