Daxten VOYAGER MICRO User manual

Voyager Micro
Installation guide

Specifications
Package Contents:
1 x Voyager Micro Transmitter Unit
1 x Voyager Micro Remote Unit
1 x Power Adaptor
1 x Mini Screwdriver
Specifications Receiver Unit Transmitter Unit
PS/2 Transmitter Unit USB
Cables &
Connectors System RJ45 Monitor HD15F
Keyboard PS/2 F
Mouse PS/2 F
System RJ45
Monitor HD15M
Keyboard PS/2 M
Mouse PS/2 M
System RJ45
Monitor HD15M
Keyboard
& Mouse USB Plug
Power 5V DC 110/240
External power adaptor From connected computer From connected computer
Dimensions 89 x 46 x 25.3mm
3.5 x 1.8 x 0.9” 89 x 46 x 25.3mm 3.5 x 1.8 x 0.9” 89 x 46 x 25.3mm 3.5 x 1.8 x 0.9”
Shipping weight 552g / 1.21lb 552g / 1.21lb 552g / 1.21lb
System
System cable CAT5/6/7 cable 2x4x24 AWG Solid Wire (Not supplied)
Maximum distance 70m/230ft
Mouse support 2 or 3 or 5 button PS/2, Wheel mouse, Intellimouse Explorer
Operating systems All major operating systems
Screen resolution Up to 1600X1200 @ 75Hz (depending on cable length)
Operating temp. 0ºC to 40ºC/32ºF to 104ºF
Storage temp. -40°C to 70°C/-40ºF to 158ºF
Humidity 80% non condensing relative humidity
© Copyright 2005. All rights reserved.
Daxten, the Daxten logo, Voyager Micro and The Brains Behind KVM Switching and Sharing are trademarks of Daxten
Industries. All other trademarks acknowledged.
Revision 1.1

Voyager Micro
Introduction
Thank you for purchasing the Voyager Micro. This product will allow you to place your Monitor and
PS/2 Keyboard and PS/2 Mouse up to 70 meters away from your computer or KVM switch.
The Voyager Micro is available in two models PS/2 and USB. All models of the Voyager Micro require
that that the keyboard and mouse that you will use be PS/2 type.
The USB model supports Windows 98 and later, SUN, SGI, MAC and other operating systems that
support a USB interface.
Features
¾Allows you to control a PC from up to 70 meters away, using a single CAT 5, 6 or 7 cable.
¾Up to 1600 x 1200 @ 75Hz (depending on distance).
¾Advanced CAT5 technology.
¾Plug-and-play installation.
¾No additional software is required for operation.
¾Transmitter available in PS/2 and USB
Operation
The Voyager Micro is simple to install, no software is required. Just connect the units up as described
in quick setup system guide and you're ready to work. Switch the computer off before wiring up the
units.
Installation
Before connecting your computer to the Voyager Micro Transmitter unit, please ensure that your
computer is powered off.
Connect your console devices to the Voyager Micro Receiver unit.
Cable Requirements
The Voyager Micro Transmitter unit will connect to your PCs system unit. Your keyboard, monitor and
mouse will connect to the cable sockets on the end of the Voyager Micro Receiver unit.
The UTP / STP interconnect cable to connect the Voyager Micro’s Transmitter and Receiver unit is not
supplied with the Voyager Micro. If you do not have suitable CAT 5, 6 or 7 UTP or STP cable
available, please consult your dealer.
The Transmitter and Receiver units are connected by industry standard structured cabling (Category
5, 6 or 7 UTP/STP, 4-pair) terminated with RJ45 connectors.
The cable used should be solid trunk cable. Stranded patch cable will give poor results over longer
distances. The connector wiring must meet the EIA/TIA 568 standard.
CAT5 Wiring Scheme
The Transmitter Receiver interconnection cable is terminated in RJ45 connectors and should be wired
according to the EIA/TIA 568 (Scheme B preferred) industry standard. The Voyager may function with
other wiring schemes, but the video quality may be impaired.
Note: The Voyager Micro Receiver requires power. Use only the power supply unit
supplied with the Voyager Micro units.
Note: Failure to wire the twisted pairs correctly will impair the video quality dramatically
and / or prevent correct operation.

Orientation: Looking into the RJ45 socket pin 1 is on the left and pin 8 on the right.
Pin Wire Colour Wire Pair
1 White/Orange T2 2
2 Orange/White R2 2
3 White/Green T3 3
4 Blue/White R1 1
5 White/Blue T1 1
6 Green/White R3 3
7 White/Brown T4 4
8 Brown/White R4 4
Connecting up
1. Switch off your computer.
2. Connect the Voyager Micro Transmitter unit to your computer’s Keyboard Monitor and
Mouse ports (If using the USB transmitter then plug the USB plug into your computers USB
port).
3. Plug in your Keyboard, Monitor and Mouse into the corresponding Keyboard, Monitor and
Mouse ports on the Voyager Micro’s Receiver unit.
4. Connect your UTP cable to the Voyager Micro’s Transmitter and Receiver units.
5. Connect the power supply unit to the Voyager Receiver unit.
6. Power on your computer.
7. Check that the keyboard and mouse operate correctly.
8. Adjust the picture tuner on the Voyager Micro Receiver unit if required.
Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate
electrical noise
LED indicators
The Voyager Micro Transmitter and Receiver units both have 2 LEDs above the RJ45 port.
The green LED indicates power is on. The flashing yellow LED indicates the system is connected.
Upgrading the firmware
The update software and the latest firmware are available from our website www.daxten.com, in the
product support section. There you will also find instructions on how to perform the upgrade.
Configuration options
Configure the Voyager Micro to:
¾Work with Unix servers
¾Input the monitor’s DDC information
¾Change the hotkey from Shift to Ctrl
Enter the Voyager Micro configuration mode by pressing Shift Tab – as set out below - all 3 LEDs
illuminate. Pressing Esc exits the configuration mode and the LEDs return to normal.
Note: Although we would recommend connecting the Voyager Micro to a computer that is
turned off, you can connect it to a computer while it is turned on.
To do so you must connect it in the following order:
1. Mouse connector.
2. Keyboard connector.
3. Video connector.
Note: Press the keys one after the other not all together.

Working with Unix servers
Configure the system to work with Unix servers
UNIX Version Hotkey Key 1 Key 2 Key 3 Key 5
HP UX, SGI and Open VMS Shift Tab U 1 Esc
Alpha Unix Shift Tab U 2 Esc
AIX Shift Tab U 3 Esc
DDC (Display Data Channel) Information
DDC is a VESA standard for communication between a monitor and a video adapter
To enter the monitor’s DDC information into the Transmitter’s memory, press:
Shift Tab D Esc
Ensure that you update the information when you change the monitor. This is done by simply
repeating the hotkey sequence shown above.
Changing the Shift hotkey to Ctrl
You can change the hotkey to Ctrl Once you do so, replace all the instances of Shift appearing
above to Ctrl .
To change the hotkey to Ctrl press:
Shift Tab C Esc
To change the hotkey back to Shift press:
Ctrl Tab S Esc

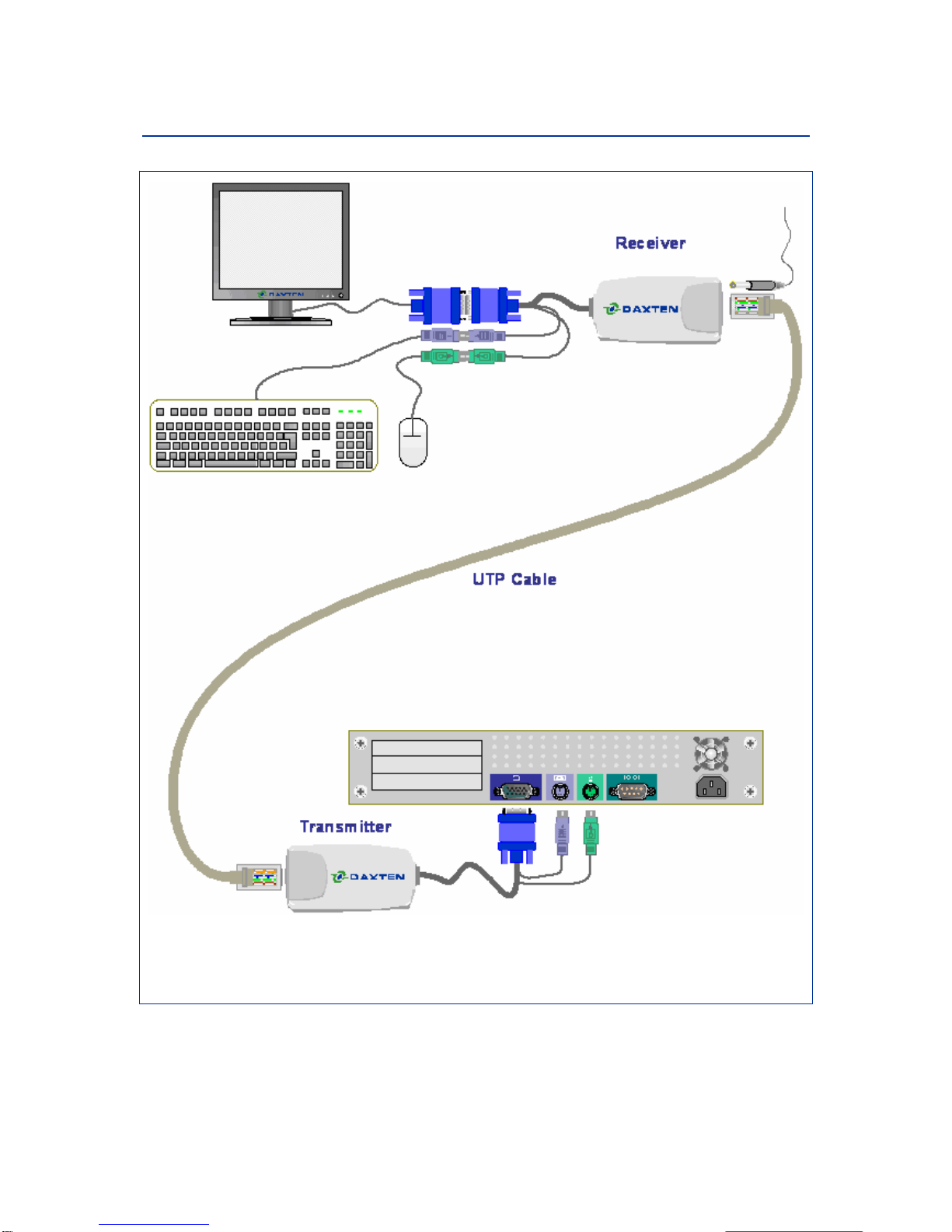

Quick Setup Guide

Service Information
Technical Support
If you cannot determine the nature of a problem, please call Daxten and ask for Technical Support. If
possible, call from a phone located near the unit, as we may be able to solve your problem directly
over the phone. If we cannot solve your problem, and determine that the fault is in the unit, we will
issue a Return Material Authorisation (RMA) number that must appear on the outside of all returned
products. The unit should be double-packed in the original container, insured, and shipped to the
address given to you by our Technical Support representative. The Technical Support offices are
found on the back of this manual.
Limited Warranty
Daxten warrants to the end user that this product is and will be free from defects in materials and
workmanship for a period of 24 months from the date of purchase. If during the warranty period the
product should fail, the purchaser must promptly call Daxten for a RETURN MATERIALS
AUTHORIZATION (RMA) number. Make sure that the RMA number appears on the packing slip, proof
of purchase, AND ON THE OUTSIDE OF EACH SHIPPING CARTON. Unauthorized returns or collect
shipments will be refused.
Ship prepaid to the Daxten office (see back page) where you purchased your product. The above
limited warranty is voided by occurrence of any of the following events, upon which the product is
provided as is, with all faults, and with all disclaimers of warranty identified below:
1. If non-Daxten approved power supply or cabling is attached to the product.
2. If defect or malfunction was caused by abuse, mishandling, unauthorized repair, or use other
than intended.
3. If unauthorized modifications were made to product.
4. If unreported damages occurred in any shipment of the product.
5. If damages were due to or caused by equipment or software not provided by Daxten.
6. If the product is used with non-grounded or incorrectly polarized AC power.
7. If the product is used in contradiction to any instruction provided by any User Guide or
Instruction Sheet provided to you or with the product.
EXCEPT AS SPECIFICALLY PROVIDED ABOVE AND TO THE MAXIMUM EXTENT ALLOWED BY
LAW, DAXTEN DISCLAIMS ALL WARRANTIES AND CONDITIONS WHETHER EXPRESS,
IMPLIED, OR STATUTORY AS TO ANY MATTER WHATSOEVER INCLUDING, WITHOUT
LIMITATION, TITLE, NON-INFRINGEMENT, CONDITION, MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR OR INTENDED PURPOSE.
EXCEPT AS EXPRESSLY PROVIDED ABOVE AND TO THE MAXIMUM EXTENT ALLOWED BY
LAW, DAXTEN SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES (INCLUDING WITHOUT LIMITATION, LOSS OF PROFIT, LOSS OF BUSINESS, LOSS
OF INFORMATION, FINANCIAL LOSS, PERSONAL INJURY, LOSS OF PRIVACY OR
NEGLIGENCE) WHICH MAY BE CAUSED BY OR RELATED TO, DIRECTLY OR INDIRECTLY, THE
USE OF A PRODUCT OR SERVICE, THE INABILITY TO USE A PRODUCT OR SERVICE,
INADEQUACY OF A PRODUCT OR SERVICE FOR ANY PURPOSE OR USE THEREOF OR BY
ANY DEFECT OR DEFICIENCY THEREIN EVEN IF DAXTEN OR AN AUTHORIZED DAXTEN
DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSSES.
