DCS BGB131 User manual

THE PROFESSIONAL SIDE BURNER
Installation, Use and Care Guide
MODELS:
BGB131
BGB132
BGB131-BI
BGB132-BI

1
We are glad that you selected the professional side burner by DCS. Because this appliance contains features not
found on any other burner, we recommend that you read this entire booklet before your first use. Keep it in a
handy place as it has answers to questions that may occur during future use.
Feel free to contact us if we can help you. When you write please include the model and serial number of the
Burner. We thank you for buying the professional side burner and wish you many years of enjoyment.
To help serve you better, please fill out and submit your Product Registration by visiting our website at
www.dcsappliances.com and selecting “Customer Care” on the home page and then select “Product Registration”.
For your convenience, product questions can be answered by a DCS Customer Care Representative by phone:
1-888-936-7872, or email: customer[email protected]om.
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions thoroughly before installing, using or servicing this
equipment.
WARNING!
Ifthe information in this manual is not followed exactly,afireor explosion may result causing property damage,
personal injuryor death. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
anyother appliance. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
WARNING!
Do not try lighting this appliance without reading the “Lighting Instructions” section of this manual. This outdoor
cooking gas appliance is not intended to be installed in or on recreational vehicles , boats or in a non-ventilated
room. For outdoor use only.
FOR YOUR SAFETY
If You Smell Gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, immediately call your gas supplier or your fire department
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.
AMESSAGE TO OUR CUSTOMERS
NOTE: Please write the Model, Code and Serial Numbers on this page for references (located on the inside of the
left side of the appliance)
MODEL NUMBER CODE SERIAL NUMBER
NOTE: Inspectthe product to verify that there is no shipping damage. If any damage is detected, call the shipper
and initiate a damage claim. DCS by Fisher & Paykel is not responsible for shipping damage.
DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.

2
TABLE OF CONTENTS
SAFETY PRACTICES AND PRECAUTIONS 3-4
INSTALLATION
Installation of Side Burner on 30” Grill 4-7
Installation of Side Burner Built-in Model 8-9
Gas Hook-up 10-11
Leak Testing 12
Burner Adjustment 12
Installer Checklist 13
USING THE SIDE BURNER
Lighting Instructions 14
CARE AND MAINTENANCE 15
TROUBLESHOOTING 16
PARTS LIST
Single Side Burner - BGB131 & BGB131-BI 17
Double Side Burner - BGB132 & BGB132-BI 18
WIRING DIAGRAM
Single and Double Side Burner 19
SERVICE 20
WARRANTY 21-22

3
SAFETY PRACTICES & PRECAUTIONS
Improper use or installation is dangerous. Carefully follow these instructions.
■ Always remove the cover before lighting the professional side burner. Never use the side burner if a leak is
present.
■ Do not use a flame to check for gas leaks.
■ Do not let children use the side burner.
■ Do not leave children unattended near the side burner.
■ Never let children crawl or hang on the side burner.
■ Exercise care when operating the side burner. The burner grate can get hot enough to cause burns during
operation.
■ Never leave the side burner on unattended.
■ Always wait 5 minutes before relighting the burner to allow any accumulated gas to dissipate. Should the burner
go out during use, turn off the gas valve and wait 5 minutes before attempting to relight. Always follow the
lighting instructions. Never lean over a lit burner.
■ Never cook without the drip pan in place, pushed all the way to the rear of the burner box.
■ Use only in well ventilated areas.
■ Donot use in garages,breezeways, sheds, or other such enclosed areas.
■ Keep the area surrounding the side burner clear and free from combustible materials, gasoline, other flammable
liquids or vapors, charcoal lighter fluid, and trash.
■ Do not obstruct the flow of combustion and ventilation air to the side burner. On cart mounted units, keep area
beneath the burner free of debris. If the burner is built-in, do not store gas cylinders beneath the unit without
adequate ventilation.
WARNING!
Do not storeitems of interest tochildren above or at the back of any appliance. Children could be seriously injured
if they should climb ontothe applianceto reach these items.
■ Keep the side burner covered when not in use.
■ Never connect an unregulated gas line to the side burner.
■ Ifthe side burner has not been used for an extended period of time (over winter, for example) the unit should
be checked for gas leaks and obstructions in the burner.
■ Thoroughly clean the side burner on a regular basis.
■ Only use the side burner with the type of gas specified on the rating plate. To change from LP gas to natural, or
vice versa, a factory conversion kit (see page 10 for conversion kit information) is required.
NOTE:
This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of
Massachusetts.

SAFETY PRACTICES & PRECAUTIONS
SPIDER AND INSECT WARNING!
Spiders and insects can nest in the burner(s) or orifices of this or any other gas appliance, and can block or restrict
the burner. This can cause a flash back to the control panel. This is a very dangerous condition which can cause a
fire to occur, thereby damaging the unit and making it unsafe to operate.
You must inspect the burner(s) at least once a year or immediately if any of the following conditions occur:
1. The smell of gas in conjunction with the burner flames appearing yellow.
2. The side burner(s) does not reach temperature.
3. The side burner(s) heats unevenly.
4. The burner(s) make popping noises.
■ Do not attempt to disconnect any gas connections while your burner is in use, or the gas supply is on.
■ When the side burner is stored indoors the gas supply must be disconnected and, if using an LP gas cylinder, the
cylinder must be stored outdoors in a well-ventilated area.
■ Keep anyelectrical supply cord away from the heated surfaces of the professional side burner.
■ On cart mounted units, never move without first allowing the side burner and/or grill to cool and ensuring that
the gas supply is turned off. Fold the side shelf down, and push; never pull the grill.
■ Never use the side burner in a windy area.
INSTALLATION
INSTALLATION OF SIDE BURNER ONTO 30” CART (BGB 131/132 MODELS ONLY)
4
REAR FRONT
IGNITION
BURNER
IGNITION
10 - 5/8 "
13 "
13 "
13 "
13 "
10 - 5/8 "
1
12-
3/4 "
15-3/4"
10 -1/8"
23-
3/4"
10 -1/8"
26-3/4"
Single Side Burner
Double Side Burner
S
2"
2"
FRONT
FRONT
REAR
REAR
SIDE
SIDE

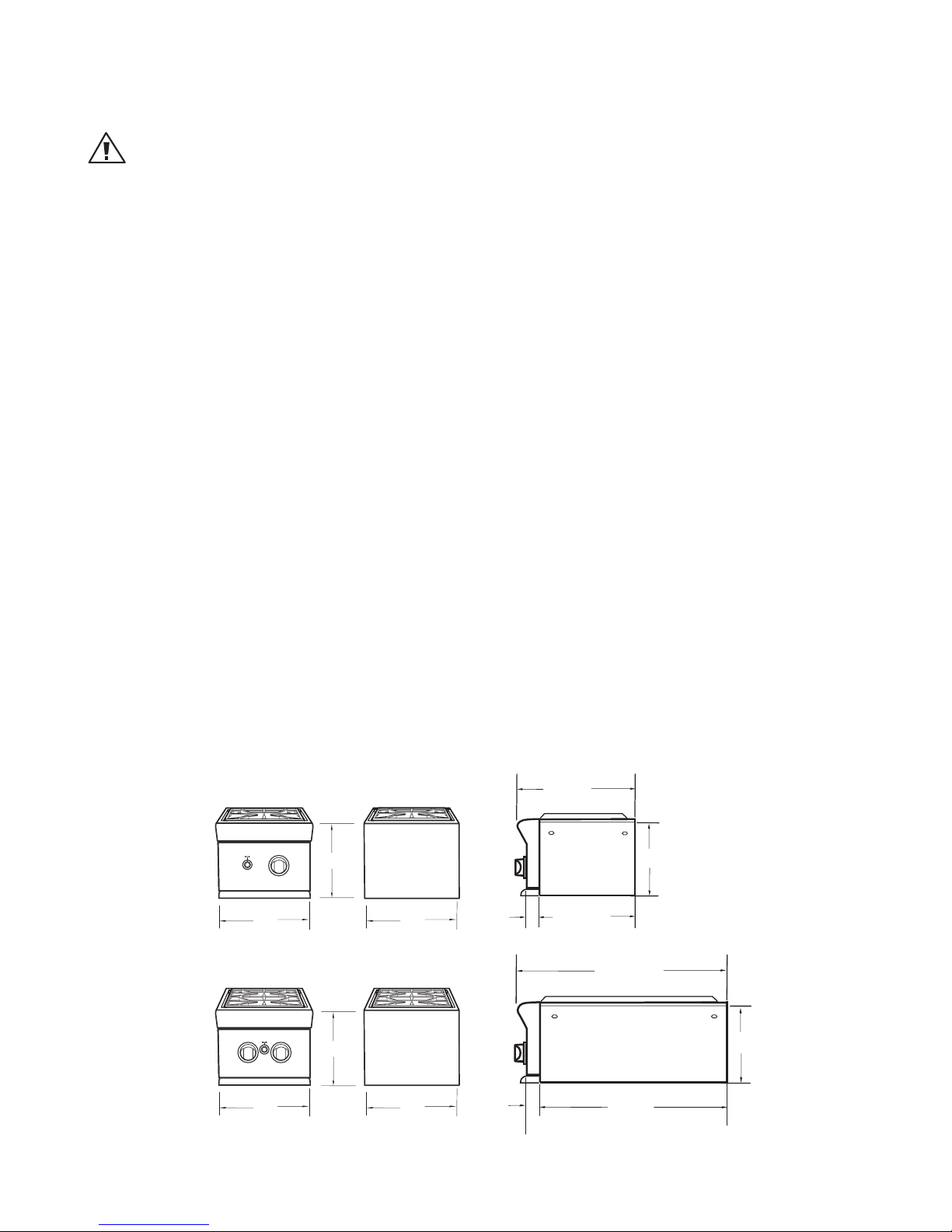

SIDE BURNER DIMENSIONS

5
Important !
Read all instructions before you begin. Do not jump ahead or skip any step. Side shelf must be removed prior
to installation.
CAUTION!
Some parts have sharp edges; care must be taken when handling the various components to avoid injury. Please,
read safety information provided in these instructions before beginning assembly. Wear gloves when handling.
GETTING STARTED
■ Remove packaging.
■ Remove side burner from inside and discard packing.
CONTENTS INCLUDED:
Your side burner is packaged in one box. The box
contains your side burner and a universal hardware kit
to be used for installation and may contain extra
hardware for your convenience.
Contents Qty. Part No.
2211375
5 211323
4 211278
4 211371
4 211394
1211442
2 211242
Washer Flat
1/4x.938
Screw
1/4-20X1/2”
Screw #10
Washer #10
Nut #10
Screw
10-24x1/2
Pan Head
Shoulder Bolt
1/4-20x5/16
Tools Required:
Eye Goggles
Work Gloves
10 mm Wrench or Socket
3/32” Allen Wrench
Power Screwdriver or
Variable Speed Drill with
Phillips -tip #2 Attachment
INSTALLATION
INSTALLATION OF SIDE BURNER ON 30” CART
Contents Description Qty. PartNo.
BGB131-BIL 1 70175
BGB131-BIN 1 70176
BGB131L 1 70177
BGB131N 1 70515
BGB132-BIL 1 70178
BGB132-BIN 1 70179
BGB132L 1 70180
BGB132N 1 70604
Cover (131) 1 218614
Cover (132) 1218613
Drip Pan
(131) 1 224826
Drip Pan
(132) 1 237358
Grate (131) 1 210645
Grate (132) 1 220496
Instruction 1 238044

6
INSTALLATION
INSTALLATION OF SIDE BURNER ON 30” CART
STEP 1
Remove the cover, grate, and drip pan from the side burner.
STEP 2

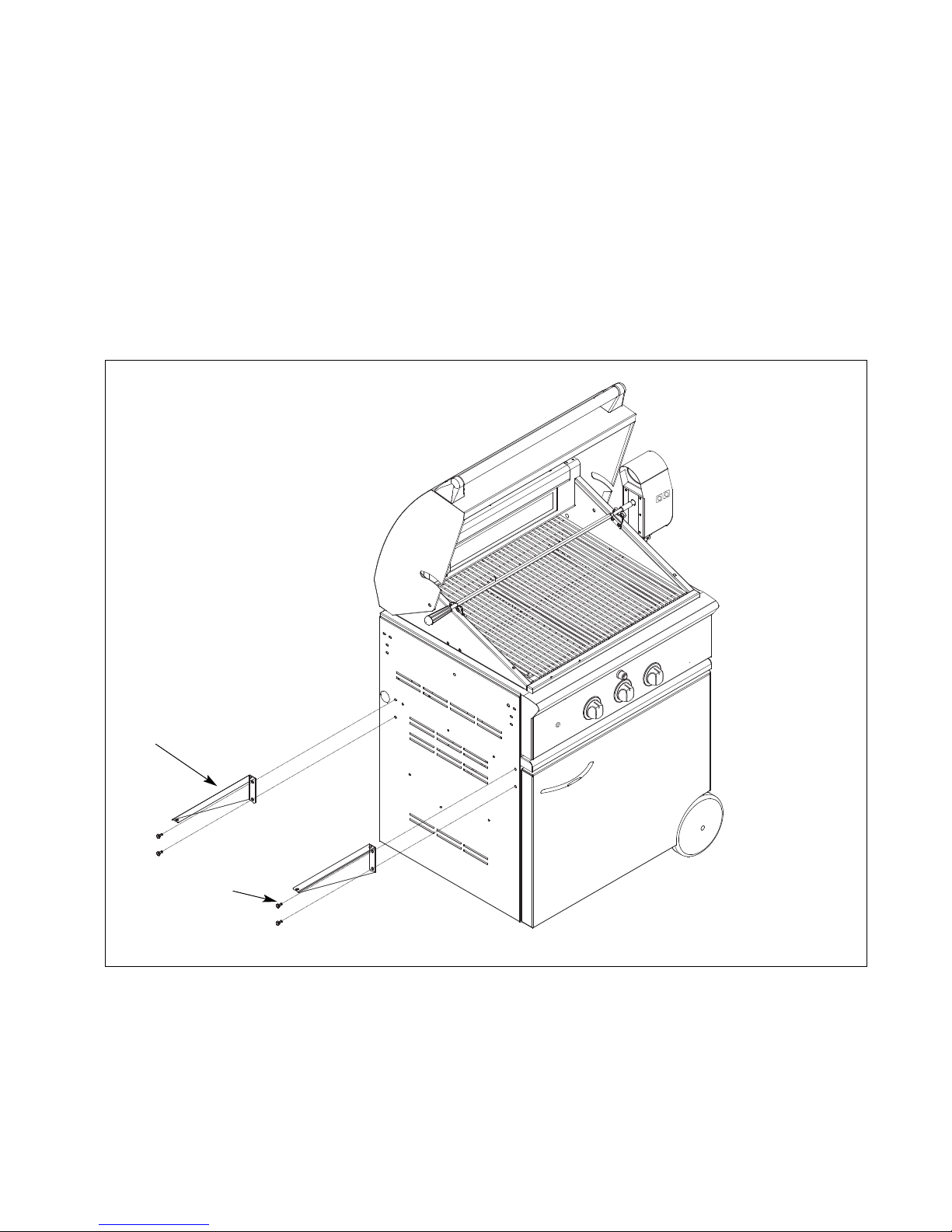

Bolt the support brackets to the grill cart side panel with (4) 1/4 x 20 bolts provided.
Note:
For the BGB131 side burner only, use (2) #10 sheet metal screws (211242) to bolt the back support bracket.
SUPPORTBRACKET
BOLT
FIG. 01

7
INSTALLATION
INSTALLATION OF SIDE BURNER ON 30” CART
STEP 3
1. Bolt the side burner to the grill cart side panel from the under side of the burner assembly with a shoulder bolt
in the front and 1/4 x 20 bolt in the back as shown. Do not forget to use 1/4 flat washers. Do not tighten.
Adjust the side burner until it is level to the grill; then tighten securely.
2. Bolt the support brackets to the bottom of the side burner with (4) #10-24 machine screws, nuts and washers
provided.
3. Replace the drip pan, grate and cover.
Note:
Once the side burner is assembled, refer to the “Gas Requirements” section for proper gas hook-up requirements.
SIDE BURNER
BOLT(1/4 – 20)
Shoulder Bolt
1/4-20 x 5/16
SCREW#10 (4 PCS)
WASHER #10 (4 PCS)
WASHER FLAT
1/4 X .938 (2PCS)
NUT#10 (4 PCS)
FIG. 02

8
INSTALLATION
INSTALLATION OF SIDE BURNER, BUILT-IN MODEL
All BGB131-BI and BGB132-BI models can be installed into a combustible enclosure with zero clearance from
the back, side and bottom below the counter top level as shown in Fig. 03.
Aminimum of 6” from the back and sides must be maintained from the professional side burner above the
cooking surface (see Fig. 03).
When determining a suitable location, take into account concerns such as exposure to wind, proximity to
traffic paths, and keeping any gas supply lines as short as possible. Locate the side burner only in a well-
ventilated area. Never locate the side burner in a garage, breezeway, shed, or other such enclosed areas.
It is recommended that ventilation holes are provided in the enclosure in the event of a gas leak. The counter
and supporting ledges or deck must be level and flat.
Important!
Gas fittings, regulator, and installer-supplied shut-off valves must be easily accessible.
FIG.03
COUNTER TOP
NON-COMBUSTIBLE
COMBUSTIBLE OR
6"
min.
6"
min.
6"
min.
BACK VIEW
COUNTER TOP COUNTER TOP
NON-COMBUSTIBLE
COMBUSTIBLE OR

9
INSTALLATION
INSTALLATION OF SIDE BURNER, BUILT-IN MODEL
12"
10-1/8"
2" X 2" opening
for gas supply line
AMODEL A
BGB131-BI 12"
BGB132-BI 22-3/4"
note: the deck is
not required
SIDE BURNER DIMENSIONS
REAR FRONT
IGNITION
BURNER
IGNITION
10 - 5/8 "
10 - 5/8 "
12"
12"
"
14-9/16
"
14-9/16
1
11-3/8"
2"
16 -1/16"
10-1/8"
22-
1/8"
2"
10-1/8"
26-5/8"
Single Side Burner
Double Side Burner
3-1/8"
3-1/8"
1/2"
1/2"
2
FRONT
FRONT
REAR
REAR
SIDE
SIDE
STANDARD CONSTRUCTION CUTOUT REQUIREMENTS

10
INSTALLATION
GAS HOOK-UP
GAS REQUIREMENTS:
Verify the type of gas supply to be used, either natural or LP. Make sure the marked gas on the appliance
rating plate(s) and hook-up kit agrees with that of the supply.
IMPORTANT!
Never connect an unregulated gas line to the appliance.
An installer supplied gas shut-off valve must be installed in an easily accessible location. All installer
supplied parts must conform to local codes, or in the absence of local codes, ANSI/NFPS-770-1984.
All pipe sealants must be an approved type and resistant to the actions of LP gases. Never use pipe sealant
on flare fittings.
All gas connections should be made by a qualified technician and in accordance with local codes and
ordinances. In the absence of local codes, the installation must comply with the National Fuel Gas Code ANSI
Z223.1.
Gas conversion kits are available from the factory. When ordering, have the model number, and the type of
gas (natural or LP) which you need.
Total gas consumption of the professional side burner with burner(s) on “HIGH” – Table 1 below.
TABLE 1
The appliance and its individual shut-off valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 PSIG (3.5kPa.).
The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off
valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2
PSIG (3.5 kPa.).
The installation of this appliance must conform with local codes or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1. Installation in Canada must be in accordance with the Standard
CAN1-b149 and/or .2 (installation code for gas burning appliances and equipment) and local codes.

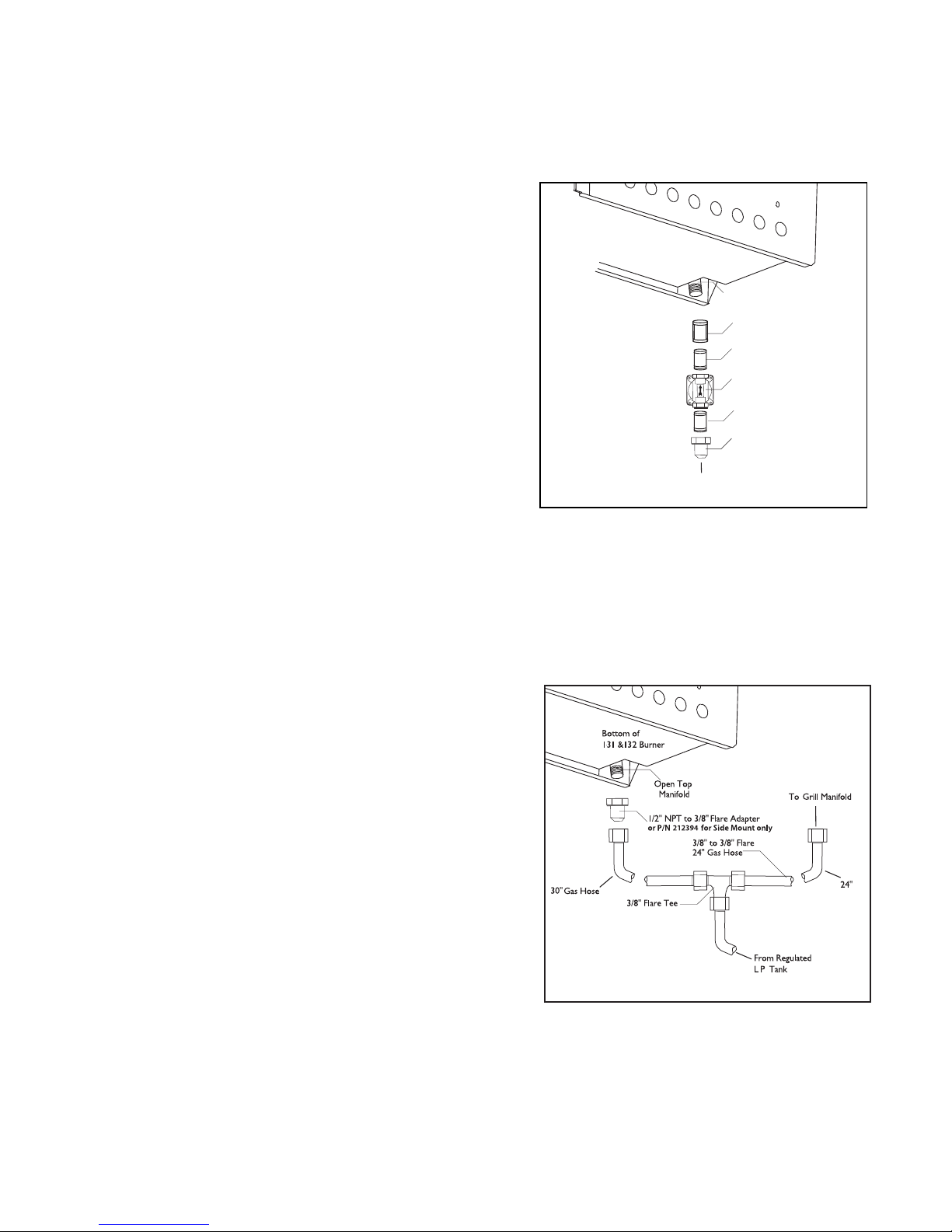

NATURAL GAS HOOK-UP:
CONNECTION: 1/2” NPT male with 3/8” flare adapter.
OPERATING PRESSURE: 4.0” W.C.
SUPPLY PRESSURE: 5” to 14” W.C. If in excess of 14” W.C., a step down regulator is required.
Check with your local gas utility companyor with local codes for instructions on installing gas supply lines.
Be sure to check on type and size of run, and how deep to bury the line. If the gas line is too small, the
professional side burner will not function properly.
MODEL Btu/hr
BGB131 17,000
BGB132 34,000
BGB131-BI 17,000
BGB132-BI 34,000

11
INSTALLATION
GAS HOOK-UP
LP TANK REQUIREMENTS
■ Adented or rusty LP gas cylinder may be hazardous and
should be checked by your LP supplier. Never use a cylinder
with a damaged valve.
■ The LP gas cylinder must be constructed and marked in
accordance with the specifications for LP gas cylinders of the
U.S. Department of Transportation (DOT) and designed for
use with a Type 1 system only.
■ Do not change the regulator/hose assembly from that
supplied with the unit or attempt to use a Type 1 equipped
regulator/hose assembly with a standard 510 POL tank/valve
assembly. The cylinder must be provided with a shut-off
valve terminating in an LP gas supply cylinder valve outlet
specified, as applicable, for connection Type 1.
■ If the appliance is stored indoors, the cylinder must be
disconnected and removed from the appliance.
■ Cylinders must be stored outdoors in a well ventilated area
out of the reach of children.
■ Gas cylinder supply must be turned off when not in use.
NATURAL GAS HOOK-UP (continued)
To hook-up the fittings supplied with the side burner, assemble as shown in Fig.04. Use joint compound on
male threads only.
Donot use joint compound on the flare end of the 1/2” NPT
to 3/8” flare adapter. Ensure that the regulator arrow points
in the direction of gas flow-towards the unit, away from the
supply.
Do not forget to place the installer-supplied gas valve in an
accessible location.
LP GAS HOOK-UP
CONNECTION: 1/2” NPT male with 3/8” flare adapter
(included). Use 90º elbow 1/2” NPT with 3/8” flare
(P/N 212394) for side mount models only when installing on
the cart. Use sealer on 1/2” NPT threads only.
OPERATING PRESSURE: 10.0” W.C. side burner uses the LP
regulator from adjoining grill.
SUPPLY PRESSURE: 11” to 14” W.C.
Apply joint compound tothe threaded end of the side burner gas
inlet and tighten the adapter tothe pipe.Assemble the 24” and 30” hoses to the 3/8” flare tee, as shown in
Fig.05. Tighten the regulator hose to the remaining fitting of the 3/8” flare tee.
Open Top
Manifold
Bottom of
131 &132 Burner
1/2" Coupling
1/2" NPT x 2.0”
Nipple
1/2" NPT to 3/8"
Flare Adapter
Regulator
To Gas Supply
1/2" NPT x 2.0”
Nipple
FIG. 04 Natural Gas
FIG. 05 LP Gas

12
INSTALLATION
LEAK TESTING
WARNING!
Do not smoke while leak testing. Extinguish all open flames.
Make a soap solution of one part liquid detergent, and one part
water. Never test for leaks with an open flame. For LP units, check
with a full cylinder. Make sure all control valves are in the “OFF”
position. Turn the gas supply “ON”. Check all connections from the
supply line (Fig. 04), or LP cylinder(Fig. 05) up to the manifold pipe
assembly (Fig. 06). Apply the soap solution around the connection
with a spray bottle, brush, or rag. Soap bubbles will appear where
leak is present. If a leak is present, turn off gas supply, tighten any
leaking fittings, turn gas on, and recheck.
WARNING: IMPORTANT!
Inspect the gas supply piping or hose prior to turning the gas “ON”. If
thereis evidence of cuts, wear or abrasion, it must be replaced prior to
use. Do not use the side burner if the odor of gas is present. Turn the
control knob to “OFF”, then turn off the gas supply. If using LP, is there gas in the tank? Always keep your face
and body as far away from the burner as possible when lighting.
BURNER ADJUSTMENT
BURNERS
Your new side burner is equipped with burners typical of those used in
restaurants (Fig. 07). These burners are designed for maximum
cleanability and controlability. The burner should never be operated if
the cap is not in place.
BURNER EFFICIENCYAND FLAME CHARACTERISTICS
Itis necessary to keep the burner ports and the igniters clean for
proper lighting and efficient performance of the burners. The burner
flame should burn completely around the burner with no excessive
noise or lifting. The flame should be blue in color and stable with no
yellow tips. During initial use, foreign particles in the gas line, or dust
in the air around the appliance may cause an orange flame. This will
disappear with use.
FLAME HEIGHT
The correct height of the flame mainly depends on the size of the
bottom of the cooking utensil, the material of the cooking utensil, the
amount and type of food and the amount of liquid in the utensil. The
following aresome basic rules for selecting flame height.
■ For safety reasons the flame must never extend beyond the
bottom of the cooking utensil. Never allow flames to curl up
the side of the pan (see Fig.08).
■ Utensils which conduct heat slowly (such as glass-ceramic)
should be used with medium tolowflames.If you are cooking with a
large amountof liquid,aslightly larger flame can be used.
FIG. 06
FIG. 07
FIG. 08
Cap
PROPER FLAME HEIGHT

13
INSTALLATION
INSTALLER CHECKLIST
■ Specified clearances maintained to combustibles.
■ Side burner is properly mounted.
■ All internal packaging removed.
■ Burner is seated properly and does not rock.
■ Each burner lights satisfactorily, individually or with adjacent burner lit.
■ Knob(s) turn freely. Bezel(s) centered.
■ Flame adjusted.
■ Pressure regulator connected and set for 4.0"W.C. Natural, 11.2"W.C. LP gas.
■ Manual shut-off valve installed and accessible.
■ Unit tested and free of leaks.
■ User informed of gas supply shut-off valve location.
■ Battery installed in module properly and generates ignition spark when activated.
PLEASE LEAVE THESE INSTRUCTIONS WITH THE USER.
USER, PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

14
USING THE SIDE BURNER
LIGHTING INSTRUCTIONS
First remove the burner cover and any cooking utensils from the burner grate. Push and hold the ignition
button, turn the control knob to the “HI” position until the burner is lit or 4 seconds pass. If the burner doesn’t
ignite, wait 5 minutes for any accumulated gas to dissipate then try again. If the burner will not light after
several attempts, check the troubleshooting instructions on page 16.
MATCH LIGHTING
Hold a lit fireplace match near the burner ports, turn the control knob counterclockwise to “HI”. Rotate the knob
immediately once the burner is lit to the desired setting.
Note:
If you are using propane gas, a slight pop or flash may occur at the burner ports a few seconds after the burner has been
turned “off”. This “extinction pop” is normal for propane gas.

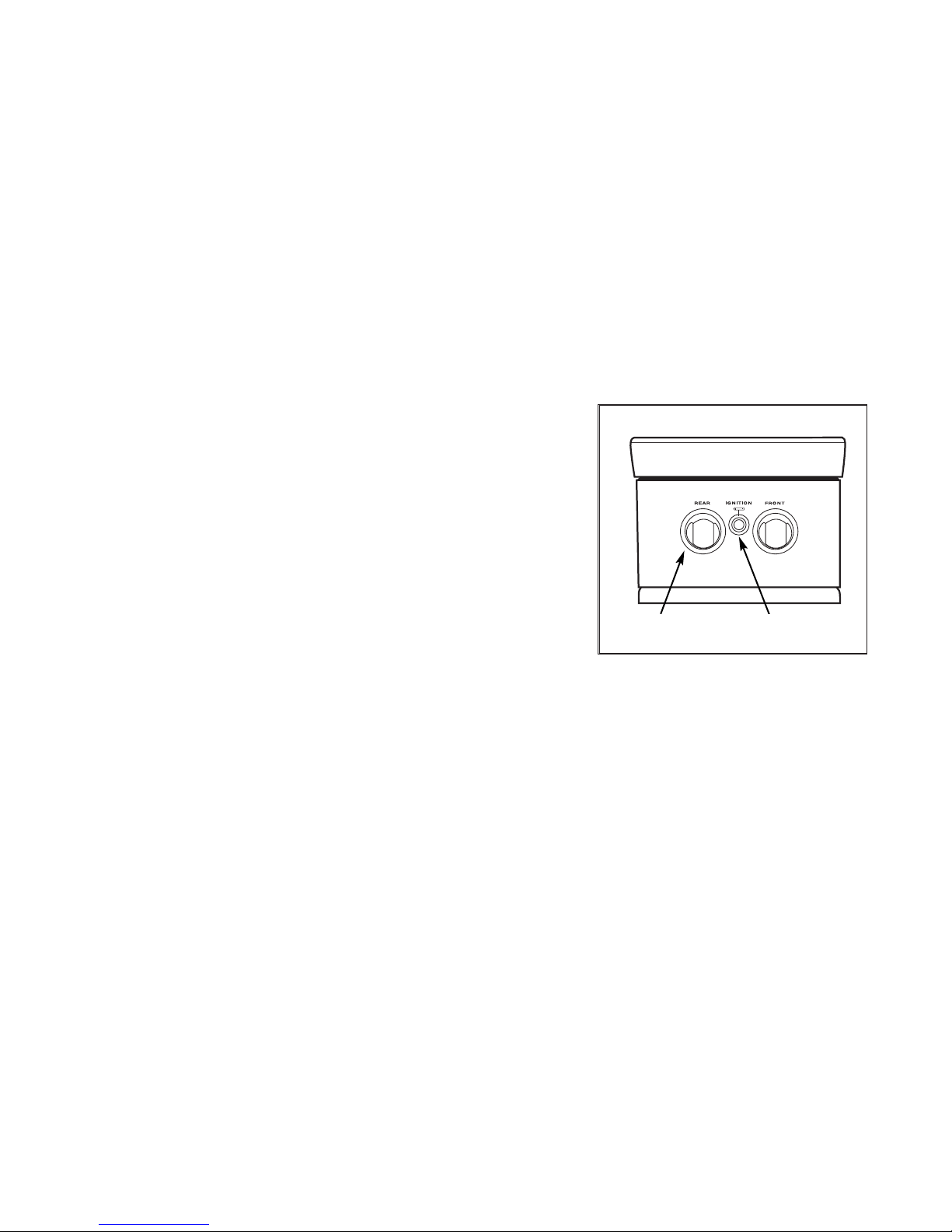

FIG. 09 BGB132 Shown
Ignition
Button
Control
Knob

15
CARE AND MAINTENANCE
The side burner will give you years of trouble free service if properly maintained. The body panels and front
valve panel and burner hanger are made from non-rusting high grade stainless steel. The burner is heavy duty
cast iron and brass. The venturi tube is brass.
STAINLESS STEEL
There are many different stainless steel cleaners available. Always use the mildest cleaning procedure first,
scrubbing in the direction of the grain. Do not use steel wool as it will scratch the surface. To touch up
noticeable scratches in the stainless steel, sand very lightly with Bear-Tex (p/n 25032).
SIDE BURNER GRATE
The side burner grate is porcelain enamel over cast iron for durability. To avoid burns, do not clean a hot grate.
They may be wiped while in place with hot, soapy water, rinsed and wiped dry thoroughly. Never immerse a hot
grate in water. Due to rapid temperature changes the porcelain may pop off the edges of the grates. If the
grates develop chips, do not be concerned as the base metal, cast iron, soon darkens to blend with the porcelain
enamel. Use care when wiping areas where the enamel has popped off, the edges may be sharp. If cleaning
necessitates grate removal, care should be taken in lifting them. They are very heavy. Be sure to place them on
aprotected surface.
DRIP TRAY
Astainless steel aeration pan and drip traywith a
stainless steel handle is located under the burner.
It collects any boil-overs or spills. Pull forward to
remove.Spills should be washed off as soon as
possible toprevent baked on soil.
BURNERS
For proper lighting and performance, keep the
burners clean. Itis necessary toclean the burners if
they do not lighteven though the igniter clicks, if
there has been a severe boil over, or when the flame
does not burnblue. Be certain all burner knobs are
in the off position before attempting to clean the
burners. The burners have been designed for ease of
cleaning.When the grate and burners are cool,
remove the grate. The burner cap and the brass port
ring can easily be lifted off. Wash these parts in hot
soapy water, rinse and dry thoroughly. The burner
caps are porcelain enamel, follow the directions on
the previous page that were given for the burner
grates. A bristle brush can be used to clean out the
toothed burner ports, if necessary. After cleaning, it
is important to make sure the location pins on the
bottom side of the port ring are properly aligned
with the corresponding holes in the base. Incorrect
alignment will produce a potentially dangerous flame
and poor burner performance (see Fig. 10).
ELECTRODES
Wipe with a water dampened cotton swab. Be careful not to damage
the electrode (see Fig. 11)

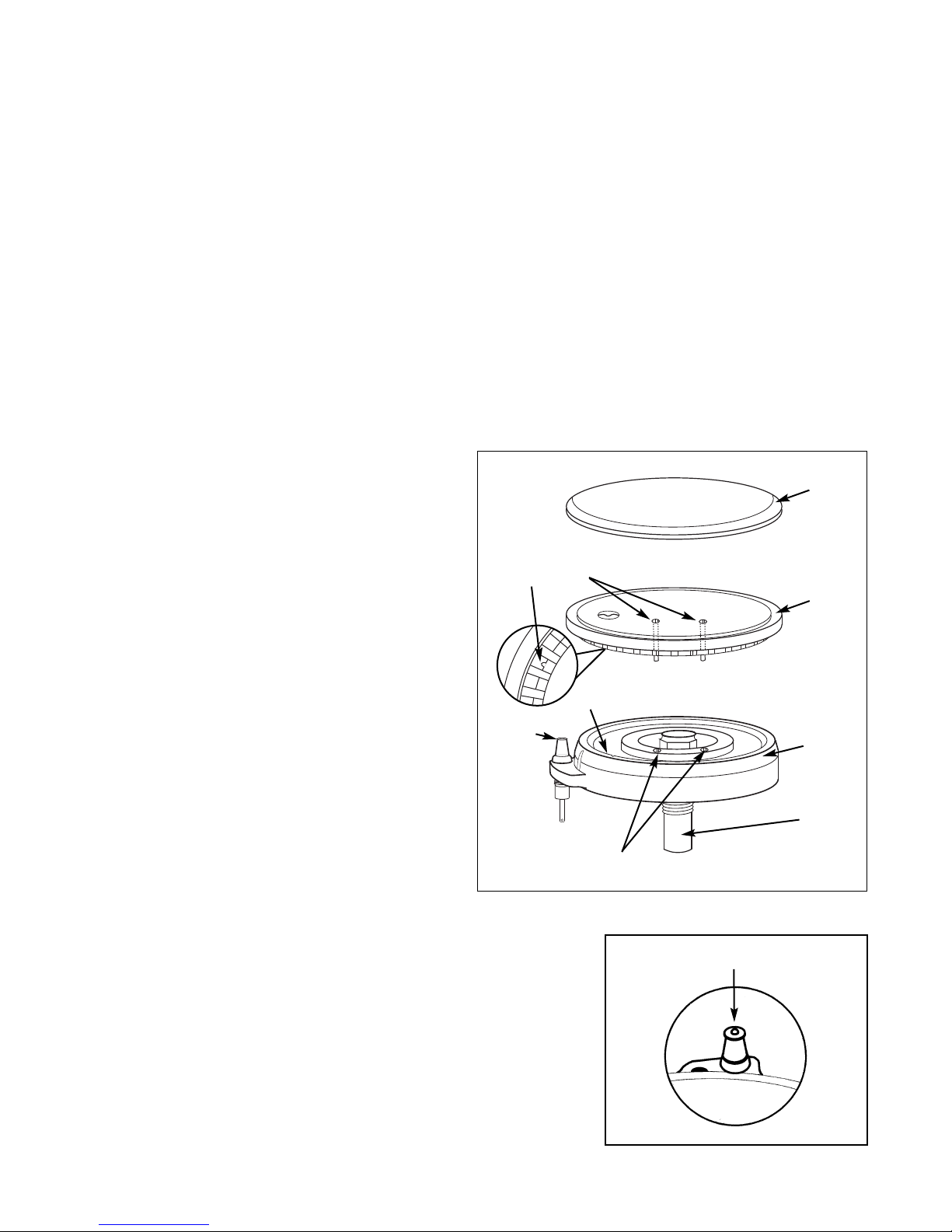

FIG. 10
Brass Ring Locating
Pins
Electrode
Main
Burner
Port Ring
Locating Notch
Burner
Base
Venturi
Cap
Locating Holes
FIG. 11
Electrode (keep clean)

16
TROUBLESHOOTING
Burner won’t light when the
ignition is pushed.
Burner flame is yellow or
orange, in conjunction with the
odor of gas.
Low heat with knob in “HI”
position.
Remove the burner grate. With the control knob in the
“OFF” position, listen to the electrode while engaging
the ignition. There should be a spark from the
electrode. When the spark jumps, it makes a ticking
sound.
If there is no spark........
Could be a dead battery. Try replacing the battery.
Or the air gap between an electrode tip and a contact
metal is too far (gap should be 1/8”) or dirty.
If there is a spark... is there gas supplied to the unit and
is the line purged of air? See Fig. 04 and Fig. 05.
Does the other burner of a dual burner model
operate?
Check the orifice or venturi for blockage.
Check the burner for obstructions or dirt. See page 15.
Check for proper gas supply or wrong gas type.
Is the side burner in a dusty area? Move to less dusty
area if possible.
Is the fuel hose bentor kinked? See Fig. 04 and
Fig. 05.
Is there adequate gas supply available? If it is only one
burner of the dual burner unit that appears low, does
the burner need cleaning? See Fig. 10 and
Fig. 11.
If using LP gas, check for empty tank or low fill level.
PROBLEM WHAT TO DO

17

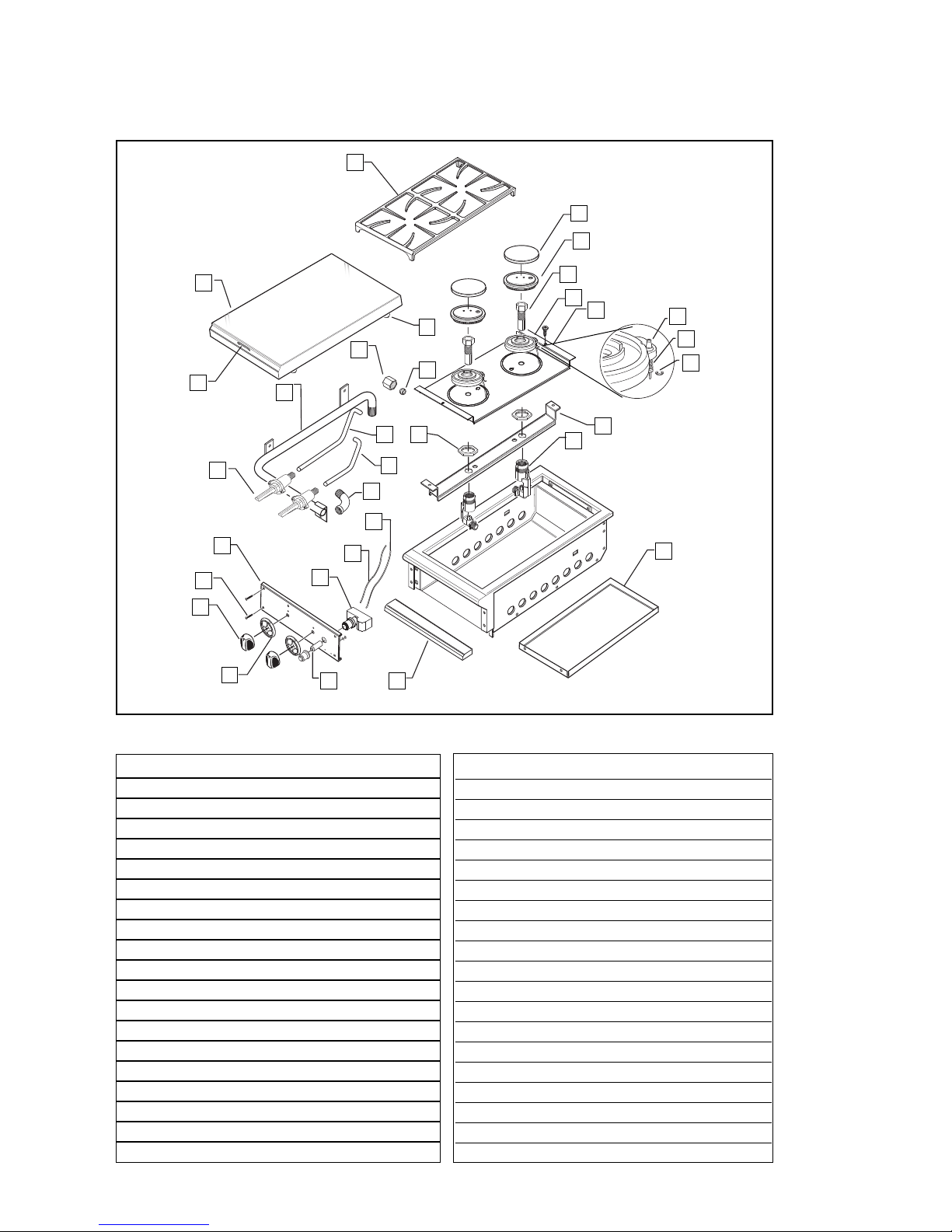

PARTS LIST
SINGLE SIDE BURNER - BGB131 & BGB131-BI
NOTE: Part list typical for BGB131 & BGB131-BI models. Illustration shows BGB131-BI model.
ITEM DESCRIPTION PART NO.
1 BURNER COVER 214430
2PULL HANDLE 212278
3 RUBBER BUMPER 212359
4TOP GRATE BK 210645
5 D BURNER CAP 210608
6 PORT RING ASSEMBLY 210644
7VENTURI 210643
8 BASE D BURNER 210639
9 PLATE SUPPORT BURNER 224833
PLATE SUPPORT BURNER (BGB131-BI) 224930
10 BURNER HANGER 224834
11 JET HOLDER LP 210543
JET HOLDER NAT210536
12 DRIP PAN ST. STL (BGA131-BI MODEL) 214165
DRIP PAN ST. STL (BGB131 MODEL) 224825
13 DRIP PAN HANDLE DBI (BGA131-BI MODEL) 214366
DRIP PAN HANDLE 131/132 (BGB131 MODEL) 214428
14 1.5VDC BATTERY AA 221154
ITEM DESCRIPTION PART NO.
15 BEZEL 210935
16 CONTROL KNOB 211188
17 IGNITION MODULE 211872
18 WIRE BLACK W/ TERMINALS 8” 211823
19 WIRE BLACK W/ TERMINALS 10” 211826
20 TUBING 5/16” (9”LENGTH) 212399
21 ELBOW 1/8NPT X 5/16 T.O.D. 212396
22 FERRULE 5/16 212313
23 NUT M22 JET HOLDER 210468
24 NUT 1/2-24UNF 212312
25 MANIFOLD (BGB131-BI MODEL) 212297
MANIFOLD (BGB131 MODEL) 221924
26 MANUAL GAS VALVE 220575
27 VALVE PANEL (BGA131-BI MODEL) 224854
VALVE PANEL (BGB131 MODEL) 224839
28 VALVE PANEL SCREWS (BGB131-B1) 211300
29 ELECTRODE 210562
30 SPRING ELECTRODE 210577
31 CLIP ELECTRODE 210578
2
1
4
5
6
7
25
26
11
8
17
14
16 15
13
12
9
10
27
28
20
18
19
24
22
23
21
3
29
30
31

18
PARTS LIST
DOUBLE SIDE BURNER - BGB132 & BGB132-BI
NOTE: Part list typical for BGB132 & BGB132-BI models. Illustration shows BGB132-BI model.
ITEM DESCRIPTION PART NO.
1 BURNER COVER 214425
2 PULL HANDLE 212278
3 RUBBER BUMPER 212359
4 TOP GRATE BK 220496
5 D BURNER CAP 210608
6 PORT RING ASSEMBLY 210644
7 VENTURI 210643
8BASE D BURNER 210639
9 PLATE SUPPORT BURNER 214424
PLATE SUPPORT BURNER (BGB132-BI) 224931
10 BURNER HANGER (BGB132 MODEL) 224817
11 JET HOLDER LP 210543
JET HOLDER NAT 210536
12 DRIP PAN ST. STL (BGA132-BI MODEL) 214164
DRIP PAN ST. STL (BGB132 MODEL) 214427
13 DRIP PAN HANDLE (BGA132-BI MODEL) 214366
DRIP PAN HANDLE 131/132 (BGB132 MODEL) 214428
14 1.5VDC BATTERY AA 221154
15 BEZEL 210935
ITEM DESCRIPTION PART NO.
16 CONTROL KNOB 211188
17 IGNITION MODULE 211872
18 WIRE BLACK W/ TERMINALS 10” 211826
19 WIRE BLACK W/ TERMINALS 18” 221058
20 TUBING 5/16” (21”LENGTH) 221956
21 ELBOW 1/8NPT X 5/16 T.O.D. 212396
22 TUBING 5/16” (9”LENGTH) 212399
23 NUT M22 JET HOLDER 210468
24 FERRULE 5/16 212313
25 NUT 1/2-24UNF 212312
26 MANIFOLD (BGB132-BI MODEL) 212296
MANIFOLD (BGB132 MODEL) 212387
27 MANUAL GAS VALVE 220575
28 VALVE PANEL (BGA132-BI MODEL) 214436
VALVE PANEL (BGB132 MODEL) 214426
29 VALVE PANEL SCREWS (BGB132-B1) 211300
30 ELECTRODE 210562
31 SPRING ELECTRODE 210577
32 CLIP ELECTRODE 210578
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
