THE PROFESSIONAL SIDE BURNER
Use and Care Guide
MODELS:
BGB131
BGB132
BGB131-BI
BGB132-BI

1
A MESSAGE TO OUR CUSTOMERS
We are glad that you selected the Professional Side Burner by DCS. Because this appliance contains features
not found on any other burner, we recommend that you read this entire booklet before your first use. Keep
it in a handy place as it has answers to questions that may occur during future use.
Feel free to contact us if we can help you. When you write please include the model serial number of the
Burner. We thank you for buying the Made in America Side Burner and wish you many years of enjoyment.
To help serve you better, please fill out and submit your Ownership Registration Card by visiting our website
at www.dcsappliances.com and selecting“Customer Service”on the home page and then select“Ownership
Registration” or submit the enclosed Ownership Registration Card to the address below.
For your convenience, product questions can be answered by a DCS Customer Service Representative by
phone: [phone], email: [email protected],
or by mail:
DCS
Attention: Customer Service
5800 Skylab Road
Huntington Beach, CA 92647
WARNING
Do not try lighting this appliance without reading the “Lighting Instructions”
section of this manual. Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or death. Read the instal-
lation, operating and maintenance instructions thoroughly before use,
installing or servicing this equipment. This outdoor cooking gas appliance is
not intended to be installed in or on recreational vehicles , boats or in a non-
ventilated room.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
FOR YOUR SAFETY
IF YOU SMELL GAS:
Shut off gas to the appliance
Extinguish any open flames.
Open lid.
If odor continues, immediately call your gas supplier.
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.

TABLE OF CONTENTS
2
SAFETY PRACTICES AND PRECAUTIONS ..................................................................................................3-4
SIDE BURNER 131/132 SIDE MOUNT MODEL INSTALLATION...................................................4-5
SIDE BURNER BUILT-IN MODEL INSTALLATION....................................................................................6-7
GAS REQUIREMENTS
Natural Gas Hook-up..............................................................................................................................................8
LP Gas Hook-up........................................................................................................................................................9
LP Tank Requirements .......................................................................................................................................... 9
LEAK TESTING AND LIGHTING INSTRUCTION
Lighting Instructions ..........................................................................................................................................10
Match Lighting.......................................................................................................................................................11
FINAL CHECKLIST ...........................................................................................................................................................12
GENERAL CLEANING....................................................................................................................................................12
BURNER REMOVAL ........................................................................................................................................................13
TROUBLESHOOTING ....................................................................................................................................................14
PARTS LIST.....................................................................................................................................................................15-16
WIRING DIAGRAM..........................................................................................................................................................17
WARRANTY .........................................................................................................................................................................18
SERVICE ..................................................................................................................................................................................19

3
SAFETY PRACTICES & PRECAUTIONS
Improper use or installation is dangerous. Carefully follow these instructions.
Always remove the cover before lighting the Professional Side Burner. Never use the Side
Burner if a leak is present.
Do not use a flame to check for gas leaks.
Do not let children use the Professional Side Burner.
Do not leave children unattended near the Side Burner.
Never let children crawl or hang on the Side Burner.
Exercise care when operating the Professional Side Burner. The burner grate can get hot
enough to cause burns during operation .
Never leave the Side Burner on unattended.
Always wait 5 minutes before relighting the burner to allow any accumulated gas to dissipate.
Should the burner go out during use, turn off the gas valve and wait 5 minutes before
attempting to relight. Always follow the lighting instructions. Never lean over a lit burner.
Never cook without the drip pan in place, pushed all the way to the rear of the burner box.
Use only in well ventilated areas.
Do not use in garages, breezeways, sheds, or other such enclosed areas.
Keep the area surrounding the Professional Side Burner clear and free from combustible
materials, gasoline, other flammable liquids or vapors, charcoal lighter fluid, and trash.
Do not obstruct the flow of combustion and ventilation air to the Professional Side Burner. On
cart mounted units, keep area beneath the burner free of debris. If the burner is built-in, do not
store gas cylinders beneath the unit without adequate ventilation.
WARNING:
Do not store items of interest to children above or at the back of any appliance.
Children could be seriously injured if they should climb onto the appliance to
reach these items.
Keep the Professional Side Burner covered when not in use. Never connect an unregulated gas
line to the Professional Side Burner. If the Professional Side Burner has not been used for an
extended period of time (over winter, for example) the unit should be checked for gas leaks and
obstructions in the burner. Thoroughly clean the Professional Side Burner on a regular basis.
Only use the Professional Side Burner with the type of gas specified on the rating plate. To
change from LP gas to natural, or vice versa, a factory conversion kit (see page 6 for conversion
kit information) is required.

INSTALLATION OF SIDE BURNER:
All BGB131 and BGB132 models can be installed in
combustible enclosure with zero clearance from the
back, sides and bottom.
A minimum of 6” from the back and sides must be
maintained from the Professional Side Burner above
the cooking surface and a minimum of 1” below the
cooking surface to combustible construction (see
Fig. 01).
When determining a suitable location, take into
account concerns such as exposure to wind, proximity
to traffic paths, and keeping any gas supply lines as
short as possible. Locate the Side Burner only in a well-
ventilated area. Never locate the Side Burner in a
garage, breezeway, shed, or other such enclosed areas.
SAFETY PRACTICES & PRECAUTIONS
4
SPIDER AND INSECT WARNING!
Spiders and insects can nest in the burner(s) or orifices of this or any other gas
appliance, and can block or restrict the burner. This can cause a flash back to
the control panel. This is a very dangerous condition which can cause a fire to
occur, thereby damaging the unit and making it unsafe to operate.
You must inspect the burner(s) at least once a year or immediately if any of the
following conditions occur:
1. The smell of gas in conjunction with the burner flames appearing yellow.
2. The Professional Side Burner does not reach temperature.
3. The Professional Side Burner heats unevenly.
4. The burner(s) make popping noises.
Do not attempt to disconnect any gas connections while your burner is in use, or the gas supply
is on.
When the Professional Side Burner is stored indoors the gas supply must be disconnected and,
if using an LP gas cylinder, the cylinder must be stored outdoors in a well-ventilated area.
Keep any electrical supply cord away from the heated surfaces of the Professional Side Burner.
On cart mounted units, never move without first allowing the Side Burner and/or grill to cool
and ensuring that the gas supply is turned off. Fold the side shelf down, and push; never pull
the grill.
Never use the Professional Side Burner in a windy area.

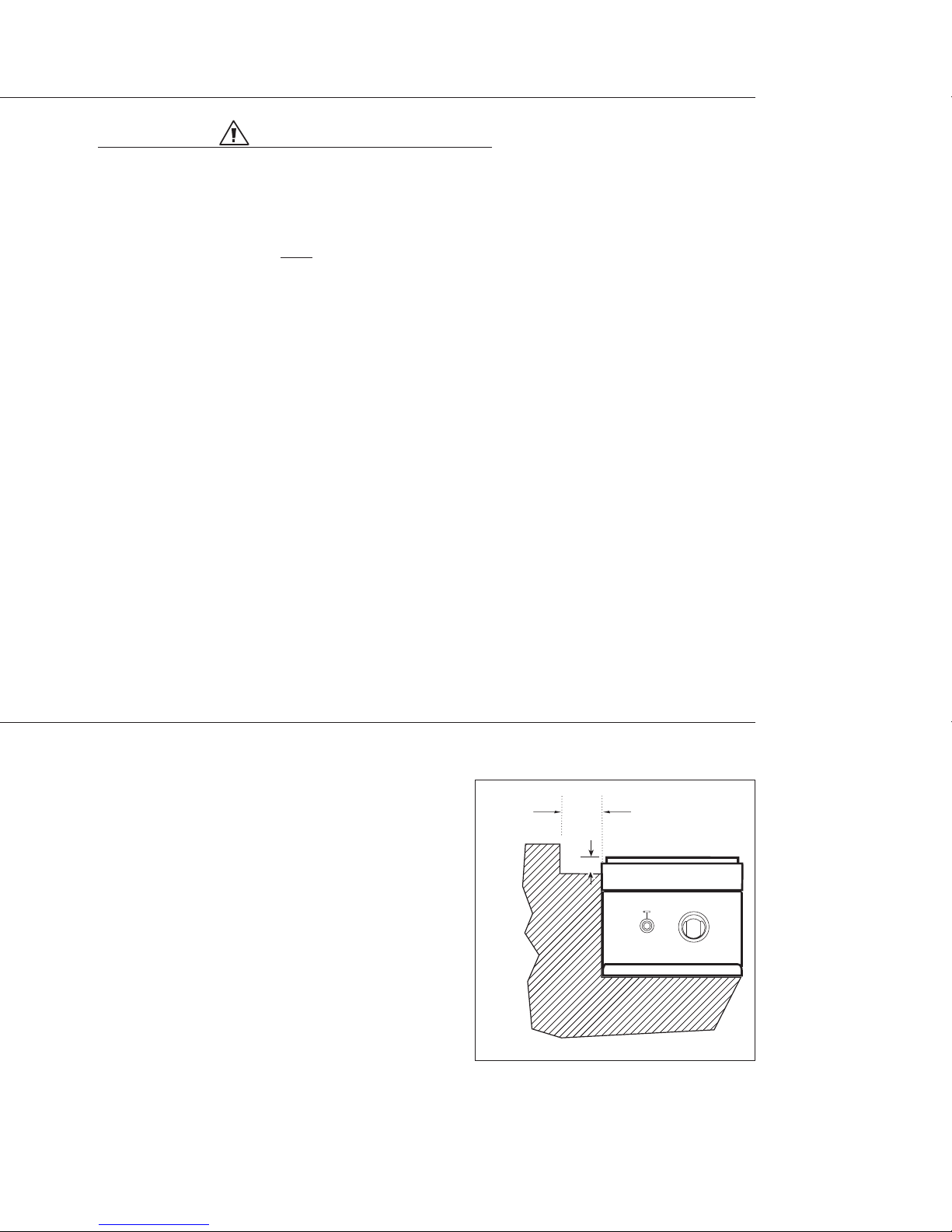

FIG.01
SIDE BURNER 131/132 SIDE MOUNT
MODEL INSTALLATION
1" min.
6"
IGNITION BURNER

5
SIDE BURNER 131/132 SIDE MOUNT
MODEL INSTALLATION
2
"23-
3/4"
10-3/8"
26-3/4"
12-
3/4 "
2
"
15
-3/4"
Standard construction
13-1/8"
10 - 1/4"
2" X 2" opening
for gas supply line
A
MODEL A
BGB131 12-7/8"
BGB132 23-7/8"
10-3/8"
REAR FRONT
IGNITION
IGNITION BURNER
13
" 13
"
10
-
10
-
3/8" 3/8"

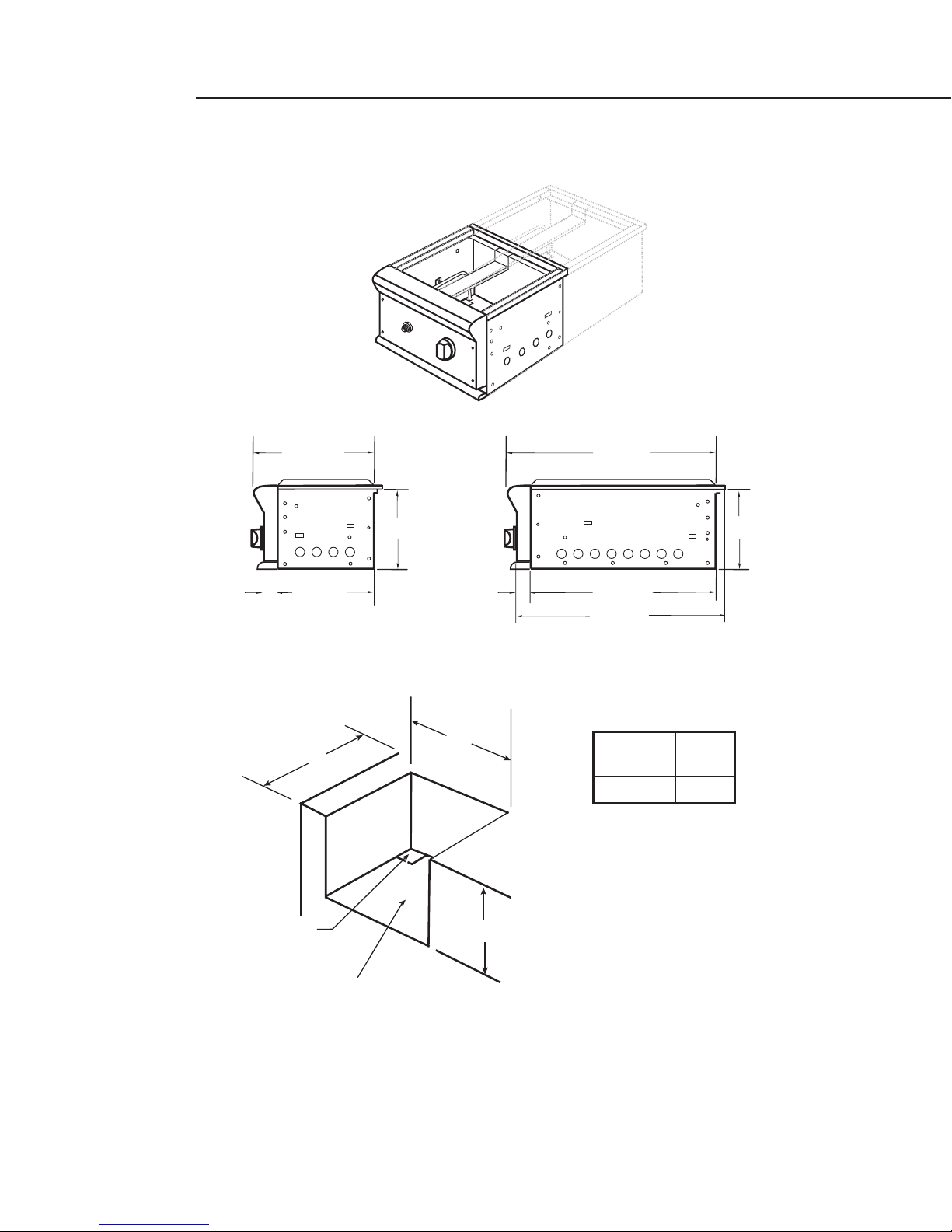

SIDE BURNER BUILT-IN MODEL INSTALLATION
6
INSTALLATION OF SIDE BURNER BUILT-IN:
All BGB131-BI and BGB132-BI models can be
installed in combustible enclosure with zero
clearance from the back, side and bottom.
A minimum of 6” from the back and sides must be
maintained from the Professional Side Burner above
the cooking surface to combustible construction
(see Fig. 02).
When determining a suitable location, take into
account concerns such as exposure to wind, proxim-
ity to traffic paths, and keeping any gas supply lines
as short as possible. Locate the Side Burner only in a
well-ventilated area. Never locate the Side Burner in
a garage, breezeway, shed, or other such enclosed
areas.
It is recommended that ventilation holes are provided in the enclosure in the event of a gas leak. The
counter and supporting ledges or deck must be level and flat.
IMPORTANT:
Gas fittings, regulator, and installer shut-off valves must be easily accessible.

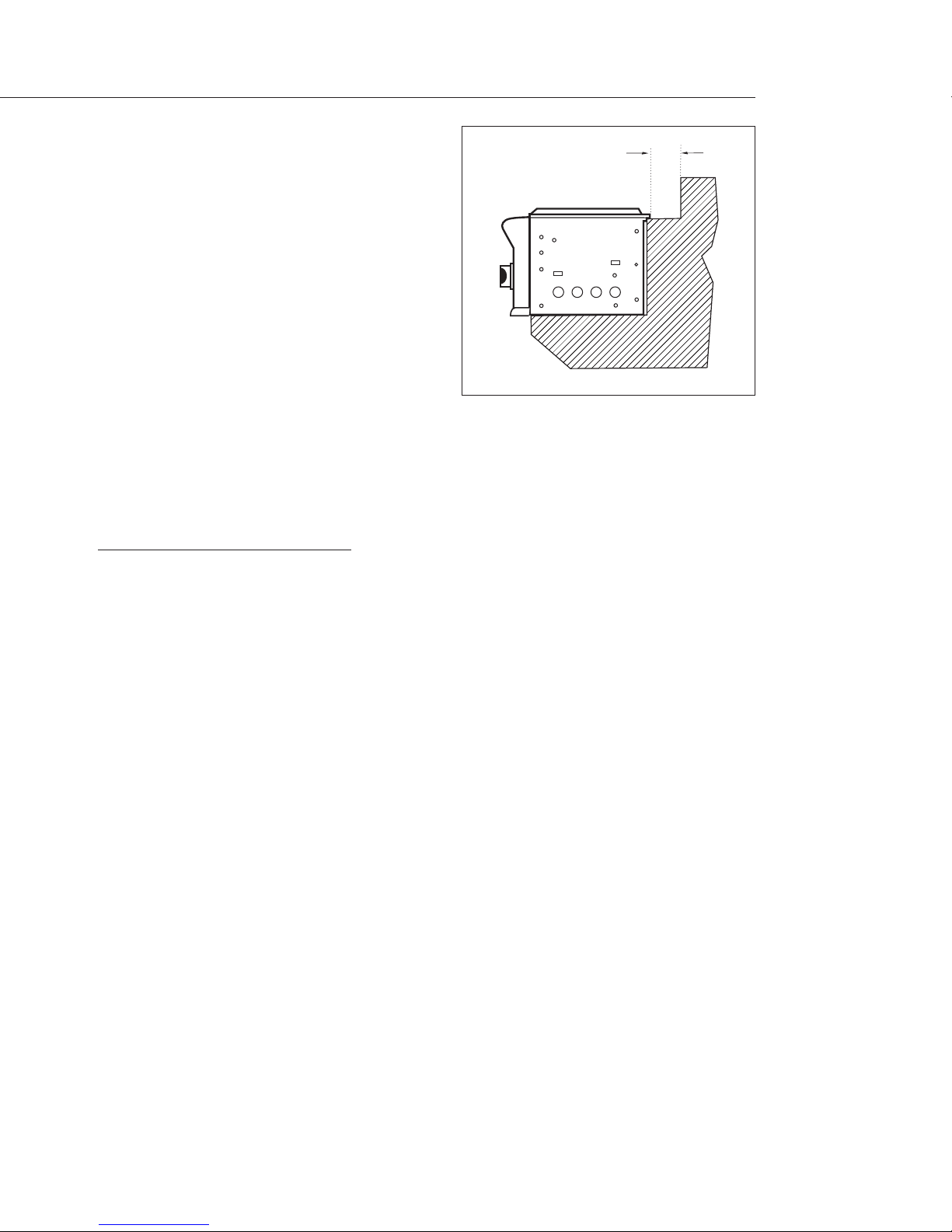

FIG.02
6"
min.

7
SIDE BURNER BUILT-IN MODEL INSTALLATION
22-
1/8"
2
"
25-
1/2"
10-1/16"
25-1/2"
11-
3/4"
2
"
14
-3/4"
Single Side Burner Dual Side Burner
Standard construction
12"
10-1/16"
2" X 2" opening
for gas supply line
AMODEL A
BGB131-BI 12"
BGB132-BI 22-3/8"
10-1/16"
note: the deck is
not required

8
GAS REQUIREMENTS
GAS REQUIREMENTS:
Verify the type of gas supply to be used, either natural or LP. Make sure the marked gas on the
appliance rating plate(s) and hook-up kit agrees with that of the supply.
Never connect an unregulated gas line to the appliance.
An installer supplied gas shut-off valve must be installed in an easily accessible location. All installer
supplied parts must conform to local codes, or in the absence of local codes, ANSI/NFPS-770-1984.
All pipe sealants must be an approved type and resistant to the actions of LP gases. Never use pipe
sealant on flare fittings.
All gas connections should be made by a qualified technician and in accordance with local codes and
ordinances. In the absence of local codes, the installation must comply with the National Fuel Gas
Code ANSI Z223.1.
Gas conversion kits are available from the factory. When ordering, have the model number, and the
type of gas (natural or LP) which you need.
Total gas consumption of the Professional Side Burner with burner(s) on “HIGH”: Table 1 below.
TABLE 1
The appliance and its individual shut-off valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures in excess of 1/2 PSIG (3.5kPa.).
The appliance must be isolated from the gas supply piping system by closing its individual manual
shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or
less than 1/2 PSIG (3.5 kPa.).
The installation of this appliance must conform with local codes or in the absence of local codes, with
the National Fuel Gas Code, ANSI Z223.1. Installation in Canada must be in accordance with the
Standard CAN1-b149 and/or .2 (installation code for gas burning appliances and equipment) and local
codes.
NATURAL GAS HOOK-UP:
CONNECTION: 1/2” NPT male with 3/8” flare adapter.
OPERATING PRESSURE: 4.0” W.C.
SUPPLY PRESSURE: 5” to 14”W.C. If in excess of 14”W.C., a step down regulator is required.
Check with your local gas utility company or with local codes for instructions on installing gas supply
lines. Be sure to check on type and size of run, and how deep to bury the line. If the gas line is too
small, the Professional Side Burner will not function properly.
MODEL Btu/hr
BGB131 17,000
BGB131-BI 17,000
BGB132 34,000
BGB132-BI 34,000

9
GAS REQUIREMENTS
LP TANK REQUIREMENTS
A dented or rusty LP tank may be
hazardous and should be checked by
your LP supplier. Never use a cylinder
with a damaged valve.
The LP gas cylinder must be constructed and marked in accordance with the specifications for
LP gas cylinders of the U.S. Department of Transportation (DOT) and designed for use with a
Type 1 system only.
Do not change the regulator/hose assembly from that supplied with the unit or attempt to use
a Type 1 equipped regulator/hose assembly with a standard 510 POL tank/valve assembly. The
cylinder must be provided with a shut-off valve terminating in an LP gas supply cylinder valve
outlet specified, as applicable, for connection Type 1.
If the appliance is stored indoors, the cylinder must be disconnected and removed from the
appliance.
Cylinders must be stored outdoors in a well ventilated area out of the reach of children.
Gas cylinder supply must be turned off when not in use.
To hook-up the fittings supplied with the
Professional Side Burner, assemble as shown
in Fig.03. Use joint compound on male
threads only.
Do not use joint compound on the flare end of
the 1/2” NPT to 3/8” flare adapter. Ensure that
the regulator arrow points in the direction of
gas flow-towards the unit, away from the
supply.
Do not forget to place the installer-supplied
gas valve in an accessible location.
LP GAS HOOK-UP
CONNECTION: 1/2” NPT male with 3/8” flare
adapter (included). Use 90º elbow 1/2” NPT
with 3/8” flare (P/N 18523) for side mount
models only when installing on the cart. Use
sealer on 1/2” NPT threads only.
OPERATING PRESSURE: 10.0” W.C.
Side Burner uses the LP regulator from
adjoining grill.
Apply joint compound to the threaded end of
the Side Burner gas inlet and tighten the
adapter to the pipe. Assemble the 24”and 30”
hoses to the 3/8” flare tee, as shown in Fig.04.
Tighten the regulator hose to the remaining
fitting of the 3/8” flare tee.
Open Top
Manifold
Bottom of
131 &132 Burner
1/2" Coupling
1/2" Nipple
1/2" NPT to 3/8"
Flare Adapter
Regulator
To Gas Supply
1/2" Nipple
FIG.03
FIG.04

10

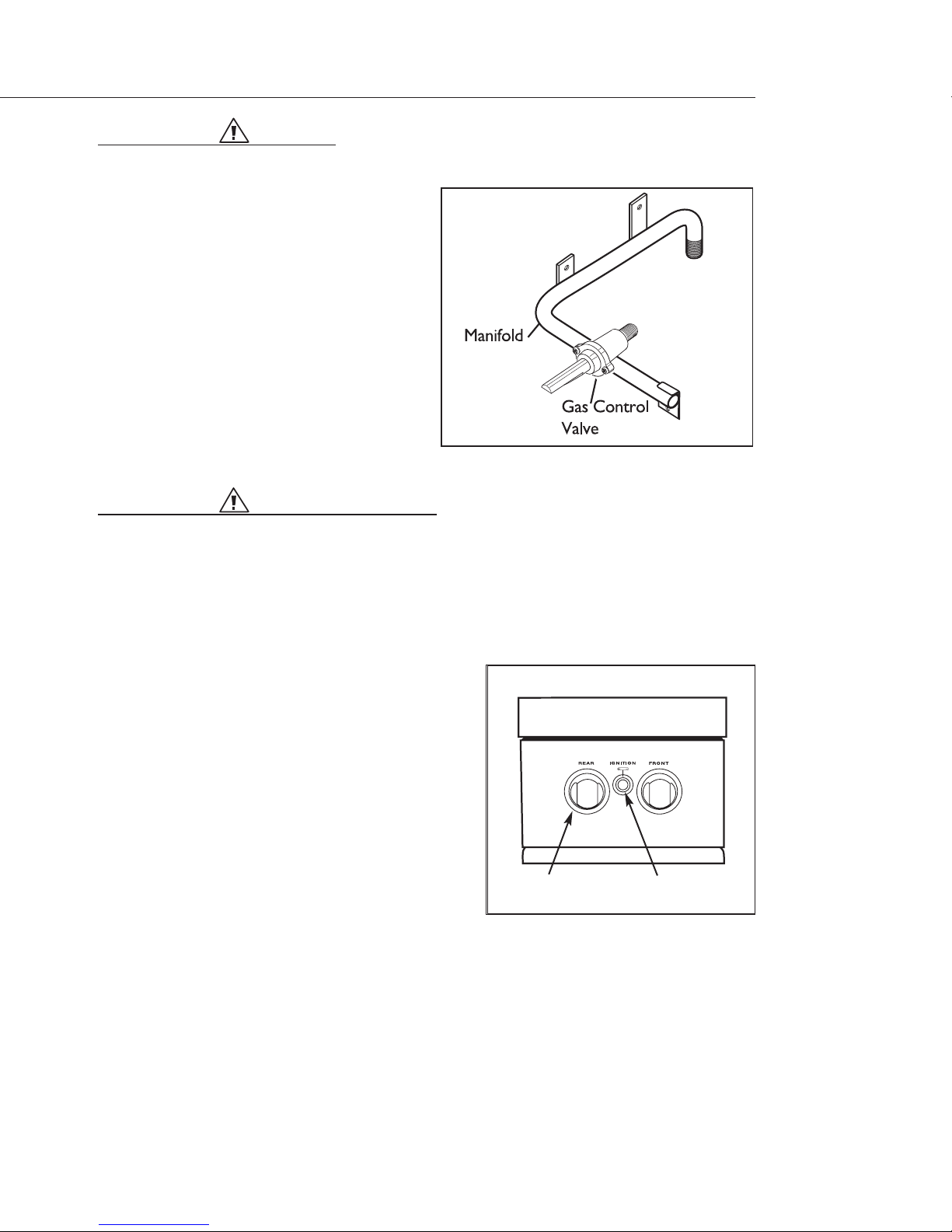

LEAK TESTING & LIGHTING INSTRUCTIONS
WARNING:
Do not smoke while leak testing. Extinguish all open flames.
Make a soap solution of one part liquid
detergent, and one part water. Never test for
leaks with an open flame. For LP units, check
with a full cylinder. Make sure all control valves
are in the “OFF” position. Turn the gas supply
“ON”.Check all connections from the supply line
(Fig. 02), or LP cylinder (Fig. 03) up to the
manifold pipe assembly (Fig.05). Apply the soap
solution around the connection with a spray
bottle, brush, or rag. Soap bubbles will appear
where leak is present. If a leak is present, turn off
gas supply, tighten any leaking fittings, turn gas
on, and recheck.
WARNING: IMPORTANT!
Inspect the gas supply piping or hose prior to turning the gas “ON”. If there is
evidence of cuts, wear or abrasion, it must be replaced prior to use. Do not
use the Professional Side Burner if the odor of gas is present. Turn the control
knob to “OFF”, then turn off the gas supply. If using LP, is there gas in the
tank? Always keep your face and body as far away from the burner as
possible when lighting.
LIGHTING INSTRUCTIONS
First remove the burner cover and any cooking utensils
from the burner grate. Push and hold the ignition
button, turn the control knob to the “HI” position until
the burner is lit or 4 seconds pass. If the burner doesn’t
ignite, wait 5 minutes for any accumulated gas to
dissipate then try again. If the burner will not light after
several attempts, check the troubleshooting
instructions on page 14. To light burner manually see
page 11,“Match Lighting”.
FIG. 06 BGB132 Shown
FIG.05
Ignition
Control
Knob

11
LIGHTING INSTRUCTIONS
MATCH LIGHTING
Hold a fireplace lit match near the burner ports, turn the control knob counterclockwise to “HI”.Move
your hand immediately once the burner is lit. Rotate the control knob to the desired setting.
Note: If you are using propane gas, a slight
pop or flash may occur at the burner
ports a few seconds after the burner
has been turned “off”. This
“extinction pop” is normal for
propane gas.

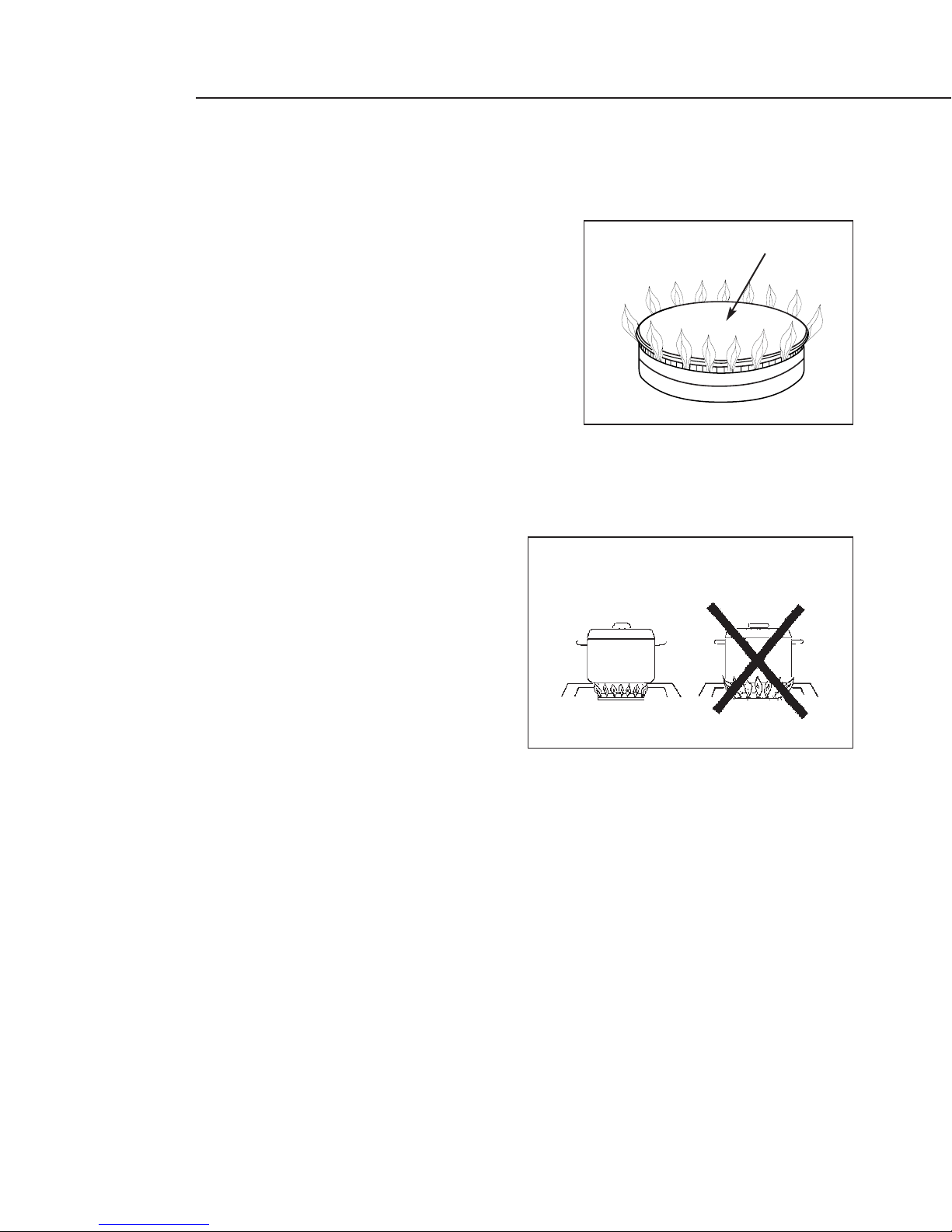

BURNERS
Your new side burner is equipped with burners typical
of those used in restaurants (Fig. 07). These burners are
designed for maximum cleanability and controlability.
The burner should never be operated if the cap is not in
place.
BURNER EFFICIENCY AND FLAME CHARACTERISTICS
It is necessary to keep the burner ports and
the igniters clean for proper lighting and
efficient performance of the burners. The
burner flame should burn completely around
the burner with no excessive noise or ligting.
The flame should be blue in color and stable
with no yellow tips. During initial use, foreign
particles in the gas line, or dust in the air
around the appliance may cause an orange
flame. This will disappear with use.
FLAME HEIGHT
The correct height of the flame mainly
depends on the size of the bottom of the
cooking utensil, the material of the cooking utensil, the amount and type of food and the amount of
liquid in the utensil. Following are some basic rules for selecting flame height.
For safety reasons the flame must never extend beyond the bottom of the cooking utensil.
Never allow flames to curl up the side of the pan (see Fig.08).
Utensils which conduct heat slowly (such as glass-ceramic) should be used with medium to low
flames. If you are cooking with a large amount of liquid, a slightly larger flame can be used.
FIG.07
Fig. 08
Cap
Proper Flame Height

12
FINAL CHECKLIST
Specified clearances maintained to combustibles.
Professional Side Burner is properly mounted.
All internal packaging removed.
Burner is seated properly and does not rock.
Each burner lights satisfactorily, individually or with adjacent burner lit.
Knob(s) turn freely. Bezel(s) centered.
Flame adjusted.
Pressure regulator connected and set for 4.0"W.C. Natural, 11.2"W.C. LP gas.
Manual shut-off valve installed and accessible.
Unit tested and free of leaks.
User informed of gas supply shut-off valve location.
Battery installed in module properly and generates ignition spark when activated.
PLEASE LEAVE THESE INSTRUCTIONS WITH THE USER.
USER, PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL CLEANING
The Professional Side Burner will give you years of trouble free service if properly maintained. The
body panels and front valve panel and burner hanger are made from non-rusting high grade stainless
steel. The burner is heavy duty cast iron and brass. The venturi tube is brass.
STAINLESS STEEL
There are many different stainless steel cleaners available. Always use the mildest cleaning procedure
first, scrubbing in the direction of the grain. Do not use steel wool as it will scratch the surface. To
touch up noticeable scratches in the stainless steel, sand very lightly with Bear-Tex (p/n 25032).
SIDE BURNER GRATE
The side burner grate is porcelain enamel over cast iron for durability. To avoid burns do not clean a
hot grate. They may be wiped while in place with hot, soapy water, rinsed and wiped dry thoroughly.
Never immerse a hot grate in water. Due to rapid temperature changes the porcelain may pop off the
edges of the grates. Do not be concerned as the base metal, cast iron, soon darkens to blend with the
porcelain enamel. Use care when wiping areas where the enamel has popped off, the edges may be
sharp. If cleaning necessitates grate removal, care should be taken in lifting them. They are very heavy.
Be sure to place them on a protected surface.
DRIP TRAY
A stainless aeration pan and drip tray with stainless steel handle is located under the burner. It collects
any boil-overs or spills. Pull forward to remove. Spills should be washed off as soon as possible to
prevent baked on soil.

13

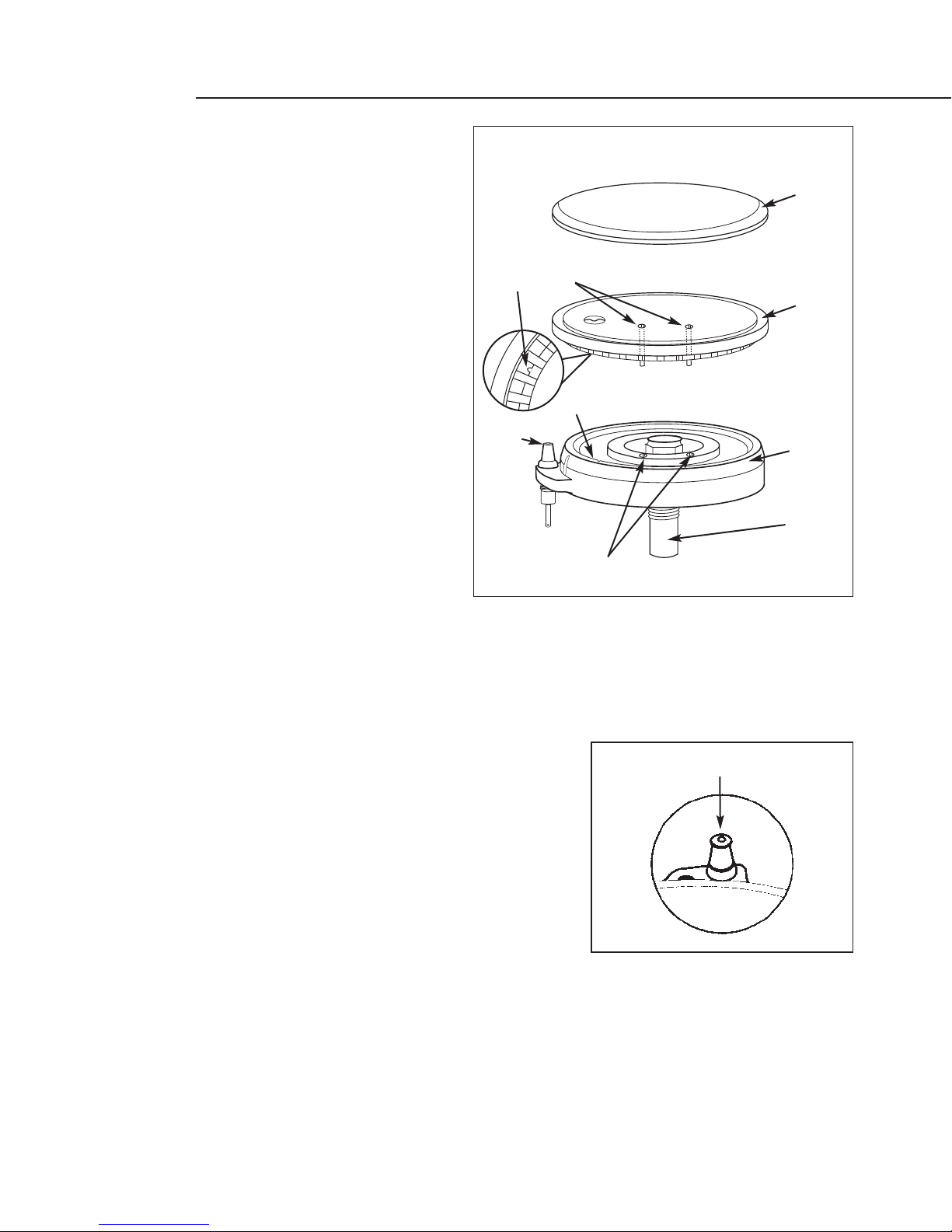

GENERAL CLEANING
BURNERS
For proper lighting and performance
keep the burners clean. It is necessary
to clean the burners if they do not light
even though the igniter clicks, if there
has been a severe boil over, or when
the flame does not burn blue. Be
certain all burner knobs are in the off
position before attempting to clean the
burners. The burners have been
designed for ease in cleaning. When
the grate and burners are cool, remove
the grate. The burner cap and the brass
port ring can easlily be lifted off. Wash
these parts in hot soapy water, rinse
and dry thoroughly. The burner caps
are porcelain enamel, follow the
directions on the previous page that
were given for the burner grates. A
bristle brush can be used to clean out
the toothed burner ports, if necessary.
After cleaning, it is important to make
sure the location pins on the bottom
side of the port ring are properly
aligned with the corresponding holes
in the base. Incorrect alignment will
produce a potentially dangerous
flame and poor burner perfomance
(see Fig.09).
IGNITERS
Wipe with a water dampened cotton swab. Be careful
not to damage the igniter (see Fig.10)
FIG.10
IGNITER (KEEP CLEAN)
FIG.09
Brass Ring
Locating Pins
Electrode
Main
Burner
Port
Ring
Locating Notch
Burner
Base
Venturi
Cap
Locating Holes

14
TROUBLESHOOTING
Burner won’t light when the ignition
is pushed.
Burner flame is yellow or orange, in
conjunction with the odor of gas.
Low heat with knob in “HI” position.
Remove the burner grate. With the control knob in the“OFF”
position, listen to the electrode while engaging the ignition.
You should hear a spark jump inside the electrode cap.When
the spark jumps, it makes a ticking sound.
If there is no spark........
Could be a dead battery.
Or the air gap between an electrode tip and a contact
metal is too far (gap should be 1/8”) or dirty.
If there is a spark... is there gas supplied to the unit and is the
line purged of air? See Fig. 03 and Fig. 04.
Does the other burner of a dual burner operate?
Check the orifice for blockage or venturi blockage.
Check the burner for obstructions or dirt. See Fig. 09.
Check for proper gas supply or wrong gas.
Is the Side Burner in a dusty area? Move to less dusty area if
possible.
Is the fuel hose bent or kinked? See Fig. 03 and Fig. 04.
Is there adequate gas supply available? If it is only one burn-
er of the dual burner unit that appears low, does the burner
need cleaning? See Fig. 09 and Fig. 10.
If using LP gas, check for empty tank or low.
PROBLEM WHAT TO DO

15
SINGLE SIDE BURNER PARTS LIST
FOR BGB131 & BGB131-BI
NOTE: Part list typical for BGB131 & BGB131-BI models. Illustration shows BGB131-BI model.
ITEM DESCRIPTION PART NO.
1BURNER COVER 33316
2PULL HANDLE 18204-01
3RUBBER BUMPER 18403
4TOP GRATE BK 12020
5DBURNER CAP 12272
6PORT RING ASSEMBLY 12333
7VENTURI 12332
8BASE D BURNER 12321
9PLATE SUPPORT BURNER 33314
PLATE SUPPORT BURNER (BGB131-BI) 33434
10 BURNER HANGER 33315
11 JET HOLDER LP 12200-17
JET HOLDER NAT 12200-08
12 DRIP PAN ST.STL (BGA131-BI MODEL) 32348-02
DRIP PAN ST.STL (BGB131 MODEL) 33306-02
13 DRIP PAN HANDLE DBI (BGA131-BI MODEL) 33035
DRIP PAN HANDLE 131/132 (BGB131 MODEL) 33307
14 1.5VDC BATTERY AA 16567
ITEM DESCRIPTION PART NO.
15 BEZEL 14006-PL
16 CONTROL KNOB 14351
17 IGNITION MODULE 16566
18 WIRE BLACK W/ TERMINALS 8” 16438-03
19 WIRE BLACK W/ TERMINALS 10” 16438-06
20 TUBING 5/16” (9” LENGTH) 18537
21 ELBOW 1/8NPT X 5/16 T.O.D. 18530
22 FERRULE 5/16 18301-02
23 NUT M22 JET HOLDER 12150
24 NUT 1/2-24UNF 18301-01
25 MANIFOLD (BGB131-BI MODEL) 18230-02
MANIFOLD (BGB131 MODEL) 18502
26 MANUAL GAS VALVE 13017-01
27 VALVE PANEL (BGA131-BI MODEL) 33351-PA
VALVE PANEL (BGB131 MODEL) 33320-PA
28 VALVE PANEL SCREWS (BGB131-B1) 15002-41
29 ELECTRODE 12224
30 SPRING ELECTRODE 12230
31 CLIP ELECTRODE 12231
2
1
4
5
6
7
25
26
11
8
17
14
16 15
13
12
9
10
27
28
20
18
19
24
22
23
21
3
29
30
31

16
DOUBLE SIDE BURNER PARTS LIST
FOR BGB132 & BGB132-BI
NOTE: Part list typical for BGB132 & BGB132-BI models. Illustration shows BGB132-BI model.
ITEM DESCRIPTION PART NO.
1BURNER COVER 33299
2PULL HANDLE 18204-01
3RUBBER BUMPER 18403
4TOP GRATE BK 12013-1
5DBURNER CAP 12272
6PORT RING ASSEMBLY 12333
7VENTURI 12332
8BASE D BURNER 12321
9PLATE SUPPORT BURNER 33297
PLATE SUPPORT BURNER (BGB132-BI) 33435
10 BURNER HANGER (BGB132 MODEL) 33298
11 JET HOLDER LP 12200-17
JET HOLDER NAT 12200-08
12 DRIP PAN ST.STL (BGA132-BI MODEL) 32348-01
DRIP PAN ST.STL (BGB132 MODEL) 33306-01
13 DRIP PAN HANDLE (BGA132-BI MODEL) 33035
DRIP PAN HANDLE 131/132 (BGB132 MODEL) 33307
14 1.5VDC BATTERY AA 16567
15 BEZEL 14006-PL
ITEM DESCRIPTION PART NO.
16 CONTROL KNOB 14351
17 IGNITION MODULE 16566
18 WIRE BLACK W/ TERMINALS 10” 16438-06
19 WIRE BLACK W/ TERMINALS 18” 16438-07
20 TUBING 5/16” (21” LENGTH) 18538
21 ELBOW 1/8NPT X 5/16 T.O.D. 18530
22 TUBING 5/16” (9” LENGTH) 18537
23 NUT M22 JET HOLDER 12150
24 FERRULE 5/16 18301-02
25 NUT 1/2-24UNF 18301-01
26 MANIFOLD (BGB132-BI MODEL) 18230-01
MANIFOLD (BGB132 MODEL) 18501
27 MANUAL GAS VALVE 13017-01
28 VALVE PANEL (BGA132-BI MODEL) 33355-PA
VALVE PANEL (BGB132 MODEL) 33305-PA
29 VALVE PANEL SCREWS (BGB132-B1) 15002-41
30 ELECTRODE 12224
31 SPRING ELECTRODE 12230
32 CLIP ELECTRODE 12231
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

17
SINGLE & DOUBLE SIDE BURNER WIRING DIAGRAM
SPARK ELECTRODE
(P/N 12224)
SPARK ELECTRODE
(P/N 12224)
SINGLE SIDE BURNER
DOUBLE SIDE BURNER
1.5 VOLT
ALKALINE
BATTERY
P/N 16567)
GND
TERMINAL
TERMINAL
NOTE: HIGH VOLTAGE AT TERMINALS
(Switch is built into module)
(Switch is built into
module)
SPARK ELECTRODE
(P/N 12224)
BATTERY
IGNITION MODULE
(P/N 16566)
BATTERY
IGNITION MODULE
(P/N 16566)

18
WARRANTY
LENGTH OF WARRANTY
DCS warrants all other Side Burner components parts and labor to the original purchaser to be free of
factory defects in material and workmanship for a period of one (1) year from the original date of
purchase.This does not apply if the unit was subjected to other than normal residential use.
Limited Five (5) year parts only covers burner(s), the structural integrity of the exterior and interior
body parts. Should rusting occur to the degree of non-performance, replacement parts will be
furnished.
DCS WILL PAY FOR
All repair labor and replacement parts for one year, for parts found to be defective due to materials or
workmanship. Service must be provided by Authorized Factory Agent during normal working hours.
DCS WILL NOT PAY FOR
Correct the installation.
Instruct you how to use the equipment or clean equipment.
Repairs when the appliance is used on other than normal residential use.
Damage resulting from accident, alteration, misuse, abuse, hostile environments, improper
installation or installation not in accordance with local codes.
Chipping of porcelain enamel on the burner grates or discoloring or staining of stainless
steel.
DCS will not be liable for transportation costs, labor costs of export duties.
Shipping Damage.
This warranty shall not apply, nor can we assume responsibility for damage that might result from
failure to follow manufactures instructions or local codes, where the appliance has been tampered
with or altered in anyway or which, in our judgement, has been subjected to misuse, negligence, or
accident.
This warranty is in lieu of all other warranties expressed or implied and all other obligations or liability
in connection with the sale of this appliance.
In order to provide warranty service an further improve our product, please fill out and send the
warranty card to the factory.

19
SERVICE
HOW TO OBTAIN SERVICE:
For warranty service, please contact your local service provider or DCS Customer Care Center at
[phone], Monday thru Friday, 6 am- 4:30 pm PST. Before you call, please have the following
information ready:
Model Number (located on the inside of the left side of the appliance)
Serial Number (located on the inside of the left side of the appliance)
Gas Type
Date of installation
A brief description of the problem
Your satisfaction is of the utmost importance to us. If a problem cannot be resolved to your
satisfaction, please write or fax or email us at:
Write:
DCS
Attention: Customer Service
5800 Skylab Road
Huntington Beach, CA 92647
Email: [email protected]
BEFORE YOU CALL FOR SERVICE:
1. Check troubleshooting on page 14.
2. Is the gas turned on?
3. Is there a dead battery in the ignition module?
