DCS DCS-IVH-48 Operating and maintenance manual

Dynamic Cooking Systems, Inc.
ISLAND VENT HOOD
USE AND CARE
INSTALLATION INSTRUCTIONS
DCS-IVH-48
DCS-IVH-36

A MESSAGE TO OUR CUSTOMERS
Thank you for selecting this Dynamic Cooking Systems Professional Islan
Vent Hoo . Because of this appliance’s unique features we have evelope this
Installation an Use Gui e. It contains valuable information on how to properly
operate an maintain your new appliance for years of safe an enjoyable use.
To help serve you better, please fill out an return the Ownership
Registration Car an keep this Gui e han y, as it will help answer questions
that may arise as you use your new vent hoo .
For your convenience, pro uct questions can be answere by a
DCS Technical Support Representative by phone:
1-888-396-2665, or Fax: [phone],
or by mail:
Dynamic Cooking Systems, Inc.
Attention Customer Service,
5800 Skylab Roa , Huntington Beach, CA 92647

Introduction
1
Before procee ing with installation, please rea this installation gui e an
observe all safety precautions an warnings.
NOTE: Installation of this DCS Islan Vent Hoo must comply with all local
co es.
IMPORTANT- Save these instructions for the Local Electrical Inspector’s use.
INSTALLER- Please leave these instructions with the unit for the owner.
OWNER- Please retain these instructions for future reference.
Table of Contents
Important Safety Instructions 2
Features 3
Planning the Installation 4
Specifications 5
Site Preparation an Installation Gui elines 6
Soffit Installation 7-10
Ducting Information 11
Care an Use 12-14

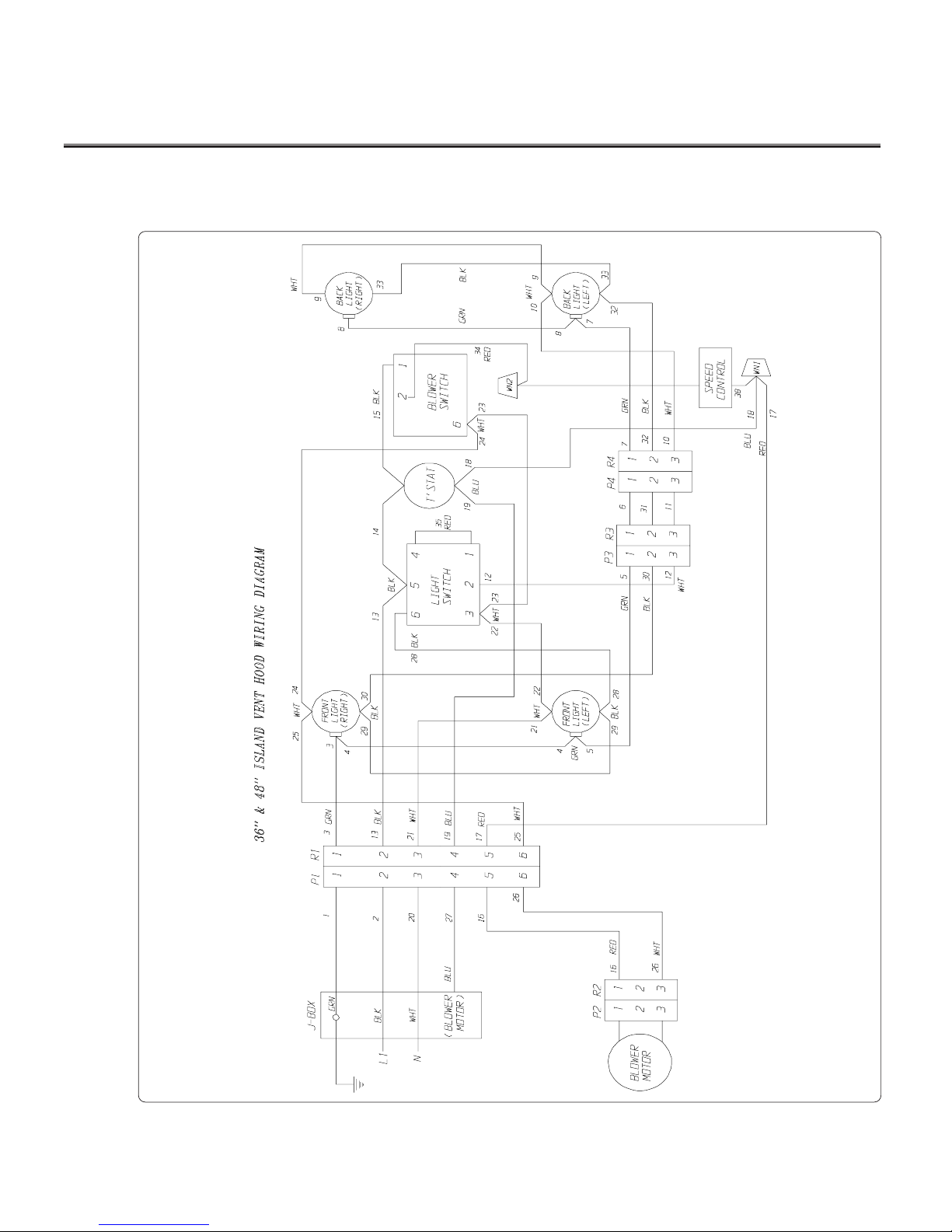

Wiring Diagram 15
Warranty Information 16
Service 17

Follow These Precautions
Important Safety Instructions
2
CAUTION- TO REDUCE THE RISK OF ELECTRICAL SHOCK OR INJURY TO PERSONS
ALL VENT HOODS MUST BE INSTALLED WITH VENTILATORS THAT HAVE BEEN
APPROVED FOR USE WITH THE HOOD.
Make up air may be necessary to prevent air flowing own chimney, unseale oor,
win ow, or fire place opening.
WARNING- TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING GUIDELINES:
A) Installation an Electrical Wiring Must Be Performe By Qualifie
Personnel In Accor ance With All Applicable Co es & Stan ar s,
Inclu ing Fire-Rate Construction.
B) To Prevent Back rafting, sufficient air is nee e to maintain proper
combustion an safe exhausting of gases through the flue (chimney) of
fuel burning equipment. Follow the cooking equipment manufacturers
gui eline an safety stan ar s such as those publishe by the
National Fire Protection Association (NFPA) an the American Society
for Heating, Refrigeration an Air Con itioning Engineers (ASHRAE),
an the local co e authorities.
C) Use caution when cutting or rilling into walls or ceilings as not to
amage electrical wiring an other hi en utilities.
CAUTION- TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE
SURE TO DUCT AIR TO OUTSIDE. -DO NOT VENT EXHAUST AIR INTO SPACES
WITHIN WALLS OR CEILING, NOR INTO ATTICS, CRAWL SPACES, OR GARAGES.
NOTE- unit MUST be vente to the outsi e of the buil ing.
IMPORTANT: Refer to ucting information supplie on Pg. 11

Island ent Hoods DCS-I H-48 & DCS-I H-36
Features
3
The Dynamic Cooking Systems Islan Vent Hoo Mo els; DCS IVH 48 ,
DCS IVH 36, have been esigne with the ultimate in househol conve-
nience in min .
Features inclu e a high capacity, variable spee blower with spee
controller, commercial style ishwasher-safe filters, easy to clean
insi e grease trays an four halogen lights with Hi/Low light switch.
(4)
halogen
lights light on/off switch
blower variable speed
blower on/off switch
removable washable filters
hanger rods

We recommen that a back raft amper be use in all Vent Hoo installations. Col
weather installations necessitate the use of a back raft amper to minimize the flow of
col air into the room. A non-metallic thermal break shoul also be installe to mini-
mize con uction of outsi e temperatures through the uctwork. Locate the thermal
break as close as possible to where the ucting enters the heate portion of the
house.
Before beginning installation of the Islan Vent Hoo an Ventilator, PLAN OUT the
entire installation proce ure beforehan , consi ering the following areas:
HOOD SIZE & LOCATION- (The hoo shoul be as wi e or wi er than the cooking
appliance with the hoo being centere on the appliance. Vertically, the bottom of
the hoo shoul be between 30”-36”above the appliance cooking surface.)
DUCTING- ( ucting transitions, air must flow to outsi e, use of Back raft
amper...etc.)
ELECTRICAL REQUIREMENTS- (120 Volts, 60 Hz, 15 AMP Service, Local
Co es...etc.)
ADEQUATE MOUNTING SURFACES- (To support the weight of the vent hoo s,
location of ceiling stu s, a itional support for safe ceiling mounting...etc.)
HANDLING NOTE-This Hoo has been inspecte prior to shipping to be free of
efects. Due to the weight of the Islan Vent Hoo an Ventilator; an to prevent
scratching or enting the unit, we recommen the use of two installers to move,
place, an secure the Vent Hoo to avoi personal injury or amage to the Hoo .
Backdraft Damper
Planning the Installation
4
Planning the Installation

Product and enting Specifications
Specifications
5
843fi21
16"
52 5/8"
30"
16"
FRONT VIEW SIDE VIEW
34 5/8"
12"
12"
34 5/8"
DCS-IVH-48 DCS-IVH-48
DCS-IVH-36 DCS-IVH-36
VENT HOOD DIMENSIONS
ntrol
30"
12"
TOP VIEW of DCS-IVH
18"
12"
TOP VIEW of DCS-IVH
venting specs 7" Ø
venting specs 4"x18" rectangular
Refer to venting specifications below when or ering the uct transition to 10ӯ.
for 36”Islan Vent Hoo .
See Page 11 for Ducting Information.

Site Preparation
Site Preparation and Installation Guidelines
6
You will nee to create a secure soffit structure to mount the Islan Vent Hoo to
the ceiling. We suggest using 11/2 “by 31/2 “woo cut to fit the installation as
shown in the following pages. The soffit mounting to the top of the Islan Vent Hoo
will be 10 7/8 “in length for the DCS-IVH-48 an 10 3/4 “for the DCS-IVH-36.
These imensions allow room for a 1/2 rywall uct cover. Do not eviate from
these imensions when choosing a uct cover as the soffit structure must align with
the mounting holes on the Islan Vent Hoo . You are limite to a maximum of 1/2
inch on all si es.
NOTE: You will nee to etermine which type of uct cover will be use before
installation an leave enough space aroun the soffit for a flush mount between the
uct cover material an the top of the Islan Vent Hoo .
CAUTION- When installing the ISLAND VENT HOOD irectly to the ceiling, a equate
structural supports are CRITICAL to secure the unit. The Islan Vent Hoo is heavy,
weighing 128 LBS for the DCS-IVH 48 an 94 LBS for the DCS-IVH-36.
NOTE: The soffit height will vary accor ing to the ceiling height.
GENERAL INSTALLATION GUIDELINES:
1) Determine the location for installation.
2) Determine the centerline of the installation.
3) If rywall is installe , cut away enough rywall to expose 2 ceiling joist (1 on
each si e of the Hoo center line)
4) Create your soffit structure accor ing to ceiling height an attach soffit plates
for DCS-IVH-36 or soffit brackets for DCS-IVH-48 with screws to si es (see the
following pages for soffits an construction).
5) Attach soffit structure to existing ceiling joist.
6) Secure soffit with soffit braces accor ing to mo el type (see iagrams page 7-
10).
7) Attach Islan Vent Hoo to soffit with the six 2 inch mounting screws provi e .
Once the Islan Vent Hoo has been mounte in place it will be necessary to install
the electrical service. All electrical work shoul be one by a qualifie electrician an
must conform to all local stan ar s. Refer to the wiring iagram on Pg. 13 for proper
hook-up an groun ing.
NOTE: Black=live, White=neutral, Green=groun
Complete the installation by making uctwork connections, testing unit functions,
an installing & finishing rywall.
Finishing the Installation:

Create your Soffit Struct
first and attach Soffit B
to each side with screws pr
36" ISLAND VENT HOOD SOFFIT MOUN
6 Mounting Screws
SOFFIT BRACKETS
SCREWED TO BOTH SIDES
OF SOFFIT STRUCTURE
SCREW SUPPORT BARS
ON BOTH SIDES AS SHOWN
CREATE YOUR
SOFFIT STRUCTURE
ACCORDING TO THE
CEILING HEIGHT
THEN ATTACH IT
TO THE CEILING JOIST.
843 fig 1
s
kets
ided
Soffit for DCS-I H-36 Island ent Hood
Soffit Installation
7
THE DIMENSIONS GI EN ARE FOR A 1/2 INCH DRYWALL.
1) Create a soffit structure an attach the soffit brackets as in fig-
ure 1A. Refer to the installation gui elines on Page 6.
2) Attach the soffit support bars as shown in figure 2A.
3) After securing the soffit structure a equately to the ceiling joist,
attach the Islan Vent Hoo with the mounting screws provi e ,
figure 3A.
Refer to page 6 on finishing the installation.
SUPPORT
BARS
SOFFIT ASSEMBLY
FOR 36" ISLAND VENT HOOD
10 3/4 "
HEIGHT WILL
VARY
ACCORDING
TO CEILING
HEIGHT
16 3/4 "
The dimensions given
are for a 1/2 " drywa
FIG.3A
FIG.2A
FIG.1A

DCS-I H-48 Island ent Hood
Soffit Installation
8
ATTACH SOFFIT
BRACKETS
ON 4 CORNERS
OF THE
SOFFIT STRUCTURE
2 SUPPORT
BARS
SOFFIT ASSEMBLY
FOR DCS-IVH-48
107
/
8
"
HEIGHT WILL
VARY
ACCORDING
TO CEILING
HEIGHT
287/8"
4 SOFFIT
BRACKETS
The dimensions given are for a 1
THE DIMENSIONS GI EN ARE FOR A 1/2 INCH DRYWALL DUCT CO ER.
1) Create a soffit structure an attach the soffit brackets as illus-
trate in figure 1B. Refer to the installation gui elines on Page 6.
2) Attach the soffit support bars as shown in figure 1B.
FIG.1B

Soffit for DCS-I H-48 Island ent Hood
Soffit Installation
28 7/8"
10 7/8"
TOP VIEW of DCS-IVH 48
SIDE VIEW for DCS-IVH 48 SOFFIT STRUCTU
1 1/2" x 31/2" Soffit
3 1/2"centerline
to centerline measurement
from screw to screw
Wood Structure
1 1/2" x 31/2" Sof
(4) soffit
brackets
The dimensions given are for a 1/2 " drywa
THE DIMENSIONS GI EN ARE FOR A 1/2 INCH DRYWALL DUCT CO ER.
3) After a equately securing the soffit structure to the ceiling joist,
attach the Islan Vent Hoo with the 6 mounting screws provi e ,
figure 2B an 3B shows the location of the mounting screws.
Figure 2B gives soffit imensions allowing for a 1/2 inch uct cover.
9
FIG.2B

Diagrams for DCS-I H-48 Island ent Hood
Soffit Installation
10
counter top level
843 fig 4
FRONT VIEW of DCS-IVH 48
30" Min.
to cooking surface
Support Bars
Ceiling
Floor
Typical 96"
Ceiling Shown
Duct Cover
NOTE: Duct
Cover height
will vary according
to ceiling height
these must be
custom built.
6 Mounting Screws
Solid Soffit Structure
mounted to ceiling joices
THE DIMENSIONS GI EN ARE FOR A 1/2 INCH DRYWALL DUCT CO ER.
Figure 3B below illustrates a finishe soffit structure for the
DCS-IVH-48
Refer to page 6 on finishing the installation.
FIG.3B

Duct Accessories
General
Ducting Information
DCS-I H-48 Requirements
DCS-I H-36 Requirements
When planning the path for ucting to the outsi e, keep in min the following gui e-
lines:
- Minimize use of elbows an transitions in uctwork as to maximize air flow to out-
si e of buil ing. An efficient airflow path contributes to the overall efficiency of the
Vent Hoo .
- DCS recommen s the use of “smooth wall”ucting, not flexible uctwork.
- Transitions are require from rectangular to roun ucting
(see transitions as shown below)
- Duct tape may be use at ucting joints.
- DCS recommen s the use of 10”roun ucting which provi es 78.6 In.2of sur-
face area.
- See Duct Accessories below on for ratio to 10”transition.
- Alternate uct sizes in rectangular style may be use . If a rectangular uct style is
use , the uct must equal at least 78.6 In.2for best results. (
EExxaammppllee--
3 1/4”x 24”
uct = 78 In.2)
- Maintain consistent ucting square area as to avoi re uce air flow. [ie.- With a
IVH-48 Hoo , connecting a 4”x13”(
5522 IInn..22
) to a 10”roun (
7788..66 IInn..22
) is not recom-
men e ]
- DCS recommen s the use of 7”roun ucting which provi es 34.7 In.2of surface
area.
- Alternate uct sizes in rectangular style may be use . If a rectangular uct style is
use , the uct must equal at least 34.7 In.2for best results
- Wall Caps an Roof Caps must have free open area equal to uct size iameter.
- Note that a Seale Back Draft Damper may re uce air elivery.
- Transition for right, left or rear air ischarge also available.
10"
101/2"
45/8"
Vertical Duct Transition for 48" I
185/8"
11"
11

Controls
Care And Use
12
Hood Lighting
Blower
We recommen you turn your hoo on before you begin cooking to establish fresh
airflow. After you have finishe cooking, let the blower run for a few minutes to
clear the air an help keep the kitchen fresh an clean.
The Blower is operate with 2 controls. The switch a jacent to the spee control
turns the blower on/off, while the spee control a justs the blower spee . Turn the
spee knob clockwise to increase an counterclockwise to ecrease the blower
spee .
A single switch controls the 4 halogen lights. The switch controls the brightness of
the lights with Hi/Off/Low. Use only 50w Max. Halogen Narrow Floo replacement
bulbs.
Caution! Halogen lamps are constructe of a glass bulb with a pressurize
internal filament tube that operates at high temperatures an coul be ischarge
into the fixture enclosure an /or surroun ing environment, thereby creating a risk of
personal injury of fire. When replacing the bulb, let the bulb cool, an assure that
power to light has been turne off. Never allow a hot bulb to come into contact with
water.
Do Not Touch the Hoo Light Bulbs when they are in use. They may be hot enough
to cause injury.
Blower
Blower Variable Speed Contr
Hood Lights
Halogen Light Bulb

Care And Use
13
When cool the appliance can be cleane with hot soapy water, rinse , rie an
buffe to a shine with a soft, heavy pile cloth. Always try this first, as it is the mil est
form of cleaning.
1. Some bran s of cleaners are harsher than others. Rea their instructions.
Try on a small inconspicuous area first.
2. To avoi marring the surface always rub metal finishes in the irection of
the polish lines. The cleaner will be more effective when use in the irec-
tion of the polish lines.
3. Use only clean sponges, soft cloths, paper towels, plastic non-metal soap
pa s for cleaning or scouring, use only soap pa s with soap still in them, a
ry pa can scratch the surface.
4. Be sure to rinse thoroughly an to wipe ry to avoi water marks.
Filters shoul be cleane frequently in a etergent solution an are ishwasher
safe. Empty grease collection tray(s) regularly.
Unplug the Blower Motor before cleaning Ventilator.
Remove filters to access blower motor plug. Vacuum blower to clean.
Do not immerse in water.
Do not allow an excessive accumulation of grease.
Use a mil etergent when cleaning.
Do not use harsh abrasives, steel
wool pa s, or abrasive cloths.
Filters and Grease Trays
Cleaning the exterior Stainless Steel finish:
FILTERS
GREASE TRAY

Cleaning the Grease Tray
Care And Use
14
Location of grease tray
DCS-IVH-36
DCS-IVH-48
Remove filter(s) by gently pulling up an out. The grease trays can easily be reache once
the filters are remove . Grease collection trays are easily accessible at the center beneath
the filter. See illustration below for location.

DCS-I H-48 & DCS-I H-36 Island ent Hood
Wiring Diagram
15

16
Warranty Information
Length of Warranty
One (1) Year Full parts an Labor Covers the entire product
Five (5) Years Limite Switches and motor
All repair labor an parts foun to be efective ue to materials or workmanship for
one full year from ate of purchase. Service must be provi e by an Authorized
Factory Service Agent uring normal working hours.
Installation or start-up
General maintenance
Shipping amage
Service by an unauthorize agency
Damage or repairs ue to service by an unauthorize agency or the use of
unauthorize parts.
Service uring other than normal working hours
Improper installation, such as improper hook-up, etc.
Service visit to teach you how to use the appliance; correct the installation;
reset circuit breakers or replace home fuses
Repairs ue to other than normal househol use.
Damage cause from acci ent, abuse, alteration, misuse, incorrect installation
or installation not in accor ance with local co es
Units installe in non-resi ential application such as ay care centers, be an
breakfast centers, churches, nursing homes, restaurants, hotels, schools, etc.
This warranty applies to vent hoo s use in resi ential applications; it oes
not cover their use in commercial situations.
This warranty is for pro ucts purchase an retaine in the 50 states of the
U.S.A., the District of Columbia an Cana a. This warranty applies even if you
shoul move uring the warranty perio . Shoul the appliance be sol by the
original purchaser uring the warranty perio , the new owner continues to be
protecte until the expiration ate of the original purchaserís warranty perio .
This warranty gives you specific legal rights. You may also have other rights
which vary from state to state.
DCS Will Cover:
DCS Will Not Cover:

How To Obtain Service:
Service
17
For warranty service, contact your local DCS authorize service agency. Be
prepare to provi e the Mo el Number, Serial Number, an ate of installa-
tion, an a brief escription of the problem. If you nee assistance in locating
the authorize service agency in your area please contact the DCS
Consumer Service Department for an authorize service agent near you:
[phone].
Your satisfaction is of the utmost importance to us. If a problem cannot be
resolve to your satisfaction, please write or fax us:
Dynamic Cooking Systems Inc.,
Attention: Consumer Relations,
5800 Skylab Roa , Huntington Beach, CA 92647
Fax us at: [phone].

Litho in USA 8-99
Part No. 10843 rev.2
As pro uct improvement is
an ongoing process at DCS,
we reserve the right to
change specifications or
esign without notice.
Dynamic Cooking Systems, Inc.
5800 Skylab Roa , Huntington Beach, CA. 92647
Tel: [phone] Fax: [phone]
Parts/Customer Service [phone]
