deconta airsampler 15 S User manual

Instruction manual
Air sampling device
airsampler 15 S / 30 S
Manufacturer: deconta GmbH
Im Geer 20, 46419 Isselburg
Description/Type-No.: airsampler 15 S Type 485
airsampler 30 S Type 486
Serial-No.: .................

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 2
Table of contents
on page
1 Introduction 3
2 Basic safety advice 4
3 Transport 5
3.1 Delivery 5
3.2 Transport 5
4 Scope of delivery 5
5 Technical description 6
6 Technical data 7
6.1 Pump power airsampler 15 S 7
6.2 Pump power airsampler 30 S 7
6.3 Technical data 7
7 Initial operation 8
8 Display indications 9
9 Setting / Operation 10
9.1 Possible settings / Code chart 11
10 Optional expansion module 12
10.1 Memory module 12
11 Declaration of conformity 14

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 3
1 Introduction
Dear customer,
Thank you for choosing a deconta product!
With this device you obtain a practical solution with simple operation, which was
completed in a compact and functional way.
The deconta products guarantee:
Stability, long life and serviceability on site
Mechanics with „kick“
Pleasing design
The copyright of this instruction manual remains with deconta. This manual is intended
for assembly, operation and maintenance personnel. It contains instructions and drafts of
technical nature which may neither be distributed nor used in any unauthorised way for
competitive purposes or passed on to others.
For more information, please visit our website www.deconta.com

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 4
2 Basic safety advice
The handling of the appliance technology is only allowed for instructed staff. The exact
knowledge of the instruction manual is an important condition for your staff in regard to
the handling of the machine.
2.1 Intended use
As an operator, you are obliged by deconta to follow the instruction manual and to use
this engineered technology equipment only in accordance with the regulations and its
suitability! In the event of non-observance, deconta assumes no liability.
2.2 Operations
In order to ensure the safety during the operation of the device, you absolutely have to
have to note the following:
Do not place in an explosive area
Necessary repairs, maintenance and cleaning, in particular in the field of electrical
equipment has to be realized only by qualified staff
The safety and protective equipment has to be kept in perfect functioning.
The indicated safety instructions have to be kept in a readable state and have to
be followed.
In order to ensure safety, any changes on the machine are prohibited.
ATTENTION!
The device is not suitable for the use in a condensed, corrosive, flammable and
explosive compartment air. The ambient and medium air temperature must be
situated in a sector from -10 up to+50°C

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 5
3 Transport
3.1. Delivery
Unless agreed otherwise, the lock system is packed completely and securely for
transport by deconta. Transport damages have to be documented at once during the
handing over of the carrier or another supplier. Please note the possible damages
additionally on the way bill. To avoid damages caused by improper handling or
carelessness, it is common practice to handle the Transport with care.
3.2 Transport
In order to protect the device during the transport, it is located in a transport box with
handle.
Care must be taken to ensure the device is not exposed to impacts or blows, because
otherwise the function and safety of the device cannot be guaranteed.
4 Scope of delivery
If no other agreements have been taken, the scope of delivery of an automatic phone
announcement unit consists of:
Device in a case with shoulder strap
Pluggable measuring rod system/insertion adapter
Power cable
Instruction manual

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 6
5 Technical description
The appliance for air sampling air sampler is used to aspirate a defined volume flow
through an air sampling filter. The filters are analysed in a laboratory
The permanent regulation of the volume flow, as well as calibrated sensors and a laminar
element flow constitute the base for precise measurements. Measured are: Volume flow,
temperature, relative humidity, absolute and barometric pressure. The time of
measurement lost through power failure is re-established.
A dry contact enables the connection to an external alert giver or to a mobile phone. The
contact switches according to the adjustment by exceeding of different parameters, by
power failure or at the end of a measurement.
The combination between a simple operation and a high technical standard makes the
airsampler a powerful measuring appliance, which fulfils by far all demands of the air
measurement mobile or stationary.

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 7
6 Technical data
6.1 Pump power airsampler 15 S
6.2 Pump power airsampler 30 S
6.3 Technical data:
Length: 430 mm
Width: 325 mm
Height: 165 mm
Weight: 10,5 kg
Power connection: 230 V
Switched power: Dry contact 230 V / 1,5 A
Measurement connections: Rods with tube 8 x 1 mm
Volume flow 15 S: 2 - 15 l/min
Volume flow 30 S: 4 - 30 l/min
max. negative pressure: 500 mbar
Capacity of memory: via optional module
Operation: LCD- Display, keyboard
Temperature range: 0 – 45 °C
0
5
10
15
20
25
30
35
0 100 200 300 400 500 600 700 800
mbar
l/min
0
5
10
15
20
0 100 200 300 400 500 600 700 800
mbar
l/min

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 8
7 Initial operation
Set up the device
Put together the rods and insert them onto the airsampler port
Connect the monitor
Turn on the device
Now it is ready for use.
Monitor
Measuring rods

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 9
8 Display-Indications
After switching-on the device, 3 pieces of information appear on the upper line of the
display:
Top row left => Device status
Possible status indications (S followed by 3 numbers):
First digit 1 airsampler 15 S
First digit 2 airsampler 30 S
Second digit 2 Memory module present (optional)
Third digit always 0, no function
Top row middle => The actual time
Top row right => Alert status
Possible alert status indications:
First digit 1 always 1, no function
Second digit 0 Device is inactive
Second digit 1 active with timing, lead time in progress
Second digit 2 active with timing, measuring time in progress
Second digit 3 active with timing, measuring time is expired
Second digit 4 active without timing
Third digit 0 no results
Third digit 1 Voltage drop
Third digit 2 Shut down pressure exceeded
Third digit 3 Over temperature
Third digit 4 Minimum pressure fallen short
Underneath the upper row, the measuring values for volume flow, temperature,
humidity and absolute pressure are displayed
Alert statusTime
Device status
Set point
Volume flow
Temperature
Actual value
volume flow
Absolute pressure
Humidity

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 10

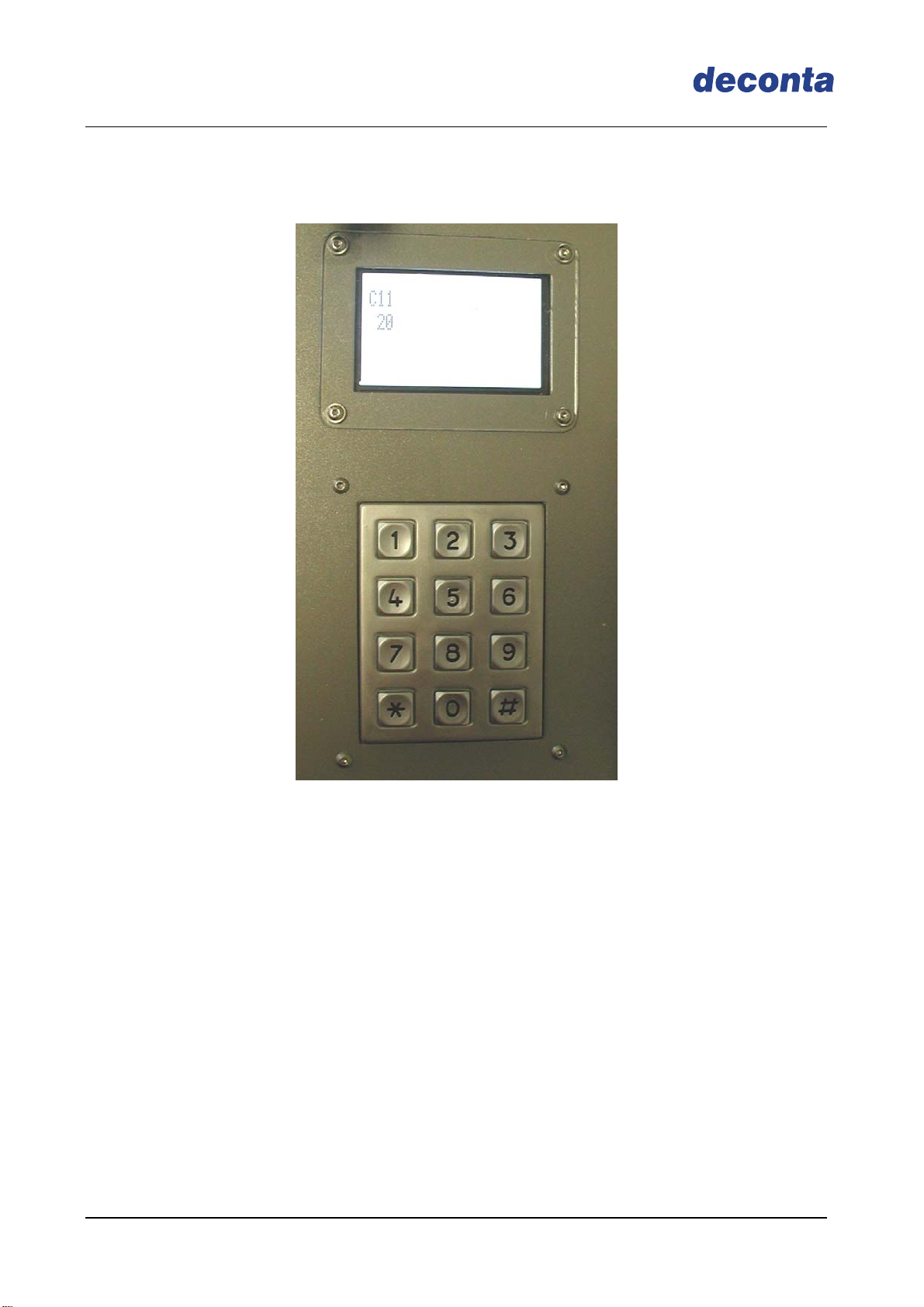

9 Settings / Operation
Adjustments are always carried out according to the same procedure via the keypad:
Push the key # => C will appear on the display
Enter the code for the relevant adjustment (see code chart below)
Push the key # => The actual adjusted value is indicated
Enter a new value
Confirm the entry with the key #

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 11
9.1 Possible adjustments / Code chart
Code Function Value
5 Switch the device active / inactive 0 = inactive 1 = active with timing
2 = active without timing
10 Volume flow 2 – 15 l/min (airsampler 15 S)
4 – 30 l/min (airsampler 30 S)
11 Measuring time 5 to 5760 minutes
12 Lead time (Time-displaced start) 5 to 5760 minutes
20 Shut down pressure 50 to 500 mbar
21 Minimal pressure 0 to 100 mbar
40 Time hours 00 to 23
41 Time minutes 00 to59
42 Date day 00 to 31
43 Date month 01 to 12
44 Date year 00 to 99
51 Storage interval every X minutes 1 to 240 minutes
52 Number of memory records to be transferred to
USB memory stick 0 – 9998
53 Memory delete 0 = cancel
1 = delete

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 12
10 Optional expansion modules
10.1 Measuring data - memory module (From device software version 1.3)
The storage of measuring data (up to 90 000 records) with adjustable storage intervals.
Export as txt file for further processing via USB memory stick. The USB-Stick must be
formatted as FAT or FAT32. When the maximum storage capacity is reached, the
oldest records are overwritten.
The content of the unedited txt file looks like this:
†29.04.10 16:04 0 l/min 0 mbar 25 C 37 % 3840 l 0 min
29.04.10 15:04 8,0 l/min 78 mbar 25 C 37 % 3360 l 60 min
29.04.10 14:04 7,9 l/min 61 mbar 25 C 38 % 2880 l 120 min
29.04.10 13:04 8,0 l/min 56 mbar 25 C 37 % 2400 l 180 min
29.04.10 12:04 8,1 l/min 51 mbar 25 C 37 % 1922 l 240 min
29.04.10 11:04 8,0 l/min 34 mbar 24 C 38 % 1440 l 300 min
29.04.10 10:04 7,9 l/min 26 mbar 23 C 38 % 961 l 360 min
29.04.10 09:04 8,0 l/min 18 mbar 23 C 37 % 482 l 420 min
29.04.10 08:04 A120 C10 8,0 C11 480 C12 0 C20 256 C21 0
29.04.10 07:43 A122
29.04.10 07:43 A120 C10 8,0 C11 480 C12 0 C20 256 C21 0
Measuring duration
remainder
Total volume flow
Humidit
y
Tem
p
erature in °C
Pressure
Volume flow
Time
Date
Measurement com
p
leted, markin
g
b
y
„†“
Measurements settings
(see below 9.1 code table)
Alarm (see below 8
Possible alarm status indicators)

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 13
The file containing the stored data can be edited freely using a text editor.
Example:
Project: Munich
Site management: Mister Smith
Gauge: airsampler 30 S type: 486 series: 87
Measurement period: 29.04.2010 08:04 to 29.04.2010 16:04
Volume flow: 8 l/min
Measurement time: 480 minutes
Lead time: 0 minutes
Cut-off pressure: 256 mbar
Minimum pressure: 0 mbar
†29.04.10 16:04 0 l/min 0 mbar 25 C 37 % 3840 l 0 min
29.04.10 15:04 8,0 l/min 78 mbar 25 C 37 % 3360 l 60 min
29.04.10 14:04 7,9 l/min 61 mbar 25 C 38 % 2880 l 120 min
29.04.10 13:04 8,0 l/min 56 mbar 25 C 37 % 2400 l 180 min
29.04.10 12:04 8,1 l/min 51 mbar 25 C 37 % 1922 l 240 min
29.04.10 11:04 8,0 l/min 34 mbar 24 C 38 % 1440 l 300 min
29.04.10 10:04 7,9 l/min 26 mbar 23 C 38 % 961 l 360 min
29.04.10 09:04 8,0 l/min 18 mbar 23 C 37 % 482 l 420 min
29.04.10 08:04 A120 C10 8,0 C11 480 C12 0 C20 256 C21 0
29.04.10 07:43 A122
29.04.10 07:43 A120 C10 8,0 C11 480 C12 0 C20 256 C21 0

Instruction manual
Air sampling device airsampler 15 / 30 S
Page 14
11 Declaration of conformity
EU Declaration of Conformity
deconta GmbH
Im Geer 20
D-46419 Isselburg
Product: Negative pressure measuring device Type: 485, 486
The design of the units complies with EU Machine directive 98/37/EWG
the following directives: EU Low-voltage directive 2006/95/EG
EU Directive 89/336/EWG
VDI 3492
Applied harmonised standards: EN 60335-1
Applied national standards: DIN VDE 0701, DIN VDE 0702
A.Evers, Development director Isselburg, 09.03.2009
