Burster DIGIFORCE 9310 User manual

DIGIFORCE 9310
PROFIBUS manual
Date 2004-04-28
©
2004
burster
präzisionsmeßtechnik gmbh &
co kg
All rights reserved
Manufacturer:
burster präzisionsmeßtechnik gmbh & co kg
Talstraße 1 - 5 Postfach 1432
76593 Gernsbach 76587 Gernsbach
Note:
The information contained in the following may be changed without prior notification. Reproduction
of any part of this document, or its processing using electronic systems is prohibited without prior
written approval. burster provides no warranty whatsoever for this equipment. This disclaimer also
applies to implied warranty for commercial quality and suitability for a specific purpose. burster is
not liable in any circumstance for faults contained therein, accidental damag
e or consequential
damage in connection with the operation or use of this equipment.

Content
Page 2 Version FELD-V2002.02 PROFIBUS manual
Note:
Exclusion of warranty liability for operating manuals
All information in the present documentation was prepared and compiled with great
care and reproduced subject to effective control measures. No warranty is provided for
freedom from errors. We reserve the right to make technical changes. The present
information as well as the corresponding technical data can change without notice.
Reproduction of any part of this documentation or its processing or revision using
electronic systems is prohibited without the manufacturer's prior written approval.
Components, devices and measured value sensors made by burster
praezisionsmesstechnik (hereinafter referred to as "product") are the results of targeted
development and meticulous research. As of the date of delivery, burster provides a
warranty for the proper condition and functioning of these products covering material
and production defects for the period specified in the warranty document
accompanying the product. However, burster excludes guarantee or warranty
obligations as well as any liability beyond that for consequential damages caused by
improper use of the product, in particular the implied warranty of success in the
market as well as the suitability of the product for a particular purpose. Furthermore,
burster assumes no liability for direct, indirect or incidental damages as well as
consequential or other damages arising from the provision and use of the present
documentation.

User advice and safety instructions User advice and safety instructions
PROFIBUS manual Version FELD-V2002.02 Page 3
1. User advice and safety instructions 5
1.1 Important information 5
1.2 Proper use of the equipment 5
1.3 Notes on equipment configuration and installation 6
1.4 Symbols 6
1.5 Abbreviations 6
2Technical data 7
3Installation 8
3.1 Connection of fieldbus lines 8
3.2 Configuring a PROFIBUS DP system 10
3.3 Configuration menu in DIGIFORCE®type 9310 10
4PROFIBUS 11
4.1 Overview 11
4.2 General information 13
4.3 GSD file 13
4.4 Data conversion 14
4.4.1 Description of the data formats in this manual 14
4.4.2 Handling problems that arise when reading floating-point numbers 14
5. PROFIBUS DP data protocol 15
5.1 Transfer from master to slave 15
5.2 Message structure / Transfer from slave to master 16
5.3 Meaning of the contents of the different protocol modes 17
5.4 Message structure / data break-down 18
5.5 Byte reference list 19
5.5.1 Mode 1 (PLC-Out) 19
5.5.2 Mode 2 (PLC-Out, min. general curve data) 19
5.5.3 Mode 3 (PLC-Out, full general curve data) 20
5.5.4 Mode 4 (PLC-Out, Window 1 E/E) 22
5.5.5 Mode 5 (PLC-Out, Full general curve data, Window 1 E/E) 23
5.5.6 Mode 6 (PLC-Out, Windows 1-2 E/E) 25
5.5.7 Mode 7 (PLC-Out, Full general curve data, Windows 1-2 E/E) 26
5.5.8 Mode 8 (PLC-Out, Windows 1-3 E/E) 28
5.5.9 Mode 9 (PLC-Out, Full general curve data, Windows 1-3 E/E) 30
6. Glossary 33
7. Appendix A: Representation of floating-point values 36
8. Appendix B: Byte sequence of float values 40

Content
Page 4 Version FELD-V2002.02 PROFIBUS manual

User advice and safety instructions
PROFIBUS manual Version FELD-V2002.02 Page 5
1. User advice and safety instructions
1.1 Important information
It is essential that you read this chapter to ensure safe handling of electrical
equipment.
This operating manual contains important information for proper use of our
equipment with the PROFIBUS. It has been written for personnel who are
qualified and trained in the handling of electrical equipment.
Qualified and trained personnel are people who satisfy at least one of the
following three requirements:
•You are familiar with the safety designs used in automation
engineering, and understand how to deal with them in your capacity
as configuration engineer.
•You are an operator of automation systems and have been instructed
in how to handle the system. You are familiar with the operation of
the equipment described in this documentation.
•You are a commissioning or service engineer and have successfully
completed a training course qualifying you to repair automation
systems. In addition you are authorized to commission, ground and
label circuits and equipment in accordance with safety engineering
standards.
1.2 Proper use of the equipment
The equipment described in this manual must only be used for the
applications intended in this manual.
burster equipment is supplied from the factory with a permanent hardware
and software configuration. Changes can only be made according to the
options documented in the manuals. Any other changes to the hardware or
software, or improper use, exempt the burster company from the warranty
and liability. Please contact our sales office if you require a modified or new
hardware or software configuration.
Proper transportation, storage, installation and assembly plus careful
operation and maintenance are essential for trouble-free and safe operation of
the equipment.

User advice and safety instructions
Page 6 Version FELD-V2002.02 PROFIBUS manual
1.3 Notes on equipment configuration and installation
Always observe the current safety and accident prevention regulations when
commissioning the equipment.
Install the power, signal and sensor cables so as to prevent electromagnetic
interference from impairing operation of the equipment.
Install automation engineering equipment and installations with sufficient
protection against accidental actuation.
Take suitable precautions in both the hardware and software to prevent any
undefined states of the automation installation in the event of an open circuit.
In installations where major damage to property or even personal injury may
be caused by a malfunction, take suitable precautions to establish a safe
operating state in the event of a fault. This may be achieved using limit
switches, mechanical interlocks etc. for example.
1.4 Symbols
CAUTION:
This information must be observed to prevent damage to the equipment.
WARNING:
Indicates basic conditions that must be observed for fault-free operation.
ESD (Electrostatic Discharge)
Warning that components are at risk from electrostatic discharge. Take
precautionary measures when handling components at risk from electrostatic
discharge.
Note
Routines or advice for efficient use of the equipment and software
optimization.
i
Further information
References to additional literature, manuals, data sheets and Internet pages.
1.5 Abbreviations
BF Bus error
DGND Data transfer potential (reference potential to VP)
GSD Device description data
PNO PROFIBUS user organization
RTS Request To Send
RxD/TxD-N Receive/Transmit Data -N, A-line
RxD/TxD-P Receive/Transmit Data -P, B-line
VP Positive supply voltage (+5 V) for the terminating resistors

Technical data
PROFIBUS manual Version FELD-V2002.02 Page 7
2 Technical data
PROFIBUS DP system data
Number of devices or modules 126 with repeaters
Transmission medium Cu cable to EN 50 170
Max. bus segment length 100 m to 1200 m (dependent on baud
rate/cable)
Data transfer rates 9.6 kbaud to 12 Mbaud (dependent on
cable)
Type 9310 device data
Supported transfer rates 9.6 kbit/s 187.5 kbit/s 3000 kbit/s
19.2 kbit/s 500 kbit/s 6000 kbit/s
93.75 kbit/s 1500 kbit/s 12,000 kbit/s
Bus connector 9 pin SUB-D socket (female)
ID number 06E5 Hex
GSD file BUR_06E5.gsd
Address range 0 to 126
Electrical safety
Reverse voltage protection Yes
Air clearance/leakage paths To DIN EN 61131-2 and DIN EN 50178
Overvoltage category II,
Pollution degree 2
Electrical isolation Between fieldbus and internal electronics
Withstand voltage DC 500 V
Electromagnetic compatibility
(see also the operating manual for DIGIFORCE®type 9310)
Interference immunity to EN50082-2 : 1995
EN 61000-4-2 4 kV/8 kV (2/4) B
EN 61000-4-3 10 V/m 80 % AM (3) A
EN 61000-4-4 2 kV (3/4) A
EN 61000-4-6 10 V/m 80 % AM (3) A
Emitted interference to EN50081-2 : 1994
EN 55011 30 dBµV/m (30 m)
37 dBµV/m
Notes on CE labeling
burster equipment carrying the CE mark meets the requirements of the EU
directives and the harmonized European standards (EN) cited therein.
The EU declarations of conformity are available to the relevant authorities as
specified in the directives. A copy of the declaration of conformity is
included in the relevant equipment documentation.

Installation
Page 8 Version FELD-V2002.02 PROFIBUS manual
3 Installation
3.1 Connection of fieldbus lines
burster devices with a PROFIBUS option have a 9-pin SUB-D female
connector for the fieldbus
connection
5 DGND
(CNTR-N) NC* 9 4 NC* (CNTR-P)
RxD/TxD-N RTS 8 3 RxD/TxD-P
(P24) NC* 7 2 NC *(M24)
(Us terminating resistor) VP 6 1 shield
Fig. 8.1: Connector pin
assignment
* NC = not connected
3.1.1 Installation of fieldbus lines
For the PROFIBUS employing RS 485 transmission technology, all devices
are connected in a line structure. The bus line is a shielded twisted pair cable.
The fieldbus line is specified in EN 50 170 as cable type A and must comply
with specific cable parameters. Cable type B also specified in EN 50 170 is
obsolete and should no longer be used.
Parameter value
Characteristic impedance in Ω135 to 165 for 3 to 30 Mhz
Effective capacitance < 30 pF/m
Loop impedance (Ω/km) < 110
Wire diameter (mm) *) >0.64
Wire cross-section (mm2) *) >0.34
*) the wire cross-sections used must be suitable for the connection options on
the bus connector.
For cable type A, the maximum cable lengths for a bus segment depend on
the transfer rate.
Transfer rate Max. bus segment length
9.6 ... 93.75 kbaud 1200 m
187.5 kbaud 1000 m
500 kbaud 400 m
1500 kbaud 200 m
3000 / 6000 / 12000 kbaud 100 m

Installation
PROFIBUS manual Version FELD-V2002.02 Page 9
Commercially available connectors allow the incoming data cable to be
connected directly to the outgoing data cable in the connector. This avoids
stubs, and the bus connector can be connected to the bus or disconnected
from the bus at any time without interrupting data traffic. These connectors
include a bus termination that can be switched in or out. To avoid line
reflections, connectors containing integral series inductors should be used to
compensate for the capacitive load of the station. This is essential for transfer
rates > 1.5 Mbaud.
9-pin SUB-D
connector
Additional
fieldbus stations
9-pin SUB-D
connector
Wiring of bus lines with bus termination
Note
Take care not to swap over the data lines when connecting the stations.
Always install the bus termination at the start and end of the bus line. The
bus termination uses the supply voltage VP from the device, so ensure that
the voltage supply to the slave device on which the bus termination is
installed is always on.
Since the connectors contain built-in series inductors, avoid fitting connectors
that are not connected to field devices, because the non-existent device
capacitance may cause transmission errors.
It is essential to use a shielded PROFIBUS cable in order to achieve high
system immunity to radiated electromagnetic interference. As far as possible,
the shield should be connected at both ends to the protective ground via large-
area shielding clamps providing good conducting contact. In addition, ensure
that the cable is positioned as far as possible from all power cables. At data
rates >1.5 Mbit/s, stubs must be avoided at all costs.
An equipotential bonding conductor must be installed to reduce potential
differences introduced by different network input points from different parts
of the system.

Installation
Page 10 Version FELD-V2002.02 PROFIBUS manual
3.2 Configuring a PROFIBUS DP system
3.3 Configuration menu in DIGIFORCE®type 9310
Key [Enter] Display
Initial display “MEASUREMENT”
MINIMUM SETUP MENU
CONFIGURATION
GENERAL SETTINGS
PROFIBUS
or
num.
keys
ADDRESS 002
WATCHDOG OFF
CONTROLLER PROFIBUS
DATA MODE 9
BAUD RATE
1.5 MBAUD
VERSION 200201
001 to 126
ON – OFF*
PLC -PROFIBUS
1 - 9
9.6 kB - 12 MB
* Internal watchdog The communications processor monitors the
measurement processor and forwards the status to the PROFIBUS in the event
of a fault (see page <17>)

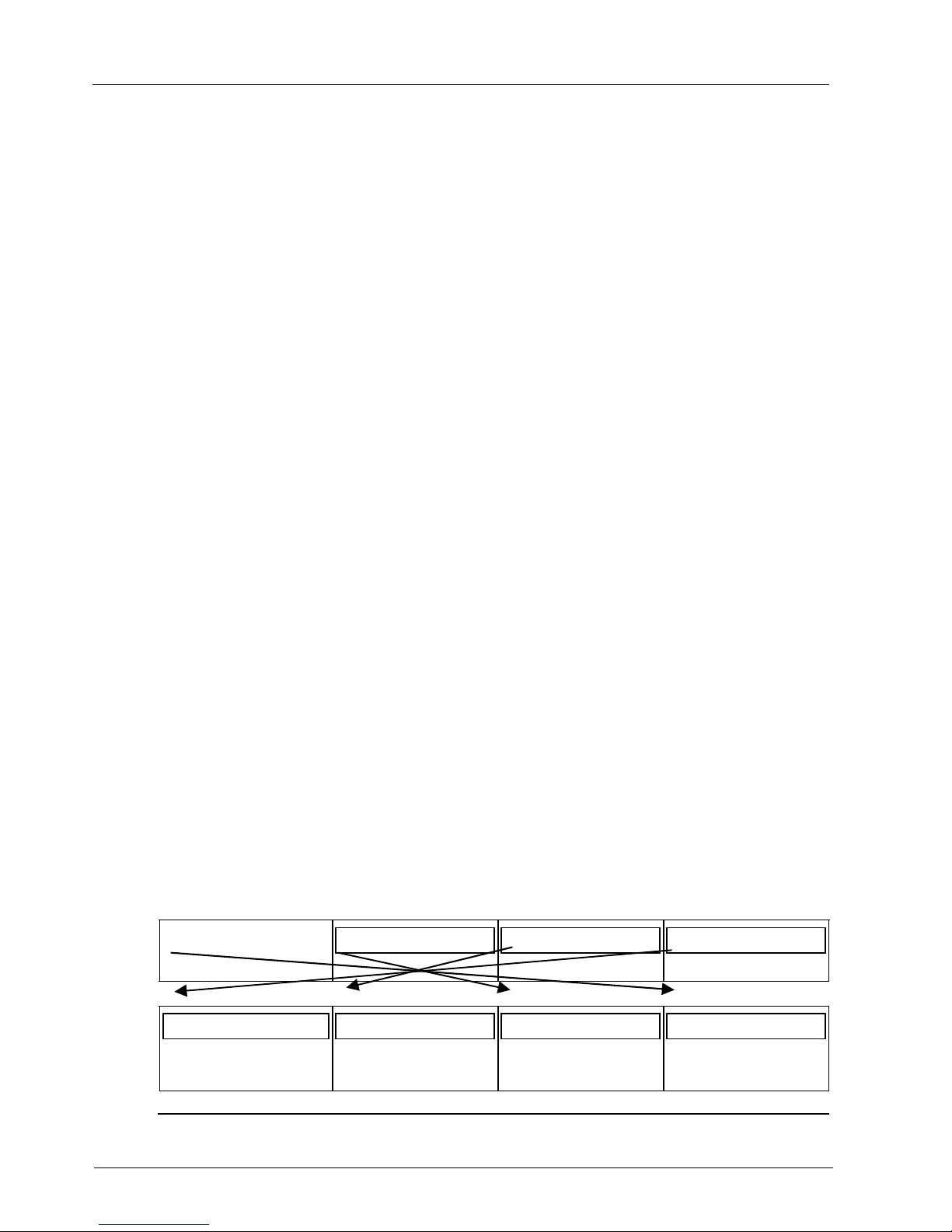

System configuration
Device master data files
GSD files
Field
device
Drive I/O
module
Field
device
DIGIFO
RCE93
10
DIGIFO
RCE93
06
PROFIBUS
configurator
PLC
PROFIBUS-DP
