deconta C 130 L User manual

Instruction manual
Water treatment boiler system
C 130 L
Manufacturer: deconta GmbH
Im Geer 20, D - 46419 Isselburg
Description Water treatment system C 130 L Type 546, 547
Serial-No.: ..........

Instruction manual
Water treatment boiler system C 130 L
page 2
Table of contents
on page
1 Basic safety advice 3
2 Transport and storage 4
2.1 Delivery 4
2.2 Transport 4
2.3 Storage 4
3 Volume of delivery 5
4 Technical description 5
4.1 Intended use 5
4.2 Unit description 5
5 Technical data 6
6 Initial operation 7
6.1 Version with one Sewage pump 7
6.2 Version with two sewage pumps for 2nd shower 9
7 Maintenance and care 11
7.1 Daily maintenance 11
7.2 Filter change 11
7.3 Reduction of legionella growth 12
8 Circuit diagram 13
8.1 Version with one sewage pump 13
8.2 Version with two sewage pumps 14
9 Declaration of conformity 15

Instruction manual
Water treatment boiler system C 130 L
page 3
The copyright of this instruction manual remains with deconta. This manual is intended for assembly,
operation and maintenance personnel. It contains instructions and drafts of technical nature which may
neither be distributed or used in any unauthorised way for competitive purposes nor passed on to others.
1 Basic safety advice
The handling of the appliance technology is only allowed for instructed staff. The
exact knowledge of this manual is an important condition for the staff before
handling the machine.
Please keep the instruction manual close to hand and available for everybody.
As an operator, you are obliged by deconta to follow the instruction manual and to use
this engineered technology equipment only in accordance with the regulations and its
suitability! In the event of non-observance, deconta assumes no liability.
To ensure safety during operation of the unit, the following must be strictly observed:
Do not use in potentially explosive areas.
Necessary repairs and maintenance may only be performed by authorized staff.
For all repair and maintenance work, the device is to be completely disconnected
from power supply
The safety and protective equipment is to be kept in perfect function.
Attached safety guidelines are to be kept in a readable state and are to be
followed.
Generally applicable legal and other binding regulations for accident prevention
and handling of hazardous substances must be observed.
To ensure safety, any changes on the machine are prohibited.
ATTENTION!
The Waste water filtration unit is not suitable for the use in condensed, corrosive,
flammable and explosive compartment air. The ambient and medium temperature
must be between +5 and +50°C.
We make explicit reference to the additional regional and national safety policies
and regulations in the operation of the equipment technology.

Instruction manual
Water treatment boiler system C 130 L
page 4
2 Transport and storage
2.1 Delivery
If no other agreements have been made, the unit is packed safely and will be delivered
ex work. Transport damages have to be immediately documented by the carrier or
another supplier. Please also note the possible damages on the way bill.
2.2 Transport
The Transport is to be proceeded with care to avoid damages by improper handling or
carelessness.
It is important to avoid exposure to violent shocks, otherwise the function and safety of
the unit cannot be guaranteed. In winter and at risk of frost, the whole unit (Pump, filter
housing and tank) needs to be emptied before transport.
Attention: Transport of unit (also relocation) only when empty.
2.3 Storage
In order to avoid damages, the installation has to be kept in a dry area with no access for
unauthorized persons.
Because of risk of frost in winter it is important to observe the following:
Empty water hoses, filter housing, tank and pumps
Place Water Management in a frost-protected area
Advice for the draining of the tank:
Beware: The Water temperature of the tank may be up to 80°C. To avoid scalding, we
strongly recommend to allow the boiler to cool before emptying. To drain remove cap
“empty tank“ and open valve.
Cap
Em
p
t
y
tank
„
OUT“
Valve

Instruction manual
Water treatment boiler system C 130 L
page 5
3 Volume of delivery
If no other agreements have been made, the scope of delivery of the water management
unit consists of:
Water Management System
Filter
Instruction manual
Return delivery after termination of rental period
We have to insist on following conditions for the return delivery in order to protect our
clients and in accordance with the rules for hazardous materials transportation:
As listed above
Well cleaned (ready for use)
Without binder remains
Without damages
Without filter
4 Technical description
4.1 Intended use
During asbestos sanitation works within closed rooms, you have to exclude that the
asbestos fibres leave the sanitation area uncontrolled and endanger the human health
and the environment. For this reason, personnel must leave the sanitation area through a
lock system and take a shower while leaving.
The deconta water treatment heats up the shower water and takes over the filtering of
the contaminated sewage water.
4.2 Unit description
Water filling can be managed manually through a filling opening (with bucket) or
automatically with a permanently connected clean hose. Inside the powder coated device
is the water tank (Volume 130 Litres),with an immersion heater, 2 pumps (shower and
sewage water pump) as well as a 3 stage waste water filtration unit are installed within
the device The filling-in depending on the temperature (step by step), water temperature
selected freely up to + 80° C.

Instruction manual
Water treatment boiler system C 130 L
page 6
5 Technical data
Volume Service Water: 130 Litre
Tank filling: automatic or manual via filling opening
Heat output: 3000 W
Filter stages: 3
Filter sizes: 10“
Power outlet: 230 V
Power consumption: 13 A
Water connections: System Geka
Dimensions (L x W x H): 709 x 700 x 1115 mm
Weight: 89 kg
technical changes reserved

Instruction manual
Water treatment boiler system C 130 L
page 7
6 Initial operation
Before the initial operation of the waste water pump or after a long period of stagnation,
check that the shaft rotates freely when turned by hand. To check this put a screwdriver
in the notch of the shaft end on the fan side and move the shaft. The strong initial
rotational resistance of the new pumps will come loose after running.
Safety instructions:
During works on the device always disconnect the plug!
Operate the device only with mains which are secured with fault current protection
switch!
Never operate the device without water! In case of frost risk, empty the device by
opening the stopcock!
Check outlet temperature before every shower!
CAUTION! Danger of scalding
6.1 Version with one sewage pump
Shower water
Sewa
g
e OUT Sewage IN
Water inlet

Instruction manual
Water treatment boiler system C 130 L
page 8
Unplug unit
Connect hoses:
oOptionally connect „water inlet“ with pipeline system or fill tank via filling
opening by hand
oConnect „warm water shower water“ with shower roof
oConnect „Sewage IN“ with shower floor
oConnect „Sewage OUT“ with sewerage
Fill sewage pump with water
Fill filter housing of 220µ filter with water
Tighten cap nut of filter housing hand-tight
Connect to power
Set temperature of thermostat (red pointer) to max. 40°C. The temperature can be
checked on the temperature gauge (black pointer).
Turn Switch automatic operation to „1“.
The unit is now ready-to-operate
In operation mode condensation water may emerge from „overflow“. Do not close
overflow. If water drips, put a bucket underneath.
Thermostat
Control lamp tank empty
Control lamp heating
Button sewage pump start
Control lamp filling
Switch automatic operation

Instruction manual
Water treatment boiler system C 130 L
page 9
6.2 Version with 2nd sewage pump for 2nd shower
Unplug
Establish hose connections:
oOptionally connect „water inlet“ with mains system or fill tank manually via
filling
oConnect „Warm water Shower 1“ with shower roof
oConnect „Cold water shower 1“ with cold water connection of shower roof (if
present)
oConnect „Warm water Shower 2“ with shower roof
oConnect „Cold water Shower 2“ with cold water connection of shower roof
(if present)
oConnect „Sewage IN 1“ with shower floor
oConnect „Sewage IN 2“ with shower floor
oConnect „Sewage OUT 1“ with sewerage
oConnect „Sewage OUT 2“ with sewerage
Fill waste water pump with water
Fill Filter housing of 220µ Filter with water
Fasten cap nut of filter housing hand tight
Connect to power
Sewa
g
e OUT Sewage IN 1
Sewage IN 2
Cold water
Shower 1
Warm water
Shower 1
Cold water
Shower 2
Warm water
Shower 2
Water inlet

Instruction manual
Water treatment boiler system C 130 L
page 10
Set temperature of thermostat (red pointer) to max. 40°C. The temperature can be
controlled on the temperature gauge (black pointer).
Switch automatic operation to „Pump 1“ (if only one sewage pump is in use) or
„Pump 1 + 2“ (if both pumps are in use).
the unit is now ready-to-operate
In operating status condensation water may leak out of “overflow“. Please do not
close overlow. If it drips, put a bucket underneath.
Thermostat
Control lamp tank empty
Control lamp heating
Button sewage pump Start
Control lamp filling
Switch automatic operation

Instruction manual
Water treatment boiler system C 130 L
page 11
7 Maintenance and care
7.1 Daily maintenance
Check hoses for free flow
Visual check of 220µ-Pre filter for dirt
Control of fine filter via manometer
7.2 Filter change
The Manometer controls the fine filter. We recommend a filter change at approx. 3bar.
Attention:
Change Filter only when device is switched off
Demount dirty filters only in wet state to avoid contamination
Use approved filters only
Do not use damaged filter cartridges
Filter head screw
Manometer filter control
Cap nut

Instruction manual
Water treatment boiler system C 130 L
page 12
Filter change:
Loosen cap nut with help of filter head screw
Remove filter and dispose of it
Insert new filter cartridges
Pay attention to correct fit and cleanliness of the seal ring
Tighten cap nut by hand
The suction hoses, pumps, filter housings and filter are contaminated after the first
use. Repairs and maintenance must only be executed under the observance of all
relevant safety measures. All the filters mentioned have to be disposed of
according to the respective legal terms.
7.3 Reduction of legionella growth
To avoid excessive legionella growth, we recommend to heat the water in the tank to a
temperature around >60°C once or twice a week.
To clean the hoses and the shower, the heated water should also be removed from the
shower for about 3 minutes.
Caution risk of scalding!
Alternatively, an approved disinfectants can also be used.

Instruction manual
Water treatment boiler system C 130 L
page 13

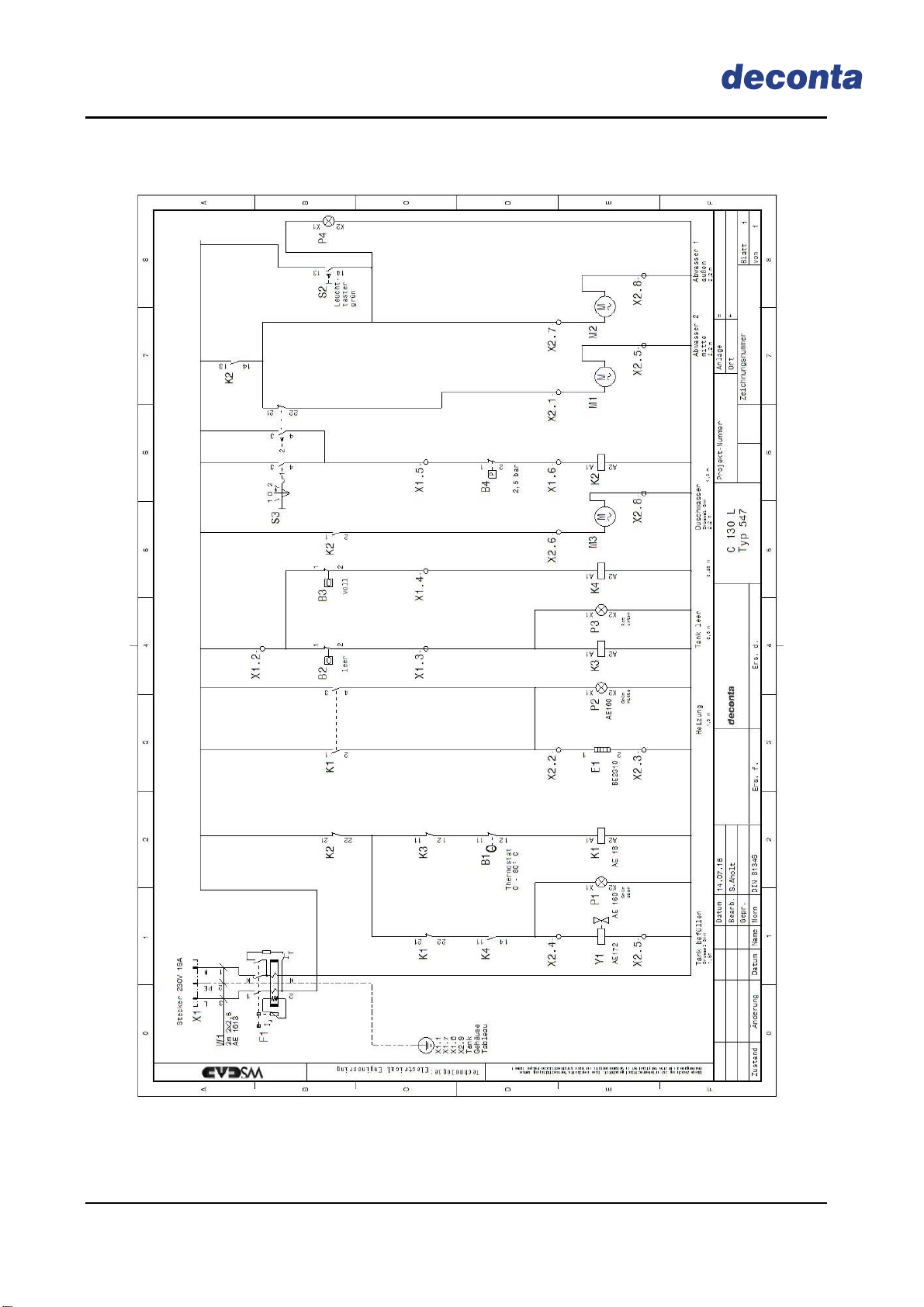

8 Circuit diagram
8.1 Version with one sewage pump

Instruction manual
Water treatment boiler system C 130 L
page 14
8.2 Version with two sewage pumps

Instruction manual
Water treatment boiler system C 130 L
page 15
9 Declaration of conformity
EU- Declaration of conformity
deconta GmbH
Im Geer 20
D-46419 Isselburg
Product: Water management C 130 L Type: 546, 547
The design of the unit complies with EU- Machine directive 2006/42/EG
the following directives: EU- Low voltage directive 2006/95/EG
Applied harmonised standards: EN 292, EN 60335-1
Applied national standards: DIN VDE 0701, DIN VDE 0702
W.Weßling Isselburg, 24.06.2015
