Clear Comfort CCW100 Instruction manual

Installation, Operations & Maintenance
Manual
For further assistance contact us:
303.872.4477
[e-mail]
clearcomfort.com
IMPORTANT SAFETY INSTRUCTIONS
Clear Comfort Residential
Pool & Spa Sanitation System

For the latest version, please visit:
clearcomfort.com/residential-manual
MADE IN USA © 2019 Clear Comfort. All Rights Reserved.

Clear Comfort Residential Pool & Spa Sanitation System
Installation, Operations and Maintenance
TABLE OF CONTENTS
Warranty ................................................................................. 2
General Information ................................................................ 3
Important Safety Instructions ................................................ 3
Electrical Safety ..................................................................... 4
Grounding ............................................................................. 4
General Safety ....................................................................... 4
System Description for Standard Clear Comfort Systems ....... 5
Key Features .......................................................................... 5
Operating Ranges and Technical Specications .................... 5
Light Functionality .................................................................. 6
Installing the Clear Comfort System ........................................ 7
Clear Comfort Standard Installation Kit ................................. 7
Recommended Materials & Tools .......................................... 7
System Installation ...........................................................8
Electrical Installation - General .............................................. 8
Electrical Installation - Directly to Pump Circuit .....................9
Electrical Installation - Wall Outlet ......................................... 9
Cartridge Connection ...........................................................10
Installing the Clear Comfort Injection Assembly ..................... 11
Installing the U-Bypass Injection ......................................... 11
Suggested Minimum Parts .................................................. 12
Connecting Clear Comfort System To Venturi Injection ...... 12
Airow Meter ....................................................................... 14
Operating Instructions ......................................................... 15
Full System Integration Diagrams .......................................... 16
Automatic Chlorine Feeder Diagram ................................... 16
Inline Chlorine Feeder Diagram ........................................... 16
Ofine Chlorine Feeder Diagram ......................................... 17
Salt Water Chlorine Generator Diagram .............................. 17
UV System Diagram ............................................................. 18
System Maintenance .............................................................. 19
Cartridge Replacement ........................................................ 19
Frequently Asked Questions ...................................................21
Wiring .....................................................................................22
Appendix ............................................................................... 23
Head Loss ............................................................................. 23
Oxygen Concentrator Installation ........................................ 23
303.872.4477 [e-mail] clearcomfort.com

303.872.4477 [e-mail] clearcomfort.com
Clear Comfort warrants all Equipment
to be free from defects in material
or workmanship under normal use
and service. Clear Comfort, LLC at
its discretion may repair or replace
the Equipment or parts thereof. The
Company’s warranty does not cover
any Equipment that has been altered or
changed in any way by any person not
authorized by Clear Comfort, LLC.
THIS CONSTITUTES THE SOLE
WARRANTY MADE BY CLEAR
COMFORT, LLC EITHER EXPRESSED
OR IMPLIED. THERE ARE NO OTHER
WARRANTIES EXPRESSED OR
IMPLIED WHICH EXTEND BEYOND
THE FACE HEREOF, INCLUDING
THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. IN NO
EVENT WILL CLEAR COMFORT, LLC
BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES AND
CUSTOMER’S REMEDIES ARE LIMITED
TO REPAIR OR REPLACEMENT
OF NONCONFORMING CLEAR
COMFORT SYSTEMS OR PARTS.
This equipment was inspected before
shipment from our plant. To original
purchasers of this equipment, Clear
Comfort Water LLC(“Clear Comfort”),
warrants its Clear Comfort Systems
to be free from defects in materials
and workmanship for a period of FIVE
(5) years from the date of purchase.
Replacement Cartridges and cylinders
are warranted for a period of ONE (1)
year from the date of purchase.
Parts which fail or become defective
during the warranty period, except
as a result of freezing, negligence,
improper installation, use, or care, shall
be repaired or replaced, at our option,
without charge, within 90 days of the
receipt of defective product, barring
unforeseen delays.
To obtain warranty replacements or
repair, defective components or parts
should be returned, transportation
paid, to the place of purchase, or to
the nearest authorized Clear Comfort
service center. For further Clear
Comfort dealer or service center
information, contact Clear Comfort
customer service department.
Clear Comfort shall not be responsible
for cartridge, removal and/or re-
installation labor or any other such
costs incurred in obtaining warranty
replacements.
The Clear Comfort Products warranty
does not apply to components
manufactured by others. For such
products, the warranty established by
the respective manufacturer will apply.
This warranty shall be voided if at any
time: (i) Customer attempts to make
any internal changes to any of the
components of the Equipment; (ii)
the power supplied to any part of the
Equipment exceeds the Equipment’s
operating parameters; (iii) any external
device attached by Customer creates
conditions exceeding the Equipment’s
operating parameters; (iv) the
Equipment is tampered with; or (v) the
serial number is covered, removed or
defaced. Clear Comfort, LLC reserves
the right to seek damages if its system
is tampered with, reverse engineered,
or if Customer takes any other actions
to interfere with the operation or
integrity of the Clear Comfort system
To activate & validate your warranty, you
must submit your warranty card or ll
out our warranty form on clearcomfort.
com/warranty within 1 year of your ship
date from Clear Comfort.
CONTACT INFORMATION:
Tel: [phone]
Operations: [email protected]
clearcomfort.com
WARRANTY
2

303.872.4477 [e-mail] clearcomfort.com
GENERAL INFORMATION
3
IMPORTANT SAFETY INSTRUCTIONS
1. READ AND FOLLOW ALL
INSTRUCTIONS.
2. For cord connected/convertible
units: DANGER – Risk of injury.
A. Replace damaged cord
immediately.
B. Do not bury cord.
C. Connect to a grounding
type receptacle only.
3. For all permanently connected
units intended for use on 15 or 20
ampere, 125V or 230V, single phase
branch circuits: WARNING – Risk
of Electric Shock. Connect only to a
branch
circuit protected by a ground-fault
circuit-interrupter (GFCI). Contact
a qualied electrician if you cannot
verify that the circuit is protected by
a GFCI.
4. For all cord connected units
other than storable pool pumps:
WARNING – Risk of Electric Shock.
Connect only to a grounding type
receptacle protected by a ground-
fault circuit interrupter
(GFCI). Contact a qualied electrician
if you cannot verify that the
receptacle is protected by a GFCI.
5. For all permanently connected
units: WARNING – Risk of Electric
Shock. Connect only to a branch
circuit protected by a ground-fault
circuit-interrupter (GFCI). Contact
a qualied electrician if you cannot
verify that the receptacle is protected
by a GFCI.
6. For units intended for above-
ground storable swimming
pools: Do not bury cord. Locate
cord to minimize abuse from lawn
mowers, hedge trimmers, and other
equipment.
7. For all cord and plug connected
units: WARNING – To reduce the risk
of electric shock, replace damaged
cord immediately.
8. For units intended for above
ground storable swimming pools:
WARNING – To reduce the risk of
electric shock, do not use extension
cord to connect unit to electric
supply; provide a properly located
outlet.
9. CAUTION: At low or no ow
conditions, gas may accumulate
– ensure system is off when
backwashing or when water is not
being treated to prevent an unsafe
gas buildup. Pressure switches, ow
switches and other safety equipment
to prevent unsafe gas buildup is
recommended.
10. When the modied air is
introduced into the pool or spa
water via the existing plumbing,
the biocide is produced. Some
of the remaining activated atoms
either keep minerals dissolved in the
water or remove minerals that were
previously deposited.
11. This unit is to be installed in
accordance with the installation
instructions, the applicable plumbing
and building codes, the applicable
state and local laws and regulations,
and the requirements of the Authority
Having Jurisdiction.
12. When installing and using this
equipment, basic safety precautions
should always be followed including
the following.
13. WARNING - To reduce the risk of
injury, do not permit children to use
this product unless they are closely
supervised at all times.
14. WARNING - Do not sit or stand
on unit.
15. SAVE THESE INSTRUCTIONS.

303.872.4477 [e-mail] clearcomfort.com
GENERAL INFORMATION
ELECTRICAL SAFETY
• Do not service the machine
when the power is ON.
• The power supply wire gauge
and insulation must meet
the temperature and power
requirements.
• To avoid personal injury never
touch exposed electrical
connections or components
while the power is ON.
• Do not install/service the Clear
Comfort system if you or the
machine is standing in water
with the power ON.
• Protect the power cord from
being walked on or pinched,
particularly at plugs and the
point where they exit from the
system.
• The device must be properly
connected to the correct power
source (either 60Hz 120V or
230V) using the supplied power
cord in accordance with the
local electrical code. If possible
the unit should be hardwired to
the pump circuit and controlled
by the pump circuit (rather than
hardwiring, an appropriate 120V
or 230V receptacle outlet and
plug may be used to connect to
the pump controlled circuit).If
the unit is being wired to
standalone AC power (i.e., not
through the pump circuit on
either 120V or 230V) it should
be installed with its own timer
circuit and plugged in through
a Ground Fault Circuit Interrupt
(GFCI) and the timer should be
set to reect the pool or tub’s
hours of operation. Regardless
if hardwired or standalone
connected, the electrical
connection must be made
in accordance with the local
electrical code.
GROUNDING
The Clear Comfort, LLC system
must be properly grounded. An
electrical ground connection to a
reliable earth ground is essential for
safe operation. Without an electrical
ground, all accessible conductive
components (including knobs and
controls that appear insulated) can
render an electrical shock.
GENERAL SAFETY
Use personal protective equipment
(steel toe shoes, hearing protection,
eye protection) when installing the
Clear Comfort system. Follow ladder
safety requirements.
4

303.872.4477 [e-mail] clearcomfort.com
KEY FEATURES
This manual describes how to install, operate and maintain the standard
Clear Comfort system. The installation takes only a few hours and can
be installed with little or no disruption to a facility’s recirculation or
electrical systems. The Clear Comfort system immediately starts to work
on a facility of any size, replaces the need to add toxic chemicals in most
operating situations and replaces the need for a day-to-day residual
sanitizer. The pool or spa water still needs to be tested, as would be done
with a traditional chemical system.
OPERATING RANGES
Power: 120V or 230V receptacle with approximately 10 watts.
Ballast: 120V or 230V
Electrical Requirements: 120V, 60Hz
Electrical Rating: 120V, 60Hz, 1.0Amp or 230V, 60Hz, 0.5Amp
NOTE: CLEAR COMFORT SHOULD ONLY RUN WHEN THE PUMP IS
OPERATING
5
SYSTEM DESCRIPTION FOR STANDARD
CLEAR COMFORT SYSTEMS

303.872.4477 [e-mail] clearcomfort.com
SYSTEM DESCRIPTION FOR STANDARD
CLEAR COMFORT SYSTEMS
6
LIGHT FUNCTIONALITY
Green Light: System is on and operating properly.
Yellow Light: Cartridge has reached 80 percent of its life expectancy
(8,000 hours) and it’s time to purchase a replacement cartridge.
Red Light: Cartridge has reached its life expectancy and needs to be
replaced.
Blue Light: Operation light that should always be illuminated.
FRONT VIEW
Red LED
Yellow LED
Green LED
System Power
Switch
Control Unit Cartridge Unit
Figure 1: System Functions
Blue LED

303.872.4477 [e-mail] clearcomfort.com
Prior to installation, a site survey should be performed to validate that
the correct system parameters are in place and ready for installation. We
recommend that you maintain compliance within the following operating
ranges for well constructed and circulated pools.
• Pool volume: Up to 40,000 gallons.
• Type of pool/spa lter: Any ANSI 50 approved ltration.
• Type of pump: Variable speed pump is highly recommended.
• Voltage of power supply: 120V or 230V AC.
• Maximum distance from injection point: Air tubing length should
be as short as possible with no more than 10 feet from the system
to the venturi injector.
• Indoors or outdoors: Either is suitable. Install away from upward
facing sprinklers is recommended.
• Water quality at installation: The water quality should be
balanced prior to installing the Clear Comfort system.
CLEAR COMFORT STANDARD INSTALLATION KIT
1. Venturi
2. Air Check Valve
3. 10’ Tubing
4. 12” Conduit Tubing
5. Flow Meter & Barbed Connector
6. Outlet Box & Lid
7. Conduit Connector
RECOMMENDED MATERIALS AND TOOLS
1. A power drill and proper hardware for mounting the Clear
Comfort system.
2. Proper plumbing materials and tools for venturi injector
installation. See page 12 for detailed parts list.
7
INSTALLING THE CLEAR COMFORT
SYSTEM

303.872.4477 [e-mail] clearcomfort.com 8
INSTALLING THE CLEAR COMFORT
SYSTEM
SYSTEM INSTALLATION
1. Determine the best location to mount the Clear Comfort system.
Screw in the top mounting bracket rst, and then the bottom
mounting bracket of the Control Unit (orange unit). Mount the
Cartridge Unit (blue unit) by securely fastening the Cartridge Unit
to the Control Unit using side keyed brackets, and screw in the top
mounting bracket rst, and then the bottom mounting bracket.
2. System must be installed no more than 10 feet from injection
location.
3. Where possible, ensure system location is at least one (1) foot above
the water line of pool/spa and venturi injection site.
ELECTRICAL INSTALLATION - GENERAL
1. Follow all local and national electric codes.
2. Determine if the Clear Comfort system will be powered by 120V or
230V. NOTE: All units are factory set to 230V.

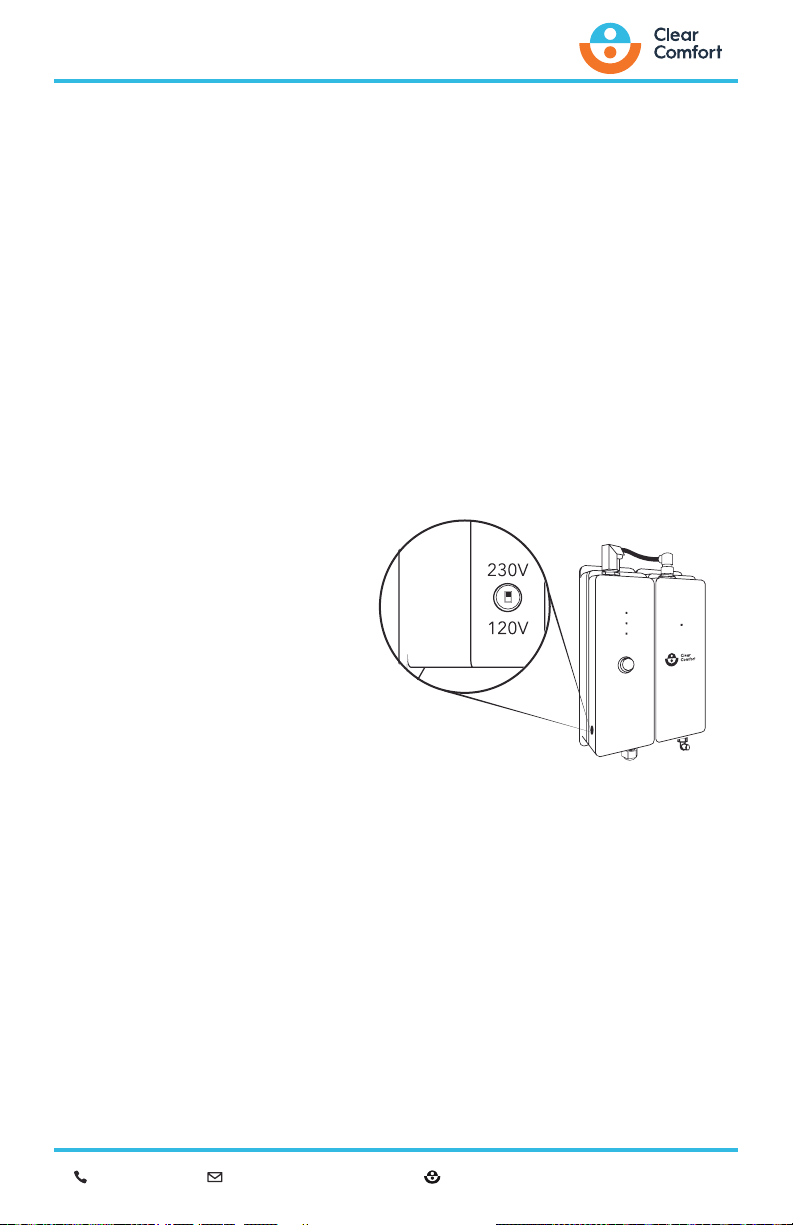

3. Set the switch on the ballast
on the orange Control Unit:
Remove plug in the left side
of the Control Unit. With a
small screwdriver, slide the
switch in the appropriae
direction according to the
label on the Control Unit.
Re-install the plug. See
Figure 2.
4. The Clear Comfort system
comes with a 12 inch section
of 1/2 inch exible conduit,
a water-tight conduit tting, and a conduit body that may be easily
converted into the shape preferred for the particular installation.
5. If 12 inches is too long, cut to the desired length. Slide the wires from
the Clear Comfort system through the conduit, insert the conduit into
the water tight connector on the Clear Comfort system, and tighten
down.
6. Congure the conduit body as needed for the installation into the
desired shape (LL, LB, LR, or C), and attach the water-tight conduit
tting to the body.
7. Slide the conduit and wire into the conduit body and tighten down
the water-tight connection.
8. Run wire (and conduit, if required by local code) from the pump
Figure 2: Ballast Electrical Switch

303.872.4477 [e-mail] clearcomfort.com
INSTALLING THE CLEAR COMFORT
SYSTEM
circuit to the conduit body using water-tight ttings.
9. Using appropriately sized wire nuts inside the conduit body, connect
the switched power to the Clear Comfort system.
NOTE: CLEAR COMFORT SHOULD ONLY RUN WHEN THE PUMP IS
OPERATING
ELECTRICAL INSTALLATION - DIRECTLY TO PUMP CIRCUIT
(RECOMMENDED)
1. Direct pump circuit connection is recommended. Unit should be
hardwired to the pump circuit and controlled by the pump circuit.
2. The device must be properly connected to the correct power source
(either 60Hz, 120V or 230V) using the supplied power cord, in
accordance with the local electrical code.
3. Toggle ballast switch between 120V and 230V to match required
voltage. See Figure 2. Ensure white marked saddle switch matches
correct voltage.
4. If hard wired, cord supplied must be hard wired in accordance to the
National Electrical Code and in accordance with local regulations.
5. Test for proper grounding and secure connections.
NOTE: WIRE THE SYSTEM TO RUN ONLY WHEN THE PUMP IS
RUNNING
ELECTRICAL INSTALLATION - WALL OUTLET
1. If the unit is being wired to standalone 120V AC power (i.e., not
through the pump circuit), connect Clear Comfort system to the pool
timing clock so that the system operates simultaneously with pool
pump through a Ground Fault Circuit Interrupt (GFCI). In either case,
the electrical connection must be made in accordance with the local
electrical code.
2. Remove protective ballast switch cover. Toggle the ballast switch
between 120V and 230V to match required voltage. See Figure 2.
3. Test for proper grounding and secure connections.
On page 11, Figure 4 shows the preferred installation that uses a
U-bypass venturi injection.
9

303.872.4477 [e-mail] clearcomfort.com
CARTRIDGE CONNECTION
Gently align the notched outdent on the front of the Cable Connector
with the keyed indent of the front of Cartridge Connector, as shown with
the arrow in Figure 3. Seat the Cable Connector down onto the Cartridge
Connector and turn the Cable Connector’s Collar a quarter-turn clockwise
to lock the Cable and Cartridge Connector together. If a strange light
pattern occurs, disconnect cable assembly and reconnect.
INSTALLING THE CLEAR COMFORT
SYSTEM
9-Holed
Cable Connector
9-Pinned
Cartridge Connector
Cartridge Unit
Figure 3: Cartridge Connection
Collar
10

303.872.4477 [e-mail] clearcomfort.com
INSTALLING THE CLEAR COMFORT
INJECTION ASSEMBLY
INSTALLING THE U-BYPASS INJECTION
(PREFERRED METHOD)
1. Turn main pool pump OFF and switch OFF main circuit breaker.
2. Locate the section of existing plumbing that you chose to install the
U-bypass assembly in. Location should be in any accessible area after
the pump, lter and heater.
3. Venturi must be installed in a vertical position. See Figure 5 for
details.
4. MAKE CERTAIN THAT THE VENTURI IS INSTALLED WITH THE
FLOW MARK IN THE PROPER DIRECTION - IF REVERSED IT WILL
NOT OPERATE.
5. A Jandy (part number 4715), Hayward (part number PSV3S), Pentair
(part number 263037) or Waterway (part number 600-7100-CPVC)
3-Port diverter valve is required to offer a full range of adjustability.
6. To increase the draw with a venturi system, simply adjust or slowly
close the valve according to Figure 12.
7. Set venturi air suction to draw between 5 - 7 LPM using a ow meter.
Refer to page 14 for detailed instructions.
NOTE: For full system diagrams that include additional sanitation systems
integrated with the Clear Comfort system, see pages 16, 17 and 18.

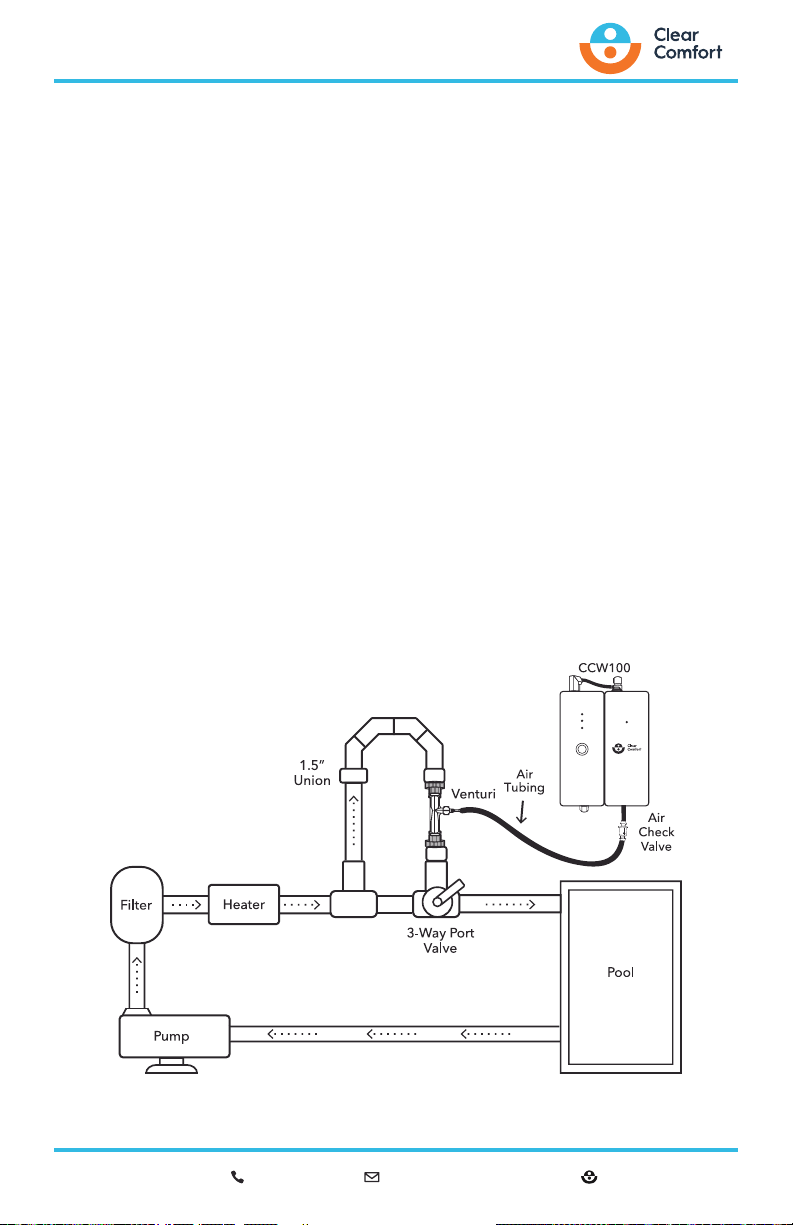

Figure 4: Full System Diagram With U-Bypass Injection
(PREFERRED METHOD)
FLOW
11

303.872.4477 [e-mail] clearcomfort.com
INSTALLING THE CLEAR COMFORT
INJECTION ASSEMBLY
SUGGESTED MINIMUM PARTS LIST FOR U-BYPASS INJECTION
CONNECTING CLEAR COMFORT SYSTEM TO VENTURI INJECTION
Figure 5: Venturi Connection
NOTE: Air Check Valve should be installed to ow in a vertical,
downward direction below the exit from the system.
See Figure 6 on next page.
Water
Flow
F
L
O
W
12

303.872.4477 [e-mail] clearcomfort.com
INSTALLING THE CLEAR COMFORT
INJECTION ASSEMBLY
13

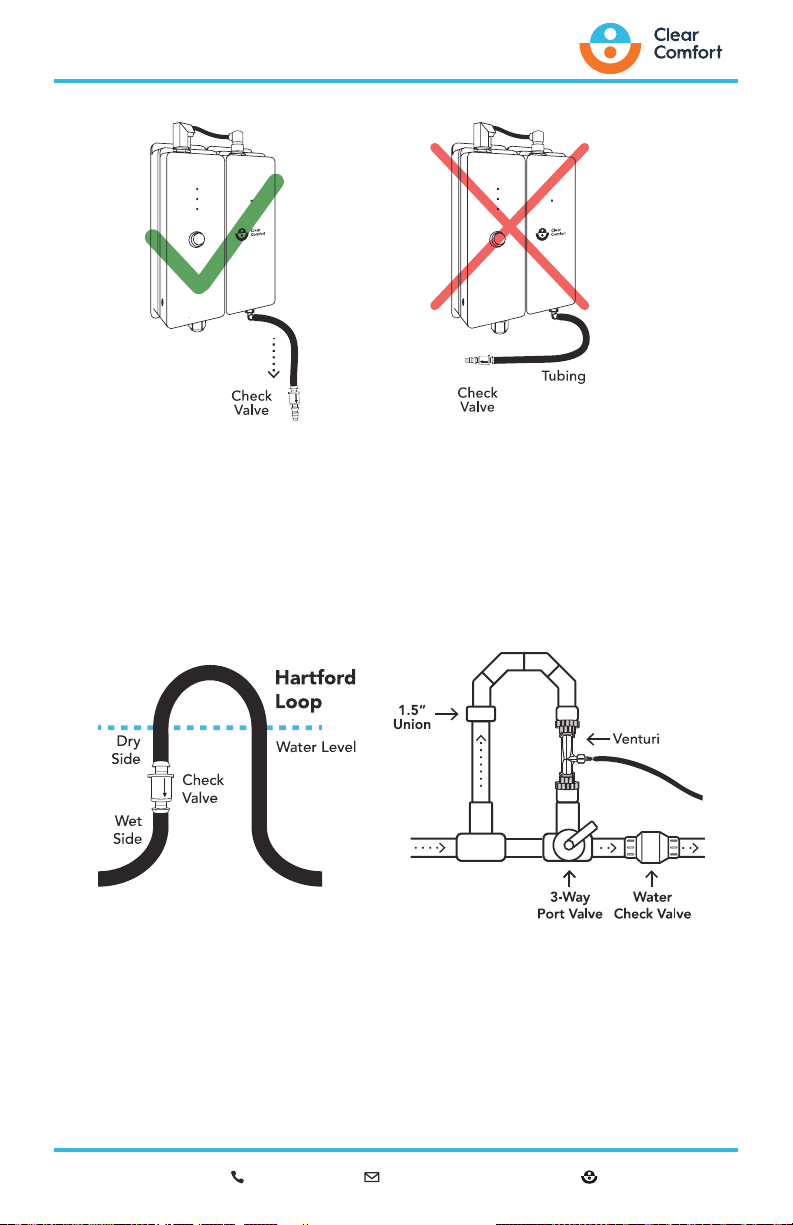

Figure 6: Air Check Valve Position
1. Run provided 1⁄4-inch tubing from the venturi injection port to the
straight barb tting. Length of tube should be less than 10 feet.
Shorten and cut tubing as possible. See Figure 5.
2. If the unit is installed below the water line, install a loop in the 1⁄4-
inch line known as a Hartford loop. Loop the hose so that at some
point, tubing is above water level.
3. Install 1⁄4-inch one-way air check valve (supplied) to eliminate any
potential water back ow. See Figure 5.
4. Gas exiting the Clear Comfort system to the venturi connector port
should ow easily.
5. Measure air suction using an air ow meter and set venturi air
suction to draw between 5 - 7 LPM. See Figure 10 for details.
CONNECTING CLEAR COMFORT SYSTEM TO VENTURI INJECTION
Figure 7: Hartford Loop
FLOW
DON’T:
DO:
FLOW
FL
O
W
90 Elbow
Tubing
90 Elbow
Figure 8: Water Check Valve
Air Air

303.872.4477 [e-mail] clearcomfort.com 14
Venturi
Ball Valve
Water In Water Out
1.5”
Union
INSTALLING THE CLEAR COMFORT
INJECTION ASSEMBLY

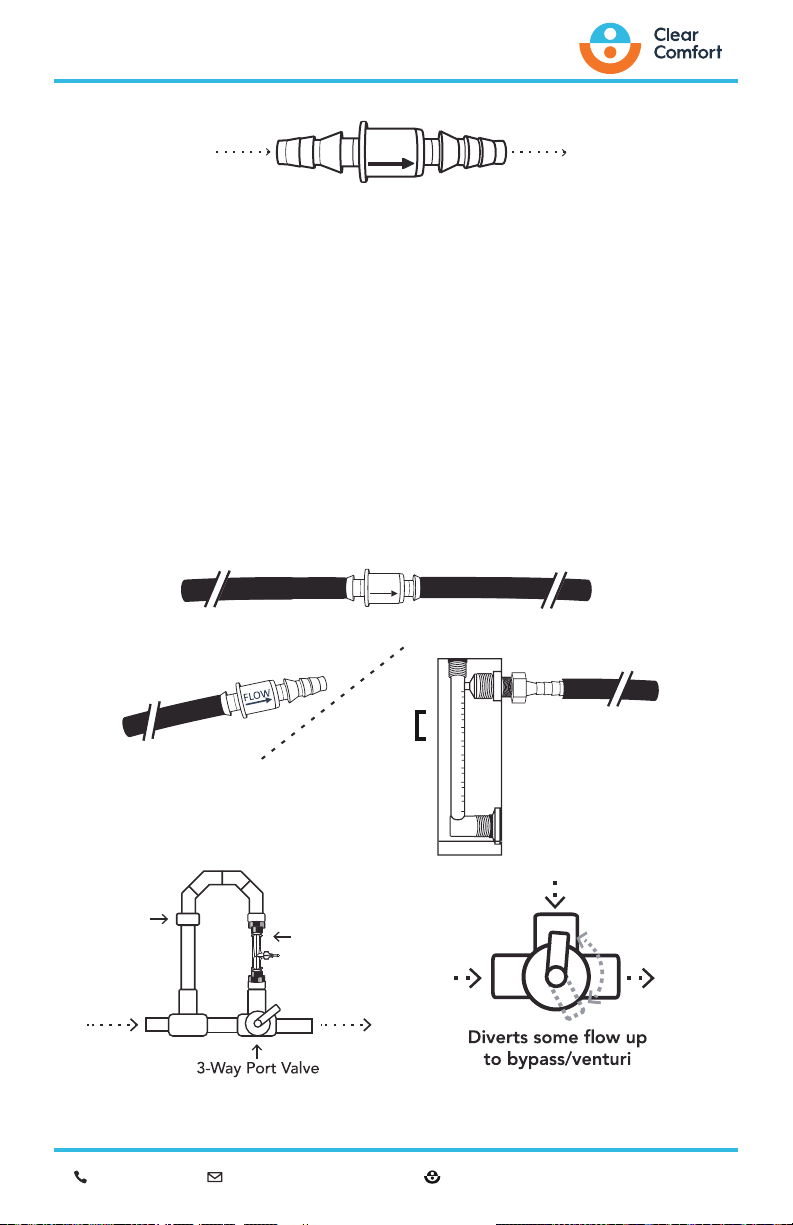

AIR FLOW METER
1. Determine your variable speed setting and run your pump (2,400
RPM or higher).
2. Disconnect the blue hose below the check valve. See Figure 10
below.
3. Connect blue hose to the connection of the ow meter.
4. Adjust the ball valve to increase/decrease pressure until it is between
5 - 7 LPM on the ow meter. Note: If RPM on variable speed pump is
altered, readjust air suction.
5. When adjusted to the 5 - 7 LPM, disconnect blue hose and reattach
to the check valve.
Water In Water Out
Figure 12: 3-Way Port Valve
Conguration
Figure 11: U-Bypass Conguration
FLOW
Figure 9: 1/4” One-Way Air Check Valve
5 - 7
LPM
From CCW100 System
Figure 10: Air Flow Meter
To Venturi
From CCW100 System To Venturi
FLOW
From CCW100 System To Venturi

303.872.4477 [e-mail] clearcomfort.com
INSTALLING THE CLEAR COMFORT
INJECTION ASSEMBLY
OPERATING INSTRUCTIONS
1. Install plumbing according to Figure 4.
2. Ensure bypass 3-way port valve is OPEN before turning pumps ON.
3. Turn pool/spa pump and ltration systems on.
4. Set venturi air suction to draw between 5 - 7 LPM.
5. To increase the draw of air from venturi system, adjust or slowly close
bypass 3-way port valve.
6. Toggle Clear Comfort system switch to the ON position.
7. Water entering the pool/spa should have bubbles exiting from at
least one of the returns on to the body of water.
15

303.872.4477 [e-mail] clearcomfort.com 16
FULL SYSTEM INTEGRATION
DIAGRAMS
FULL SYSTEM DIAGRAM: AUTOMATIC CHLORINE FEEDER
FULL SYSTEM DIAGRAM: INLINE CHLORINE FEEDER
Pool
Venturi
3-Way
Port Valve
FLOW
Inline Chlorine
Feeder
CCW100
Air
Tubing
Air
Check
Valve
Pump
1.5”
Union
Filter Heater
Figure 13: Automatic Chlorine Feeder
Figure 14: Inline Chlorine Feeder
Pool
3-Way
Port Valve
Chlorine
Feeder
Feeder
Output
Venturi
FLOW
CCW100
Air
Tubing
Air
Check
Valve
ORP pH
ORP
Meter
1.5”
Union
Filter
Feeder
Input
Pump
Heater

303.872.4477 [e-mail] clearcomfort.com
FULL SYSTEM INTEGRATION
DIAGRAMS
FULL SYSTEM DIAGRAM: OFFLINE CHLORINE FEEDER
Pool
3-Way
Port Valve
Chlorine
Feeder
Venturi
FLOW
CCW100
Air
Tubing
Air
Check
Valve
Pump
1.5”
Union
Filter Heater
Pool
3-Way
Port Valve
1.5”
Union
Venturi
FLOW
CCW100
Air
Tubing
Air
Check
Valve
Pump
Filter
Salt Chlorine
Generator
Heater
FULL SYSTEM DIAGRAM: SALT WATER CHLORINE GENERATOR
Figure 15: Ofine Chlorine Feeder
Figure 16: Salt Water Chlorine Generator
17
