Panasonic TH-47LFT30W User manual

47
47-inch class TH-47LFT30W
Outdoor-Capable LCD Display with Touch Panel Featuring
Excellent Visibility in Sunlight and Strong Light Resistance
Outdoor LCD Display
Main Features
1
2
1,500 cd/m2of Brightness — High Visibility in Bright Places
Forced Air Cooling System — Usable Under Direct Sunlight
3
Touch Panel Function for Interactive Signage Use

The TH-47LFT30W is standard-equipped with a touch
panel that expands its applications in a variety of new
ways, including use in interactive signage systems.
A trans-reflective LCD panel is used to produce
bright, clear images, and a backlight combines
with direct external lighting to enhance visibility. A
forced-air cooling system using outside air allows
the panel to withstand internal temperature rises
caused by sunlight, to extend the ambient
operating temperature range (the operating
temperature limit when the panel is mounted
facing direct sunlight*). Power consumption is
lower than panels that increase brightness by
simply raising the intensity of the backlight, which
also suppresses the internal temperature rise.
Visibility is excellent even under direct sunlight.
The dustproof and water resistant
equivalent to IP53
“Degree of protection IP53” holds considerable
dust proofing. It can be installed in dusty
environments.
Simulated pictures on screen.
Design and specifications are subject to change without notice.
As of August 29, 2011.
(For Americas)
CR11LFT30_U03
*1: IP=Ingress Protection *2: Measured under ambient lighting of approximately 80,000lx. *3: Based on IEC62087 Ed.2 measurement method.
*4: When the panel is mounted facing direct sunlight, the operating temperature must be under 104 °F (40 °C) instead of 113 °F (45 °C).
*When the panel is mounted facing direct sunlight, the operating temperature
must be under 104 °F (40 °C) instead of 113 °F (45 °C).

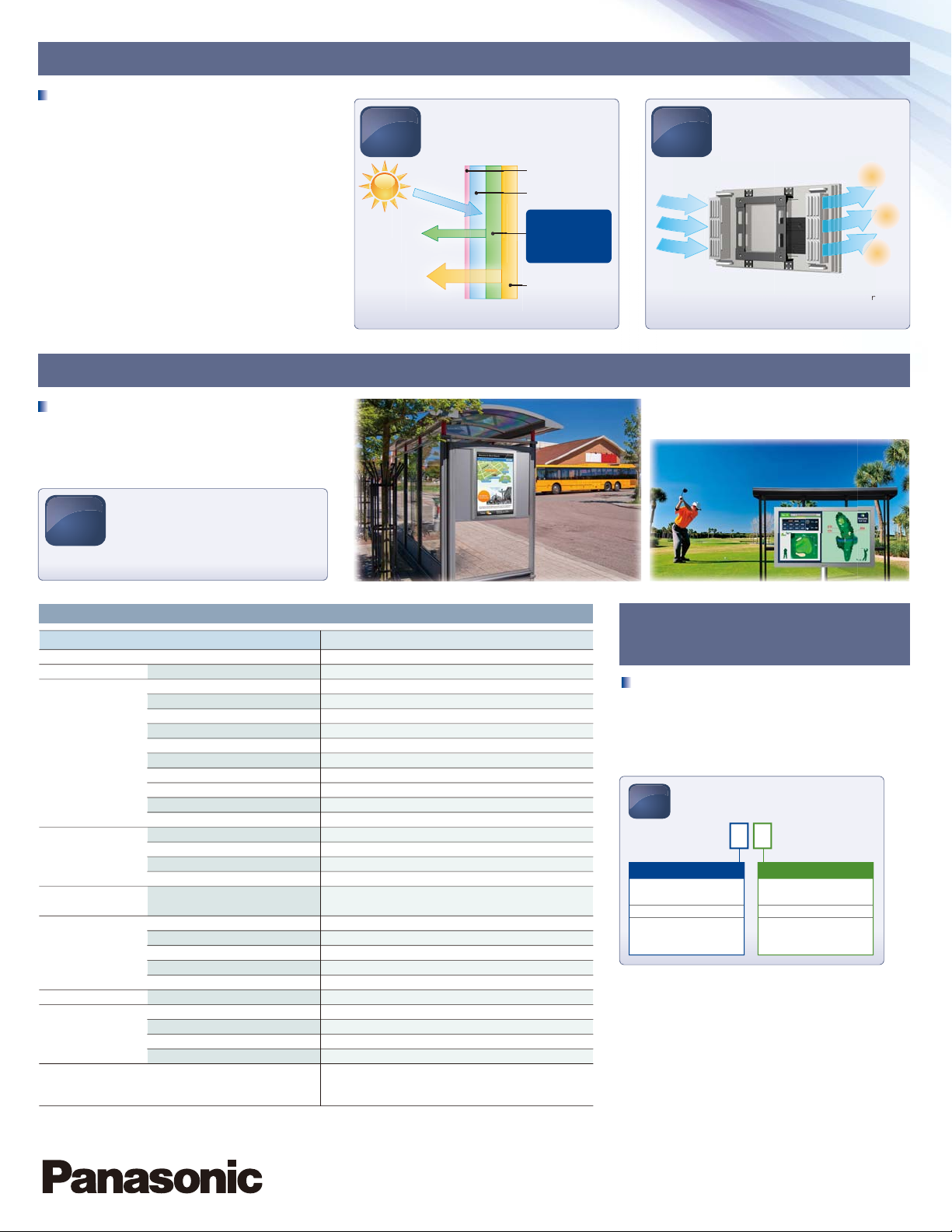

Usable Even Under Direct Sunlight
The electrostatic capacitive touch panel
achieves a well balanced performance for
touch panel lifetime, response, and
resolution. It also provides stable operation
under direct sunlight.
Easy-to-construct interactive signage
Trans-reflective
LCD
Outside air is pulled into the cabinet to
create an airflow between the front
glass and the LCD panel, to suppress
internal temperature rises.
Temperature rises inside the liquid crystal are
suppressed to prevent blackouts.
Forced
Air Cooling
System
Electrostatic
capacitive
touch panel
This denotes the degree of dust-proofing and
water resistance. IP is an abbreviation of the
international standard Ingress Protection
Dust Proofing
Level of protection from
dust particles
Level of water resistance
Level
5
Degree of Protection Level Degree of Protection
Water Resistance
Protection from 4
micron dust particles 3Protection from
a water spray
IP- 53
What is
IP?
y is excellent even unde
r
Indirect Light
Light Aided by
Indirect Light
Light from
Backlight Backlight
Liquid Crystal Panel
Film to Prevent
Scattered Reflections
internal
tem
per
ature
rises
.
mperature rises inside the liquid crystal a
r
Backlight passes through,
and external light is
reflected.
Trans-reflective Film
High Visibility Even in Bright Places
Touch Panel Enables a Wide Range of Information Services
Dustproof and Water Resistant for
Outdoor Installation
Specifications
Screen Size (Diagonal)
Aspect Ratio
Effective Display Area (W x H)
Number of Pixels (H x V)
Brightness (in dark room)
Brightness (in daylight*2)
Contrast Ratio
Response Time
Viewing Angle (Horizontal/Vertical)
Orientation
Touch Screen Panel
HDMI IN
DVI-D IN
PC IN
AUDIO IN (for DVI-D/PC)
Serial
Power Requirements
Power Consumption
On Mode Average Power Consumption*3
Power Off Condition
Stand-by Condition
Speaker Out
Dimensions (W x H x D)
Weight
Cabinet Material/Color
Mounting Method
Operating Environment
IP Rating*1
DISPLAY PANEL
CONNECTION
TERMINAL
CONTROL TERMINAL
ELECTRICAL
AUDIO
MECHANICAL
ENVIRONMENTAL
TH-47LFT30W
Corresponding to IP53
46.9-inch (1,192 mm)
16:9
40.9" x 23.0" (1,039 x 584 mm)
1,920 x 1,080 pixels
1,000 cd/m2(Typ)
1,500 cd/m2(Max)
1,000 : 1
9 ms (G to G)
178° / 178°
Landscape / Portrait
Capacitance Type Touch Panel
HDMI TYPE A Connector x 2 (Deep Color Compatible)
DVI-D 24 pin (HDCP Compatible) x 1
MINI D-SUB 15 pin x1 Plug & Play (VESA DDC 2B)
M3 Jack x 1
D-SUB 9 pin x 1 (EXTERNAL CONTROL TERMINAL),
RS-232C Compatible
110-127 V AC, 50 Hz / 60 Hz
310 W
250 W
0.1 W
Save ON 0.1 W, Save OFF 0.2 W
8 Ω, 10 W [5 W + 5 W] (10 % THD)
45.3" x 27.4"x 10.7" (1,149 x 694 x 271 mm)
Approx. 136.7 lbs, (62 Kg)
Aluminum / Silver
VESA 15.8" x 15.8" (400 x 400 mm)
Temperature: 32 °F to 113 °F (0 °C to 45 °C*4)
Temperature (Winter Mode): -4 °F to 113 °F (-20 °C to 45 °C*4)
Humidity: 20 % to 90 %
Air flow
heat
heat
heat
