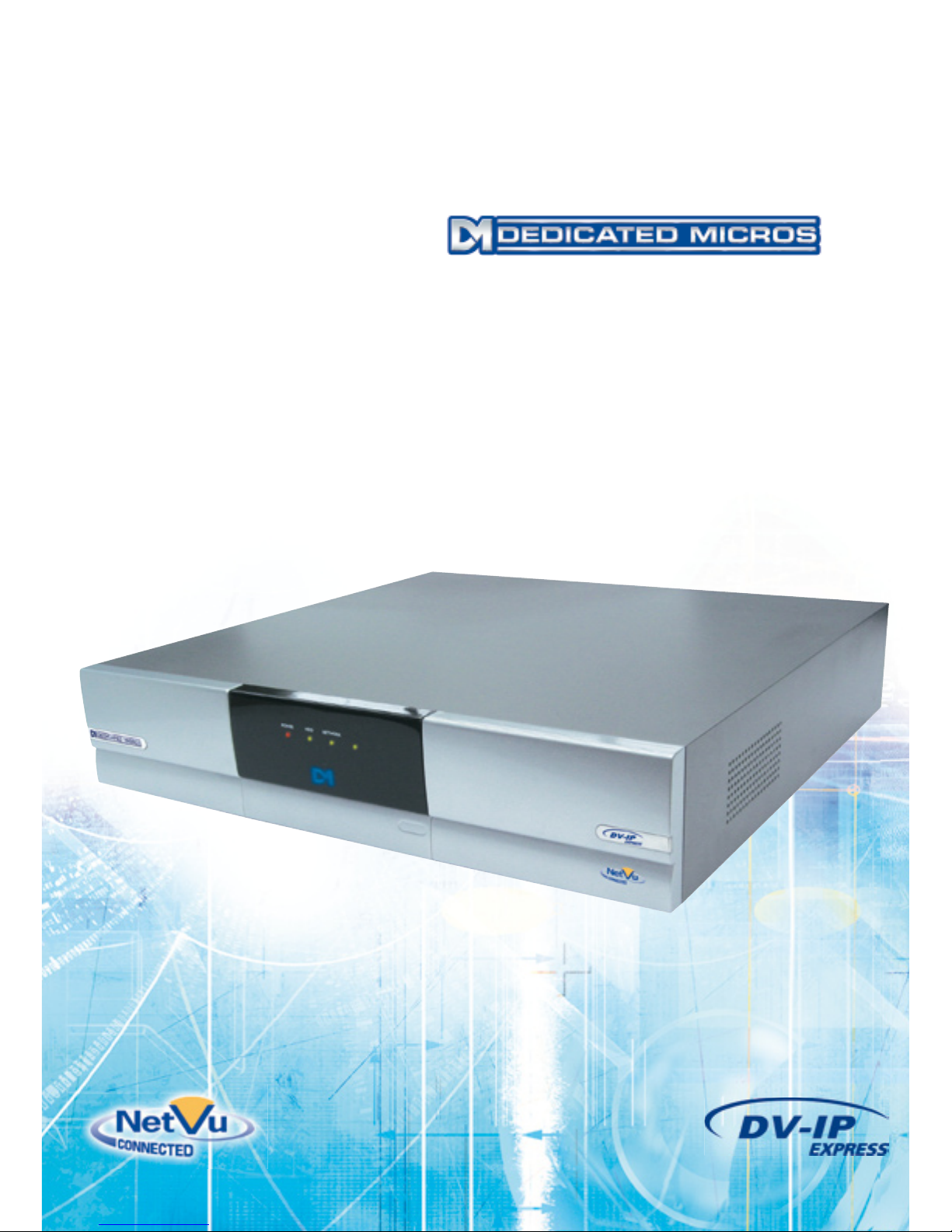

Dedicated Micros DV-IP Express Instruction Manual
DV-IP Express
Installation and
Operation Guide
Dedicated Micros ©2009
2
DV-IP Express
Whilst every attempt is made to ensure these manuals are accurate and current, Dedicated Micros reserve the right to alter or
Contents
Introduction3
Features4
Important Safeguards6
Installing the Unit8
Installing the DV-IP Express Unit12
21
Remote Control23
Main Menu25
Navigating The Menus26
System Settings29
Console Settings41
Camera Settings50
Record Settings54
Alarm Settings 63
78
Analytics & Text89
Archive93
94
Using the IR Remote Control121
Appendix A126
Appendix B127
Appendix C129
Appendix D 130
Appendix E131
Dedicated Micros ©2009 3
DV-IP Express
Introduction
What is the…
DV-IP Express ?
A comprehensive digital recording solution, the DV-IP Express is a stand-alone high-performance
recording system ideal for the cost conscious user who needs reliable, networked, scalable CCTV at
an affordable price.
The DV-IP Express offers 25pps MJPEG or MPEG-4 recording on each channel (at CIF) and can
record up to 16 cameras simultaneously in real time.
Dedicated Micros renowned MultiMode record feature enables an operator to set different recordingrecord feature enables an operator to set different recording
rates, resolution and compression formats across scheduled, normal and alarm modes for each
individual camera.
Available with 8, 12 or 16 camera inputs, all offering telemetry control, the DV-IP Express has built in
Alarm functionality and onboard Activity detection software.
To give operators maximum viewing exibility, the DV-IP Express can be congured to contain a
mixture of spot or main monitor outputs. A VGA output port is also available.
The accompanying Infra-Red (IR) Remote Control has a colour coded ‘Softkey’ interface with
conguration menus common to both local monitor and web interface, making for easy set-up and
operation.
Dedicated Micros trademark plug and play intuitive set-up and user-friendly interface helps keep
installation and operator training to a minimum.
The unit includes as standard internal storage with expansion available via an external high-speed
SATA port. A DVD-R Writer and USB ports are provided for external video archiving.
The unit also offers integrated text support, allowing users to connect with cash registers in retail
applications to monitor Point Of Sale (POS) locations. Capturing and associating video with the
relevant text information allows the operator to search video footage by time, event, and text data to
provide evidence of fraud or to aid identication of regular offenders.
Among the many other features included as standard on the DV-IP Express are; multiway display,
picture in picture viewing and remote monitoring using NetVu ObserVer (utilising DM’s unique
TransCoding capabilities to provide uent live and replay images).
With telemetry control of up to 16 cameras (including coax telemetry), control of dome cameras,
audio recording, activity detection plus many more exciting features, the DV-IP Express is the ideal
product when high-performance video recording and transmission is required at an affordable cost.
For further information, please visit the website:
www.dedicatedmicros.com
or contact customer services in your region.
Dedicated Micros ©2009
4
DV-IP Express
Features
The DV-IP Express from Dedicated Micros is equipped with an array of valuable features designed
to enhance the operator experience.
• 8, 12 or 16 camera input options8, 12 or 16 camera input options
• MultiMode
(MPEG4/JPEG) per camera
• Record at QCIF, CIF, 2CIF and 4CIF in MJPEG or MPEG4 on each camera
• Telemetry support (Coax & Serial)Telemetry support (Coax & Serial)
• Alarm Inputs & �utputsAlarm Inputs & �utputs
• Internal storage
• Built in activity detectionBuilt in activity detection
• JPEG or MPEG-4 recording and transmissionJPEG or MPEG-4 recording and transmission
• Text support and text search features ideal for retail installationsText support and text search features ideal for retail installations
• BS8418 compliantBS8418 compliant
COMMON CONFIGURATION INTERFACE
Dedicated Micros ©2009 5
DV-IP Express
VIDEO TIMELINE
MAPS
Point&go
ePTZ
Absolute Positioning
camera around a site and greatly increases event response time, particularly for operators unfamiliar
Design of the manual
For ease of use, this manual has three parts:
Dedicated Micros ©2009
6
DV-IP Express
Important Safeguards
Read Instructions
Power Sources
Servicing
Do not attempt to service this unit yourself as opening or removing covers may expose you to
Ventilation
Lightning Strike
Regulatory Notes and FCC and DOC Information
(USA and Canadian Models �nly)
If necessary, the user should consult the dealer or an experienced radio/television technician for
Dedicated Micros ©2009 7
DV-IP Express
CE Mark
Laser
• To prevent exposure to laser emanations (harmful to the eyes), do not attempt to
Dedicated Micros ©2009
8
DV-IP Express
Installing the Unit
Before you start
Check the contents of the box
Remove all items from the packaging and check the items listed below are present:
• DV-IP Express (either 8, 12 or 16 input)
• IR Remote Control
• IR Remote Control Extender
• USB Mouse
• DV-IP Express Installation & �peration Guide
Note: Before installing the unit, carefully read all Safety Instructions and the following information
on where the unit should be located.
Available Accessories
The following accessories can also used in conjunction with the DV-IP Express:
• Managed Storage Unit - Extend storage capacity
• Managed Continuous Archiving - Mirrored RAID1 storage unit
For further information about any of the above products, please contact Dedicated Micros customer
services in your region.
Choosing a location for installation
• Ensure the receiving end of the IR remte control extender faces the operator position
and is not more than 3 metres (10
Dedicated Micros ©2009 9
DV-IP Express
Electrical Connections
Please ensure the following are available and have been tested prior to the installation:
• Mains point
Quick Overview of DV-IP Express Record Settings
The DV-IP Express provides as default:
Default record settings at MPEG4 5pps (at 2CIF), JPEG 2pps (at 2CIF) and MultiMode recording at
Complete Flexibility
Note: It is the Installer/Owner’s responsibility to ensure that the record duration is set to the
necessary requirements of the application.
MultiMode Recording
The unit supports MultiMode recording which is a storage technology developed by Dedicated
Micros. This offers the ability to set different recording rates, resolutions and compression formats
across scheduled, normal and alarm modes for each individual camera.
By varying the quality, bit rate and le size of the recorded images, the MultiMode function can
increase recording capabilities of the unit.
MultiMode offers:
Dedicated Micros ©2009
10
DV-IP Express
Installation
Front Panel connections
Data
DVD-R
USB
LED’s
HDD
Network
Rear Panel connections
16 Input model
12 Input model
Note: Camera inputs 13-16 are inactive.
8 Input model
Note: Camera inputs 9-16 are inactive.
Dedicated Micros ©2009 11
DV-IP Express
Video
8. 12 & 16 way units
M�N B Spot Monitor output
M�N A S Video Connection
VGA D-type connection for VGA monitors set at 800x600 resolution
Audio
input
Data
EXP RJ12 expansion port for future use
Power
Alarms and relays
20 general alarm inputs
Range of Alarm states are:
Dedicated Micros ©2009
12
DV-IP Express
Installing the DV-IP Express Unit
This procedure shows the sixteen camera input version.

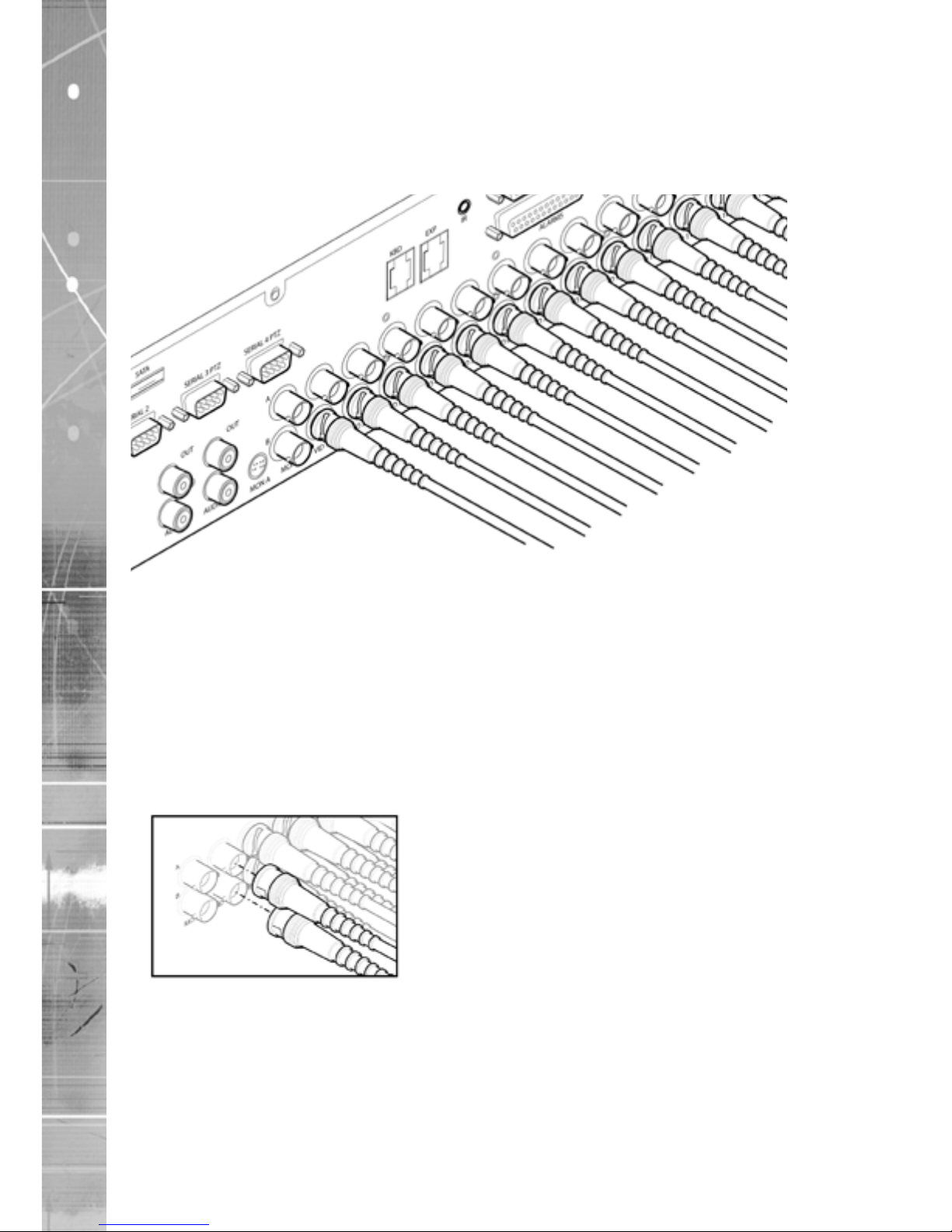

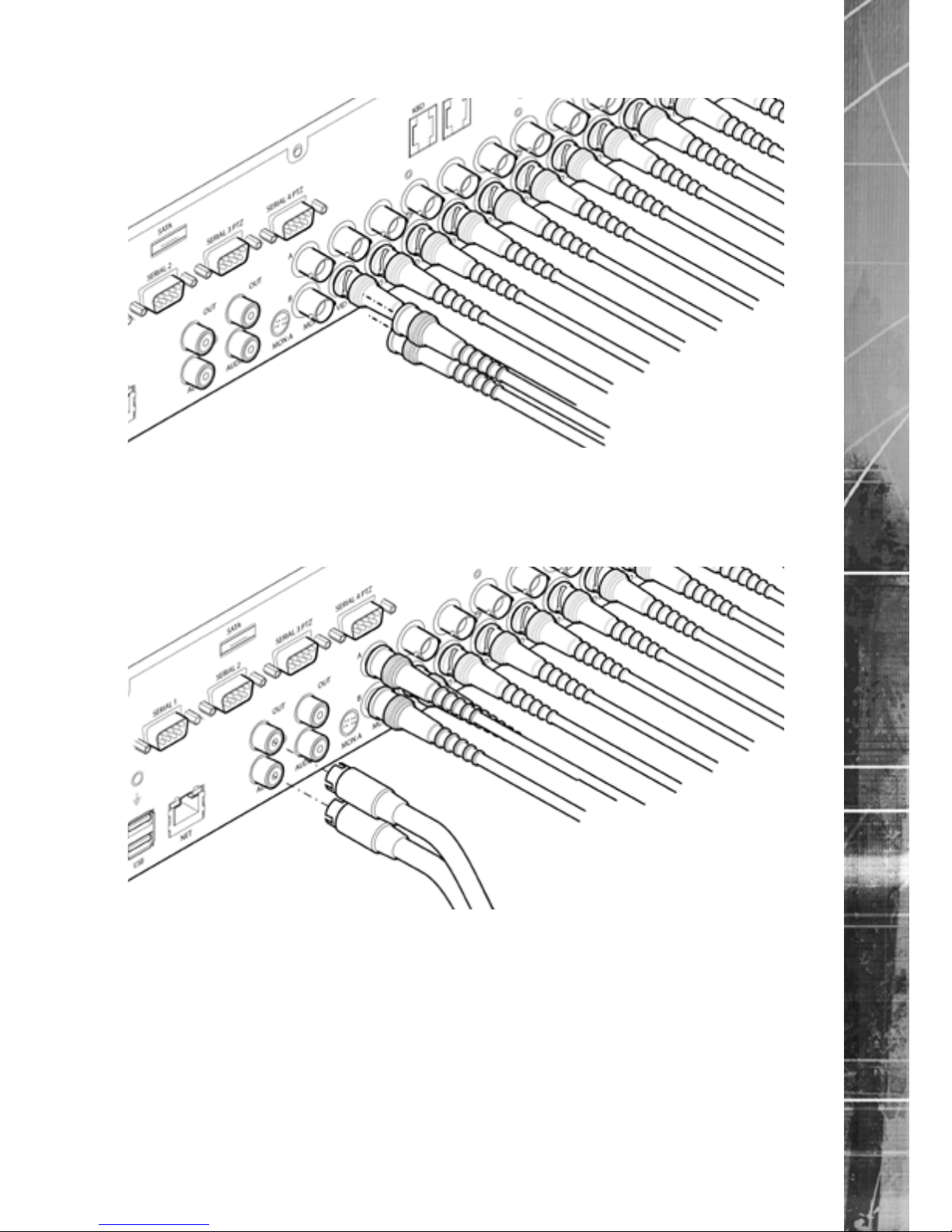

Step 1 Connecting Video
The DV-IP Express supports up to 8, 12 or 16 connected Video Inputs (dependant on model) via the
Note: Remember the last piece of equipment in line must be terminated.
Dedicated Micros ©2009 13
DV-IP Express
Step 2 Monitor
Step 3 Connecting Audio
• Record - local audio from a site to accompany video
Audio out is used as a challenge/PA source)
Note: The Audio output can be congured as a challenge output or as a replay output.
Dedicated Micros ©2009
14
DV-IP Express

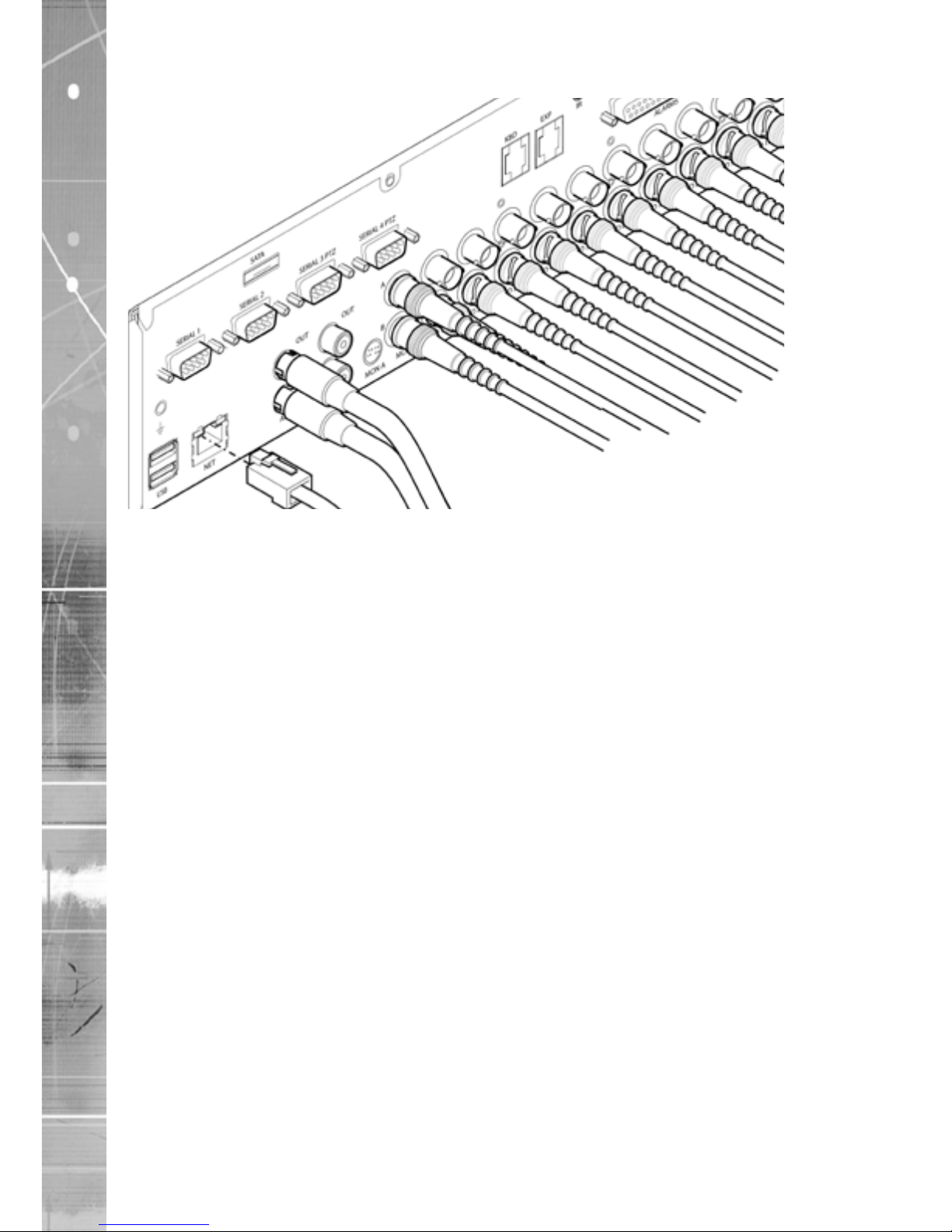

Step 4 Connecting to the Network
Network Settings->Network->IP Address.
Refer to ‘Conguring The Unit’ for further guidance on locating the unit’s IP address and for details of
the default DNS (Domain Name Server) address.
Dedicated Micros ©2009 15
DV-IP Express

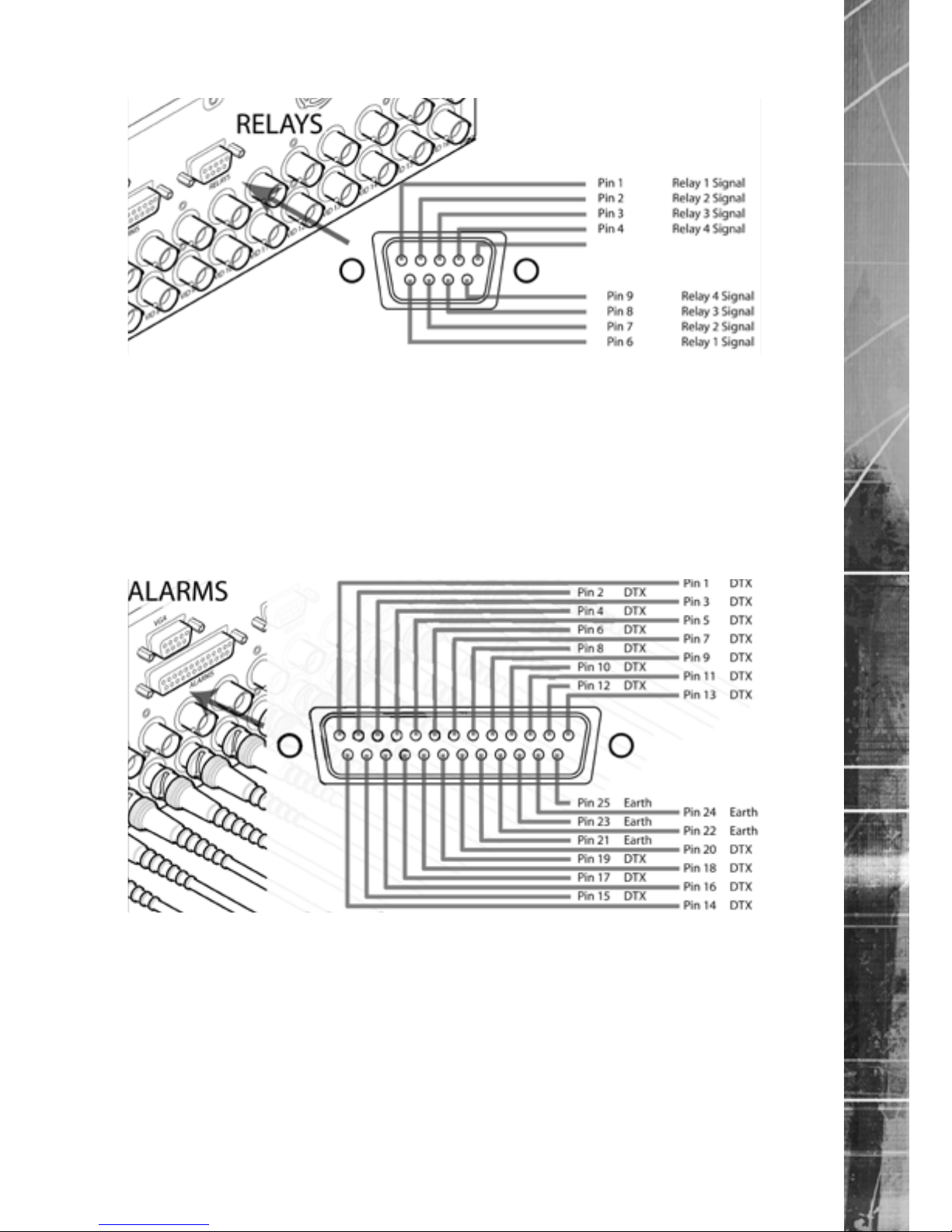

3Step 5 Relays
Relay Connector
Pin Connection
1 / 6 Relay 1 signal
2 / 7 Relay 2 signal
3 / 8 Relay 3 signal
4 / 9 Relay 4 signal
Step 6 Alarms
Relay Connector
Pin Alarm Input Connection
1 - 20 1-20
21-25 Earth Common
Dedicated Micros ©2009
16
DV-IP Express
End Of Line Circuitry
Dedicated Micros ©2009 17
DV-IP Express
Step 7 Connecting Serial Ports
Note: Telemetry cameras should be connected to Serial 3 and 4. Text data can be retrieved from
any serial port.
RS232
RS485
Step 8 Connecting a Keyboard
Note: Refer to ‘Unit Operation’ for further guidance regarding supported keyboards.
Dedicated Micros ©2009
18
DV-IP Express
Step 9 Connecting Telemetry Cameras
Simple Dome Connection
Pin connections for RS485 connection to a dome on serial port 3/4 are:
Green 9 TX-
Dennard 2040 & 2060 Domes
A Dennard 2040/2060 Dome can be connected via either co-axial telemetry or RS485 twisted
pair.
DM Oracle Domes
A DM Oracle dome can be connected via either co-axial telemetry or RS485 twisted pair. Oracle
Domes are congured using the specic pages available in the unit software, refer to ‘Oracle
Dome Conguration’ for more information.
refer to the Oracle Dome documentation for
more information on hardware confguration
UTC
Red - 1
Blue - N/R
Serial
Red - 2
Note: To enable conguration of Oracle Dome menus, an RS485 connection is required.
Dedicated Micros ©2009 19
DV-IP Express
Step 10 Connecting IR Remote Control Extender
Step 10 Connecting Power
RF
Dedicated Micros ©2009
20
DV-IP Express
Advanced Installation
Connecting Storage devices
Dedicated Micros Managed Storage Expansion units
For further information regarding the DM Managed Storage Expansion unit, please contact
Table of contents
