DeDietrich Elitec DTG 130 User manual

DTG 130
Low temperature gas boiler
Elitec
User Guide
300004565-001-C
EN

2DTG 130 20/02/09 - 300004565-001-C
. Contents
Contents
1 Used symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Important recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.1 Aeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.3 Adapting to another gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.1 Boilers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.2 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5 Stopping the boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3
20/02/09 - 300004565-001-C DTG 130
2. Important recommendations
Congratulations on your choice of a high quality product. We strongly advise you to read the following instructions in order to
guarantee the optimal operation of your appliance. We are sure that it will be entirely to your satisfaction and will meet with all of
your expectations.
1 Used symbols
Caution danger
Risk of injury and damage to equipment. Attention must be
paid to the warnings on safety of persons and equipment.
Specific information
Information must be kept in mind to maintain comfort.
ZReference
Refer to another manual or other pages in this instruction
manual.
2 Important recommendations
For a proper operating of the boiler, follow carefully the
instructions.
Any intervention on the appliance and heating equipment
must be carried out by a qualified technician.
The manufacturer is not liable for any improper use of the
appliance or failure to maintain or install the unit correctly
(the user shall take care to ensure that the system is
installed by a qualified fitter).
Check the seal on the gas and water pipe connections.
Check that the appliance is properly set for the type of gas
used.
Keep to the polarity shown on the terminals: phase (L),
neutral (N) and earth 4.
Check regularly that the installation contains water and is
pressurised.
Burn hazard in direct contact with the flame inspection
window.
To guarantee protection against the corrosion of domestic
hot water calorifiers fitted with a titanium anode (Titan
Active System ® protection system), always leave the
control panel switched on.To switch off the heating or the
domestic hot water, use the Summer or Antifreeze mode.
Forced flue versions: Check the air flap setting.
2.1 Aeration
2.1.1 Chimney versions
Do not obstruct the air inlets in the room (even partially).
France: the cross section of the aeration vent, which is compulsory
in the boiler room in which the boiler is installed, must comply with the
DTU 61.1 (P 45 204) standard and, in particular, with the instruction
on boiler room layout (Book 1764 April 1982).
Belgium:the cross-section of the aeration vents, which are
compulsory in the room in which the boiler is installed, must comply
with the NBN D51-003 standard.
Germany: the cross section of the ventiliation vents, which are
compulsory in the room in which the boiler is installed, must comply
with the VDI 2050 form 1 standard and with other prevailing
regulations
Other countries: the cross section of the aeration inlet, which is
compulsory in the premises in which the boiler is installed, must
comply with the standards in force in the country.
2.1.2 Forced flue versions
It is not necessary to provide ventilation of the premises in which the
boiler is installed. Ventilation is required if a mechanical connection
to the gas exists.

4DTG 130 20/02/09 - 300004565-001-C
2. Important recommendations
2.2 Maintenance
- The servicing and cleaning of the boiler and the sweeping of the
flue gas pipe and the bleed pot must be done at least once a year
by a qualified professional.
- We recommend taking out a maintenance contract.
- Regularly check the level of water in the system and top up if
required, taking care that cold water is not added suddenly into the
boiler when it is hot. If this operation is repeated several times per
season, locate the leak and repair it.
Do not drain the installation, except in cases of absolute
necessity. For example: Several months' absence with the
risk of ice in the building.
2.3 Adapting to another gas
Belgium:
The operations required to switch from one gas to another must be
carried out by a SERV'elite technician.
Other countries:
The operations required to switch from one gas to another must be
carried out by your fitter.

5
20/02/09 - 300004565-001-C DTG 130
3. Description
3 Description

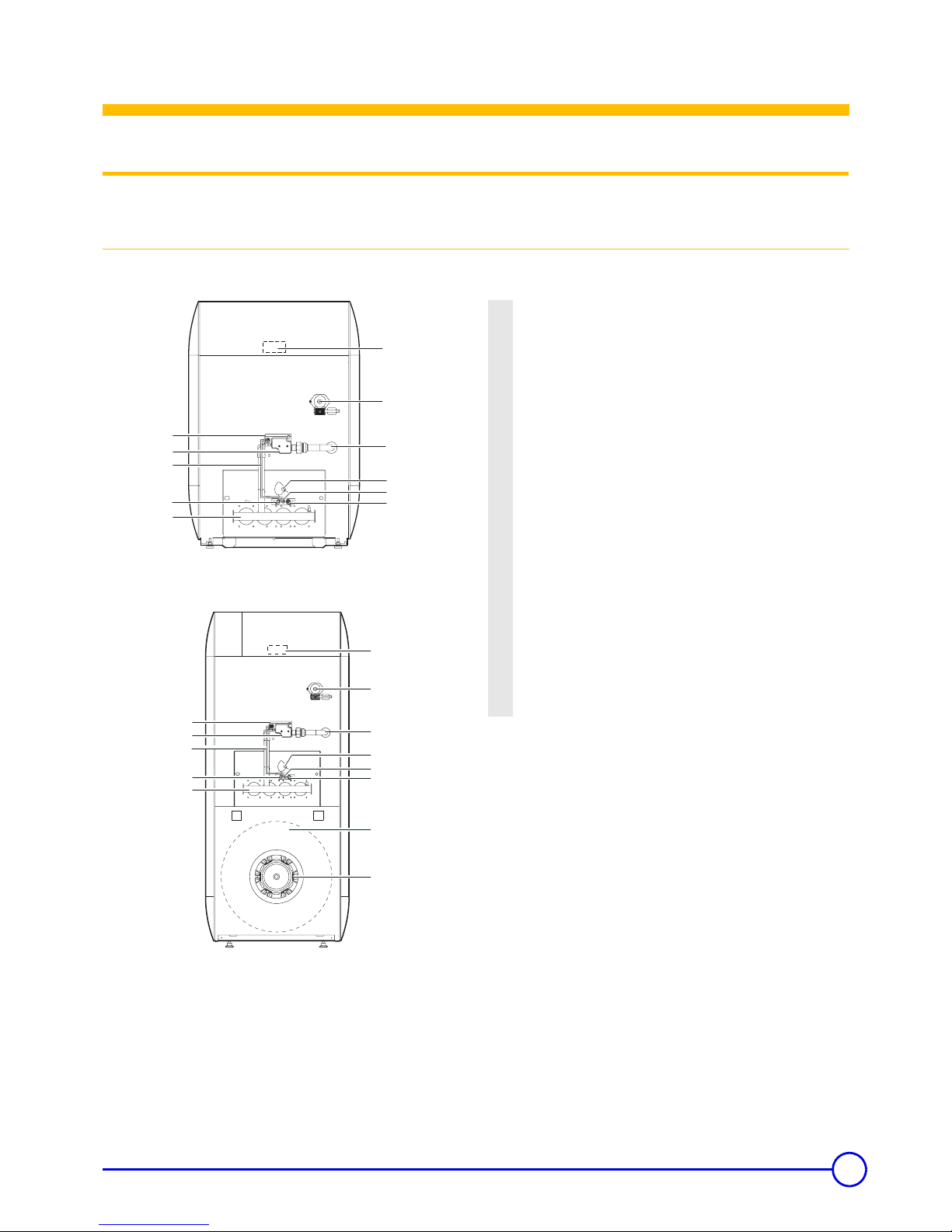

3.1 Boilers
The models presented are marketed in the various countries according to the countries' specific sales programme.
3.1.1 Chimney versions
DTG 130 Eco.NOx
DTG 1300 Eco.NOx/V
9
5
10
8518N002
4
1
23
67
8
11
5
10
4
23
67
8
11
8518N070
1
9
18
19
1Safety box
2Gas regulation block
3Gas inlet
4Burner
5Flame inspection window
6Ignition electrode
7Ionization probe
8Ignition burner
9Ignition burner gas supply pipe
10 Downdraught thermostat
11 Sensor tube
12 Pressure gauge
13 Heating circulation pump
14 Drain cock
15 Safety valve
16 Expansion vessel
17 Automatic air vent
18 Domestic hot water tank
19 Flange for the domestic hot water tank

6DTG 130 20/02/09 - 300004565-001-C
3. Description
3.2 Control panel

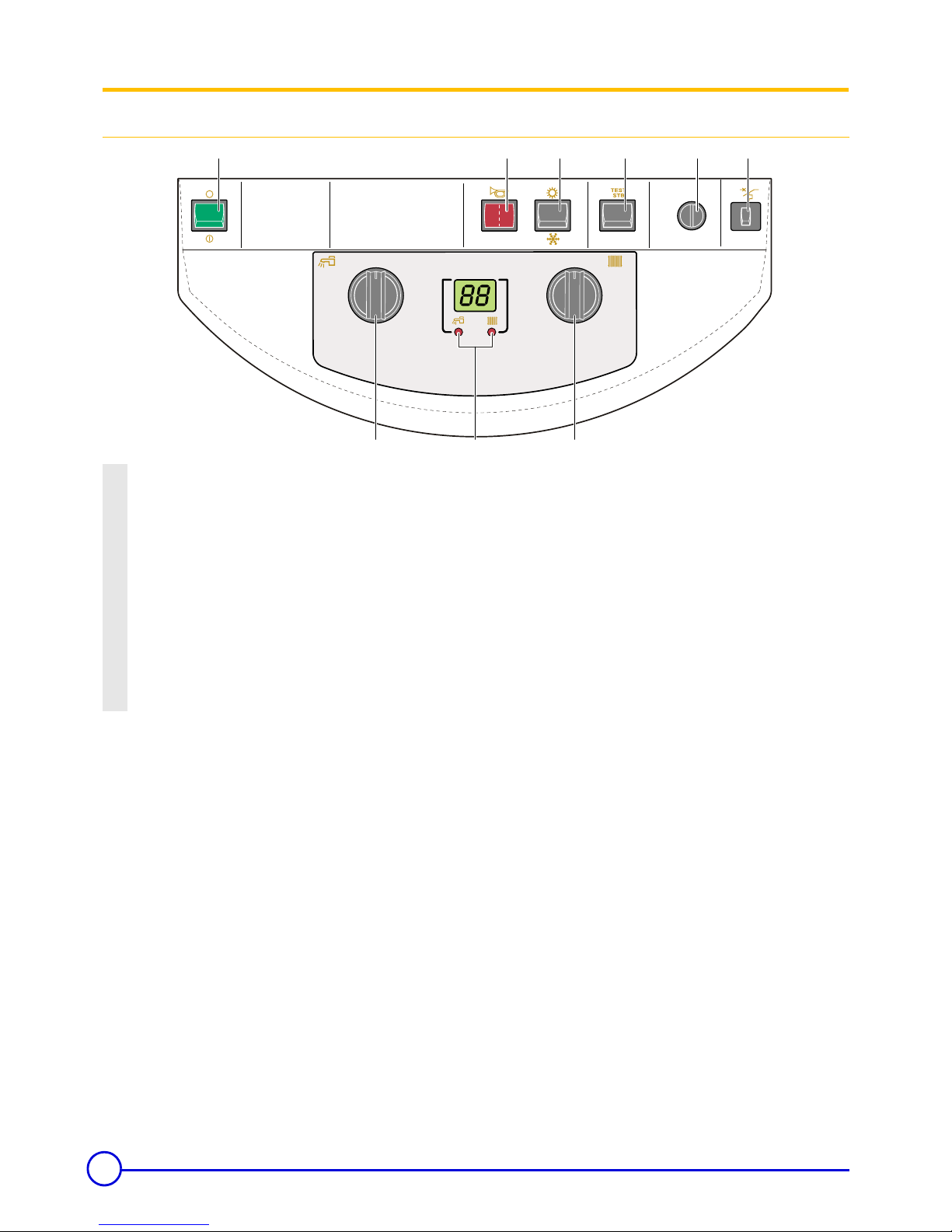

3.2.1 Control panel B
C000142_08
14 2 3 5 6
45
6
7
81
2
3
3
4
5
6
7
8
9
79 8
4
A
M
P
1General ON 8/ OFF 7switch
2Reset button + Alarm indicator
3Summer %/ Winter .switch
4 TEST STB button
5Safety thermostat with manual reset
6Timed circuit breaker (4 A)
7Boiler thermostat
8
Alternate display of the following temperatures:
- Light "lit: Water temperature in the boiler
- Light lit: Domestic hot water temperature
9domestic hot water thermostat

7
20/02/09 - 300004565-001-C DTG 130
3. Description
3.2.2 Control panel DIEMATIC 3
Electromechanical components
Display
4
A
M
P
C000142_07
1
0246810 12 14 16 1820 22 24
A
7
4
23 5 6
SUNDAY
-04
1General ON 8/ OFF 7switch
2Reset button + Alarm indicator
3Switch AUTO/!
4 TEST STB button
5Safety thermostat with manual reset (110 °C)
6Timed circuit breaker (4 A)
7Operating light
0246810 12 14 16 1820 22 24
A
bar
3 4 5 6 7
91011
8
2
1
BC
SUNDAY
1Text and numerical display
2Graphic display bar for the programme in circuit A, B or C
3Light area: Reduced temperature heating period or tank load
disabled
4Dark area: Comfort temperature heating period or tank load
enabled
5Flashing cursor showing the current time
6Number display (current time, adjusted values, parameters,
etc.)
7
Active programme display, P1, P2, P3, P4
or
E: Summer mode activated
8The arrows flash when setting values can be modified using
the +and -keys
9Circuit operation symbols
>Opening the 3-way valve
=Closing the 3-way valve
:Displayed circuit pump on
A, B, C Name of the circuit displayed
10 Symbol displayed above the active operating mode
11 Symbols indicating that the following inputs/outputs are
active
DBurner on
DHW load pump on
#Summer mode
TNot available

8DTG 130 20/02/09 - 300004565-001-C
3. Description
Keys accessible when the flap is closed
Keys accessible when the flap is open
0246810 12 14 16 1820 22 24
A
C000142_02
SUNDAY
-04
Temperature setting keys
2% Comfort temperature
2$ Reduced temperature
2 Domestic hot water temperature
/Is used to adjust the selected temperature
Operating mode selection keys
AUTO Heating according to the time programme
%
Forced Comfort mode:
- until midnight if flashes
- all the time if is steady
$
Forced Low mode:
- until midnight if flashes
- all the time if is steady
.Antifreeze mode
Tank load enabled mode
A
0246810 12 14 16 1820 22 24
A
STANDARD
C000142_03
SUNDAY
-04
#
Manual "Summer" shutdown key
The heating is switched off and DHW production is
ensured. The symbols #and Eare displayed.
STANDARD "Standard" programme key
Reset of all time programmes.
KFitter settings access key
Key for access to setting and measurements
JPage scrolling
ILine scrolling
HReturn to the previous line
Programming keys
%O Enter (per 1/2 hour) the comfort temperature period or
tank load enabled (dark area)
$O Enter (per 1/2 hour) the reduced temperature period or
tank load disabled (light area)
SReturn key
A, B, C Circuit display selection key
PROG Active heating programme selection key (P1, P2, P3 or
P4)

9
20/02/09 - 300004565-001-C DTG 130
4. Commissioning
4 Commissioning
Initial commissioning must be done by a qualified
professional.
1. Check the water pressure in the installation. Top up with more
water if necessary.
2. Open the gas valve.
3. Check that the safety thermostat has not triggered. Remove the
safety thermostat hood and press the reset button with a
screwdriver.
4. Control panel B:
- Set the Summer/Winter swtich to
.
Control panel E/E1/D:
-Setswitch AUTO/
!
to the AUTO position.
5. Set the On/Off switch to 8.
6. The safety box carries out its ignition cycle.
5 Stopping the boiler
Set the On/Off switch to 7.
On the Off position 7, the domestic hot water calorifier
fitted with a titanium anode is not protected against
corrosion.
Precautions to take if there is a danger of frost
Heating circuit:
Use a correctly dosed antifreeze to prevent the heating water
freezing. If this cannot be done, drain the system completely. In all
cases, consult the fitter.
Domestic hot water circuit:
Drain the domestic water tank and pipes.
Precautions to take in the event of prolonged shutdown (one year or more)
- Close the gas valve
- The boiler and the chimney must be swept carefully.
- Close the door of the boiler to prevent the internal circulation of air.

10 DTG 130 20/02/09 - 300004565-001-C
6. Troubleshooting
6 Troubleshooting
Checks to make before calling your fitter:
The burner is not working:
- Shutdown by the safety thermostat due to accidental overheating.
Check that the safety thermostat has not triggered. To restart the
boiler, reset the safety thermostat. Remove the safety thermostat
hood and press the reset button with a screwdriver. Carry out the
start-up operations again. Call your fitter.
- Chimney versions:
downdraught thermostat cut. In the event of smoke release by the
anti-blowback device, the anti-release safety device switches off
the burner with the safety box on standby for 15 minutes (this is
indicated by an alarm indicator flashing). If these interruptions are
repeated, contact your fitter.
The burner is operating but the radiators are cold:
- Bleed the radiators.
- Top up the primary circuit with water.
- Check that the heating pump is operating correctly.
- If it is often necessary to top up the installation with water, contact
your fitter.
Before informing the fitter of a fault, make a note of the following
information:
- Product type
- Year of manufacture
- Serial number
- Type of gas used
This information can be found on the rating plate stuck to the front
plate of the boiler.

11
20/02/09 - 300004565-001-C DTG 130
6. Troubleshooting
Warranty
You have just purchased one of our appliances and we thank you
for the trust you have placed in our products.
Please note that your appliance will provide good service for a
longer period of time if it is regularly checked and maintained.
Your fitter and our customer support network are at your disposal
at all times.
Warranty terms
Starting from the purchase date shown on the original fitter's
invoice, your appliance has a contractual guarantee against any
manufacturing defect.
The length of the guarantee is mentioned in the price catalogue.
The manufacturer is not liable for any improper use of the
appliance or failure to maintain or install the unit correctly (the
user shall take care to ensure that the system is installed by a
qualified fitter).
In particular, the manufacturer shall not be held responsible for
any damage, loss or injury caused by installations which do not
comply with the following:
- applicable local laws and regulations
- specific requirements relating to the installation, such as
national and/or local regulations
- the manufacturer's instructions, in particular those relating to
the regular maintenance of the unit
- the rules of the profession
The warranty is limited to the exchange or repair of such parts as
have been recognised to be faulty by our technical department
and does not cover labour, travel and carriage costs.
The warranty shall not apply to the replacement or repair of parts
damaged by normal wear and tear, negligence, repairs by
unqualified parties, faulty or insufficient monitoring and
maintenance, faulty power supply or the use of unsuitable fuel.
Sub-assemblies such as motors, pumps, electric valves etc. are
guaranteed only if they have never been dismantled.
France
The preceding dispositions are not exclusive of benefits for the
purchaser of the legal guarantee as stated in Civil Code articles
1641 to 1648.
Belgium
The preceding dispositions about the contractual guarantee are
not exclusive of profit if the need arises for the purchaser in
Belgium of the applicable legal dispositions on hidden defects.
Switzerland
The application of the warranty is subject to the terms and
conditions of sale, delivery and warranty of the company
marketing our products.
Poland
Warranty conditions are included in the warranty card.
Other countries
The above provisions do not restrict the benefit of the legal laws
regarding hidden defects applicable in the buyer's country.

© Copyright
All technical and technological information contained in these technical instructions, as well as any
drawings and technical descriptions supplied, remain our property and shall not be multiplied
without our prior consent in writing.
Subject to alterations.
20/02/09
DE DIETRICH THERMIQUE
57, rue de la Gare F- 67580 MERTZWILLER - BP 30
DE DIETRICH THERMIQUE S.A.S.
www.dedietrich-thermique.fr
FR
Direction des Ventes France
57, rue de la Gare
F- 67580 MERTZWILLER
[phone]
[phone]
DE DIETRICH REMEHA GmbH
www.dedietrich-remeha.de
VAN MARCKE
www.vanmarcke.be
WALTER MEIER (Klima Schweiz) AG
www.waltermeier.com
DE
BE
CH
NEUBERG S.A.
www.dedietrich-heating.com
LU
DE DIETRICH
RU
Rheiner Strasse 151
D- 48282 EMSDETTEN
+49 (0)25 72 / 23-5
+49 (0)25 72 / 23-102
[email protected]
Weggevoerdenlaan 5
B- 8500 KORTRIJK
+32 (0)56/23 75 11
Bahnstrasse 24
CH-8603 SCHWERZENBACH
[phone]
[phone]
39 rue Jacques Stas
L- 2010 LUXEMBOURG
[phone]
[e-mail]
DE DIETRICH
www.dedietrich-heating.com
CN
Room 512, Tower A, Kelun Building
12A Guanghua Rd, Chaoyang District
C-100020 BEIJING
+86 (0)106.581.4017
+86 (0)106.581.4018
+86 (0)106.581.7056
+86 (0)106.581.4019
[email protected]
Serviceline [phone]
WALTER MEIER (Climat Suisse) SA
www.waltermeier.com
Z.I. de la Veyre B, St-Légier
CH-1800 VEVEY 1
[phone]
[phone]
[e-mail]
Serviceline [phone]
ÖAG AG
www.oeag.at
AT
Schemmerlstrasse 66-70
A-1110 WIEN
[phone] - 61624
[phone] - 61569
[email protected]
AD001NU-AB
www.dedietrich-otoplenie.ru
ул. Крутицкий Вал, д. 3
109044 г. Москва
[phone]
[phone]
[email protected]
корп. 2, оф. 35
Россия
