DeDietrich SOLNEO SGC 24 SOL Manual

FLOOR-STANDING GAS-FIRED CONDENSING BOILER
Floor-standing gas condensing boiler with integrated solar DHW calorifier
for connecting up to 4 m2of solar collectors.
All-in-one multi-energy solution, combining a compact, efficient, easy-to-
install condensing boiler and a 200-litre double coil solar DHW tank placed
directly under the boiler.
CONDITIONS OF USE
Boiler:
Min. flow temperature: 15°C
Min. return temperature: none
Max. operating temperature: 90°C
Max. operating pressure: 3 bar
Thermostat adjustable from 30 to 90°C
Safety thermostat: 110°C
Power supply: 230 V/50 Hz
Protection index: IPX 2D
Domestic hot water calorifier:
DHW temperature adjustable from 40 to 60°C
Max. DHW operating pressure (tank + exchangers): 10 bar
Solar circuit:
Max. operating temperature: 130°C
Max. operating pressure: 6 bar
HOMOLOGATION
B23P, C13x, C33x, C53
GAZ CATEGORY
Fitted and preset to operate on natural gases
Butane or propane operating by modifying the setting
SGC 24 SOL
SGC 24 SOL: 6 to 23,7 kW for heating and solar domestic
hot water
SOLNEO
Heating and solar domestic
hot water
Condensing
All natural gases, Butane,
Propane
Solar energy
EC identification No.:
0085BQ0052
★ ★ ★ ★

2
P
PRESENTATION OF THE BOILER
MAIN DIMENSIONS
The SGC 24 SOL is an all-in-one multi-energy solution, combining the
performance of a gas-fired condensing boiler and the production of
domestic hot water using an integrated solar calorifier.
The design of the SGC 24 SOL boiler has been based totally on
current preoccupations regarding high performance alongside
energy savings and environmental protection.
HIGH PERFORMANCE:
- Annual efficiency up to 109%
- Efficiency class ★ ★ ★ ★ CE
- NOx classification: 5 in accordance with EN 15420
- Low pollutant emissions:
• NOx < 30 mg/kWh
• CO < 20 mg/kWh
THEIR STRONG POINTS:
Condensing boiler
- Circular heating body in stainless steel and temperature- and
corrosion-resistant composite material.
- Cylindrical total premix surface burner in stainless steel
- Modulation range of 25 to 100% of nominal output
- Equipped and preset to operate on natural gases (operation
on butane or propane by modifying the settings).
- The silencer fitted to the air intake on the fan enables
compliance with acoustic regulation.
- 12-litre heating expansion vessel.
- Integrated heating/DHW bypass and reversal valve
- The control panel comprises:
• The boiler control panel: easy to use and functional
It adapts heating output to actual needs,
It includes a troubleshooting system, alarm codes, a digital
display; possibility of integrating a PCB with sensor for
3-way mixing valve (optional); possibility of connecting a
direct underfloor heating circuit.
• The DIEMASOL A solar control system: used to manage
and control the solar circuit, loading of the solar DHW tank,
guarantees protection against overheating and repeated
shutdowns.
- The Easymatic or Easyradio communicating remote controls,
whether or not they are combined with an outside sensor
(available as optional equipment) are used to optimise DHW
tank loading and operation in condensing mode.
Solar DHW calorifier
- Comprising a 200-litre enamelled solar DHW double coil
calorifier positioned and incorporated under the boiler,
protected by a magnesium anode.
- DHW calorifier equipped with a solar unit comprising the
pumps, the safety control unit, the filling and draining device
for the solar circuit, the thermometer, the collector and tank
sensors, the pressure gauge, the manual vent degasser, the
8-litre solar expansion vessel, the 14-litre glycol tank and the
thermostatic mixer valve.
The SGC 24 SOL is particularly easy to install:
- Boiler delivered fully assembled and fitted in 1 package (ex
forced flue).
- Holes for the insertion of carrying bars allowing it to be
easily put in place.
- Accessibility to all components from the front of the boiler for
easy maintenance.
- Optional water and gas connection kits available, with
heating and DHW safety valves.
- Delivered with a horizontal forced flue (homologation
C13x) or a vertical forced flue (homologation C33x); can be
connected to a chimney (homologation B23P), or in bi-flow
(homologation C53) (options).
2
600 172
660
2050
85 ==
45,5
60 60
5555
60
24
300
2
Ø60/100
1645
21(1)
980
435
484 126
5
1
6
7
2 4
3
SGC_F0001
➀Heating flow G 3/4
➁Domestic cold water inlet G 3/4
➂Gas inlet G 3/4
➃Domestic hot water outlet G 3/4
➄Heating return G 3/4
➅Solar circuit flow - Cu Ø 18 mm
➆Solar circuit return - Cu Ø 18 mm
(1) Feet adjustable from 21 to 40 mm

3
TECHNICAL CHARACTERISTICS OF THE BOILER
DESCRIPTION
TECHNICAL SPECIFICATIONS AND PERFORMANCES
Generator type:
heating and DHW with integrated calorifier
Boiler type: condensing
Burner: modulating with complete premixing
Energy used:
natural gases or butane/propane
Combustion evacuation:
chimney or sealed
Min. flow temp.: 15°C
Min. return temp.: none
Ref. “CE certificate”: 0085BQ0052
Model SGC 24 SOL
Nominal output Pn at 50/30°C kW 23,7
Efficiency 100% Pn at ave. temp. 70°C % 96,8
in % Pci, load... % 100% Pn at return temp. 30°C % 108
and water temp. ... °C 30% Pn at return temp. 30°C % 110
Nominal water flow at Pn and Δt = 20 K m3/h 1,0
Useful output 50/30°C min/max – at 80/60°C min/max kW 6-23,7/5,7-22
Min/max mass flue gas flowrate on natural gas H kg/s 10,2-38,4
Available pressure at boiler outlet Pa 190
Water content l 8,4
Minimum water flow required none
Water resistance at Pn, Δt = 20 K (80/60°C) mbar 110,0
Gas flow at Pn natural gas H/L m3/h 2,41/2,81
(15 °C-1013 mbar) propane kg/h 1,79
DHW calorifier capacity l 200
Exchanged output kW 22,8
Specific flowrate at Δt = 30 K (according to EN 13203-1) l/min 19
Flow per hour at Δt = 35 K l/h 560
Flow in 10 min at Δt = 30 K l/10 min 190
Weight empty kg 175
DHW performances at room temp. at Pn: 20°C, cold water temp. 10°C, primary hot water temp.: 80°C, storage temp.: 60°C

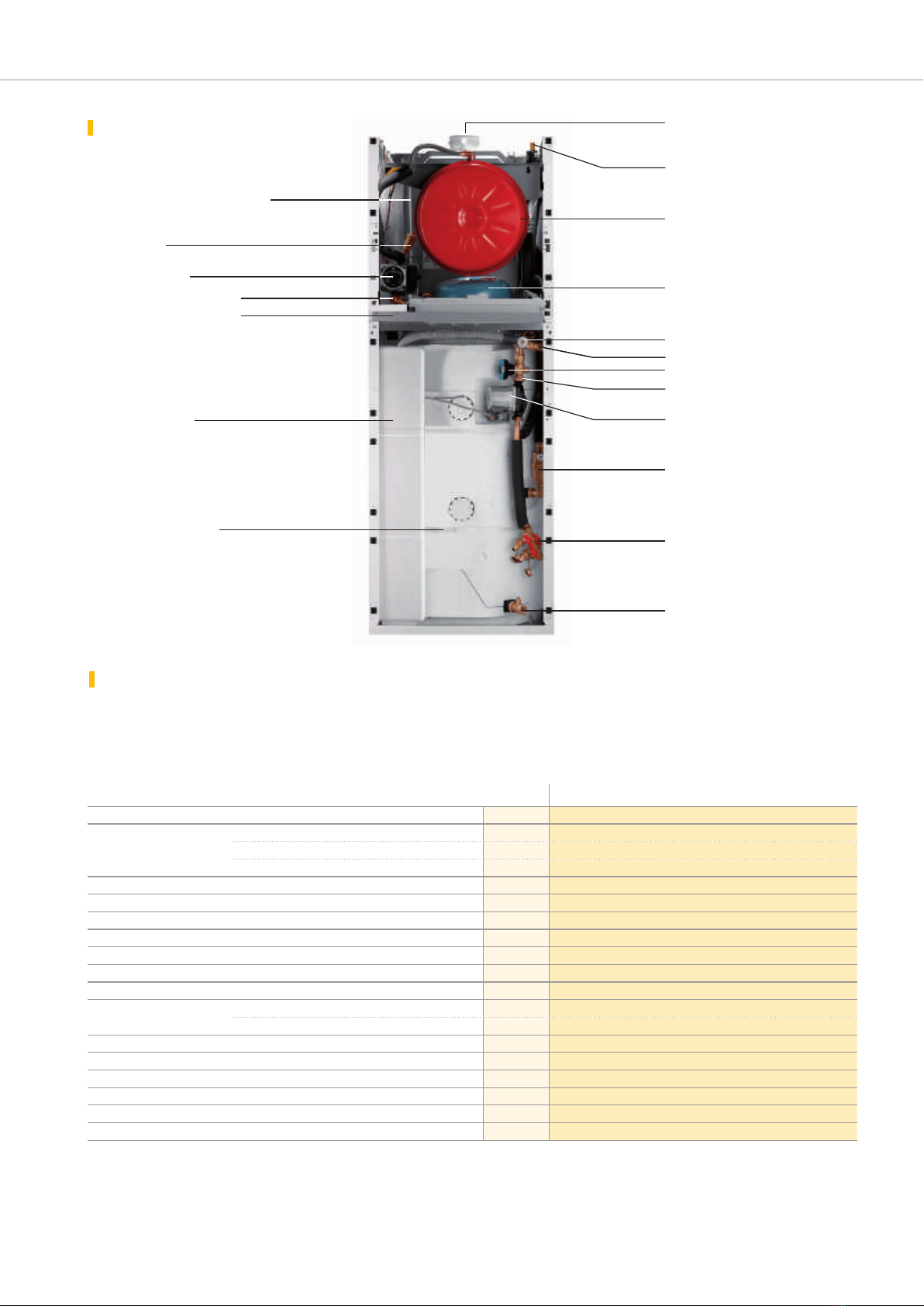

Heating body in stainless steel and
composite material, fitted with a total
premix burner and a gas valve unit
Manual air vent
Heating pump
Heating/DHW reversal valve
Tilting control panel in horizontal
position
Glycol collection tank
Insulated solar DHW tank
SGC 24 SOL
(shown with front panel and top cover removed,
control panel titled)
Air/flue gas connection Ø 60/100 mm
with measuring point
Solar circuit flow and return
12-litre boiler expansion vessel
8-litre solar expansion vessel
Solar circuit pressure gauge
Thermometer
Degasser with manual vent
Primary solar circuit filling and draining
device
DHW calorifier drainage
Solar safety control unit
Stop cock with anti-thermosiphon valve
Primary solar circuit pump
SGC_Q0002A

4
CONTROL PANEL
SGC 24 SOL boilers are equipped with a simple and functional
control panel, comprising:
- On the one hand, a “boiler” control zone used to adapt heating
output to actual needs;
- And, on the other hand, a DIEMASOL A control system for
managing the solar circuit
SGC_Q0003A
Digital temperature display
DIEMASOL A control
system for primary solar circuit
6-position settings button:
- Stop antifreeze (vent)
- DHW (summer)
- Heating + DHW (winter)
- Measurement mode
- Installer mode
- Sweeper mode
DHW temperature maintenance
override button
Reset button (for safety
shutdowns)
“+” or “-” parameter settings keys
Pressure display for the
heating circuit
Setting button for the domestic hot water
temperature (from 40 to 60°C) with light
Setting button for the heating temperature (from
30 to 90°C) with light
C ONTROL PANEL OPTIONS
Programmable wire-controlled room thermostat - Package AD 137
Programmable wireless room thermostat - Package AD 200
Non-programmable room thermostat - Package AD 140
Package AD 140
Package AD 200
The programmable thermostats handle the
regulation and weekly programming of heating
by activating the burner in accordance with the
various operating modes: “Automatic” depending
on programming, “Permanent” at a set temperature
or “Holidays”. The “wireless” version is delivered
with a receiver box to be affixed to the wall close
to the boiler.
The non-programmable thermostat is used to
regulate the room temperature according to the
instruction given by activation of the burner.
8801Q0038666Q120A
Easymatic communicating wire-controlled remote control - Package FM 50
Easyradio communicating wireless remote control - Package AD 201
Options recommended to be able to programme domestic hot water preparation and thus optimise the
solar load of the DHW calorifier
Package AD 201
These remote controls handle heating regulation
and weekly programming by activating the burner
and the circulating pump on the direct circuit or
the valve circuit (if one exists) as a function of
the outside temperature according to several
operating modes: “Automatic” according to
programming, “Permanent comfort”, “Reduced
permanent”, “Holidays” or “Summer”. Likewise,
they handle the regulation and programming of
domestic hot water. Should an incident occur, they
automatically display a code relative to the fault
observed, thus facilitating the search for the cause
of the malfunction.
8666Q119A
Outside sensor - Package FM 46
Used on its own or combined with Easymatic or
Easyradio and connected to the control panel, it is used to regulate the heating depending on the outside temperature.
8575Q034
PCB + sensor for 1 mixing valve - Package AD 202
This must be used with Easymatic or Easyradio
and the outside sensor. It is used to control a
mixing valve with a two-way electrothermal
or electromechanical motor. The valve circuit
(including its circulating pump) can then be
programmed independently.
8575Q036
Underfloor heating connection kit - Package HA 249
This cable harness is inserted into the heating pump
and includes the wires for connecting a safety thermostat for underfloor heating.

5
BOILER OPTIONS
Central connection kit with prefitted water/gas valves - Package HE 8
Right/left connection kit with prefitted water/gas valves - Package HE 9
Connection kits with prefitted water and gas shut-
off valves, 3- and 7-bar heating and DHW safety
valves, disconnector and connecting pipes for
either the central (package HE 8) or the right/left
(package HE 9) boiler.
8538F060A
Package
HE 8
Package
HE 9
Compact 2-circuit hydraulic module - Package EA 104
The compact module for 1 direct circuit and 1
circuit with mixing valve is equipped with 4 isolating
valves with thermometers, a 3-speed pump and a
motorised 3-way valve (valve circuit end), as well
as one manual air vent per circuit.
8531Q068
EA 104 (cover removed)
Condensates neutralisation tank - Package HC 33
Wall bracket for neutralisation tank - Package HC 34
Granule refill for neutralisation - Package HC 35
The materials used for the condensates flow
pipes must be appropriate; otherwise the
condensates must be neutralised. A regular check
of the neutralisation system and particularly the
effectiveness of the granules by measuring the pH
is necessary. If need be, the granules should be
replaced.
Package HC 33
Package HC 34
8531Q027
8531Q028A
S OLAR COLLECTORS RECOMMENDED FOR USE WITH SGC 24 SOL:
Number of people living in the home from to from
Recommended collectors or fields
of collectors (“roof” packs): package 1 x ECO 2,1 (1,9 m2) EG 447 1 x PRO 2,5 (2,5 m2) EG 445 2 x ECO 2,1 st (3,8 m2) EC 524 2 x PRO 2,3 ST (4,3 m2) EC 518 (1) 2 x PRO 2,3 IT (4,3 m2) EC 528 (1)
Additional accessories required (2):
Profiles kit for 1 collector package EG 450 EG 448 - - -
Anchorage fittings package 4 rooms (3) 4 rooms (3) 6 rooms (3) 6 rooms (3) 6 rooms (3)
Hydraulic connection kit package EG 305 EG 305 - - -
Collector sensor package EC 155 EC 155 - - -
Heat-carrying fluid type L
(premixture 60/40, -21°C) package EG 101 EG 101 EG 101 EG 101 EG 101
(1) “Roof Packs” with vertical delivery; for horizontal delivery, replace package EC 518 with EC 583 and EC 528 with EC 589.
(2) For vertical roof mounting; for horizontal or terrace mounting, refer to the current Price Catalogue or the “DIETRISOL” technical manual.
(3) Type of anchorage fittings to select depending of the roof type:
Note: To install the solar collectors and the various in/on roof
or terrace mounting devices available (orientation in relation to the sun, layout on the roof…), refer to the “DIETRISOL” technical manual.
For mounting on tiled roof:
Mechanical Mechanical Flat Sheeting Slates
(aluminium) (stainless steel) (stainless steel) (stainless steel) (stain.
steel)
4 parts EG 311 EG 313 EG 315 EG 317 EG 319
6 parts EG 312 EG 314 EG 316 EG 318 EG 320

6
INFORMATION REQUIRED FOR INSTALLATION
The installation and maintenance of the appliance, whether in a
residential building or in a building open to the public, must be carried out by a qualified professional in compliance with the statutory texts and codes of practice in force.
S TATUTORY INSTRUCTIONS ON INSTALLATION AND MAINTENANCE
I NSTALLATION
SGC 24 SOL condensation boilers must be installed in premises
protected from frost, which can also be ventilated.
In order to avoid damage to boilers, it is necessary to prevent the contamination of combustive air by chloride and/
or fluoride compounds, which are particularly corrosive. These compounds are present, for example, in aerosol spray
cans, paints, solvents, cleaning products, washing powders/liquids, detergents, glues, snow clearing salts, etc. You should
therefore:
- Avoid taking in air discharged from premises using such products: hairdressers, dry cleaners, industrial premises (solvents), premises
containing refrigeration systems (risk of leaking refrigeration fluid), etc.
- Avoid the storage of such products close to boilers.
Please note that, if the boiler and/or its peripherals become corroded by chloride and/or fluoride compounds, our contractual
warranty cannot be invoked.

G AS CONNECTION
Compliance with prevailing instructions and regulations is
mandatory. In all cases, a sectional valve is fitted as close as possible
to the boiler. This valve is delivered prefitted to the central and
right/left hydraulic connection kits available as optional equipment.
A gas filter must be fitted to the boiler inlet.
The diameters of the pipes must be defined according to the
prevailing regulations.
Gas supply pressure:
- 20 mbar on natural gas H, 25 mbar on natural gas L,
- 37 mbar on propane,
- 28 mbar on butane.
Certificate of conformity
The installer is required to draw up a certificate of conformity approved by the ministers responsible for construction and gas safety.
E LECTRICAL CONNECTION
This must comply with the prevailing national or even local
instructions and regulations.
The boiler must be powered by an electrical circuit comprising
an omnipolar switch with an opening gap > 3 mm. Protect the
connection to the mains with a 6A fuse.
Note:
- The sensor cables must be separated from the 230 V circuits by
at least 10 cm,
- In order to protect the pump antifreeze and cleaning functions,
we recommend not switching off the boiler at the mains switch.
Ventilation
This must comply with prevailing regulations.
H YDRAULIC CONNECTION
➩ Solar circuit, a few reminders:
Connection pipes between the collector field and the lower
exchanger in the solar calorifier, routed with a constant
downward slope as direct as possible, must be:
- tubular copper pipes preferably (synthetic materials should be
avoided because of the high temperatures) (Ø in accordance
with the table opposite),
- welded with strong brazing filler metal without flux (L-Ag2P or
L-CuP6),
- union connectors that can only be used if they are resistant to
Glycol, the pressure (6 bars) and the temperature (-30°C to
+180°C),
- a manual air vent valve is recommended at the high point,
- Suitable insulation: see recommendations in the “DIETRISOL”
technical manual.
Type and
number of
collectors
Guaranteed flowrate (l/h)
Ø in mm and max. length of
the pipes in m (in/out) with
solar pump
ST 20/6 integrated
per m2of
collectors solar pump Ø 15 Ø 18
1 x ECO 2,1
2 x ECO 2,1 75 40 150 150 50 25 - 50
1 x PRO 2,5 60 150 40 60
2 x PRO 2,3 30 150 25 50
Heat transporting fluid: use one of the fluids that we recommend:
see current Product Catalogue.
Characteristics ST 20/6
solar pump
0,5 1 1,5 2 2,5 3 3,5 0
0
2
4
6
8
0
2
mCE
m
3
/h
ST20/6
SGC_F0005

7
INFORMATION REQUIRED FOR INSTALLATION
SGC 24 SOL boilers must only be used in closed-circuit heating
installations, cleaned before use to eliminate the residues and
deposits caused by commissioning the installation. Furthermore, it is
important to protect central heating installations against the risk of
corrosion, scaling and microbiological growth: the water treatment
products used must comply with regulations.
➩ Heating circuit
Installation examples:
The examples presented below cannot cover the full range of
installation scenarios which may be encountered. Their purpose
is to draw the attention to the basic rules to be followed. A
certain number of control and safety devices (some of which are
already integrated as standard in the boilers) are shown but it is
ultimately up to installers, experts, consultant engineers and design
departments to take the final decision on the safety and control
devices to be used in the boiler room according to its specificities.
In all cases, it is necessary to abide by the codes of practice and
prevailing regulations.
Attention: For the connection of domestic hot water, a sleeve
made of steel, cast iron or any other insulating material must be
interposed between the hot water outlet and these pipes to prevent
any corrosion to the connections, if the distribution pipes are made
of copper.
Installation of an SGC 24 SOL with 1 direct radiator circuit,
1 Easymatic remote control + outside sensor and 2 ECO 2.1
solar collectors
Installation of an SGC 24 SOL with 1 direct “radiator” circuit +
1 circuit with mixing valve, 1 Easyradio remote control + out-
side sensor and 2 PRO 2.3 solar collectors
Condensates discharge
The siphon provided must be connected to the waste water
discharge system. The connection must be removable and the
flow of condensates visible. The connections and pipes must be in
corrosion-resistant materials. An optional condensates neutralisation
system is available (package HC 33 see page 5).
Characteristic of the heating circulating pump, Grundfos UPS
15.70 type, fitted to the SGC 24 SOL
HE9
SGC 24 SOL
16
46
109
114
17
17
11/26
84
4
87
130
112a
131
133
129
61
89
85
21
64
51
FM50
929
28
88
HE9
EA104
SGC 24 SOL
112a
131
133
64
51
65
129 21
23
44
16
46
109
114
17
17
11/26
84
4
87
130
61
89
85
BUS
°C °C °C °C
4
AD201
AD 202
TS
N L
929
28
88
Key:
4 Pressure gauge
9 Isolation valve
11 Heating pump
16 Expansion vessel
17 Draining valve
21 Outside sensor
23 Flow sensor downstream of the
mixing valve
26 Domestic water load pump
28 Domestic cold water inlet
29 Pressure reducer
44 Manual reset safety thermostat for
underfloor heating
46 2-position 3-way directional valve
51 Thermostatic valve
61 Thermometer
64 Direct circuit (e.g. radiators)
65 Circuit with mixing valve (e.g.
underfloor heating)
84 Stop cock with anti-
thermosiphon valve
85 Primary solar circuit pump
87 Solar safety valve: 6 bar
88 Solar expansion vessel
89 Recipient for solar fluid
109 Thermostatic valve
112a Solar collector sensor
114 Solar circuit filling and draining
device
129 DUO-Pipes (optional)
130 Degasser with manual vent
131 Collector field
133 Interactive remote control
(optional)
SGC_F0003A
SGC_F0004A
0 0,2 0,4 0,6 0,8 1
0
1
2
3
4
5
6
mCE
m
3
/h
PV
MV
GV
SGC_F0006
HS: high speed
MS: medium speed
LS: low speed

DE DIETRICH THERMIQUE
S.A.S. with corpored capital of 22 487 610 d
57, rue de la Gare - F-67580 Mertzwiller
Tel. [phone] - Fax [phone]
www.dedietrich-heating.com
INFORMATION REQUIRED FOR INSTALLATION
42
6
2
2
1
53
L1
L1
Lmax = L1+L2
Lmax
= L1+
L2
Lmax
Lmax
Lmax
Lmax
Lmax
max
max
max 1m
1m
1m
Lmax
L2
L2Lmax
C33x
C33x
B23P
C33x
C33x
C53
C13x
C33x
10/08 – 300018841 – 347.555.559 Strasbourg Companies Register – Document not contractually binding. You can check its validity on the website http:/www.dedietrichthermique.com - Printed in France - OTT Printers 67310 Wasselonne - 83594
AIR/FLUE GAS CONNECTION
For the use of the air/flue gas connection pipes and the rules on installation and for details of the various configurations, you can refer to
the current Product Catalogue.
Classification
8538F035D
Configuration C13x: Air/flue gas connection
by means of concentric pipes to a horizontal
terminal (so-called forced flue)
Configuration C33x: Air/flue gas connection
by means of concentric pipes to a vertical ter-
minal (roof outlet)
or
Air/flue gas connection using concentric pipes
in the boiler room and single pipes in the chim-
ney (combustive air with counter current in the
chimney)
or
Air/flue gas connection using concentric pipes
in the boiler room and single “flex” pipes in the
chimney (combustive air with counter current in
the chimney)
Configuration C53: Separate air and flue gas
connection using a bi-flow adapter and single
pipes (combustive air taken from outside)
Configuration B23P: Connection to a chimney
(combustive air taken from the boiler room).
TABLE SHOWING THE MAXIMUM AIR/FLUE GAS PIPE LENGTHS PERMITTED ACCORDING TO THE BOILER TYPE
Type of air/flue gas connection Lmax of connection pipes in m
SGC 24 SOL
Concentric pipes connected to a horizontal terminal (PPS) C13x Ø 60/100 mm 12
Concentric pipes connected to a vertical terminal (PPS) C33x Ø 60/100 mm 11,5
Ø 80/125 mm 10
Pipes
- concentric in the boiler room,
- single in the chimney
(combustive air in counter-current) (PPS)
C33x
Ø 60/100 mm
Ø 60 mm 13
Ø 60/100 mm
Ø 80 mm 20
Pipes
- concentric in the boiler room,
- “flex” in chimney (combustive air in counter-current) (PPS) C33x Ø 80/125 mm
Ø 80 mm 17
Bi-flow adaptor and separate single air/flue gas pipes
(combustive air taken from outside) (Alu) C53 Ø 60/100 mm
sur 2x80 mm 16
In chimney (rigid or flex)
(combustive air taken from the boiler room) (PPS) B23P
Ø 80 mm (rigid) 23
Ø 80 mm (flex) 40
