DeDietrich AWHP-V220 User manual

ALEZIO EN
Reversible air / water heat pump "Split Inverter"
AWHP-V220
User Guide
300026802-001-B

Contents
1 Introduction ................................................................................................4
1.1 Symbols used .......................................................4
1.1.1 Symbols used in the manual ...................................4
1.1.2 Symbols used on the equipment .............................4
1.2 Abbreviations and lexicon ...................................5
1.3 General ..................................................................5
1.3.1 Manufacturer's liability .............................................5
1.3.2 Installer's liability .....................................................5
1.3.3 User's liability ..........................................................6
2Safety instructions and recommendations ..............................................7
2.1 Safety instructions ...............................................7
2.2 Recommendations ................................................7
3Description ..................................................................................................9
3.1 General description ..............................................9
3.2 Main parts ..............................................................9
3.2.1 Inside module with electrical back-up .....................9
3.2.2 Inside module with hydraulic back-up ...................11

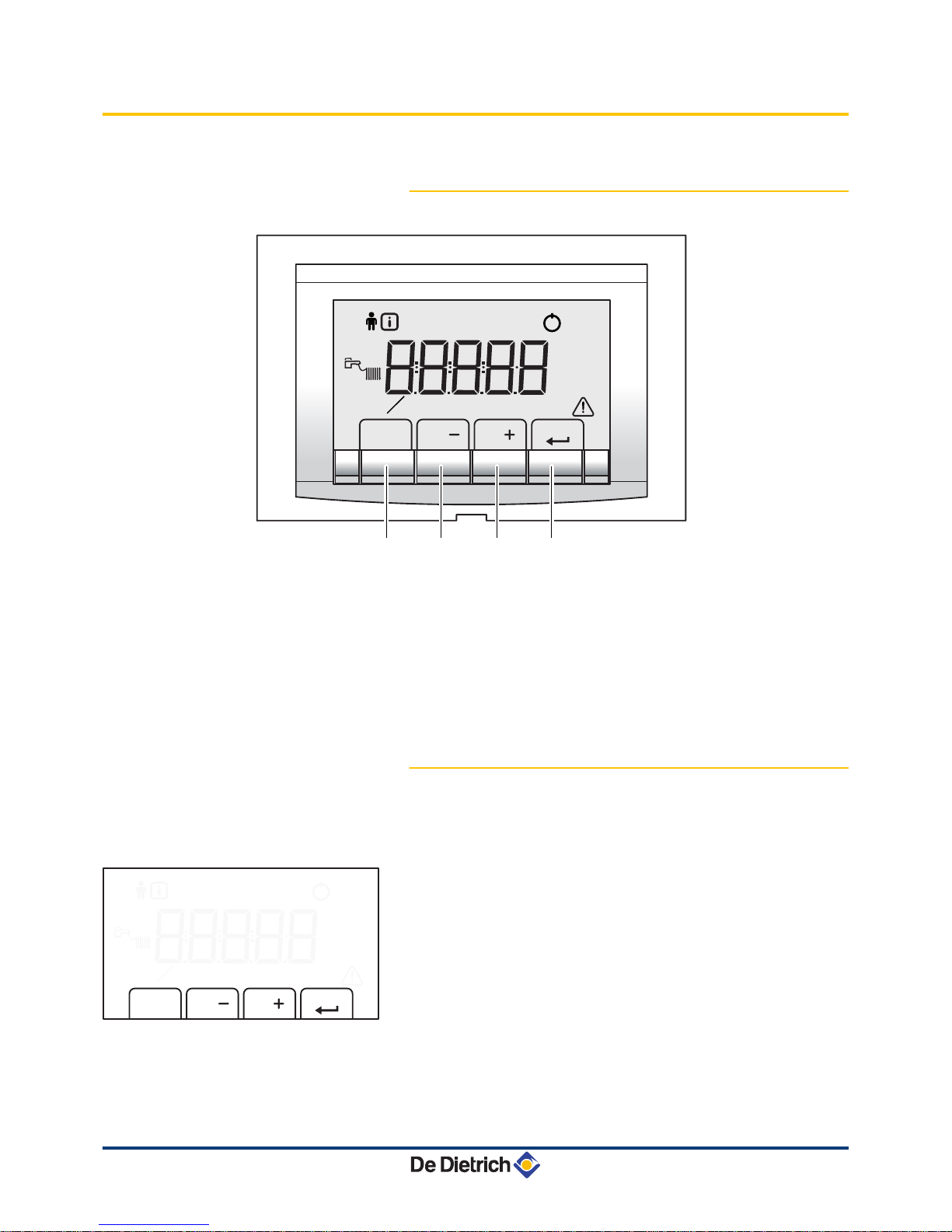

3.3 Control panel .......................................................12
3.3.1 Description of the keys ..........................................12
3.3.2 Description of the display ......................................12

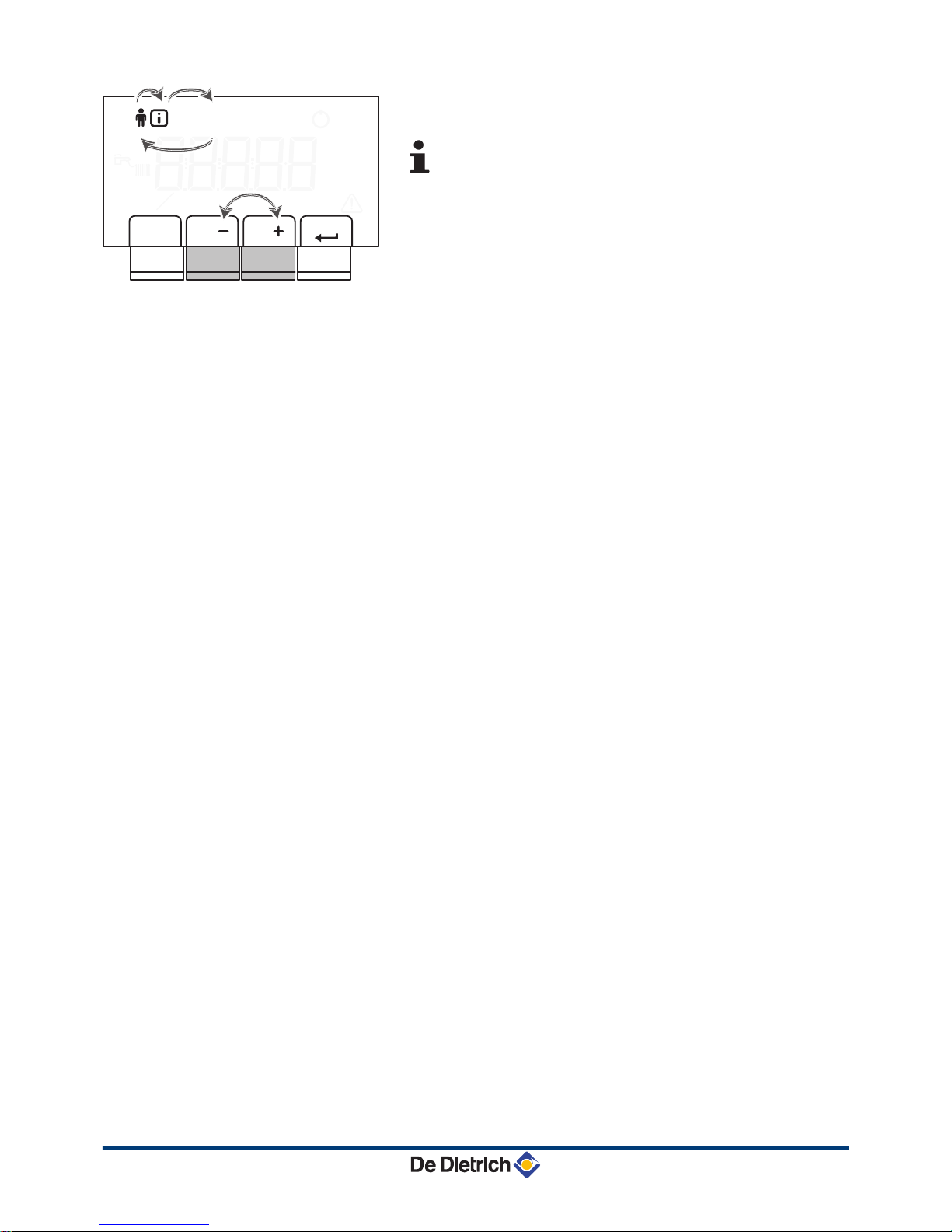

3.3.3 Accessing the menus ............................................13
4 Operating the appliance ..........................................................................15
4.1 Starting the heat pump .......................................15
4.2 Shutting down the heat pump ...........................15
4.3 Changing the user parameters ..........................16

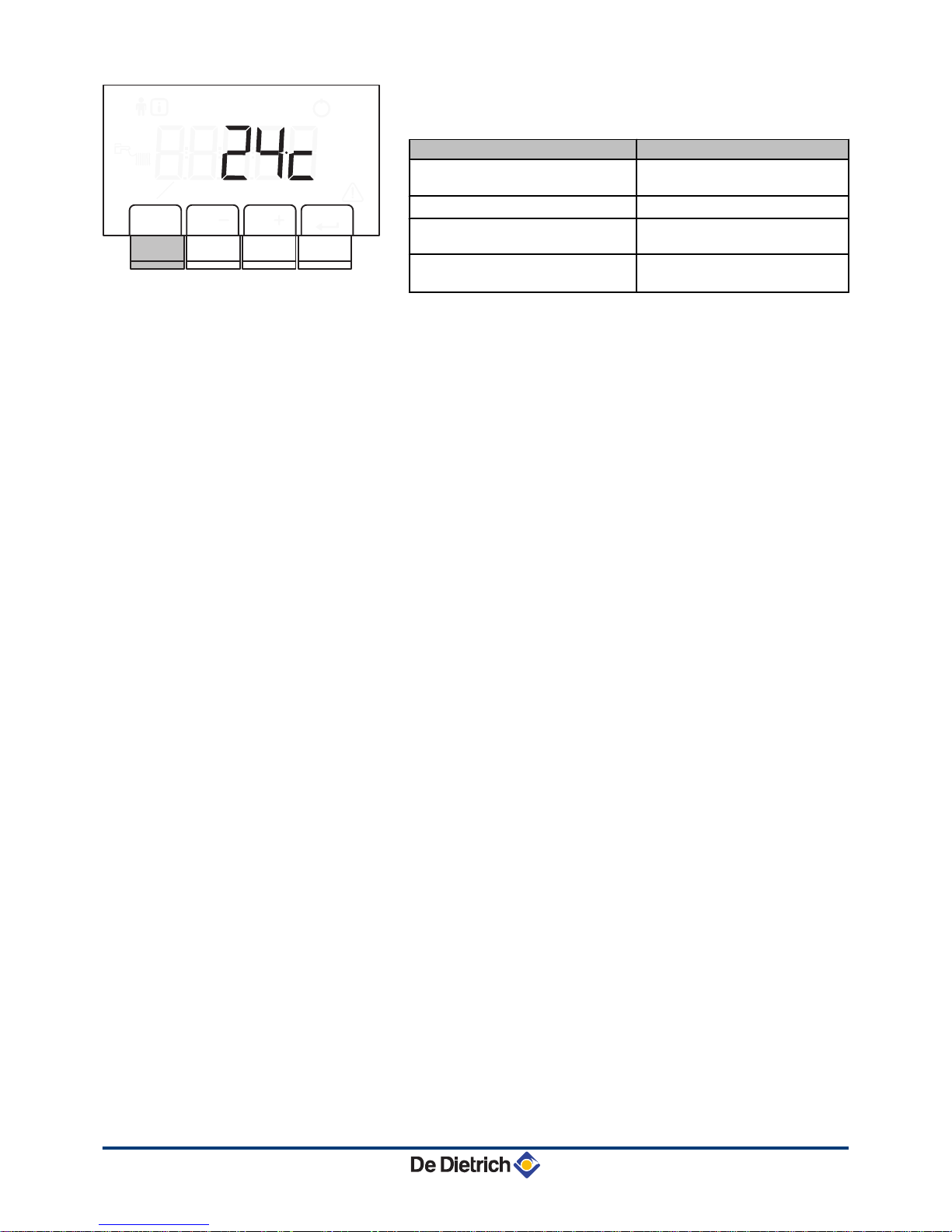

4.3.1 Modifying the set room temperature d ................16
4.3.2 Modifying the domestic hot water temperature r
..............................................................................16
4.3.3 Changing the operating mode ...............................17
4.3.4 Forcing the additional heating ...............................17
126/10/2011 - 300026802-001-B

5 Checking and maintenance .....................................................................19
5.1 General instructions ...........................................19
5.2 Periodic checks ..................................................19
5.3 Top up the installation with water .....................20

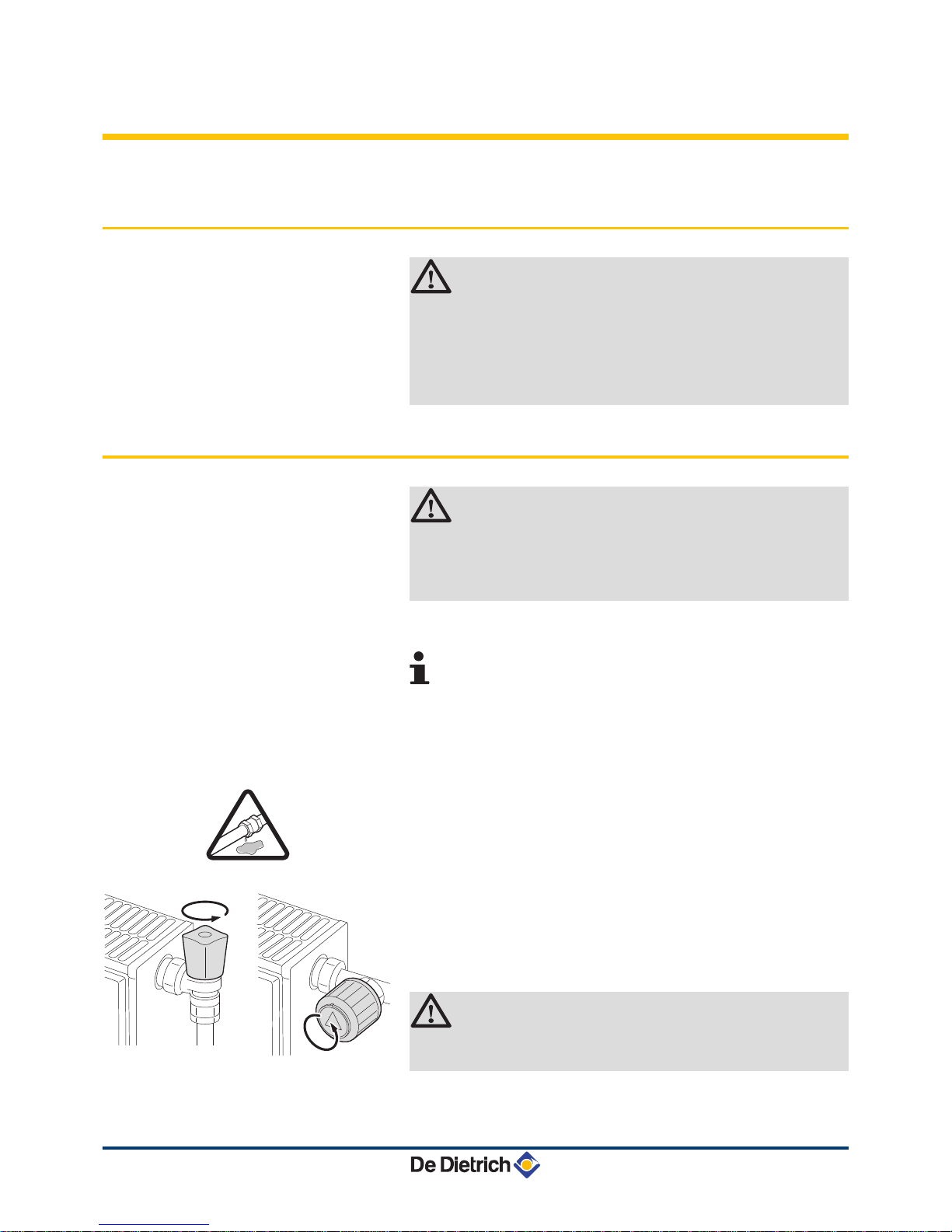

5.4 Bleeding the heating system .............................20
5.4.1 Manual venting ......................................................20
5.4.2 Automatic venting ..................................................21
6 Troubleshooting .......................................................................................22
6.1 Error codes ..........................................................22
6.2 Incidents and solutions ......................................23
7 Technical specifications ..........................................................................25
7.1 Technical specifications ....................................25
7.1.1 Heat pump .............................................................25
7.1.2 Domestic hot water tanks ......................................26
8 Energy savings .........................................................................................27
8.1 Energy savings ...................................................27
8.1.1 Energy-saving advice ............................................27
8.1.2 Room thermostat and settings ..............................27
9 Warranty ....................................................................................................28
9.1 General ................................................................28
9.2 Warranty terms ...................................................28
Contents
226/10/2011 - 300026802-001-B

326/10/2011 - 300026802-001-B

1 Introduction
1.1 Symbols used
1.1.1. Symbols used in the manual
In these instructions, various danger levels are employed to draw the
user's attention to particular information. In so doing, we wish to
safeguard the user's safety, obviate hazards and guarantee correct
operation of the appliance.
DANGER
Risk of a dangerous situation causing serious physical
injury.
WARNING
Risk of a dangerous situation causing slight physical
injury.
CAUTION
Risk of material damage.
Signals important information.
¼ Signals a referral to other instructions or other pages in the
instructions.
1.1.2. Symbols used on the equipment
1 2
M002628-A
Disconnect the mains power prior to any operations.
Before installing and commissioning the device, read
carefully the instruction manuals provided.
Dispose of the device at an appropriate recovery and
recycling facility.
AWHP-V220 1. Introduction
26/10/2011 - 300026802-001-B 4

1.2 Abbreviations and lexicon
4MIV: Indoor module
4HP or PAC: Heat pump
4DHW: Domestic hot water
4Supply temperature: Temperature of the water circulating in the
radiators or in the underfloor heating
4Ambient temperature: Temperature inside the house or in a room
4Room temperature instruction: Temperature programmed in the
control system that must be reached by the heat pump
4Forced back-up operation: Function enabling the ignition of a
heating system to complement the heat pump in periods of
extreme cold
1.3 General
1.3.1. Manufacturer's liability
Our products are manufactured in compliance with the requirements
of the various applicable European Directives. They are therefore
delivered with [ marking and all relevant documentation.
In the interest of customers, we are continuously endeavouring to
make improvements in product quality. All the specifications stated in
this document are therefore subject to change without notice.
It is our responsibility to inform customers, in accordance with Article
L. 113-3 of the Consumer Code, of their obligation to have this
equipment installed by a certified operator whenever the refrigerant
load is more than two kilograms or when a refrigerant connection is
necessary (the case with split systems, even when fitted with a quick
coupling device).
Our liability as the manufacturer may not be invoked in the following
cases:
4Failure to abide by the instructions on using the appliance.
4Faulty or insufficient maintenance of the appliance.
4Failure to abide by the instructions on installing the appliance.
1.3.2. Installer's liability
The installer is responsible for the installation and inital start up of the
appliance. The installer must respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
4Carry out installation in compliance with the prevailing legislation
and standards.
4Perform the initial start up and carry out any checks necessary.
1. Introduction AWHP-V220
526/10/2011 - 300026802-001-B

4Explain the installation to the user.
4If a maintenance is necessary, warn the user of the obligation to
check the appliance and maintain it in good working order.
4Give all the instruction manuals to the user.
1.3.3. User's liability
To guarantee optimum operation of the appliance, the user must
respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
4Call on qualified professionals to carry out installation and initial
start up.
4Get your fitter to explain your installation to you.
4To carry out inspections and maintenance required by a qualified
professional.
4Keep the instruction manuals in good condition close to the
appliance.
This appliance is not intended to be used by persons (including
children) whose physcial, sensory or mental capacity is impaired or
persons with no experience or knowledge, unless they have the
benefit, through the intermediary of a person responsible for their
safety, of supervision or prior instructions regarding use of the
appliance. Care should be taken to ensure that children do not play
with the appliance.
AWHP-V220 1. Introduction
26/10/2011 - 300026802-001-B 6

2 Safety instructions and
recommendations
2.1 Safety instructions
DANGER
If smoke is released or in case of refrigerant leak:
1. Switch the appliance off.
2. Open the windows.
3. Evacuate the premises.
4. Contact a qualified professional.
WARNING
Depending on the settings of the appliance:
4The temperature of the radiators may reach 90°C.
4Do not touch the refrigeration connection pipes with
your bare hands while the appliance is running.
Danger of burns or frost injury.
CAUTION
Do not neglect to service the appliance. Contact a qualified
professional or take out a maintenance contract for the
annual servicing of the appliance.
CAUTION
Before any work, switch off the mains supply to the
appliance.
2.2 Recommendations
WARNING
Only qualified professionals are authorised to work on the
appliance and the installation.
4Have regular checks made to ensure that the water pressure in
the installation is between 1.5 and 2 bar.
4Ensure that the appliance is accessible at all times for
maintenance purposes.
4Avoid draining the installation.
4Never remove or cover labels and rating plates affixed to the
appliance. Labels and rating plates must be legible throughout the
entire lifetime of the appliance.
2. Safety instructions and recommendations AWHP-V220
726/10/2011 - 300026802-001-B

4To guarantee the following functions, select the Off/Antifreeze
mode but do not switch off the appliance:
-Anti blocking of pumps
-Frost protection
4To take advantage of the guarantee, no modifications must be
made to the appliance.
AWHP-V220 2. Safety instructions and recommendations
26/10/2011 - 300026802-001-B 8

3 Description
3.1 General description
The ALEZIO heat pump comprises:
4A reversible outside module for energy production in hot or cold
mode.
4An inside module with a control panel to handle the thermal
exchange between the R410A fluid and the hydraulic circuit.
The two units are connected by means of refrigeration and electrical
connections.
The inside module handles domestic hot water production.
The system offers the following advantages:
4The heating circuit is housed in the insulated volume within the
home. There is no danger of the pipes freezing.
4Thanks to the DC inverter system, the heat pump modulates its
output to adapt to the needs of the home.
4The control panel uses the outside temperature sensor to adjust
the temperature of the heating circuit according to the outside
temperature.
4The steel tank is lined with food quality standard enamel vitrified
at 850°C, which protects the tank from corrosion.
4The coil-shaped heat exchanger welded into the tank is made of
smooth piping, its external surface, which comes into contact with
drinking water, being enamelled.
4The appliance is insulated by CFC-free polyurethane foam, which
reduces heat losses to a minimum.
4The outside casing is made of painted steel sheeting.
4The tank is protected against corrosion by a magnesium anode.
3.2 Main parts

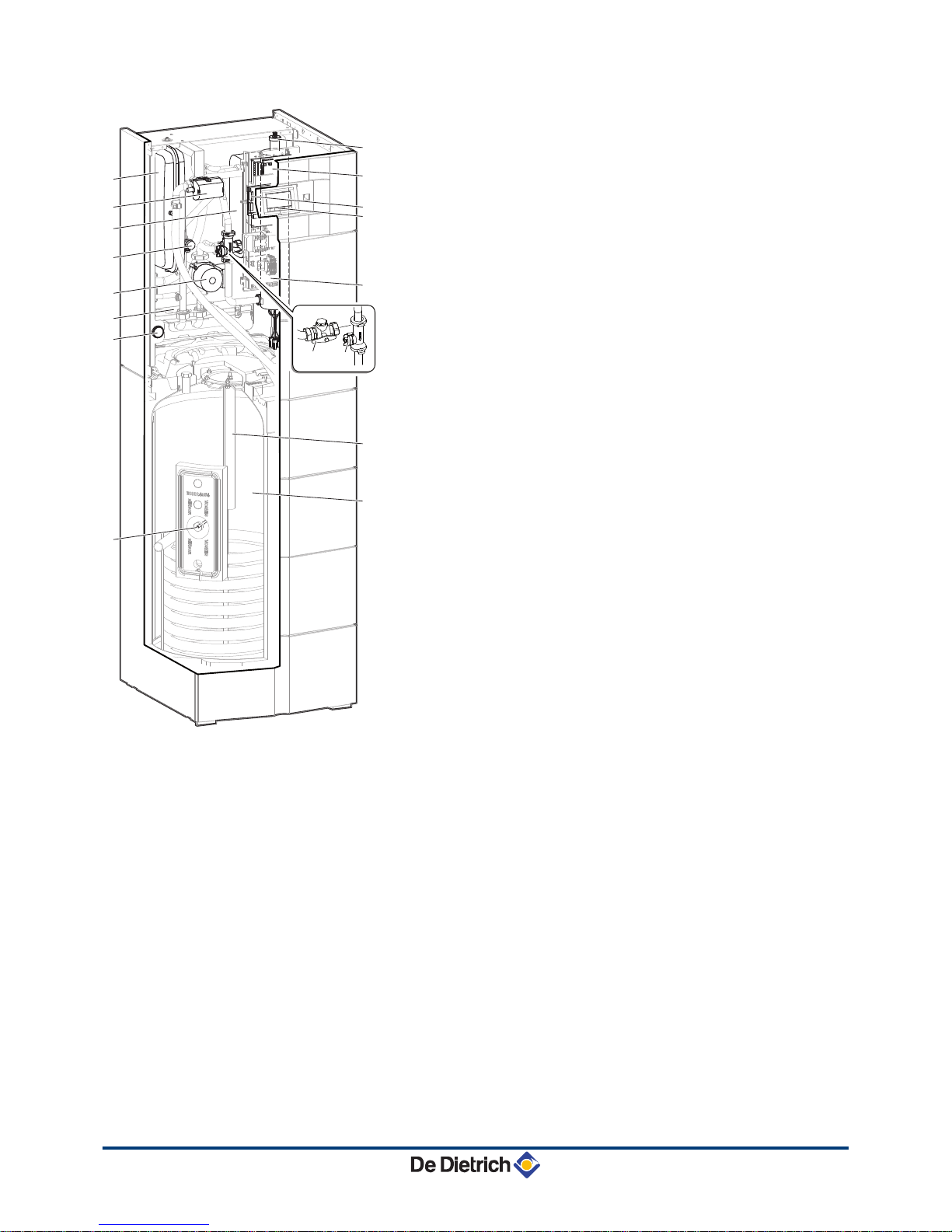

3.2.1. Inside module with electrical back-up
3. Description AWHP-V220
926/10/2011 - 300026802-001-B

Models: MIV-II/EM-ET V220
1Expansion vessel
23-way valve + Motor
3Exchanger
4Safety valve
5Shunt pump
6Connection plate
7Pressure gauge
8DHW sensor
9Bleed valve
10 Interface PCB *1
11 Control system board
12 Display
13 Low-loss header with electrical back-up
14 500 μm filter with isolating valves
15 Flowmeter
16 Magnesium anode
17 DHW tank
L000243-A
10
12
11
9
13
16
17
5
4
3
2
1
6
7
8
14 15
AWHP-V220 3. Description
26/10/2011 - 300026802-001-B 10

3.2.2. Inside module with hydraulic back-up
Model: MIV-II/H V220
1Expansion vessel
23-way valve + Motor
3Exchanger
4Safety valve
5Shunt pump
6Connection plate
7Pressure gauge
8DHW sensor
9Bleed valve
10 Interface PCB *1
11 Control system board
12 Display
13 Disconnecting cylinder
14 500 μm filter with isolating valves
15 Flowmeter
16 Magnesium anode
17 DHW tank
10
12
11
9
13
16
17
5
4
3
2
1
6
7
8
L000244-B
14 15
3. Description AWHP-V220
11 26/10/2011 - 300026802-001-B

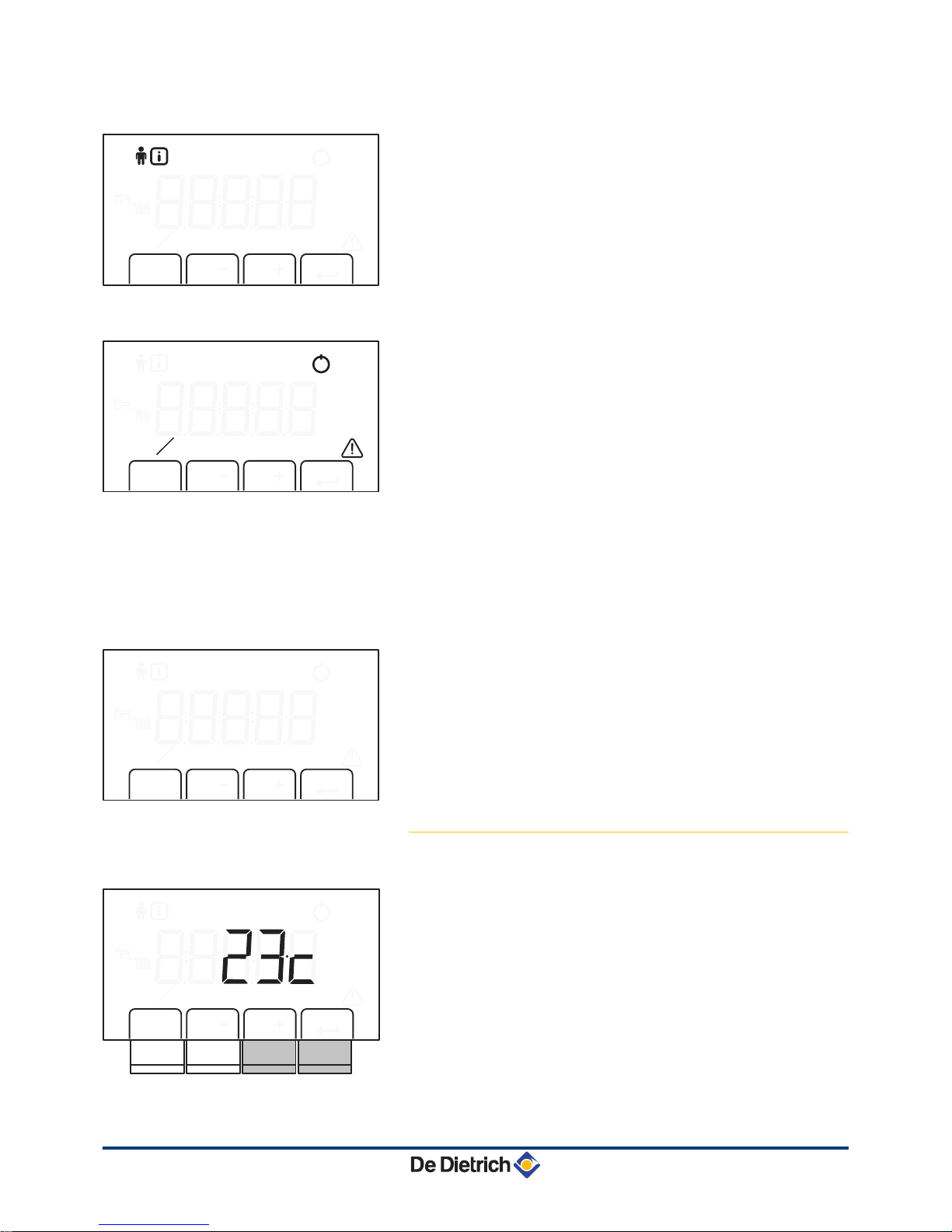

3.3 Control panel
3.3.1. Description of the keys
AEscape key G
BHeating temperature button d or [-]
CDHW temperature button r or [+]
DS [Enter] Key
3.3.2. Description of the display
nKey functions
GBack to the previous level without saving the
modifications made
dCentral heating function:
Access to the max. heating temperature parameter.
[-] To reduce a value
rDHW function:
Access to the heating set point temperature parameter.
[+] To increase a value
®Confirmation of the value displayed
or
Access to the menu selected
-
)
m
wr
r
r
d
d
v
c
d
SERVICE
L000308-A
h
j
A B C D
-
m
r
r
d
d
d
SERVICE
L000309-A
h
j
w
r
v
c
)
AWHP-V220 3. Description
26/10/2011 - 300026802-001-B 12

nMenus
WUser menu
QInformation menu
Installer menu
nOperating indicators
KA manual vent cycle is running / Permanent display of the
Information menu
aIn stop/antifreeze mode
vCompressor on
GElectrical or hydraulic back-up running
wcooling mode on
rDHW mode running
DCentral heating off
aDefault active
nForced back-up operation
mManual mode
dAdditional heating
rAdditional DHW
3.3.3. Accessing the menus
The various menus can be accessed using various key combinations.
1. Press keys C (r) and D simultaneously.
The symbol W flashes.
)-
m
r
r
d
d
d
SERVICE
L000310-A
w
r
v
c
h
j
-
m
r
r
d
d
d
SERVICE
L000311-A
w
r
v
c
h
j
)
-
m
r
r
d
d
d
SERVICE
L000312-A
w
r
v
c
h
j
)
-
m
r
r
d
d
d
SERVICE
L000313-A
A B C D
w
r
v
c
h
j
)
3. Description AWHP-V220
13 26/10/2011 - 300026802-001-B

2. Use the B (-) and C (+) keys to scroll through the menus.
3. To confirm, press the D (S) key.
4Press the key A (G) to exit the menu.
4If no keys are pressed for 10 seconds, the screen
goes back to the main display without saving the
parameters.
)-
m
r
r
d
d
d
SERVICE
L000314-A
A B C D
w
r
v
c
h
j
AWHP-V220 3. Description
26/10/2011 - 300026802-001-B 14

4 Operating the appliance
4.1 Starting the heat pump
WARNING
Only a qualified professional may carry out initial start up
or a start up when the heat pump has completely stopped.
When the appliance is switched on, the control panel indicates its
operating mode:
Screen display Operating mode
r4Heating and domestic hot water
4Swimming pool and domestic hot water
4Heating
4Pool
r + DDomestic hot water
w + rCooling and domestic hot water
wCooling
/Shutdown/Frost Protection
To modify the operating mode, see chapter:
¼ "Changing the operating mode", page 17.
4.2 Shutting down the heat pump
WARNING
It is recommended that the heat pump never be completely
shut down.
Antifreeze protection is no longer guaranteed
automatically if the mains supply is switched off.
If the central heating and the DHW tank are not used for a long period,
we recommend putting the heat pump in shutdown/frost protection
mode.
¼ See chapter: "Changing the operating mode", page 17.
In this mode, the installation's antifreeze protection remains active.
4. Operating the appliance AWHP-V220
15 26/10/2011 - 300026802-001-B

4.3 Changing the user parameters
4.3.1. Modifying the set room temperature d
1. Press the B (d) key.
2. Use the B (-) and C (+) keys to modify the value.
Temperature Adjustment range Increment Factory
setting
Room temperature
instruction
from 15 to 30°C 1 °C 20 °C
3. Press the D (®) key to confirm and exit the menu.
When a room thermostat is connected, set the room
thermostat to a value 2 K higher than the room temperature
setpoint d.
4.3.2. Modifying the domestic hot water
temperature r
1. Press the C (r) key.
2. Use the B (-) and C (+) keys to modify the value.
Temperature Adjustment range Increment Factory setting
DHW set temperature from 40 to 65°C 1 °C 50 °C
3. Press the D (®) key to confirm and exit the menu.
)-
m
r
r
d
d
d
SERVICE
L000317-A
A C D
w
r
v
c
h
j
B
)-
m
r
r
d
d
d
SERVICE
L000318-A
A B C D
w
r
v
c
h
j
)-
m
r
r
d
d
d
SERVICE
L000319-A
A C D
w
r
v
c
h
j
B
)-
m
r
r
d
d
d
SERVICE
L000320-A
A B C D
w
r
v
c
h
j
AWHP-V220 4. Operating the appliance
26/10/2011 - 300026802-001-B 16

4.3.3. Changing the operating mode
1. Press keys C (r) and (D) simultaneously.
The symbol W flashes.
2. To confirm, press the D (S) key.
3. Use the B (-) and C (+) keys to modify the value.
Operating mode Value Screen display
Heating and domestic hot water 1 r
Heating 2
Domestic hot water 3 r + D
Cooling and domestic hot water 4 w + r
Cooling 5 w
Shutdown/Frost Protection 6 /
Pool 7
Swimming pool and domestic hot water 8 r
4. Press the D (®) key to confirm and exit the menu.
4.3.4. Forcing the additional heating
It is impossible to force the additional heating when the off/
antifreeze mode is selected.
It is possible to force use of the additional heating to complement the
heat pump. To force use of the additional heating, perform the
following operations:
1. Press keys A and D simultaneously.
Hold the keys down.
)-
m
r
r
d
d
d
SERVICE
L000321-A
AB C D
w
r
v
c
h
j
)-
m
r
r
d
d
d
SERVICE
L000322-A
A B C D
w
r
v
c
h
j
)-
m
r
r
d
d
d
SERVICE
L000323-A
A C D
w
r
v
c
h
j
B
4. Operating the appliance AWHP-V220
17 26/10/2011 - 300026802-001-B

2. Hold the A key down and press the D key successively to choose
the forcing desired.
Display Back-up
m + dForcing additional heating for
heating
m + rForcing additional heating for DHW
m + d + rForcing additional heating for
heating and DHW
The m symbol disappears from the
display
Additional heating forcing
deactivated
)-
m
r
r
d
d
d
SERVICE
L000324-A
AC D
w
r
v
c
h
j
B
AWHP-V220 4. Operating the appliance
26/10/2011 - 300026802-001-B 18

5 Checking and maintenance
5.1 General instructions
CAUTION
4An annual inspection is compulsory.
4We recommend taking out a maintenance contract.
4Maintenance operations must be done by a qualified
engineer.
4Only original spare parts must be used.
5.2 Periodic checks
WARNING
Only qualified professionals are permitted access to the
inside of the appliance.
If the pressure gauge is not accessible, contact the
installer.
4Have the installation's water pressure checked.
If the water pressure is lower than 1 bar, more water should
be added. If necessary, top up the water level in the heating
system (recommended hydraulic pressure between 1,5
and 2,0 bar).
¼ See chapter: "Top up the installation with water",
page 20.
4Carry out a visual check for the presence of any water leaks.
4Open and close the radiator valves several times a year (this
prevents the valves from seizing up).
4Clean the outside of the heat pump using a damp cloth and a mild
detergent.
CAUTION
Only qualified professionals are permitted to clean the
inside of the appliance.
T001507-B
1
2
3
4
T000181-B
5. Checking and maintenance AWHP-V220
19 26/10/2011 - 300026802-001-B
