DeFelsko PosiTector 200 User manual

Instruction Manual v. 3.3
Ultrasonic Coating Thickness Gage
Standard and
Advanced

1
Introduction
The PosiTector 200 is a hand-held Coating Thickness Gage
that uses a non-destructive ultrasonic principle to measure
coating thickness on a wide variety of substrates. It consists of
a body (Standard or Advanced) and a probe (see Probes pg. 2).
This Quick Guide summarizes the basic functions of the Gage.
Download the full instruction manual at:
www.defelsko.com/manuals
Quick Start
The PosiTector 200 powers-up when the center navigation
button is pressed. To preserve battery life, the instrument
powers down after approximately 5 minutes of no activity.
All settings are retained.
1. Remove the protective rubber cap from the probe.
2. Power-up Gage by pressing the center navigation button.
3. Zero the probe. (pg. 5)
4. Adjust to a known thickness, if necessary. (pg. 6)
5. Apply couplant (pg. 2) to the surface of the part.
6. easure the part. (pg. 3)
Up
Down
Center

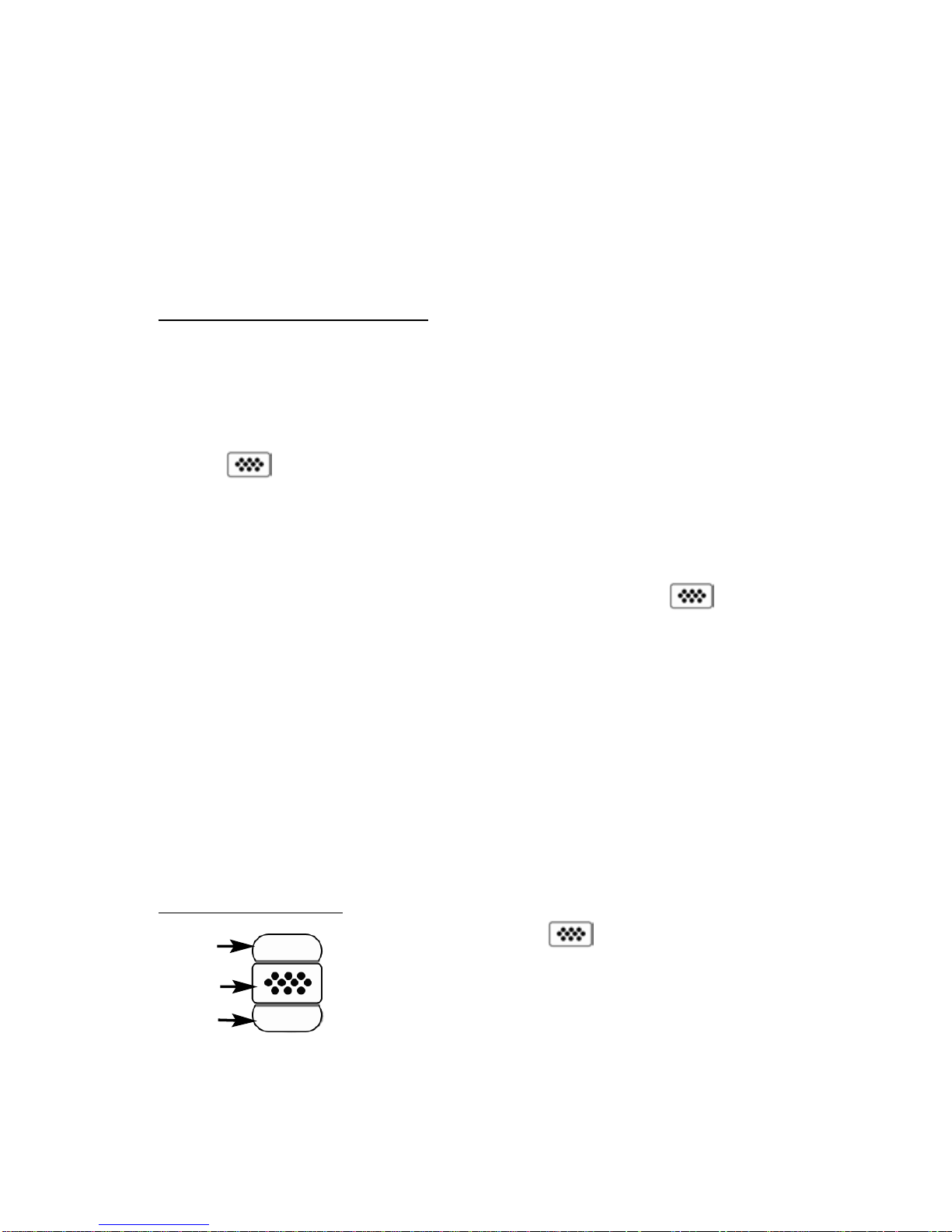

To navigate, use the Up and Down buttons to
scroll vertically and to SELECT.
Press the (+) button to switch pages in a
multipage menu. Press the (-) button to
return to the previous menu or page
Center Navigation Button
Menu Operation
Gage functions are menu controlled. To access the enu,
power-up the gage, then press the center navigation button.
Select Exit to exit from any menu.

2
Probes
When powered-up, the PosiTector automatically
determines which probe is attached and does a
self-check.

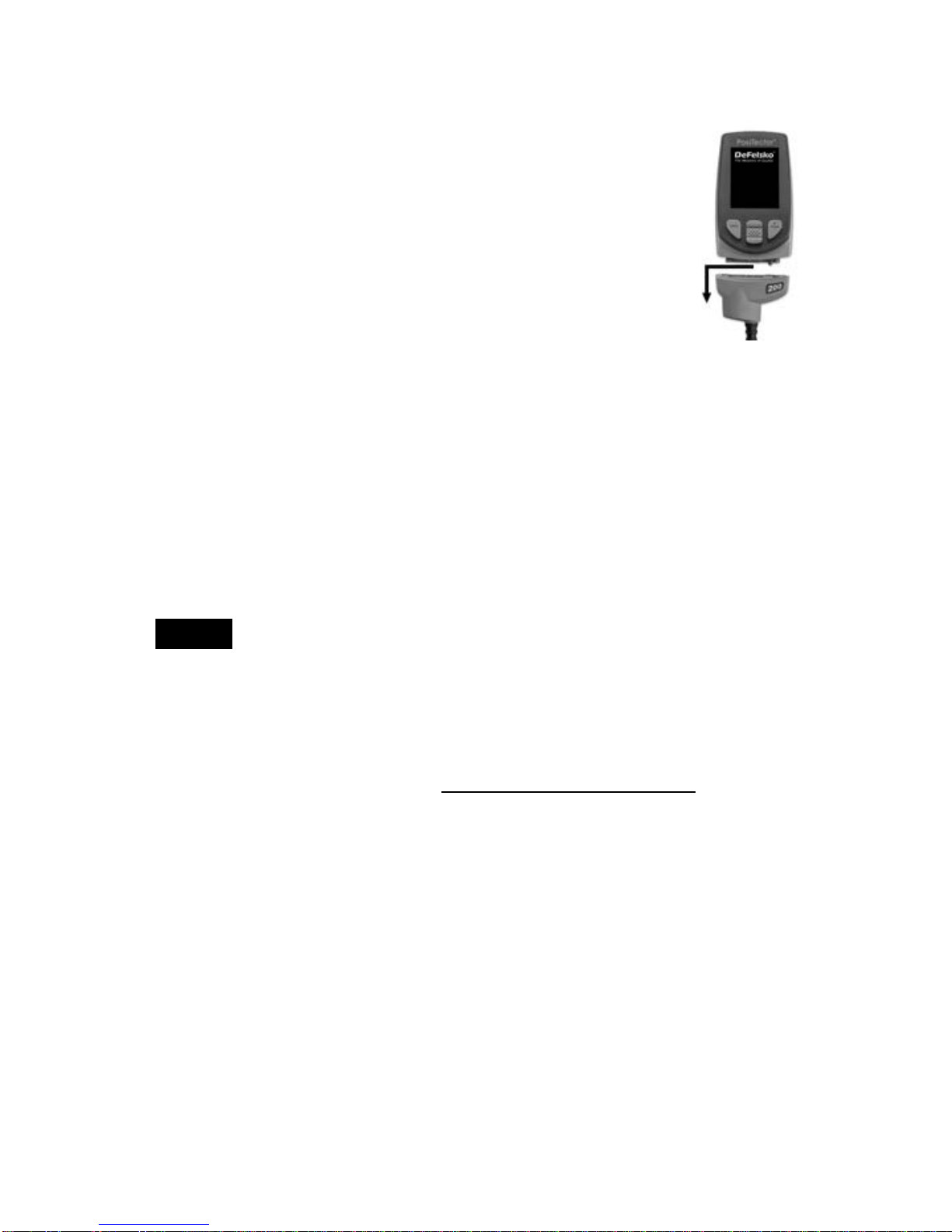

To disconnect a probe from a body, slide the plastic
probe connector horizontally (in the direction of the
arrow) away from the body. Reverse these steps to
attach a different probe. It is not necessary to power-
down the Gage when switching probes.
PosiTector 200 probes are available for measuring
a wide variety of coating thickness applications.
nB probe - 13 to 1000 microns (0.5 to 40 mils)
Ideal for polymer coatings on wood, plastic, composites, etc.
nC probe - 50 to 3800 microns (2 to 150 mils)
Ideal for thicker coatings on concrete, fiberglass, etc.
nD probe - 50 to 7600 microns (2 to 300 mils)
Ideal for thick, soft (attenuative) coatings such as polyurea
Range limits apply t p lymer c atings nly.
Couplant
Additionally, the PosiTector accepts a number of probe types
including magnetic and eddy current coating thickness, surface
profile, environmental, salt contamination, shore hardness and
ultrasonic wall thickness probes. For the latest information on
probe interchangeability, see www.defelsko.com/probes
NOTE:
Couplant is required to propagate ultrasound into the coating.
Water is a good couplant for smooth coatings. Use the supplied
glycol gel for rougher coatings. While it is unlikely that the
couplant will damage the finish or leave a stain on the surface,
we suggest testing the surface by using the couplant on a
sample. If testing indicates that staining has occurred, a small
amount of water can be used instead of couplant. Consult the
aterial Safety Data Sheet available on our website and your
coating supplier if you suspect the couplant may damage the
coating. Other liquids such as liquid soap may also be used.

3
1. Remove the protective rubber cap from probe.
2. Power-up Gage by pressing the center navigation button.
3. Apply couplant (pg. 2) to the surface
of the part.
4. Place the probe FLAT on the surface
and press down.
5. Lift the probe when you hear a double
BEEP, - OR - leave probe on the surface
in the same location for continuous
measurements.
6. When completely finished, wipe the probe clean of couplant
then return the Gage to the protective pouch. There is no
need to disconnect the probe from the PosiTector during
storage.
Verify accuracy (pg. 4) at the beginning and the end of each shift,
or if the gage is dropped or suspected of giving erroneous
readings.
How to Measure
Couplant
Probe
Coating 1
Substrate
Coating 2
The PosiTector 200
interprets the largest
“echo” within the
selected range as
the coating/coating
or coating/substrate
echo.
PosiTector 200 probes emit a high frequency sound pulse that
travels into the coating via a coupling gel and reflects from ANY
surface that is different in density. Coating thickness readings are
obtained by measuring the time taken for the ultrasonic signal to
propagate from the probe to the coating/substrate interface and
back. The travel time is divided by two and multiplied by the
velocity of sound for the coating to obtain the thickness of the
coating.
PosiTector 200 - Theory of Operation

4
Calibration, Verification and Adjustment
Three steps ensure best accuracy…
1.Calibration - typically done by the manufacturer or a
qualified lab. All probes include a Certificate of Calibration.
2.Verification of Accuracy - as done by the user on known
reference standards such as the included plastic shims, test
block or optional coating thickness standards.
3.Adjustment - to a known thickness.
Calibration
Calibration is the controlled and documented process of
measuring traceable calibration standards and verifying that the
results are within the stated accuracy of the Gage. Calibrations
are typically performed by the Gage manufacturer or by a
certified calibration laboratory in a controlled environment using
a documented process.
Verification
Verification is an accuracy check performed by the user using
known reference standards. A successful verification requires the
Gage to read within the combined accuracy of the Gage and the
reference standards.
Adjustment
Adjustment, or Calibration Adjustment is the act of aligning the
Gage's thickness readings to match that of a known reference
sample in order to improve accuracy of a gage on a specific
coating. See Thickness pg. 6

5
The PosiTector 200 interprets the largest “echo” or “echoes”
within the selected range as the coating/coating or
coating/substrate echo. If the coating thickness is outside this
range, incorrect or dashed readings may occur.
I PORTANT:
Cal Settings Menu
The probe must be periodically zeroed using the Zero menu option
to compensate for both extreme temperature and probe wear
effects. Before using, allow the probe to reach ambient temperature.
Wipe the probe clean of couplant.
If measurements will be made in extreme hot or cold temperatures,
it is recommended to Zero the probe in the working environment.
If measurements will be made on rough substrates, it is
recommended to periodically Zero the probe to compensate for wear.
Zero
Set ange
The measuring range of each probe can be changed depending
on the specific application or the expected thickness range of the
coating system.
For most applications, the default range values do not have to
be adjusted. But some conditions, like surface roughness, may
cause the Gage to display very low or non-repeatable readings.
In this case, the low range may be increased to cause the Gage
to only display readings above the Lo value set by the user.
To adjust Set ange values...
1. Select or .
2. Use the (-)(+) buttons to decrease/increase the displayed value.

6
Thickness
Polyurea (P siTect r 200 D pr bes nly)
Here are some typical Range settings...
Expected paint thickness Lo Hi
500µm (20 mils) on concrete 130µm (5 mils) 1000µm (40 mils)
50µm (2 mils) on wood 25µm (1 mil) 250µm (10 mils)
The PosiTector 200 measures most polymer coatings accurately
out-of-box with no adjustment required.
To determine if an adjustment is necessary, select a coating
sample of known thickness as close as possible in composition to
the intended application. For best results, the thickness of the
sample should be equal to or slightly greater than the maximum
expected thickness of the coating to be measured.
easure the coated sample. If the average of a series of
measurements on the sample is not close to the known
thickness...
1. Select the Thickness menu option.
2. Use (-) or (+) to decrease/increase the displayed measurement
thickness value to match the known thickness of the sample.
3. For Advanced m dels with multiple layers selected, use the
Down navigation button to select the next layer and adjust as
necessary.
4. To save adjustments, use Down navigation button to highlight
OK and press the center navigation button.
When checked, the Gage loads a pre-programmed calibration
adjustment optimized for measurement of polyurea coatings.
Cal Lock
Cal eset
Restores the gage back to factory calibration and range settings.
The icon will appear on the display.
When checked, the icon appears and the current calibration
adjustment is “locked” to prevent further user adjustments.
0
C

7
eset
eset (menu reset) restores factory settings and returns the
Gage to a known condition. The following occurs:
- All batches, stored measurements, images, batch names and
screen captures are erased.
- All calibration and range adjustments are cleared and returned
to the Gage’s factory settings.
- enu settings are returned to the following:
Memory = OFF
Graphics = ON
Cal Lock = OFF
Auto Dim = ON
Bluetooth = OFF
Bluetooth Smart = OFF
Display = None
WiFi & Access Point = OFF
Perform a more thorough Hard eset by powering down the
Gage, waiting several seconds, then simultaneously holding both
the center and (+)buttons until the eset symbol appears.
appears. This returns the instrument to a known, “out-of-the-box”
condition. It performs the same function as a menu eset with
the addition of:
Units = microns
Flip Display = Normal
Language = English
Sound = ON
Bluetooth Smart = OFF
Battery Type = Alkaline
Backlight = Normal
USB Drive = ON
- Bluetooth Pairing info is cleared.
- enu settings are returned to the following:
Setup Menu
Selects the type of batteries used in the Gage from a choice of
“Alkaline”, “Lithium” or “Ni H” (Nickel-metal hydride rechargeable).
If Ni H is selected, the Gage will trickle charge the batteries
while connected via USB to a PC or optional AC charger. The
battery state indicator icon is calibrated for the selected battery
type. No damage will occur if the wrong battery type is selected.
Battery Type
Layers =1
Layer Name = Layer 1
Layer Color = blue
NOTE:
Date, Time and WiFi settings are not affected by either eset

8
Graphics
When selected, the Gage displays
a graphical representation of the
ultrasonic pulse as it travels through
the coating system.
As the probe is depressed and the
ultrasonic pulse travels through the
coating system, the pulse encounters
changes in density at the interfaces
between coating layers and between
the coating and the substrate.
These interfaces are depicted by a "peak". The greater the
change in density, the higher the peak. The more gradual the
change in density, the greater the width of the peak. For example,
two coating layers made of essentially the same material and
"blended" would result in a low, wide peak. Two materials of very
different density and a well-defined interface would result in a
high, narrow peak.
The PosiTector 200 chooses the highest peak (single layer) or
peaks (multi-layer) within the Set Range. For example, if the
number of layers is set to 3, the three highest peaks would be
identified with small red triangles. The peak values are also
displayed numerically as thickness measurements.
The Graphics display can also be accessed using the
Set ange menu option.
Use the navigation Up (move left) and Down (move right) buttons
to highlight icons on the graphic display.
Zoom - Visually magnifies the waveform of the displayed
peaks for more visibility. Pressing the (+) or (-) button repeatedly
will increase/decrease the zoom.
Set ange - Press the (-) or (+) buttons to adjust the
Gage’s Lo or Hi measuring range. (pg. 5)
NOTE:
(Advanced
m dels nly)

9
Advanced models of the PosiTector 200 are capable of
numerically displaying up to 3 individual layer thicknesses in a
multi-layer system.
Select the Layers menu option to:
- Choose up to 3 individual layer thickness values.
- Edit layer names and Batch Chart colors.
• Before setting up the Gage for multi-layer measurement, it
is recommended that you first take measurements in single
layer mode and interpret the results using the Graphics
option. (see pg. 8)
• When a batch is Open, press the Up button to view the
Batch Chart.
Layers (Advanced m dels nly)
Cursor - The Cursor allows for further analysis of displayed
waveform.Use the (-)(+)buttons to move the green cursor line left or
right over the waveform.The thickness value is displayed at the top
right of the cursor line. This feature is particularly useful in multi-
layer applications where there are more than 3 distinct layers.
Screen Capture - Press to capture and save an
image copy of the current display. The last 10 screen captures
are stored in memory and can be accessed when connected to a
computer. (see PosiSoft USB Drive pg. 10)
Press and hold the (-)(+) buttons simultaneously to
capture any screen.
Menu - Press to access the Gage’s main menu.
Exit - Press to close the Graphics display. Press the
Up button to return to the Graphics display.
Shortcut:
NOTES:

10
Accessing Stored Measurements Data
PosiSoft USB Drive – Connect the Gage to a PC/ ac using the
supplied USB cable. View and print readings and graphs using
universal PC/ ac web browsers or file explorers. No software or
internet connection required. USB Drive must be selected within
the Gage’s USB menu (pg. 11).
PosiSoft Desktop – Powerful desktop software (PC/ ac) for
downloading, viewing, printing and storing measurement data.
Includes a customizable, templated PDF Report Generator.
No internet connection required.
PosiSoft.net – Web-based application offering secure, centralized
storage of measurement data. Access your data from any web-
connected device. G t : www.P siS ft.net
PosiTector App – (Advanced m dels with serial numbers 784,000+)
App for compatible iOS and Android smart devices. Permits users
to create, save and share professional PDF reports. Add images
and notes using the smart device’s camera and keyboard.
See www.defelsko.com/posisoft for more information.
Advanced models store 100,000 readings in up to 1,000
batches. “New Batch” closes any currently opened batch and
creates a new batch name using the lowest available number.
The icon appears. New batch names are date stamped
when they are created.
The PosiTector 200 has internal memory storage for recording
measurement data. Stored measurements can be reviewed
on-screen or accessed via computers, tablets and smart phones.
easurements are date and time-stamped.
Standard models store up to 250 readings in one batch.
Memory Management
Create a new batch
(Advanced nly)
Restore brightness
after dimming
Scroll through display
modes (Advanced nly)
Delete last reading
Access the enu

The above WiFi, USB and Bluetooth menus contain a Sync
.net Now option. When selected, the Gage immediately
synchronizes stored measurement data via its respective
communication method (internet connection required).
Alternatively, select Auto Sync .net from within the USB connect
menu to automatically synchronize upon connection to a PC.
Additional measurements added to memory while connected are
synchronized only when the USB cable is disconnected and
reconnected, or when the Sync .net Now option is selected.
WiFi connected gages automatically attempt synchronization
upon power up.
Sync .net Now
Connect Menu
When USB Drive is checked , the PosiTector gage uses
a USB mass storage device class which provides users with a
simple interface to retrieve stored data in a manner similar to
USB flash drives, digital cameras and digital audio players.
USB Drive is also required to import stored measurements into
PosiSoft Desktop software.
When connected, power is supplied through the USB
cable. The batteries are not used and the body will not
automatically power down. If rechargeable (Ni H) batteries
are installed, the Gage will trickle charge the batteries.
Allows connection to your local wireless network or mobile
hot spot. Ideal for using your network’s internet connection
for synchronizing stored measurements with PosiSoft.net.
See www.defelsko.com/wifi
WiFi (Advanced m dels nly)
NOTE:
USB
11
Stream
For more information on USB Streaming
visit: defelsko.com/usb/stream/
NOTE:
(Advanced m dels nly,
serial numbers 784000 and greater)
Stream individual readings to a USB connected computer via a
serial protocol. Ideal for use with serial compatible SPC data
collection software.

12
The Gage will perform a Hard eset after an
update. (see pg. 7)
Updates
Determines if a software update is available for your Gage.
See www.defelsko.com/update
WARNING:
Send Batches
Transfers selected batches to the PosiTector App (useful
when switching between devices). The Send Batches option is
visible in the menu when the Gage is connected to a smart
device running the PosiTector App.
If Bluetooth Smart is disabled, data from batches
selected in the Sync Batches menu are held in a queue until
communication with the PosiTector App is re-established.
NOTE:
Sync Batches
Select batches to flag them for synchronization to the
PosiTector App. New batches created while Bluetooth Smart
is enabled are automatically selected.
With Bluetooth Smart enabled, select Sync Batches to transfer
selected batches to the PosiTector App. Only readings and
batches that have yet to be synchronized with any smart device
are synchronized automatically.
Bluetooth Smart
When Enabled, allows communication with a smart device
running the PosiTector App (pg.10) via auto-pairing Bluetooth
Smart (BLE) wireless technology.
(Advanced m dels with serial numbers 784000+ nly)
PosiSoft Desktop is required when using USB
connections to synchronize measurements with PosiSoft.net.
NOTE:
Allows individual readings to be sent to a computer, printer or
compatible device as they are taken using Bluetooth wireless
technology. See www.defelsko.com/bluetooth
Bluetooth (Advanced m dels nly)

13
www.defelsko.com
© DeFelsko Corporation USA 2016
All Rights Reserved
This manual is copyrighted with all rights reserved and may not be reproduced or transmitted, in whole or
part, by any means, without written permission from DeFelsko Corporation.
DeFelsko and PosiTector are trademarks of DeFelsko Corporation registered in the U.S. and in other coun-
tries. Other brand or product names are trademarks or registered trademarks of their respective holders.
Every effort has been made to ensure that the information in this manual is accurate. DeFelsko is not
responsible for printing or clerical errors.
Limited Warranty, Sole emedy
and Limited Liability
DeFelsko's sole warranty, remedy, and liability are the express
limited warranty, remedy, and limited liability that are set forth on
its website: www.defelsko.com/terms
eturning for Service
Before returning the Gage for service…
1. Install new or newly recharged batteries in the proper
alignment as shown within battery compartment.
2. Examine the probe tip for dirt or damage.
3. Perform a Hard eset (pg. 7) and a Zero (pg. 5).
4. Place a plastic shim onto a hard surface (i.e. glass)
and attempt a measurement. (pg. 3)
5. If issue is not resolved, Update your PosiTector gage body
(pg. 12) and re-attempt measurements.
If you must return the Gage for service, describe the problem
fully and include measurement results, if any. Be sure to also
include the probe, your company name, company contact,
telephone number and fax number or email address.
Website: www.defelsko.com/support

Guía rápida v. 3.1
Medidor de espesor de recubrimiento ultrasónico
Estándar y
Avanzado

1
Introducción
Introducción
El PosiTector 200 es un medidor de espesor de recubrimientos
portátil que utiliza un principio ultrasónico no destructivo para
medir el espesor de recubrimientos en una amplia variedad de
sustratos. Consta de un cuerpo (Standard o Advanced) y una
sonda (consulte Sondas Pág. 2).
Esta guía rápida es un resumen de las funciones básicas del
medidor. Descargue el manual de instrucciones completo en:
www.defelsko.com/manuals
Inicio Rápido
Inicio Rápido
El PosiTector 200 se encenderá al pulsar el botón central
Para ahorrar energía, el equipo se apagará tras unos 5 minutos
de inactividad. Se conservarán todas las configuraciones.
1. Retire el tapón protector de goma de la sonda.
2. Encienda el medidor pulsando el botón central .
3. Ajuste a cero la sonda. (consulte Pág. 5)
4. Ajuste a un espesor conocido de ser necesario. (consulte Pág. 6)
5. Aplique el acoplante (véase Pág. 3) a la superficie de la pieza.
6. Mida la pieza. (consulte Pág. 4)
Arriba
Abajo
Centro

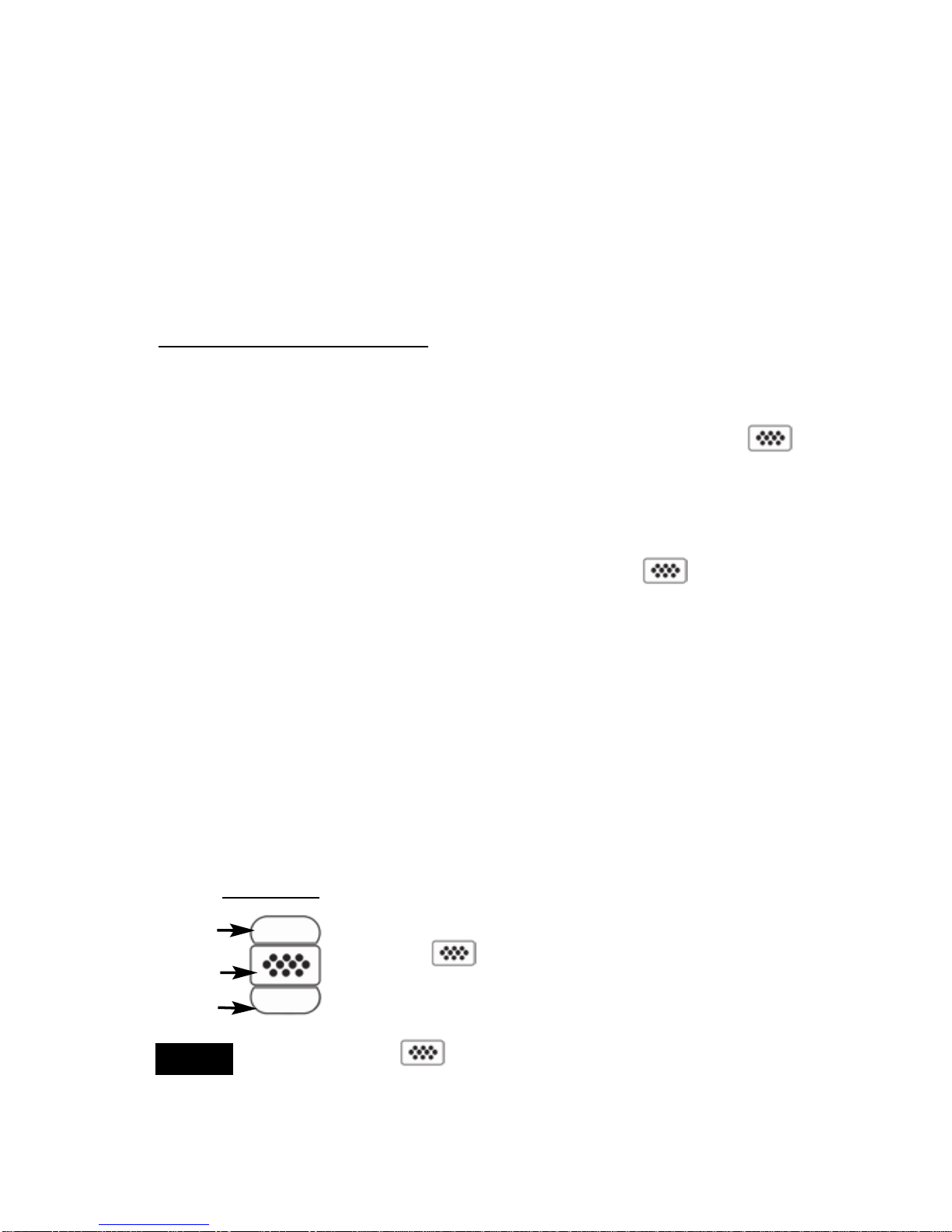

Para desplazarse utilice los botones Arriba y
Abajo y para SELECCIONAR.
Seleccione Salir para salir de cualquier menú.
Botón central
El botón central está a desnivel intencionalmente
para ayudar a evitar apagar de manera involuntaria el
medidor.
Menú de Operación
Menú de Operación
Las funciones del medidor se controlan con un menú. Para acced-
er al menú encienda el medidor y pulse el botón central.
OTA:

2
Sondas
Sondas
Para separar la sonda del cuerpo, apague el equipo y
deslice la base de plástico del conector de la sonda en
el plano horizontal (en la dirección indicada por la
flecha), separándola del cuerpo. Invierta los pasos para
conectar una nueva sonda.
Cuando se enciende, el PosiTector determina
automáticamente el modelo de sonda está conectada y
realiza una auto-verificación.
Están disponibles sondas PosiTector 200 para medir una amplia
variedad de aplicaciones de espesor de recubrimiento.
Sonda B - 13 a 1000 micras (0,5 a 40 milésimas)
Ideal para revestimientos de polímero en madera, plástico,
composite, etc.
Sonda C - 50 a 3800 micras (2 a 150 milésimas)
Ideal para recubrimientos más gruesos de hormigón, fibra de
vidrio, etc.
Sonda D - 50 a 7600 micras (2 to 300 milésimas)
Ideal para revestimientos gruesos y suaves (atenuantes)
como la poliurea
Los rangos anteriores solo aplican para revestimientos
de polímero.
Adicionalmente, el PosiTector acepta otros tipos de sonda
incluyendo sondas magnéticas y sondas por corrientes de
Foucault para medir espesores de recubrimiento, sonda para
obtener perfil de superficie, ultrasónicas para espesores de pared
y ambientales.
Para obtener la información más reciente sobre la compatibilidad
de la sonda consulte www.defelsko.com/probes
OTA:

Acoplante
Sonda
Recubrimiento 1
Substrato
Recubrimiento 2
El PosiTector 200
interpreta el "eco"
mayor dentro del
rango seleccionado
como econ del
recubrimiento/recubri
miento
o eco de
recubrimiento/
sustrato.
Las sondas PosiTector 200 emiten un pulso de sonido de alta
frecuencia que viaja por el revestimiento a través de un gel
acoplante y se refleja en CUALQUIER superficie que tenga
densidad diferente. Las lecturas de espesor de recubrimiento se
obtienen midiendo el tiempo que necesita la señal ultrasónica para
propagarse desde la sonda a la superficie de recubrimiento o
sustrato y regresar. El tiempo de transmisión se divide en dos y
se multiplica por la velocidad del sonido en el recubrimiento y así
obtener el espesor del recubrimiento.
PosiTector 200 - Fundamento de Operación
3
El acoplante es necesario para propagar el ultrasonido en el
recubrimiento. El agua es un buen acoplante para revestimientos
lisos. Utilice el gel de glicol suministrado para revestimientos más
ásperos. Si bien es improbable que el acoplador dañe el acabado
o deje mancha en la superficie, le sugerimos que realice una
prueba sobre una muestra. Si la prueba indica daño en la
superficie, puede utilizar una pequeña cantidad de agua en lugar
del acoplante. Consulte la hoja de datos de seguridad del material
disponible en nuestro sitio Web. Contacte a su proveedor de
recubrimiento si sospecha que el acoplante puede dañar el
revestimiento. También pueden utilizarse otros líquidos como el
jabón líquido.
Acoplante
Acoplante
