Hi-Target V90 Plus User manual

V90 Plus GNSS RTK System
I
V90 Plus GNSS RTK System
Hi-Target Surveying Instrument Co., Ltd.
All Rights Reserved

V90 Plus GNSS RTK System
II
Manual Revision
Revision Date
Revision No.
Description
Aug.,2015
1
V90 Plus GNSS RTK System Getting Started
Dec., 2018
2
V90 Plus GNSS RTK System Getting Started

V90 Plus GNSS RTK System
III
Contents
Preface........................................................................................................................................... 5
Overview........................................................................................................................................ 7
1.1 Foreword....................................................................................................................... 8
1.2 Features........................................................................................................................ 9
1.3 Precautions................................................................................................................ 10
Product Introduction................................................................................................................... 12
2.1 Hardware structure................................................................................................... 13
2.2 Button.......................................................................................................................... 17
2.3 LED..............................................................................................................................19
2.4 Wi-Fi password setting............................................................................................. 20
2.5 Static data collecting (by button operation)...........................................................21
2.6 Web management system....................................................................................... 24
2.6.1 Main menu.................................................................................................... 25
2.6.2 Information view.......................................................................................... 28
2.6.3 Work mode................................................................................................... 31
2.6.4 File management.........................................................................................33
2.6.5 Firmware management.............................................................................. 33
2.6.6 System settings........................................................................................... 35

V90 Plus GNSS RTK System
IV
2.7 Firmware update...................................................................................................... 37
Hi-Survey Road Software Quick Start.......................................................................39
3.1 Create a project........................................................................................................ 40
3.2 Set the base...............................................................................................................42
3.3 Set the rover.............................................................................................................. 46
3.4 Parameter calculation.............................................................................................47
3.5 Detail survey............................................................................................................. 49
3.6 Stake out.................................................................................................................... 49
3.7 Data transfer..............................................................................................................50
3.8 Connect the controller to download data..........................................................51
Technical Specification.................................................................................................53

V90 Plus GNSS RTK System
5
Preface
Introduction
Welcome to the Hi-Target V90 Plus receiver. This introduction describes how to use this product.
Experience Requirement
In order to help you use Hi-Target series products better, Hi-Target suggests you carefully read
the instructions. If you are unfamiliar with the products, please refer to
http://www.hi-target.com.cn/
Tips for safe use
Note: The contents here are special operations, and need your special attention.
Please read them carefully.
Warning: The contents here are very important. Wrong operation may damage
the machine, lose data, break the system and endanger your safety.
Exclusions
Before using the product, please read these operating instructions carefully, they will help you to
use it better. Hi-Target assumes no responsibility if you fail to operate the product according to
the instructions, or operate it wrongly, due to misunderstanding the instructions.
Hi-Target is committed to constantly perfecting product functions and performance, improving
service quality and we reserve the right to change these operating instructions without notice.
We have checked the contents of the instructions, the software and hardware, without eliminating

V90 Plus GNSS RTK System
6
the possibility of error. The pictures in the operating instructions are for reference only. In case
of non-conformity with products, the products shall prevail.
Technology and Service
If you have any technical issues, please call Hi-Target’s technology department for help.
Relevant Information
You can obtain this introduction by:
1. Purchasing Hi-Target products: you will find this manual in the instrument container to guide
you on operating the instrument.
2. Logging onto the Hi-Target official website, downloading the electronic version introduction
at Partners → Partner center.
Advice
If you have any comments and suggestions for this product, please email [e-mail].
Your feedback will help us to improve the product and service.

V90 Plus GNSS RTK System
7
Overview
This Section Describes:
Foreword
Features
Precautions
CHAPTER
2
CHAPTER
1

V90 Plus GNSS RTK System
8
1.1 Foreword
V90 Plus is a new type of GNSS receiver by Hi-Target that is used for measurements. With a
hi-tech, fully integrated design, the conveniently sized V90 Plus is one of the most flexible
choices for any measuring task. It has a built-in Linux 3.2.0 operating system, pre-loaded
multiple smart applications, such as tilt surveying, electronic bubble calibration, NFC and voice
DIY. The LEDs enable you to monitor satellite tracking, radio reception, the data logging status,
Wi-Fi status, and power. The product’s Bluetooth wireless technology provides cable-free
communications between the receiver and controller. The V90 Plus GNSS system provides
surveyors with industry-leading GNSS solutions.
Warning: The instructions do not provide a standard configuration. The articles
within the box can be adjusted according to different user requirements. Suggestions
before using the machine: First, check whether the product’s packaging is damaged;
please open the package carefully and confirm whether the articles are consistent
with the list on the box. Please contact the local office or dealers immediately if the
product and its accessories are lost or damaged. Please carefully read the operating
instructions before you carry, transport or use the product.

V90 Plus GNSS RTK System
9
1.2 Features
Small and lightweight
Only weighs 950g
Measurements: Diameter 153mm x Height 83mm
Multi-constellation tracking
220 tracking channels
Supports GPS, GLONASS, GALILEO, BDS, SBAS
NGS approved full-band GNSS antenna
Smart application
Offers a tilt survey with a maximum tilt angle of 30 degrees.
Supports electronic bubble calibration
The internal NFC module makes Bluetooth communication quick and easy.
Intelligent voice assistance guides the field operations. The voice can be DIY.
The standard Rinex data and Hi-Target raw data are recorded simultaneously.
Optional Transceiver UHF Radio
The transceiver UHF radio enables you to switch working modes between the base and the rover.
Three types of internal UHF radio provide different frequencies, based on the user’s
requirements. The Pacific Crest TrimTalk© internal UHF radio is compatible with other radios.
Multi-network Connection
Supports GPRS, GSM and WCDMA
Supports Wi-Fi
Powerful Battery

V90 Plus GNSS RTK System
10
The product is powered by a high-capacity (5000mAh) Li-ion battery in order to ensure it will
operate for a full day.
Rugged Design
IP67 dustproof and waterproof
Able to survive a natural 2-meter fall onto concrete
1.3 Precautions
1. Environmental Requirements
The receiver should be operated in a dry working environment, regardless of its waterproof
materials. In order to increase the receiver’s stability and service cycle, it should be kept away
from extreme environments, such as:
Moisture
Temperatures above 65 degrees centigrade
Temperatures below -40 degrees centigrade
Corrosive liquids or gases
2. Electronic Jamming
The receiver should not be installed in a place near to strong electric power or a signal that
can cause interference, such as:
An oil duct (spark plugs)
Generator
Battery-operated motorcycle
DC-AC power supply changeover equipment

V90 Plus GNSS RTK System
11
Signal transmitting station (tower)
Power supply

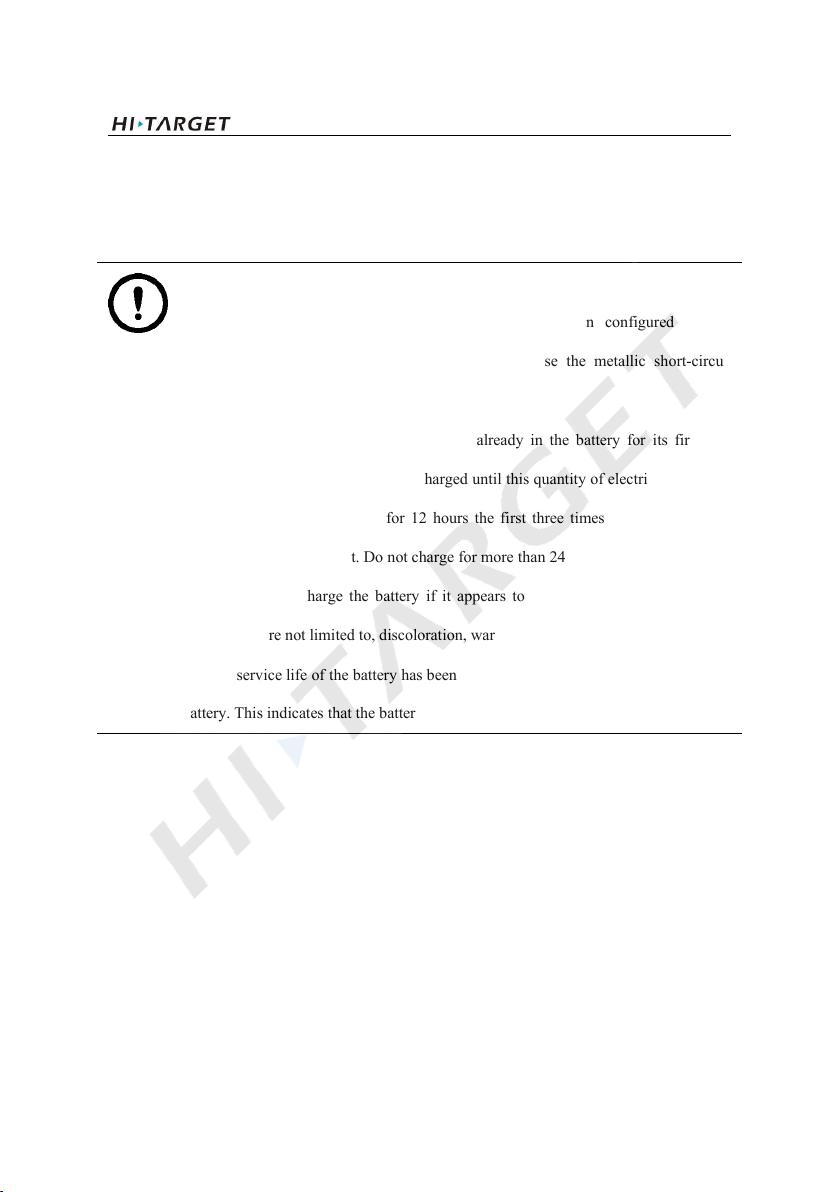

3. Battery safety
Warning:
1. You must use the battery and charger that has been configured by the
manufacturer. Do not throw them into the fire or use the metallic short-circuit
electrode.
2. There is a certain quantity of electricity already in the battery for its first use.
Therefore, the battery should not be charged until this quantity of electricity has been
used up. It should be charged for 12 hours the first three times and then it can be
charged normally after that. Do not charge for more than 24 hours.
3. Do not use or charge the battery if it appears to be damaged. Signs of damage
include, but are not limited to, discoloration, warping, and leaking battery fluid.
4. If the service life of the battery has been obviously shortened, please stop using the
battery. This indicates that the battery is old, so please replace it with a new one.

V90 Plus GNSS RTK System
12
Product Introduction
This Section Describes：
Hardware structure
Button
LED
Wi-Fi password setting
Static data collecting (by button operation)
Web management system
Firmware update
CHAPTER
2

V90 Plus GNSS RTK System
13
2.1 Hardware structure
Figure 2-1-1 Hardware Schematic Diagram
1. Guard Circle
2. Control Panel
3. 3G/UHF antenna interface
4. Bottom Cover
5. Upper Cover
V90 Plus mainly consists of three parts – the upper cover, bottom cover and the control panel.
In the middle of the mainframe is the control panel, which contains a power button and three
indicator lamps. Only the power button can complete all of the functions and settings. There are
three indicator lamps. These are, from left to right, a satellite lamp (a single green lamp), power
lamp (a bi-color red and green lamp) and status lamp (a bi-color red and green lamp).
1
4
5
3
2

V90 Plus GNSS RTK System
14
Figure 2-1-2 Upper Cover
The U-type anti-wear buffer can effectively prevent the instrument from being scratched.
The double-color model makes the structure clear and its appearance beautiful.
Figure 2-1-3 Bottom
Anti-wear buffer
1
7
6
5
4
3
2

V90 Plus GNSS RTK System
15

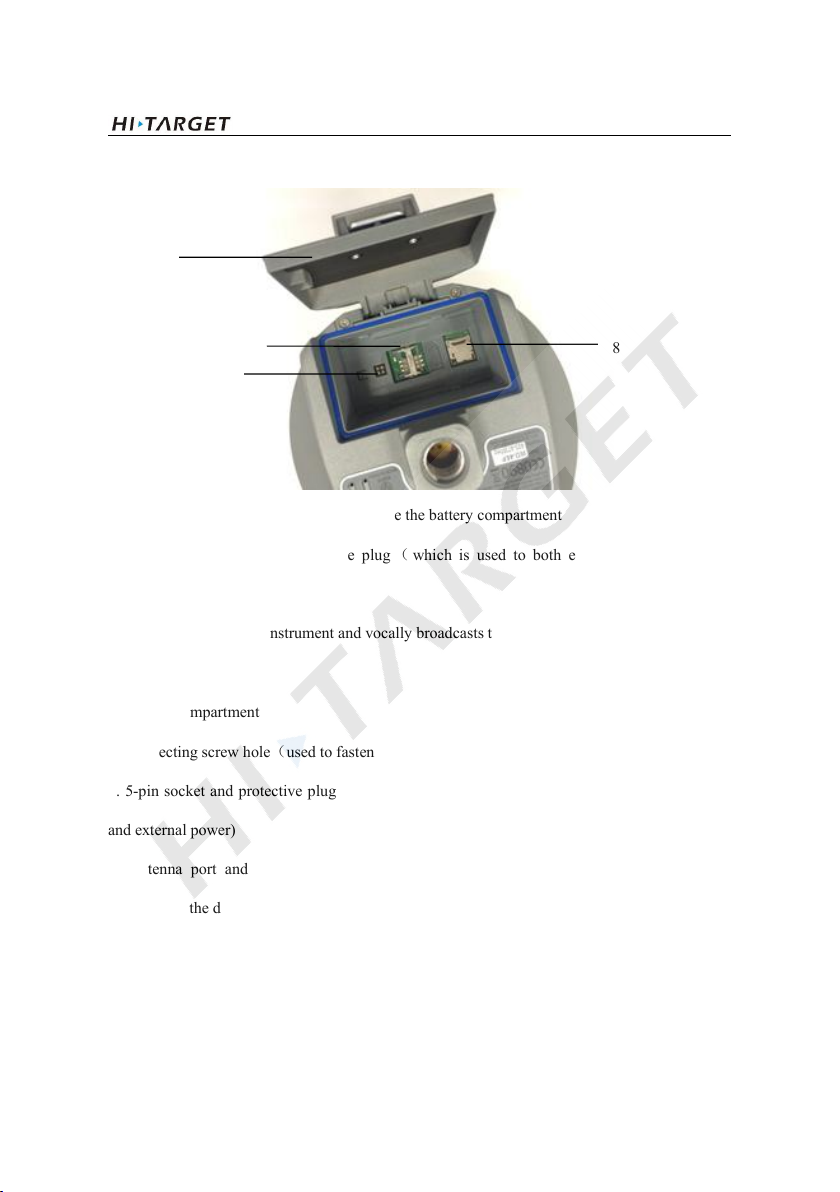

Figure 2-1-4 Inside the battery compartment
1. The USB interface and protective plug （which is used to both export data and upgrade
firmware）
2. Speaker (operates the instrument and vocally broadcasts the status)
3. Metal buckle
4. Battery compartment
5. Connecting screw hole（used to fasten the instrument to the base or centering rod）
6. 5-pin socket and protective plug (used to output the NMEA-0183 and link the external radio
and external power)
7. Antenna port and protective plug (to connect the transceiver antenna for receiving and
transmitting the differential signal)
8. SD card slot (used to place the SD card, which can store a massive amount of static data)
9. SIM card slot power seat (used to place the SIM card when communicating with GSM data)
10. Spring contacts (used to connect the lithium battery and host)
8
11
10
9

V90 Plus GNSS RTK System
16
11. Battery cover
Note:
1. Please cover the 5-core socket with the plug when the product is not in use.
2. The speaker is likely to fall silent or go hoarse when water enters it, but it can
recover when the speaker is dry again.
Figure 2-1-5 3G/GPRS antenna（short）Figure 2-1-6 UHF built-in radio antenna（long）
Note: The receiver is equipped with a UHF built-in radio antenna and a 3G/GPRS
antenna. Select the right antenna type according to the different working mode you
require. Please use the UHF built-in radio antenna when using the “UHF base
station”/”UHF rover station” mode, and the 3G/GPRS antenna when using the
“GSM base station”/”GSM rover station”.

V90 Plus GNSS RTK System
17

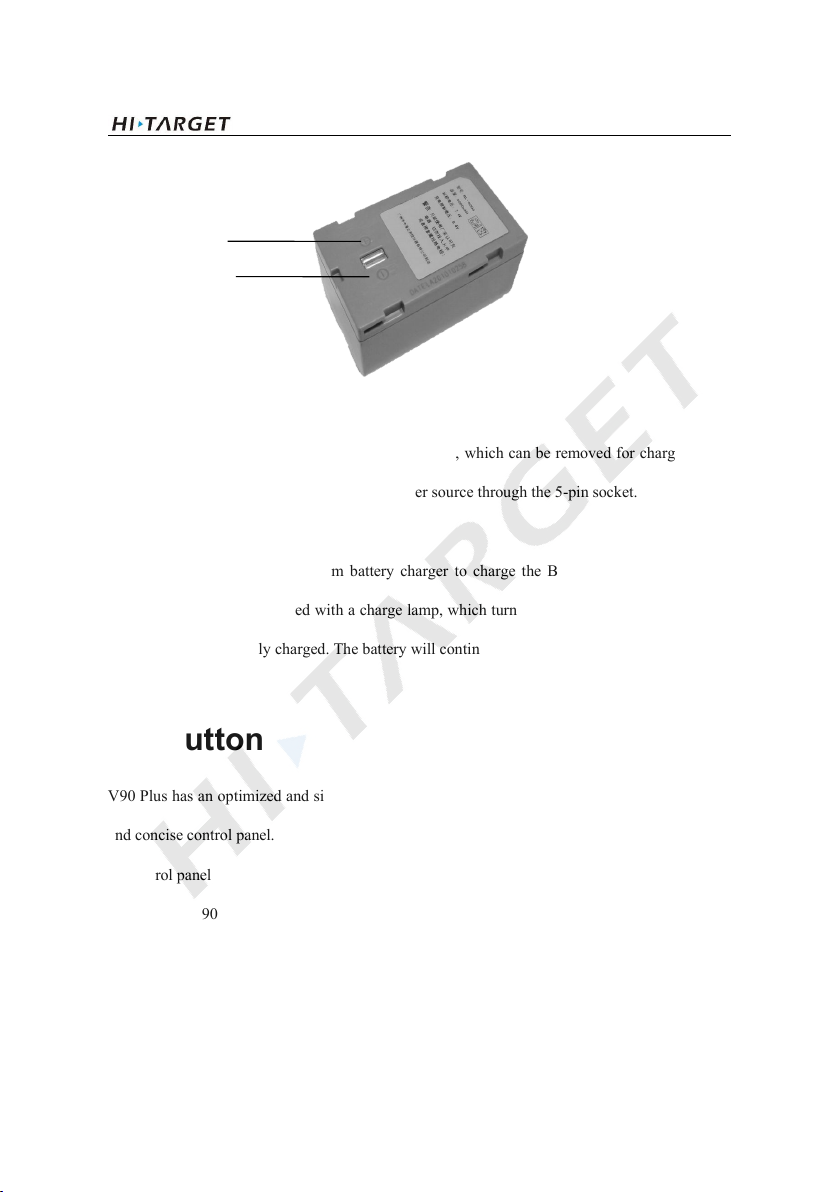

Figure 2-1-7 Batteries
The receiver has one rechargeable lithium-ion battery, which can be removed for charging. You
can also connect the receiver to an external power source through the 5-pin socket.
Use the Hi-Target CL-8410 lithium battery charger to charge the BL-5000 lithium battery for
about 7 hours. This is designed with a charge lamp, which turns red during the charging process
and green when it is fully charged. The battery will continue to charge for another 1 to 1.5 hours.
2.2 Button
V90 Plus has an optimized and simplified design，with button operation and a more convenient
and concise control panel.
1. Control panel
Most of the V90 Plus Receiver’s settings and operations can be conducted by using the power
button, which is below the control panel.
Positive
Pole
Negative Pole

V90 Plus GNSS RTK System
18
Figure 2-2-1 Control panel
2. Button functions
Table 2-2-1 Button functions
Functions
Detailed description
Power-on
Press power button for 1s to power-on.
Power-off
Long press the power button for more than 3s and less than 6s when
the speaker makes the ding-dong sound. Release the button to
power-off.
Auto-set base
In the power-off state, long press the power button for 6s when the
voice prompts you to "set base automatically", and then release it.
The receiver will now automatically set the base mode.
Working mode switch
Double-click the power button and enter the working mode switch;
every double-click will switch to another working mode.
Working mode
confirmation
Single click to confirm the current work mode.
Reset mainboard
In the power-on state, long press the power button for more than 6s
Power lamp
Satellite lamp
Signal lamp

V90 Plus GNSS RTK System
19
when you hear the second ding-dong, and then release it.
Mandatory power-off
In the power-on state, long press the power button for more than 8s.
2.3 LED

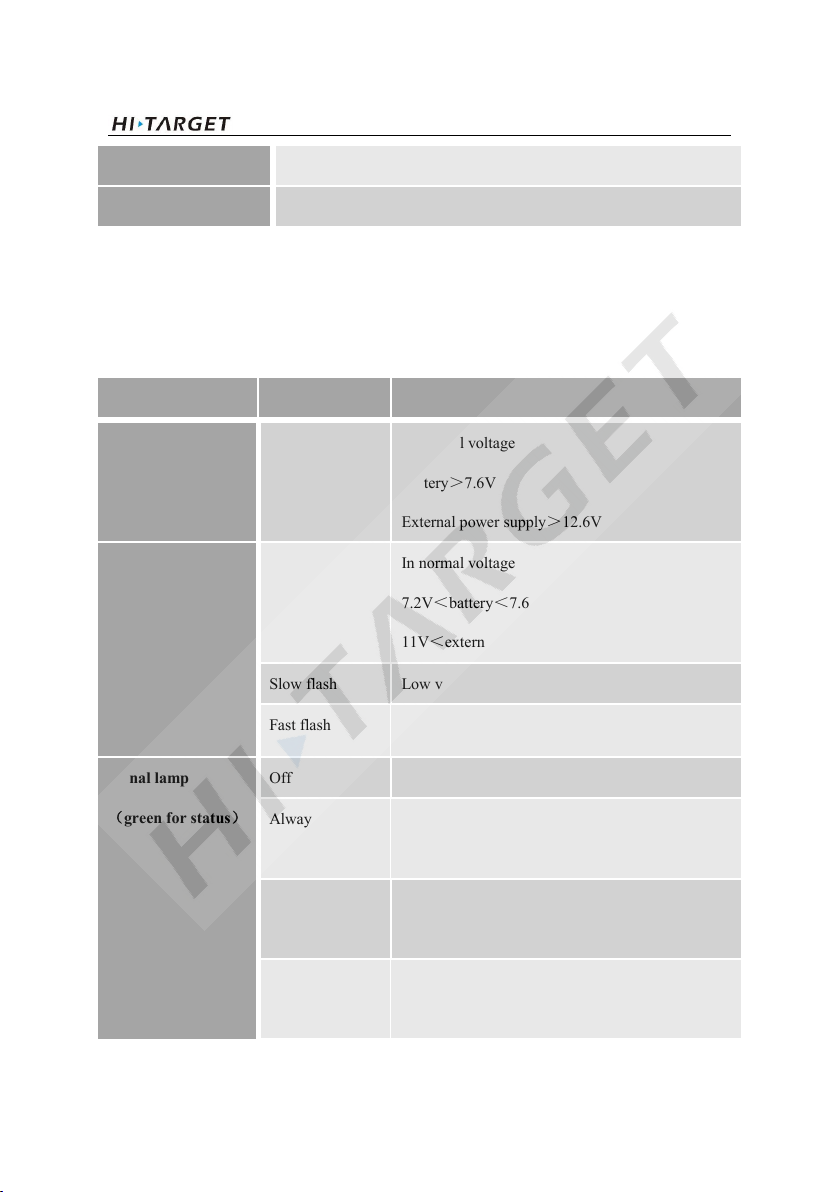

Table 2-3-1 LED description
Lamp
Status
Description
Power lamp
(yellow)
Always on
In normal voltage
Battery＞7.6V
External power supply＞12.6V
Power lamp
(red）
Always on
In normal voltage
7.2V＜battery＜7.6V
11V＜external power supply＜12.6V
Slow flash
Low voltage：battery≤7.2V; external≤11V
Fast flash
Power status hints: once or four times in one min
Signal lamp
（green for status）
Off
No GSM/Wi-Fi connection
Always on
GSM/Wi-Fi module is connected to the server
successfully
Slow flash
GSM/Wi-Fi module is connected to the Internet
successfully
Fast flash
GSM/Wi-Fi module is connecting to the Internet
server

V90 Plus GNSS RTK System
20

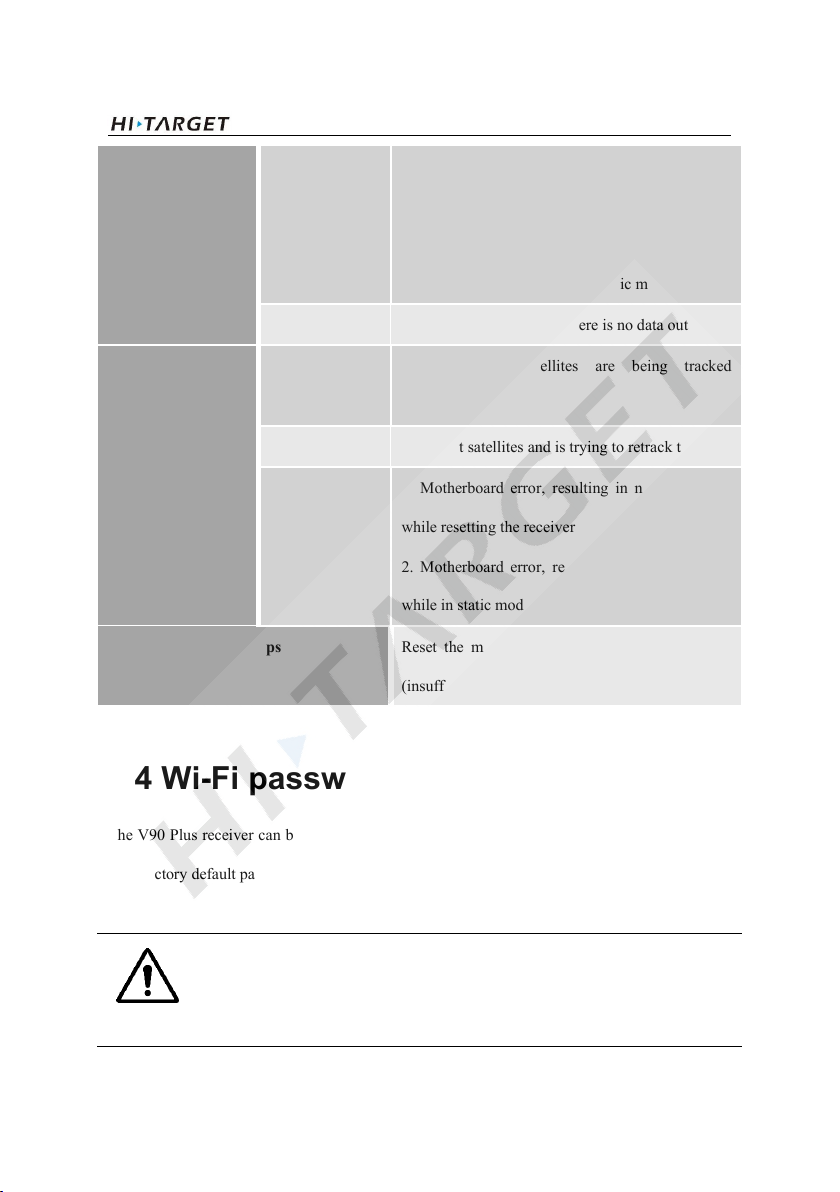

Signal lamp
(red for status)
Slow flash
1. It is receiving or transmitting data (it only
receives data for the rover while transmitting for
the base)
2. It is collecting static data in static mode
Off
Communication failure – there is no data output
Satellite LED
(green)
Always on
More than 4 satellites are being tracked
successfully
Slow flash
It has lost satellites and is trying to retrack them
Off
1. Motherboard error, resulting in no data output
while resetting the receiver
2. Motherboard error, resulting in no data output
while in static mode
Anomaly flash of 3 lamps
Reset the main board or a static collecting error
(insufficient storage space)
2.4 Wi-Fi password setting
The V90 Plus receiver can be used as a Wi-Fi hotspot, which supports a user-defined password.
(The factory default password is 12345678)
Note: 1. See the attached list 1 for the Wi-Fi factory default password.
2. If you forget your password, you can reset your password by using the “GNSS
Receiver Manager V1.0.3”. For details of how to operate it, see the Appendix.
