Introduction
1. Remove the protective rubber cap from probe.
2. Power-up Gage by pressing the center navigation button.
3. Verify Gage accuracy (pg. 3).
4. Place the probe FLAT on the surface to be measured such
that the tip of the probe reaches into the bottom of a profile
valley. HOLD STEADY. The Gage will BEEP twice and
display the measurement.
5. Lift the probe from the surface between measurements.
The PosiTector Surface Profile Gage (SPG) is a hand-held
electronic instrument that measures the surface profile (peak-to-
valley height) of blasted steel, textured coatings and concrete
profile. It consists of a PosiTector body (Standard or Advanced) and
probe.
1
Press the button to power up the Gage. To conserve battery
life, the gage will automatically go to sleep after 5 minutes of
inactivity. While in Sleep Mode, the gage powers up significantly
faster— convenient when moving between parts or locations. The
gage will completely power off after 4 hours of inactivity.
Alternatively, select Power Off from the main menu. All settings
are retained.
Quick Start
Menu Operation
To access the enu, power-up the gage, then press the center
navigation button . Either the keypad or touch screen can be
used to navigate the menu. If desired, touch screen functionality
can be disabled within the Setup menu (See Touch, pg. 5).
Select a menu option by touching it, or use the and but-
tons to highlight the desired option and press to select it.
On menus longer than one page, the current page number is
displayed below the menu name. Navigate between pages using
when the first menu item is selected, or when the last
menu item is selected. If using touch, navigate between pages
by touching or , or by swiping up or down.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

2
When a enu option is highlighted, the
icon indicates on-gage help is available.
Press or touch the icon to display the
help.
indicates that a sub-menu exists for the
enu option. Select the option to display its
sub menu.
Update your gage to ensure that you
have the latest on-gage help information.
NOTE:
When powered-up, the PosiTector automatically
determines which probe is attached and does a self-
check.
To disconnect a probe from a body, slide the plastic
probe connector horizontally (in the direction of the
arrow) away from the body. Reverse these steps to
attach a different probe. It is not necessary to power-
down the Gage when switching probes.
PosiTector SPG and SPG S probes include a 60˚ (AST D 4417
B) or 30˚ (Australian Standard AS 3894.5) angle tip (50 µm/2 mil
radius) with a measurement range of 0 to 500 µm (20 mils).
PosiTector SPG OS probes have the same specifications as the
PosiTector SPG probes above but feature a V-groove sleeve ideal
for measuring flat or convex surfaces such as tanks and pipes.
PosiTector SPG CS probes measure the profile of textured
coatings up to 1500 µm (60 mils) with a 500 µm (20 mil) radius 60˚
angle tip.
PosiTector SPG TS probes measure concrete surface profile up
to 6 mm (250 mils) with a 500 µm (20 mil) radius 60˚ angle tip.
Probes
Press the button or swipe right to return to a previous screen.
Select Exit to close the enu.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

3
Calibration
Instrument calibration is typically performed by the manufacturer.
All probes include a Certificate of Calibration.
Additionally, the PosiTector body accepts a wide variety of
probe types including magnetic, eddy current, and ultrasonic
coating thickness, surface profile, hardness, salt contamination,
and ultrasonic wall thickness probes.
Verification of Accuracy
Instrument accuracy is verified using the included metal shim and
glass zero plate. Ensure that the glass plate and shim are clean
and dirt free before use.
Place the plate onto a stable, flat surface. Take several
measurements. If the average is greater than ±5 µm (0.2 mil),
Zero (pg. 4) the Gage.
Next, place the metal shim over the glass plate and measure,
ensuring the probe needle touches the glass plate in the area
between the shim’s “legs”. The average of several measurements
should be within the combined tolerances of both the Gage and
the shim.
If not, see Returning for Service (pg. 11).
Calibration & Verification of Accuracy
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

1. Select from the menu.
2. Press the button to select the number of readings
to be used to obtain an average, typically 3.
3. Repeatedly measure the glass plate. After the last
measurement, the Gage will calculate a zero which
represents the average of all the zero readings taken.
Glass Plate Zero
Zeroing on the included glass plate is the preferred method for
best accuracy:
Zero
The PosiTector SPG has only one adjustment point at zero.
The zero point can be set using one of two methods.
Both methods are found under the Zero menu option:
Zero Menu
Zero
4
Factory Zero
If a glass plate or suitable smooth, hard surface is not available,
the factory zero setting can be restored:
1. Select from the menu.
2. Press the button to select Reset (below) and press the
button. The factory calibration icon will appear on the
display.
Zero
0
The factory zero setting may not always be accurate,
particularly after a probe tip exchange. For best accuracy, the
Gage should be zeroed on the included glass plate.
NOTE:
Setup Menu
nits
Converts the display from mils to microns and vice versa.
Reset
Reset (menu reset) restores factory settings and returns the
Gage to a known condition. The following occurs:
- All batches, stored measurements, batch names and screen
captures are erased.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

5
- Bluetooth Pairing info is cleared.
- enu settings are returned to the following:
- The Zero adjustment is returned to the factory setting.
- enu settings are returned to the following:
Date, Time, and WiFi settings are not affected by
either Reset.
1. Power down the Gage and wait 5 seconds.
2. Simultaneously press and hold the and buttons
until the Reset symbol appears.
This returns the Gage to a known, “out-of-the-box” condition.
It
performs the same function as a menu Reset with the addition of:
Perform a more thorough Hard Reset as follows:
NOTES:
Memory = OFF
Statistics = OFF
Hi Lo Alarm = OFF
Auto Dim = ON
Display = None
Bluetooth & Stream = OFF
WiFi & Access Point = OFF
SB Keyboard & Stream = OFF
BLE Keyboard = OFF
nits = icrons
Touch = ON
Flip Lock = OFF
Auto Sync .net = ON
Sound = edium
Language = English
Backlight = Normal
Battery Type = Alkaline
Bluetooth Smart = OFF
SB Drive = ON
Adjusts the volume of built-in speaker (Off, Low, edium, High).
Sound
Disables the Auto Rotate feature by locking the display in its
current orientation.
Flip Lock
Allows the touch screen functionality to be disabled. All gage
functions can also be controlled using the navigation buttons.
Touch
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

6
Advanced models store 250,000 readings in up to 1,000
batches. “New Batch” closes any currently opened batch and
creates a new batch name using the lowest available number.
New batch names are date-stamped when they are created.
The PosiTector SPG has internal memory storage for recording
measurement data. Stored measurements can be reviewed
on-screen or accessed via computers, tablets and smart phones.
All stored measurements are date and time-stamped. The
symbol appears when the Gage is set to store measurement data.
Standard models store up to 1,000 readings in one batch.
Memory Management
Statistics Mode
A statistical summary will appear on the display. Remove the last
reading by pressing the button. Press to clear statistics.
Statistics
Allows Gage to visibly and audibly alert the user when readings
exceed user-specified limits.
–Average
–aximum Value
–Standard Deviation
–inimum Value
X
X
All measurements are date and time stamped (24-hour format)
when stored into memory. It is therefore important to set the
correct date and time. Use the and buttons to select a
value, and the and buttons to adjust it. The current date
and time setting can also be viewed at the top of the main menu.
Set Clock
Selects the type of batteries used in the Gage from a choice of
“Alkaline”, “Lithium” or “Ni H” (nickel-metal hydride rechargeable).
The battery state indicator symbol is calibrated for the selected
battery type. No damage will occur if the battery type used in the
Gage does not match the selected battery type.
Battery Type
HiLo Alarm
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

7
Accessing Stored Measurement Data
DeFelsko offers the following free solutions for viewing, analyzing
and reporting data:
PosiSoft SB Drive - Connect the Gage to a PC/ ac using the
supplied USB-C cable. View and print readings and graphs using
universal PC/ ac web browsers or file explorers. No software or
internet connection required.
PosiSoft Desktop - Powerful desktop software (PC/ ac) for
downloading, viewing, printing and storing measurement data.
Includes a customizable, templated PDF Report Generator.
No internet connection required.
PosiSoft.net - Web-based application offering secure,
centralized storage of measurement data. Access your
data from any web-connected device.
PosiTector App - (Advanced models only) App for compatible iOS
and Android smart devices. Permits users to create, save and
Allows the PosiTector SPG to comply with various standards
and test methods published by organizations including AST ,
SSPC, ISO, I O, US Navy, SANS and AS.
SmartBatch™

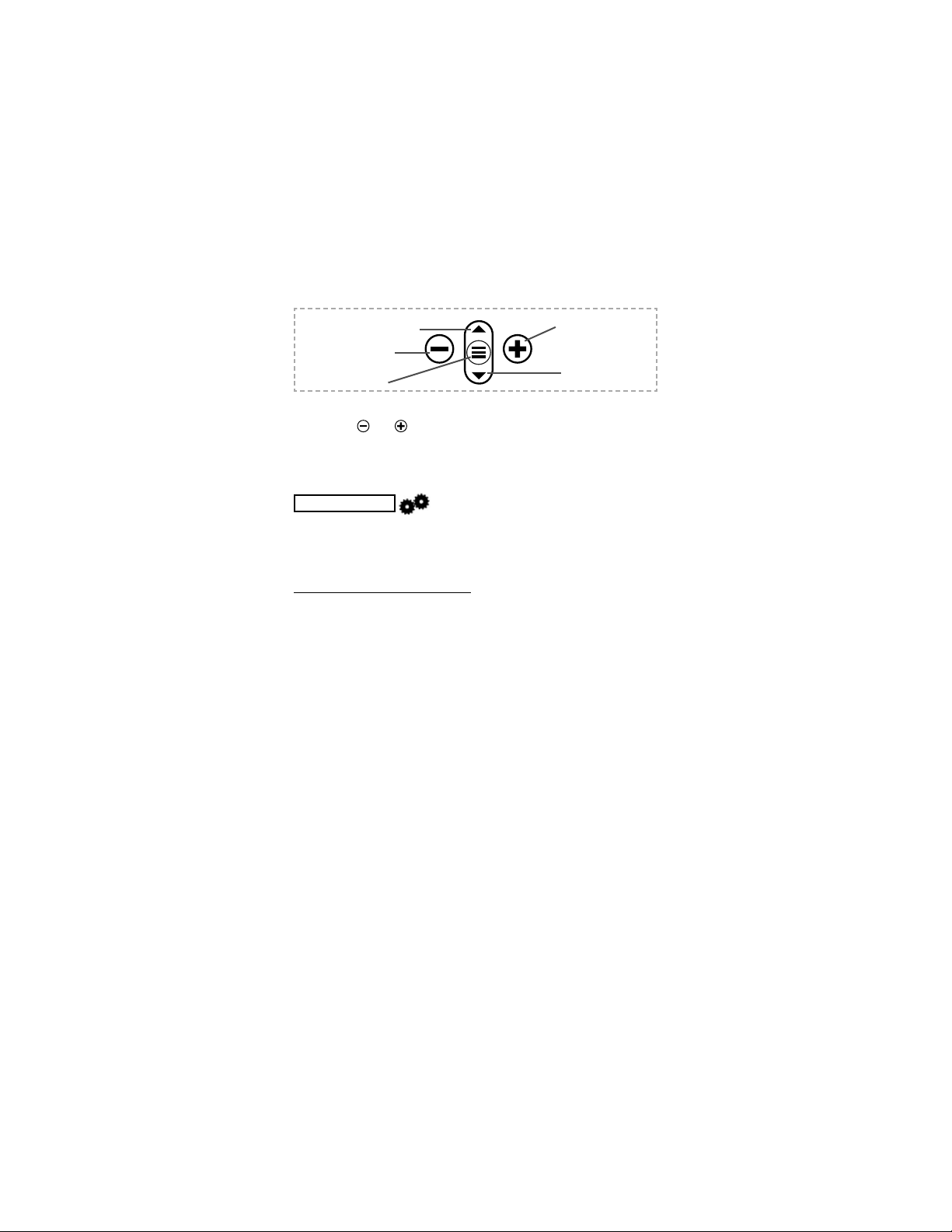

Screen Capture
Press both and buttons simultaneously to save an image of
the current display. The last 100 screen captures are stored in
memory and can be accessed when connected to a computer
(see PosiSoft SB Drive below).
Create a new batch
(Advanced only)
Scroll through display
modes (Advanced only)
Delete last reading
Restore brightness
after dimming
Access the enu
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

8
share professional PDF reports. Add images and notes using the
smart device’s camera and keyboard.
Connect Menu
Allows connection to your local wireless network or mobile
hot spot. Ideal for using your network’s internet connection
for synchronizing stored measurements with PosiSoft.net.
WiFi (Advanced models only)
When SB Drive is enabled , the PosiTector uses a USB
mass storage device class which provides users with a simple
interface to retrieve stored data in a manner similar to USB flash
drives and digital cameras. SB Drive is also required to import
stored measurements into PosiSoft Desktop software
(see pg. 7).
SB
While connected, power is supplied through the included
USB-C cable. The batteries are not used and the body will not
automatically power down.
NOTE:
When enabled and connected to a computer, the PosiTector will be
recognized as a Keyboard. Readings are sent to the computer as
they are taken, emulating keystrokes, followed by a carriage return.
Keyboard
Stream
Stream readings via USB Serial Port to SPC data collection
software, drones, ROVs, PLCs, and robotic devices.
(Advanced models only)
(Advanced models only)
NOTE:
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

9
The WiFi and SB menus contain a Sync .net Now option.
When selected, the Gage immediately synchronizes stored
measurement data via its respective communication method
(internet connection required).
Alternatively, select Auto Sync .net from within the SB connect
menu to automatically synchronize upon connection to a PC.
Additional measurements added to memory while connected are
synchronized only when the USB cable is disconnected and
reconnected, or when the Sync .net Now option is selected. WiFi
connected gages automatically attempt synchronization upon
power up.
Sync .net Now
PosiSoft Desktop is required when using USB to
synchronize measurements with PosiSoft.net.
Bluetooth (Advanced models only)
Bluetooth Smart
Allows communication with a smart device running the
PosiTector App (pg. 7) via auto-pairing Bluetooth Smart (BLE)
wireless technology.
(Advanced models only)
Sync Batches
Select batches to flag them for synchronization to the PosiTector
App. Sync Batches is useful when connecting a new device to a
gage with pre-existing batches, since only batches created while
Bluetooth Smart is enabled are automatically selected.
Selected batches are synchronized when the next reading is
taken in a batch flagged for synchronization, or when the Sync
Batches option is selected at the bottom of the list of selected
batches.
If Bluetooth Smart is disabled or disconnected, data
from batches selected in the Sync Batches menu are held in a
queue until communication with the PosiTector App is re-
established.
NOTE:
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

10
The Gage will perform a Hard Reset after an
update (see pg. 5).
WARNING:
BLE Keyboard
When enabled and connected to a computer, the PosiTector will
be recognized as a wireless Keyboard. Readings are sent to the
computer as they are taken, emulating keystrokes, followed by a
carriage return.
(Advanced models only)
Send Batches
Transfers selected batches to the PosiTector App. Send Batches
is useful when switching between devices, as only readings and
batches that have yet to be synchronized with any smart device
are synchronized automatically.
The Send Batches option is visible in the menu when the Gage
is connected to a smart device running the PosiTector App.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Returning for Service
Before returning the Gage for service…
1. Install new or newly recharged batteries in the proper
alignment as shown within battery compartment.
2. Examine the probe tip for dirt or damage. The probe tip should
move up and down freely.The plate surrounding the
probe tip should be smooth and free from burrs and foreign
material.
3. Perform a Hard Reset (pg. 5).
4. Place the metal shim over the glass plate and attempt a
measurement.
5. If issue is not resolved, pdate (pg. 10) your PosiTector
gage body and re-attempt measurements.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
