Defy HM 5040 B User manual

3DJH


+0%
+$1'0,;(5
6PDOODSSOLDQFH
,QVWUXFWLRQPDQXDO

Please read this user manual first!
Dear Customer,
Thank you for preferring a Defy product. We hope that you get the best results from
your product which has been manufactured with high quality and state-of-the-art
technology. Please read this entire user manual and all other accompanying
documents carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, include the user manual. Follow all
warnings and information in the user manual.
Rememberthatthisuser manualis also applicable forseveralothermodels. Differences
between models will be identified in the manual.
Symbol meanings
Following symbols are used in the various parts of this manual:
C
Important nformaton and useful hnts
about usage.
A
Warnng for hazardous stuatons wth
regard to lfe and property.
This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.
Complies with the WEEE Regulation. Does not contain PCB.
Made in P.R.C.

3

SAFETY AND SET-UP______________________
Please read this instruction man-
ual thoroughly prior to using
this appliance! Follow all safe-
ty instructions in order to avoid
damages due to improper use!
Keep the instruction manual for
future reference. Should this ap-
pliance be given to a third par-
ty, than this instruction manual
must also be handed over.
■ The appliance is designed
for domestic use only.
■ Do not use the appliance
outdoors or in the bathroom.
■ Check if the mains voltage on
the rating label corresponds
to your local mains supply.
The only way to disconnect
the appliance from the mains
is to pull out the plug.
■ For additional protection,
this appliance should be
connected to a household
faulty current protection
switch with no more than 30
mA. Consult your electrician
for advice.
■ Do not immerse the appli-
ance, power cord or power
plug in water or in other liq-
uids.
■ Disconnect the power plug
after using the appliance, be-
fore cleaning the appliance,
before leaving the room or if
a fault occurs. Do not discon-
nect the plug by pulling on
the cord.
■ Do not wrap the power cord
arou nd the appliance.
■ Prevent damage to the power
cord by not squeezing, bend-
ing or rubbing it on sharp
edges. Keep the cord away
from hot surfaces and open
flames.
■ Do not use an extension cord
with the appliance.
■ Never use the appliance if
the power cord or the appli-
ance is damaged.
■
Appliances meet applica-
ble safety standards, thus
if the appliance or power
cord is damaged, it must be
repaired or replaced by the
dealer, a service centre or
a similarly qualified and au-
thorized service person to
avoid any dangers. Faulty or
unqualified repair work may
cause danger and risks to the
user.
4

SAFETY AND SET-UP______________________
■ Do not dismantle the ap-
pliance under any circum-
stances. No warranty claims
are accepted for damage
caused by improper han-
dling.
■ Keep the appliance always
out of the reach of children.
■ The appliance should not
be used by the following
persons, including children:
those with limited physical,
sensory or mental capa-
bilities and also those with
a lack of experience and
knowledge. This does not
apply to the latter if they
were instructed in the use
of the appliance or if they
use it under the supervision
of a person responsible for
their safety. Children should
always be supervised to en-
sure that they do not play
with the appliance.
■ Do not leave the appliance
unattended as long as it is in
use. Extreme caution is ad-
vised when the appliance
is being used near children
and people with limited
physical, sensory or mental
capabilities.
■ Before using of the appliance
for first time, clean all parts.
Please see details in the
“Cleaning and Care” sec-
tion.
■ Dry the appliance before
connecting it to
■ Do not use the appliance
with damp or wet hands.
■ Always use the appliance on
a stable, flat, clean and dry
surface.
■ Make sure that that there is
no danger that the power
cord could be accidentally
pulled or that someone could
trip over it when the appli-
ance is in use.
■ Position the appliance in such
a way that the plug is always
accessible.
■ Hold the appliance by the
handle only.
■ Do not stick any foreign ob-
jects on the appliance.
■ Do not touch any moving
parts on this appliance. Wait
until the appliance has come
to a complete standstill. Re-
member that long hair, loose
clothing, jewellery and kitch-
en utensils could pose a dan-
ger should they get caught in
the mixer.
5

AT A GLANCE ____________________________
Whisk
By using beaters, you can prepare light batter
mixture, eggs, egg whites, whipping cream,
mayonnaise, puree, creams, sauces and
pudding mixtures.
Knead
By using dough hooks, you can prepare heavy
yeast dough and pastry dough, such as potato
dough for making potato dumplings and potato
pancakes.

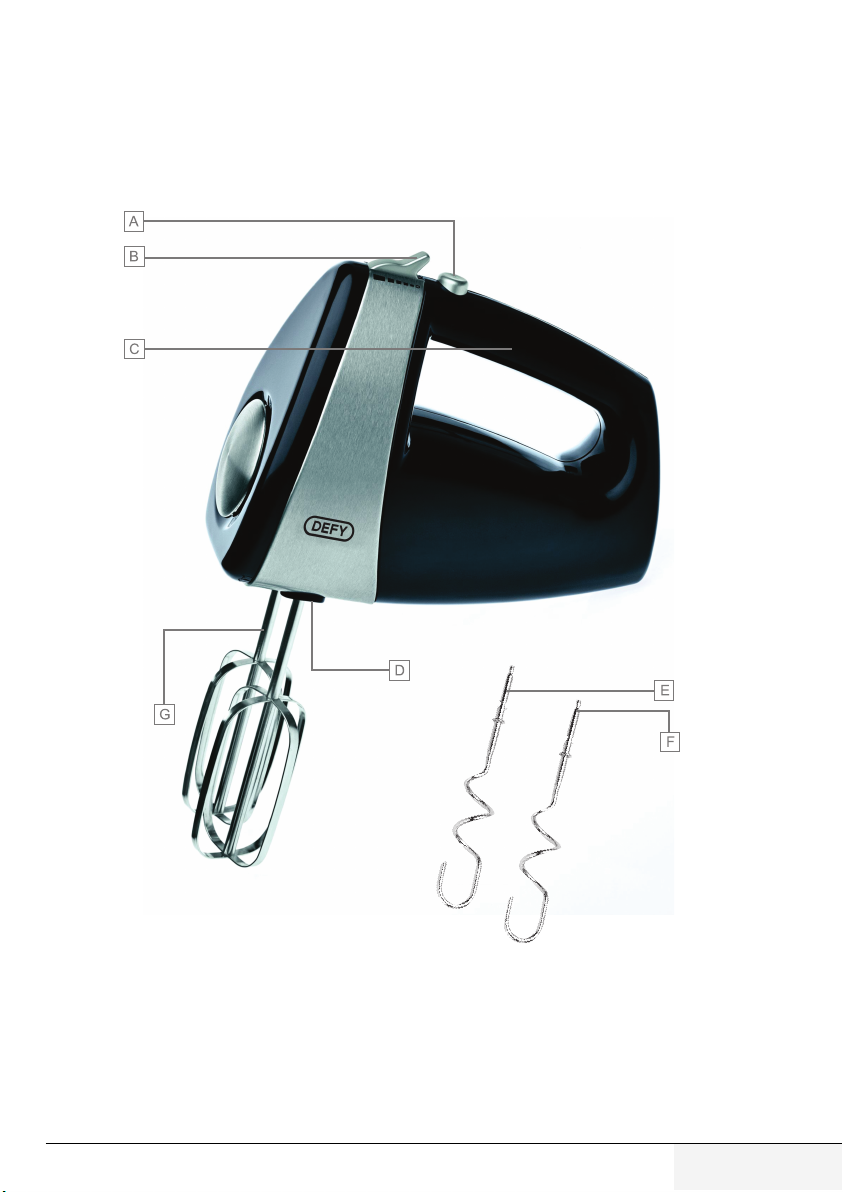

Controls and parts
See the figure on page 3.
A Turbo button
B Speed control and accessory release switch
C Handle
D Accessory slots for beaters and dough hooks
E Distance spacer on dough hook
F Dough hooks
G Beaters
SAFETY AND SET-UP______________________
■ While the appliance is in op-
eration, do not put any ob-
jects into the moving parts.
There is a risk of injury.
■ To avoid splashes, put the
whisk/dough hook com-
pletely into the food mixture
first before switching on the
mixer.
■ Do not use the appliance
for anything other than its in-
tended use. The Hand Mixer
is designed for mixing and
whisking of food only.
■ Never release the attach-
ments while the appliance is
in operation.
■ The hand mixer should be
used on high speed for no
longer than 3 minutes. Let
the appliance cool down to
room temperature before fur-
ther use.
6

OPERATION ______________________________
Preparation
1 Remove all packaging and sticker materials
and dispose of them according to the
applicable legal regulation.
2 Before using of the appliance for first time,
clean beaters and dough hooks (See the
“Cleaning and care” section).
Operation
1 Make sure that the power cord has been
disconnected from the wall socket and the
speed control and accessory release switch
B is on speed 0 prior to attaching the beater
or dough hooks to the mixer.
2 Insert the beaters G or dough hooks F into the
accessory slots for beaters and dough hooks
D on the mixer until they lock into place.
Notes
■ Insert dough hook with distance spacer E in
the larger of the two accessory slots.
■ The beaters can be inserted into either
accessory slots D.
3 Insert the plug into the wall socket.
4 Hold the beaters G or dough hooks F into the
food mixture before switching the hand mixer
on.
5 Set the speed control and accessory release
switch B on the desired speed (1 to 5 speed
settings).
– The appliance begins to operate.
Note
■ Select a suitable speed level, depending on
the type of food. While mixing, you can press
the Turbo button A to briefly raise the speed
level to the maximum speed. The speed of
the Turbo button A corresponds to the level
5 of the speed control and accessory release
switch B.
Caution
■ The hand mixer should be used on high speed
for no longer than 3 minutes. Let the appliance
cool down to room temperature before further
use.
6 After you finish operation, set the speed control
and accessory release switch B to speed 0.
After rotation has been stopped pull out the
beaters / dough hook from the food mixture.
7 Disconnect the plug from the wall socket.
8 Hold the beaters G or dough hooks F with
one hand and push the speed control and
accessory release switch B.
– The beaters G or dough hooks F will be
released.
Caution
■ Only press the speed control and release
switch B if it is on position 0.
Hints and tips
■ Cold food, such as butter and eggs should be
brought to room temperature prior to blending
them. Thus leave these types of food at room
temperature for a while before mixing them.
■ To avoid mixing egg shells in with the food
already in the container, put them into a
separate container first. Then add them to the
mixture.
■ Remember that climatic conditions, seasonal
temperature differences, temperature and
consistency of the ingredients could affect
the preparation time necessary as well as the
results.
■ Always start blending on a low speed. Increase
the speed gradually until you have reached
the recommended speed for the food you are
mixing.
7

INFORMATION ___________________________
Cleaning and care
Caution
■ Never use petrol, solvents or abrasive cleaners,
metal objects or hard brushes to clean the
appliance.
1 Turn the appliance off and disconnect it from
the wall socket.
2 Let the appliance cool down completely.
3 Use a damp soft cloth to clean the exterior of
the appliance.
Caution
■ Never put the appliance or power cord in
water or any other liquids and never hold them
under running water.
4 Clean the beaters G or dough hooks F with
warm, soapy water. Then rinse the beaters or
dough hooks with clear water and dry them off
thoroughly. The beaters or dough hooks can
also be cleaned in the dishwasher.
Note
■ Before using the appliance after cleaning, dry
all parts carefully using a soft towel.
Storage
■ If you do not plan to use the appliance for a
long period of time, please store it carefully.
■ Make sure the appliance is unplugged and
completely dry.
■ Store the appliance in a cool, dry place.
■ Make sure the appliance is kept out of the
reach of children.
Technical data
Power supply: 220V-240V ~, 50 Hz
Power: 300 W
Noise Level: 80 dB (A)
Technical and design modifications reserved.
This product is under guarantee for three years.
Do not dismantle the appliance under any
circumstances. No warranty claims are accepted
for damage caused by improper handling.
8
Compliance with the WEEE
Directive and Disposing of the
Waste Product:
This product complies with EU WEEE Directive
(2012/19/EU). This product bears a classification
symbol for waste electrical and electronic
equipment (WEEE).
This symbol indicates that this product
shall not be disposed with other
household wastes at the end of its
service life. Used device must be
returned to offical collection point for
recycling of electrical and electronic devices. To
find these collection systems please contact to
your local authorities or retailer where the product
was puchased. Each household performs
important role in recovering and recycling of old
appliance. Appropriate disposal of used appliance
helps prevent potential negative consequences
for the environment and human health.




%UDQFKHV
,I\RXKDYHIROORZHGWKHLQVWUXFWLRQVDQGVWLOOKDYHDSUREOHPFRQWDFWWKHFXVWRPHUFDUH
OLQHRQ7KH\ZLOOEHDEOHWRDGYLVH\RXRQDQ\DVSHFWRIWKHDSSOLDQFH
6XE6DKDUDQ$IULFD%UDQFKHV

=$0%,$6287+*$7(,19(670(176/7'
3ORW6KHNL6KHNL5RDG
32%R[
/XVDND=DPELD
7HO
)D[
VJLVHUYLFHFHQWUH#PLFUROLQN]P

1$0,%,$$7/$17,&',675,%8725637<
/7'
7LHQLH/RXZ6WUHHW1RUWKHUQ,QGXVWULDO$UHD
32%R[:LQGKRHN1DPLELD
7HO
)D[
DWODQWLF#PZHEFRPQD

=,0%$%:(75$'(&20$)5,&$
7UDGH&RP$IULFD/RUHOH\&UHVFHQW
0VDVD+DUDUH=LPEDEZH
7HO
&HOO
&HOO

%276:$1$5$<025*$1$*(1&,(6
50$6HUYLFH&HQWUH3ORW(DVW*DWH
*DERURQH,QWHUQDWLRQDO&RPPHUFH3DUN
.JDOH9LHZ*DERURQH
%RWVZDQD
7HO
)D[
&HOO
VHUYLFH#UPDFREZUDMD#UPDFREZ

6:$=,/$1'/<1'6',675,%87256
32%R[0EDEDQH6ZD]LODQG+
7HO
)D[

02=$0%,48(&22/:25/'/'$
5XDGD5HVLVWHQFLD1R%5&
&HOO
FRROZRUOGOGD#KRWPDLOFRP
1RVVR6KRZ5RRP
$YGD,QGXVWULDV3DUFHOD1R$
0DFKDYD0DSXWR
6RXWK$IULFDQ%UDQFKHV

%/2(0)217(,1
8QLW1XPEHU
0RQXPHQW%XVLQHVV3DUN
0RQXPHQW5RDG
2UDQMHVLJ%ORHPIRQWHLQ
%ORHPIRQWHLQ6HUYLFH#GHI\FR]D

&$3(72:1
$0DUFRQL5G0RQWDJXH*DUGHQV
&DSH7RZQ6HUYLFH#GHI\FR]D

'85%$1
7HDNZRRG5RDG-DFREV
'XUEDQ
'XUEDQ6HUYLFH#GHI\FR]D

($67/21'21
5REELHGH/DQJH5RDG:LOVRQLD
(DVW/RQGRQ
(DVW/RQGRQ6HUYLFH#GHI\FR]D

*$87(1*0,'5$1'
WK5RDG&QU3KDUPDFHXWLFDOWK5G
0LGUDQG*DXWHQJ
*DXWHQJ6HUYLFH#GHI\FR]D

32/2.:$1(
1HOVRQ0DQGHOD'ULYH6XSHUELD
3RORNZDQH6HUYLFH#GHI\FR]D

3257(/,=$%(7+
3DWWHUVRQ5RDG1RUWK(QG3RUW(OL]DEHWK

3RUW(OL]DEHWK6HUYLFH#GHI\FR]D
9




:DUUDQW\
7KLV FHUWLILFDWH LV LVVXHG E\ '()< $33/,$1&(6 37< /,0,7(' PDQXIDFWXUHUV RI 'HI\
DQG 2FHDQ SURGXFWV KHUHLQDIWHU WKH &RPSDQ\ WR WKH RULJLQDO SXUFKDVHU RQO\ RI WKH
DSSOLDQFH GHVFULEHG RQ WKH FHUWLILFDWH DQG VKDOO FRQVWLWXWH WKH RQO\ ZDUUDQW\ JLYHQ LQ
UHVSHFWRIWKLVDSSOLDQFH

7KH &RPSDQ\ ZDUUDQWV WR WKH RULJLQDO SXUFKDVHU WKDW IRU D SHULRG RI 7:2 <($56 IURP
GDWH RI SXUFKDVH WKH DSSOLDQFH LV IUHH IURP GHIHFW XQGHU QRUPDO GRPHVWLF XVH ERWK LQ
ZRUNPDQVKLSDQGPDWHULDOVXEMHFWWRWKHIROORZLQJFRQGLWLRQV

 &DUU\LQ VHUYLFH 6PDOO DSSOLDQFHV DUH UHSDLUHG LQ RXU VHUYLFH FHQWUHV DQG DUH QRW
FROOHFWHG IURP WKH FXVWRPHUV KRPH )DXOW\ XQLWV PXVW EH GHOLYHUHG WR WKH SXUFKDVLQJ
GHDOHURUWRWKHQHDUHVW&RPSDQ\6HUYLFH&HQWUHIRUZDUUDQW\UHSDLUV

9LWUHRXVHQDPHOZDUHIXVHVDQGODPSVDUHVSHFLILFDOO\H[FOXGHGIURPWKHVHZDUUDQWLHV,W
LV DQ H[SUHVV FRQGLWLRQ RI WKHVH ZDUUDQWLHV WKDW WKH SXUFKDVHU WDNHV GXH FDUH DQG
DWWHQWLRQ LQ WKH XVH DQG PDLQWHQDQFH RI WKH DSSOLDQFH $EXVH PLVXVH LQ FRQIOLFW ZLWK
RSHUDWLQJLQVWUXFWLRQVFRQQHFWLRQWRLQFRUUHFWYROWDJHVDQGVXEMHFWLRQWRFRPPHUFLDOXVH
VKDOOUHOHDVHWKH&RPSDQ\IURPLWVREOLJDWLRQV

7KLVZDUUDQW\VKDOOEHFRPHYRLGDQGFHDVHWRRSHUDWHLIWKHDSSOLDQFHLVGLVPDQWOHGE\
RU DQ\ UHSDLUV WR WKH DSSOLDQFH DUH HIIHFWHG E\ DQ\ SHUVRQV QRW GXO\ DXWKRULVHG E\ WKH
&RPSDQ\RULIVXEVWLWXWHSDUWVQRWDSSURYHGE\WKH&RPSDQ\DUHXVHGLQWKHDSSOLDQFH
RULIWKHVHULDOQXPEHURIWKHDSSOLDQFHLVUHPRYHG

 7KH &RPSDQ\ VKDOO QRW EH UHVSRQVLEOH IRU GDPDJHV UHVXOWLQJ IURP ILUH IORRG FLYLO
GLVWXUEDQFHVRUDQ\$FWRI*RG7KH&RPSDQ\VKDOOQRWLQWHUPVRIWKHVHZDUUDQWLHVEH
UHVSRQVLEOHQRUKHOGOLDEOHIRUDQ\FRQVHTXHQWLDOORVVRUGDPDJHRIDQ\NLQGFDXVHGE\RU
GXHWRWKHIDLOXUHRUPDOIXQFWLRQRIWKHDSSOLDQFH7KH&RPSDQ\VKDOOQRWEHUHVSRQVLEOH
IRUGDPDJHVFDXVHGE\LQVHFWDQGRUDQLPDOLQIHVWDWLRQ

7KH&RPSDQ\VKDOOQRWEHUHVSRQVLEOHIRUWUDQVSRUWDWLRQRURWKHUFRVWVRWKHUWKDQWKRVH
LQFXUUHGZLWKLQWKHSURYLVLRQVRI3RLQWRIWKLV&HUWLILFDWH

)RU ZDUUDQWLHV LQ WKH 5HSXEOLF RI 6RXWK $IULFD DQG 6XE6DKDUDQ $IULFD SOHDVH
FRQWDFW WKH FXVWRPHU FDUH OLQH 3OHDVH UHIHU WR WKH SUHYLRXV SDJH IRU UHVSHFWLYH
6RXWK$IULFDQEUDQFKHVDQG6XE6DKDUDQ$IULFDEUDQFKHV

:KHUHVHUYLFHLV UHTXHVWHG XQGHU ZDUUDQW\DQGQRIDXOWRUGHIHFWFDQEH IRXQG E\WKH
&RPSDQ\DOOFRVWVLQFXUUHGZLOOEHIRUWKHSXUFKDVHUVDFFRXQW

7KLV&HUWLILFDWHDVZHOODV\RXULQYRLFHZLOOVHUYHDVSURRIRISXUFKDVH)RUWKHSXUSRVH
RIZDUUDQW\LWZLOOEHHVVHQWLDOWRSURGXFHWKLV&HUWLILFDWHDQGLQYRLFH)DLOXUHWRGRVRZLOO
UHQGHUWKHSXUFKDVHUOLDEOHIRUVHUYLFHFRVWV

.((37+,6&(57,),&$7($1'6$/(6,192,&($63522)2)
385&+$6()25:$55$17<385326(6
10
