Degelman is proud to welcome you to our rapidly
increasing family of high quality and dependable
product owners. This product was designed and
built specifically for you, the customer. Through our
research and with your input and feedback, we
present to you our 38 and 50 Series Strongbox®.
Designed with durability, safety, and performance in
mind, this Strongbox®is ready for years of quality
service. In order to help you keep your Strongbox®
in top operating condition we have provided you
with this manual.
WELCOME
The Strongbox®box blade is a simple, strong and
effective tool for high volume snow removal.
The Strongbox®features a durable rubber cutting
edge, which gives it the flexibility to clear snow,
slush, ice and water.
Extra-large side plates reinforced with a unique
cone gusset, these side plates are designed to
endure the wear and tear of snow removal.
Strongbox®is adaptable with optional mounting
systems to fit payloaders, backhoes, skid steers and
most Ag tractors.
DESCRIPTION
Introduction
This manual has been designed to help assist
you with an overview of parts, components, and
mounting options for your Degelman Strongbox®.
Your authorized Degelman dealer can be
contacted for ordering any replacement parts,
decals, or manuals. Since many of our parts are
specially designed specifically for this Strongbox®
box blade we strongly recommend you always
replace them with genuine Degelman parts only.
This manual and its contents were current at the time
of its first printing. To increase product performance
and operation, some part modifications and changes
may occur that are not reflected in this manual.
Note: The description “Right”or“Left” as used in this
manual is determined by the direction the tractor
will travel while in use (unless otherwise stated).
ABOUT THIS MANUAL
Left
Side
Right
Side
Your serial number is
found on the serial number plate.
It is important to record the serial & model number
of your Strongbox®for proof of ownership and for
any required service or maintenance assistance.
Serial Number
Owner Name
Model
Purchase Date
Dealer Name
Address
Phone
PROOF OF OWNERSHIP
Serial Number Plate

-2-
143393 - Strongbox®(07-February-2019)
Safety
Why is SAFETY
important to YOU?
3 BIG Reasons:
• Accidents Can Disable and Kill
• Accidents Are Costly
• Accidents Can Be Avoided
. . . for your own safety and that of others!
- If you are not familiar with basic agriculture &
industrial safety, you must get training.
- Owners of equipment must give operating
instructions to other operators such as family
members or a hired hand.
- Making any design changes to equipment could
cause a hazard, damage your machine & void
your warranty.
YOU are responsible for the SAFE operation and
maintenance of your Degelman implement. YOU
must ensure that you and anyone else who is going
to operate, maintain, or work around the machine
be familiar with the operating and maintenance
procedures, and related SAFETY information
contained in this manual. This manual will take you
step-by-step through your working day and will
alert you to good safety practices that should be
adhered to while operating this equipment.
Remember, YOU are the key to safety. Good
safety practices not only protect you, but also
the people around you. Make these practices a
working part of your safety program. Be certain
that EVERYONE operating this equipment is familiar
with the recommended operating and maintenance
procedures and follows all the safety precautions.
Most accidents can be prevented. Do not risk injury
or death by ignoring good safety practices.
• Owners must give operating instructions to
operators or employees before allowing them to
operate the unit, and at least annually thereafter
per OSHA regulation 1928.57.
• The most important safety device on this
equipment is a SAFE operator. It is the operator’s
responsibility to read and understand ALL Safety
and Operating instructions in the manual and to
follow these. All accidents can be avoided!
• A person who has not read and understood ALL
operating and safety instructions is not qualified
to operate the machine. An untrained operator
exposes himself and bystanders to possible
serious injury or death.
• Do not modify the equipment in any way.
Unauthorized modification may impair the
function and/or safety and could affect the life of
the equipment.
DANGER: Indicates an imminently hazardous situation
that, if not avoided, WILL result in death or serious injury
if proper precautions are not taken.
WARNING: Indicates a potentially hazardous situation
that, if not avoided, COULD result in death or serious
injury if proper precautions are not taken.
CAUTION: Indicates a potentially hazardous situation
that, if not avoided, MAY result in minor or moderate
injury if proper practices are not taken, or, serves as a
reminder to follow appropriate safety practices.
Note the use of the Signal Words: DANGER, WARNING,
and CAUTION with the safety messages. The appropriate
Signal Word has been selected using the following
guidelines:
SIGNAL WORDS
The Safety Alert Symbol identifies important safety
messages. When you see this symbol, be alert to the
possibility of injury or death. Follow the
instructions provided on the safety messages.
The Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
SAFETY ALERT SYMBOL
YOU are RESPONSIBLE

-3-
143393 - Strongbox®(07-February-2019)
Wear Protective Equipment
Note: Before working on machine, always turn
tractor off, set controls in neutral, and remove
ignition key.
• Wear proper safety equipment such
as safety glasses and shoes, hearing
protection, hard
hats, or any other
appropriate items
to prevent injury.
• Loss of hearing or hearing impairment may result
from prolonged exposure to loud noise. Wear
suitable hearing protective devices such as
earmuffs or earplugs to protect your hearing.
• Safely operating this equipment requires the full
attention of the operator. Do not wear radio or
music headphones, or talk on your phone while
operating this machine. Never operate while
under the influence of alcohol or drugs or allow
anyone under the influence to operate the tractor.
Doctor
Ambulance
Hospital
Fire Department
HYDRAULIC
• Keep all parts clean.
• Replace worn or damaged parts.
• Don’t try any makeshift repairs.
• Before operating check that everything is tight and
not broken.
• Wear gloves and eye protection when searching
for leaks. Use a piece of wood or cardboard but
not your hand. High pressure oil will penetrate
your skin. If that happens you risk serious injury.
BLADE
• Lower blade to the ground when not in use.
• Keep clear of blade when tractor is running.
• Keep hands & feet away from under blade.
• Turn engine off when hooking up hydraulics and
during mounting or dismounting.
TRANSPORTING
• Lift blade up then hold with safety chain.
• Make sure SMV sign & reflectors are clean.
• Use your hazard lights.
GENERAL SAFETY
1. Read and understand the Operator's Manual
and all safety signs before using. Review safety
related items with all operators annually.
2. Lower blade to ground, stop tractor engine,
place all controls in neutral, set park brake and
remove ignition key before servicing, adjusting
or repairing.
3. Keep hands, feet, hair and clothing away from
all moving and/or rotating parts.
4. DO NOT allow riders on the machine or tractor
during operation or transporting.
5. Clear the area of all bystanders, especially
children, before starting.
6. DO NOT operate machine on steep side hills or
slopes.
7. Be careful when working around or maintaining
a high-pressure hydraulic system. Ensure all
components are tight and in good repair before
starting.
8. Clean all reflectors, lights and the SMV sign
before transporting on a highway or public
road. Be sure to check with local highway
authorities and comply with their lighting
requirements.
9. Stay well back from machine when operating.
Keep others away.
10. DO NOT operate the Strongbox without an
adequate amount of rear wheel ballast.
Safety
Prepare for Emergencies
• Keep a first aid kit and fire
extinguisher handy.
• Keep emergency numbers
for doctor, hospital, ambulance, and
fire department near your phone.

-4-
143393 - Strongbox®(07-February-2019)
MAINTENANCE SAFETY
1. Review the all safety items before working with,
maintaining or operating the machine.
2. Lower machine to ground, stop the tractor
engine, place all controls in neutral, set
park brake and remove ignition key before
servicing, adjusting or repairing.
3. Clear the area of bystanders, especially
children when carrying out any maintenance
and repairs or making adjustments.
4. Place safety stands or large blocks under
the frame before removing tires or working
beneath the machine.
5. Be careful when working around or
maintaining a high-pressure hydraulic system.
Wear proper eye and hand protection when
searching for a high pressure hydraulic leak.
Use a piece of wood or cardboard as a
backstop when searching for a pin hole leak
in a hose or a fitting.
6. Always relieve pressure before disconnecting
or working on hydraulic system.
Maintenance

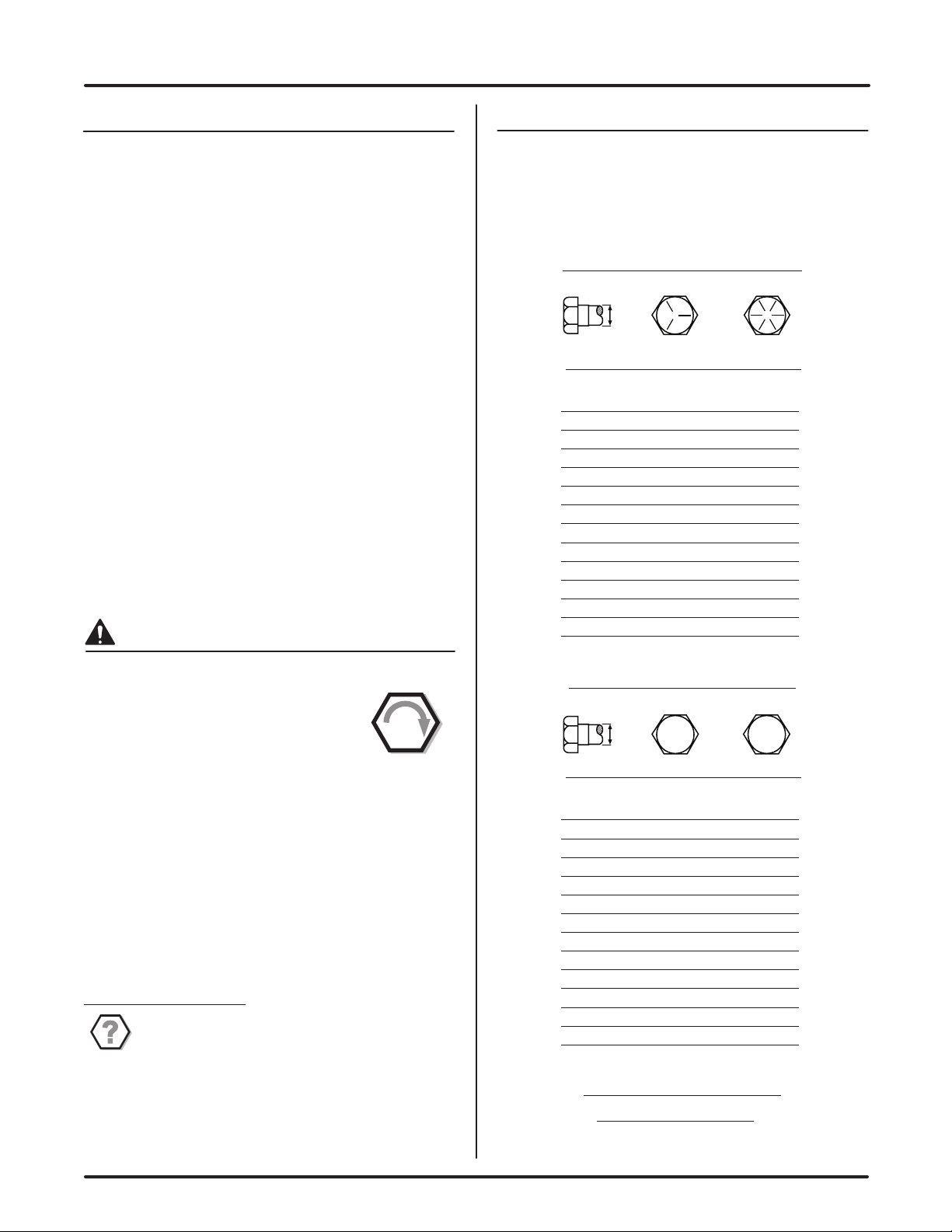

HYDRAULIC FITTING TORQUE
Size lb.ft (N.m)
3/4 75 (100)
7/8 90 (122)
HARDWARE TORQUE SETTINGS
The tables below give correct torque values for various
bolts and capscrews. Tighten all bolts to values in
charts unless otherwise noted. Check tightness of bolts
periodically, using torque charts as a guide. Replace
hardware with the same strength (Grade/Class) bolt.
IMPERIAL TORQUE SPECIFICATIONS
(based on “Zinc Plated” values)
SAE-5 SAE-8
Size Grade 5 Grade 8
lb.ft (N.m) lb.ft (N.m)
1/4” 7 (10) 10 (14)
5/16” 15 (20) 20 (28)
3/8” 25 (35) 35 (50)
7/16” 40 (55) 60 (80)
1/2” 65 (90) 90 (120)
9/16” 90 (125) 130 (175)
5/8” 130 (175) 180 (245)
3/4” 230 (310) 320 (435)
7/8” 365 (495) 515 (700)
1” 550 (745) 770 (1050)
1-1/8” 675 (915) 1095 (1485)
1-1/4” 950 (1290) 1545 (2095)
1-3/8” 1250 (1695) 2025 (2745)
1-1/2” 1650 (2245) 2690 (3645)
METRIC TORQUE SPECIFICATIONS
(based on “Zinc Plated” values)
8.8 10.9
Size Class 8.8 Class 10.9
lb.ft (N.m) lb.ft (N.m)
M6 7 (10) 10 (14)
M8 16 (22) 23 (31)
M10 30 (42) 45 (60)
M12 55 (75) 80 (108)
M14 90 (120) 125 (170)
M16 135 (185) 195 (265)
M18 190 (255) 270 (365)
M20 265 (360) 380 (515)
M22 365 (495) 520 (705)
M24 460 (625) 660 (895)
M27 675 (915) 970 (1315)
M30 915 (1240) 1310 (1780)
M33 1250 (1695) 1785 (2420)
M36 1600 (2175) 2290 (3110)
Important: Check torque on all
hardware periodically. Check after
first 2, 10, 40, then every 200 hours.
• Torque values listed are for general
use only. If a different torque value
or tightening procedure is specified for a specific
application, do not use these values.
• Refer to the “Parts” section for proper grade and
length of bolts for replacement parts.
• Do not replace locknuts with nuts and lock washers.
Replace all parts with original, specified parts only.
• Dry values shown mean the bolt/nut is plain or zinc
plated without any lubrication.
CHECK HARDWARE TORQUE
TORQUE
all hardware
Unless otherwise stated:
Hardware - Hex, GR5 UNC (imperial) or P8.8 (metric)
Hoses - 3/8, ends come with 3/4 JIC female swivel.

-5-
143393 - Strongbox®(07-February-2019)
TRANSPORTING
Follow this procedure when preparing to transport:
1. Clear the area of bystanders, especially small
children, before converting into transport
configuration.
2. Operate the lift hydraulics to raise the blade fully
and install a certified safety chain to secure it.
3. Clean the SMV sign, lights and reflectors.
4. Maintain a safe speed. Slow down when
cornering and on rough roads.
5. Slow down and pull off to the side of the road
when meeting other traffic.
6. Use hazard flashers on tractor unless prohibited
by law.
Transport & Storage
TRANSPORT SAFETY
• Read and understand ALL the information in the
Operator's Manual regarding procedures and
SAFETY when operating the machine in the field/
yard or on the road.
• Check with local authorities regarding machine
transport on public roads. Obey all applicable
laws and regulations.
• Always travel at a safe speed. Use caution when
making corners or meeting traffic.
• Make sure the SMV (Slow Moving Vehicle)
emblem and all the lights and reflectors that are
required by the local highway and transport
authorities are in place, are clean and can be
seen clearly by all overtaking and oncoming
traffic.
• Keep to the right and yield the right-of-way to
allow faster traffic to pass. Drive on the shoulder,
if permitted by law.
• Always use hazard warning flashers on tractor
when transporting, unless prohibited by law.
STORAGE
After the season's use, completely inspect all major
systems of the machine. Repair or replace any worn
or damaged components to prevent unnecessary
down time at the beginning of next season.
Since the unit can be used in extremely adverse
conditions during the season, the machine should be
carefully prepared for storage to ensure that all dirt,
mud, debris and moisture has been removed.
Follow this procedure when preparing to store:
1. Wash the entire machine thoroughly using a water
hose or pressure washer to remove all dirt, mud,
debris or residue.
2. Inspect all parts to see if anything has become
entangled in them. Remove the entangled material.
3. Lubricate all grease fittings to remove any moisture.
4. Inspect all hydraulic hoses, fittings, lines and
couplers. Tighten any loose fittings. Replace any
hose that is badly cut, nicked or abraded or is
separating from the crimped end of the fitting.
5. Touch up all paint nicks and scratches to prevent
rusting.
6. Oil the exposed rams on the hydraulic cylinder to
prevent rusting.
7. Select an area that is dry, level and free of debris.
STORAGE SAFETY
•Store unit in an area away from human activity.
• Do not permit children to play near the stored unit.
Decals, especially safety and reflective, should be
replaced when they become damaged or worn.
Contact your dealer.
Information Decals
143159 Important, Keep Chain Parallel 2
Reflective Decals
142557 Amber Reflector, 2” x 9” lg 2
(located top front corners of blade)
142556 Red Reflector, 2” x 9” lg 2
142650 Fluorescent Reflector, 2” x 9” lg 2
Product Decals
142008 Degelman Logo, 25-3/4” lg 2
143198 Degelman Logo, 36” lg 2
143150 Strongbox®Decal 1
Model Numbers
143152 1038 Decal 1
143153 1238 Decal 1
143154 1438 Decal 1
143155 1638 Decal 1
143156 1650 Decal 1
143157 1850 Decal 1
143158 2050 Decal 1
REPLACEMENT DECALS

-6-
143393 - Strongbox®(07-February-2019)
838/1038/1238 & 1438/1638
38 Series Model Overview
38 Series Strongbox
788270 - 8 ft
788180 - 10 ft
788285 - 12 ft
788003 - 14 ft
788004 - 16 ft
38 SERIES BLADE COMPONENTS
Bolt Plate for Cutting Edge
788124 (1) - 8 ft
788126 (1) - 10 ft (shown)
788127 (1) - 12 ft
788128 (2) - 14 ft
788124 (2) - 16 ft
118034 - Bolt, 5/8 x 3-1/2
8ft (10) 10ft (12) 12ft (14)
14ft (16) 16ft (18)
SB38 Blade Assembly
788271 - 8 ft
788181 - 10 ft (shown)
788286 - 12 ft
788050 - 14 ft
788060 - 16 ft
Urethane Cutting Edge (option)
788275 - 8 ft
788277 - 10 ft
788278 - 12 ft
788279 - 14 ft
788275 (2) - 16 ft
Steel Cutting Edge (option)
116113 - 8 ft
N/A - 10 ft
116111 (2) - 12 ft
116112 (2) - 14 ft
116113 (2) - 16 ft
Rubber Cutting Edge
788119 - 8 ft
788121 - 10 ft (shown)
788122 - 12 ft
788123 - 14 ft
788119 (2) - 16 ft
118447 - Lock Nut, 5/8 GRC Unitorque
8ft (10) 10ft (12) 12ft (14)
14ft (16) 16ft (18)
118203 - Scraper Bolt, 5/8 x 2 (12)
118407 - Nut, 5/8 (12)
118508 - Lock Washer, 5/8 (12)
788177 - Wear Shoe, LH 38 SRS (1) (shown)
788176 - Wear Shoe, RH 38 SRS (1)
118048 - Bolt, 3/4
x 2-1/2 GR8 (16)
118410 - Nut,
3/4 (16)
118509 - Lock
Washer, 3/4 (16)
788135 - Loader Binder Kit (Optional)
comes with...
788138 - Load Binder Ratchet (1)
788137 - Grab Hook (4)
788136 - Chain, 60” (2)

-7-
143393 - Strongbox®(07-February-2019)
STRONGBOX®838, 1038 & 1238 MOUNTING OPTIONS
STRONGBOX®1438 & 1638 MOUNTING OPTIONS
38 Series Mounting Options Overview
788110 - Universal Bucket Mount
788110 - Universal Bucket Mount
788425 - 3PT Hitch Bracket - CAT 3N
788445 - 3PT Hitch Bracket - CAT 3N
788280 - Universal Skid Steer Bracket
788320 - Universal Loader Bracket *
788330 - Universal Loader Bracket
788260 - 3500 DIL Dozer Bracket
788255 - 46/5700 DIL Dozer Bracket
788220 - 46/5700 DIL Dozer Bracket
SB838 & SB1038 (all models)
SB1238 (S/N:1238 and up)
SB838 & SB1038 (all models)
SB1238 (S/N:1238 and up)
(Does not fit SB1238 with
S/N:1074 & lower)
SB1238 (S/N:1074 & lower)
SB1438 & SB1638 (all models)
SB1238 (S/N:1074 & lower)
SB1438 & SB1638 (all models)
*Requires weld-on
bucket brackets
(Does not fit TV140)
(Does not fit quick-attach)
(Does not fit quick-attach)
*Requires weld-on
bucket brackets
(Does not fit TV140)

-8-
143393 - Strongbox®(29-March-2019)
38 Series Mounts
UNIVERSAL BUCKET MOUNT
788110 - Universal Bucket Mount Assembly
UNIVERSAL SKID STEER BRACKET
788280 - Universal Skid Steer Bracket Assembly
788105 - Bucket
Mount Assembly (2) 788280 - Universal Skid
Steer Bracket Assembly (1)
UNIVERSAL LOADER BRACKET
788320 - Universal Loader Bracket Assembly
UNIVERSAL LOADER BRACKET
788330 - Universal Loader Bracket Assembly
SB838 & SB1038 (all models)
SB1238 (S/N:1238 and up)
*Requires weld-on
bucket brackets
(Does not fit TV140)
SB1238 (S/N:1074 & lower)
SB1438 & SB1638 (all models)
*Requires weld-on
bucket brackets
(Does not fit TV140)
788426 - 3PT Mount
Assembly, 838/1038 (1)
118816 - Klik Pin (3)
788586 - Cplr Ball
- 3PT CAT 3N (2)
788467 - Pin, 1-7/16
x 4-5/16 (2)
788465 - Pin, 1-1/4 x 4 (1)
118177 - Bolt, 5/16 x 3/4 (3)
118538 - Flat Washer, 5/16 (3)
118530 - Lock Washer, 5/16 (3)
3PT HITCH BRACKET
788425 - 3PT Hitch Bracket (CAT 3N) Assembly
(Does not fit quick-attach)
788446 - 3PT Mount Assembly,
S38 - CAT 3N (1)
118816 - Klik Pin (3)
788586 - Cplr Ball
- 3PT CAT 3N (2)
788467 - Pin, 1-7/16
x 4-5/16 (2)
788465 - Pin, 1-1/4 x 4 (1)
118177 - Bolt, 5/16 x 3/4 (3)
118538 - Flat Washer, 5/16 (3)
118530 - Lock Washer, 5/16 (3)
3PT HITCH BRACKET
788445 - 3PT Hitch Bracket (CAT 3N) Assembly
(Does not fit quick-attach)

-9-
143393 - Strongbox®(07-February-2019)

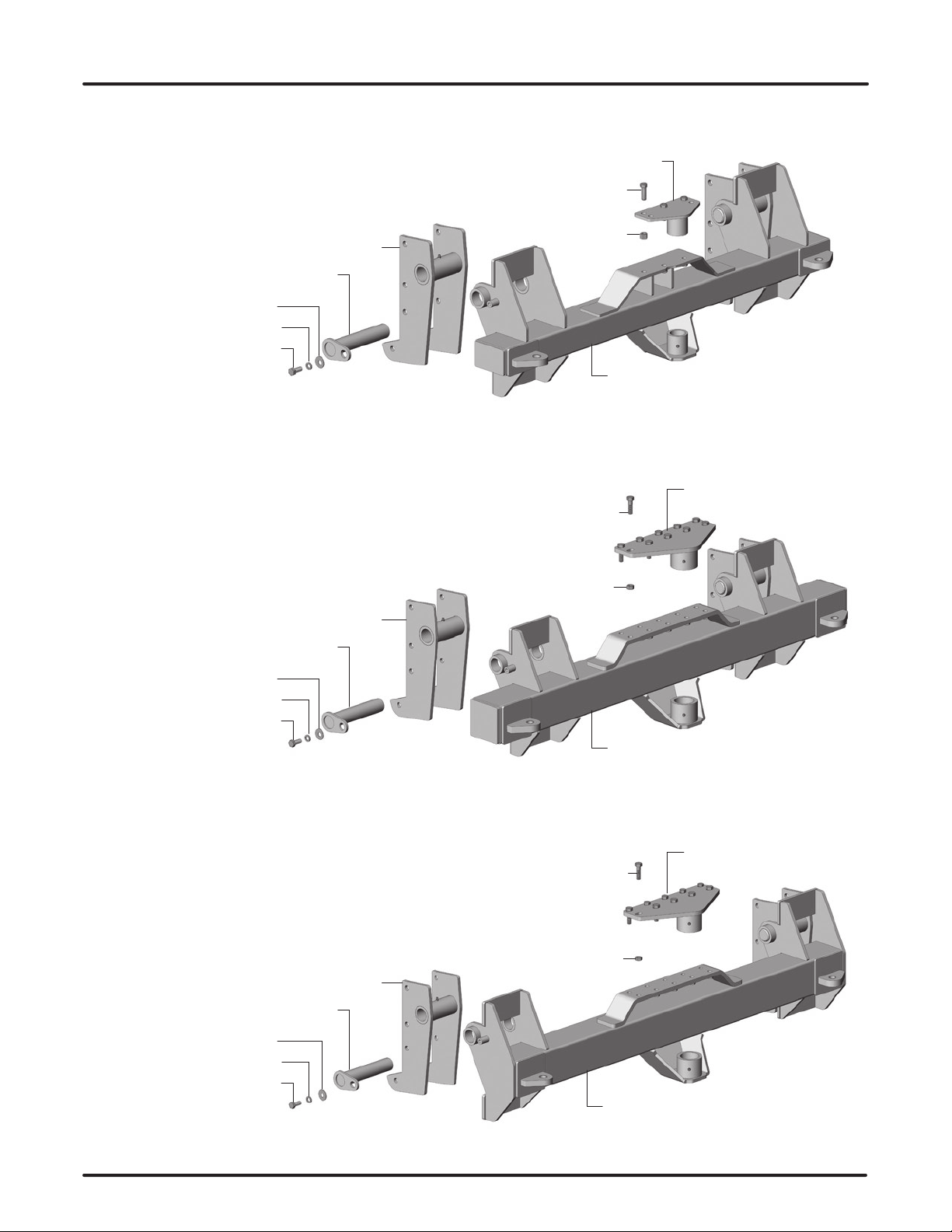

38 Series Mounts
788261 - 3500 Pivot Mount
Assembly - Strongbox (1)
788235 - Mount Bracket
Assembly (2)
788240 - Pin, 2-1/16 x 10-3/8 (1)
779059 - Angling Cap
Assembly, 3500 (1)
118024 - Bolt, 5/8 x 1-1/2 (2)
118026 - Bolt, 5/8 x 2 (3)
118514 - Flat Washer, 5/8 (2)
118508 - Lock Washer, 5/8 (2)
118448 - Lock Nut, 5/8
GRB Unitorque (3)
3500 DEGELMAN DOZER BRACKET
788260 - 3500 DIL Dozer Bracket Assembly
(Does not fit SB1238 with S/N:1074 & lower)
788256 - 46/5700 Pivot Mount
Assembly - Strongbox (1)
788235 - Mount Bracket
Assembly (2)
788240 - Pin, 2-1/16 x 10-3/8 (1)
778050 - Angling Cap
Assembly, 46/5700 (1)
118024 - Bolt, 5/8 x 1-1/2 (2)
118795 - Bolt, 5/8
x 2-1/4 GR8 (10)
118514 - Flat Washer, 5/8 (2)
118508 - Lock Washer, 5/8 (2)
118447 - Lock Nut, 5/8
GRC Unitorque (10)
46/5700 DEGELMAN DOZER BRACKET
788255 - 46/5700 DIL Dozer Bracket Assembly
SB838 & SB1038 (all models)
SB1238 (S/N:1238 and up)
788221 - 46/5700 Pivot Mount
Assembly - Strongbox (1)
788235 - Mount Bracket
Assembly (2)
788240 - Pin, 2-1/16 x 10-3/8 (1)
778050 - Angling Cap
Assembly, 46/5700 (1)
118024 - Bolt, 5/8 x 1-1/2 (2)
118795 - Bolt, 5/8
x 2-1/4 GR8 (10)
118514 - Flat Washer, 5/8 (2)
118508 - Lock Washer, 5/8 (2)
118447 - Lock Nut, 5/8
GRC Unitorque (10)
46/5700 DEGELMAN DOZER BRACKET
788220 - 46/5700 DIL Dozer Bracket Assembly
SB1238 (S/N:1074 & lower)
SB1438 & SB1638 (all models)

-10-
143393 - Strongbox®(07-February-2019)

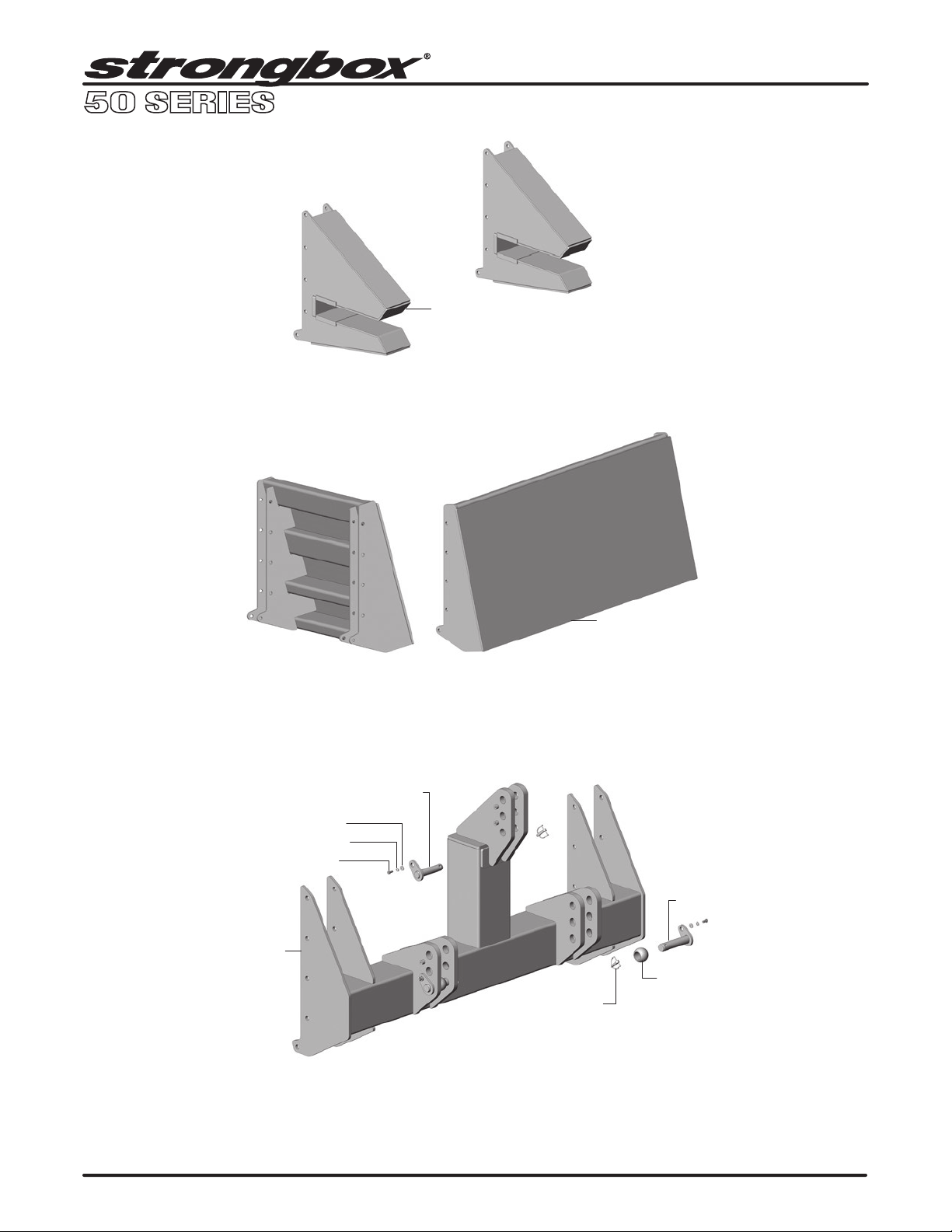

50 Series Strongbox
788005 - 16 ft
788006 - 18 ft
788007 - 20 ft
1650/1850/2050
50 Series Model Overview
50 SERIES BLADE COMPONENTS
SB50 Blade Assembly
788070 - 16 ft (shown)
788085 - 18 ft
788095 - 20 ft
Rubber Cutting Edge
788119 (2) - 16 ft (shown)
788120 (2) - 18 ft
788121 (2) - 20 ft
Bolt Plate for Cutting Edge
788124 (2) - 16 ft (shown)
788125 (2) - 18 ft
788126 (2) - 20 ft
Urethane Cutting Edge (option)
788275 (2) - 16 ft
788276 (2) - 18 ft
788277 (2) - 20 ft
Steel Cutting Edge (option)
116113 (2) - 16 ft
116111 (3) - 18 ft
N/A - 20 ft
118203 - Scraper Bolt, 5/8 x 2 (12)
118048 - Bolt, 3/4 x
2-1/2 GR8 (20)
118034 - Bolt, 5/8 x 3-1/2
16ft (20) 18ft (22) 20ft (24)
118447 - Lock Nut, 5/8 GRC Unitorque
16ft (20) 18ft (22) 20ft (24)
118407 - Nut, 5/8 (12) 118410 - Nut, 3/4 (20)
118508 - Lock Washer, 5/8 (12) 118509 - Lock Washer, 3/4 (20)
788290 - Wear Shoe, LH 50 SRS (1) (shown)
788291 - Wear Shoe, RH 50 SRS (1)
788135 - Loader Binder Kit (Optional)
comes with...
788138 - Load Binder Ratchet (1)
788137 - Grab Hook (4)
788136 - Chain, 60” (2)

-11-
143393 - Strongbox®(07-February-2019)
1650, 1850 & 2050 MOUNTING OPTIONS
50 Series Mounting Options Overview
788150 - Universal Bucket Mount
788310 - Universal Loader Bracket
788400 - 3PT Hitch Bracket - CAT 3N
788340 - 69/7200 & 7900 DIL Dozer Bracket
788375 - 69/7200 Truss Bundle
788394 - 7900 Truss Bundle
(This mounting system requires 2 model
specific Truss Bundles - see detail)
(2 Required)
(2 Required)
(Hydraulic Angling & Tilt Kits are not required
for these units, deselect when ordering)
*Requires weld-on
bucket brackets

-12-
143393 - Strongbox®(07-February-2019)
50 Series Mounts
788151 - Bucket
Mount Assembly (2)
UNIVERSAL BUCKET MOUNT
788150 - Universal Bucket Mount Assembly
788310 - Universal Skid
Steer Bracket Assembly (1)
UNIVERSAL LOADER BRACKET
788310 - Universal Loader Bracket Assembly
788401 - 3PT
Mount Assembly,
S50 - CAT 3N (1)
118816 - Klik
Pin (3)
788586 - Cplr Ball
- 3PT CAT 3N (2)
788921 - Pin, 1-7/16
x 5-1/2 (2)
788918 - Pin, 1-1/4 x 4-1/2 (1)
118177 - Bolt, 5/16 x 3/4 (3)
118538 - Flat Washer, 5/16 (3)
118530 - Lock Washer, 5/16 (3)
3PT HITCH BRACKET
788400 - 3PT Hitch Bracket (CAT 3N) Assembly

-13-
143393 - Strongbox®(07-February-2019)
69/7200 & 7900 DEGELMAN DOZER BRACKET
788340 - 69/7200 & 7900 DIL Dozer Bracket Assembly
50 Series Mounts
788341 - 69/72/7900 Pivot
Mount Assembly - Strongbox (1)
788363 - Mount
Bracket Assembly (2)
788240 - Pin, 2-1/16
x 10-3/8 (2)
782207 - Angle
Cylinder Pin (2)
112274 - Hydraulic
Angle Pin (2)
118024 - Bolt,
5/8 x 1-1/2 (2)
118514 - Flat
Washer, 5/8 (2)
118508 -
Lock Washer,
5/8 (2)
118611 - Bolt, 1/2 x 2-1/4 (2)
118047 - Bolt,
3/4 x 2-1/2 (2)
118405 - Nut, 1/2 (2)
118410 - Nut, 3/4 (2)
118456 - Lock
Nut, 1 (8)
788370 - Threaded
Rod Assembly, 1 (4)
788367 - Pin, 2-7/16 x 12-1/2
x 1-1/32 Hole (2)
118504 - Lock Washer, 1/2 (2)
118509 - Lock
Washer, 3/4 (2)
118516 - Flat
Washer, 3/4 (2)
788368 - Pin, 2-7/16
x 12-1/2 x 1 (2)
69/7200 DOZER TRUSS BUNDLE
788375 - 69/7200 Truss Bundle (2 required)
112217 - Pin,
1-1/4 x 6-1/4 (1)
112218 - Bushing,
1/3/4 OD (2)
788385 - Truss Inner Tube
Assembly (1)
788376 - Truss Outer Tube Assembly (1)
118839 - Cotter Pin,
1/4 x 2 (2)
117410 - Capscrew,
SHCS 1/4 x 1/2 (1)
7900 DOZER TRUSS BUNDLE
788394 - 7900 Truss Bundle (2 required)
788395 - Truss Inner Tube
Assembly (1)
788376 - Truss Outer Tube Assembly (1)
117410 - Capscrew,
SHCS 1/4 x 1/2 (1)
(This mounting system requires 2 model specific Truss Bundles - see options below)
(Hydraulic Angling & Tilt Kits are not required for these units, deselect when ordering)

-14-
143393 - Strongbox®(07-February-2019)
2 Year
Limited Warranty
Degelman Industries Ltd. (“Degelman”) warrants to the original purchaser of any new Degelman equipment, purchased
from an authorized Degelman dealer, that the equipment will be free from defects in material and workmanship for a
period of two (2) years from the date of delivery, for non-commercial use (including farm, institutional, government, and
municipality) and (1) year from the date of delivery for commercial use. The obligation of Degelman to the purchaser
under this warranty is limited to the repair or replacement of defective parts in the first year and to the provision, but not
the installation of replacement parts in the second year. Degelman reserves the right to inspect any equipment or parts
which are claimed to have been defective in material or workmanship.
This warranty limits its replacement or repair coverage to what is consistent with the warranty of Degelman’s suppliers of
purchased components. Replacement or repair parts installed in the equipment covered by this limited warranty are
warranted for ninety (90) days from the date of delivery of such part or the expiration of the applicable new equipment
warranty period, which ever occurs later. Warranted parts shall be provided at no cost to the user at an authorized
Degelman dealer during regular working hours. Warranted replacement parts will either be replaced or rebuilt at
Degelman’s discretion.
Disclaimer of implied warranties & consequential damages
This warranty shall not be interpreted to render Degelman Industries Ltd. liable for injury, death, property damage or
damages of any kind, whether direct, consequential, or contingent to property. Without limiting the generality of the
foregoing, Degelman shall not be liable for damages resulting from any cause beyond its reasonable control, including,
without limitation, loss of crops, any expense or loss of labour, supplies, rental machinery or loss of use.
No other warranty of any kind whatsoever, express or implied is made with respect to this sale; and all implied warranties
of merchantability and fitness for a particular purpose which exceed the obligations set forth in this written warranty are
hereby disclaimed and excluded from this sale. This exclusion shall not apply in any jurisdiction where it is not permitted
by law.
This limited warranty shall not apply:
1. If, in the sole opinion of Degelman, the unit has been subjected to misapplication, abuse, misuse, negligence,
accident or incorrect installation.
2. To any goods that have sustained damage or deterioration attributable to a lack of routine maintenance (eg. Re-
torque of mounting hardware.)
3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement
of Degelman such use affects its performance, safety, stability or reliability.
4. If the unit has been altered or repaired outside of an authorized Degelman dealership in a manner which, in the
sole judgement of Degelman, affects its performance, safety, stability or reliability.
5. To expendable or wear items such as cutting edges, skid shoes, and any other items that in the company’s sole
judgement is a wear item.
No employee or representative of Degelman Industries Ltd. is authorized to change this limited warranty in any way or
grant any other warranty unless such change is made in writing and signed by the Degelman Service Manager.
This limited warranty is subject to any future availability of supply, which may directly affect Degelman’s ability to obtain
materials or manufacture replacement parts.
Degelman reserves the right to make improvements in design or changes in specifications at any time, without incurring
obligations to owners of equipment previously delivered.
This limited warranty is subject to compliance by the customer to the enclosed Retail Customer’s Responsibility Under
Degelman Warranty.
Make certain the warranty registration card has been forwarded to: Degelman Industries Ltd.
Box 830
272 Industrial Dr.
Regina, SK, Canada
S4P 3B1
Warranty
